Caddytek CaddyLite ONE-S User manual

CaddyLite ONE –S, v8
User’s Manual

CaddyTek Inc.
2075 S. Atlantic Blvd., # C
Monterey Park, CA 91754, USA
www.caddytek.com
v

WARNING:
FOR YOUR OWN SAFETY, PLEASE REVIEW THESE WARNINGS AND
KEEP THIS USER GUIDE FOR FUTURE REFERENCE.
●Before using this golf cart, please read and understand the important
instructions and warnings in this user guide.
●AVOID injury by always following the folding and unfolding the cart
instructions carefully
●AVOID INJURY by keeping clear of moving parts while adjusting, folding
or unfolding this cart.
●ALWAYS make sure the cart is fully extended and locked before use.
●ALWAYS make sure the cart is folded and locked properly before lifting or
transporting.
●ALWAYS use the brake when parking the cart.
●DO NOT run while using this cart.
●DO NOT use accessories other than those designed specifically for this
cart.
●Keep hands and fingers away from moving parts or sliding sections of the
cart!

Package contents:
1. The main frame of the cart
2. Two main wheels
3. Front wheel assembly
4. Umbrella holder
5. Drink holder
6. This user manual
7. Tools for adjustment
In case any of the above items are missing or damaged, please call 800-906-6918 or email
service [email protected] to report.
Parts identification:
A: PVC handle grip
B: Umbrella holder
C. Umbrella holder base
D: Scorecard holder assembly
E: Umbrella holder storage rack
F: Handle frame
G: Upper bag holder bracket set
H: Adjustable handle mechanism
I: Main frame
J: Front connection Rod
J1: Main connection Rod
K: Leg frame bracket
L: 2 holes right leg frame
L1: 2 holes left leg frame
M: 4 holes right leg frame
N: Lower bag holder bracket assembly
O: Supporting cable
P: Stabilization bar
Q: Main lower frame tube
R: Right wheel lock assembly
R1: Left wheel lock assembly
S: Foot brake assembly
T: Rear wheel assembly
U: Front wheel assembly
V: Drink holder
W: One-click folding push button
X: Handle mesh net
Y:Lever for locking/unlocking front wheel swivel
Z: Holding slot
Z1: Basket with cooler
1

Assembly the cart
Install the main wheels Install the front wheel
Lift the upper bag bracket
as shown in Fig. 1.
Simply pull the handle and
upper bag bracket as shown in
Fig. 2 to extend the cart. (Shake
the cart slightly to release the
main frame from the holding slot
if necessary.)
Simply insert the front
wheel assembly into front
wheel holding frame as
shown in Fig. 4.
The cart is fully extended
as shown in Fig. 5.
Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
locking buckle
2
Unfolding motion
Release the wheel locking buckle,
insert the wheel axel into the wheel
holder completely and then tighten
the locking buckle.
Press the button on both
sides of the golf bag holder
socket to unfold the wings
automatically in Fig. 3.
button
button

Remove front wheel for storage of the cart

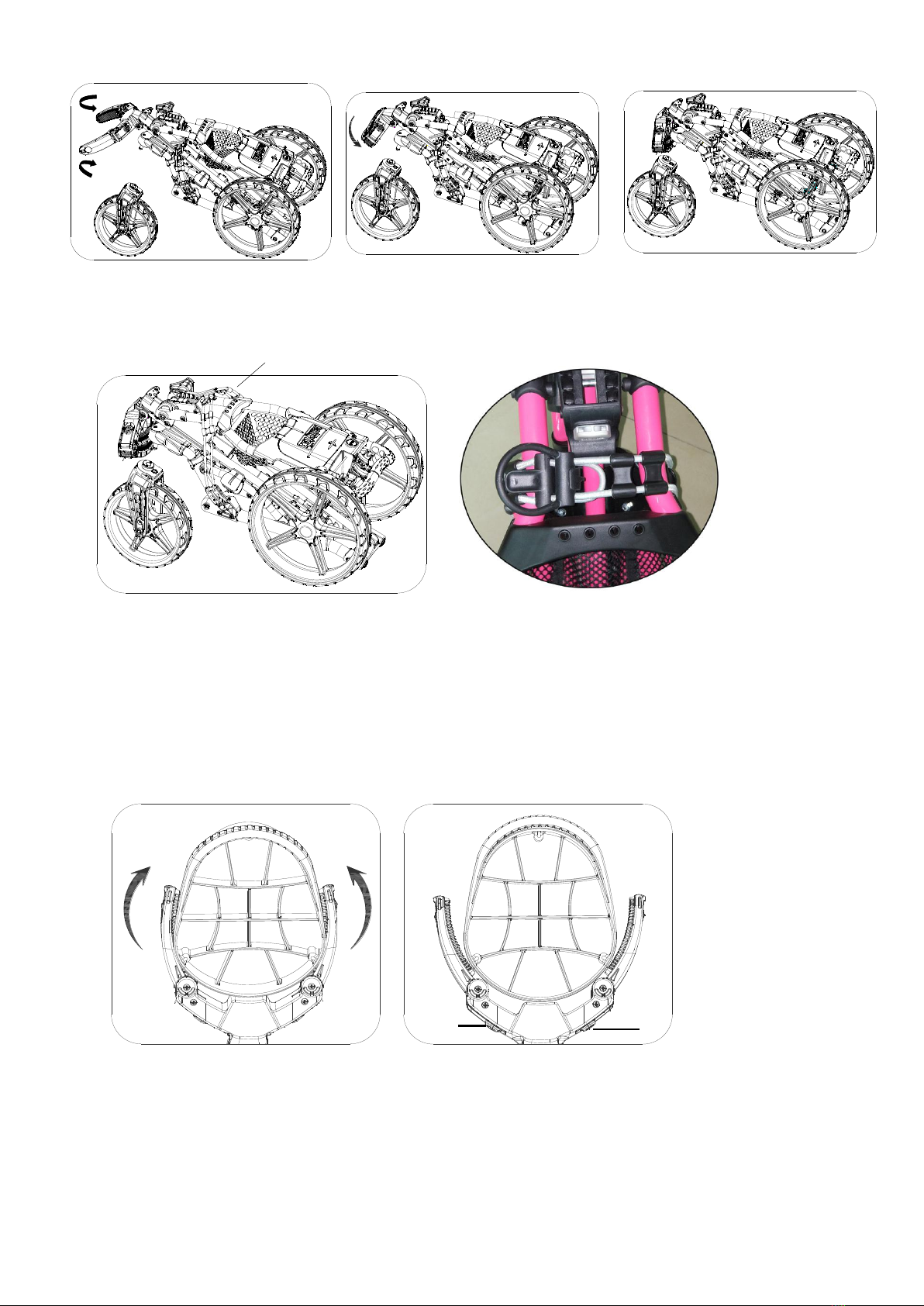

Make sure the handle height adjusting knob is fully tighten .Slightly lift up the handle as Fig. 6 then
press the folding button and push the handle downward as shown in Fig. 7 , Fig. 8 to fold the cart
till the main frame clicks into the holding slot as in Fig. O. The cart folded as Fig. 9.
Fig. 6
Fig. 9
3
Folding the cart
Folding push
button
Fig. 7
Fig. O
the holding slot
Fig. 8
Handle height
adjusting knob
Remove front wheel by pressing the release button as shown in Fig. 10 to store the cart conveniently
as Fig. 11.
button
Fig. 10
Fig. 11

Simply push the golf bag holder wings inward to closed wings as shown in Fig12, then fold the
upper bracket as shown in Fig13/14.
To secure the folded cart with the lower bag holder elastic rope as shown in Fig.15/16.
Push the both wings of upper
bracket inward to clamp the
bag as shown in Fig.17.
Press the release button at the
back of upper bracket to lose the
wings then golf bag can be taken
off shown in Fig.18.
Upper Golf Bag Holder Bracket
Release
button
Fig. 12
Fig. 13
Fig. 14
Fig. 15
Fig. 16
Elastic rope
Fig. 17
Fig. 18
4
Release
button

Umbrella Holder
To put in use:
Simply attach the umbrella holder
onto the cart as in fig. 22/23.
Fig. 22
Fig. 24
5
Fig. 23
To store:
Attach the umbrella holder to
the storage rack on the right
leg frame as in Fig. 24.
Use the brake
Install the drink holder
Press the foot brake to
brake, lift it up to release
as Fig. 25
Fig. 20
Fig. 19
Fig. 21
Fig. 25
When installing the drink holder as Fig.19, align the smallest part of
the slot on the holder with the fixed blocks. Then pull horizontally to fit
the holder on the base as Fig.20 & 21.
The front wheel can swivel 360
degree when the Lever on the
handle is pull down as Fig.26. The
front wheel will be locked and cart
going straight when the lever is pull
up.
Fig. 26
Lock and unlock the
Swivel front wheel
Fixed block on base notch
Slot on
Hole 1
Hole 2
Hole 2
UP
DOWN

Bag Holder Strap Length Adjustment
Refer to the Fig. 27 & Fig.28:
1. Pull the elastic strap out of the strap buckle as in fig. 27.
2. Adjust the strap to the desired length.
3. Push the elastic strap back to the strap buckle as in fig. 28.
Fig. 27
Fig. 28
To open the scorecard
holder cover
Press the button to open the
scorecard holder cover as Fig.29.
Fig. 29
When facing the cart:
If the cart veers to RIGHT: use the Allen wrench (as shown in Fig.31) to lose the 2 screws
(A) on the backside of the front wheel frame as shown in Fig. 32. Then adjust the front
wheel to center position by turning the screw (B) counterclockwise as in Fig. 33. Tighten
the 2 Screws (A) after the front wheel alignment is done.
If the cart veers to LEFT: use the Allen wrench (as shown in Fig. 31) to lose the 2
screws (A) on the backside of the front wheel frame as shown in Fig. 32. Then adjust
the front wheel to center position by turning the screw (B) clockwise as in Fig. 33.
Tighten the 2 Screws (A) after the front wheel alignment is done.
6
A
B
Fig. 31
Fig. 32
Fig. 33
Allen wrench
Left
Right
Fig. 30

WARRANTY
CaddyTek Inc. warrants its products to be free of defects and workmanship
for one year from the date of purchase. We will either repair or replace
defective products at our option.
Normal wear and fading of products are not considered manufacturer's
defect. This warranty does not apply to claim of damage to items used in
connection with CaddyTek Inc. products. In the case of deterioration due to
normal use we will repair the item for a normal charge. CaddyTek Inc. is the
sole judge of any claim or warranty.
For customers in North America, please contact CaddyTek Inc. for the
service. For customers outside of North America, please contact with your
dealer for the warranty service or you are welcome to contact CaddyTek Inc.
directly.
