Owner’s Manual Supplement
Adventure Neo Allroad
English

Safety Messages
In this manual, particularly important information
is presented in the following ways:
DANGER
Indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING
Indicates a hazardous situation which, if not avoided,
may result in death or serious injury.
NOTICE
Indicates special precautions that must be taken to
avoid damage.
Cannondale Help Center
Our online Help Center contains helpful
resources to consult about our bikes.
https://cannondale.zendesk.com/hc/en-us
Bike Registration
To register your bike:
Go to the Product Registration section of our
website at www.cannondale.com
Bike serial number location shown on page 9.

1
CONTENTS
General Safety Information.............18
Identification .......................................9
Technical Information.................. 1021
Replacement Parts...................... 2223
EBike Maintenance....................2428
Cannondale Supplements
This manual is a “supplement” to your
Cannondale Bicycle Owner’s Manual.
This supplement provides additional and
important model specific safety, maintenance,
and technical information. It may be one of
several important manuals/supplements for
your bike; obtain and read all of them.
Please contact your Authorized Cannondale
Dealer immediately if you need a manual or
supplement or have a question about your
bike. You may also contact us using the
appropriate country/region/location
information.
You can download Adobe Acrobat PDF
versions of any manual/supplement from our
website: http://www.cannondale.com.
Contacting Cannondale
Cannondale USA
1 Cannondale Way
Wilton, CT 06897, USA
1800726-BIKE (2453)
Cannondale Europe
Geeresteinselaan 57
3931JB Woudenberg
The Netherlands
PH: 00.31.541.200374
International Distributors
Consult our website to identify the appropriate
Cannondale Dealer for your region.
Your Cannondale Dealer
To make sure your bike is serviced and
maintained correctly, and that you protect
applicable warranties, please coordinate all
service and maintenance through your
Authorized Cannondale Dealer.
NOTICE
Unauthorized service, maintenance, or
repair parts can result in serious damage
and void your warranty.
Drive System
MANUFACTURER’S INSTRUCTIONS  In
addition to this supplement, you must read and
follow the manufacturer’s instructions for all
components of the drive-assist system:
Drive Unit Battery
Display/Control Unit Charger
Manufacturers’ instructions contain important
operations, service and maintenance
information.

2
Adventure Neo AllRoad OMS
General Safety Information
Intended Use
185533 Rev0 (03/23)
General Safety Information
Intended Use
The intended use of all
models is
ASTM CONDITION 2,
General Purpose Riding.
What is an EBike?
Electric bikes, also known as “EBikes,” are
bicycles equipped with an electric
pedal-assist drive system. An EBike IS NOT
a moped or motorcycle. EBikes share
components common with pedal-only bikes.
What is a Drive System?
The drive-assist system consists of a drive
unit, a battery, a computer control, and
various electronic components (harness
wires, sensors, and switches). There are
many dierent drive-assist systems for
diering uses and bike types. Likewise there
are various drive-assist system
manufacturers (Shimano, BOSCH, Bafang,
Yamaha, etc.).
How does the Drive System work?
It is important to know that when the
drive-assist system is turned ON, the drive
unit engages to provide power only while you
are pedaling.
The amount of power provided by the drive
unit depends on your pedaling force and on
the assistance mode/level you set with the
handlebar control unit. At anytime, if you
stop pedaling, the drive-assist will dis-
engage.
In all modes/levels, the drive-assist system
power reduces progressively and cuts o as
the bike reaches the maximum allowable
speed. The drive-assist re-engages when
speed drops below the maximum allowable
speed as long as the pedals are turning.
Whenever the drive-assist system is turned
OFF, you can pedal the bike normally. The
drive system will not engage.
Understand your bike, its drive-assist
system, and the intended use of both.
Using your bike the wrong way is
dangerous.
Please read your Cannondale Bicycle
Owner’s Manual for more information
about Intended Use and Conditions 15.
Servicing
This supplement may include procedures
beyond the scope of general mechanical
aptitude.
Special tools, skills, and knowledge may
be required. Improper mechanical work
increases the risk of an accident. Any
bicycle accident has risk of serious injury,
paralysis, or death.
To minimize risk we strongly recommend
that owners always have mechanical
work done by an Authorized Cannondale
Dealer.

3
General Safety Information
Compliance/Regulation
Compliance/Regulation
YOU MUST OBEY ALL LOCAL LAWS & REGULATORY REQUIREMENTS - It is your
responsibility to identify and to follow all local laws and regulations necessary for legal
compliance. Compliance with local regulations is critical to the safety of the rider and of
others where the bike is used.
Here are some important specifications related to compliance with local laws:
VEHICLE CLASS - A definition (California, USA) of the dierent types of EBikes, EBike
labeling, and legal use areas, including any required additional equipment, registration, and
applicable rider age restrictions.
VEHICLE CATEGORY - A definition of the European Union of the dierent types of an EBike,
who may use them and where they may be used, necessary additional equipment such as
lighting and signaling devices, as well as any necessary insurance and licensing.
OBSERVE MINIMUM OPERATOR AGE - Follow any national, state, or local laws for any
minimum age restrictions for the operator of the EBike.
Ask your local Authorized Cannondale Dealer for more information about operating an
electrically-assisted pedal bicycle in your area.

4
Adventure Neo AllRoad OMS
General Safety Information
Operation
185533 Rev0 (03/23)
Operation
Always wear an approved bicycle helmet and all other protective gear (e.g., gloves, pads, and
cycling shoes).
Importance of practice & rider training - before you ride this bike, practice riding in a safe area
free from hazards. Take time to learn the bike’s controls and performance. Practice the
controls and to gain the experience necessary to avoid the many hazards you will encounter
while riding.
Do not ride “hands-o - Keep your hands on the handlebars when riding the bike. If you
remove your hands from the handlebar while riding, you can lose control of the bicycle and
crash.
Changing the assistance level while riding: Changing the drive-assistance level while riding
will increase or decrease the acceleration of the bike. You should anticipate this change in
speed and react appropriately depending on the riding conditions such as on slippery trails,
tight turns, or unstable or uneven surfaces. Set assistance level to “eco” (lowest assist) or to
“o” before descending technical trails (e.g., tight downhill switchbacks).
When not riding: Turn the drive system o to prevent unauthorized use.
Do not ride the e-bike without the battery. Make sure the battery is fully charged before
every ride to help ensure adequate battery power for necessary lighting and for the drive
system.
Do not remove any lighting or reflectors and do not ride if they do not work.
Do not allow children to operate or to come into contact with the e-bike or its parts.
Only turn the drive system on when you are seated ready to ride.
Accidental activation: Always disconnect the battery from the bike before working on the
bicycle. If you transport the bike by car or by airplane, obey local regulations regarding
transporting a bicycle with a drive system battery. Accidental activation of the bicycle drive
system can result in serious injury.
continued next page

5
General Safety Information
Operation
continued from previous page...
Wired system control: If the drive system control device is detached from the mount or if the
cables are disconnected or damaged, the drive system will automatically shut o. If this
happens, you will have to stop the bike, turn the system o , re-attach the computer to the
base, and then turn the system back on to resume operation.
Wireless system control: In wireless control systems, the operation of the drive system is
controlled using radio frequencies without physical attachment. Therefore, ON/OFF
activation is determined by software programming. Please consult the manufacturer’s
instructions for information on preventing accidental activation or on restarting the drive
system in the event of a recovery from a drive system fault.
Your insurance policies - Your insurance policies (e.g., liability, property, and injury) may not
provide coverage for accidents involving the use of this bicycle. To determine if coverage is
provided, you should contact your insurance company or agent. Also, make sure your e-bike
is insured and registered according to the local laws.
Ride sensibly and safely around others - the application of power by means of the electric
motor assist means that riders can reach high speed. Riding faster increases the risks of
serious accidents.
Watch out for other vehicles, cyclists, pedestrians, and animals where you ride. Always
operate under control and at a safe speed. Others may not be aware of you. It is your
responsibility to anticipate and to react to avoid accidents.
E-bikes are heavier than ordinary bikes - always park the bike in a suitable safe area away
from children, cars or animals that may come into contact with it. Park the bike so that it
cannot fall over and possibly result in injuries.
Do not ride into or attempt to ride through water or to submerge any part of the bike. If you
ride through water you can lose control of the bike or the drive-assist system can become
disabled or damage.
You can be severely injured, paralyzed, or killed in an accident if you ignore these warnings.

6
Adventure Neo AllRoad OMS
General Safety Information
Batteries & Chargers
185533 Rev0 (03/23)
Batteries & Chargers
DANGER
Battery Damage Following: Flooding, Water-Intrusion, Submersion, Very Hard Impacts
If your electric bike lithium battery has been immersed or soaked by severe storm flooding, or water
leakage in your home, you should immediately put that battery outdoors. Choose a place that, should
the battery catch fire, the fire will not ignite a building, a vehicle or be any sort of safety risk. These
large format batteries, containing enough energy to propel a rider 20 MPH or more for many miles,
will release that energy as heat when they short circuit upon being immersed. Maybe not immediately,
but they are very dangerous and must be removed to a safe location and monitored. If immersed or
soaked, get them out of the house or building now!
REPLACEMENT - Only use the battery pack and charger indicated in the “Specifications” section
of this supplement. Do not use other batteries or chargers. Do not use the charger to charge other
batteries.
PREVENT DAMAGE - Do not drop the battery or charger. Do not open, disassemble, or modify the
battery or charger. There are no user-serviceable parts inside.
Keep the battery out of intense sunlight and away from heat. Excessive heat will damage the battery.
Keep battery away from paper clips, coins, keys, nails, screws, or other small metal items to prevent
shorting exposed battery contacts. Shorting battery contacts can cause severe burns, fire, or an
explosion.
STORAGE & TRANSPORTATION - When the battery is not in use in the bicycle, its transportation is
subject to hazardous materials regulation. Special packaging and labeling requirements may exist.
Contact local authorities for specific requirements. Never transport a damaged battery. Insulate
battery contacts before packaging. Package the battery inside a shipping container to prevent
damage. The battery must be removed before flying and may be subject to special handling by the
air carrier.
CHARGING - Bring the battery and charger indoors and allow to reach room temperature before
charging. Make sure charger and A/C outlet are the same voltage.
Locate both charger and battery indoors in a clean, dry area with good ventilation to charge. Make
sure the area is free from combustibles to avoid fire from sparks or from over-heating. Keep charger
ventilation openings unobstructed. Do not cover the charger or the battery.
Disconnect the battery from the charger unit when fully charged. Do not leave a fully-charged
battery connected to the charger. Unplug the charger from the wall outlet when not in use.
Maintain the battery and the charger as directed by the manufacturer’s instructions.
DISPOSAL- Battery pack and charger contain regulated materials and must be disposed/discarded
in accordance with national and/or with local laws. Do not discard the battery/charger into fire, into
water, or into ordinary household waste/garbage. Instead, take to a waste facility/recycler.
FAILURE TO OBSERVE THESE WARNINGS CAN RESULT IN ELECTRICAL FIRES, EXPLOSIONS,
SEVERE BURNS, OR ELECTROCUTION.

7
General Safety Information
Side Stand
Commuting
EQUIPMENT  Any bicycle, including an
EBike must be properly equipped for
commuting including any legally-required
lights, signals, and registrations. Ask your
Authorized Cannondale Retailer if
commuting is within the scope of your
bike’s intended use and if your bike is
properly equipped for commuting.
DANGERS  Operating an E-bike as a
commuting vehicle is no less dangerous
than operating an ordinary pedal bike or
automobile. EBikes are certainly not
designed to protect you in a crash. Do not
assume the bike or its drive capability will
protect you or keep you from being
involved in a serious accident.
NIGHT RIDING- Riding at night on an
EBike or on a pedal-only bike is very
hazardous.
Read the topic “Riding at Night” in your
Cannondale Bicycle Owner’s Manual for
more information on the many hazards of
riding at night.
You must operate with a very high degree
of awareness and precaution to only
reduce the risk of death or serious injury.
No Modification
DO NOT MODIFY THIS BICYCLE/DRIVE
SYSTEM IN ANY WAY FOR ANY REASON.
Doing so can result in severe damage, in
faulty or in dangerous operating
conditions, or in violation of local laws.
Dealers and Owners MUST NOT change,
alter, or modify in any way the original
components of the bicycle or drive-assist
system (e.g., the specified sizing of the
gear ratios, i.e., the front chainrings and
rear cogs).
Attempts to “hot-rod” or to “improve” the
speed of the bike are dangerous to the
rider. Use only specified Cannondale and/
or manufacturer drive-assist service and
replacement parts.
Side Stand
Do not sit on the bicycle with the stand down.
Kickstand is not designed to support the
weight of a person.
Make sure kickstand is up before riding.
To prevent toppling over, park your bike on a
level surface; lower the stand.

8
Adventure Neo AllRoad OMS
General Safety Information
About Racks & Bags
185533 Rev0 (03/23)
About Racks & Bags
LOADING LIMIT (TOTAL): Loading limit for a front or rear rack is marked on the rack. Do not
overload the rack. Do not carry a passenger. A rack is not a seat.
UNDERSTAND THAT ADDING RACKS WILL AFFECT HOW YOUR BIKE HANDLES; YOU
MUST COMPENSATE. A loaded rack bag will aect the handling (e.g., steering, stability,
braking, acceleration, etc.) of your bike. You must learn to compensate for the handling eects of
the loaded items. If you use multiple racks and or cycling bags, distribute all weight across racks
evenly.
DO NOT MODIFY: The rack or bike frame must not be cut, drilled, or modified in any way.
PERIODIC INSPECTION REQUIRED: The rack and frame mounting points must be periodically
inspected for damage as part of your routine bicycle maintenance.
SECURE RACK/BAG CONTENTS: You must make sure that all items placed on the rack or in a
bags are secure and cannot be thrown out or shifted while riding. You must prevent any parts of
the contents, the straps, or the tie-downs used to secure the rack contents including those of the
bag from interfering with your ability to steer the bicycle or to use any of its controls. REMOVE
ALL items in the rack, and bags on the bike should be removed when the bicycle is placed on an
automobile rack. Make sure the strap ends/hooks are secured at the frame or rack tie-down
points. Make sure nothing such as loaded item or straps or ties used to secure the load can come
loose and entangled in the wheel.
YOU CAN BE SEVERELY INJURED, PARALYZED, OR KILLED IN AN ACCIDENT IF YOU IGNORE
THESE WARNINGS.
Trailer, Child Carriers or Child Seats
Do not attach a trailer, a child carrier or a child seat to this bicycle or its front/rear racks.
Attachment of a trailer, a child to this bicycle can result in a serious accident leading to serious
injury or death. Please read “Child Carriers” in your Cannondale Bicycle Owner’s Manual Now.

9
Identification
Drive System Parts of Your EBike
Identification
Drive System Parts of Your E-Bike
Identication
1. Drive Display - HMI
2. Handlebar drive control
switch
3. Throttle Assist thumb lever
4. Battery
5. Motor controller
6. Drive Hub
7. Bottom bracket/sensor
8. Bike serial number
6
4
8
1
3
2
5
7
Allroad S cockpit shown.

10
Adventure Neo AllRoad OMS
Technical Information
Frame Specifications
185533 Rev0 (03/23)
Technical Information
Item Specification
Model Adventure Allroad, Allroad EQ, Allroad S
Head Tube UPR:11/8”, LWR: 11/2”
Headset ZS44 top, ZS56 bottom
Bottom Bracket: Type/Width BSA Threaded/73mm
Front Derailleur None
Seat Post: Dia./Binder 30.9mm/34.9mm
Min. Seat Post Insert 65mm
Max. Seat Post Insert LSTH SM: 300mm LSTH MD: 185mm
STD MD: 185mm STD LG: 190mm
Tire Size x Max. Tire Width 27.5”x2.6” (measured)
Brakes: Mount Type / Min./Max. Rotor Dia. Post mount/160mm/180mm
Axles: Type/Length RR: Bafang Hub Motor,
FT (Rigid Fork Only): QR/1009mm
Max. Fork Length 490mm
Fork Oset 50mm
Intended Use ASTM CONDITION 2: General Purpose Riding
Max. Weight Limit: Total
(Rider+All Equipment+cargo) 305lbs/138kg
Frame Specications

11
Technical Information
Drive System Specifications
Allroad S
Item Specification
Model Name Adventure Allroad S
Ebike CLASS 3
Ebike maximum allowable speed 28 mph/45kph
Drive Display HMI Bafang DPC10.CAN
Drive System Hub Bafang G0900 750W
Drive Battery HWT-1303-CW-S50 48V 720Wh
Battery Charger Model MDA204A / 48V 2A
Drive controller Bafang CRS307.1000.FC
Drive System Manuals https://www.bafang-e.com
https://cannondale.zendesk.com/hc/en-us
Allroad, Allroad EQ
Item Specification
Model Allroad Allroad EQ
Ebike CLASS 2 2
Ebike maximum allowable speed 20 mph/32kph 20 mph/32kph
Drive Display HMI JYT S350 Bafang DP C11.CAN
Drive System Hub Bafang G020 250 W
Drive Battery HWT1--4-CWB26, 36V 418Wh
Battery Charger MDA257 / 36V 2.0A
Drive controller Bafang CR S105.250.FC
Drive System Manuals
https://www.bafang-e.com
https://cannondale.zendesk.com/hc/en-us
Drive System Specications

12
Adventure Neo AllRoad OMS
Technical Information
Geometry - Standard (STD)
185533 Rev0 (03/23)
75 mm
K
E
JI
L
A
F
D
N
M
H
C
B
P
G
O
F
Dimensions = centimeters
Geometry - Standard (STD)
Size MD LG
Wheel Size 27.5 27.5
ASeat Tube Length 44.0 50.0
BTop Tube Horizontal 58.5 61.0
CTop Tube Actual 56.5 58.4
DHead Tube Angle 67.0 67.0
ESeat Tube Angle Eective 73.0 73.0
F Standover 79.5 84.0
GHead Tube Length 18.0 19.5
H Wheelbase 117.4 120.0
I Front Center 69.1 71.6
J Chain Stay Length 49.0 49.0
K Bottom Bracket Drop 6.0 6.0
L Bottom Bracket Height 29.9 29.9
M Fork Rake 4.6 4.5
N Trail 25.5 25.6
O Stack 66.2 67.6
P Reach 38.3 40.3

13
Technical Information
Geometry - Low Step (LSTH )
75 mm
K
E
JI
L
A
F
D
N
M
H
C
B
P
G
O
F
Dimensions = centimeters
Geometry - Low Step (LSTH )
Size SM MD
Wheel Size 27.5 27.5
ASeat Tube Length 38.0 44.0
BTop Tube Horizontal 55.5 58.5
CTop Tube Actual 54.8 56.5
DHead Tube Angle 67.0 67.0
ESeat Tube Angle Eective 73.0 73.0
F Standover 43.5 43.5
GHead Tube Length 16.5 18.0
H Wheelbase 114.3 117.4
I Front Center 65.9 69.1
J Chain Stay Length 49.0 49.0
K Bottom Bracket Drop 6.0 6.0
L Bottom Bracket Height 29.9 29.9
M Fork Rake 4.6 4.6
N Trail 25.5 25.5
O Stack 64.8 66.2
P Reach 35.7 38.3

14
Adventure Neo AllRoad OMS
Technical Information
Throttle Assist
185533 Rev0 (03/23)

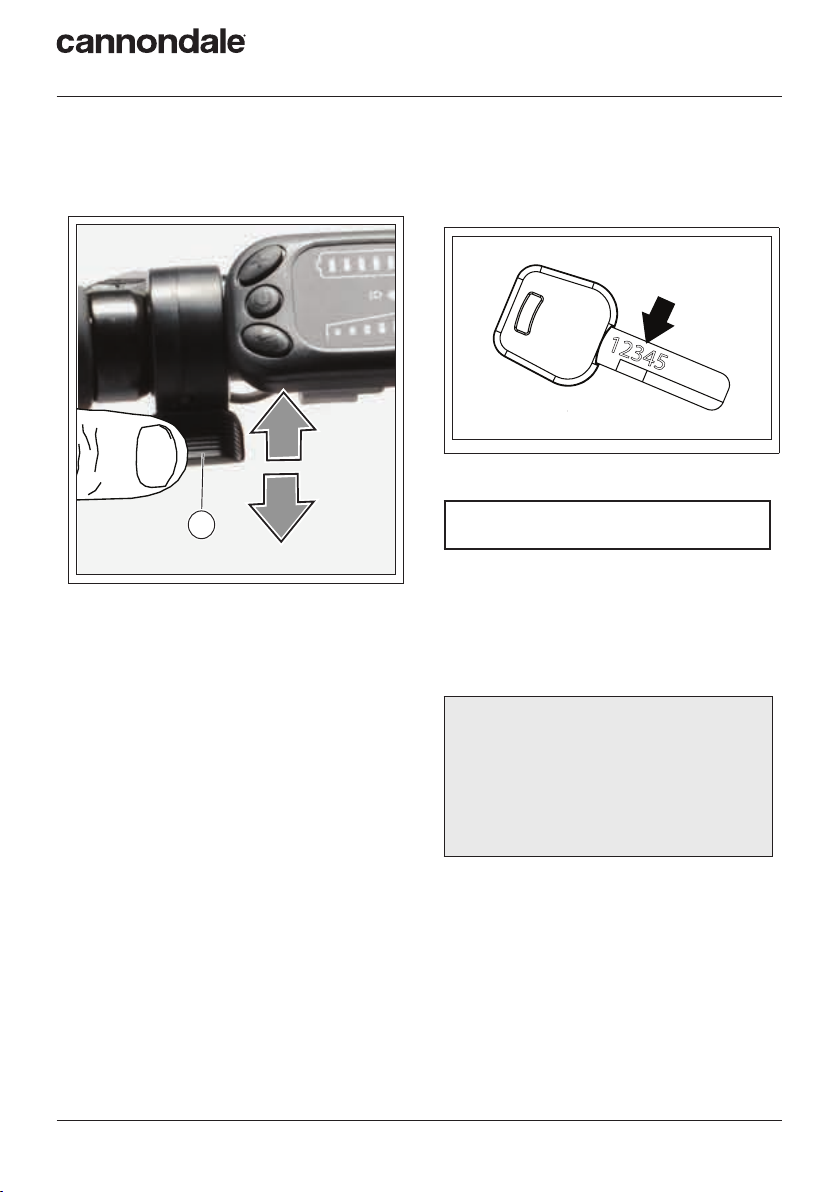

Throttle Assist
The throttle assist thumb lever is located on
the left handlebar.
1
The throttle assist feature of the drive
system activates the drive system without
pedaling.
• Slowly press the lever down to
progressively accelerate the bike.
• Hold the lever to maintain current
acceleration.
• Slowly release the lever up to
progressively reduce throttle assist.
• For safety reasons, the throttle will only
engage after you begin pedaling. The
throttle assist operates to maximum
assisted speed speed rating of the drive
system.
Battery Key
The key is used to lock/unlock the battery
onto the battery rack.
Write Key Number here:
Key number is needed to purchase a
replacement or duplicate key. Contact a
Authorized Cannondale Dealer in your
region. Be sure to have the key number
available.
NOTICE
Don’t ride with the key in the battery lock.
Always remove the key from the lock after
using it. Keys may be stolen or break o
accidentally in the lock. Keep your spare
key in a safe place.
Please Note:
After multiple rides and bike washes, the
battery lock may become dry and dicult to
use. To maintain, whenever you lubricate
your bike chain, place a few drops of chain oil
on the key, insert the key and operate the
lock, then remove and wipe the key clean.

15
Technical Information

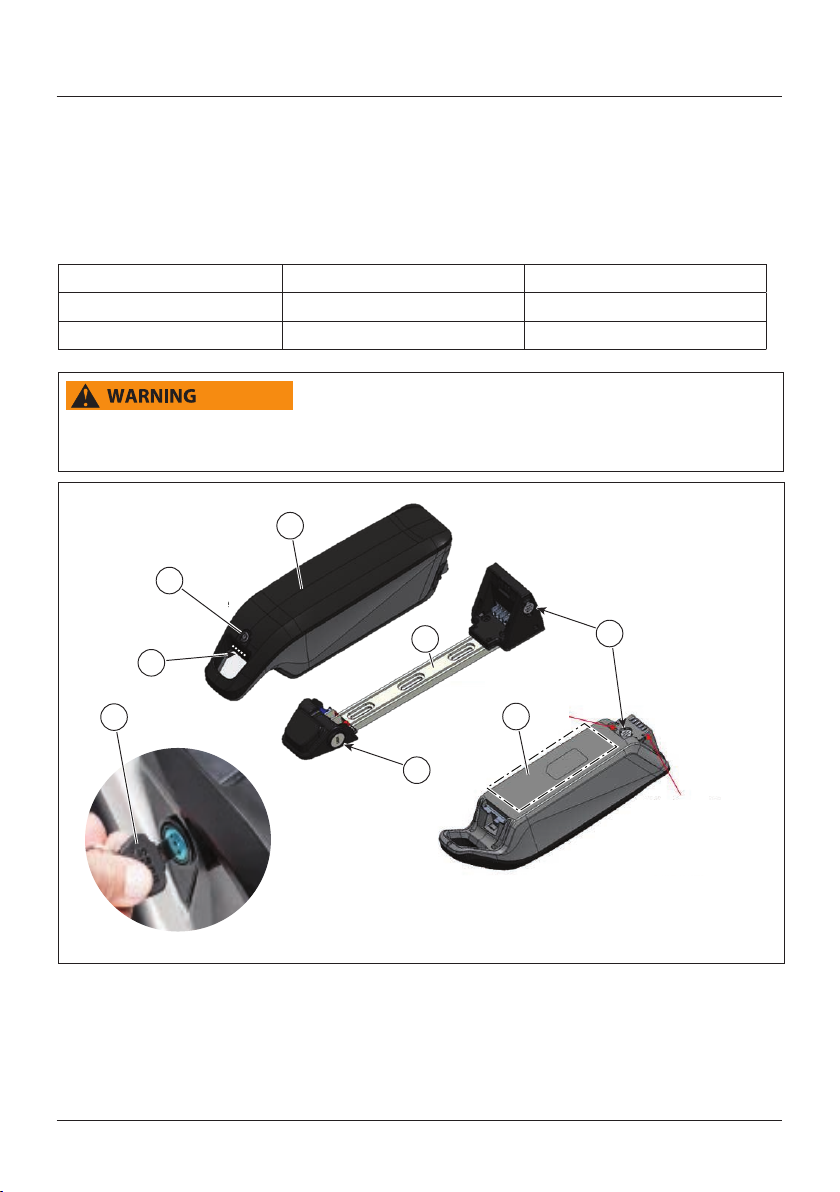

HWT  Battery Information
HWT - Battery Information
See also, Batteries & Chargers in “General Safety Information.”
This section provides operation and safety information for HWT 36V and HWT 48V batteries.
Battery shape and color are same. A battery’s voltage and identification information is marked on
the battery bottom.
Votage rating HWT Part Number HWT Model Number
48 V HWT1303-CWS50 911HWT1303ECW02
36V HWT1004-CWB29 91HWT100ECW01
The batteries and chargers of 36V and 48V systems are not interchangeable. You must use the
correct battery and voltage rating for your e-bike. See “Specifications.”
1
3
4
6
5
7
82
Identication
1. Battery
2. Label information
3. Battery mount
4. SOC button
5. LED indicators
6. Battery Lock
7. Charge port
8. Key number

16
Adventure Neo AllRoad OMS
Technical Information
Battery Power ON, Power OFF
185533 Rev0 (03/23)
Battery Power ON, Power OFF
The battery pack can be powered on and powered down in several ways as below. Make sure to
power OFF the battery before installing the battery into the battery mount.
Mode Methods
Power ON
(Wake Up)
• The Power/SOC button wake-up: Please press the
Power/SOC button to wake-up and power on the battery
pack.
• The HMI power button wake-up: Please press the HMI
power button to wake up and power on the battery pack.
• Charger-In wake-up: Please connect the charger to the
battery pack. The charger will wake up and power on the
battery pack.
Power OFF
(Shut down/ Ship mode)
• The Power/SOC button: Please press the Power/SOC
button and hold it for 3 seconds until all LEDs are
flashing. And then release the button to power down the
battery.
• *Idle shut down mode: When the battery pack is idle for
1 minute the battery pack will enter shut down mode.
• Under Voltage shut down mode: When the under voltage
protection is triggered and there is no any release action
for 30 seconds, the battery pack will enter the shut down
mode.
* idle means discharge or current is less than 30mA
Charging
The battery pack can be charged while it is mounted on the bike or while it is removed from the
bike.
To charge on the bike - Bring the bike to an area where it can be connected to the specified charger
and remain undisturbed during the charging time. Open the charge port cover and connect the
charger connector to the battery rack. Plug-in the charger to its source of power and charge the
battery. When charging is complete, unplug the charger, then remove the charge connector from
the battery rack and close the port cover.
When the battery is o the bike, under the same conditions noted above, connect the charger
directly to the charge port on the back of the battery. Remove and unplug the charger and the
battery when charging is completed.

17
Technical Information
Battery Charge Level - Indicator LED
Battery Charge Level - Indicator LED

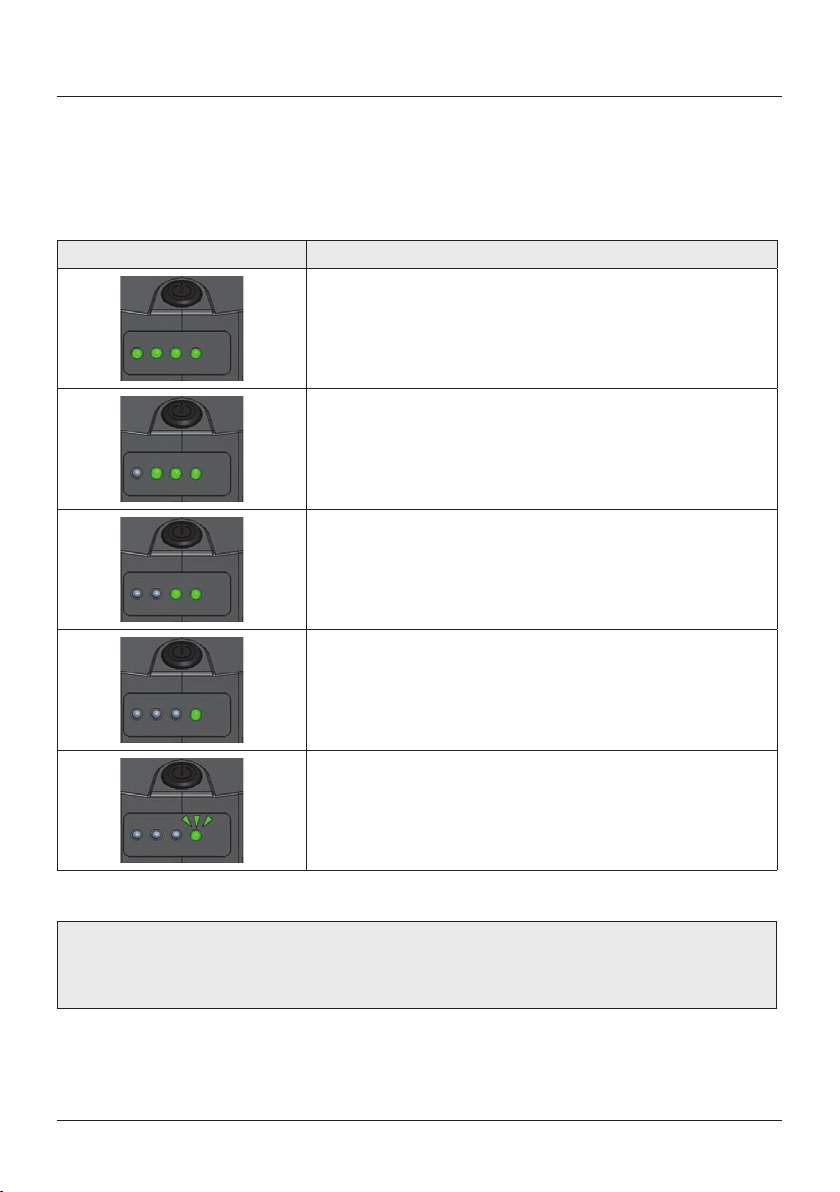

When powered-up, the battery’s current state of charge is indicated at the battery by the LEDs as
follows:
LEDs State of Charge (SOC)
75% to 100%
50% to 75%
25% to 50%
10% to 25%
Less than 10%
NOTICE
The battery pack SOC level should be kept at 30% to 50% for long term storage and charged
every 6 months to avoid excessive discharge and reduce battery pack life.

18
Adventure Neo AllRoad OMS
Technical Information
Battery Special Indication - LEDs
185533 Rev0 (03/23)
Battery Special Indication - LEDs
Special Indication
Active mode Press the HMI power button
to power on (Discharge
wake-up function).
LED1~LED4 will flash in
sequence and then flash back
from the 4th to the 1st LED
Shut down
mode
Press and hold Power/SOC
button for 3 seconds until all
LEDs are flashing, release the
button then all the LEDs will
turn o.
Discharge over
current & Short
circuit
protection
All LEDs will fladsh for 30
seconds then 3rd LED will
stay on.
Over/Under
temperature
protection
The 3rd LED will keep
flashing.
