Canon PIXMA TR4500 Series User manual

Guía de inicio
Lea primero Información de seguridad e
información importante (apéndice).
Conguración de la web
Hay vídeos e instrucciones detalladas
enel sitio web de Canon.
Congurar un ordenador
Congurar un teléfono inteligente
Getting Started
Read Safety and Important Information
(addendum) rst.
Web Setup
Detailed instructions and videos are
available on the Canon website.
Setup a Computer
Setup a Smartphone
TR4500_GS_book.indb 1 29/03/2018 09:02:32

Go
Instalación de la impresora ...............................................................................................página 1
Conexión con el ordenador y con el teléfono inteligente o la tableta.......... página 4
Vídeos instructivos
Cómo sujetar la impresora
Installing the Printer................................................................................................................... page 1
Connecting with Computer and Smartphone/Tablet .........................................page 4
How to Hold Printer
Instructional Videos
TR4500_GS_book.indb 2 29/03/2018 09:02:32

1
ENGLISH
1. Box Contents
•
Power cord • FINE cartridges
•
Setup CD-ROM • Modular cable
•
Safety and Important Information
•
Getting Started (this manual)
2. Removing Packing Materials
1 Remove and dispose of the packing materials
from the device.
• Be sure to remove any orange tape.
2 Open the front cover and paper output cover.
ab
3 Remove and dispose of the protective materials.
• Pull the orange tape to remove the protective
material.
a
b
4 Close the paper output cover and front cover.
a
b
3. Turning on the Printer
1 Connect the power cord.
Back
Important
• P
lace the printer so it is at least 2 inches (5cm) away from the wall.
• At this time, do not connect any other cables.
2 Press the ON button.
Important
If the following screen appears, press the ON button to turn o
the power, and redo the procedure from step 2in "2. Removing
Packing Materials".
3 When the following screen appears, use the [
and ]buttons to select a language, and then
press the OK button.
Setting up the printer Web Setup
TR4500_GS_book.indb 1 29/03/2018 09:02:33

2
Setting up the printer
4 If the following screen appears, select your
country or region, and then press the OK
button.
4. Installing the FINE
Cartridges
1 Open the front cover and paper output cover.
ab
2 Remove the color FINE cartridge from the
container and remove the protective tape.
a
b
Important
• Do not touch the ink on the protective tape. It could stain
your hands or surrounding objects.
• Do not touch the areas shown in the
gure. Otherwise, the printer may not
print correctly.
3 Install the color FINE cartridge.
• The color FINE cartridge goes on the left.
• Tilt the FINE cartridge upward at an angle and insert
it into the FINE cartridge holder.
• Insert it all the way and press it upward until it clicks.
Important
Do not bump the FINE cartridge. Doing so
may cause a malfunction.
4 Conrm that the FINE cartridge is straight and
level.
5 Repeat steps 2 to 4 to install the black FINE
cartridge.
• The black FINE cartridge goes on the right.
TR4500_GS_book.indb 2 29/03/2018 09:02:34

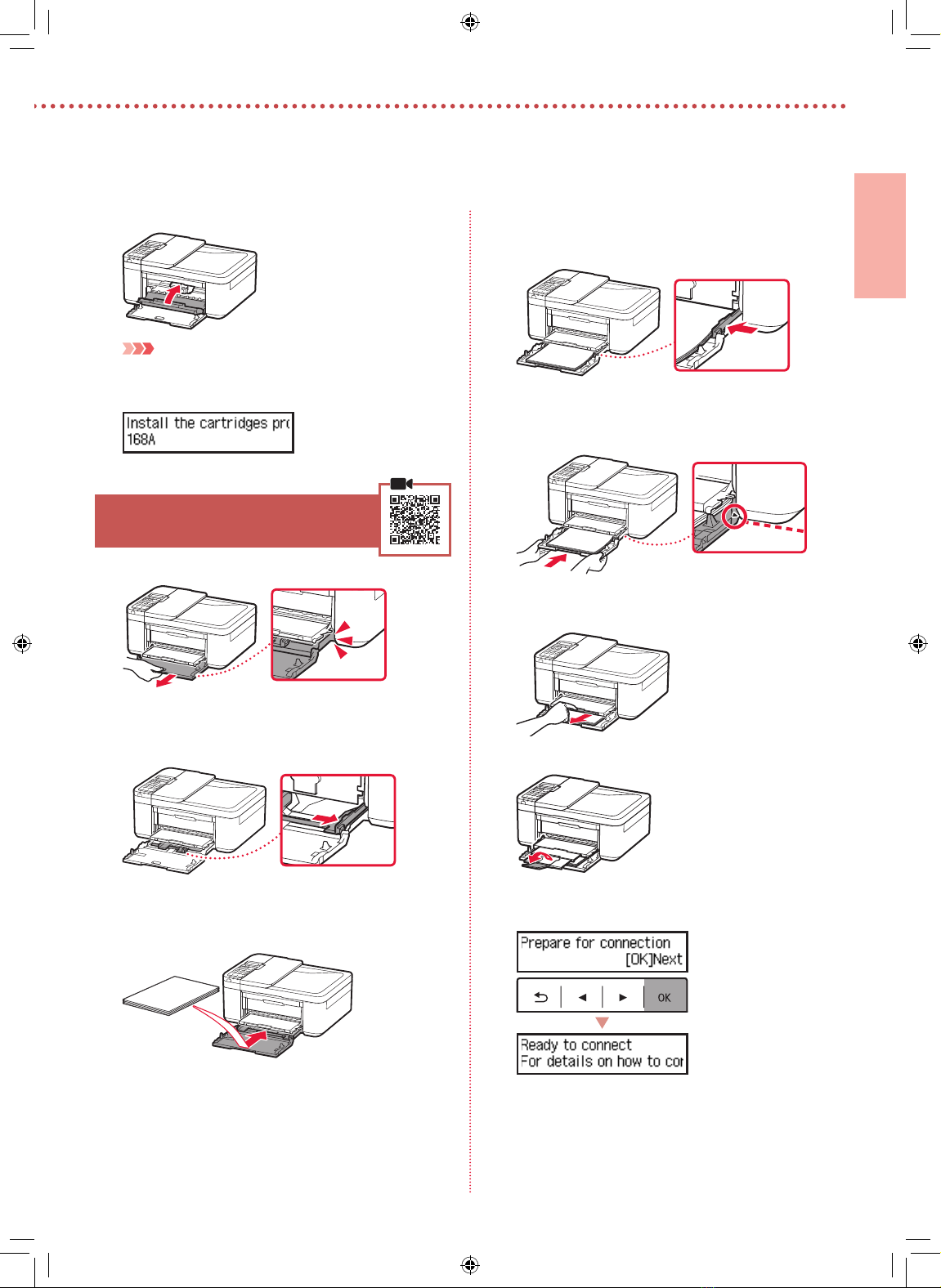

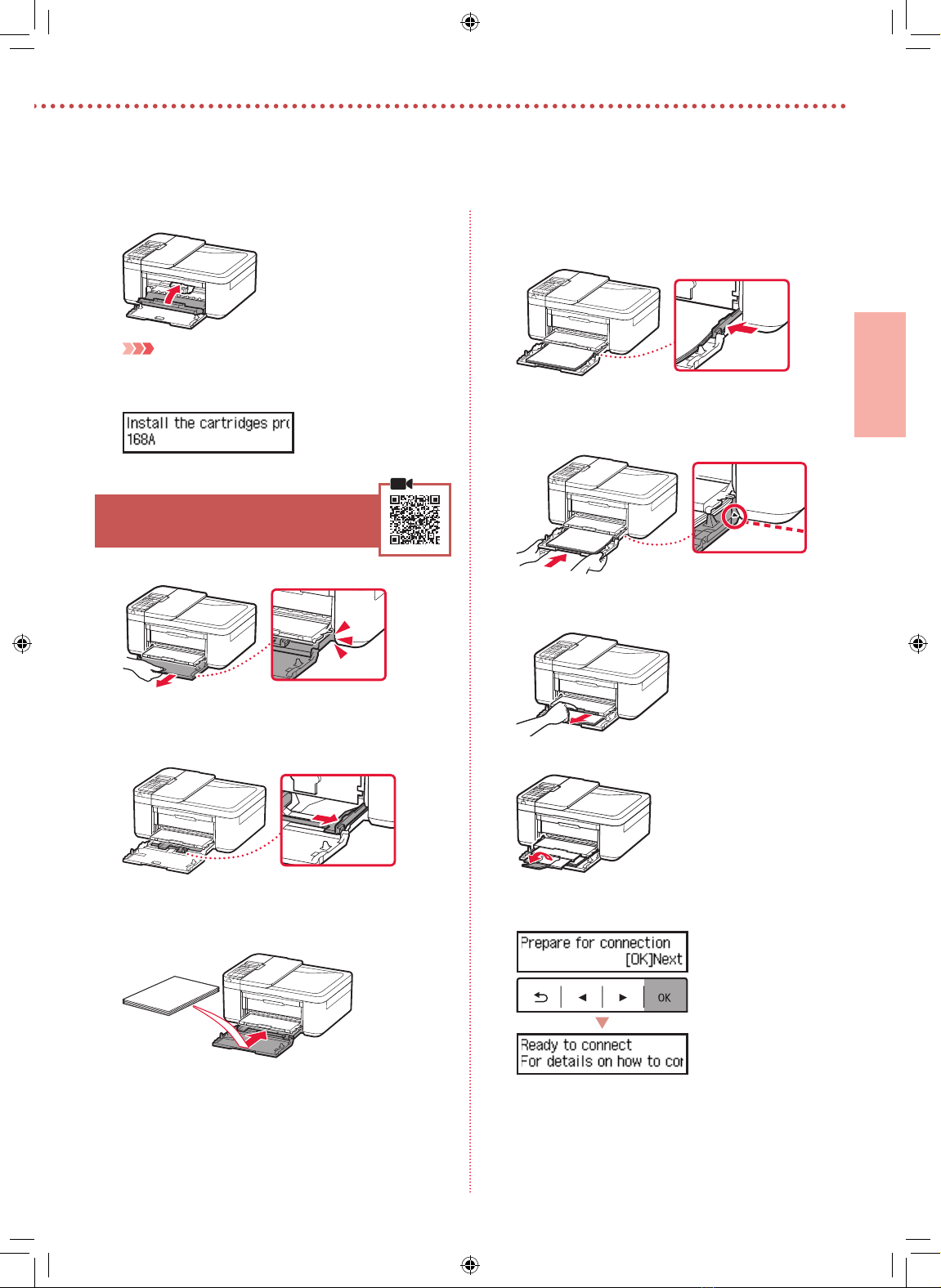

3
ENGLISH
6 Close the paper output cover.
Important
If the following screen appears, return to step 3 in "4. Installing
the FINE Cartridges" and conrm that the color and black FINE
cartridges are positioned correctly.
5. Loading Paper
1 Pull out the cassette until it stops.
2 Slide apart the paper guides.
• Grip the right paper guide and move it to the right
edge.
3 Load paper.
• Load plain LTR or A4 size paper with the print side
facing down.
• Push the paper all the way into the cassette, and then
slide the right paper guide against the edge of the
paper stack.
4 Push in the cassette.
• The arrow ( ]) on the front cover should align with
the front edge of the printer.
5 Pull out the paper output support of the paper
output tray.
6 Open the output tray extension.
7 Check that the following screen appears, and
then press the OK button.
TR4500_GS_book.indb 3 29/03/2018 09:02:35

6-a
6-b
page 6
4
Setting up the printer
Press the Stop button,
and then select Do not
connect > Yes, in this
order. To set up a fax see
"Using Fax Function" on
page 8.
Computer Computer and
smartphone
Smartphone No device
(Using your printer
standalone or as a fax)
Connecting to a Computer
If you are using multiple computers, perform these steps on each computer. There are
two methods, " Online Setup" and " Using the Setup CD-ROM (Windows Only)
Provided".
1 Access the Canon website from a
computer.
2 Select Set Up.
3 Enter your printer's model name and
click Go.
4 Click Start.
5 Click If you have already prepared
your printer, go to Connect.
Note
When you are using a computer with Windows
(except for Windows 10 S) or macOS, proceed to
the next step. When you are using a computer with
another OS, continue the setup by following the on-
screen instructions.
6 Click Download.
• The setup le is downloaded to your
computer.
7 Run the downloaded le.
8 Proceed to step 9 on page 5.
Online Setup
What device are you connecting?
Select a device and follow the relevant section.
TR4500_GS_book.indb 4 29/03/2018 09:02:35

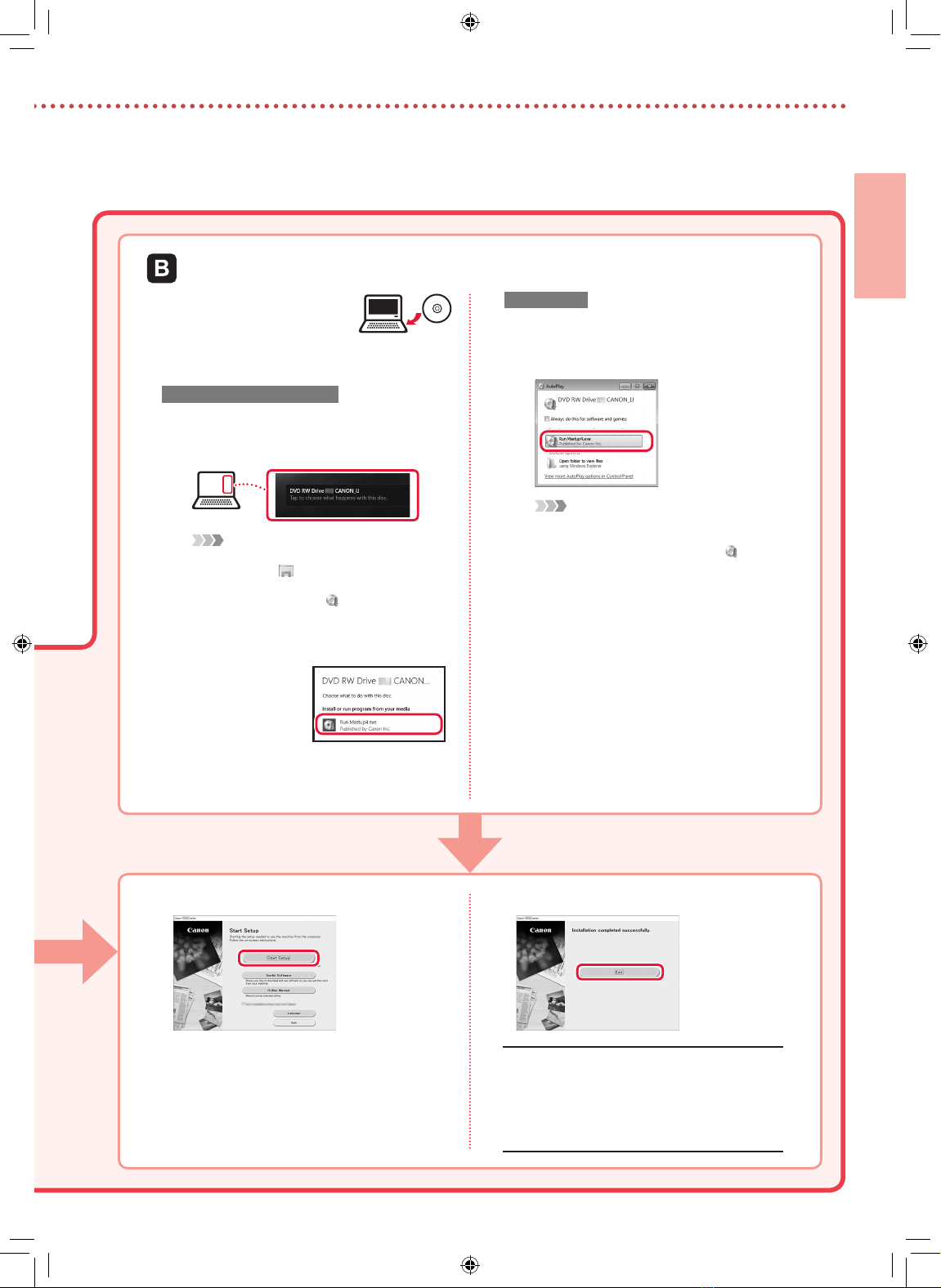

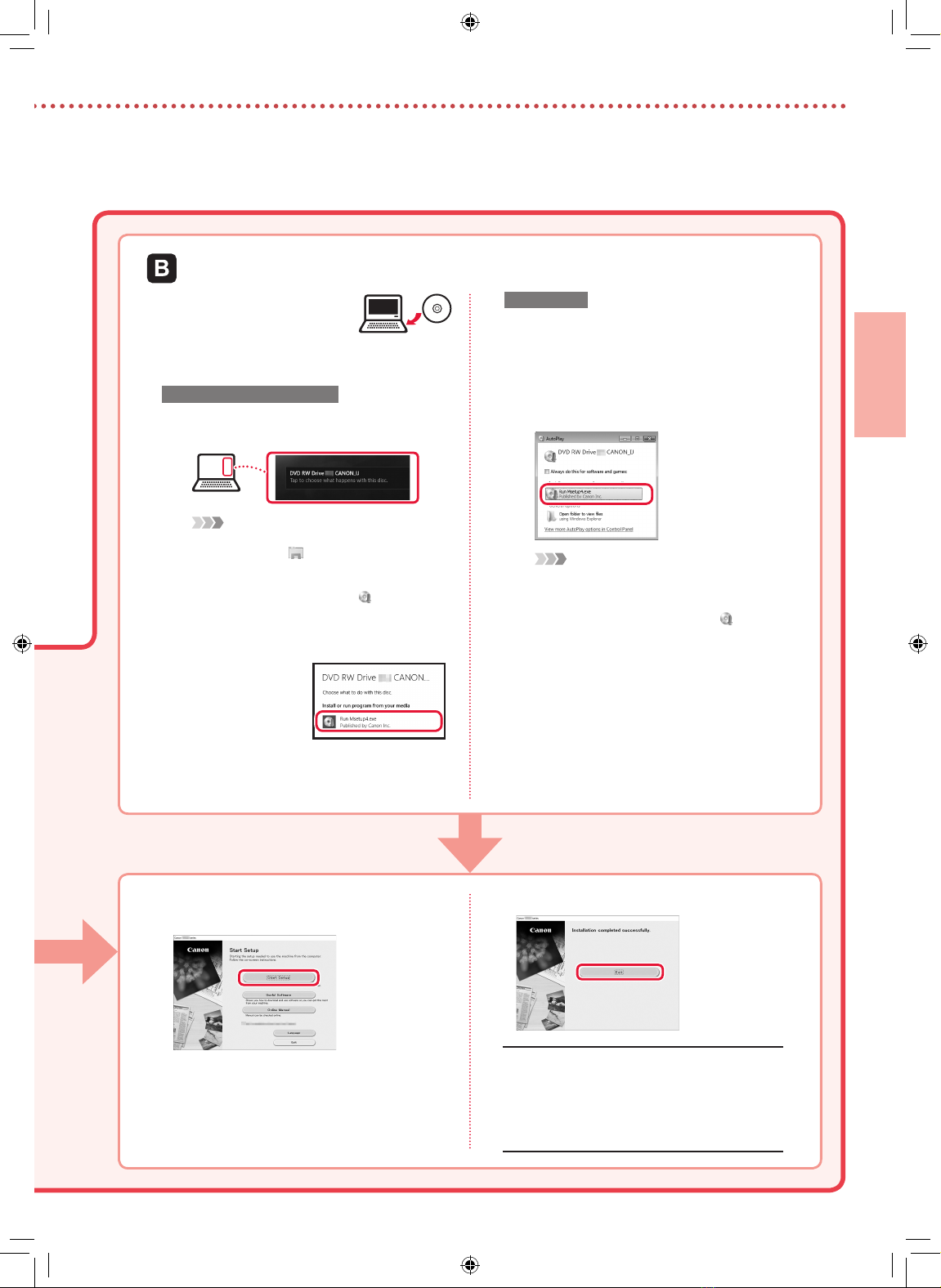

5
ENGLISH
1 Insert the Setup CD-ROM
into your computer.
2 Follow the instructions for your version
of Windows.
Windows 10/Windows 8.1
aClick on the following message when it
appears on the right-hand side of your
computer screen.
Note
If the message does not appear (or is no longer
visible), click the File Explorer icon in the
taskbar. On the left-hand side of the window, click
This PC. Double click the CD icon that is
displayed on the right-hand side (when the
content of the CD is displayed, and then double
click Msetup4.exe). Proceed to c.
bClick Run
Msetup4.exe.
cIf the User Account Control dialog box
appears, click Yes .
Windows 7
aClick Run Msetup4.exe.
• When the AutoPlay screen appears, click
Run Msetup4.exe.
Note
If the AutoPlay screen does not appear, in the
Start menu, click Computer. On the right-hand
side of the window, double click the CD icon
(when the content of the CD is displayed, double
click Msetup4.exe).
bIf the User Account Control dialog box
appears, click Continue.
3 Proceed to step 9 below.
Using the Setup CD-ROM (Windows Only) Provided
9 Click Start Setup.
10 Follow the on-screen instructions.
• These operations may take some time.
11 When the following screen appears, click Exit.
• Your printer is now connected to your computer.
To connect a smartphone as well, see "6-b.
Connecting to a Smartphone" on page 6.
• To set up a fax, see "Using Fax Function" on
page 8.
TR4500_GS_book.indb 5 29/03/2018 09:02:35

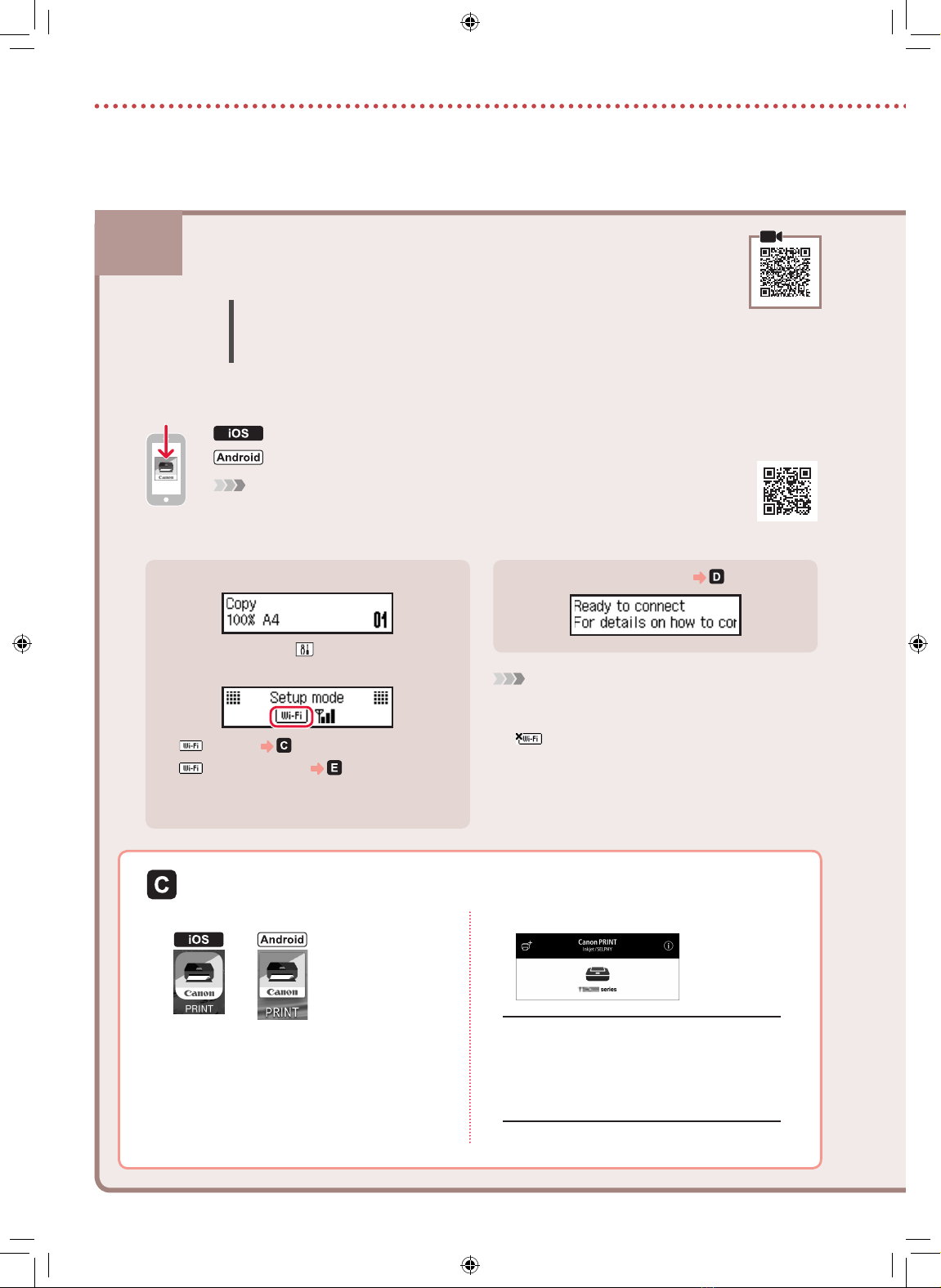

6-b
6
Setting up the printer
1 Install the "Canon PRINT Inkjet/SELPHY" app on your smartphone.
Note
You can also access the Canon website by scanning the QR code shown on the right to
download the app.
Search for "Canon PRINT" in the App Store.
Search for "Canon PRINT" in Google Play.
2 Check the printer's screen as you proceed through the steps.
If the following screen appears
If the following screen appears
Press the Setup button and check the screen
that appears.
• If appears,
• If does not appear,
Note
• The printer's screen turns o when the printer is idle for
10 minutes. Press a button (except the ON button) on the
operation panel to turn on the screen.
• If appears, the printer cannot communicate by Wi-Fi
connection. For details, see "Frequently Asked
Questions" at "http://ij.start.canon".
Connecting to a Smartphone
If you are using multiple smartphones, perform these steps on each smartphone.
Prepare the following before starting.
aEnable the Wi-Fi setting on your smartphone*.
bConnect your smartphone to the wireless router* (if you have a wireless router).
* See your smartphone and wireless router manuals regarding these procedures for more details.
3 Open the installed app.
4 Follow the on-screen instructions to add
your printer.
5 Check that the following screen appears.
• Your printer is now connected to your
smartphone. To print photos, see "Loading
Photo Paper" on page 8.
• To set up a fax, see "Using Fax Function" on
page 8.
TR4500_GS_book.indb 6 29/03/2018 09:02:36

7
ENGLISH
3 Tap Settings on your smartphone's
home screen, and tap Canon_ij_XXXX
in the Wi-Fi settings.
Note
If Canon_ij_XXXX does not appear, follow the
procedure in , and then search for Canon_ij_
XXXX again.
4 Open the installed app.
• The printer is registered with the
most appropriate connection
method for the environment
you are using.
5 Check that the following screen appears.
3 Open the installed app.
• The printer is registered with the
most appropriate connection
method for the environment
you are using.
Note
If a message saying "No printer has been added.
Perform printer setup?" does not readily appear
after starting the application, follow the procedure in
, and then return to smartphone operations.
4 Check that the following screen appears.
Procedures vary for iOS and Android. Follow the instructions for your operating system.
3 Press and hold the Menu/Wireless
connect button for about 3 seconds.
• The following screen appears.
4 Press the OK button.
5 Proceed to .
• Your printer is now connected to your smartphone. To print photos, see "Loading Photo Paper" on page 8.
• To set up a fax, see "Using Fax Function" on page 8.
TR4500_GS_book.indb 7 29/03/2018 09:02:36

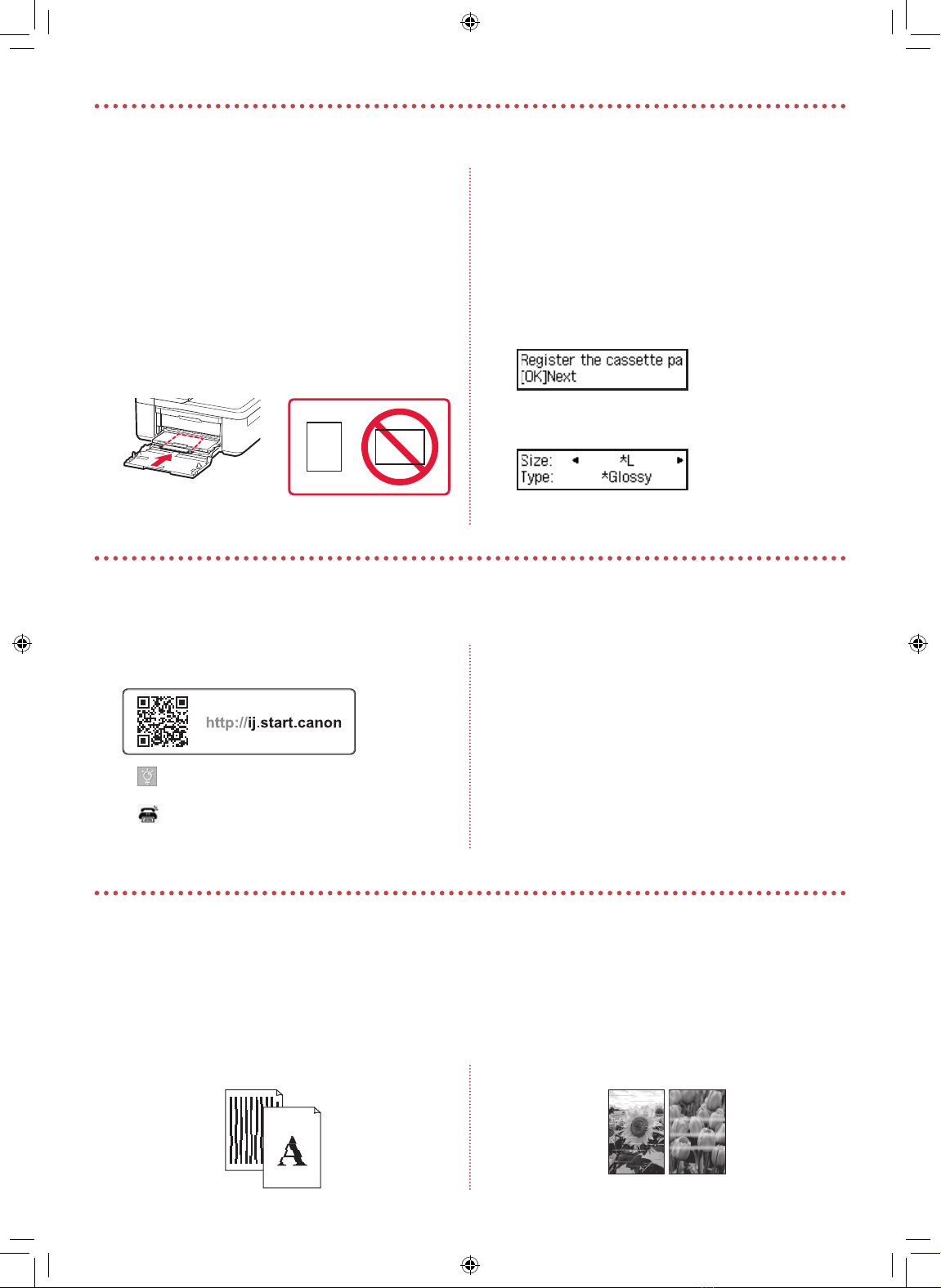

8
Loading Photo Paper
1 Pull out the cassette until it stops.
2 Slide apart the paper guides.
• Grip the right paper guide and move it to the right
edge.
3 Load photo paper.
• Load photo paper in portrait orientation with the
print side facing down, and place it in the center of
the cassette.
• Push the paper all the way into the cassette, and then
slide the right paper guide against the edge of the
paper stack.
4 Push in the cassette.
• The arrow ( ]) on the front cover should align with
the front edge of the printer.
5 Pull out the paper output support of the paper
output tray.
6 Open the output tray extension.
7 When the following screen appears, press the
OK button.
8 Select the paper size and type, and press the OK
button.
Using Fax Function
The fax function of your printer requires setup. Refer to either of the following manuals.
■Online Manual
aAccess the Canon website.
bClick .
cEnter your printer's model name and click Go.
dClick FAX Setup Guide.
■On-screen Manual (installed on your computer)
The following is an example using Windows 10.
aClick the Start button.
bClick All apps > Canon TR4500 series On-screen Manual in
this order, and then open the User's Manual.
cClick FAX Setup Guide.
If Print Results Are Unsatisfactory
Perform Print Head Alignment if straight lines are crooked or colors are inconsistent, or print results are otherwise not what you
expected.
For details, click the Maintenance on the Online Manual and refer to If Printing Is Faint or Uneven > Aligning the Print
Head.
Refer to the back cover for how to open the Online Manual.
■Lines Are Misaligned ■Uneven or Streaked Colors
TR4500_GS_book.indb 8 29/03/2018 09:02:36
