Installation Manual
Read the Setup Guide for details on the operations after installation.
ENGLISH
安裝手冊
如需關於安裝後操作的詳細資訊，請參閱安裝指南。
繁體中文



Petunjuk Instalasi
Baca Petunjuk Pengesetan untuk detail tentang operasi setelah instalasi.
BAHASA INDONESIA
설치 설명서
설치 후조작에 대한 자세한 내용은 설치 가이드를 참조하십시오.
한국어

1

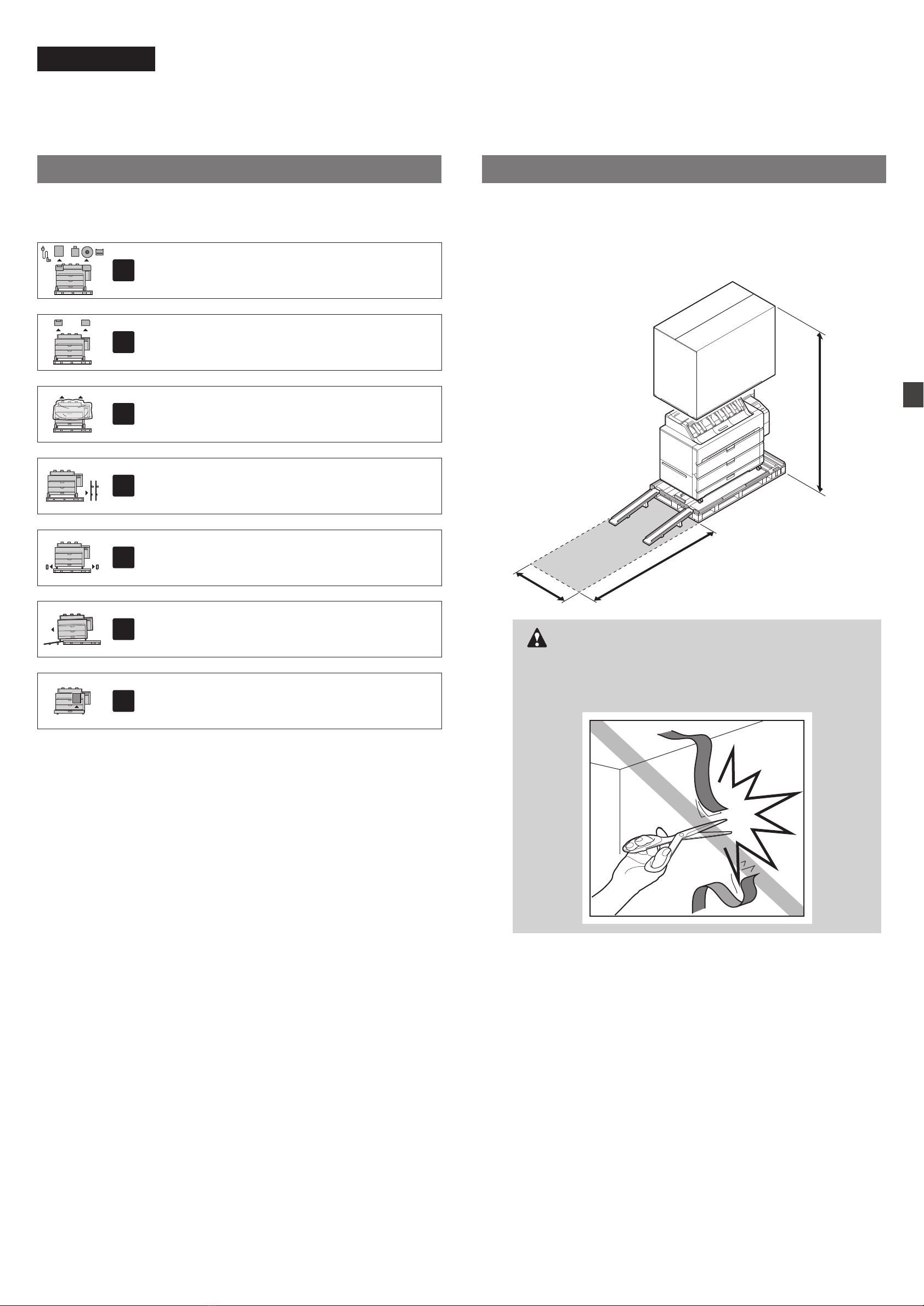

Basic procedure Unpacking Space
Take care when handling the printer as it is very heavy. Do not perform any
operations or procedures other than as described in this document and
instruction manual for this printer.
1
Taking Out the Accessories Page 2
2
Removing the Top Packaging
Material Page 2
3
Removing the Bag Page 3
4
Removing the Ramps Page 3
5
Removing the Bottom Packaging
Material Page 4
6
Lowering the Printer from the Pallet Page 5
7
Taking Out the Setup Guide Page 6

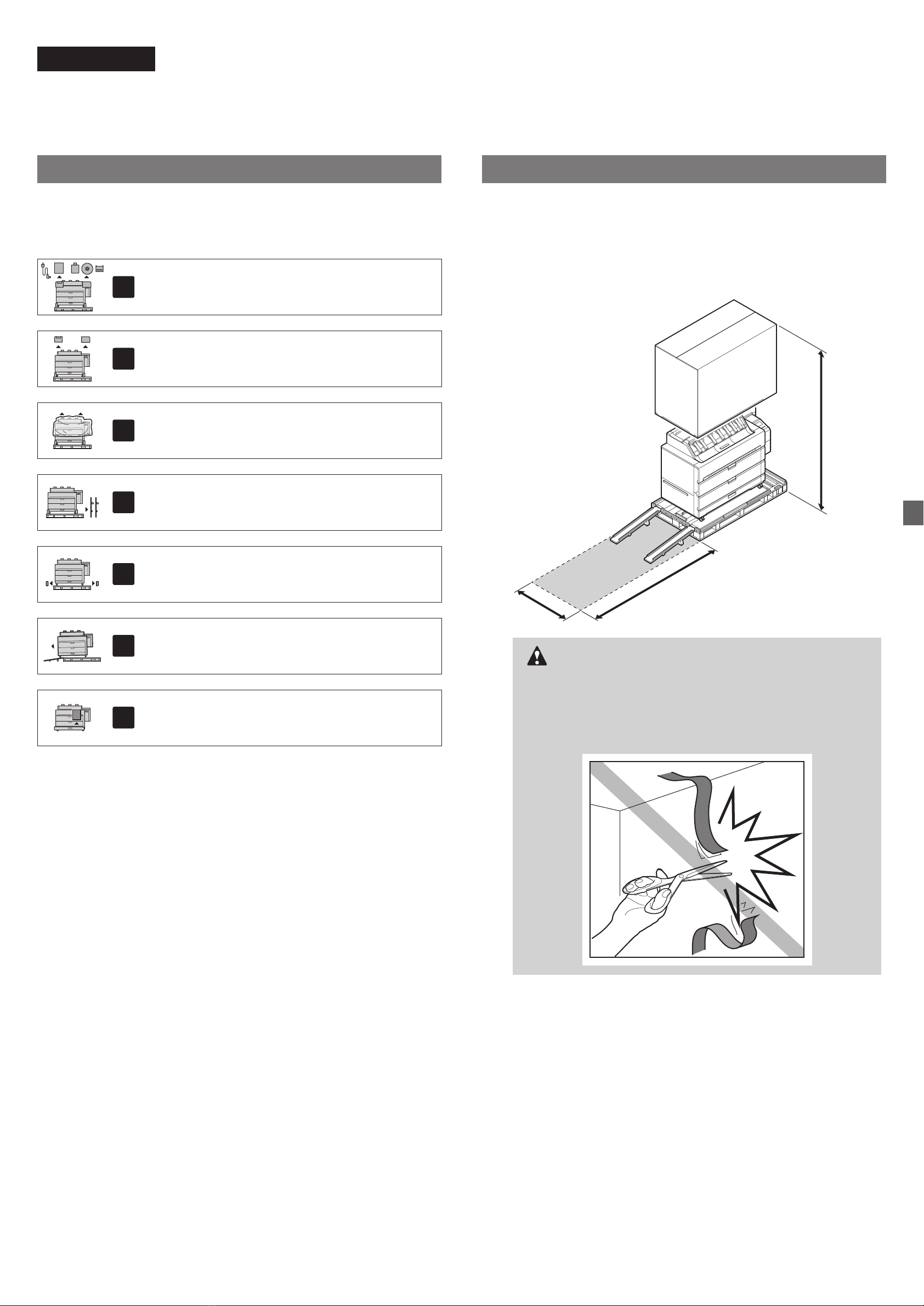

Make sure that you have sufficient space around the printer for installation.
The following diagram shows the minimum recommended space.
■TZ-5300
Required space (W x D x H)
2,500 × 1,000 × 2,600 mm
2,500 mm
2,600 mm
1,000 mm
Warning
●Take care when handling the printer as it is very heavy.
●Do not perform any operations or procedures other than as
described in this manual.
●When cutting the strapping bands, take great care because the
cut tips are sharp.
ENGLISH

2
1

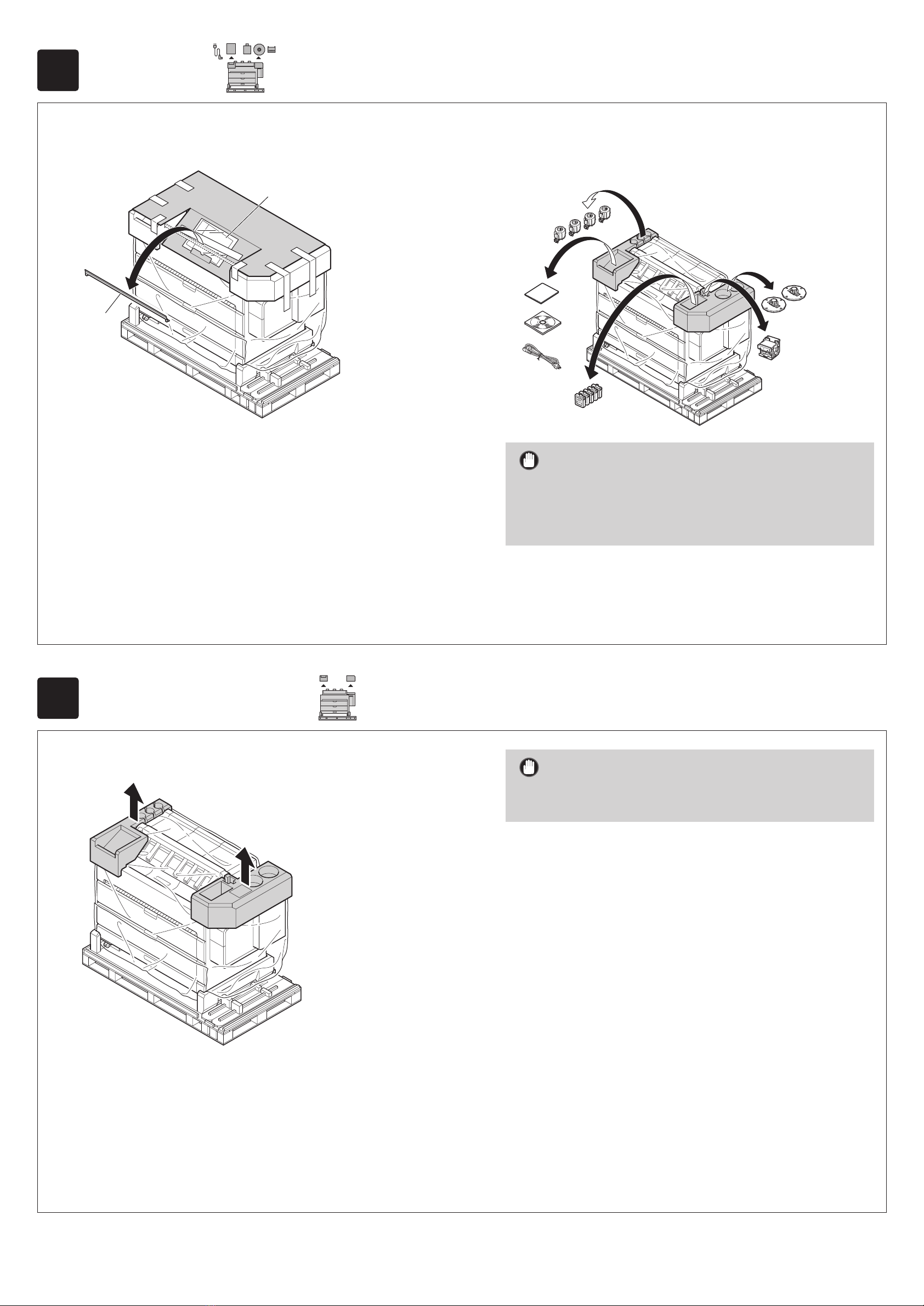

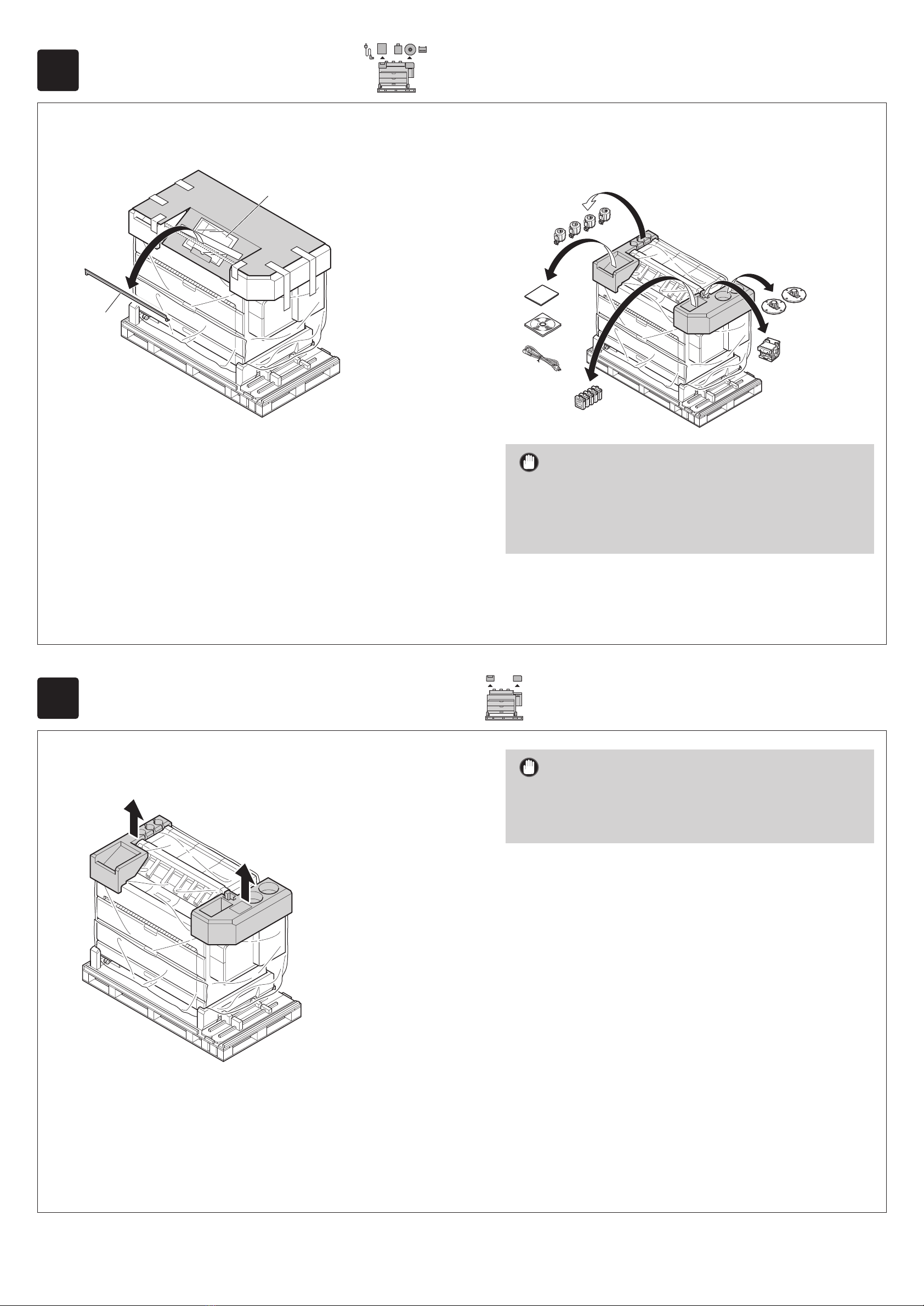

Taking Out the Accessories
2
Removing the Top Packaging Material
1
Take out the following accessories.
aThis manual + Ramp pins, bBasket support bar
b
a
2
Take out the following accessories from the top
packaging material.
cInk tanks, dPrint head, eHolder stopper, f3-inch
paper core attachment, gQuick guide, hCD-ROM,
iPower cord
c
d
e
f
g
h
i
Important
●Do not remove the following parts which are stored in the
accessory drawer at the bottom of the front side of the printer.
After installation, take them out while referring to the Setup
Guide.
Basket cloth, paper output support, top output guide, screw,
Allen wrench, paper handling labels
1
Remove the left and right top packaging material in the
directions of the arrows. Important
●Check that there are no accessories left inside the top packaging
material.
●Dispose of the removed top packaging material in accordance
with the regulations of your local government.

3
3

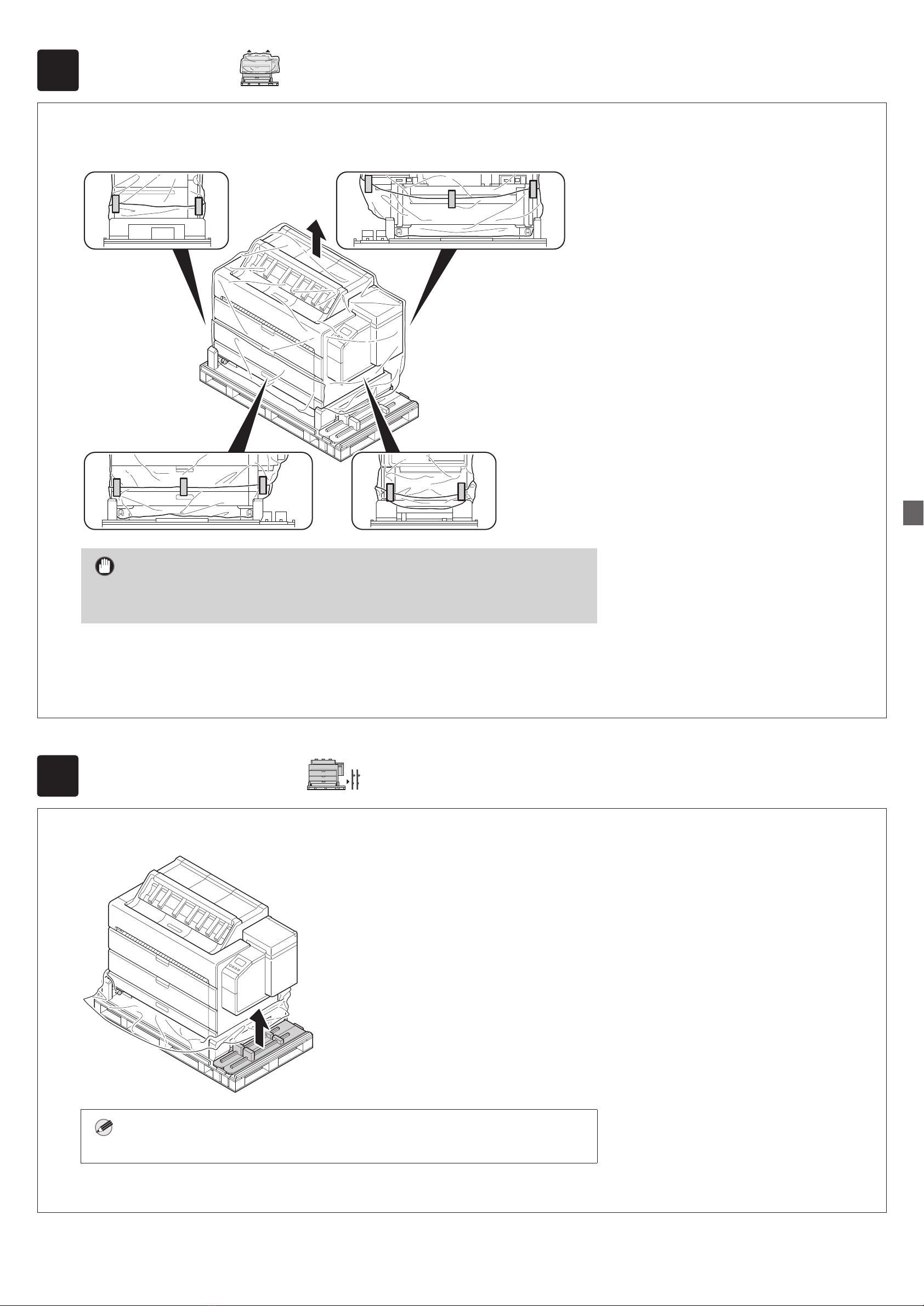

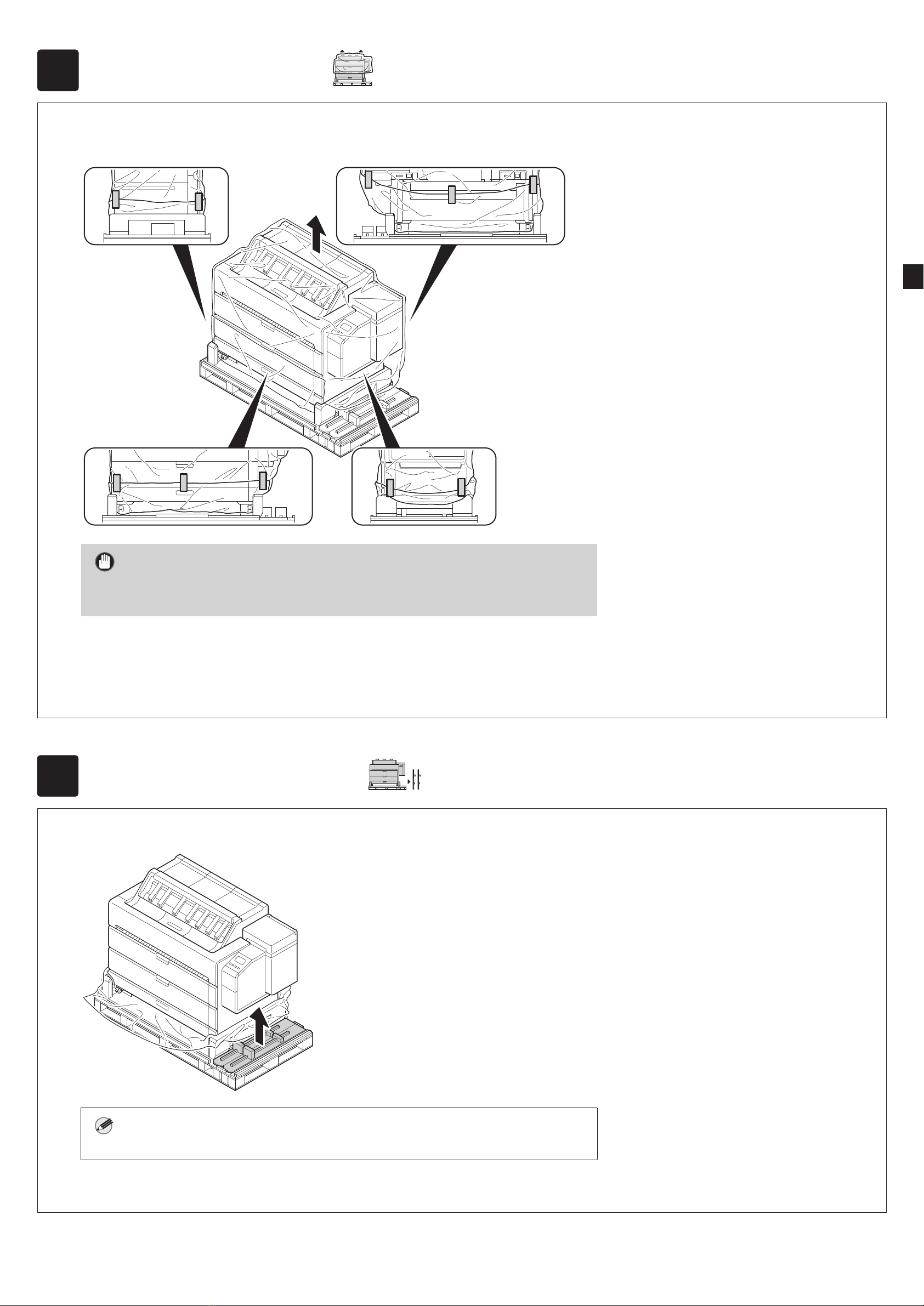

Removing the Bag
1
Remove all the tape from the front and rear surfaces (3 locations each), and the left and right sides (2 locations each), and
then remove the bag in the direction of the arrow.
Important
●Do not remove the sheet from underneath the printer. You will remove this after Step 6.
●Dispose of the removed bag in accordance with the regulations of your local government.
4
Removing the Ramps
1
Remove the ramps at the top of the pallet in the directions of the arrows.
Note
●The ramps are used in "6. Lowering the Printer from the Pallet."

4
5

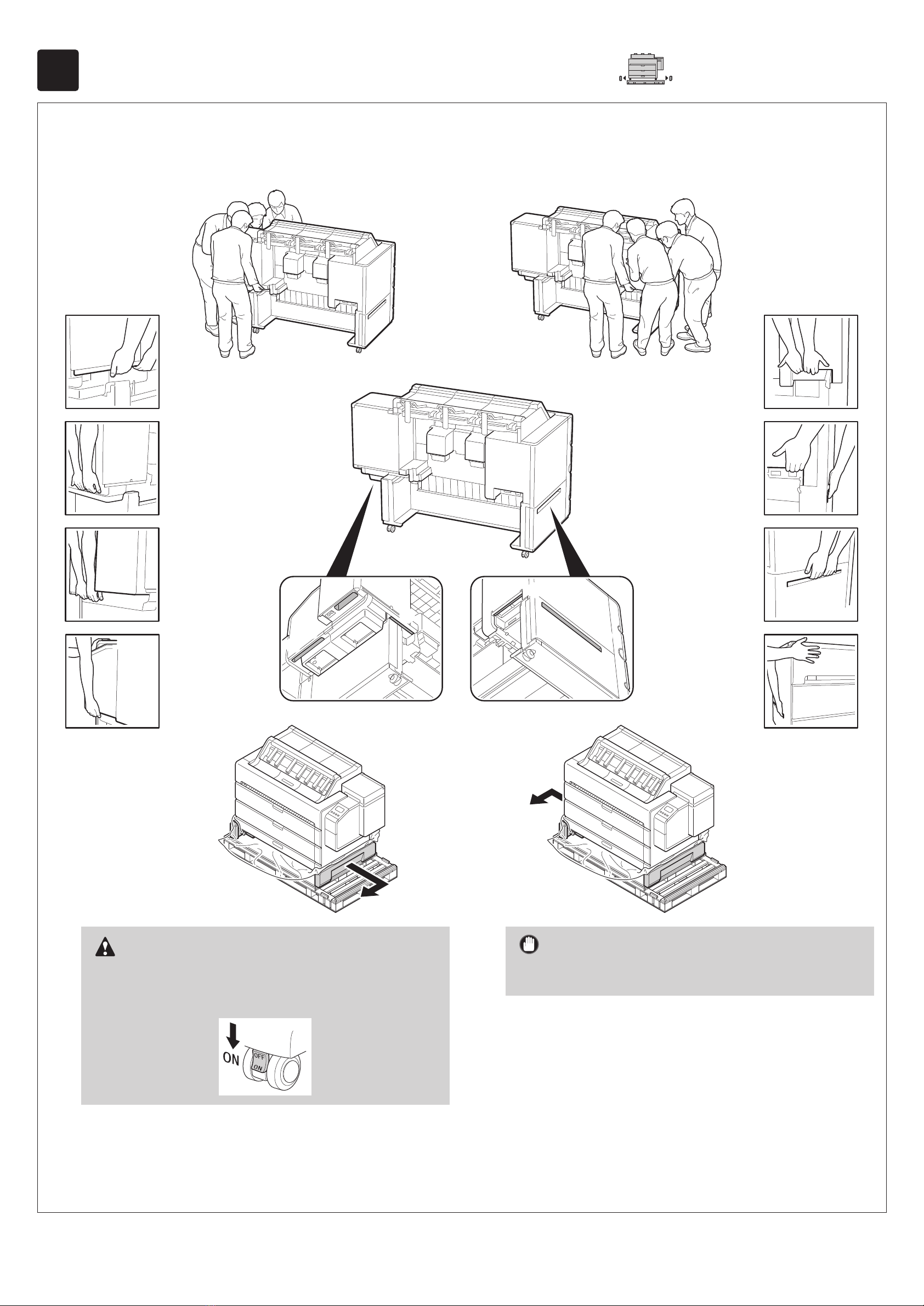

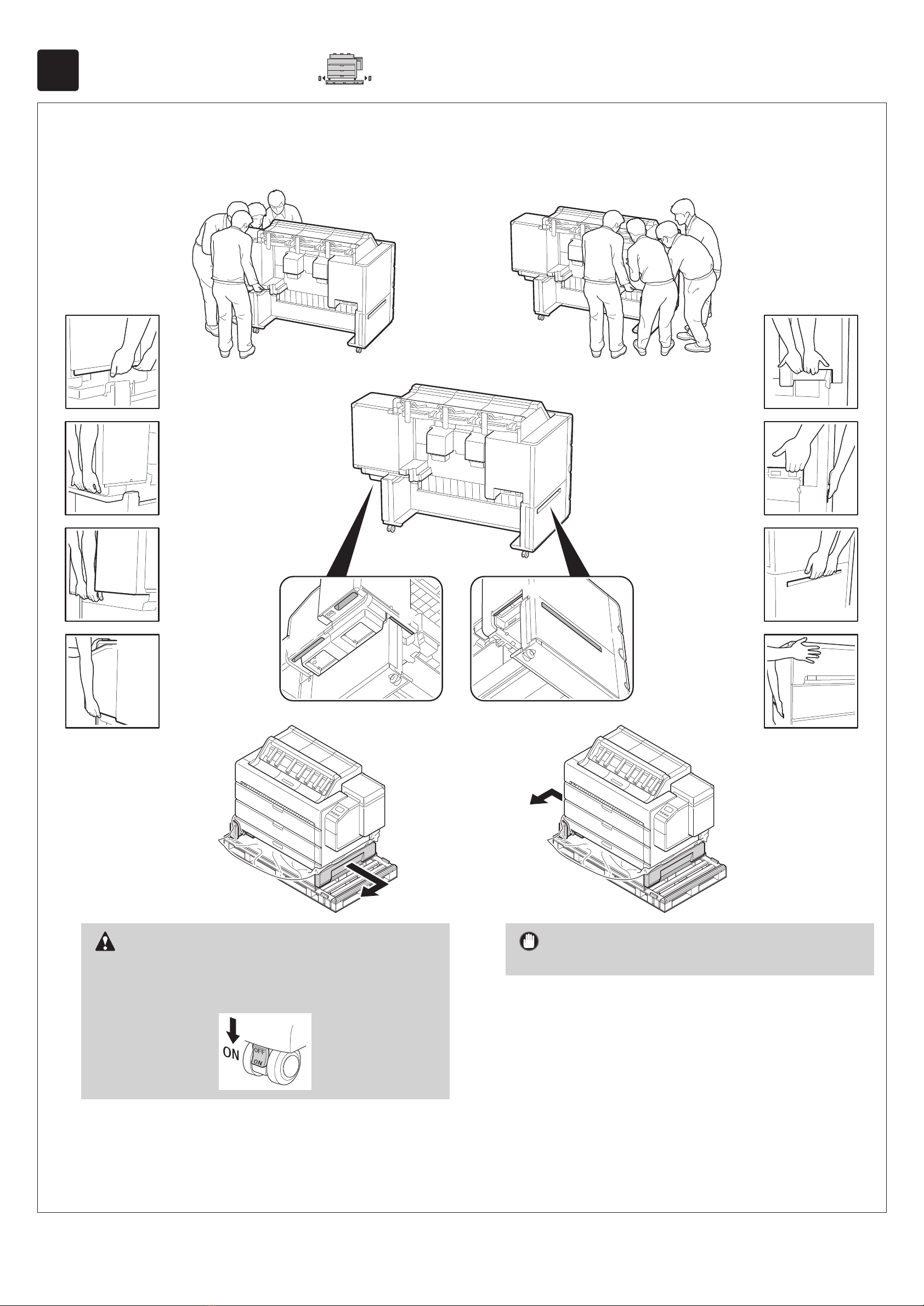

Removing the Bottom Packaging Material
1
Have 4 people grasp the carrying grips on the right side
of the printer and gently lift up the right side. Remove the
bottom packaging material in the direction of the arrow.
Caution
●Lifting the printer requires at least 4 people. Take care when
handling the printer as it is very heavy.
●Check that all four casters are locked.
2
Have 4 people grasp the carrying grips on the left side
of the printer and gently lift up the left side. Remove the
bottom packaging material in the direction of the arrow.
Important
●Dispose of the removed bottom packaging material in
accordance with the regulations of your local government.
①
①
❶❷❸
❹
②
②
③
③
④
④
❶
❷
❸
❹
①
❶
②❷
③
❸
④❹
Gently support the front face
with your left hand.
Gently support the front face
with your right hand.

5
6

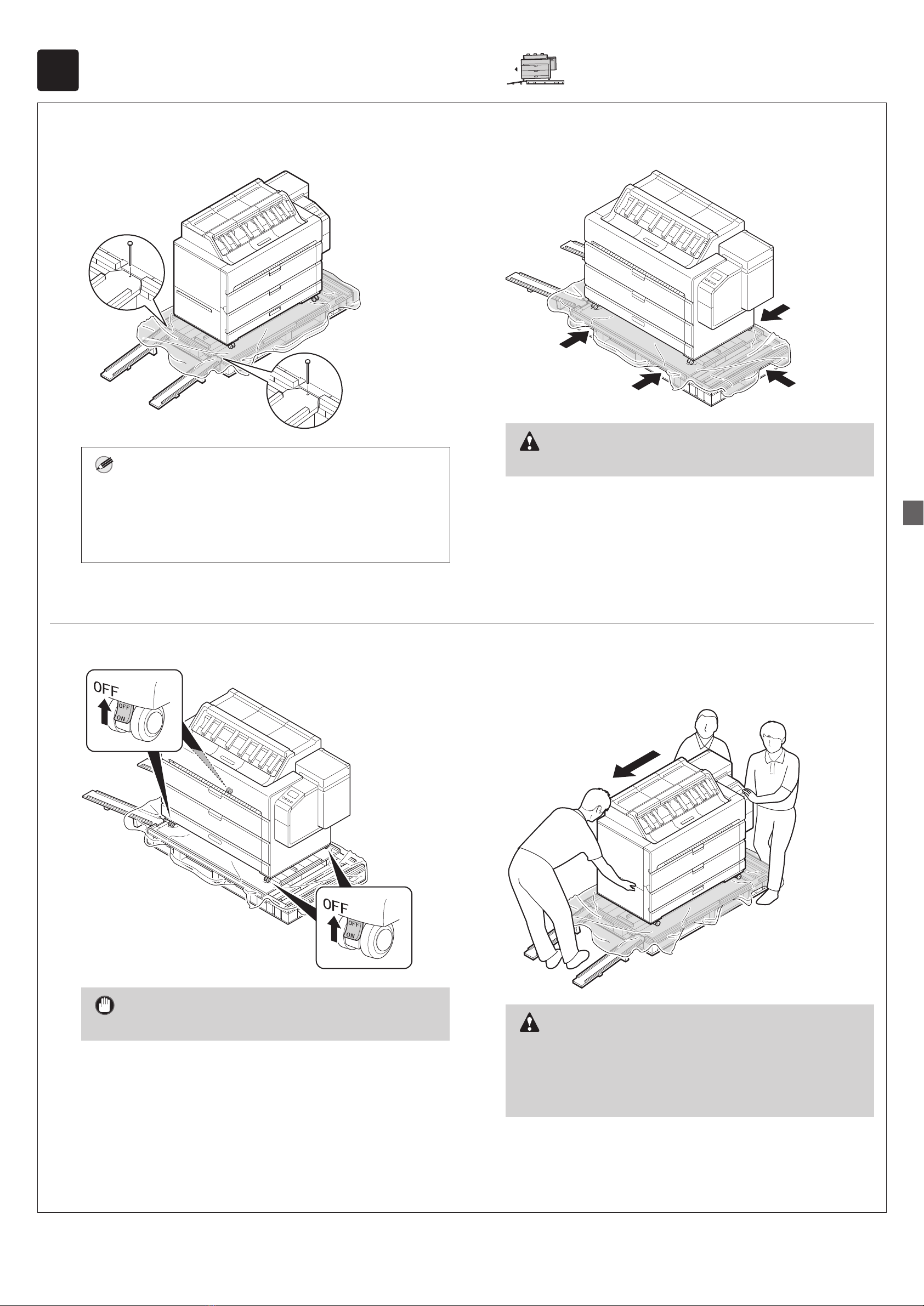

Lowering the Printer from the Pallet
1
Use the slope pins to affix the two ramps that you
removed in "4. Removing the Ramps."
Note
●Since the ramps have the same shape, you can use either one on
the left and right sides.
●The ramp pins are packed in the bag that contains this manual.
●Push the ramp pins all the way in.
2
Push the sheet into the hole in the side of the pallet.
Do not bend the sheet on the side where the ramps are
affixed, but leave it as-is.
Caution
●If the sheet is not pushed in, your feet may become entangled in
the sheet causing you to fall.
3
Unlock all four casters.
Important
●Since the printer may move when the casters are unlocked, hold
the printer in place.
4
Check that the casters are on the ramps, and hold the
printer by the carrying grips and move it slowly in the
direction of the arrow to lower it down the ramps.
Caution
●Since it is a heavy object, this work should be performed as
slowly as possible by multiple people.
●When moving the printer, take care of where your feet are
placed to avoid the casters running over your feet.

6
7

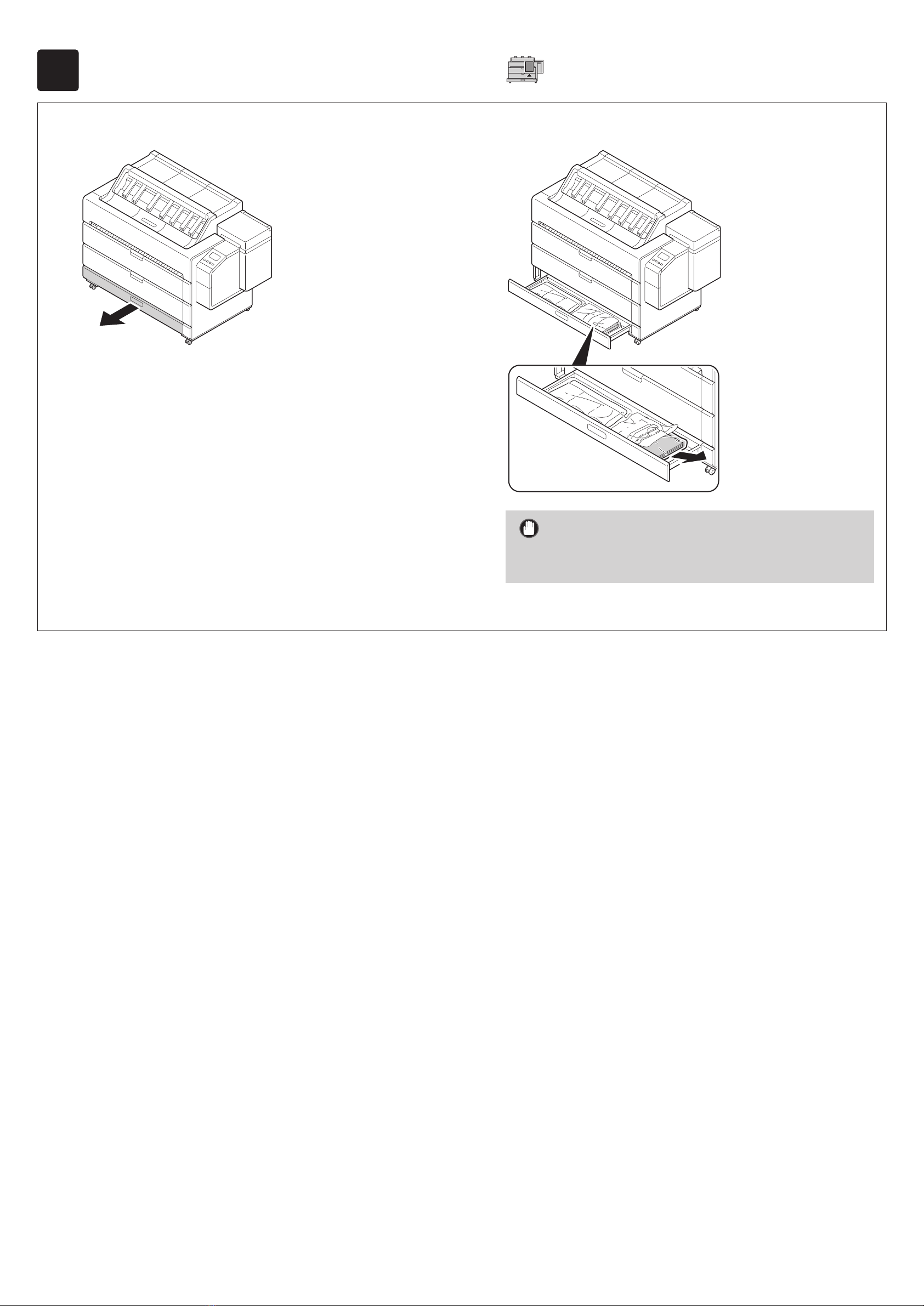

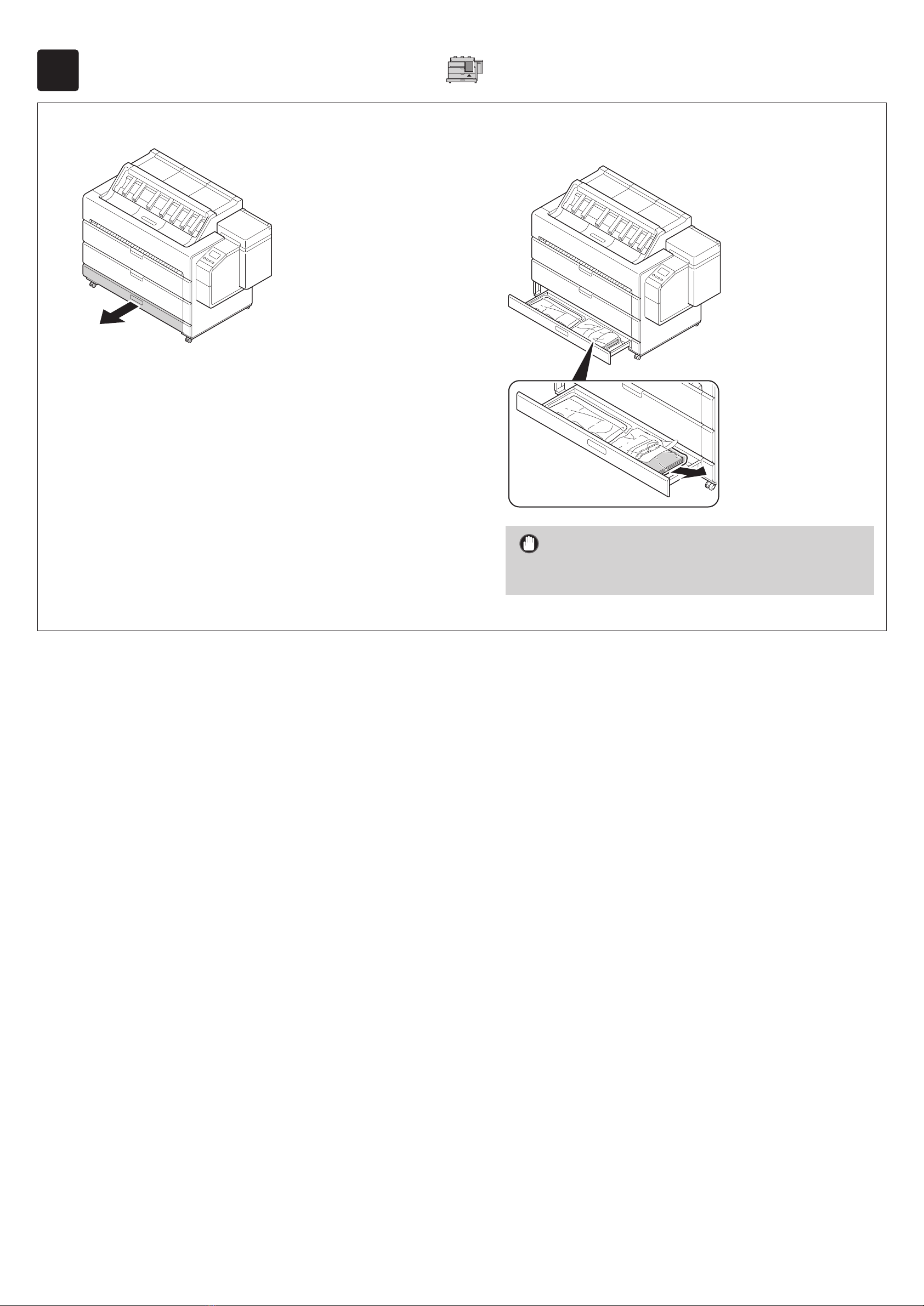

Taking Out the Setup Guide
1
Pull out the accessory drawer.
2
Remove the Setup Guide that is inside the accessory
drawer.
Important
●After removing the Setup Guide, check that all of the trays are
closed.

1
