Caple WI3150 User manual

Undercounter Wine Cabinet
Instruction Manual
Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk
WI3150
Wi3150 NEW Instruction Manual.indd 1Wi3150 NEW Instruction Manual.indd 1 27/08/2020 14:1327/08/2020 14:13

2
Instruction manual Wi3150 Please keep this instruction manual for future reference
CONTENTS
Introduction 3
Safety Instructions 4
Environmental Protection 7
Installation 8
Operating Your Wine Cabinet 10
Control Panel 10
Using The Shelves 12
Installing The Charcoal Filter 13
How To Change The Door Opening 14
Installing The Handle 16
Installing The Full Height Plinth Grille 17
Fitting A Kitchen Plinth 18

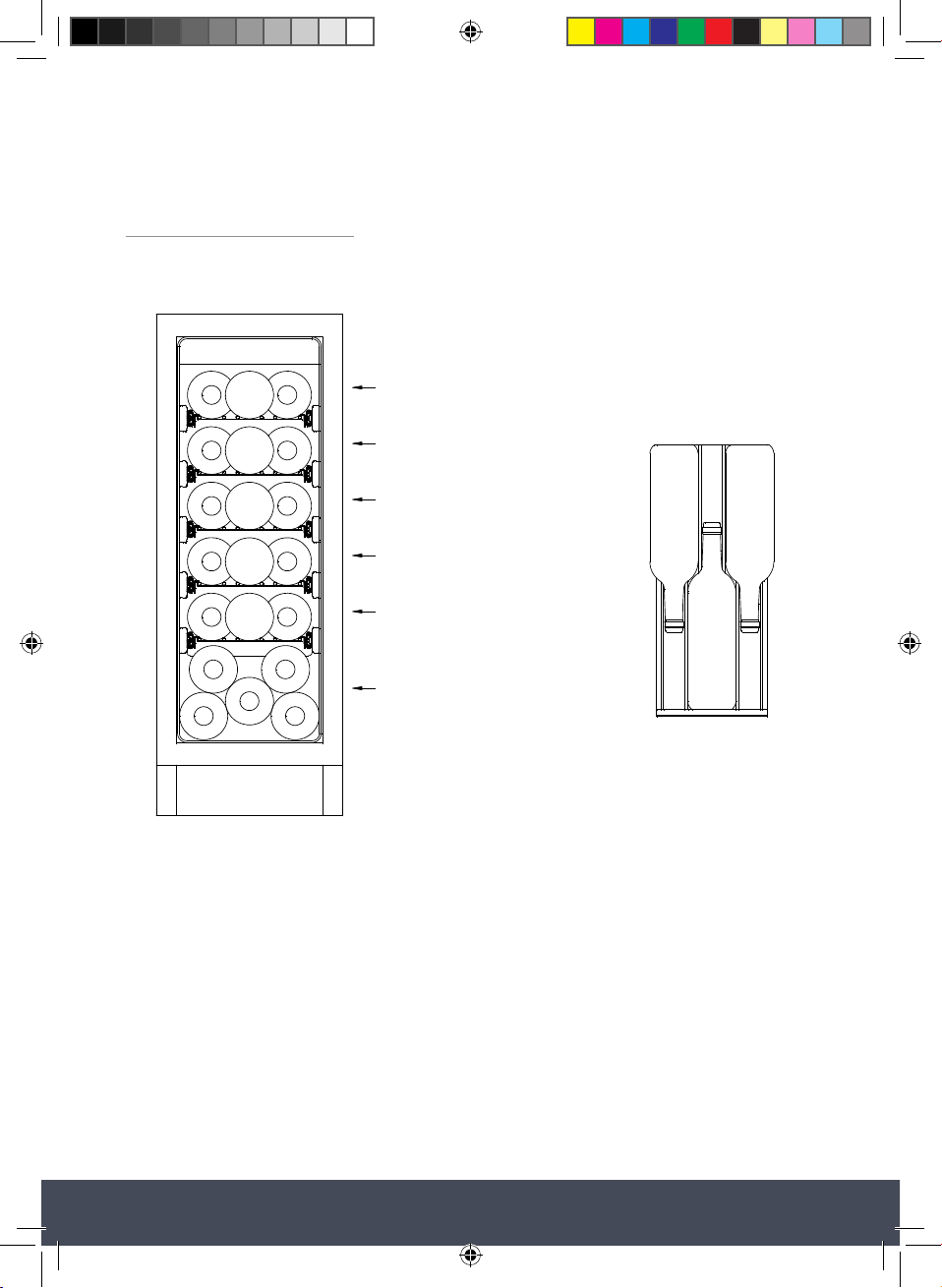

Wine Bottle Stacking 19
Installation Dimensions 20
Installing The Top Fixing Bracket 21
Using The Foot Sliders 22
Care and Maintenance 23
Troubleshooting 24
Recommended Temperatures 27
Caple Contact Details 28
Wi3150 NEW Instruction Manual.indd 2Wi3150 NEW Instruction Manual.indd 2 27/08/2020 14:1327/08/2020 14:13

3
Instruction manual Wi3150
Please keep this instruction manual for future reference
INTRODUCTION
Thank you for choosing this Caple Wine Cabinet.
To ensure that you get the best results from your new wine cabinet, we strongly suggest that
you read this instruction manual thoroughly before use. If treated with care, your Caple product
should give you years of trouble-free use.
To register ownership, please ensure you complete and return the guarantee card supplied with
the appliance or visit www.caple.co.uk and register here.
This instruction manual is designed to provide you with all the required information related to
the installation, use and maintenance of the appliance.
Please read this manual carefully before using your appliance. It contains important safety
advice; it explains how to use and look after your appliance so that it will provide you with
many years of reliable service.
Should a fault arise, please first consult the “Troubleshooting” section. You can often rectify
minor problems yourself, thus saving unnecessary service costs.
Please keep this manual in a safe place and pass it on to new owners for their information
and safety.
Wi3150 NEW Instruction Manual.indd 3Wi3150 NEW Instruction Manual.indd 3 27/08/2020 14:1327/08/2020 14:13

4
Instruction manual Wi3150 Please keep this instruction manual for future reference
WARNINGS
-To prevent damaging the door gasket, make sure the
door is fully open when pulling shelves out of the
rail compartment.
-The appliance must be positioned so that the plug is
accessible. Release the electric cord and move your
cabinet to its final location. Do not move your cabinet
while loaded with wine as you may distort the body.
-The wine cabinet should be installed in a suitable place
in order to avoid touching the compressor.
-After unpacking, make sure that the appliance is in
perfect order. If you have any doubt, do not use it and
contact your retailer.
-If the supply cord is damaged, it must be replaced by
a Caple service agent or a similarly qualified person in
order to avoid a hazard.
-This product is not designed for commercial use, it is a
household appliance only.
-It is not intended to be used in:
› Staff kitchen areas in shops, offices and other
working environments.
› Bed and breakfast type environments.
› By clients in hotels, motels and any other residential
type environments.
-This appliance is intended to be used exclusively for
the storage of wine.
Wi3150 NEW Instruction Manual.indd 4Wi3150 NEW Instruction Manual.indd 4 27/08/2020 14:1327/08/2020 14:13

5
Instruction manual Wi3150
Please keep this instruction manual for future reference
IMPORTANT
Caple cannot be held liable for any non compliance with
these instructions.
ELECTRICAL SHOCK HAZARD
-Read all instructions before using the wine cabinet.
-DANGER or WARNING: Risk of child entrapment.
-Before you throw away your old wine cabinet: Take off
the door, leaving the shelves in place so that children
cannot easily climb inside.
-Never allow children to operate, play with, or crawl
inside the appliance.
-Never clean appliance parts with flammable fluids. The
fumes can create a fire hazard or explosion.
-Do not store or use gasoline or any other flammable
vapours and liquids in the vicinity of this or any other
appliance. The fumes can create a fire hazard
or explosion.
-The refrigerant of this appliance is R600a, flammable
and explosive articles should not be put in or near the
cabinet, to avoid the risk of fire or explosion.
-Cleaning and user maintenance shall not be made by
children without supervision.
-When positioning the appliance, ensure the supply
cord is not trapped or damaged.
Wi3150 NEW Instruction Manual.indd 5Wi3150 NEW Instruction Manual.indd 5 27/08/2020 14:1327/08/2020 14:13

6
Instruction manual Wi3150 Please keep this instruction manual for future reference
Symbol ISO 7010 W021
Warning; Risk of fire / flammable materials
-This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children
shall not play with the appliance.
-Do not locate multiple portable socket-outlets or
portable power supplies at the rear of the appliance.
-Do not use plug adapter.
-Store wine in sealed bottles.
-Do not overload the cabinet.
-Do not open the door unless necessary.
-Do not cover shelves with aluminium foil or any other
shelf material which may prevent air circulation.
-Should the wine cabinet be stored without use for long
periods it is suggested, after careful cleaning, to leave
the door ajar to allow air to circulate inside the cabinet
in order to avoid possible formations of condensation,
mould or odours.
-Keep ventilation openings, in the appliance enclosure or
in the built-in structure, clear of obstruction.
-Do not damage the refrigerant circuit.
-Do not use electrical appliances inside the storage
compartments of the appliance,unless they are the type
recommended by the manufacturer.
Wi3150 NEW Instruction Manual.indd 6Wi3150 NEW Instruction Manual.indd 6 27/08/2020 14:1327/08/2020 14:13

7
Instruction manual Wi3150
Please keep this instruction manual for future reference
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with household waste. Please recycle
where facilities exist. Check with your Local Authority or retailer for recycling advice. This
appliance is marked according to the European directive on Waste Electrical and Electronic
Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused
by inappropriate waste handling of this product. The symbol on the product indicates that
this product may not be treated as household waste. Instead it shall be handed over to the
applicable collection point for the recycling of electrical and electronic equipment. Disposal
must be carried out in accordance with local environmental regulations for waste disposal.
For more detailed information about treatment, recovery and recycling of this product, please
contact your local council, your household waste disposal service or the retailer where you
purchased the product.
CE DECLARATIONS OF CONFORMITY
This appliance has been manufactured to the strictest standards and complies with all
applicable legislation, Low Voltage Directive (LVD) and Electromagnetic Compatibility (EMC).
TECHNICAL FICHE
This appliance conforms to all current and applicable energy regulations. To view the Technical
Fiche that supports the energy labelling data, please visit the product page on our website
www.caple.co.uk
Wi3150 NEW Instruction Manual.indd 7Wi3150 NEW Instruction Manual.indd 7 27/08/2020 14:1327/08/2020 14:13

8
Instruction manual Wi3150 Please keep this instruction manual for future reference
INSTALLATION
BEFORE USING YOUR WINE CABINET
› Remove the exterior and interior packing.
IMPORTANT:
Before connecting the wine cabinet to the power source, let it stand upright for at least 12
hours. This will reduce the possibility of a malfunction in the cooling system from handling
during transportation.
› Clean the interior surface with lukewarm water using a soft cloth.
Make sure to turn the unit off and unplug it from the outlet.
NOTE
To protect the appliance in transit and delivery the door is packed tightly against the cabinet.
When first installed this can mean the door seal appears thinner on one side of the door due to
compression, this is normal and once out of the box it will relax over a short period of time and
the door will return to the normal position. If you wish to speed up the process you can gently
warm the seal with a hair dryer on a low temperature setting. This can help relax the seal
helping it return to normal thickness a little faster.
INSTALLATION OF YOUR WINE CABINET
› Place your wine cabinet on a floor that is strong enough to support it when it is
fully loaded.
› To level your wine cabinet, adjust the front levelling leg at the bottom of the cabinet.
› Ensure it is perfectly level, as this will minimise any vibrations.
› This appliance uses flammable refrigerant. Never damage the cooling pipework
during transportation.
› Locate the wine cooler away from direct sunlight and sources of heat (ovens, hobs, heaters,
radiators, etc.). Never clean appliance parts with flammable fluids. The fumes can create
a fire hazard or explosion. When disposing your appliance, please choose an authorised
disposal site.
› Avoid locating the unit in moist areas.
Wi3150 NEW Instruction Manual.indd 8Wi3150 NEW Instruction Manual.indd 8 27/08/2020 14:1327/08/2020 14:13

9
Instruction manual Wi3150
Please keep this instruction manual for future reference
› It is fitted with a power cord having an earth wire terminating in a 13amp plug.
› Ensure the product is correctly ventilated (see page; 15 & 16).
› Consult a qualified electrician or service engineer if the earthing instructions are not
completely understood.
› Plug the wine cabinet into an exclusive, properly installed-grounded wall outlet. Do not
under any circumstances cut or remove the third (ground) pin from the plug. Any questions
concerning power and/or grounding should be directed toward a certified electrician or
Caple service.
WARNING:
Incorrect earthing can result in the risk of electric shock.
Wi3150 NEW Instruction Manual.indd 9Wi3150 NEW Instruction Manual.indd 9 27/08/2020 14:1327/08/2020 14:13

10
Instruction manual Wi3150 Please keep this instruction manual for future reference
OPERATING YOUR WINE CABINET
Please use the cabinet within ambient temperatures between 16-32ºC, if the ambient
temperature is higher or lower than this, it will cause the temperature to fluctuate in the
cabinet, possibly preventing it from reaching 5-18ºC.
CONTROL PANEL
TOUCH CONTROL KEYS
To switch the appliance ON/OFF
(press and hold this buttons for approximately 3 seconds)
To turn the lock function on/off. Press and hold this button for approximately 3 seconds
to activate/deactivate. When activated, the symbol will illuminate.
Press this button to raise the temperature in 1ºC increments. The highest temperature is
18ºC. Once the required temperature is selected, the LED display will temporarily flash for
5 seconds, then reverts back to the normal display, and the temperature is now set.
Press this button to lower the temperature in 1ºC increments. The lowest temperature is
5ºC. Once the required temperature is selected, the LED display will temporarily flash for
5 seconds, it then reverts back to the normal display, and the temperature is now set.
NOTE:
Press and hold and for 3 seconds, to change the display from ºC to ºF.
TOUCH CONTROL KEYS AND SYMBOLS
This button is used to toggle between the different operational functions. When selected, the
relevant symbol will illuminate:
Standard mode - Select this function to operate the wine cabinet in standard mode.
ECO mode - An energy saving mode where both the inner light and control panel
lights are off (except the indicator). The LED display is also switched off, until you
change the temperature using the and keys, this will be displayed for 5
seconds and then switch off again. The compressor is also delayed 5 minutes in order
to save energy.
Intelligent mode - In intelligent mode, the wine cabinet will adjust the fan speed
according to the ambient temperature. This will reduce noise levels and save energy.
DEMO mode - When DEMO mode is selected, the compressor and PTC heater will be
disabled, and the fan input voltage reduces to 9V. The HI/LO temperature alarm is
also disabled during DEMO mode.
Note: Press and hold and for 3 seconds, to change the display from ºC to ºF.
To switch the appliance on/off .
Press and hold this button for approximately 1 second to turn the appliance on.
Press and hold this button for approximately 3 seconds to turn the appliance off.
To turn the lock function on/off.
Press and hold this button for approximately 3 seconds to activate/deactivate.
When activated, the symbol will illuminate.
Press this button to raise the temperature in 1ºC increments. The highest temperature is 18ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
then reverts back to the normal display, and the temperature is now set.
Press this button to lower the temperature in 1ºC increments. The lowest temperature is 5ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
it then reverts back to the normal display, and the temperature is now set.
This button is used to toggle between the different light functions. When selected, the relevant
symbol will illuminate:
The internal light will switch on when the door is opened, and off when the door is closed.
The internal light is continuously on. However after 3 minutes the light will dim.
The internal light will remain on for 10 minutes once the door is closed and then turn off.
This symbol indicates the brightness adjuster: Hold the light key for 3 seconds until
flashes. Then use the and keys to adjust the brightness of the internal light.
CONTROL PANEL AND OPERATION
The cooling symbol will illuminate to show when the wine cabinet is currently cooling.
The alarm symbol will illuminate to show the alarm is on. This will activate when either
the door has been left open for a long period of time, or the temperature has fluctuated
too high or low (HI or LO will also show in display to confirm this).
TOUCH CONTROL KEYS AND SYMBOLS
This button is used to toggle between the different operational functions. When selected, the
relevant symbol will illuminate:
Standard mode - Select this function to operate the wine cabinet in standard mode.
ECO mode - An energy saving mode where both the inner light and control panel
lights are off (except the indicator). The LED display is also switched off, until you
change the temperature using the and keys, this will be displayed for 5
seconds and then switch off again. The compressor is also delayed 5 minutes in order
to save energy.
Intelligent mode - In intelligent mode, the wine cabinet will adjust the fan speed
according to the ambient temperature. This will reduce noise levels and save energy.
DEMO mode - When DEMO mode is selected, the compressor and PTC heater will be
disabled, and the fan input voltage reduces to 9V. The HI/LO temperature alarm is
also disabled during DEMO mode.
Note: Press and hold and for 3 seconds, to change the display from ºC to ºF.
To switch the appliance on/off .
Press and hold this button for approximately 1 second to turn the appliance on.
Press and hold this button for approximately 3 seconds to turn the appliance off.
To turn the lock function on/off.
Press and hold this button for approximately 3 seconds to activate/deactivate.
When activated, the symbol will illuminate.
Press this button to raise the temperature in 1ºC increments. The highest temperature is 18ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
then reverts back to the normal display, and the temperature is now set.
Press this button to lower the temperature in 1ºC increments. The lowest temperature is 5ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
it then reverts back to the normal display, and the temperature is now set.
This button is used to toggle between the different light functions. When selected, the relevant
symbol will illuminate:
The internal light will switch on when the door is opened, and off when the door is closed.
The internal light is continuously on. However after 3 minutes the light will dim.
The internal light will remain on for 10 minutes once the door is closed and then turn off.
This symbol indicates the brightness adjuster: Hold the light key for 3 seconds until
flashes. Then use the and keys to adjust the brightness of the internal light.
CONTROL PANEL AND OPERATION
The cooling symbol will illuminate to show when the wine cabinet is currently cooling.
The alarm symbol will illuminate to show the alarm is on. This will activate when either
the door has been left open for a long period of time, or the temperature has fluctuated
too high or low (HI or LO will also show in display to confirm this).
TOUCH CONTROL KEYS AND SYMBOLS
This button is used to toggle between the different operational functions. When selected, the
relevant symbol will illuminate:
Standard mode - Select this function to operate the wine cabinet in standard mode.
ECO mode - An energy saving mode where both the inner light and control panel
lights are off (except the indicator). The LED display is also switched off, until you
change the temperature using the and keys, this will be displayed for 5
seconds and then switch off again. The compressor is also delayed 5 minutes in order
to save energy.
Intelligent mode - In intelligent mode, the wine cabinet will adjust the fan speed
according to the ambient temperature. This will reduce noise levels and save energy.
DEMO mode - When DEMO mode is selected, the compressor and PTC heater will be
disabled, and the fan input voltage reduces to 9V. The HI/LO temperature alarm is
also disabled during DEMO mode.
Note: Press and hold and for 3 seconds, to change the display from ºC to ºF.
To switch the appliance on/off .
Press and hold this button for approximately 1 second to turn the appliance on.
Press and hold this button for approximately 3 seconds to turn the appliance off.
To turn the lock function on/off.
Press and hold this button for approximately 3 seconds to activate/deactivate.
When activated, the symbol will illuminate.
Press this button to raise the temperature in 1ºC increments. The highest temperature is 18ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
then reverts back to the normal display, and the temperature is now set.
Press this button to lower the temperature in 1ºC increments. The lowest temperature is 5ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
it then reverts back to the normal display, and the temperature is now set.
This button is used to toggle between the different light functions. When selected, the relevant
symbol will illuminate:
The internal light will switch on when the door is opened, and off when the door is closed.
The internal light is continuously on. However after 3 minutes the light will dim.
The internal light will remain on for 10 minutes once the door is closed and then turn off.
This symbol indicates the brightness adjuster: Hold the light key for 3 seconds until
flashes. Then use the and keys to adjust the brightness of the internal light.
CONTROL PANEL AND OPERATION
The cooling symbol will illuminate to show when the wine cabinet is currently cooling.
The alarm symbol will illuminate to show the alarm is on. This will activate when either
the door has been left open for a long period of time, or the temperature has fluctuated
too high or low (HI or LO will also show in display to confirm this).
TOUCH CONTROL KEYS AND SYMBOLS
This button is used to toggle between the different operational functions. When selected, the
relevant symbol will illuminate:
Standard mode - Select this function to operate the wine cabinet in standard mode.
ECO mode - An energy saving mode where both the inner light and control panel
lights are off (except the indicator). The LED display is also switched off, until you
change the temperature using the and keys, this will be displayed for 5
seconds and then switch off again. The compressor is also delayed 5 minutes in order
to save energy.
Intelligent mode - In intelligent mode, the wine cabinet will adjust the fan speed
according to the ambient temperature. This will reduce noise levels and save energy.
DEMO mode - When DEMO mode is selected, the compressor and PTC heater will be
disabled, and the fan input voltage reduces to 9V. The HI/LO temperature alarm is
also disabled during DEMO mode.
Note: Press and hold and for 3 seconds, to change the display from ºC to ºF.
To switch the appliance on/off .
Press and hold this button for approximately 1 second to turn the appliance on.
Press and hold this button for approximately 3 seconds to turn the appliance off.
To turn the lock function on/off.
Press and hold this button for approximately 3 seconds to activate/deactivate.
When activated, the symbol will illuminate.
Press this button to raise the temperature in 1ºC increments. The highest temperature is 18ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
then reverts back to the normal display, and the temperature is now set.
Press this button to lower the temperature in 1ºC increments. The lowest temperature is 5ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
it then reverts back to the normal display, and the temperature is now set.
This button is used to toggle between the different light functions. When selected, the relevant
symbol will illuminate:
The internal light will switch on when the door is opened, and off when the door is closed.
The internal light is continuously on. However after 3 minutes the light will dim.
The internal light will remain on for 10 minutes once the door is closed and then turn off.
This symbol indicates the brightness adjuster: Hold the light key for 3 seconds until
flashes. Then use the and keys to adjust the brightness of the internal light.
CONTROL PANEL AND OPERATION
The cooling symbol will illuminate to show when the wine cabinet is currently cooling.
The alarm symbol will illuminate to show the alarm is on. This will activate when either
the door has been left open for a long period of time, or the temperature has fluctuated
too high or low (HI or LO will also show in display to confirm this).
TOUCH CONTROL KEYS AND SYMBOLS
This button is used to toggle between the different operational functions. When selected, the
relevant symbol will illuminate:
Standard mode - Select this function to operate the wine cabinet in standard mode.
ECO mode - An energy saving mode where both the inner light and control panel
lights are off (except the indicator). The LED display is also switched off, until you
change the temperature using the and keys, this will be displayed for 5
seconds and then switch off again. The compressor is also delayed 5 minutes in order
to save energy.
Intelligent mode - In intelligent mode, the wine cabinet will adjust the fan speed
according to the ambient temperature. This will reduce noise levels and save energy.
DEMO mode - When DEMO mode is selected, the compressor and PTC heater will be
disabled, and the fan input voltage reduces to 9V. The HI/LO temperature alarm is
also disabled during DEMO mode.
Note: Press and hold and for 3 seconds, to change the display from ºC to ºF.
To switch the appliance on/off .
Press and hold this button for approximately 1 second to turn the appliance on.
Press and hold this button for approximately 3 seconds to turn the appliance off.
To turn the lock function on/off.
Press and hold this button for approximately 3 seconds to activate/deactivate.
When activated, the symbol will illuminate.
Press this button to raise the temperature in 1ºC increments. The highest temperature is 18ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
then reverts back to the normal display, and the temperature is now set.
Press this button to lower the temperature in 1ºC increments. The lowest temperature is 5ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
it then reverts back to the normal display, and the temperature is now set.
This button is used to toggle between the different light functions. When selected, the relevant
symbol will illuminate:
The internal light will switch on when the door is opened, and off when the door is closed.
The internal light is continuously on. However after 3 minutes the light will dim.
The internal light will remain on for 10 minutes once the door is closed and then turn off.
This symbol indicates the brightness adjuster: Hold the light key for 3 seconds until
flashes. Then use the and keys to adjust the brightness of the internal light.
CONTROL PANEL AND OPERATION
The cooling symbol will illuminate to show when the wine cabinet is currently cooling.
The alarm symbol will illuminate to show the alarm is on. This will activate when either
the door has been left open for a long period of time, or the temperature has fluctuated
too high or low (HI or LO will also show in display to confirm this).
TOUCH CONTROL KEYS AND SYMBOLS
This button is used to toggle between the different operational functions. When selected, the
relevant symbol will illuminate:
Standard mode - Select this function to operate the wine cabinet in standard mode.
ECO mode - An energy saving mode where both the inner light and control panel
lights are off (except the indicator). The LED display is also switched off, until you
change the temperature using the and keys, this will be displayed for 5
seconds and then switch off again. The compressor is also delayed 5 minutes in order
to save energy.
Intelligent mode - In intelligent mode, the wine cabinet will adjust the fan speed
according to the ambient temperature. This will reduce noise levels and save energy.
DEMO mode - When DEMO mode is selected, the compressor and PTC heater will be
disabled, and the fan input voltage reduces to 9V. The HI/LO temperature alarm is
also disabled during DEMO mode.
Note: Press and hold and for 3 seconds, to change the display from ºC to ºF.
To switch the appliance on/off .
Press and hold this button for approximately 1 second to turn the appliance on.
Press and hold this button for approximately 3 seconds to turn the appliance off.
To turn the lock function on/off.
Press and hold this button for approximately 3 seconds to activate/deactivate.
When activated, the symbol will illuminate.
Press this button to raise the temperature in 1ºC increments. The highest temperature is 18ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
then reverts back to the normal display, and the temperature is now set.
Press this button to lower the temperature in 1ºC increments. The lowest temperature is 5ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
it then reverts back to the normal display, and the temperature is now set.
This button is used to toggle between the different light functions. When selected, the relevant
symbol will illuminate:
The internal light will switch on when the door is opened, and off when the door is closed.
The internal light is continuously on. However after 3 minutes the light will dim.
The internal light will remain on for 10 minutes once the door is closed and then turn off.
This symbol indicates the brightness adjuster: Hold the light key for 3 seconds until
flashes. Then use the and keys to adjust the brightness of the internal light.
CONTROL PANEL AND OPERATION
The cooling symbol will illuminate to show when the wine cabinet is currently cooling.
The alarm symbol will illuminate to show the alarm is on. This will activate when either
the door has been left open for a long period of time, or the temperature has fluctuated
too high or low (HI or LO will also show in display to confirm this).
TOUCH CONTROL KEYS AND SYMBOLS
This button is used to toggle between the different operational functions. When selected, the
relevant symbol will illuminate:
Standard mode - Select this function to operate the wine cabinet in standard mode.
ECO mode - An energy saving mode where both the inner light and control panel
lights are off (except the indicator). The LED display is also switched off, until you
change the temperature using the and keys, this will be displayed for 5
seconds and then switch off again. The compressor is also delayed 5 minutes in order
to save energy.
Intelligent mode - In intelligent mode, the wine cabinet will adjust the fan speed
according to the ambient temperature. This will reduce noise levels and save energy.
DEMO mode - When DEMO mode is selected, the compressor and PTC heater will be
disabled, and the fan input voltage reduces to 9V. The HI/LO temperature alarm is
also disabled during DEMO mode.
Note: Press and hold and for 3 seconds, to change the display from ºC to ºF.
To switch the appliance on/off .
Press and hold this button for approximately 1 second to turn the appliance on.
Press and hold this button for approximately 3 seconds to turn the appliance off.
To turn the lock function on/off.
Press and hold this button for approximately 3 seconds to activate/deactivate.
When activated, the symbol will illuminate.
Press this button to raise the temperature in 1ºC increments. The highest temperature is 18ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
then reverts back to the normal display, and the temperature is now set.
Press this button to lower the temperature in 1ºC increments. The lowest temperature is 5ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
it then reverts back to the normal display, and the temperature is now set.
This button is used to toggle between the different light functions. When selected, the relevant
symbol will illuminate:
The internal light will switch on when the door is opened, and off when the door is closed.
The internal light is continuously on. However after 3 minutes the light will dim.
The internal light will remain on for 10 minutes once the door is closed and then turn off.
This symbol indicates the brightness adjuster: Hold the light key for 3 seconds until
flashes. Then use the and keys to adjust the brightness of the internal light.
CONTROL PANEL AND OPERATION
The cooling symbol will illuminate to show when the wine cabinet is currently cooling.
The alarm symbol will illuminate to show the alarm is on. This will activate when either
the door has been left open for a long period of time, or the temperature has fluctuated
too high or low (HI or LO will also show in display to confirm this).
TOUCH CONTROL KEYS AND SYMBOLS
This button is used to toggle between the different operational functions. When selected, the
relevant symbol will illuminate:
Standard mode - Select this function to operate the wine cabinet in standard mode.
ECO mode - An energy saving mode where both the inner light and control panel
lights are off (except the indicator). The LED display is also switched off, until you
change the temperature using the and keys, this will be displayed for 5
seconds and then switch off again. The compressor is also delayed 5 minutes in order
to save energy.
Intelligent mode - In intelligent mode, the wine cabinet will adjust the fan speed
according to the ambient temperature. This will reduce noise levels and save energy.
DEMO mode - When DEMO mode is selected, the compressor and PTC heater will be
disabled, and the fan input voltage reduces to 9V. The HI/LO temperature alarm is
also disabled during DEMO mode.
Note: Press and hold and for 3 seconds, to change the display from ºC to ºF.
To switch the appliance on/off .
Press and hold this button for approximately 1 second to turn the appliance on.
Press and hold this button for approximately 3 seconds to turn the appliance off.
To turn the lock function on/off.
Press and hold this button for approximately 3 seconds to activate/deactivate.
When activated, the symbol will illuminate.
Press this button to raise the temperature in 1ºC increments. The highest temperature is 18ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
then reverts back to the normal display, and the temperature is now set.
Press this button to lower the temperature in 1ºC increments. The lowest temperature is 5ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
it then reverts back to the normal display, and the temperature is now set.
This button is used to toggle between the different light functions. When selected, the relevant
symbol will illuminate:
The internal light will switch on when the door is opened, and off when the door is closed.
The internal light is continuously on. However after 3 minutes the light will dim.
The internal light will remain on for 10 minutes once the door is closed and then turn off.
This symbol indicates the brightness adjuster: Hold the light key for 3 seconds until
flashes. Then use the and keys to adjust the brightness of the internal light.
CONTROL PANEL AND OPERATION
The cooling symbol will illuminate to show when the wine cabinet is currently cooling.
The alarm symbol will illuminate to show the alarm is on. This will activate when either
the door has been left open for a long period of time, or the temperature has fluctuated
too high or low (HI or LO will also show in display to confirm this).
Wi3150 NEW Instruction Manual.indd 10Wi3150 NEW Instruction Manual.indd 10 27/08/2020 14:1327/08/2020 14:13

11
Instruction manual Wi3150
Please keep this instruction manual for future reference
TOUCH CONTROL KEYS AND SYMBOLS
This button is used to toggle between the different operational functions. When selected, the
relevant symbol will illuminate:
Standard mode - Select this function to operate the wine cabinet in standard mode.
ECO mode - An energy saving mode where both the inner light and control panel
lights are off (except the indicator). The LED display is also switched off, until you
change the temperature using the and keys, this will be displayed for 5
seconds and then switch off again. The compressor is also delayed 5 minutes in order
to save energy.
Intelligent mode - In intelligent mode, the wine cabinet will adjust the fan speed
according to the ambient temperature. This will reduce noise levels and save energy.
DEMO mode - When DEMO mode is selected, the compressor and PTC heater will be
disabled, and the fan input voltage reduces to 9V. The HI/LO temperature alarm is
also disabled during DEMO mode.
Note: Press and hold and for 3 seconds, to change the display from ºC to ºF.
To switch the appliance on/off .
Press and hold this button for approximately 1 second to turn the appliance on.
Press and hold this button for approximately 3 seconds to turn the appliance off.
To turn the lock function on/off.
Press and hold this button for approximately 3 seconds to activate/deactivate.
When activated, the symbol will illuminate.
Press this button to raise the temperature in 1ºC increments. The highest temperature is 18ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
then reverts back to the normal display, and the temperature is now set.
Press this button to lower the temperature in 1ºC increments. The lowest temperature is 5ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
it then reverts back to the normal display, and the temperature is now set.
This button is used to toggle between the different light functions. When selected, the relevant
symbol will illuminate:
The internal light will switch on when the door is opened, and off when the door is closed.
The internal light is continuously on. However after 3 minutes the light will dim.
The internal light will remain on for 10 minutes once the door is closed and then turn off.
This symbol indicates the brightness adjuster: Hold the light key for 3 seconds until
flashes. Then use the and keys to adjust the brightness of the internal light.
CONTROL PANEL AND OPERATION
The cooling symbol will illuminate to show when the wine cabinet is currently cooling.
The alarm symbol will illuminate to show the alarm is on. This will activate when either
the door has been left open for a long period of time, or the temperature has fluctuated
too high or low (HI or LO will also show in display to confirm this).
TOUCH CONTROL KEYS AND SYMBOLS
This button is used to toggle between the different operational functions. When selected, the
relevant symbol will illuminate:
Standard mode - Select this function to operate the wine cabinet in standard mode.
ECO mode - An energy saving mode where both the inner light and control panel
lights are off (except the indicator). The LED display is also switched off, until you
change the temperature using the and keys, this will be displayed for 5
seconds and then switch off again. The compressor is also delayed 5 minutes in order
to save energy.
Intelligent mode - In intelligent mode, the wine cabinet will adjust the fan speed
according to the ambient temperature. This will reduce noise levels and save energy.
DEMO mode - When DEMO mode is selected, the compressor and PTC heater will be
disabled, and the fan input voltage reduces to 9V. The HI/LO temperature alarm is
also disabled during DEMO mode.
Note: Press and hold and for 3 seconds, to change the display from ºC to ºF.
To switch the appliance on/off .
Press and hold this button for approximately 1 second to turn the appliance on.
Press and hold this button for approximately 3 seconds to turn the appliance off.
To turn the lock function on/off.
Press and hold this button for approximately 3 seconds to activate/deactivate.
When activated, the symbol will illuminate.
Press this button to raise the temperature in 1ºC increments. The highest temperature is 18ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
then reverts back to the normal display, and the temperature is now set.
Press this button to lower the temperature in 1ºC increments. The lowest temperature is 5ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
it then reverts back to the normal display, and the temperature is now set.
This button is used to toggle between the different light functions. When selected, the relevant
symbol will illuminate:
The internal light will switch on when the door is opened, and off when the door is closed.
The internal light is continuously on. However after 3 minutes the light will dim.
The internal light will remain on for 10 minutes once the door is closed and then turn off.
This symbol indicates the brightness adjuster: Hold the light key for 3 seconds until
flashes. Then use the and keys to adjust the brightness of the internal light.
CONTROL PANEL AND OPERATION
The cooling symbol will illuminate to show when the wine cabinet is currently cooling.
The alarm symbol will illuminate to show the alarm is on. This will activate when either
the door has been left open for a long period of time, or the temperature has fluctuated
too high or low (HI or LO will also show in display to confirm this).
TOUCH CONTROL KEYS AND SYMBOLS
This button is used to toggle between the different operational functions. When selected, the
relevant symbol will illuminate:
Standard mode - Select this function to operate the wine cabinet in standard mode.
ECO mode - An energy saving mode where both the inner light and control panel
lights are off (except the indicator). The LED display is also switched off, until you
change the temperature using the and keys, this will be displayed for 5
seconds and then switch off again. The compressor is also delayed 5 minutes in order
to save energy.
Intelligent mode - In intelligent mode, the wine cabinet will adjust the fan speed
according to the ambient temperature. This will reduce noise levels and save energy.
DEMO mode - When DEMO mode is selected, the compressor and PTC heater will be
disabled, and the fan input voltage reduces to 9V. The HI/LO temperature alarm is
also disabled during DEMO mode.
Note: Press and hold and for 3 seconds, to change the display from ºC to ºF.
To switch the appliance on/off .
Press and hold this button for approximately 1 second to turn the appliance on.
Press and hold this button for approximately 3 seconds to turn the appliance off.
To turn the lock function on/off.
Press and hold this button for approximately 3 seconds to activate/deactivate.
When activated, the symbol will illuminate.
Press this button to raise the temperature in 1ºC increments. The highest temperature is 18ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
then reverts back to the normal display, and the temperature is now set.
Press this button to lower the temperature in 1ºC increments. The lowest temperature is 5ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
it then reverts back to the normal display, and the temperature is now set.
This button is used to toggle between the different light functions. When selected, the relevant
symbol will illuminate:
The internal light will switch on when the door is opened, and off when the door is closed.
The internal light is continuously on. However after 3 minutes the light will dim.
The internal light will remain on for 10 minutes once the door is closed and then turn off.
This symbol indicates the brightness adjuster: Hold the light key for 3 seconds until
flashes. Then use the and keys to adjust the brightness of the internal light.
CONTROL PANEL AND OPERATION
The cooling symbol will illuminate to show when the wine cabinet is currently cooling.
The alarm symbol will illuminate to show the alarm is on. This will activate when either
the door has been left open for a long period of time, or the temperature has fluctuated
too high or low (HI or LO will also show in display to confirm this).
TOUCH CONTROL KEYS AND SYMBOLS
This button is used to toggle between the different operational functions. When selected, the
relevant symbol will illuminate:
Standard mode - Select this function to operate the wine cabinet in standard mode.
ECO mode - An energy saving mode where both the inner light and control panel
lights are off (except the indicator). The LED display is also switched off, until you
change the temperature using the and keys, this will be displayed for 5
seconds and then switch off again. The compressor is also delayed 5 minutes in order
to save energy.
Intelligent mode - In intelligent mode, the wine cabinet will adjust the fan speed
according to the ambient temperature. This will reduce noise levels and save energy.
DEMO mode - When DEMO mode is selected, the compressor and PTC heater will be
disabled, and the fan input voltage reduces to 9V. The HI/LO temperature alarm is
also disabled during DEMO mode.
Note: Press and hold and for 3 seconds, to change the display from ºC to ºF.
To switch the appliance on/off .
Press and hold this button for approximately 1 second to turn the appliance on.
Press and hold this button for approximately 3 seconds to turn the appliance off.
To turn the lock function on/off.
Press and hold this button for approximately 3 seconds to activate/deactivate.
When activated, the symbol will illuminate.
Press this button to raise the temperature in 1ºC increments. The highest temperature is 18ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
then reverts back to the normal display, and the temperature is now set.
Press this button to lower the temperature in 1ºC increments. The lowest temperature is 5ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
it then reverts back to the normal display, and the temperature is now set.
This button is used to toggle between the different light functions. When selected, the relevant
symbol will illuminate:
The internal light will switch on when the door is opened, and off when the door is closed.
The internal light is continuously on. However after 3 minutes the light will dim.
The internal light will remain on for 10 minutes once the door is closed and then turn off.
This symbol indicates the brightness adjuster: Hold the light key for 3 seconds until
flashes. Then use the and keys to adjust the brightness of the internal light.
CONTROL PANEL AND OPERATION
The cooling symbol will illuminate to show when the wine cabinet is currently cooling.
The alarm symbol will illuminate to show the alarm is on. This will activate when either
the door has been left open for a long period of time, or the temperature has fluctuated
too high or low (HI or LO will also show in display to confirm this).
TOUCH CONTROL KEYS AND SYMBOLS
This button is used to toggle between the different operational functions. When selected, the
relevant symbol will illuminate:
Standard mode - Select this function to operate the wine cabinet in standard mode.
ECO mode - An energy saving mode where both the inner light and control panel
lights are off (except the indicator). The LED display is also switched off, until you
change the temperature using the and keys, this will be displayed for 5
seconds and then switch off again. The compressor is also delayed 5 minutes in order
to save energy.
Intelligent mode - In intelligent mode, the wine cabinet will adjust the fan speed
according to the ambient temperature. This will reduce noise levels and save energy.
DEMO mode - When DEMO mode is selected, the compressor and PTC heater will be
disabled, and the fan input voltage reduces to 9V. The HI/LO temperature alarm is
also disabled during DEMO mode.
Note: Press and hold and for 3 seconds, to change the display from ºC to ºF.
To switch the appliance on/off .
Press and hold this button for approximately 1 second to turn the appliance on.
Press and hold this button for approximately 3 seconds to turn the appliance off.
To turn the lock function on/off.
Press and hold this button for approximately 3 seconds to activate/deactivate.
When activated, the symbol will illuminate.
Press this button to raise the temperature in 1ºC increments. The highest temperature is 18ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
then reverts back to the normal display, and the temperature is now set.
Press this button to lower the temperature in 1ºC increments. The lowest temperature is 5ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
it then reverts back to the normal display, and the temperature is now set.
This button is used to toggle between the different light functions. When selected, the relevant
symbol will illuminate:
The internal light will switch on when the door is opened, and off when the door is closed.
The internal light is continuously on. However after 3 minutes the light will dim.
The internal light will remain on for 10 minutes once the door is closed and then turn off.
This symbol indicates the brightness adjuster: Hold the light key for 3 seconds until
flashes. Then use the and keys to adjust the brightness of the internal light.
CONTROL PANEL AND OPERATION
The cooling symbol will illuminate to show when the wine cabinet is currently cooling.
The alarm symbol will illuminate to show the alarm is on. This will activate when either
the door has been left open for a long period of time, or the temperature has fluctuated
too high or low (HI or LO will also show in display to confirm this).
TOUCH CONTROL KEYS AND SYMBOLS
This button is used to toggle between the different operational functions. When selected, the
relevant symbol will illuminate:
Standard mode - Select this function to operate the wine cabinet in standard mode.
ECO mode - An energy saving mode where both the inner light and control panel
lights are off (except the indicator). The LED display is also switched off, until you
change the temperature using the and keys, this will be displayed for 5
seconds and then switch off again. The compressor is also delayed 5 minutes in order
to save energy.
Intelligent mode - In intelligent mode, the wine cabinet will adjust the fan speed
according to the ambient temperature. This will reduce noise levels and save energy.
DEMO mode - When DEMO mode is selected, the compressor and PTC heater will be
disabled, and the fan input voltage reduces to 9V. The HI/LO temperature alarm is
also disabled during DEMO mode.
Note: Press and hold and for 3 seconds, to change the display from ºC to ºF.
To switch the appliance on/off .
Press and hold this button for approximately 1 second to turn the appliance on.
Press and hold this button for approximately 3 seconds to turn the appliance off.
To turn the lock function on/off.
Press and hold this button for approximately 3 seconds to activate/deactivate.
When activated, the symbol will illuminate.
Press this button to raise the temperature in 1ºC increments. The highest temperature is 18ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
then reverts back to the normal display, and the temperature is now set.
Press this button to lower the temperature in 1ºC increments. The lowest temperature is 5ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
it then reverts back to the normal display, and the temperature is now set.
This button is used to toggle between the different light functions. When selected, the relevant
symbol will illuminate:
The internal light will switch on when the door is opened, and off when the door is closed.
The internal light is continuously on. However after 3 minutes the light will dim.
The internal light will remain on for 10 minutes once the door is closed and then turn off.
This symbol indicates the brightness adjuster: Hold the light key for 3 seconds until
flashes. Then use the and keys to adjust the brightness of the internal light.
CONTROL PANEL AND OPERATION
The cooling symbol will illuminate to show when the wine cabinet is currently cooling.
The alarm symbol will illuminate to show the alarm is on. This will activate when either
the door has been left open for a long period of time, or the temperature has fluctuated
too high or low (HI or LO will also show in display to confirm this).
TOUCH CONTROL KEYS AND SYMBOLS
This button is used to toggle between the different operational functions. When selected, the
relevant symbol will illuminate:
Standard mode - Select this function to operate the wine cabinet in standard mode.
ECO mode - An energy saving mode where both the inner light and control panel
lights are off (except the indicator). The LED display is also switched off, until you
change the temperature using the and keys, this will be displayed for 5
seconds and then switch off again. The compressor is also delayed 5 minutes in order
to save energy.
Intelligent mode - In intelligent mode, the wine cabinet will adjust the fan speed
according to the ambient temperature. This will reduce noise levels and save energy.
DEMO mode - When DEMO mode is selected, the compressor and PTC heater will be
disabled, and the fan input voltage reduces to 9V. The HI/LO temperature alarm is
also disabled during DEMO mode.
Note: Press and hold and for 3 seconds, to change the display from ºC to ºF.
To switch the appliance on/off .
Press and hold this button for approximately 1 second to turn the appliance on.
Press and hold this button for approximately 3 seconds to turn the appliance off.
To turn the lock function on/off.
Press and hold this button for approximately 3 seconds to activate/deactivate.
When activated, the symbol will illuminate.
Press this button to raise the temperature in 1ºC increments. The highest temperature is 18ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
then reverts back to the normal display, and the temperature is now set.
Press this button to lower the temperature in 1ºC increments. The lowest temperature is 5ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
it then reverts back to the normal display, and the temperature is now set.
This button is used to toggle between the different light functions. When selected, the relevant
symbol will illuminate:
The internal light will switch on when the door is opened, and off when the door is closed.
The internal light is continuously on. However after 3 minutes the light will dim.
The internal light will remain on for 10 minutes once the door is closed and then turn off.
This symbol indicates the brightness adjuster: Hold the light key for 3 seconds until
flashes. Then use the and keys to adjust the brightness of the internal light.
CONTROL PANEL AND OPERATION
The cooling symbol will illuminate to show when the wine cabinet is currently cooling.
The alarm symbol will illuminate to show the alarm is on. This will activate when either
the door has been left open for a long period of time, or the temperature has fluctuated
too high or low (HI or LO will also show in display to confirm this).
TOUCH CONTROL KEYS AND SYMBOLS
This button is used to toggle between the different operational functions. When selected, the
relevant symbol will illuminate:
Standard mode - Select this function to operate the wine cabinet in standard mode.
ECO mode - An energy saving mode where both the inner light and control panel
lights are off (except the indicator). The LED display is also switched off, until you
change the temperature using the and keys, this will be displayed for 5
seconds and then switch off again. The compressor is also delayed 5 minutes in order
to save energy.
Intelligent mode - In intelligent mode, the wine cabinet will adjust the fan speed
according to the ambient temperature. This will reduce noise levels and save energy.
DEMO mode - When DEMO mode is selected, the compressor and PTC heater will be
disabled, and the fan input voltage reduces to 9V. The HI/LO temperature alarm is
also disabled during DEMO mode.
Note: Press and hold and for 3 seconds, to change the display from ºC to ºF.
To switch the appliance on/off .
Press and hold this button for approximately 1 second to turn the appliance on.
Press and hold this button for approximately 3 seconds to turn the appliance off.
To turn the lock function on/off.
Press and hold this button for approximately 3 seconds to activate/deactivate.
When activated, the symbol will illuminate.
Press this button to raise the temperature in 1ºC increments. The highest temperature is 18ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
then reverts back to the normal display, and the temperature is now set.
Press this button to lower the temperature in 1ºC increments. The lowest temperature is 5ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
it then reverts back to the normal display, and the temperature is now set.
This button is used to toggle between the different light functions. When selected, the relevant
symbol will illuminate:
The internal light will switch on when the door is opened, and off when the door is closed.
The internal light is continuously on. However after 3 minutes the light will dim.
The internal light will remain on for 10 minutes once the door is closed and then turn off.
This symbol indicates the brightness adjuster: Hold the light key for 3 seconds until
flashes. Then use the and keys to adjust the brightness of the internal light.
CONTROL PANEL AND OPERATION
The cooling symbol will illuminate to show when the wine cabinet is currently cooling.
The alarm symbol will illuminate to show the alarm is on. This will activate when either
the door has been left open for a long period of time, or the temperature has fluctuated
too high or low (HI or LO will also show in display to confirm this).
TOUCH CONTROL KEYS AND SYMBOLS
This button is used to toggle between the different operational functions. When selected, the
relevant symbol will illuminate:
Standard mode - Select this function to operate the wine cabinet in standard mode.
ECO mode - An energy saving mode where both the inner light and control panel
lights are off (except the indicator). The LED display is also switched off, until you
change the temperature using the and keys, this will be displayed for 5
seconds and then switch off again. The compressor is also delayed 5 minutes in order
to save energy.
Intelligent mode - In intelligent mode, the wine cabinet will adjust the fan speed
according to the ambient temperature. This will reduce noise levels and save energy.
DEMO mode - When DEMO mode is selected, the compressor and PTC heater will be
disabled, and the fan input voltage reduces to 9V. The HI/LO temperature alarm is
also disabled during DEMO mode.
Note: Press and hold and for 3 seconds, to change the display from ºC to ºF.
To switch the appliance on/off .
Press and hold this button for approximately 1 second to turn the appliance on.
Press and hold this button for approximately 3 seconds to turn the appliance off.
To turn the lock function on/off.
Press and hold this button for approximately 3 seconds to activate/deactivate.
When activated, the symbol will illuminate.
Press this button to raise the temperature in 1ºC increments. The highest temperature is 18ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
then reverts back to the normal display, and the temperature is now set.
Press this button to lower the temperature in 1ºC increments. The lowest temperature is 5ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
it then reverts back to the normal display, and the temperature is now set.
This button is used to toggle between the different light functions. When selected, the relevant
symbol will illuminate:
The internal light will switch on when the door is opened, and off when the door is closed.
The internal light is continuously on. However after 3 minutes the light will dim.
The internal light will remain on for 10 minutes once the door is closed and then turn off.
This symbol indicates the brightness adjuster: Hold the light key for 3 seconds until
flashes. Then use the and keys to adjust the brightness of the internal light.
CONTROL PANEL AND OPERATION
The cooling symbol will illuminate to show when the wine cabinet is currently cooling.
The alarm symbol will illuminate to show the alarm is on. This will activate when either
the door has been left open for a long period of time, or the temperature has fluctuated
too high or low (HI or LO will also show in display to confirm this).
This button is used to toggle between the different light functions. When selected, the
relevant symbol will illuminate:
The internal light will switch on when the door is opened, and off when the door
is closed.
The internal light is continuously on. However after 3 minutes the light will dim.
The internal light will remain on for 10 minutes once the door is closed and then turn off.
This symbol indicates the brightness adjuster: Hold the light key for 3 seconds until
flashes. Then use the and keys to adjust the brightness of the internal light.
This button is used to toggle between the different operational functions. When selected,
the relevant symbol will illuminate:
STANDARD MODE:
Select this function to operate the wine cabinet in standard mode.
ECO MODE:
An energy saving mode where both the inner light and control panel lights are off
(except the indicator). The LED display is also switched off, until you change the
temperature using the and keys, this will be displayed for 5 seconds and then
switch off again. The compressor is also delayed 5 minutes in order to save energy.
INTELLIGENT MODE:
In intelligent mode, the wine cabinet will adjust the fan speed according to the ambient
temperature. This will reduce noise levels and save energy.
DEMO MODE:
When DEMO mode is selected, the compressor and PTC heater will be disabled, and the
fan input voltage reduces to 9V. The HI/LO temperature alarm is also disabled during
DEMO mode.
The cooling symbol will illuminate to show when the wine cabinet is currently cooling.
The alarm symbol will illuminate to show the alarm is on. This will activate when either
the door has been left open for a long period of time, or the temperature has fluctuated
too high or low (HI or LO will also show in display to confirm this).
TOUCH CONTROL KEYS AND SYMBOLS
This button is used to toggle between the different operational functions. When selected, the
relevant symbol will illuminate:
Standard mode - Select this function to operate the wine cabinet in standard mode.
ECO mode - An energy saving mode where both the inner light and control panel
lights are off (except the indicator). The LED display is also switched off, until you
change the temperature using the and keys, this will be displayed for 5
seconds and then switch off again. The compressor is also delayed 5 minutes in order
to save energy.
Intelligent mode - In intelligent mode, the wine cabinet will adjust the fan speed
according to the ambient temperature. This will reduce noise levels and save energy.
DEMO mode - When DEMO mode is selected, the compressor and PTC heater will be
disabled, and the fan input voltage reduces to 9V. The HI/LO temperature alarm is
also disabled during DEMO mode.
Note: Press and hold and for 3 seconds, to change the display from ºC to ºF.
To switch the appliance on/off .
Press and hold this button for approximately 1 second to turn the appliance on.
Press and hold this button for approximately 3 seconds to turn the appliance off.
To turn the lock function on/off.
Press and hold this button for approximately 3 seconds to activate/deactivate.
When activated, the symbol will illuminate.
Press this button to raise the temperature in 1ºC increments. The highest temperature is 18ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
then reverts back to the normal display, and the temperature is now set.
Press this button to lower the temperature in 1ºC increments. The lowest temperature is 5ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
it then reverts back to the normal display, and the temperature is now set.
This button is used to toggle between the different light functions. When selected, the relevant
symbol will illuminate:
The internal light will switch on when the door is opened, and off when the door is closed.
The internal light is continuously on. However after 3 minutes the light will dim.
The internal light will remain on for 10 minutes once the door is closed and then turn off.
This symbol indicates the brightness adjuster: Hold the light key for 3 seconds until
flashes. Then use the and keys to adjust the brightness of the internal light.
CONTROL PANEL AND OPERATION
The cooling symbol will illuminate to show when the wine cabinet is currently cooling.
The alarm symbol will illuminate to show the alarm is on. This will activate when either
the door has been left open for a long period of time, or the temperature has fluctuated
too high or low (HI or LO will also show in display to confirm this).
TOUCH CONTROL KEYS AND SYMBOLS
This button is used to toggle between the different operational functions. When selected, the
relevant symbol will illuminate:
Standard mode - Select this function to operate the wine cabinet in standard mode.
ECO mode - An energy saving mode where both the inner light and control panel
lights are off (except the indicator). The LED display is also switched off, until you
change the temperature using the and keys, this will be displayed for 5
seconds and then switch off again. The compressor is also delayed 5 minutes in order
to save energy.
Intelligent mode - In intelligent mode, the wine cabinet will adjust the fan speed
according to the ambient temperature. This will reduce noise levels and save energy.
DEMO mode - When DEMO mode is selected, the compressor and PTC heater will be
disabled, and the fan input voltage reduces to 9V. The HI/LO temperature alarm is
also disabled during DEMO mode.
Note: Press and hold and for 3 seconds, to change the display from ºC to ºF.
To switch the appliance on/off .
Press and hold this button for approximately 1 second to turn the appliance on.
Press and hold this button for approximately 3 seconds to turn the appliance off.
To turn the lock function on/off.
Press and hold this button for approximately 3 seconds to activate/deactivate.
When activated, the symbol will illuminate.
Press this button to raise the temperature in 1ºC increments. The highest temperature is 18ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
then reverts back to the normal display, and the temperature is now set.
Press this button to lower the temperature in 1ºC increments. The lowest temperature is 5ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
it then reverts back to the normal display, and the temperature is now set.
This button is used to toggle between the different light functions. When selected, the relevant
symbol will illuminate:
The internal light will switch on when the door is opened, and off when the door is closed.
The internal light is continuously on. However after 3 minutes the light will dim.
The internal light will remain on for 10 minutes once the door is closed and then turn off.
This symbol indicates the brightness adjuster: Hold the light key for 3 seconds until
flashes. Then use the and keys to adjust the brightness of the internal light.
CONTROL PANEL AND OPERATION
The cooling symbol will illuminate to show when the wine cabinet is currently cooling.
The alarm symbol will illuminate to show the alarm is on. This will activate when either
the door has been left open for a long period of time, or the temperature has fluctuated
too high or low (HI or LO will also show in display to confirm this).
TOUCH CONTROL KEYS AND SYMBOLS
This button is used to toggle between the different operational functions. When selected, the
relevant symbol will illuminate:
Standard mode - Select this function to operate the wine cabinet in standard mode.
ECO mode - An energy saving mode where both the inner light and control panel
lights are off (except the indicator). The LED display is also switched off, until you
change the temperature using the and keys, this will be displayed for 5
seconds and then switch off again. The compressor is also delayed 5 minutes in order
to save energy.
Intelligent mode - In intelligent mode, the wine cabinet will adjust the fan speed
according to the ambient temperature. This will reduce noise levels and save energy.
DEMO mode - When DEMO mode is selected, the compressor and PTC heater will be
disabled, and the fan input voltage reduces to 9V. The HI/LO temperature alarm is
also disabled during DEMO mode.
Note: Press and hold and for 3 seconds, to change the display from ºC to ºF.
To switch the appliance on/off .
Press and hold this button for approximately 1 second to turn the appliance on.
Press and hold this button for approximately 3 seconds to turn the appliance off.
To turn the lock function on/off.
Press and hold this button for approximately 3 seconds to activate/deactivate.
When activated, the symbol will illuminate.
Press this button to raise the temperature in 1ºC increments. The highest temperature is 18ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
then reverts back to the normal display, and the temperature is now set.
Press this button to lower the temperature in 1ºC increments. The lowest temperature is 5ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
it then reverts back to the normal display, and the temperature is now set.
This button is used to toggle between the different light functions. When selected, the relevant
symbol will illuminate:
The internal light will switch on when the door is opened, and off when the door is closed.
The internal light is continuously on. However after 3 minutes the light will dim.
The internal light will remain on for 10 minutes once the door is closed and then turn off.
This symbol indicates the brightness adjuster: Hold the light key for 3 seconds until
flashes. Then use the and keys to adjust the brightness of the internal light.
CONTROL PANEL AND OPERATION
The cooling symbol will illuminate to show when the wine cabinet is currently cooling.
The alarm symbol will illuminate to show the alarm is on. This will activate when either
the door has been left open for a long period of time, or the temperature has fluctuated
too high or low (HI or LO will also show in display to confirm this).
TOUCH CONTROL KEYS AND SYMBOLS
This button is used to toggle between the different operational functions. When selected, the
relevant symbol will illuminate:
Standard mode - Select this function to operate the wine cabinet in standard mode.
ECO mode - An energy saving mode where both the inner light and control panel
lights are off (except the indicator). The LED display is also switched off, until you
change the temperature using the and keys, this will be displayed for 5
seconds and then switch off again. The compressor is also delayed 5 minutes in order
to save energy.
Intelligent mode - In intelligent mode, the wine cabinet will adjust the fan speed
according to the ambient temperature. This will reduce noise levels and save energy.
DEMO mode - When DEMO mode is selected, the compressor and PTC heater will be
disabled, and the fan input voltage reduces to 9V. The HI/LO temperature alarm is
also disabled during DEMO mode.
Note: Press and hold and for 3 seconds, to change the display from ºC to ºF.
To switch the appliance on/off .
Press and hold this button for approximately 1 second to turn the appliance on.
Press and hold this button for approximately 3 seconds to turn the appliance off.
To turn the lock function on/off.
Press and hold this button for approximately 3 seconds to activate/deactivate.
When activated, the symbol will illuminate.
Press this button to raise the temperature in 1ºC increments. The highest temperature is 18ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
then reverts back to the normal display, and the temperature is now set.
Press this button to lower the temperature in 1ºC increments. The lowest temperature is 5ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
it then reverts back to the normal display, and the temperature is now set.
This button is used to toggle between the different light functions. When selected, the relevant
symbol will illuminate:
The internal light will switch on when the door is opened, and off when the door is closed.
The internal light is continuously on. However after 3 minutes the light will dim.
The internal light will remain on for 10 minutes once the door is closed and then turn off.
This symbol indicates the brightness adjuster: Hold the light key for 3 seconds until
flashes. Then use the and keys to adjust the brightness of the internal light.
CONTROL PANEL AND OPERATION
The cooling symbol will illuminate to show when the wine cabinet is currently cooling.
The alarm symbol will illuminate to show the alarm is on. This will activate when either
the door has been left open for a long period of time, or the temperature has fluctuated
too high or low (HI or LO will also show in display to confirm this).
TOUCH CONTROL KEYS AND SYMBOLS
This button is used to toggle between the different operational functions. When selected, the
relevant symbol will illuminate:
Standard mode - Select this function to operate the wine cabinet in standard mode.
ECO mode - An energy saving mode where both the inner light and control panel
lights are off (except the indicator). The LED display is also switched off, until you
change the temperature using the and keys, this will be displayed for 5
seconds and then switch off again. The compressor is also delayed 5 minutes in order
to save energy.
Intelligent mode - In intelligent mode, the wine cabinet will adjust the fan speed
according to the ambient temperature. This will reduce noise levels and save energy.
DEMO mode - When DEMO mode is selected, the compressor and PTC heater will be
disabled, and the fan input voltage reduces to 9V. The HI/LO temperature alarm is
also disabled during DEMO mode.
Note: Press and hold and for 3 seconds, to change the display from ºC to ºF.
To switch the appliance on/off .
Press and hold this button for approximately 1 second to turn the appliance on.
Press and hold this button for approximately 3 seconds to turn the appliance off.
To turn the lock function on/off.
Press and hold this button for approximately 3 seconds to activate/deactivate.
When activated, the symbol will illuminate.
Press this button to raise the temperature in 1ºC increments. The highest temperature is 18ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
then reverts back to the normal display, and the temperature is now set.
Press this button to lower the temperature in 1ºC increments. The lowest temperature is 5ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
it then reverts back to the normal display, and the temperature is now set.
This button is used to toggle between the different light functions. When selected, the relevant
symbol will illuminate:
The internal light will switch on when the door is opened, and off when the door is closed.
The internal light is continuously on. However after 3 minutes the light will dim.
The internal light will remain on for 10 minutes once the door is closed and then turn off.
This symbol indicates the brightness adjuster: Hold the light key for 3 seconds until
flashes. Then use the and keys to adjust the brightness of the internal light.
CONTROL PANEL AND OPERATION
The cooling symbol will illuminate to show when the wine cabinet is currently cooling.
The alarm symbol will illuminate to show the alarm is on. This will activate when either
the door has been left open for a long period of time, or the temperature has fluctuated
too high or low (HI or LO will also show in display to confirm this).
TOUCH CONTROL KEYS AND SYMBOLS
This button is used to toggle between the different operational functions. When selected, the
relevant symbol will illuminate:
Standard mode - Select this function to operate the wine cabinet in standard mode.
ECO mode - An energy saving mode where both the inner light and control panel
lights are off (except the indicator). The LED display is also switched off, until you
change the temperature using the and keys, this will be displayed for 5
seconds and then switch off again. The compressor is also delayed 5 minutes in order
to save energy.
Intelligent mode - In intelligent mode, the wine cabinet will adjust the fan speed
according to the ambient temperature. This will reduce noise levels and save energy.
DEMO mode - When DEMO mode is selected, the compressor and PTC heater will be
disabled, and the fan input voltage reduces to 9V. The HI/LO temperature alarm is
also disabled during DEMO mode.
Note: Press and hold and for 3 seconds, to change the display from ºC to ºF.
To switch the appliance on/off .
Press and hold this button for approximately 1 second to turn the appliance on.
Press and hold this button for approximately 3 seconds to turn the appliance off.
To turn the lock function on/off.
Press and hold this button for approximately 3 seconds to activate/deactivate.
When activated, the symbol will illuminate.
Press this button to raise the temperature in 1ºC increments. The highest temperature is 18ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
then reverts back to the normal display, and the temperature is now set.
Press this button to lower the temperature in 1ºC increments. The lowest temperature is 5ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
it then reverts back to the normal display, and the temperature is now set.
This button is used to toggle between the different light functions. When selected, the relevant
symbol will illuminate:
The internal light will switch on when the door is opened, and off when the door is closed.
The internal light is continuously on. However after 3 minutes the light will dim.
The internal light will remain on for 10 minutes once the door is closed and then turn off.
This symbol indicates the brightness adjuster: Hold the light key for 3 seconds until
flashes. Then use the and keys to adjust the brightness of the internal light.
CONTROL PANEL AND OPERATION
The cooling symbol will illuminate to show when the wine cabinet is currently cooling.
The alarm symbol will illuminate to show the alarm is on. This will activate when either
the door has been left open for a long period of time, or the temperature has fluctuated
too high or low (HI or LO will also show in display to confirm this).
TOUCH CONTROL KEYS AND SYMBOLS
This button is used to toggle between the different operational functions. When selected, the
relevant symbol will illuminate:
Standard mode - Select this function to operate the wine cabinet in standard mode.
ECO mode - An energy saving mode where both the inner light and control panel
lights are off (except the indicator). The LED display is also switched off, until you
change the temperature using the and keys, this will be displayed for 5
seconds and then switch off again. The compressor is also delayed 5 minutes in order
to save energy.
Intelligent mode - In intelligent mode, the wine cabinet will adjust the fan speed
according to the ambient temperature. This will reduce noise levels and save energy.
DEMO mode - When DEMO mode is selected, the compressor and PTC heater will be
disabled, and the fan input voltage reduces to 9V. The HI/LO temperature alarm is
also disabled during DEMO mode.
Note: Press and hold and for 3 seconds, to change the display from ºC to ºF.
To switch the appliance on/off .
Press and hold this button for approximately 1 second to turn the appliance on.
Press and hold this button for approximately 3 seconds to turn the appliance off.
To turn the lock function on/off.
Press and hold this button for approximately 3 seconds to activate/deactivate.
When activated, the symbol will illuminate.
Press this button to raise the temperature in 1ºC increments. The highest temperature is 18ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
then reverts back to the normal display, and the temperature is now set.
Press this button to lower the temperature in 1ºC increments. The lowest temperature is 5ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
it then reverts back to the normal display, and the temperature is now set.
This button is used to toggle between the different light functions. When selected, the relevant
symbol will illuminate:
The internal light will switch on when the door is opened, and off when the door is closed.
The internal light is continuously on. However after 3 minutes the light will dim.
The internal light will remain on for 10 minutes once the door is closed and then turn off.
This symbol indicates the brightness adjuster: Hold the light key for 3 seconds until
flashes. Then use the and keys to adjust the brightness of the internal light.
CONTROL PANEL AND OPERATION
The cooling symbol will illuminate to show when the wine cabinet is currently cooling.
The alarm symbol will illuminate to show the alarm is on. This will activate when either
the door has been left open for a long period of time, or the temperature has fluctuated
too high or low (HI or LO will also show in display to confirm this).
TOUCH CONTROL KEYS AND SYMBOLS
This button is used to toggle between the different operational functions. When selected, the
relevant symbol will illuminate:
Standard mode - Select this function to operate the wine cabinet in standard mode.
ECO mode - An energy saving mode where both the inner light and control panel
lights are off (except the indicator). The LED display is also switched off, until you
change the temperature using the and keys, this will be displayed for 5
seconds and then switch off again. The compressor is also delayed 5 minutes in order
to save energy.
Intelligent mode - In intelligent mode, the wine cabinet will adjust the fan speed
according to the ambient temperature. This will reduce noise levels and save energy.
DEMO mode - When DEMO mode is selected, the compressor and PTC heater will be
disabled, and the fan input voltage reduces to 9V. The HI/LO temperature alarm is
also disabled during DEMO mode.
Note: Press and hold and for 3 seconds, to change the display from ºC to ºF.
To switch the appliance on/off .
Press and hold this button for approximately 1 second to turn the appliance on.
Press and hold this button for approximately 3 seconds to turn the appliance off.
To turn the lock function on/off.
Press and hold this button for approximately 3 seconds to activate/deactivate.
When activated, the symbol will illuminate.
Press this button to raise the temperature in 1ºC increments. The highest temperature is 18ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
then reverts back to the normal display, and the temperature is now set.
Press this button to lower the temperature in 1ºC increments. The lowest temperature is 5ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
it then reverts back to the normal display, and the temperature is now set.
This button is used to toggle between the different light functions. When selected, the relevant
symbol will illuminate:
The internal light will switch on when the door is opened, and off when the door is closed.
The internal light is continuously on. However after 3 minutes the light will dim.
The internal light will remain on for 10 minutes once the door is closed and then turn off.
This symbol indicates the brightness adjuster: Hold the light key for 3 seconds until
flashes. Then use the and keys to adjust the brightness of the internal light.
CONTROL PANEL AND OPERATION
The cooling symbol will illuminate to show when the wine cabinet is currently cooling.
The alarm symbol will illuminate to show the alarm is on. This will activate when either
the door has been left open for a long period of time, or the temperature has fluctuated
too high or low (HI or LO will also show in display to confirm this).
TOUCH CONTROL KEYS AND SYMBOLS
This button is used to toggle between the different operational functions. When selected, the
relevant symbol will illuminate:
Standard mode - Select this function to operate the wine cabinet in standard mode.
ECO mode - An energy saving mode where both the inner light and control panel
lights are off (except the indicator). The LED display is also switched off, until you
change the temperature using the and keys, this will be displayed for 5
seconds and then switch off again. The compressor is also delayed 5 minutes in order
to save energy.
Intelligent mode - In intelligent mode, the wine cabinet will adjust the fan speed
according to the ambient temperature. This will reduce noise levels and save energy.
DEMO mode - When DEMO mode is selected, the compressor and PTC heater will be
disabled, and the fan input voltage reduces to 9V. The HI/LO temperature alarm is
also disabled during DEMO mode.
Note: Press and hold and for 3 seconds, to change the display from ºC to ºF.
To switch the appliance on/off .
Press and hold this button for approximately 1 second to turn the appliance on.
Press and hold this button for approximately 3 seconds to turn the appliance off.
To turn the lock function on/off.
Press and hold this button for approximately 3 seconds to activate/deactivate.
When activated, the symbol will illuminate.
Press this button to raise the temperature in 1ºC increments. The highest temperature is 18ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
then reverts back to the normal display, and the temperature is now set.
Press this button to lower the temperature in 1ºC increments. The lowest temperature is 5ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
it then reverts back to the normal display, and the temperature is now set.
This button is used to toggle between the different light functions. When selected, the relevant
symbol will illuminate:
The internal light will switch on when the door is opened, and off when the door is closed.
The internal light is continuously on. However after 3 minutes the light will dim.
The internal light will remain on for 10 minutes once the door is closed and then turn off.
This symbol indicates the brightness adjuster: Hold the light key for 3 seconds until
flashes. Then use the and keys to adjust the brightness of the internal light.
CONTROL PANEL AND OPERATION
The cooling symbol will illuminate to show when the wine cabinet is currently cooling.
The alarm symbol will illuminate to show the alarm is on. This will activate when either
the door has been left open for a long period of time, or the temperature has fluctuated
too high or low (HI or LO will also show in display to confirm this).
TOUCH CONTROL KEYS AND SYMBOLS
This button is used to toggle between the different operational functions. When selected, the
relevant symbol will illuminate:
Standard mode - Select this function to operate the wine cabinet in standard mode.
ECO mode - An energy saving mode where both the inner light and control panel
lights are off (except the indicator). The LED display is also switched off, until you
change the temperature using the and keys, this will be displayed for 5
seconds and then switch off again. The compressor is also delayed 5 minutes in order
to save energy.
Intelligent mode - In intelligent mode, the wine cabinet will adjust the fan speed
according to the ambient temperature. This will reduce noise levels and save energy.
DEMO mode - When DEMO mode is selected, the compressor and PTC heater will be
disabled, and the fan input voltage reduces to 9V. The HI/LO temperature alarm is
also disabled during DEMO mode.
Note: Press and hold and for 3 seconds, to change the display from ºC to ºF.
To switch the appliance on/off .
Press and hold this button for approximately 1 second to turn the appliance on.
Press and hold this button for approximately 3 seconds to turn the appliance off.
To turn the lock function on/off.
Press and hold this button for approximately 3 seconds to activate/deactivate.
When activated, the symbol will illuminate.
Press this button to raise the temperature in 1ºC increments. The highest temperature is 18ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
then reverts back to the normal display, and the temperature is now set.
Press this button to lower the temperature in 1ºC increments. The lowest temperature is 5ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
it then reverts back to the normal display, and the temperature is now set.
This button is used to toggle between the different light functions. When selected, the relevant
symbol will illuminate:
The internal light will switch on when the door is opened, and off when the door is closed.
The internal light is continuously on. However after 3 minutes the light will dim.
The internal light will remain on for 10 minutes once the door is closed and then turn off.
This symbol indicates the brightness adjuster: Hold the light key for 3 seconds until
flashes. Then use the and keys to adjust the brightness of the internal light.
CONTROL PANEL AND OPERATION
The cooling symbol will illuminate to show when the wine cabinet is currently cooling.
The alarm symbol will illuminate to show the alarm is on. This will activate when either
the door has been left open for a long period of time, or the temperature has fluctuated
too high or low (HI or LO will also show in display to confirm this).
Wi3150 NEW Instruction Manual.indd 11Wi3150 NEW Instruction Manual.indd 11 27/08/2020 14:1327/08/2020 14:13

12
Instruction manual Wi3150 Please keep this instruction manual for future reference
USING THE SHELVES
To prevent damaging the door gasket, make sure to have the door opened fully when pulling
shelves out of the rail compartment.
REMOVING OR INSTALLING SHELVES
1. Fully extend the shelf you wish to remove
2. Lift the front of the shelf up to remove from the front clips
3. Holding onto the shelf runner, push the shelf in and then pull up at the back to release
from the rear clips.
Glass shelves are available if you wish to store cans or smaller bottles such as beer in your
wine cabinet. These can be purchased directly from www.caple.co.uk
Removing the shelves
1.Fully extend the shelf you wish to remove
2.Lift the front of the shelf up to remove from the front clips
3.Holding onto the shelf runner, push the shelf in and then pull up at the back to
release from the rear clips.
=
20
3 Bordeaux
5 Bordeaux
+
3 Bordeaux
+
3 Bordeaux
+
3 Bordeaux
+
3 Bordeaux
+
full shelves
STORAGE DIAGRAM
(for 750 ml Bordeaux bottles)
Glass shelves are available if you wish to store cans or smaller bottles such as beer in
your wine cabinet. These can be purchased directly from www.caple.co.uk
Wi3150 NEW Instruction Manual.indd 12Wi3150 NEW Instruction Manual.indd 12 27/08/2020 14:1327/08/2020 14:13

13
Instruction manual Wi3150
Please keep this instruction manual for future reference
HOW TO REPLACE THE CHARCOAL FILTER
1. Open the door and remove the top 2 shelves (see removing the shelves).
2. Turn the filter as per Fig A.
3. As per Fig B, the filter should line up with the notches as shown.
4. Pull filter out (Fig C).
5. Insert replacement filter and twist as per Fig A to lock into position.
6. Re-install the shelves.
NOTE:
The charcoal filter should be replaced every 3-6 months depending on the unit’s exposure level
to odour.
Visit www.caple.co.uk to purchase the replacement charcoal filters.
2
Ø CONTROL PANEL (upper zone and middle zones)
Ø CONTROL PANEL (Lower zone)
“
＋＋
”
Press this button to increase the temperature by 1ºC
“ － ”
Press this button to decrease the temperature by 1ºC.
Lower zone = 10-18ºC
• How to replace the charcoal filter
2
Ø CONTROL PANEL (upper zone and middle zones)
Ø CONTROL PANEL (Lower zone)
“
＋＋
”
Press this button to increase the temperature by 1ºC
“ － ”
Press this button to decrease the temperature by 1ºC.
Lower zone = 10-18ºC
• How to replace the charcoal filter
Fig. A - Locked
Fig. B - Unlocked
Fig. C
Wi3150 NEW Instruction Manual.indd 13Wi3150 NEW Instruction Manual.indd 13 27/08/2020 14:1327/08/2020 14:13

14
Instruction manual Wi3150 Please keep this instruction manual for future reference
HOW TO CHANGE THE DOOR OPENING
This appliance has reversible doors but is delivered with a right hinged door. The left hand
hinge kit comes with the unit (in the box), should you wish to reverse the hinge on your unit
follow the directions below:
6
Fig.A Fi g.B
Fig.C Fi g.D
Fig.F
Fig.G
step1
Step 2
Step 2
Step1
Step 2
Fig.H
1
2
3
45
57
1
1
4
7
8
Fig.E
6
1. Door pin
2. Door
3. Upper hinge cover
4. Upper hinge
5. Screws
6. Decorative covers
7. Lower hinge
8. Lower hinge cover
Wi3150 NEW Instruction Manual.indd 14Wi3150 NEW Instruction Manual.indd 14 27/08/2020 14:1327/08/2020 14:13

15
Instruction manual Wi3150
Please keep this instruction manual for future reference
1. Remove the door pin(1) from both the upper and lower hinge, as shown in Fig A.
2. Take the door(2) off and keep it in a safe place, where it wont get damaged.
3. As shown in Fig C, take off the lower hinge cover(3) and upper hinge cover(8).
4. Remove all of the screws(5) from the upper(4) and lower(7) hinge as shown in Fig D.
5. Remove the upper and lower decorative covers(6) as shown in Fig E.
6. Please note when reversing the door, the right upper hinge will become the left lower
hinge, the right lower hinge will become the left upper hinge. Therefore please fix the right
upper hinge(4) at the left lower hinge position, and fix the right lower hinge(7) at the left
upper hinge position using the screws(5) provided, as per Fig F.
7. Turn the door 180 degrees. Place the door on the hinges, and re insert the upper and lower
door pin(1) as shown in Fig G.
8. Open the door at 90 degrees, install the upper hinge cover(3) and lower hinger cover(8) as
shown in Fig H.
Wi3150 NEW Instruction Manual.indd 15Wi3150 NEW Instruction Manual.indd 15 27/08/2020 14:1327/08/2020 14:13

16
Instruction manual Wi3150 Please keep this instruction manual for future reference
INSTALLING THE HANDLE
Remove the door gasket on the drilled holes side to install the handle (see below drawing).
Fix the handle to the screws and push the gasket back into place.
Visit our caple website to view a ‘How to video’ at www.caple.co.uk
Scan the QR code below to
access the ‘How to video’
Wi3150 NEW Instruction Manual.indd 16Wi3150 NEW Instruction Manual.indd 16 27/08/2020 14:1327/08/2020 14:13

17
Instruction manual Wi3150
Please keep this instruction manual for future reference
INSTALLING THE FULL HEIGHT PLINTH GRILLE
Take out the full height plinth grille and the brackets from the accessories box. Fix the brackets
to the cabinet with screws provided and fix both sides of the grille to the brackets with the 2
supplied screws as shown in below diagram.
NOTE: To be installed with a 150mm plinth height.
If you wish to reduce your plinth height, the smaller, slot-on plinth grille (see page 18) should
be used.
Wi3150 NEW Instruction Manual.indd 17Wi3150 NEW Instruction Manual.indd 17 27/08/2020 14:1327/08/2020 14:13

18
Instruction manual Wi3150 Please keep this instruction manual for future reference
FITTING A KITCHEN PLINTH
This model is recessed to fit a kitchen plinth. A H75mm vent slot is required in the plinth to
ensure air is able to ventilate correctly. See diagram below. Failure to include this vent slot will
invalidate the guarantee. The appliance comes included with a decorative grille which slots onto
the kitchen plinth.
17
75mm
195mm
R8
Wi3150 NEW Instruction Manual.indd 18Wi3150 NEW Instruction Manual.indd 18 27/08/2020 14:1327/08/2020 14:13

19
Instruction manual Wi3150
Please keep this instruction manual for future reference
WINE BOTTLE STACKING
Stores max. 20 Bordeaux style bottles 750ml.
Stores max. 20 Bordeaux style bottles 750ml.
NOTE:
If you wish to store other style bottles i.e champagne, the maximum storage capacity will be
less than as shown above.
Shelves may also need to be removed to allow more bottles to be stored.
=
20
3 Bordeaux
5 Bordeaux
+
3 Bordeaux
+
3 Bordeaux
+
3 Bordeaux
+
3 Bordeaux
+
Full shelves
Wi3150 NEW Instruction Manual.indd 19Wi3150 NEW Instruction Manual.indd 19 27/08/2020 14:1327/08/2020 14:13

20
Instruction manual Wi3150 Please keep this instruction manual for future reference
INSTALLATION DIMENSIONS
DIMENSIONS
573mm
90mm
min. 825mm
300mm
295mm
min. 583mm
inc door
820-885mm
716mm
Wi3150 NEW Instruction Manual.indd 20Wi3150 NEW Instruction Manual.indd 20 27/08/2020 14:1327/08/2020 14:13
