Car Solutions QPE-AUDI16-CMD User manual

Car-Solutions.com
[email protected]
www.car-solutions.com

Warning
When installing the main unit, do not remove or alter existing
vehicle fasteners, including nuts, bolts, screw, clips, and fittings.
Never detach, move or alter existing vehicle wiring, including
electrical grounds and straps. Alteration of existing vehicle
components may make vehicle unsafe to operate. Should be
no any electronic devices or magnetic pole around installation
place.
Air bags are vital part of a safety system. Never install main unit
in a way which will alter air bag wiring or interfere with air bag
deployment. Air bags must function properly in the event of an
accident.
Before installing, check the location of pipe, tank, electrical
cables and others.
Read and follow the instruction manual.
Wiring location must not interfere driving, get in or out from car.
Use electrical tape to insulate the ends of all wires, even if they
are not used. Proper insulation prevents arcs, shocks and fires.
When installation is complete, test all vehicle electrical systems
to ensure they operate correctly, including lights, horn, brake
lights, and emergency flashers.
According to our sales policy, any problems caused by user’s
mistake, careless can not be guaranteed.
Caution
All steps of installation should be done by well-trained specialist.
During installation ignition key should be taken off and after all
installation finish connect power cable with interface for the last
step.
Do not install the main unit in places where it ma be exposed to
dew condensation (around the air conditioning hose, etc), or in
locations where it may come in contact with water, high levels of
moisture, dust or oily smoke
Install wiring in a manner in which cables will not come in contact
with metal parts. The wiring may be damaged by contact with
metal parts, resulting in fire and shocks. Avoid all contact with hot
surfaces when wiring the main unit. High temperatures may
damage wiring, causing shorts, arcing and fires.
Kindly check all parts are in the box, when receiving the product, if
anything missing, inform to the supplier or manufacturer.
Warning / Caution
2
Car-Solutions.com
[email protected]
www.car-solutions.com

Table of Contents
1. Specifications
1.1 Main Specifications
1.2 Features
1.3 System Diagram
1.4 Components
2. Installation
2.1 Installation Diagram
2.2 Installation
3. Settings
3.1 DIP Switch
3.2 Remote Control
3.3 FACTORY MENU
3.3.1 IMAGE, PARK
3.3.2 UTIL1
3.3.3 UTIL2
3.4 Original Button Use
3.5 OSD
4. Trouble Shooting
4
5
6
7
9
10
14
15
16
18
20
25
26
28
3
Car-Solutions.com
[email protected]
www.car-solutions.com

1. Specification
1.1 Main Specifications
1. Car Compatibility
AUDI Cars in combination with MMI 4G
2. Components
Interface* 1EA
3. MULTIMEDIA INTERFACE Input Specification
2 * A/V Input (Video External Input).
1 * CVBS(Rear Camera) input
1 * CVBS(Front Camera) input
1 * Analog RGB input (Navigation)
1 * LCD input (Car System input)
4. MULTIMEDIA INTERFACE Output Specification
1 * LCD Output
5. Power Specification
Input Power : 8VDC ~ 18VDC
Consumed Power : 5WATT
6. Switch input mode
- External display skip function : Able to control each video
input by DIP switch
- Able to change input mode by remote control
- Able to connect rear camera by either CAN or rear lamp
cable
4
Car-Solutions.com
[email protected]
www.car-solutions.com

1. Specifications
External Device(DVD, DTV) is controlled by
Multi Media Touch GUI
It is possible to change the position of AV mode screen but
the position of OEM screen is not changed.
Improvement in Screen Display (User friendly interface)
Able to change the mode by OEM button
Power for rear camera is supplied(Activates when shifting
into reverse)
Dynamic PAS(Parking assistance system)+PDC,
moving parking line according movement of steering wheel
1.2 Features
5
Car-Solutions.com
[email protected]
www.car-solutions.com

1. Specifications
1.3 System Diagram
DISPLAY
A/V 1
NAVIGATION Input
(Analog RGB)
CVBS
(Rear camera)
Car Screen Input
(CAR MAIN BOARD)
A/V 2 VIDEO
CIRCUIT
VIDEO MUX
MCU
Power Input
(+8VDC ~ +18VDC)
POWER
CIRCUIT
Dip S/W
A/V OUT HEADREST
MONITOR
Remote control Switch for source toggle
OEM Button (Can Signal)
Car Installation
OEM LCD
Rear Camera Power
(+9VDC)
CVBS
(Front camera)
6
Car-Solutions.com
[email protected]
www.car-solutions.com

1. Specifications
1.4 Components
A/V cable * 1EA
Mode cable * 1EA
IR cable * 1EA
R-CAM POWER cable * 1EA
POWER cable (7P) * 1EA
(HPOWER0104)
(HAVCAB0032)
(HAVCAB0030)
Remote control * 1ea
(REMOTE0001)
(HARETC0001)
(HIRCAB0002)
TOUCH OUT cable * 1ea
(HTOUCH0004) TOUCH IN cable * 1ea
(HTOUCH0009)
LCD cable * 1ea
(HLCDCA0033)
(HARETC0139)
RGB NAVI cable * 1ea
RGB cable * 1ea
(HNAVIC0002)
7
JACK BY JACK cable * 1EA
(HPOWER0102)
Car-Solutions.com
[email protected]
www.car-solutions.com

NAVI IR
순정 모니터
Navigation
Monitor Touch Screen
Supplied TOUCH IN
cable
ACC
MMI
GND
CAN-L(GEAR)
CAN-H(MMI) A/V IN 1
A/V IN 2
F-CAM
DVD-IR
FRONT-DETECT
DTV-IR
SAFE
A/V OUT
REAR (12V OUT)
GND REAR-DETECT
VIDEO IN
TOUCH OUT
TOUCH IN
NAVI
NAVI SEL
RGB Cable
TOUCH
Supplied TOUCH OUT
cable
8
CAN-L(MMI)
CAN-H(GEAR)
2. Installation
2.1 Installation Diagram
Car-Solutions.com
[email protected]
www.car-solutions.com

2. Installation
2.2 Installation

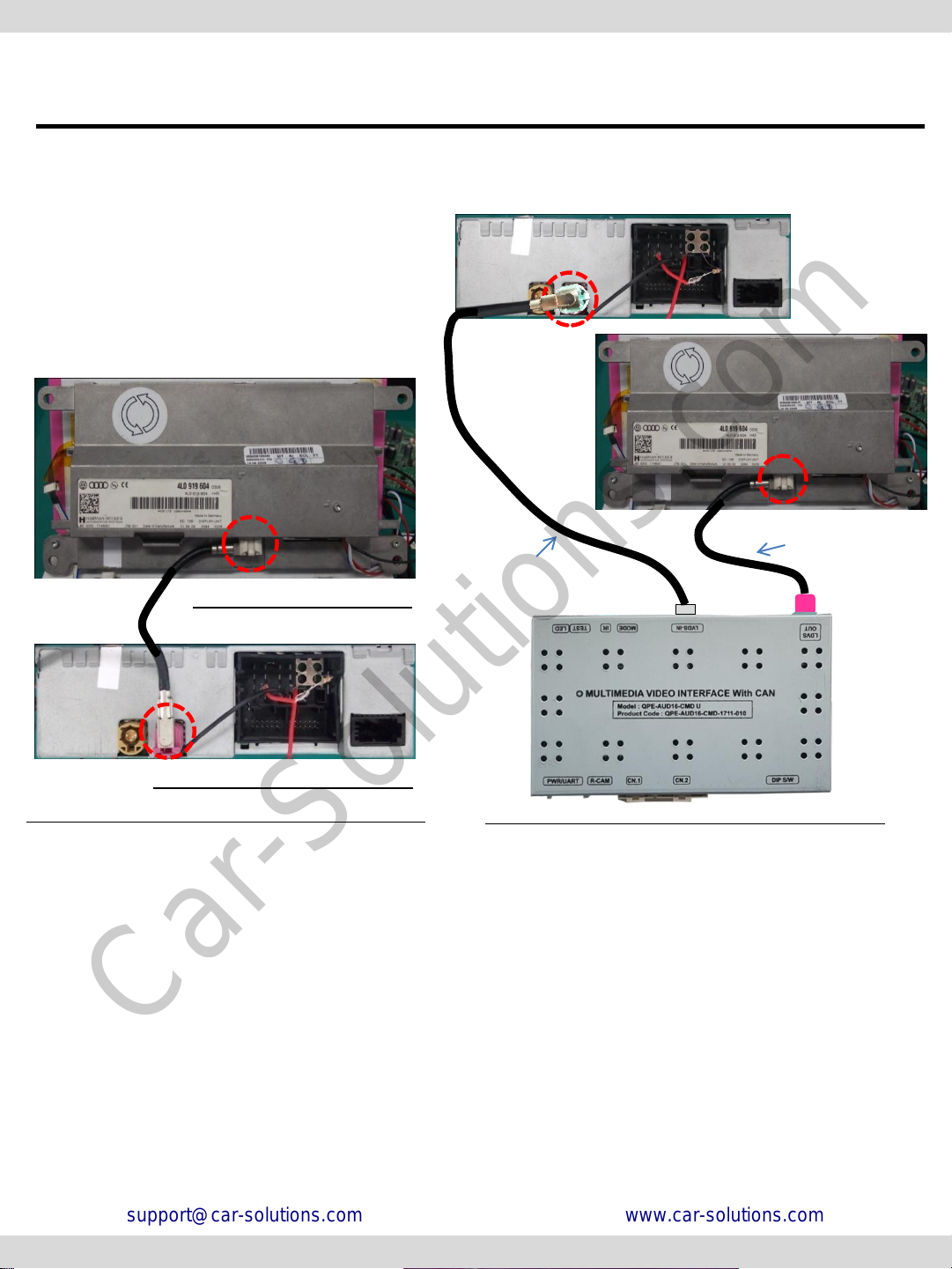

①Disassemble the monitor and
the command from Car.
Pictures are attached for
your reference.
As you can see above, an
original LCD cable of monitor is
connected to the command
②Connect the original LCD cable
to “LCD-OUT” of the Interface
after disconnecting it from the
command.
And connect the LCD cable
enclosed in our package to
“LVDS-IN” of the Interface.
Then connect the opposite end
of the cable to the spot that the
original LCD cable is connected
of command
Rear View Command
Rear View Monitor
Provided LCD cable
Original LCD
cable
9
Car-Solutions.com
[email protected]
www.car-solutions.com

2. Installation
2.2 Installation / Jack by jack cable connection (AUDI TT, A4)
10
ACC
MMI
GND
CAN-L(GEAR)
CAN-H(MMI)
CAN-L(MMI)
CAN-H(GEAR)
CAN2USB
※Optional
Original cable
Jack by jack cable
Original command
Car-Solutions.com
[email protected]
www.car-solutions.com

2. Installation
2.2 Installation / CAN Connection (A6, A7)
※Remove Center Air Ventilation to find OEM cables
- Connect supplied CAN-H(GEAR)wire (White) to OEM CAN-H wire(Orange + Green)
- Connect supplied CAN-L(GEAR)wire (Yellow) to OEM CAN-L wire(Orange +Brown)
CAN-H
CAN-L
11
1) GEAR, PAS
2) MMI
※Find MMI wire from the command behind
- Connect supplied MMI wire (Orange) to OEM MMI wire(Yellow + White)
MMI Wire
※Install with the jack by jack connector of power cable after cutting.
Car-Solutions.com
[email protected]
www.car-solutions.com

3. Settings
3.1 DIP Switch
PIN Function Dip S/W Selection
1 Displaying RGB input ON : RGB mode skip
OFF : RGB display
2 Displaying A/V 1 ON : A/V 1 mode skip
OFF : A/V1 mode display
3 Displaying A/V 2 ON : A/V 2 mode skip
OFF : A/V2 mode display
4 Displaying A/V 3 ON : A/V 3 mode skip
OFF : A/V3 mode display
5 No use(Off)
6 Car model
ON: TT
OFF: TTs, R8
(other cars will be selected from the car
model on the factory mode)
7 Setup of rear camera use ON : CVBS4
OFF : MAIN
8 Monitor Resolution ON : 800x480
OFF : 1280x480
※ON : DOWN / OFF : UP
Default: #8 OFF
※Example of DIP S/W use
- Use input mode : A/V2, A/V3
- Use original navigation
- External rear camera
▷DIP S/W : 1 ON (OEM Navigation use)
▷DIP S/W : 2,3 OFF (A/V1, 2 display)
▷DIP S/W : 4 OFF (A/V3 display)
▷DIP S/W : 5 OFF (High Resolution)
▷DIP S/W : 6 OFF
▷DIP S/W : 7 ON (Display external
rear Camera)
▷DIP S/W : 8 OFF
※Please make sure to disconnect the power cable of the interface and
reconnect the power cable again to apply the dip switch setting
whenever changing DIP switch.
Otherwise, DIP switch setting will not be applied. 12
Car-Solutions.com
[email protected]
www.car-solutions.com

3. Settings

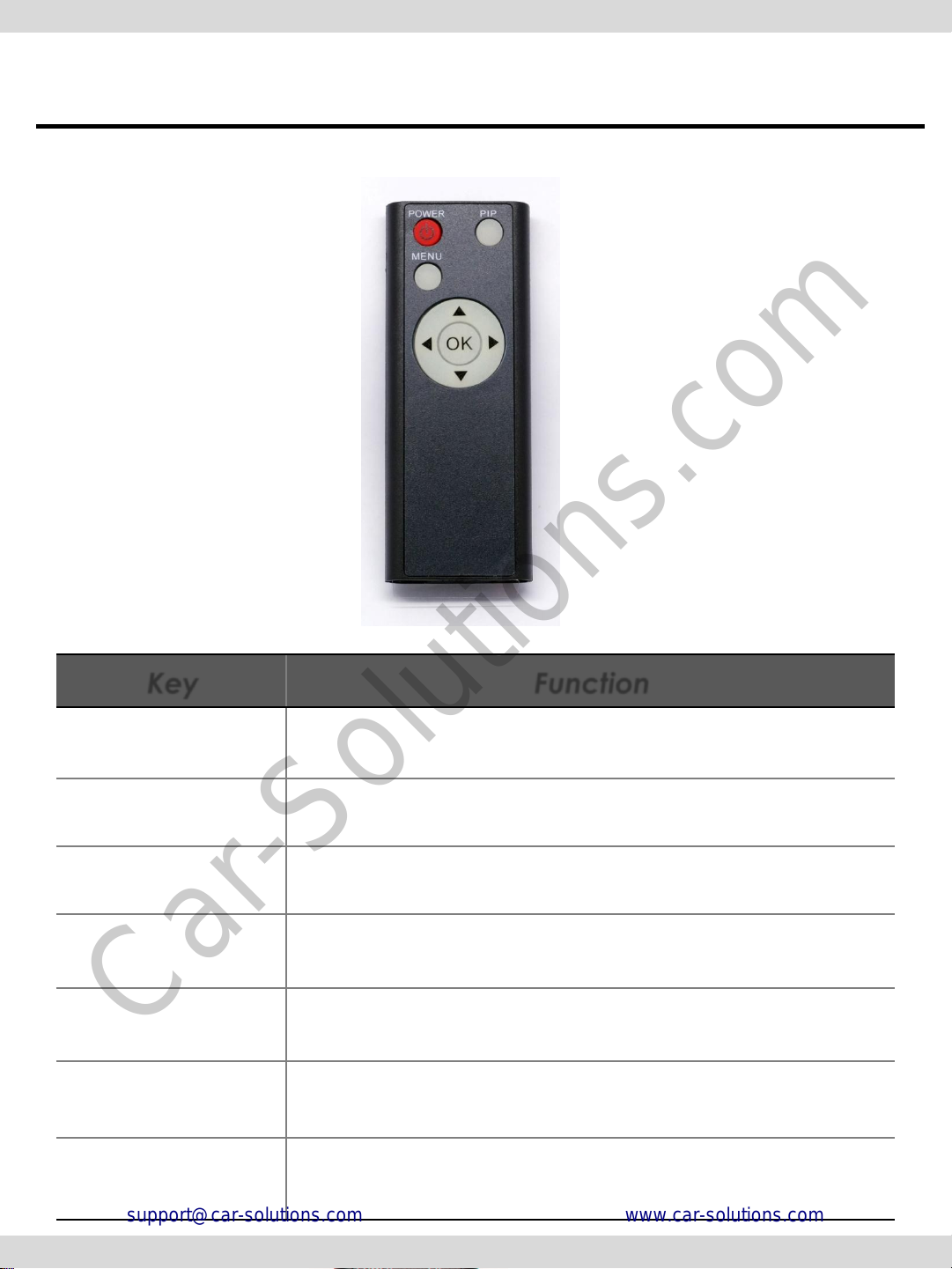

3.2 Remote Control
Key Function
POWER & PIP Unavailable
MENU ActivatiesOSD menu
OK Making a selection, changing image display
▲Moving upward
▼Moving downward
◀
Moving leftward
(If you press this button 2 seconds long, you can access the factory
mode.)
▶
Moving rightward
(If you press this button 2 seconds long, you can reset all the
data about user environment.) 13
Car-Solutions.com
[email protected]
www.car-solutions.com

3. Settings

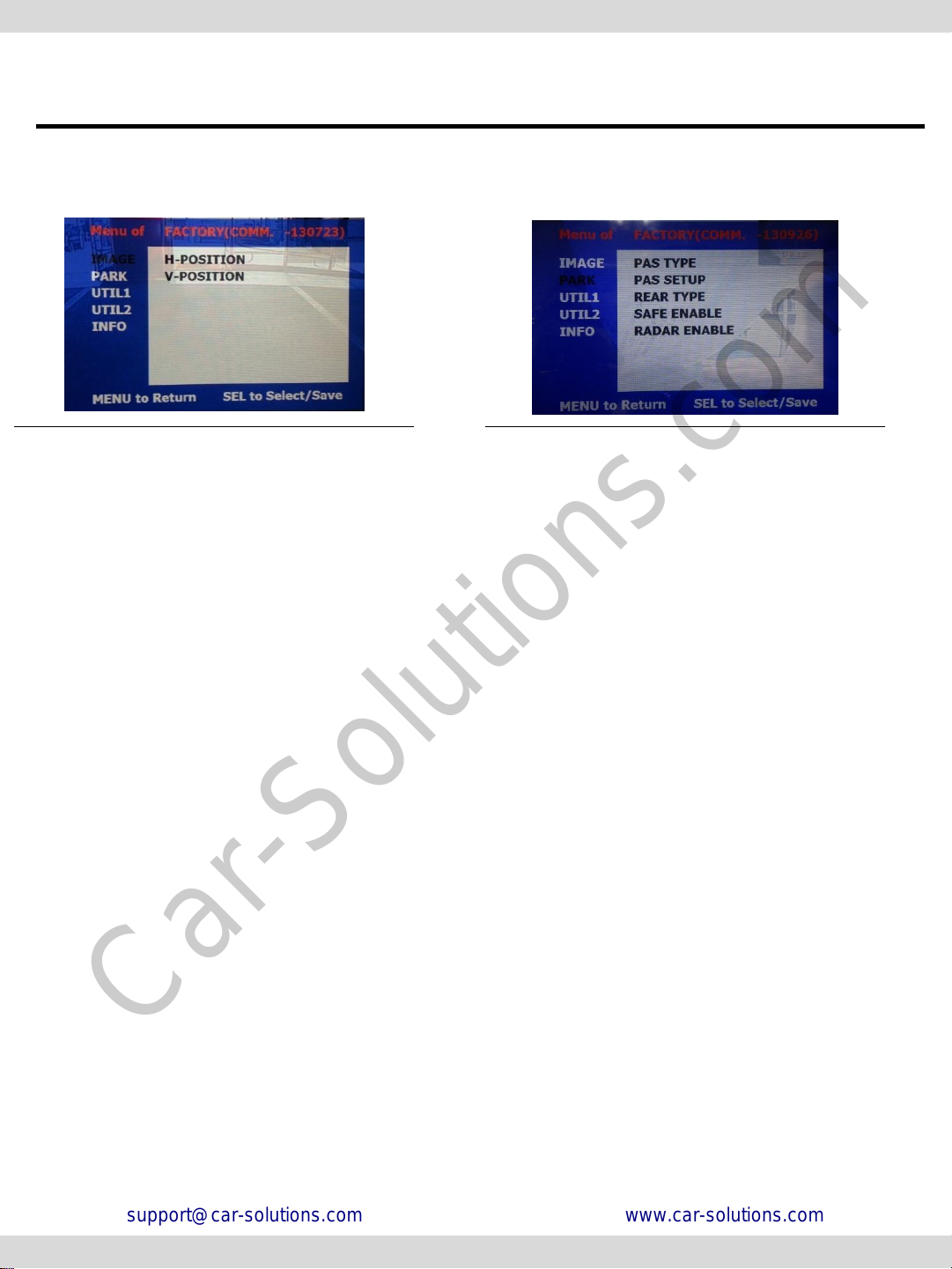

3.3.1 FACTORY MODE-IMAGE, PARK
IMAGE
Adjust navigation position and size
H-POSITION : Move display
horizontally
V-POSITION : Move display
vertically
FACTORY mode –Press ◀button 2 seconds long on the remote control.
PARK
PAS TYPE : Selecting Type of parking guide line
- NOT USED : Not use Parking guide line
- PAS ON : Selecting Dynamic Parking guide line
- PAS OFF : Selecting fixed Parking guide line
PAS SETUP : Adjusting the position and Selecting
type of the parking guide line
REAR TYPE : Choose rear camera recognition
* LAMP - Detecting the rear view camera via
rear lamp (Installer must connect “Rear-C”
cable of the power cable to the rear lamp
of the car.)
*CAN - Detecting the rear view camera by
CAN signal (Installer must connect “CAN”
cable of the power cable to the “CAN”
cable of the car.)
SAFE ENABLE : If your car is connected with CAN
cable and it is in ”ON” state, you
can NOT watch DVD or A/V except
original image or navigation while
driving. At that time the screen get
back to the main (default : OFF)
RADAR ENABLE : When set the gear to “R”, Display
PDC
14
Car-Solutions.com
[email protected]
www.car-solutions.com

3. Settings
3.3.1 FACTORY MODE-IMAGE, PARK
In H-POSITION, use ◁, ▷on remote control, to adjust
parking guideline left and right.

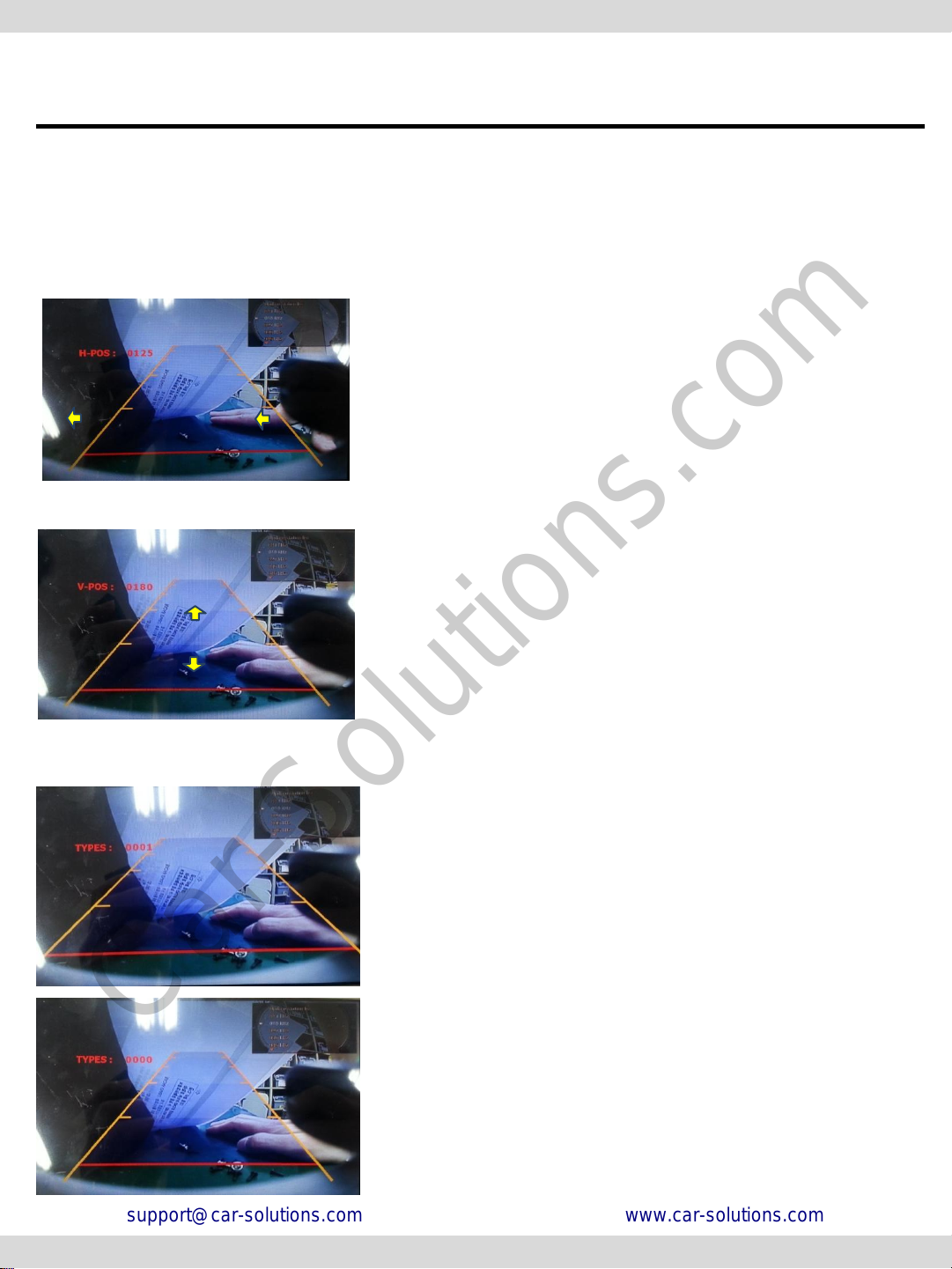

PAS SETUP
Go to Factory Menu and choose PAS SETUP
Then, Press OK button to change the settings (H-POS → V-POS → TYPE)
H-POS
V-POS
In V-POSITION, use △, ▽on remote control, to adjust
parking guideline up and down.
TYPE
In TYPE, use △, ▽on remote control, to
select parking guide line Type for rear
camera.
(0001 : wide parking guide line
0000 : narrow parking guide line
15
Car-Solutions.com
[email protected]
www.car-solutions.com

3. Settings
3.3.2 FACTORY MODE-UTIL1
UTIL1 - CAR MODEL
Selecting model of the car
AUDI S4
AUDI A4
AUDI A6
AUDI A7
AUDI A8
AUDI Q3
AUDI Q5
AUDI Q7
* Choose the car model first
before changing DIP switches
(Refer to page 12)
UTIL1 –NAVI MODEL
Navigation resolution
DEFAULT
: Default, 480X234 Low resolution
KD-900(WVGA)
: 800x480 High resolution, Chinese version
LS-901(WQVGA)
: 480x234 Low resolution,
Chinese and taiwanese version
WP9200(WVGA)
: 800x480 High resolution, Israeli version
GI-8000N 3D(WVGA)
: 800x480 High resolution, Korean version
GI-5000A(WVGA)
: 800x480 High resolution, Korean version
I-ONE(WVGA)
: 800x480 High resolution Korean version
PAPAGO(WQVGA)
: 480x234 Low resolution, Taiwanese
version
HDMI(WVGA)- In case of SMI installation
: 800x480 High resolution
* Go into FACTORY/ IMAGE and
adjust the position and the size of the
navigation after setting the definition
of the navigation
Setup for car model
Setup for navigation
16
Car-Solutions.com
[email protected]
www.car-solutions.com

3. Settings
3.3.2 FACTORY MODE-UTIL1
UTIL1 –AVOUT SELECT
Selecting background sound
After returning navigation or
original mode
DEFAULT : Selecting AV sound
just before changing
navigation or original mode
from the AV mode
AV 1~3 : Sound of the selected
AV source 1~3
UTIL1 - FACTORY RESET
FACTORY MODE RESET
FACTORY mode –Press ◀button 2 seconds long on the remote control.
17
Car-Solutions.com
[email protected]
www.car-solutions.com

3. Settings
3.3.3 FACTORY MODE-UTIL2
UTIL2 - I_DRV CONTROL
Selecting whether to use I_DRV
function or not
ON / OFF
A/V1 : Control DVD Remote control UI
A/V2 : Control DTV Remote control UI
UTIL2 - I_DRV REMOTE
Choose DTV and DVD model to
use I_DRV function
LI-1DISC
NEC-6DISC
USER(In case of using IR MEMORY)
•Select DVD model: Setting on AV1 Mode
•Select DTV model : Setting on A/V2 mode
FACTORY mode –Press ◀button 2 seconds long on the remote control.
UTIL2 –IR MEMORY
Able to control DVD(A/V1) and
DTV(A/V2) by I-Drive control after the
remote control for DVD and DTV is
registered
※Select “User mode” in UTIL2-I_DRV
REMOTE.
(Connect IR cable of DVD&DTV to
remote signal)
UTIL2 –CALIBRATE
Touch Calibration
YES / NO
PARK
UTIL
UTIL2
I-DRV REMOTE
I-DRV CONTROL
IR MEMORY
CALIBRATION
HANDLE KEY
Menu of FACTORY
MENU to Return SEL to Select/Save
PARK
UTIL
UTIL2
I-DRV REMOTE
I-DRV CONTROL
IR MEMORY
CALIBRATION
HANDLE KEY
Menu of FACTORY
MENU to Return SEL to Select/Save
PARK
UTIL
UTIL2
I-DRV REMOTE
I-DRV CONTROL
IR MEMORY
CALIBRATION
HANDLE KEY
Menu of FACTORY
MENU to Return SEL to Select/Save
PARK
UTIL
UTIL2
I-DRV REMOTE
I-DRV CONTROL
IR MEMORY
CALIBRATION
HANDLE KEY
Menu of FACTORY
MENU to Return SEL to Select/Save
18
Car-Solutions.com
[email protected]
www.car-solutions.com

3. Settings
-14-
3.3.3 FACTORY MODE-UTIL2
UTIL2 –HANDLE KEY
Selecting whether to use NAV button
(mode switch)
ON / OFF
FACTORY mode –Press ◀button 2 seconds long on the remote control.
PARK
UTIL
UTIL2
I-DRV REMOTE
I-DRV CONTROL
IR MEMORY
CALIBRATION
HANDLE KEY
Menu of FACTORY
MENU to Return SEL to Select/Save
19
Car-Solutions.com
[email protected]
www.car-solutions.com

3. Settings

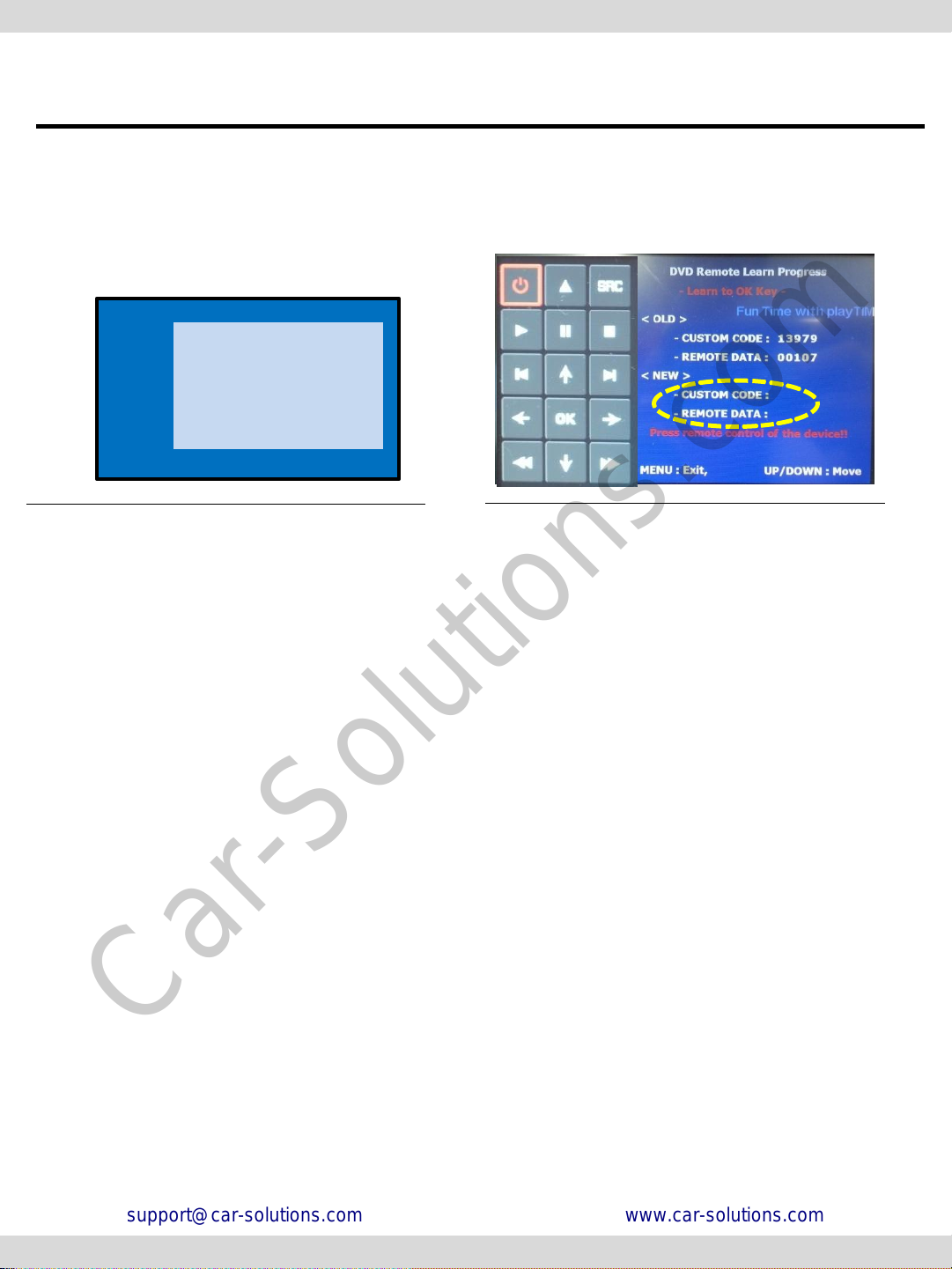

UTIL2 –IR MEMORY
①First of all, press ◀button on
remote controller 2 seconds
long or
press UP→DOWN→UP→MENU
button in order to access
Factory mode. Choose IR
MEMORY on UTIL2.
IR memory function can be
used on DTV and DVD.
Select either DTV or DVD to
activate IR memory feature.
②Picture above shows DVD
remote control button value
input, select menu you want
to save. (To register DVD
remote control button value,
select IR MEMORY –DTV and
follow below instructions.
Example)
a. After select OK button on
OSD menu, press MMI
button
b. Indicated part above will
flicker, and press POWER on
DVD remote control.
(continue to next page)
What is IR-MEMORY Mode?
Is to allow MMI and touch screen to control other DVD or DTV (besides
the existing,; for example : SANYO, NECVOX) by register remote control
value.
3.3.3 FACTORY MODE-UTIL2
FACTORY mode –Press ◀button 2 seconds long on the remote control.
PARK
UTIL
UTIL2
I-DRV REMOTE
I-DRV CONTROL
IR MEMORY
CALIBRATION
HANDLE KEY
Menu of FACTORY
MENU to Return SEL to Select/Save
20
Car-Solutions.com
[email protected]
www.car-solutions.com
