Carefree Eclipse User manual

O WNER ' S M ANUAL
ECLIPSE
RV
Before operating the awning, carefully review the Owner's Manual.
The manual contains important safety information, detailed operating
instructions, common maintenance procedures and other useful
information.
T ABLE OF C ONTENTS
Introduction ........................................................................................................... 2
Operation ............................................................................................................... 3
Description of Controls..................................................................................4
Power Switch....................................................................................... 4
Patio Switch......................................................................................... 4
Motion Switch......................................................................................4
Operating the Controls .................................................................................. 5
Testing the Direct Response System ............................................................ 5
Using the Key FOB Remote Control.............................................................. 5
Key FOB Batteries...............................................................................5
Programming the Remote Receiver .............................................................. 6
Adjusting the Pitch................................................................................................ 7
Emergency Operation ........................................................................................... 8
Awning Care .......................................................................................................... 9
Fabric Care....................................................................................................9
Mildew.................................................................................................9
Pooling ................................................................................................ 9
Arm Care.......................................................................................................9
Carefree Major Product Limited Warranty......................................................... 11

Carefree of Colorado
2
INTRODUCTION
From it's beginning in the early 70's, Carefree of Colorado has emerged as the
premier manufacturer of quality awnings and accessories for Recreational
Vehicles (RVs). Our full line of products can provide the accessories that match
your life style; no matter what type of RV you own.
The Eclipse Patio Awning uses unique “scissor” style arms that do not require
vertical ground support. The arms provide easy to use pitch adjustment—simply
push together the pins on the arms, snap into the hole set desired, and the pitch
is set! The pitch can be left in any position and the Eclipse will roll up completely!
When the awning is rolled back out, it rolls out to pitch setting previously set.
Features include:
The awning rollbar and arms are made from light weight, no-rust aluminum;
100% billow-proof, worm-gear drive motor eliminates the need for travel locks;
Highest head clearance of any vertical arm awning;
Automatic Self-Leveling Retraction from any pitch;
Large selection of vinyl and Acrylic fabrics and fabric covers.
Consult your Carefree Dealer for available options and upgrades.
This manual describes the operation and care for your Eclipse Patio Awning.
Descriptions include: Standard Switch Operation; the auto-retract system that
closes the awning automatically in windy conditions; and, the RF remote.
NOTICE Awnings are designed to provide shade and protection from the sun.
The effects of wind and rain on an awning are unpredictable and can cause
severe damage to the awning and/or the vehicle. If wind or extended periods of
rain are expected, roll up the awning.
NOTICE It is recommended that if leaving the RV unattended for a
length of time, retract the awning to avoid unexpected climate conditions.
WARNING Keep all sources of heat and flame away from the awning
canopy. Fabric is not fire-proof and can burn if left in contact with any
flame or heat source.
NOTICE If installed, LED lighting must be turned off when the awning is in
the rolled up position. This is to prevent possible damage to the LEDs and/or
canopy.
Special Note: This manual provides a basic description of the product and the standard
operating controls provided by Carefree of Colorado. Some Original Equipment
Manufacturers (OEM's) may alter or change the placement, style and/or functional
configuration of the switches. If your controls do not match the style or description
included, contact the coach manufacturer for an accurate description. OEM furnished
components are not covered by the Carefree warranty.

ECLIPSE
3
OPERATION
The Auto-Retract System is an exciting enhancement to basic awning operation. When
activated, the system will retract the awning in windy conditions. Sensitivity is set at the
control panel.
The system uses a sensor in the motor head to detect awning motion caused by windy
conditions. The system operates by gauging the vertical motion of the awning’s leading
edge. When persistent motion exceeds the factory preset threshold the system will
retract the awning. The pushbutton controls allow the user to choose between 3 factory
preset sensitivity values (threshold values).
NOTICE The Carefree Direct Response auto-retract system is a premiere
electronic auto-retract system that provides protection against adverse
elements; but, no auto-retract system is a guarantee against severe or
destructive weather; the effects of wind and rain on an awning are unpredictable
and may cause severe damage to the awning and/or vehicle. If wind or extended
periods of rain are expected, retract the awning.
NOTICE The power switch must be set to OFF whenever the awning
is not being operated and during transport. This acts as a safety to prevent
the awning from being accidently opened.
Operational Notes:
Awning Motor: The awning motor is equipped with a thermal protection circuit to protect
the motor from overheating. Operating the awning repeatedly over a short time period
may cause the circuit to sense a overheat condition and shut off the motor. If this
occurs, wait approximately 15 minutes to allow the motor to cool then operate the
awning in normal fashion.
Ignition Lockout Sensors (Available with Direct Response Only): If the optional
Carefree EL ignition lockout is installed the system will disable the extend function while
the vehicle ignition key is in the ON position. Special order RTL ignition lockouts will
fully retract the awning and disable the extend function when the vehicle ignition key is
in the ON position. Functions will return to normal operation when the ignition key is
turned OFF.
RV manufacturers may install their own lockout design. Refer to the RV literature for
12V power used for accessories.

Carefree of Colorado
4

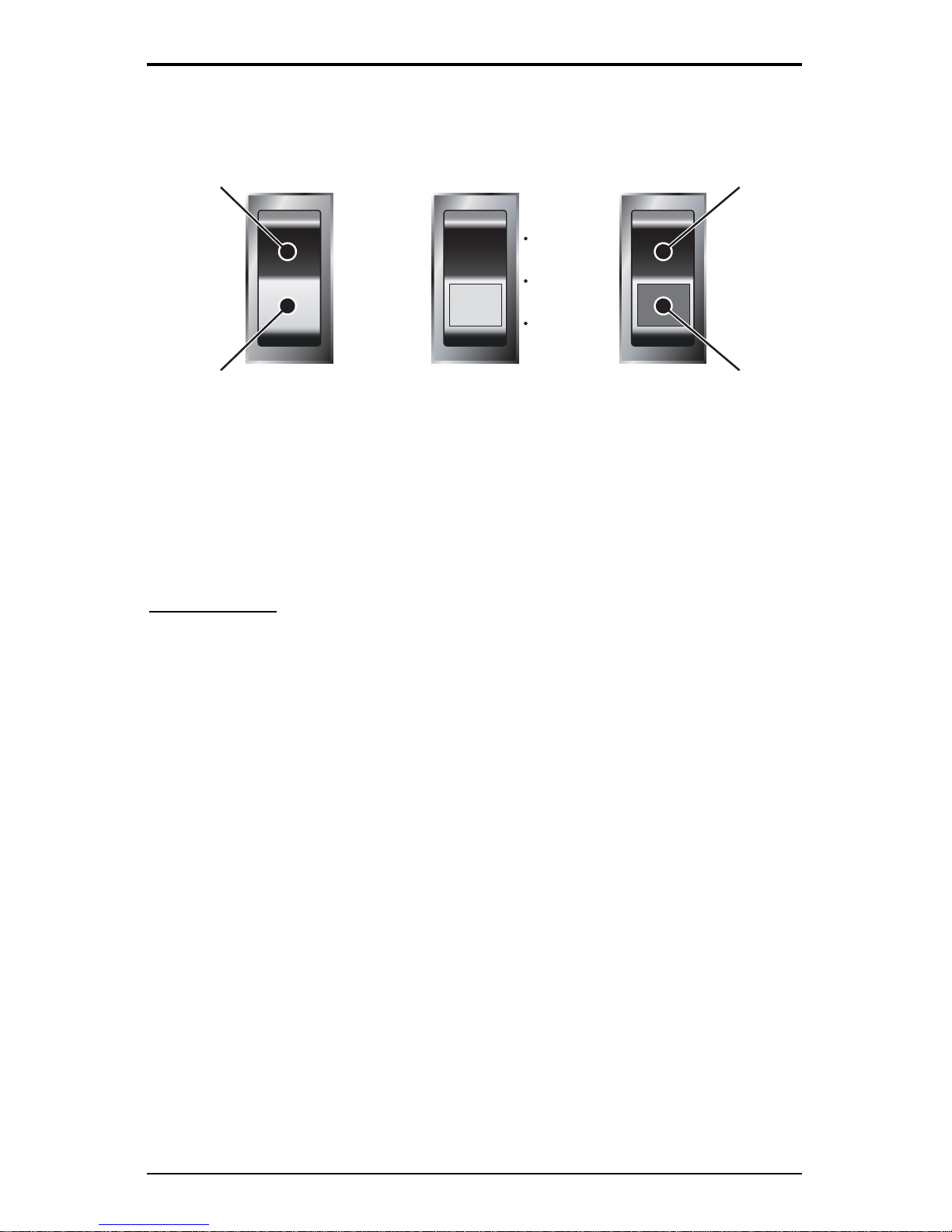

D ESCRIPTION OF C ONTROLS
The Eclipse Awning with Direct Response uses 3 switches at the control panel.
Power Switch; Patio Switch and Sensitivity Switch
PATIO POWER
HIGH
LOW
WINDSPEED
MED
E0043a
Power
OFF
Power
ON
Press to
Retract
Press to
Extend
POWER SWITCH
POWER ON .............The bottom position activates the Patio switch and the Auto-
Retract system and provides power to the awning.
POWER OFF ..............The top position shuts the system down. The awning cannot be
extended or retracted in this mode. The auto-retract system is
also disabled.
IMPORTANT NOTE: The auto-retract system is ON when the power is ON. The system
is OFF when the power switch is set to OFF. If the power is shut off while the awning is
extended, the awning is not protected by the auto-retract system.
PATIO SWITCH
This is a two position momentary contact switch. This description also applies to
any additional patio switches that may be installed.
EXTEND ..................Press and release the switch. The awning automatically
opens. To stop the awning before it is fully open, press and
release the extend switch a second time.
RETRACT ................Press and release the switch. The awning automatically
retracts until it is fully closed. To stop the awning before it is
closed, press and release the retract switch a second time.
MOTION SWITCH
HIGH ↔MED ↔LOW
Low requires the less amount of motion before the closing the awning automatically.
High requires more motion before the system closes automatically.
You may have to experiment to find the best setting for your preferences.
NOTE: If the motion switch is not installed, the system defaults to the medium
setting.

ECLIPSE
5
O PERATING THE C ONTROLS
Turn the Power switch ON.
Use the Patio switch to extend or retract the awning as desired.
Set the Sensitivity switch to the level desired.
T ESTING THE D IRECT R ESPONSE S YSTEM
It is important to test the Direct Response system periodically to ensure that the
system is working properly. Follow the simple test below.
1. Extend the awning completely.
2. Turn the mode switch to Auto-Retract ON. Set the sensitivity to the lowest setting.
3. Gently move the roller tube up and down in a vertical motion.
4. If the awning retracts, the system is working properly.
5. If the awning does not retract, contact an authorized Carefree dealer for repairs.
Operate the awning with the Patio switch until the system is repaired.
U SING THE K EY FOB R EMOTE C ONTROL
An remote control Key FOB is available only with the auto-retract
systems. To use: turn system power ON. The remote provides
the advantage of allowing you to operate the awning from
any convenient location.
The remote has a maximum operating range of 50 feet. Actual
distance may vary depending on the specific installation and
location of the receiver in the vehicle.
To use: turn system power ON at the control panel.
NOTE: Power ON/OFF and the Auto-Retract sensitivity and
can only be operated at the control panel.
Extend Press and release. The awning will extend out to the full extension and stop
automatically.
Retract Press and release. The awning will retract and stop automatically when the
awning is fully retracted.
Stop Press and release. During extend and retract functions, the awning may be
stopped by pressing this button.
KEY FOB BATTERIES
The Key FOB w/ antenna uses a battery (Radio Shack p/n 23-279 or equivalent)
that should provide a long period of service. To access: Remove the small screw
from the back of the case and carefully snap off the back. Lift the old battery out
and insert the new battery.
Batteries are available through your local battery outlets.
Battery life is dependent on frequency of use, environmental conditions and
condition of remote.
Function
Buttons
Stop
DR010

Carefree of Colorado
6

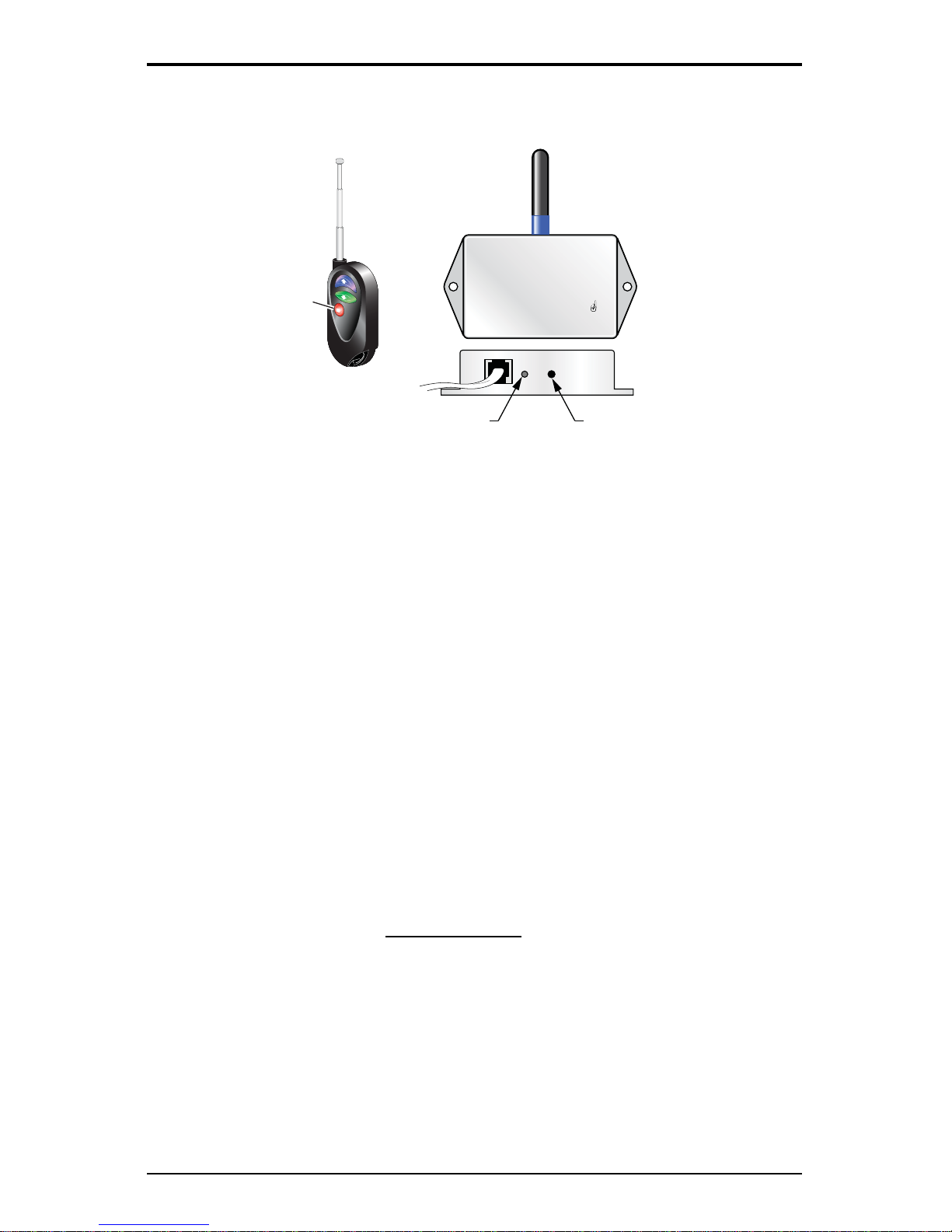

P ROGRAMMING THE R EMOTE R ECEIVER
When adding or replacing a remote control, it is necessary to program the
transmitter and receiver.
DR
0
2
0
TO EYE PORT
on RP24 Program Mode
Press to Learn Transmitter
UP
Program
Button
Indicator
Light
Stop
RR
1. Power to the control box must be on.
2. Locate the receiver box.
3. Press and release the “Press to Learn Transmitter” button on the bottom of the
receiver. The receiver is in program mode when the red light comes on.
4. Press and release the STOP button on the remote. The red light will go out
after the receiver learns the remote signal.
NOTE: Pressing the stop button will cause the blue up arrow button to
default as the close (retract) function.
If a function button is pressed to train the receiver, it will be programmed
as the close (retract) button. Example: Pressing the bottom button will
program the bottom button for retract and the top button as extend.
OPERATIONAL NOTES:
The transmitter and receiver operate on a frequency of 433MHz.
The receiver exits the program mode after ten seconds.
If the light does not come on in step 2, the memory is full and must be cleared.
If the light does not go out above, the receiver knows the transmitter signal
or the battery in the Remote needs to be replaced.
To clear the memory: PRESS AND HOLD the receiver learn button for 5
seconds. While holding the button, the indicator light should be OFF for the
full 5 seconds then come on.
The receiver may be programmed for up to 5 remotes. Additional remotes
may be ordered separately.

ECLIPSE
7

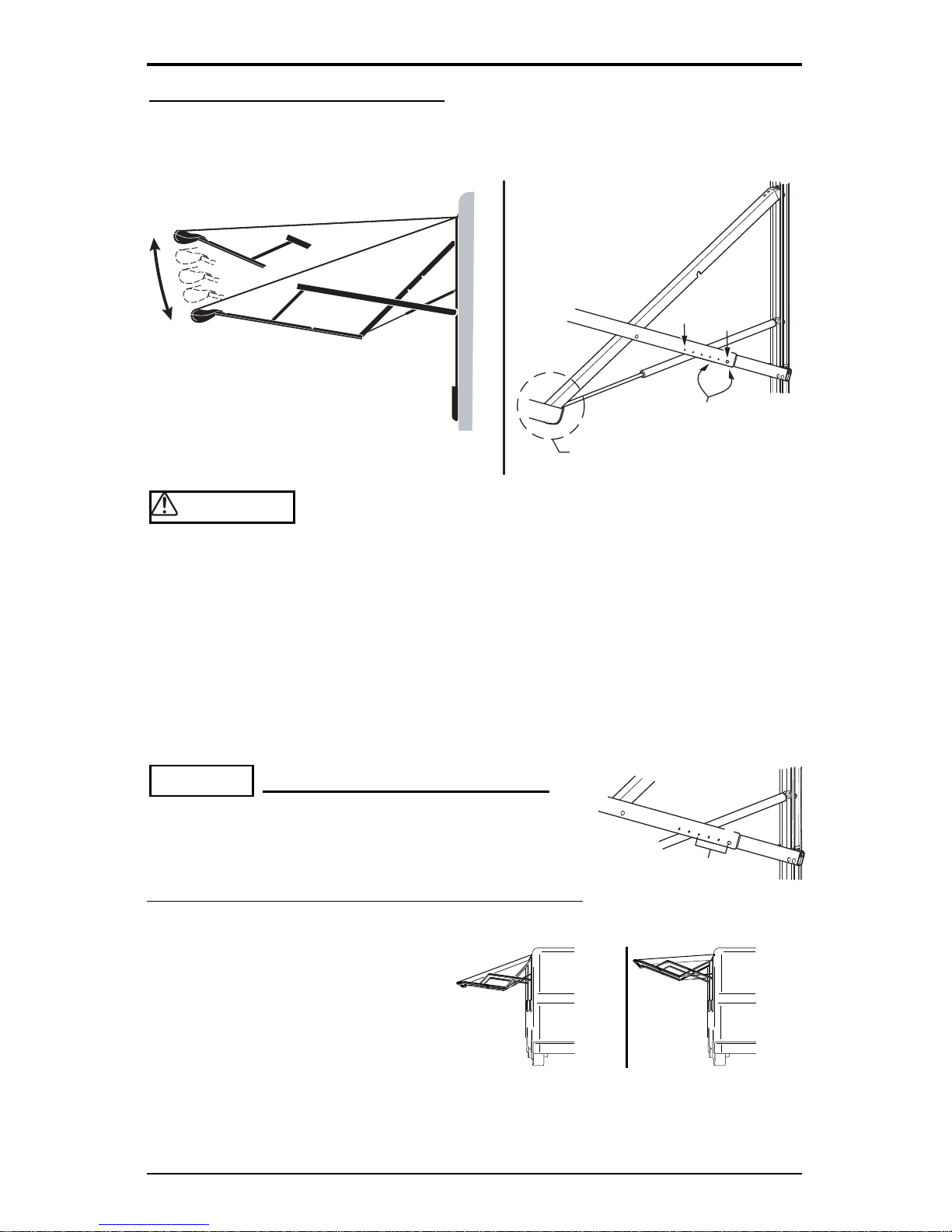

ADJUSTING THE PITCH
The Eclipse arms have 6 pitch adjustment settings from minimum pitch to maximum
pitch. The awning can be extended and retracted in any of these positions without
having to reset the pitch between uses. See the NOTICES at the bottom of the page.
Pitch Adjustment Pins
(one on each side)
Support and Lift in this area
E0017
Minimum Pitch
Maximum Pitch
Min.
Max.
CAUTION Use care when adjusting the pitch as the awning may move
abruptly.
1. Extend the awning completely. It is easier to adjust the pitch when the awning is
fully extended.
2. Hold on to the awning arm to keep it steady while adjusting the pitch.
3. Press in the pitch adjustment pins, located on the long scissor arms.
Tip: Applying LIGHT pressure on the arm will decrease the force required to
press the pitch adjustment pins.
4. Slide the outer scissor arm to the desired set of holes—towards the coach
for a lower pitch and away from the coach for a higher pitch.
NOTICE For awnings under 12 feet long: Do
not set the individual arm pitch at more than three (3)
positions different between the left and right arm.
Damage to the arms and canopy can occur if the
awning is retracted when the arms are set at more
than 3 positions difference.
E0017a
Maximum
Pitch Minimum Pitch
3 Positions
Maximum Difference
E0017b

Carefree of Colorado
8

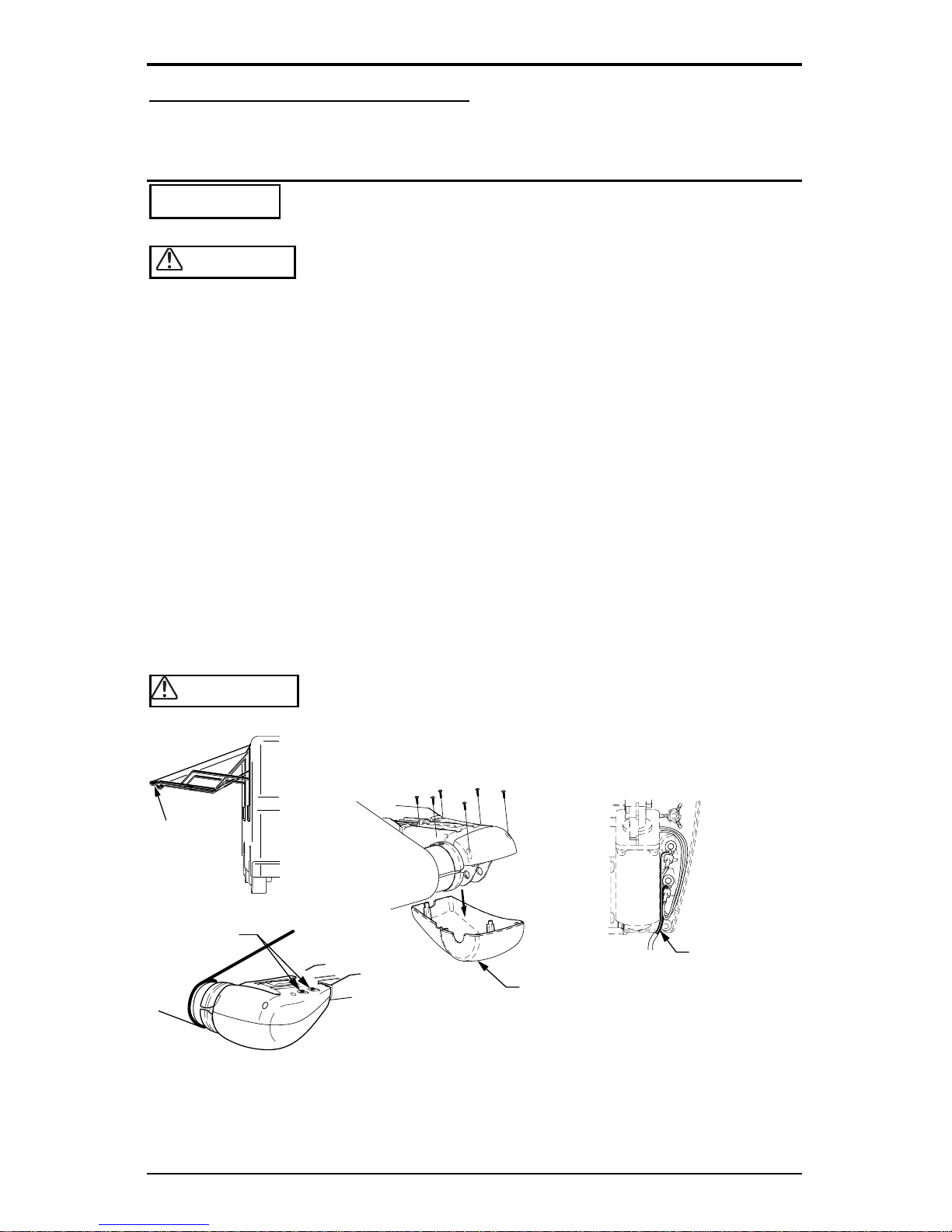

EMERGENCY OPERATION
If the original power source fails or is unavailable, the Eclipse has emergency
override terminals (12V). The terminals can be used with a 9V-18V power
source, such as a cordless drill battery or car battery.
WARNING Do not connect the terminals to a 110V power source!
Doing so will permanently damage the awning!
CAUTION Do not use the emergency terminals without following the
directions below. The electronic circuit creates a dynamic brake for the
motor by shorting and grounding the motor leads. Steps 1 & 2 remove the
brake to allow the emergency override to work.
1. If there is an external plug, disconnect the plug, then go to step 3.
2. Awnings without an external plug:
2.1 Remove the front cover from the motor head. There are six (6) small
screws, do not remove the larger screw toward the center.
2.2 Disconnect the input cable wires from the terminals. DO NOT
disconnect the wires to the motor.
2.3 Leave the wires disconnected and reattach the front cover.
3. Attach the provided jumper leads to the terminals, located on the rear of the
motorized head.
4. Connect the other ends of the jumper leads to a 12V source. If the awning
does not begin to move, reverse the leads.
5. Maintain contact throughout the retraction process.
CAUTION Use care when retracting the awning as the it may move
abruptly.
Override
Terminals
E0047
Disconnect
Wires from
Arm Channel
Remove
Front Cover
Motor
Head

ECLIPSE
9
AWNING CARE
Maintaining a Carefree Awning is easy. Just follow these basic steps:
Always operate the awning according to the instructions.
Periodically check that the fasteners are tight. Tighten if necessary.
Keep the awning fabric and arms clean.
F ABRIC C ARE
NOTICE Do not use oil based cleaners or any caustic, granulated, or
abrasive type cleaners on your Carefree product.
1. One of the best ways to keep the fabric looking good and to delay the need
for deep or vigorous cleanings is to hose fabrics off on a monthly basis with
clear water. This practice will help prevent dirt from becoming deeply
imbedded in the fabric. In most environments, a thorough cleaning will be
needed every two to three years.
2. When it’s time for a thorough cleaning, the fabric can be cleaned while still
on the awning frame.
For Vinyl Fabric – Use a soft brush and warm water with soap.
For Acrylic Fabric – Use a stiff brush and warm water with soap.
3. When cleaning the fabric, it is important to observe the following:
Always use a natural soap, never detergent.
Water should be cold to lukewarm, never more than 100F.
Air-dry only. Never apply heat to the fabric.
Always allow the fabric to dry thoroughly before rolling up the awning.
MILDEW
Mildew is a fungus growth that looks like dirt. Vinyl coated polyester fabrics are
mildew resistant because of a chemical biocide in the vinyl coating. Under
ordinary conditions, mildew will not appear. However, in areas where high
temperature and humidity are common, mildew can be a problem and require the
material to be washed more frequently. Thoroughly rinse the fabric with clean
water and allow to air dry completely before rolling up the awning.
POOLING
When water collects on the top of the fabric, this is known as "pooling". This can occur
during inclement weather or if a running air conditioner discharges over the awning.
The water is dumped when the awning is retracted. It is recommended that if water
accumulates on the top; retract the awning in steps (8"-12") to dump the water. This will
help prevent the fabric from stretching or distorting.
A RM C ARE
The best method of keeping the arms operating smoothly is to clean them. Dirt
and debris can cause the channels not to slide easily. Avoid introducing water
into the motorized and non-motorized housings.
Periodically wash out the channels with running water (i.e. a hose) to keep them clean.
If the arms still do not slide easily, lightly spray the pivot and contact points with a dry
silicone lubricant after the arms have been cleaned and dried thoroughly.

Carefree of Colorado
10
NOTES: _________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________

ECLIPSE
11
CAREFREE MAJOR PRODUCT LIMITED WARRANTY
Carefree of Colorado (hereafter referred to as Carefree) warrants to the first retail
Purchaser that the Carefree Product is free of defects in material and
workmanship within the terms and conditions as set forth in the warranty
statement available online at www.carefreeofcolorado.com. Carefree’s obligation
under this warranty is limited to the repair or replacement, at Carefree’s option, of
any defective component with new or factory refurbished components.
OWNER MUST RETAIN THE ORIGINAL PROOF OF PURCHASE AND/OR HAVE THE PRODUCT
WARRANTY REGISTRATION ON FILE AT CAREFREE FOR WARRANTY CLAIMS.
THIS WARRANTY IS NOT TRANSFERABLE.
For
- Warranty Duration;
- Warranty Coverage and Exclusions;
- Warranty Terms of Coverage; and,
- Warranty Claim Procedures
Refer to publication
052580-111 "Carefree Major Product Limited Warranty"
available online at www.carefreeofcolorado.com
Register your Carefree products online at www.carefreeofcolorado.com
Publications available on-line @ www.carefreeofcolorado.com:
052547-031 Eclipse Arms and Canopy OEM Installation Manual
052547-231 Eclipse Owner's Manual
052547-301 Eclipse Service Manual
052526-001 Direct Response Installation Manual
This manual written for Winnebago Industries
IMPORTANT NOTICE: It is strongly recommended that adjustments and repairs not
described in this book be performed by trained technicians at your Authorized
Carefree Dealer. Work performed by non-authorized persons or businesses may
void warranty.

052547-231r2 Printed in USA April, 2017
Carefree of Colorado 2145 W. 6
th
Avenue Broomfield, CO 80020 a Scott Fetzer company
CALIFORNIA PROPOSITION 65
WARNING This product contains chemicals known to the state of
California to cause cancer or birth defects or other reproductive harm.
California’s Proposition 65 requires this warning to be given to customers in
the state of California.
