OWNER’S MANUAL MODEL: 0930, 0932
EXTRA WIDE WALK-THROUGH GATE
WITH SMALL PET DOOR
• READ ALL INSTRUCTIONS BEFORE ASSEMBLY AND USE OF GATE.
! • KEEP INSTRUCTIONS FOR FUTURE USE.
Carlson Pet Products, Inc.
3200 Corporate Center Drive, Suite 105 | Burnsville,
MN 55306, USA 952.435.1084
Made in China

Before Using Product
Read and follow all instructions carefully to ensure that your gate and extensions are
properly installed. Improper installation could result in the gate becoming unstable or
dislodged from the doorway. Please keep these instructions for your reference.
! WARNING
•To prevent serious injury or death, securely install gate or
enclosure and use according to manufacturer’s instructions.
•Check the gate regularly to see if all the hardware and mountings are tightened.
•This is a Pet Gate. NOT intended for use with children.
•This is a Pet Gate, but when used with children the small
pet door must remain closed and securely latched.
•Strangulation hazard: pets can force themselves into very small
openings; use this gate with pets whose heads will not fit into openings in
the gate, between the gate and floor, or between the gate and wall.
•Never use with pet able to climb over or dislodge/open the gate or enclosure.
•Never leave pet unattended.
•Use only with the locking/latching mechanism securely engaged.
•If using this gate at the top of stairs, the four wall cups MUST be
used. If not used, the gate may be dislodged from the opening.
•MODEL 0930: This gate is designed to fit openings 29 to 44 inches.
•MODEL 0932: This gate is designed to fit openings 29 to 52 inches.
ENGLISH 3

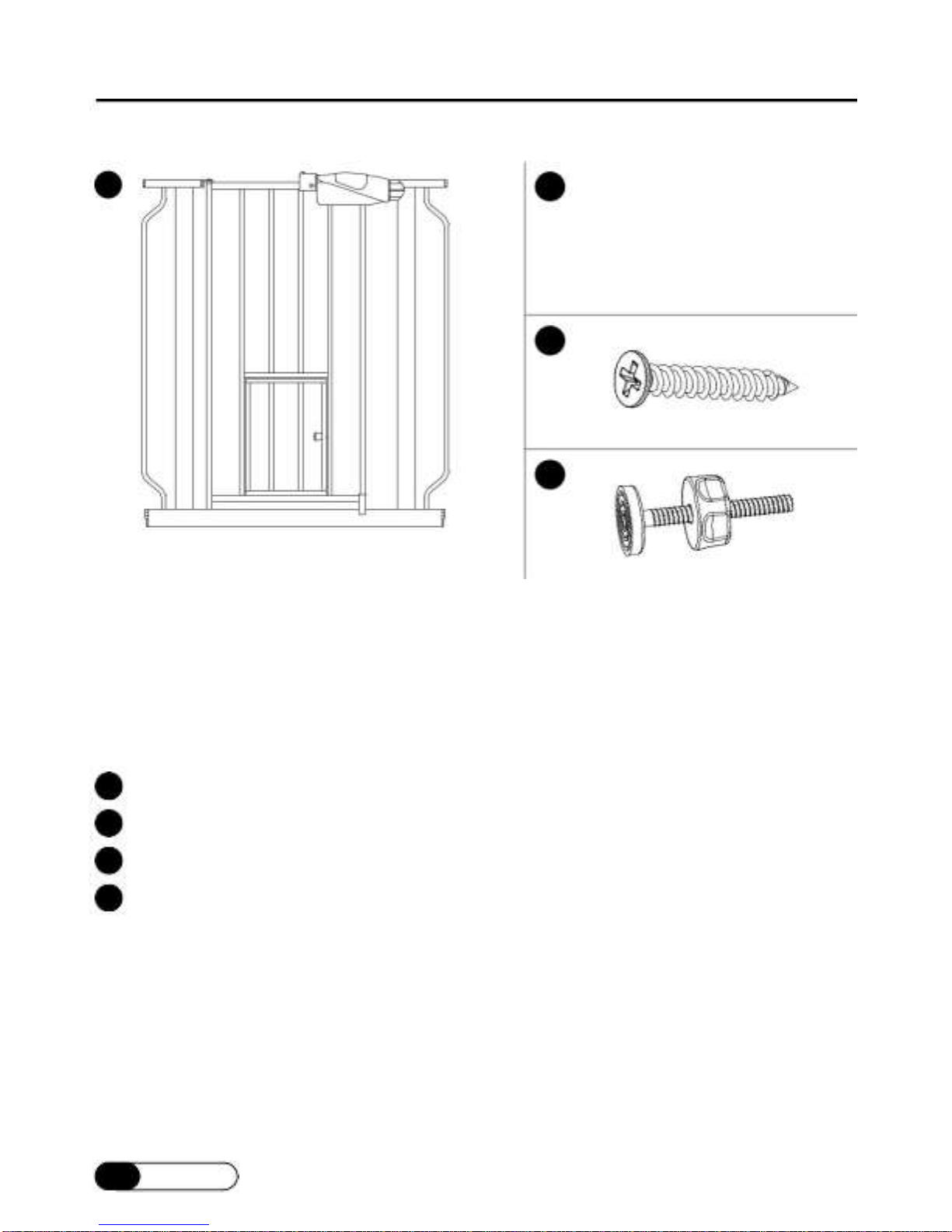

Before Assembly
A
B
C
D
PLEASE CHECK TO MAKE SURE YOU HAVE THE FOLLOWING PARTS:
A Gate Frame (1)
B Wall Cups (4)
C Screws (4) (requires a Phillips/cross-head screwdriver)
D Threaded Spindle Rods (4)
4ENGLISH

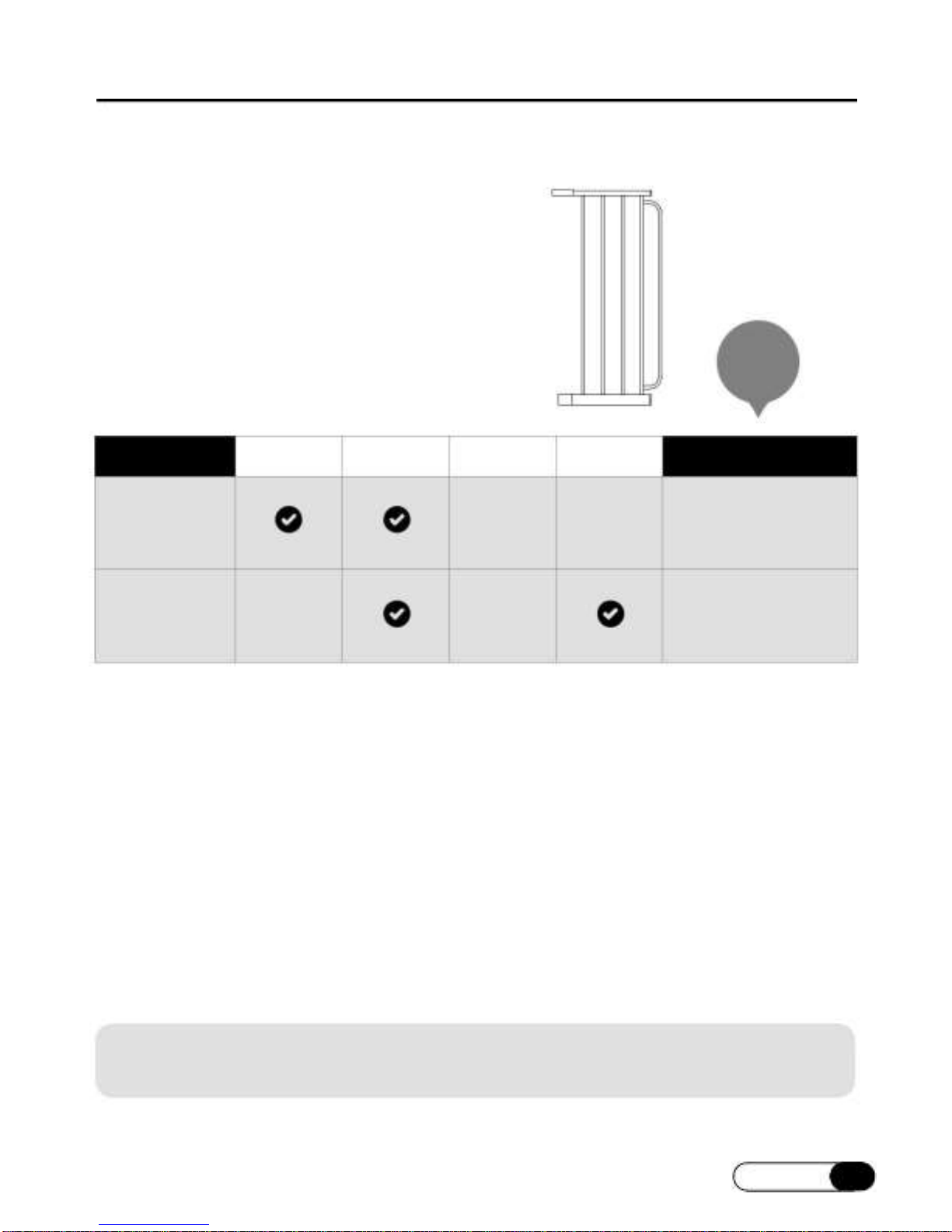

Extensions List
NOTE
MODEL
4"
6"
8"
12"
MAX SIZE
0930
29 –44 inches
0932
29 –52 inches
NOTE: When installing any gate at its maximum width, use wall cups to ensure stability and safety.
ENGLISH 5

Assembling and Installing Your Gate
NOTE: You will notice a slight gap between the gate door latch and the
frame.This is not a defect. Your gate is a pressure mounted gate and
this gap will disappear once you tighten your gate in its opening.

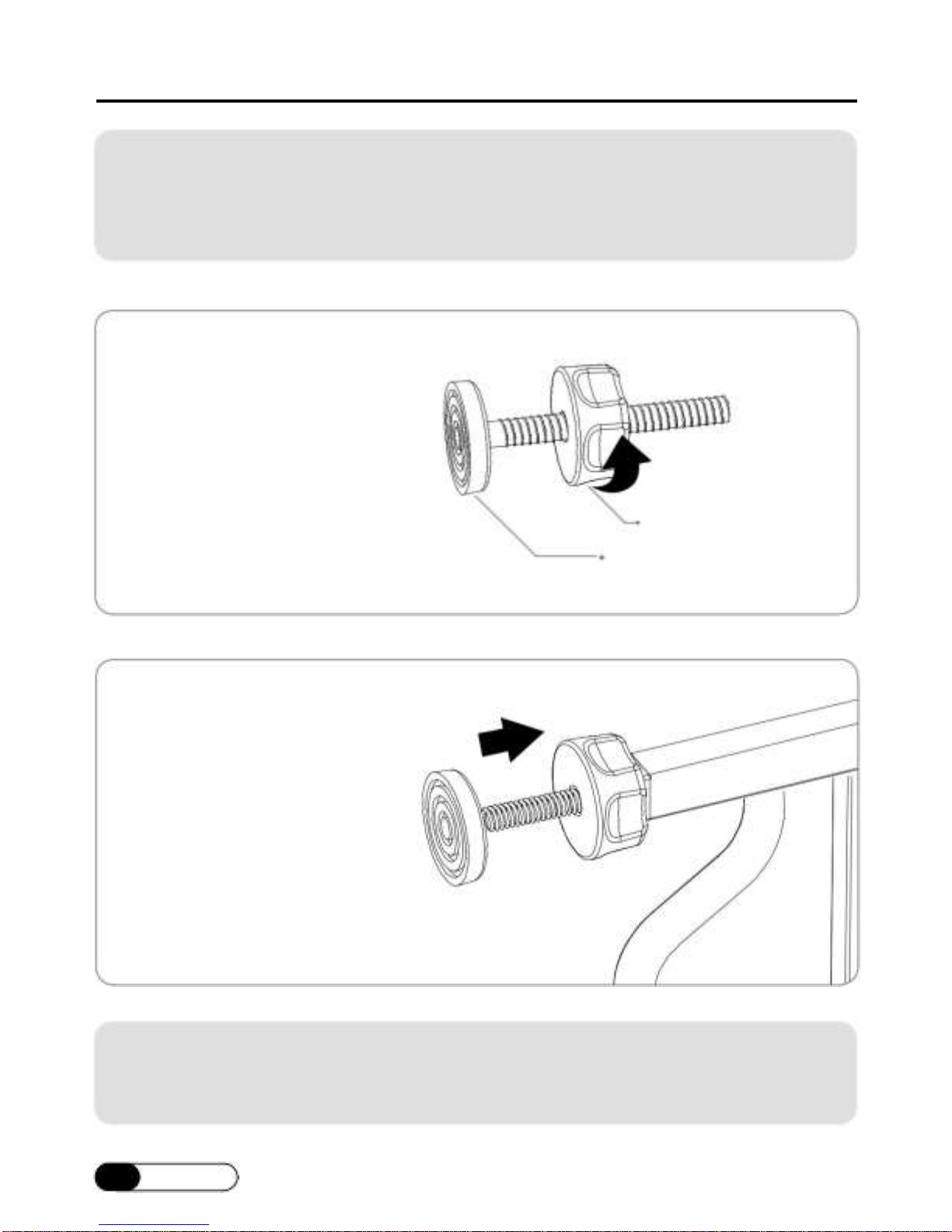

STEP 1
Locate the (4) threaded spindle rods.
Rotate the adjustment wheels along
the threading, eliminating the gap
between the adjustment
wheel and the rubber foot.
ADJUSTMENT WHEEL
RUBBER FOOT
STEP 2
Insert the (4) threaded spindle
rods into the holes at each of
the four corners of the gate.
NOTE: The ends of the gate frame are not threaded. The threaded spindle
rods should slide into the end of the frame tubes without any resistance.
6ENGLISH

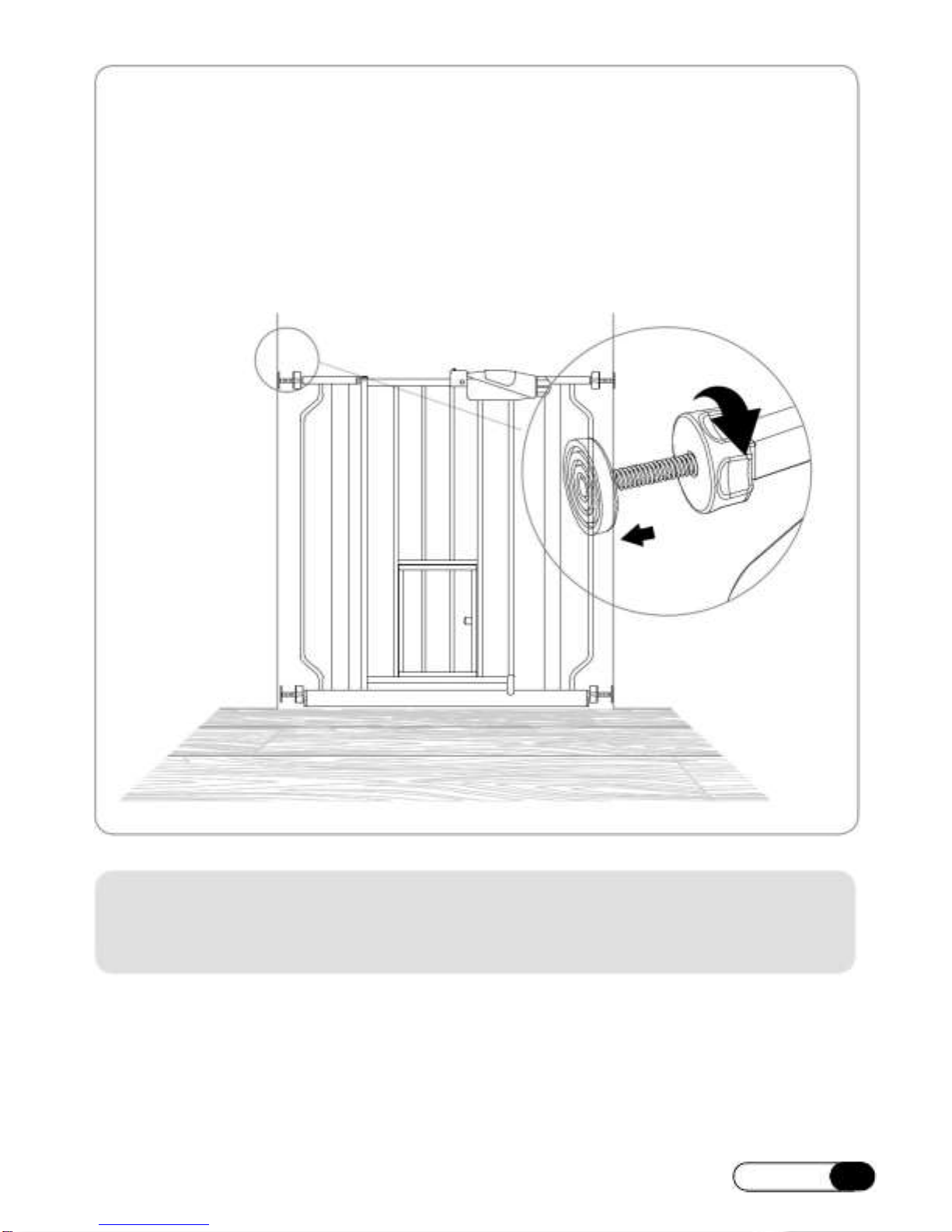

STEP 3
Position the gate so that it is level and centered within your doorway or opening. Rotate the adjustment
wheels on the threaded spindle rods in the opposite direction as in STEP 1, expanding the gap between
the rubber foot and the adjustment wheel. Expand each of the (4) threaded spindle rods until they make
contact with the doorway or opening. Do not fully tighten the
threaded spindle rods yet.
NOTE: It may be necessary to hold the threaded spindle rods or rubber feet
while rotating the adjustment wheels to ensure the entire unit does not rotate.
ENGLISH 7

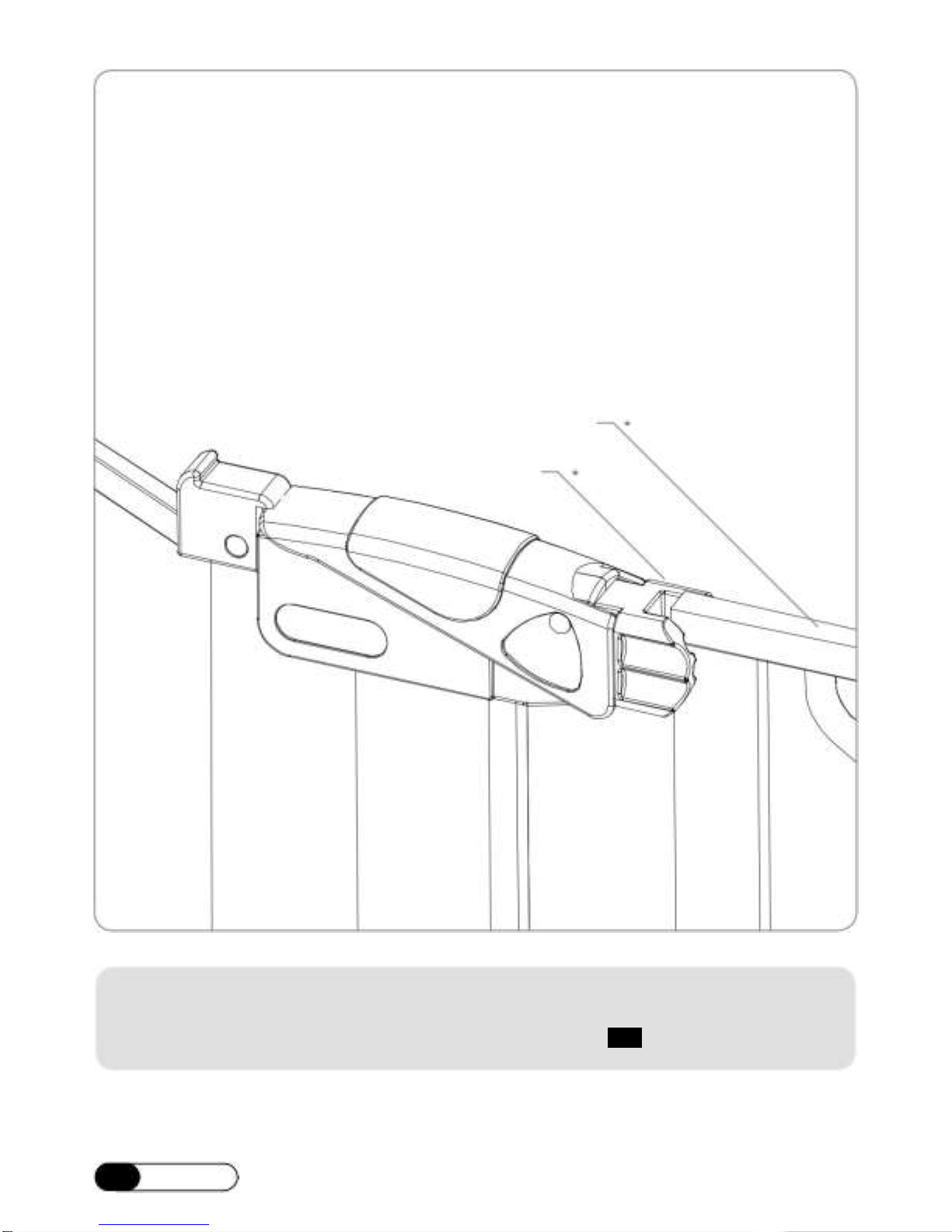

STEP 4
When you are satisfied with the general placement of your gate, fully tighten the threaded
spindle rods attached to the lower corners of the gate by further rotating the adjustment wheels.
Continue by tightening the upper threaded spindle rods. As you
tighten the upper threaded spindle rods, you will notice the gap
between the door frame and the easy open latch begin to narrow.
In order for the gate to function properly, stop tightening the upper threaded spindle
rods just before the inner wall of the locking latch and the gate frame touch.
GATE FRAME
LOCKING LATCH
NOTE: There should be equal spacing among each of the (4) threaded spindle rods.
Make the appropriate adjustment to ensure you have installed your gate safely.
8ENGLISH

Positioning and Attaching the Wall Cups
Your gate is a pressure mounted gate. Therefore, it is not necessary to use the
screw attached wall cups in your door opening if you choose not to. However, if
you are using the gate at the top of the stairs you must use the wall cups.
Using the wall cups will affix your gate more firmly in the doorway or opening.
STEP 1
After you have mounted your gate, and you are satisfied with its positioning, draw a circle
on the surface of your doorway or opening around the perimeter of the (4) rubber feet.
STEP 2
Next, completely remove the gate from the opening by loosening each of
the (4) threaded spindle rods to depressurize the gate.
ENGLISH 9

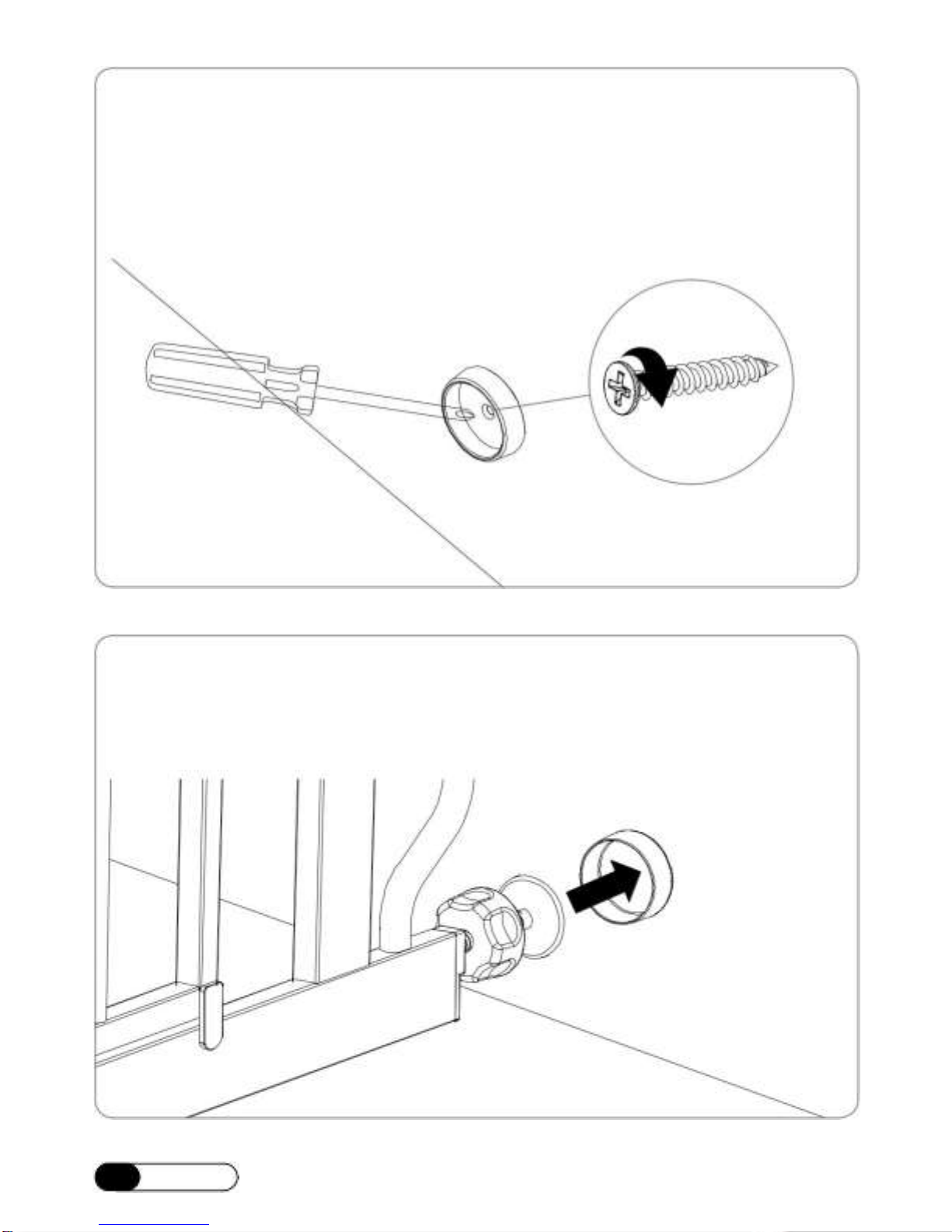

STEP 3
With the gate fully removed, you can now use the circles you marked
during STEP 1 as guides for screwing in your (4) wall cups.
Center each of the wall cups within the guide circles and use the provided self-tapping
screws to fasten them in place via the hole through the center of each wall cup.
STEP 4
Reinstall your gate in the doorway or opening according to the instructions, using the
newly installed wall cups as anchoring points for the (4) threaded spindle rods.
10 ENGLISH

Operating the Door Latch
STEP 1
Pull the spring lock away from the easy open latch while simultaneously
lifting the lock lever upwards. This will release the locking latch from the
gate frame and allow the door to push or pull open.
SPRING LOCK
LOCK LEVER
STEP 2
To lock the door shut, close the door completely, then push down on the
lock lever to re-engage the spring lock.
NOTE: If your easy open latch is not properly engaging with the receiving component,
ensure that your gate is level, mounted properly, and that you have not over-tightened the
threaded spindle rods.
ENGLISH 11

Adding a Gate Extension
STEP 1
Choose the side of the gate to be extended and remove the top and bottom threaded spindle rods.
STEP 2
Assemble the gate and extension as illustrated. Reposition the gate and
fit in accordance with the gate fitting instructions.
NOTE: It is preferable to install any extensions on the hinge side of the gate. If you have
an application that requires additional extensions, please contact the manufacturer.
12 ENGLISH

REMOVING YOUR GATE FROM THE WALL
To remove your gate from the wall, rotate the adjustment wheels on each of
the (4) threaded spindle rods to depressurize the gate from its doorway or
opening. Then, gently pull or push the gate free from its doorway or opening.
CARE AND MAINTENANCE
Periodically check the gate for signs of damage, wear, or missing components. Do not use if any
part is missing, worn or damaged. Check the gate regularly to ensure all the hardware
and mountings are tightened. Do not use abrasive cleaners or bleach.
Clean by sponging with warm water and a mild detergent.
90 DAYS LIMITED WARRANTY
If, during the first 90 days after consumer purchase of the item, under reasonable and non-commercial
use and conditions of maintenance, it fails while owned by the original purchaser because of the quality
of materials or workmanship of finish and assembly, Carlson Pet Products, Inc. will replace or repair it at
Carlson’s option. PROOF OF PURCHASE REQUIRED.
ENGLISH 13

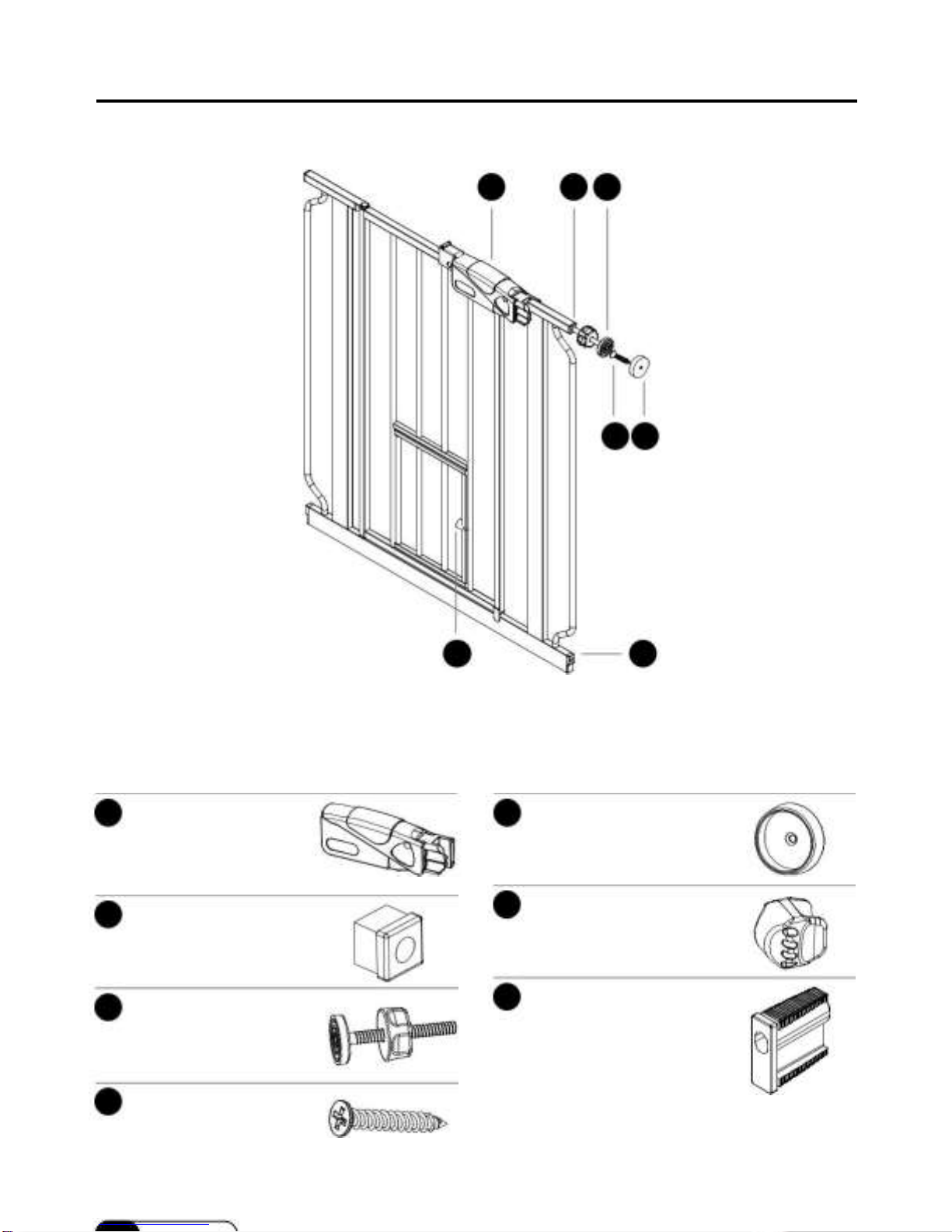

Replacement Parts
ABC
DE
F
G
A Easy Open Latch
Black = #11037
Gray = #14037
White = #13037
B Top Plug Insert
Black = #11020
Gray = #14020
C Threaded Spindle Rods
w/Adjustment Wheel
Black = #11016
Gray = #14016
D 1" Wall Mount Screws
#10001
E Wall Cups
Black = #11015
Gray = #14015
F Pet Door Pull Lock
Black = #11038
Platinum = #14038
White = #13038
G Bottom Plug Insert
Gray = #14019
Black = #11019

14 ENGLISH

Carlson Pet Products, Inc.
3200 Corporate Center Drive, Suite 105
Burnsville, MN 55306, USA
952.435.1084
