Carlson 2070 User manual

DESIGN PAW FREESTANDING GATE
OWNER’S MANUAL MODEL: 2070, 2870
www.carlsonpetproducts.com
Carlson Pet Products,Inc.
3200 Corporate Center Drive, Suite 105 | Burnsville, MN 55306,USA
952.435.1084
Made in China
• READ ALLINSTRUCTIONS BEFORE ASSEMBLYAND USE OF GATE.
• KEEP INSTRUCTIONS FOR FUTURE USE.
!

ENGLISH 3
!
Before Using Product
Read and follow all instructions carefully to ensure that your gate is properly installed.Please keep
these instructions for your reference.
WARNING
• To prevent serious injury or death,securely install gate or enclosure and
use according to manufacturer’s instructions.
• Check the gate regularly to see if all the hardware is tightened.
• This is a Pet Gate. NOTintended for use with children.
• Strangulation hazard: pets can force themselves into very small openings;
use this gate with pets whose heads will not fit into openings in the gate,
between the gate and floor,or between the gate and wall.
• Never use with pet able to climb over or dislodge/open the gate or
enclosure.
• Never leave pet unattended.
• To prevent falls, NEVER use at the top of stairs.
• This gate is designed to fit openings 41 to 70 inches.

ENGLISH4
Before Assembly
PLEASE CHECK TO MAKE SURE YOU HAVE THE FOLLOWING PARTS:
A Main Gate Panels
B Stabilizing Leg Assemblies (2)
C Crosshead Screws (8) (requires a Phillips/crosshead screwdriver)
D Connector Bolts (4)
A
DCB

ENGLISH 5

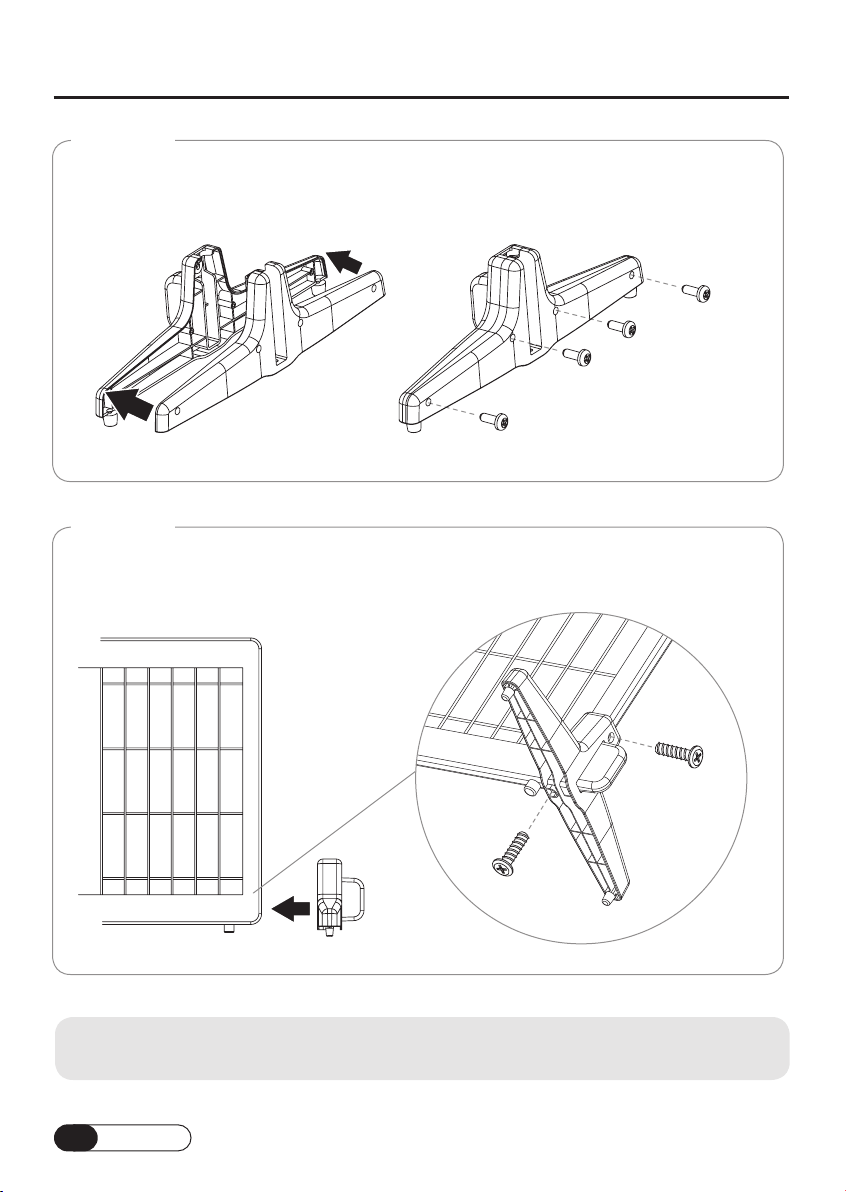

STEP 1
Connect two halves of one stabilizing leg, then secure the leg with (4) crosshead screws to
secure the leg.Repeat on the other stabilizing leg.
STEP 2
Using the (4) connector bolts and a Phillips screwdriver connect the stabilizing legs to the
ends of the gate.
Assembling Your Gate
NOTE: The connector bolts should be snug, but do not over-tighten them.

ENGLISH6

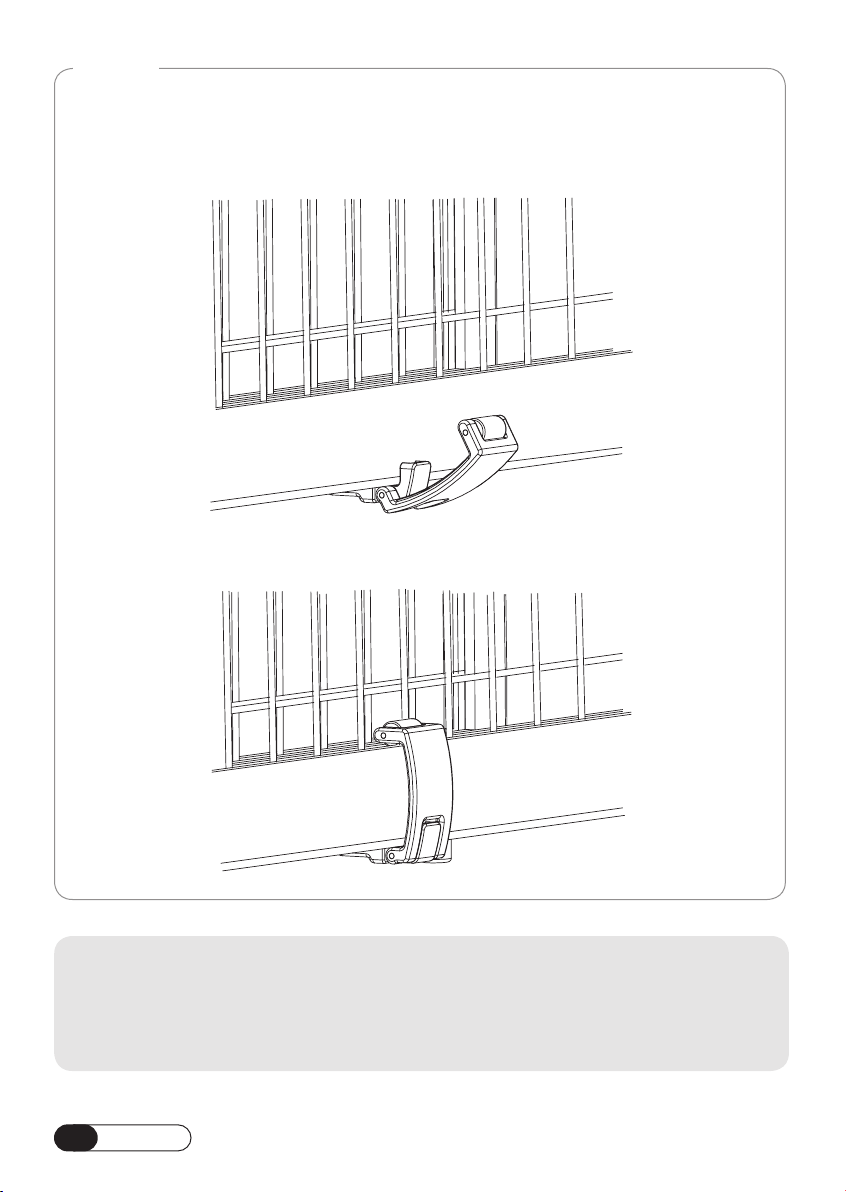

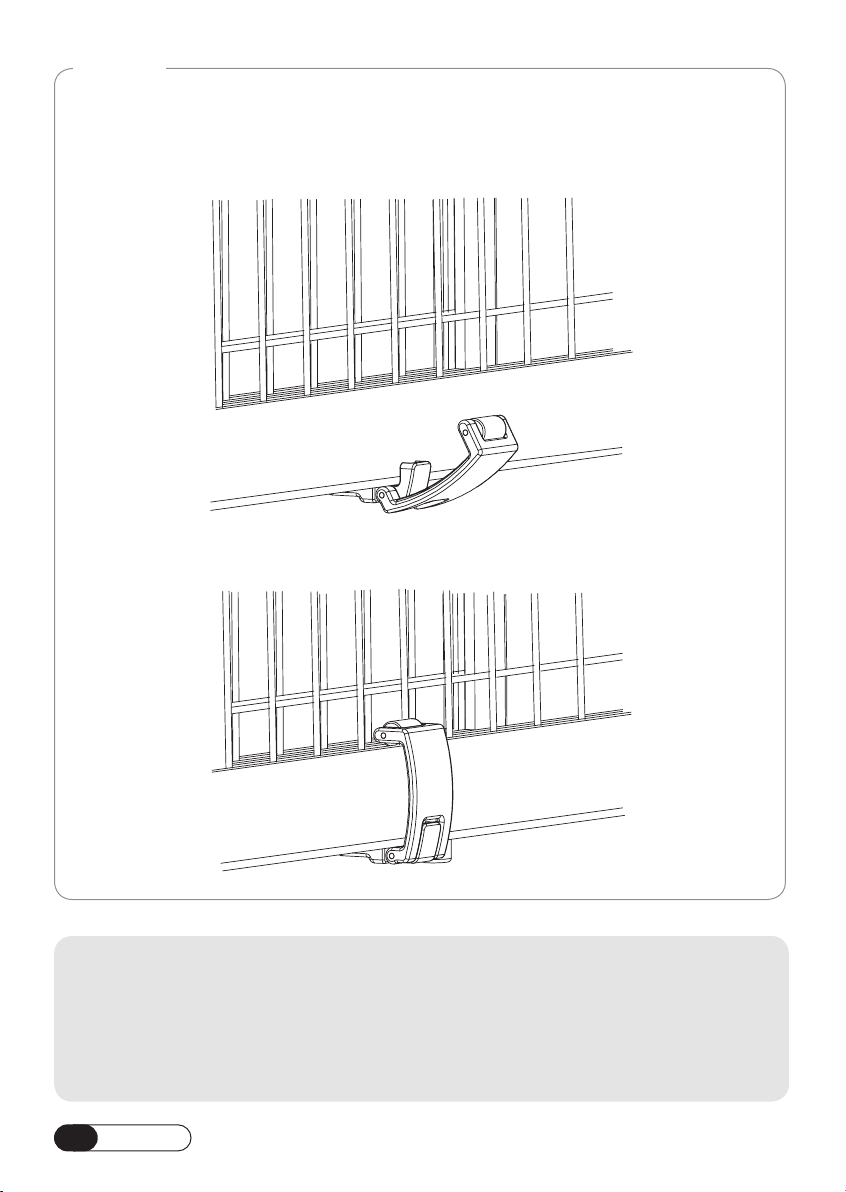

STEP 3

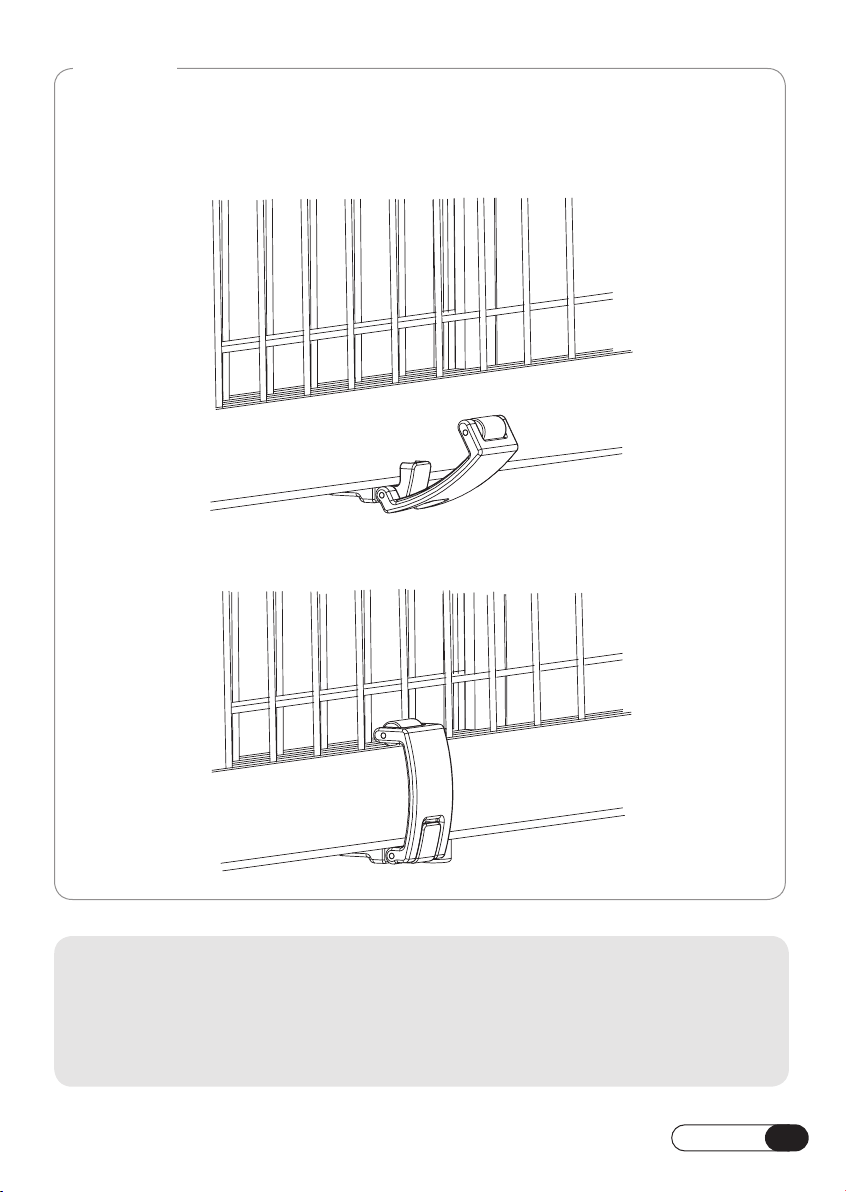

Extend the length of your gate to your desired size by unlocking the (4) locking hinges. Re-
lock the hinges when the gate reaches your desired size.
NOTE: The locking hinges must be correctly lined up within the gap between the metal
fencing. If misaligned, the lock will not fully engage.
The gate may not fit an opening perfectly due to the nature of the locking increments.
UNLOCKED
LOCKED

ENGLISH 7
VIEW FROM PET SIDE

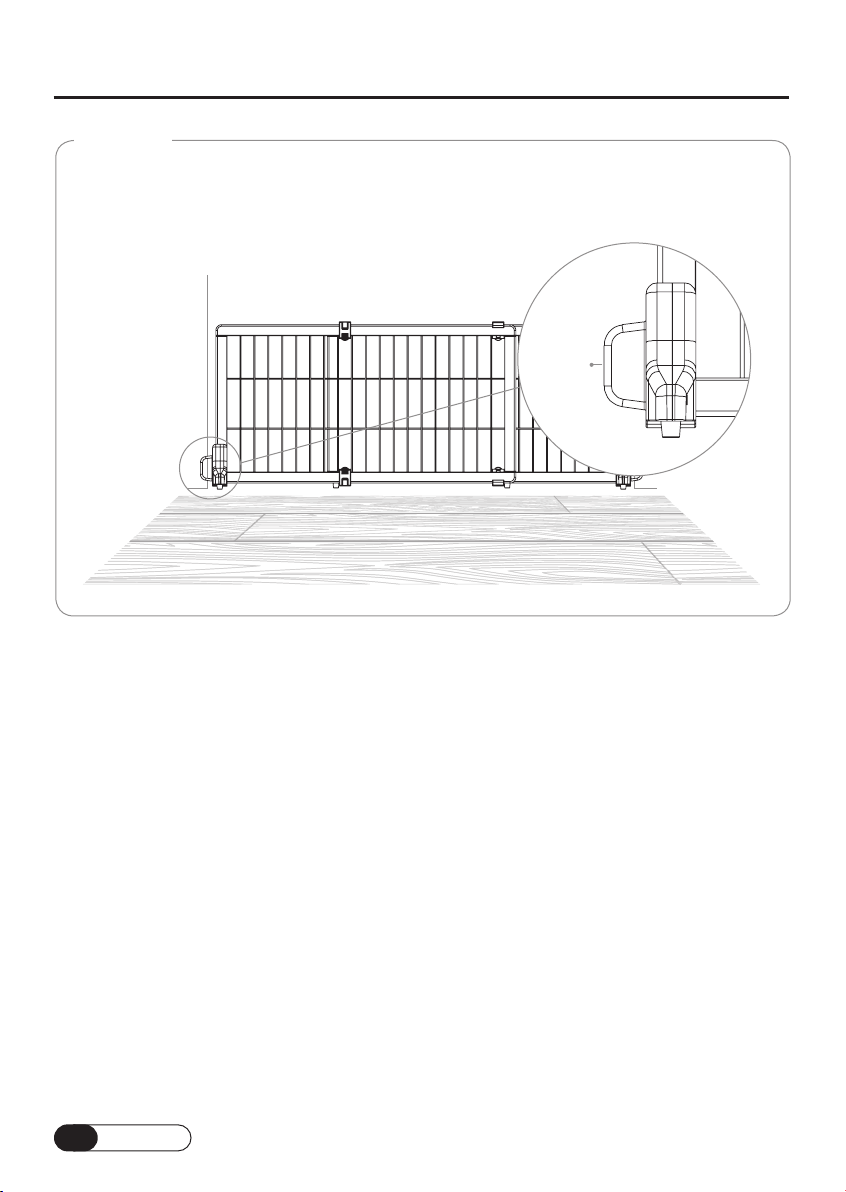

STEP 1
Insert gate into the doorway with tabs on the same side as your pet will be.This will prevent
your pet from pushing the gate out of the doorway.
Installing Your Gate
CARE AND MAINTENANCE
Periodically check the gate for signs of damage, wear,or missing components.Do not use
if any part is missing,worn or damaged.Check the gate regularly to ensure all the hardware
and mountings are tightened.Do not use abrasive cleaners or bleach.Clean by sponging with
warm water and a mild detergent.
90 DAYS LIMITED WARRANTY
If, during the rst 90 days after consumer purchase of the item, under reasonable and non-commercial
use and conditions of maintenance,it fails while owned by the original purchaser because of the
quality of materials or workmanship of nish and assembly, Carlson Pet Products, Inc. will replace or
repair it at Carlson’s option. PROOF OF PURCHASE REQUIRED.
TABS

ENGLISH8
Replacement Parts
A Crosshead Screw
#10054
B Stabilizing Leg Assembly
Black = #11053
CConnector Bolt
#10052
A
C
B

FRENCH 9
BARRIÈREAUTONOME DESIGN PAW
GUIDE D’UTILISATION MODÈLES :2070, 2870
www.carlsonpetproducts.com
Carlson Pet Products,Inc.
3200 Corporate Center Drive, Suite 105 | Burnsville, MN 55306,É.-U.
952.435.1084
Fabriqué en Chine
• LIRE TOUTES LES INSTRUCTIONS AVANT D’ASSEMBLER ETD’UTILISER LA BARRIÈRE.
• CONSERVER CES INSTRUCTIONS POUR UNE UTILISATION ULTÉRIEURE.!

FRENCH10
!
Avant d’utiliser le produit
Lire et suivre attentivement les instructions pour assurer une installation conforme de la barrière.
Conserver ces instructions pour consultation.
AVERTISSEMENT
• Pour prévenir des blessures graves voire mortelles,assembler solidement
la barrière ou le parc; leur utilisation doit être conforme aux directives du
fabricant.
• Vérifier régulièrement le serrage des pièces de montage et de fixation.
• Ce produit est une barrière de sécurité.Elle n'est PAS conçue pour être
utilisée avec des enfants.
• Risque d'étouffement : les animaux de compagnie peuvent se glisser
dans de très petites ouvertures; réserver l'utilisation de cette barrière
à des animaux de compagnie dont la tête ne peut pas se loger entre
les ouvertures de la barrière,entre la barrière et le plancher ou entre la
barrière et le mur.
• Ne jamais utiliser si les animaux de compagnie sont capable de grimper
par-dessus ou de déloger la barrière.
• Ne jamais laisser l'animal de compagnie sans surveillance.
• Pour éviter les chutes, NEJAMAIS l'utiliser en haut d'un escalier.
• Cette barrière est conçue pour s'adapter à des ouvertures comprises entre
104 cm et 178 cm (41 po et 70 po).
