Carrier GAPAB Series User manual

Installation instructions Addendum
The GAPAB air purifier has recently been upgraded with new power supply hardware. This addendum replaces the "Wiring" section on
pages 4 and 5 of the installation instruction manual for proper installation and operation of the air purifier.
WIRING
a. Ensure power has been removed from the heating and
cooling system.
b. Turn the air purifier power switch off.
c. Connect the airflow switch and power cord to the power
supply connectors (see Figs. 7 and 8).
d. Secure the power cord ground wire to the ground terminal on
the cabinet using the screw provided in the ground terminal
(see Fig. 8).
e. Route the power cord through the nearest cabinet hole and
protect with the enclosed cable connector. The screws on
the cable connector should be tightened to 9 in-lb. Zip ties
have been enclosed (in parts bag attached to power cord) to
secure the power cord to the side of the power supply.
f. Attach the quick connect terminals to the fused power
connector leads (in parts bag) and connect to incoming field
power. The terminals are polarity neutral and can be
connected in either polarity. Attach the ground ring to Pan
coil chassis ground (see Fig. 10).
ELECTRICAL SHOCK HAZARD
Failure to follow this warning could result in personal injury
or death.
Before installing or servicing system, always turn off main
power to system. There may be more than one disconnect
switch.
SAFETY HAZARD
Failure to use the flow sensor switch for normal air purifier
operation may result in personal injury or equipment
damage.
ALTERNATE POWER CORD
TERMINALS
POWER SUPPLY --
CONNECTOR
AIRFLOW SWITCH CABLE INSTALLED AND
CONNECTED TO THE POWER SUPPLY
POWER CORD INSTALLED AND
GROUND WIRE SECURED TO TERMINAL INSTALLATION OF THE AIRFLOW SWITCH BYPASS PLUG
IS FOR TROUBLESHOOTING PURPOSES ONLY AND TO
BE USED ONLY BY QUALIFIED SERVICE PERSONNEL
Fig. 7 -Airflow Switch Cable Installed Fig. 8 - Power Cord Installed Fig. 9 -Airflow Switch Bypass Plug
For Troubleshooting

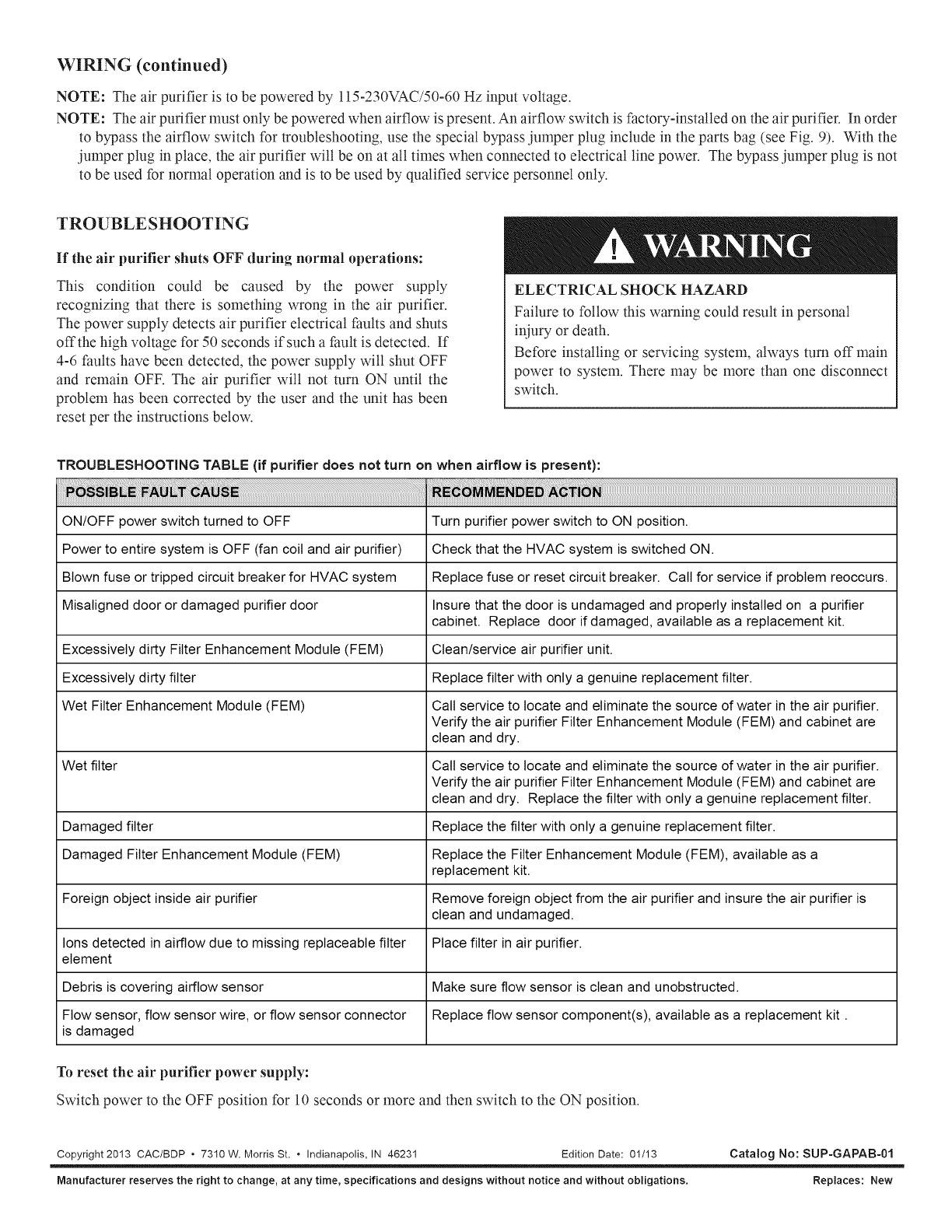

WIRING (continued)
NOTE: The air purifier is to be powered by 115-230VAC/50-60 Hz input voltage.
NOTE: The air purifier must only be powered when airflow is present. An airflow switch is factory-installed on the air purifier. In order
to bypass the airflow switch for troubleshooting, use the special bypass jumper plug include in the parts bag (see Fig. 9). With the
jumper plug in place, the air purifier will be on at all times when connected to electrical line power. The bypass jumper plug is not
to be used for normal operation and is to be used by qualified service personnel only.
TROUBLESHOOTING
If the air purifier shuts OFF during normal operations:
This condition could be caused by the power supply
recognizing that there is something wrong in the air purifier.
The power supply detects air purifier electrical faults and shuts
offthe high voltage for 50 seconds if such a fault is detected. If
4-6 faults have been detected, the power supply will shut OFF
and remain OFF. The air purifier will not turn ON until the
problem has been corrected by the user and the unit has been
reset per the instructions below.
ELECTRICAL SHOCK HAZARD
Failure to follow this warning could result in personal
injury or death.
Before installing or servicing system, always turn off main
power to system. There may be more than one disconnect
switch.
TROUBLESHOOTING TABLE (if purifier does not turn on when airflow is present):
ON/OFF power switch turned to OFF Turn purifier power switch to ON position.
Power to entire system is OFF (fan coil and air purifier) Check that the HVAC system is switched ON.
Blown fuse or tripped circuit breaker for HVAC system Replace fuse or reset circuit breaker. Call for service if problem reoccurs.
Misaligned door or damaged purifier door Insure that the door is undamaged and properly installed on a purifier
cabinet. Replace door if damaged, available as a replacement kit.
Excessively dirty Filter Enhancement Module (FEM) Clean/service air purifier unit.
Excessively dirty filter Replace filter with only a genuine replacement filter.
Wet Filter Enhancement Module (FEM) Call service to locate and eliminate the source of water in the air purifier.
Verify the air purifier Filter Enhancement Module (FEM) and cabinet are
clean and dry.
Wet filter Call service to locate and eliminate the source of water in the air purifier.
Verify the air purifier Filter Enhancement Module (FEM) and cabinet are
clean and dry. Replace the filter with only a genuine replacement filter.
Damaged filter Replace the filter with only a genuine replacement filter.
Damaged Filter Enhancement Module (FEM) Replace the Filter Enhancement Module (FEM), available as a
replacement kit.
Foreign object inside air purifier Remove foreign object from the air purifier and insure the air purifier is
clean and undamaged.
Ions detected in airflow due to missing replaceable filter Place filter in air purifier.
element
Debris is covering airflow sensor Make sure flow sensor is clean and unobstructed.
Flow sensor, flow sensor wire, or flow sensor connector Replace flow sensor component(s), available as a replacement kit.
is damaged
To reset the air purifier power supply:
Switch power to the OFF position for 10 seconds or more and then switch to the ON position.
Copyright 2013 CAC/BDP * 7310 W. Morris St.. Indianapolis, IN 46231 Edition Date: 01/13 Catalog No: SUP-GAPAB-01
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations. Replaces: New
