Carson Zorb MM-500 User manual

CARSON®
Zorb™
81x Digital Microscope
Congratulations on selecting your new Zorb™! In order to
achieve optimum performance, please follow instructions
for proper use and care.
PRODUCT SPECIFICATION:
Magnification: 81x (on a 32” Screen)
Resolution: 1600 x 1200 Pixels
Weight: 0.19 lbs
Dimensions: 1.8” x 1.8” x 2.4”
Accessory: 2 Viewing Adapters
OPTICAL SPECIFICATION:
Effective Magnification* 53x @ 21” Screen
61x @ 24” Screen
68x @ 27” Screen
81x @ 32” Screen
Image Sensor Format 2.0M Pixel UXGA
CMOS
Image Resolution 1600 x 1200 Pixels
(UXGA)
*Please note, the effective magnification is
aa combination of the optical system and
ahigh powered digital zoom based upon the
aabove screen sizes.
POWER RATINGS:
5V DC 250mA USB 2.0 / 3.0
PACKAGE CONTENTS:
Digital Microscope
Flush View Adapter
(viewing flat objects)
Depth View Adapter
(viewing concave objects)
PRODUCT OVERVIEW:
U
S
Shutter Button
Lens
Focusing
F
O
C
Ring
Adapter
Slot
360°LED
Ring
Adapter
Slot
USB Cable
MM-500
ATTACHING ADAPTER TO MICROSCOPE:
To view the images clearly, please use one of
the adaptors provided.Place one of the
adapters into the adapter slot located under
the main body. Lock by turning adapter in a
clockwise direction.
1

DOWNLOAD AND CONNECT THE DEVICE:
• Go to www.carson.com/software to download and install the latest Xploview software for your operating system.
• Compatible with Mac and Windows
• USB 2.0 / 3.0 required. No batteries required.
• Connect device to a computer using the attached USB cable.The LED light will turn on indicating that the device is
powered on.
• When device is connected to the computer for the first time, a driver will automatically be installed by Windows or Mac OS.

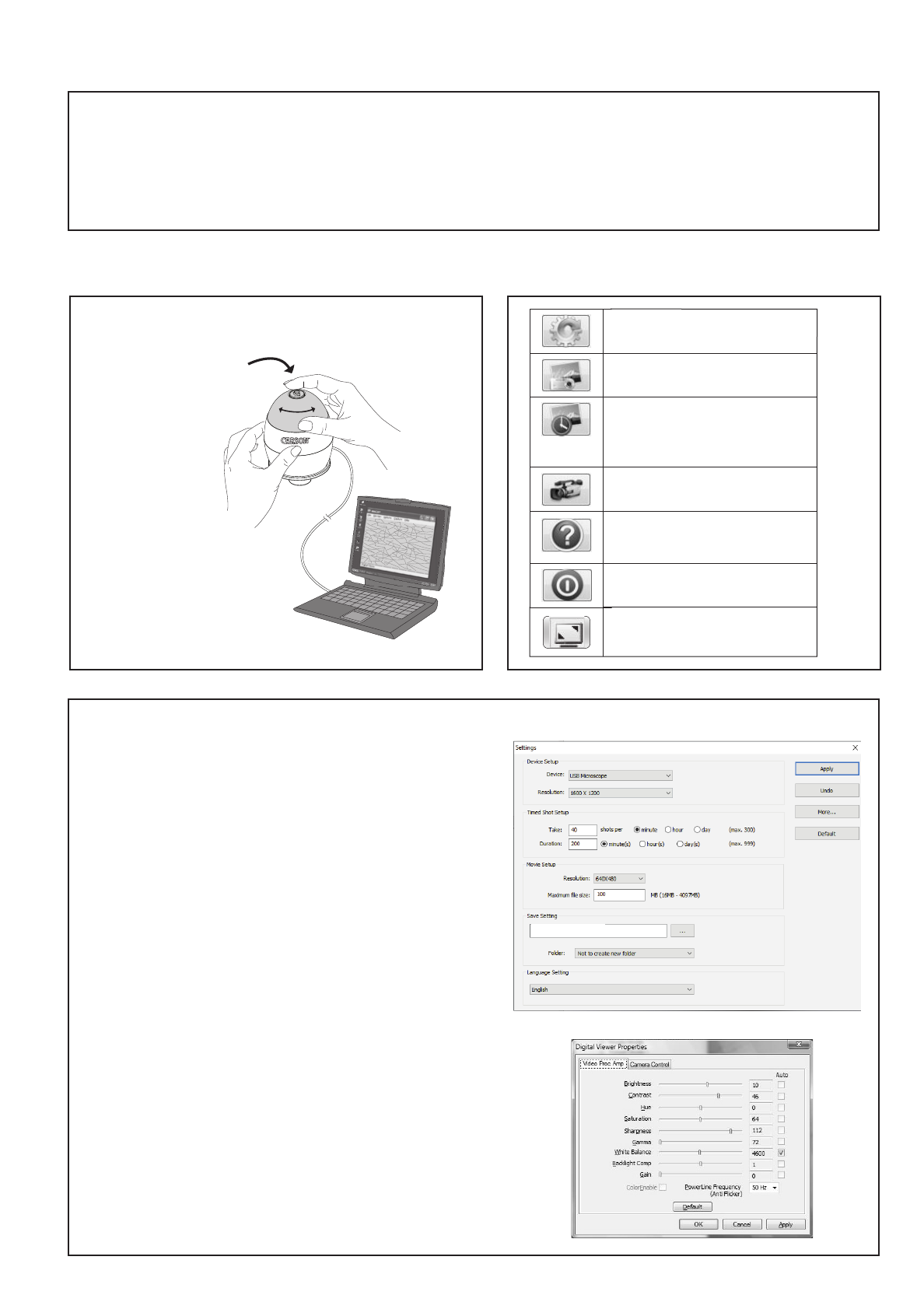

FOCUSING:
Rotate the focusing ring clockwise or counterclockwise until
the viewing image shown on the monitor is clear and sharp.
To take a quick image,
press the shutter button.*
*You can also capture an image by
clicking the camera icon on the
Xploview Default View Screen.
USING THE XPLOVIEW SOFTWARE:
~
[d]
1 -1 1
~
[BJ
~
~
Click to open the Xploview settings
menu (see next section).
Click to capture an image.
Click to start and stop the timed shot
feature.When activated, images will
be captured at a regular interval.
Click to start and stop the video
recording feature.
Click to show the copyright and
version information of the application
software.
Click to close the Xploview software.
Click to view in full screen mode.
Button is on bottom right hand corner
of screen. Press “Esc” to exit mode.
åÖ
XPLOVIEW SETTINGS MENU:
The first time the Xploview software is started, the default
settings will be loaded.You may change these settings
manually in the system settings menu.Be sure to click “Apply”
to save setting changes.
• Device Setup: If the image captured by the Digital Microscope
was not displayed by default, you can change this by selecting it
from the “Device” drop-down menu.The resolution of images you
capture can be changed from the “Resolution” drop-down menu.
• Timed Shot Setup: The frequency and duration of automatic
images captured can be adjusted under this option.
• Movie Setup: The resolution of videos you record can be changed
from the “Resolution” menu.You can also set a maximum file size
for each video.
• Save Setting: The default location for captured images or videos
can be changed under this option.
• Language Setting: The language of the Xploview software can
be changed under this option.
• “More”: By clicking “More...” on the right side of Settings Menu,
you will access the DigitalViewer Properties where you can
manually adjust image settings.Depending on your operating
system, settings may differ.(See image on the right.)
2
~ ings
~5etup
Device: USBt-kroscope
RescLtion: ~
)( 1200
TmedShotSetup
Take: ~ sholsper @nnite O hot.r Q ,;t.,y
Ou"ation: ~ @nnite(s} Qhou'(s) Qday(s)
Movie5etup
Resci.Jtion: &10X"80
Maxi'IUTlfiesile: LI 1_oo __ ~l 1"11(1EMl-109;Ml)
SaveSetting
I I
Fader: Nottocreatenewfolder
Oigit;,I View er Properties
['Meo P IOChlllj l Cameraemro1 1
~tness
~ontrast
t,,,
~Ulation
- .... ~
.....,,. ,
,.
"
•
-
it
{max.JOO)
(max.999)
10
...
64
-it
112
72
"600
~b!:Balance
~tComp
..., "
7)--
Auto
Iii
~
eowert,neFre~ 50Hz ...
( AntiFkker )
~
X
Settings Menu
C:\Users\jsmith\Documents
Digital Viewer Properties Menu


r-·· Single Shots
L.. Timed Shots
--►~ More ...
IS2I
VIEW PHOTOS AND VIDEOS:
To view or share your
captured images and
videos, click “More...”
-
on the Xploview Default
View Screen.
CARE AND MAINTENANCE:
• Keep device dry and protect from water or vapor.
• Store device in original packaging to prevent damage.
• Do not use harsh chemicals, cleaning solvents or
strong detergents to clean the device.Wipe with a
soft cloth, using a mild soap and water solution.
WARNING:
• To avoid eye damage, do not place the lighted microscope directly upon human eye.
• Do not touch the device with wet hands as it may damage the device, or cause an electric shock to the user.
• Never attempt to open or dismantle the Digital Microscope.
˜°˛˝˙ˆˇ˘ˇ˘ˇ
˜°˛˝˙ˆ˛ˇ˘ˇˇˇ˛˝˛ˆˇ˛ˇˇ˛˙˛ˆ˛˛ˇ˛˛ˇ˛˝˛˙˛ˇ˛˝˙ˆ
°˙ ˙˙ ˆˆ˙ ˙˙ ˇˆˆ˙ ˙˙
www.carson.com
Carson Optical 2070 5th Avenue, Ronkonkoma, NY 11779 | Tel: [phone]
3
For warranty information, please visit www.carson.com/warranty
