CARTER-HOFFMANN LOGIX7 Series User manual

LOGIX7 Series HEATED HOLDING CABINETS
MODELS: HL7-5, HL7-8, HL7-14, HL7-18, HL7-1812
(Formerly HBU18S1XM, HBU14S1XM, HBU8S1XM & HBU5S1XM
HBC36S1XM, HBC28S1XM, HBC16S1XM & HBC10S1XM)
OWNERS / OPERATORS MANUAL
Part Number: 18400-3134c Printed in The United States of America Rev: KBA120512
TABLE OF CONTENTS
SAFETY PRECAUTIONS……………………………..……….. 2
FEATURES & SPECIFICATIONS………..……………..……. 3
UNPACKING, INSPECTION & FREIGHT DAMAGE……….. 4
INSTALLATION & STARTUP …………………….…………… 5
CONTROL PANEL LAYOUT………………………………….. 6
NORMAL OPERATION………………………………………… 7
FOOD HOLDING GUIDE………………………………………. 8
REGULAR CLEANING PROCEDURES………………..……. 9
CABINET MAINTENANCE……………………………………. 10
WIRING DIAGRAM...…………………………………………… 11
TROUBLESHOOTING GUIDE ……………………………….. 12
WARRANTY STATEMENT……….……………….………….. 13
HL7-18
MANUFACTURED BY:
CARTER-HOFFMANN
1551 McCormick Avenue
Mundelein, IL 60060 U.S.A.
Phone: [phone]
Fax: [phone]
Toll Free: 800-323-9793
Email: [email protected]
HL7-14-D
with optional Dutch doors
HL7-1812

2
WARNING: ELECTRIC SHOCK HAZARD
All service requiring access to non-insulated components must be performed by
qualified service personnel. Failure to heed this warning may result in severe
electric shock.
CAUTION: ELECTRIC SHOCK HAZARD
Disconnect this appliance from electrical power before performing any
maintenance or service.
CAUTION: BURN HAZARD
Exposed metal surfaces can be hot to the touch and may cause burns.
SAFETY PRECAUTIONS
WARN ING
NOTE: The technical content of this manual, including any wiring diagrams, schematics, parts breakdown
illustrations and/or adjustment procedures, is intended for use by qualified technical personnel and is
subject to change without notice.
IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliances basic safety precautions should be adhered to, including the following:
1) Be familiar with the appliance use, limitations and associated restrictions. Operating instructions must
be read and understood by all persons using or installing this appliance.
2) This appliance must be grounded. Connect only to properly grounded outlet.
3) Use this appliance only for its intended purpose as described in the manual.
a. This equipment is specifically designed to hold pre-cooked food at temperature.
b.
This equipment is intended for use in commercial establishments only.
c. This equipment is not designed for industrial or laboratory use.
4) Cleanliness of this appliance and its accessories is essential to good sanitation.
5) DO NOT submerge this appliance in water. This appliance is not jet stream approved. DO NOT direct
water jet or steam jet at this appliance, or at any control panel or wiring. DO NOT splash or pour
water on, in or over any controls, control panel or wiring. DO NOT use corrosive chemicals or vapors
in this appliance.
6) DO NOT store this appliance outdoors. DO NOT use this product near water – for example,
near a kitchen sink, in a wet basement, or near a swimming pool, and the like.
7) DO NOT operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has
been damaged or dropped. Do not immerse cord or plug in water, keep cord away from heated
surfaces, and do not let cord hang over edge of table or counter.
8) DO NOT cover or block any openings on the appliance.
9) Only qualified service personnel should service this appliance.

3

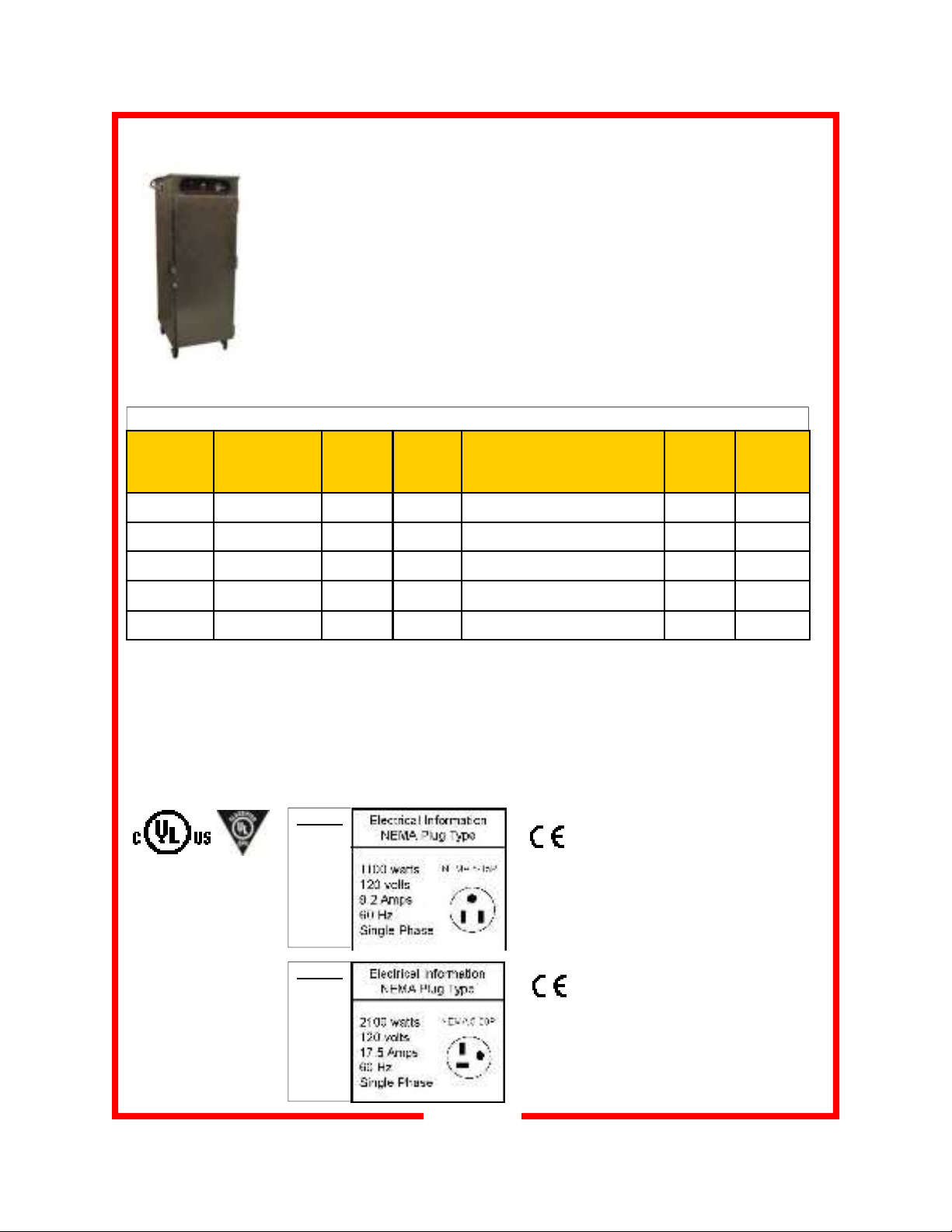

FEATURES & SPECIFICATIONS
Model
Number Pan/Tray Capacity
Adjustable spacing from
1.5” to 3” centers
12”x20” 18”x26”
Slide Pairs
Provided
Inside
Working
Height
in (mm)
Overall Dimensions
Height Depth Width
in (mm)
Caster
Diameter
in (mm)
Class 100
Shipping
Weight
lbs (kg)
HL7-5
(under-counter) 10 5 5 15-5/16
(389) 33-1/2 33-1/16 28 3/16 (851) (840) (716) 3 (76) 261 (118)
HL7-8
(1/2 size)
16 8 8 24-15/16
(633) 45-1/2 33-1/16 28 3/16 (1156) (840) (716) 5 (127) 312 (141)
HL7-14
(3/4 size) 28 14 14 42-1/2
(1080) 64-3/8 33-1/16 28 3/16 (1635) (840) (716) 5 (127) 413 (189)
H:7-18
(full size) 36 18 18 57-7/16
(1459) 76-3/8 33-1/16 28 3/16 (1940) (840) (716) 5 (127) 485 (220)
HL7-1812
(full size transport) 24 12 12 (4.5” spacing) 57-7/16
(1459) 76-3/8 36-5/8 31-3/8 (1940) (930) (797) 5 (127) 438 (199)
MODELS
HL7-5
HL7-8
Cabinets w ith Adjustable Universal Slides for 12”x20” Pans, 18” x 26” Trays and Gastronorm Pans
NSF/ANSI 4
Features & Benefits
 Precision-engineered heat ducts with blower for even heat throughout cabinet.
 Analog temperature dial and temperature read-out
 Under-counter, 1/2-size, 3/4 size and full size
 Heavy-duty casters, two swivel with brake, two rigid
 Field reversible doors are standard. Clear glass doors are optional.
 Adjustable stainless steel universal pan slides are standard; optional fixed angle
slides for 18”x26” sheet pans
MODELS
HL7-14
HL7-18
HL7-1812
International voltage:
220 volts, 2100 watts, 9.5 Amps, 50 Hz, 1 Ph, plug
cap per specific country requirements / standards
International voltage:
220 volts, 1100 watts, 5 Amps, 50 Hz, 1 Ph, plug cap
per specific country requirements / standards
Available in low wattage options; consult individual
specification sheets for details

4
UNPACKING AND INSPECTION
UNPACKING AND INSPECTION
1. Remove the cabinet from shipping carton, ensuring that all pack-
ing materials and protective plastic has been removed from the
unit.
2. Inspect all components for completeness and condition.
3. If any freight damage is present, a freight claim must be filed im-
mediately with the shipping company.
4. Freight damage is not covered under warranty.
5. Check to insure all components are included: cabinet, instruction
packet and additional accessories.
6. Read operation instructions completely.
7. Appliance should be thoroughly cleaned before use. See
CLEANING INSTRUCTIONS in this manual.
This appliance
should be
thoroughly
cleaned prior to use.
See the CLEANING
INSTRUCTIONS in
this manual.
NOTE: DO NOT discard
the carton or other
packing materials until
you have inspected the
appliance for hidden
damage and checked it
for proper operation.
Refer to FREIGHT
DAMAGE CLAIM
PROCEDURE on
bottom of this page.
FREIGHT DAMAGE CLAIM PROCEDURE
NOTE: For your protection, please note that equipment in this shipment was carefully inspected
and packaged by skilled personnel before leaving the factory. Upon acceptance of this shipment,
the transportation company assumes full responsibility for its safe delivery.
IF SHIPMENT ARRIVES DAMAGED:
1. VISIBLE LOSS OR DAMAGE: Be certain that any visible loss or damage is noted on the freight
bill or express receipt, and that the note of loss or damage is signed by the delivery person.
2. FILE CLAIM FOR DAMAGE IMMEDIATELY: Regardless of the extent of damage. Contact
your dealer immediately.
3. CONCEALED DAMAGE: If damage is unnoticed until the merchandise is unpacked, notify the
transportation company or carrier immediately, and then file a “CONCEALED DAMAGE” claim
with them. This should be done within fifteen (15) days from the date the delivery was made to
you. Be sure to retain the container for inspection.
Carter-Hoffmann cannot assume liability for damage or loss incurred in transit, freight damage is
not covered under warranty. We will, however, at your request, supply you with the necessary
documents to support your claim.

5
LOCATION
For proper operation and maximum performance, locate the
unit in an ambient air temperature of 70ºF (21ºC).
Avoid placement in areas near exhaust fans or where there
are active air movements.
For safe operation and maximum performance, locate the
unit at least 2” from any wall or combustible material.
Unit must be on a solid level surface.
INSTALLATION and STARTUP
GROUNDING INSTRUCTIONS
This appliance is equipped with a cord having a grounding
wire with a grounding plug which must be plugged into an
outlet that is properly installed and grounded. In the event of
an electrical short circuit, grounding reduces the risk of elec-
tric shock by providing an escape wire for the electric current.
WARNING—Improper use of the grounding can result in
a risk of electric shock. Consult a qualified electrician or
service agent if the grounding instructions are not completely
understood, or if doubt exists as to whether the appliance is
properly grounded.
If necessary, contact a licensed
electrician to install an appropriate
20 amp electrical circuit with correct
NEMA receptacle.
DO NOT use an extension cord.
Installation procedures must be
performed by a qualified technician
with full knowledge of all applicable
electrical codes. Failure could
result in personal injury and proper-
ty damage.
Damage to unit due to being
connected to the wrong voltage or
phase is NOT covered by warranty.
START-UP
1. Prior to use, thoroughly clean the interior of the unit, per
the instructions in this manual.
2. Plug the power cord of the cabinet into a grounded outlet
with a electrical service according to the electrical infor-
mation provided at right.
3. Set POWER switch to the “ON” position.
4. Do not load product into the cabinet. Allow the heat to
remove any residual oils which may adhere to inside met-
al surfaces. A slight emission of smoke is common dur-
ing the first few hours of operation.
The ground prong of the power
cord is part of a system designed to
protect you from electric shock in
the event of internal damage.
DO NOT cut off the large round
ground prong or twist a blade to fit
an existing receptacle.
CAUTION:
Electrical Shock Hazard
Unit is not waterproof, to avoid
electrical shock, keep unit and
counter from being submerged in
water. Do not operate if unit has
been in contact with water.
IMPORTANT:
Power cord is 10' long
IMPORTANT:
Not under warranty
WARNING:
Risk of personal injury
WARNING:
Risk of personal injury
MODELS
HL7-5
HL7-8
MODELS
HL7-14
HL7-18
HL7-1812
International voltage:
220 volts, 2100 watts, 9.5 Amps, 50 Hz, 1
Ph, plug cap per specific country require-
ments / standards
International voltage:
220 volts, 1100 watts, 5 Amps, 50 Hz, 1 Ph,
plug cap per specific country requirements /
standards

6

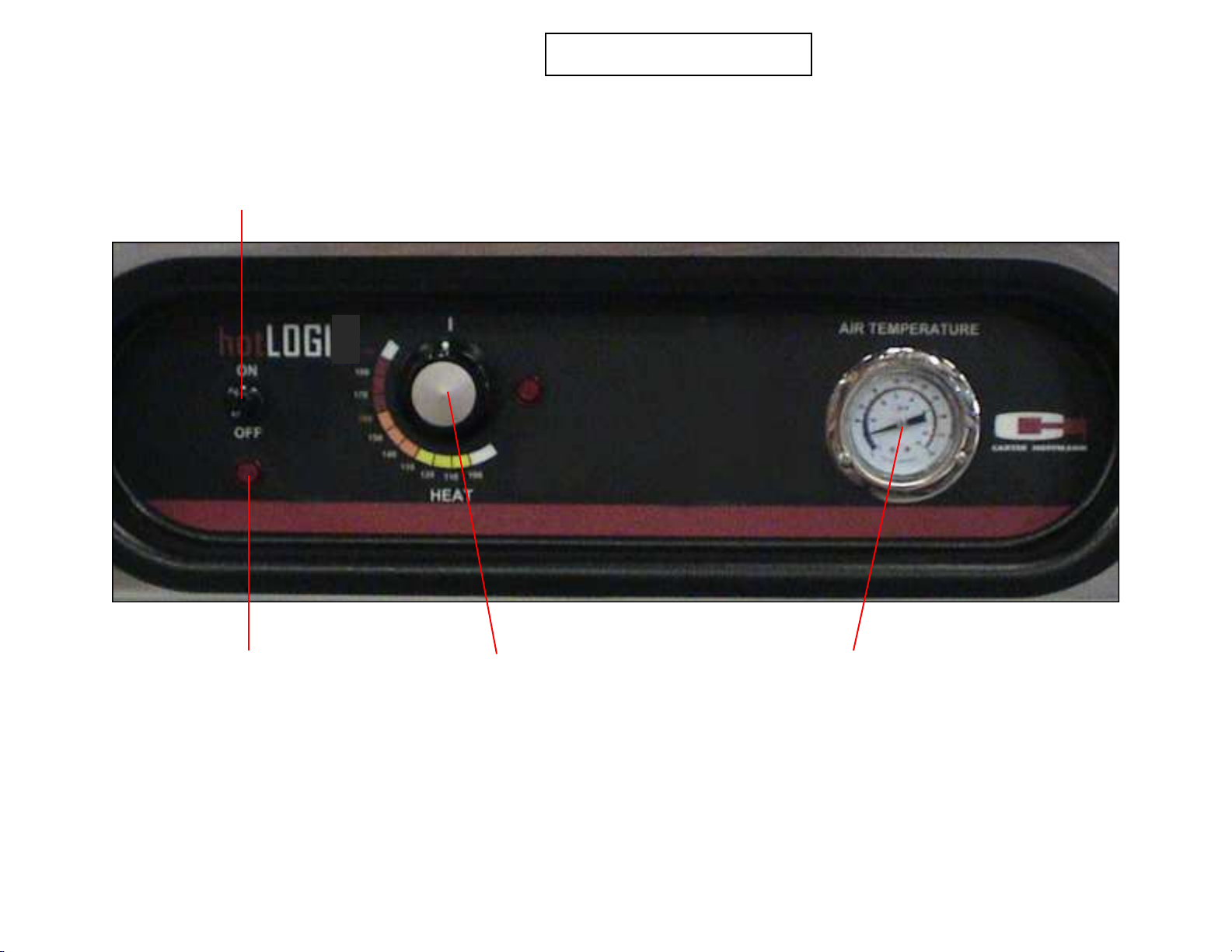

Control panel layout
Power Switch
Temperature setting dial: turn clockwise to
increase temperature and counter-clockwise
to decrease temperature
Temperature dial: shows actual
cabinet temperature
Power indicating light
X

7

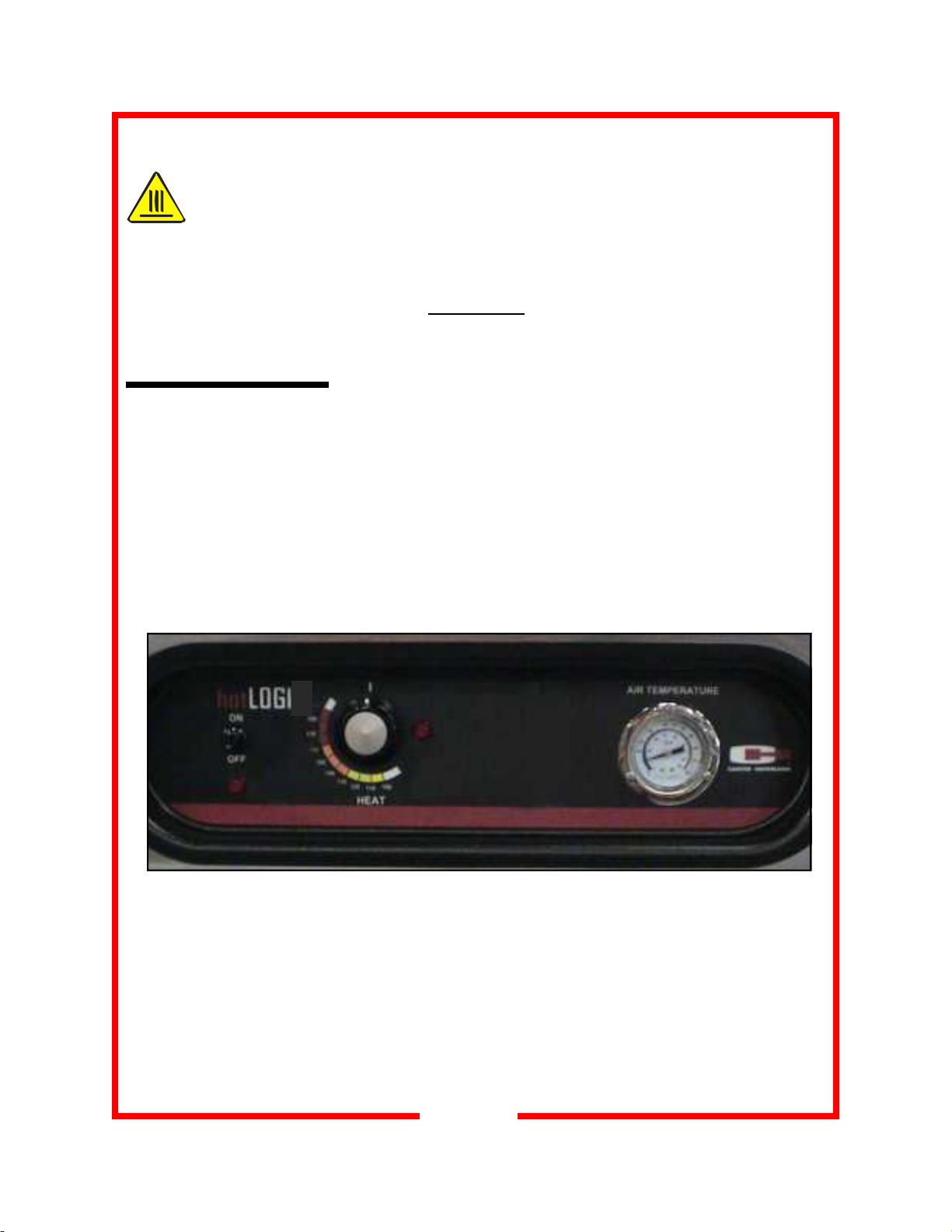

NORMAL OPERATION
CAUTION:
HOT SURFACE
Inner surfaces of the unit
will be very hot during and
after operation.
Avoid touching the cabinet
when loading or removing
product.
1. Turn the cabinet on using the power switch located on the far left
side of the control panel. Once the switch is turned on, power indi-
cating light will illuminate.
2. To adjust the temperature setting, rotate the HEAT dial to the
desired set point*.
It will take approximately 30 minutes for the cabinet to preheat to
your setting.
Once cabinet reaches temperature setting, power indicating light will
go on and off as element cycles to maintain cabinet temperature
setting.
3. Load cabinet with pans or trays.
4. When removing items, start at the bottom and work up to the
top. This keeps food hotter and eliminates spillage onto lower
items.
*For food safety reasons, it is recommended that the holding
temperature be set at 140°F or higher.
Operating ranges:
- air temp: 90ºF-200ºF
X

9
FOOD HOLDING GUIDE
PRODUCT
(Covered Food, except where noted) SET TEMPERA- TURE
(°F /°C)
MAXIMUM
TIME
(MINUTES)
Bacon, Canadian 180°F / 82°C 30
Bacon, Crisp (uncovered) 180°F / 82°C 30
Baked Potato 180°F / 82°C 60
Biscuits 170°F / 77°C 60
Casseroles 175°F / 79°C 90
Chops, Sliced Meats 160°F / 71°C 60
Chicken, Fried (uncovered) 170°F / 77°C 30
Chicken, Boneless Breasts 175°F / 79°C 60
Chicken Nuggets, Deep Fried (uncovered) 190°F / 88°C 25
Chicken, Pre-Cooked Grilled Boneless Patties 175°F / 79°C 90
Coffee Cakes (uncovered) 170°F / 77°C 60
Cookies (uncovered) 175°F / 79°C 90
Crab Legs 160°F / 71°C 45
Croissants 170°F / 77°C 45
Eggs 160°F / 71°C 45
Fish, Deep-Fried (uncovered) 170°F / 77°C 30
Fish, Baked 155°F / 68°C 45
Fish, Broiled 155°F / 68°C 45
French Toast 165°F / 74°C 60
Gravies / Sauces 170°F / 77°C 45
Hamburgers / Ground Meat Patties 180°F / 82°C 45
Hot Dogs 180°F / 82°C 90
Muffins 170°F / 77°C 60
Omelets 160°F / 71°C 30
Pancakes 180°F / 82°C 30
Pasta 175°F / 79°C 60
Pastries 165°F / 74°C 30
Pizza (uncovered) 180°F / 82°C 15
Pizza (boxed) 180°F / 82°C 60
Poppers, Deep Fried (uncovered) 190°F / 88°C 25
Poultry, Whole, bone-in 175°F / 79°C 60
Poultry, Cut-up, bone-in 175°F / 79°C 60
Ribs 175°F / 79°C 90
Rice 175°F / 79°C 30
Roasts / Bone-in Meats 165°F / 74°C 90
Sausage 180°F / 82°C 90
Shrimp / Shellfish 150°F / 66°C 60
Soups (broth) 185°F / 85°C 90
Tortillas (soft) 180°F / 82°C 60
Vegetables 175°F / 79°C 45
NOTE: Times and temperatures
observed in a test kitchen environ-
ment. Times and temperatures
may vary, depending on initial food
quality, initial cooked temperature
and user expectations of accepta-
ble food quality.
CAUTION: SAFE
FOOD HOLDING
PRACTICES
RECOMMENDED
Cooking food to a safe tem-
perature, holding at a tem-
perature of at least 140°F is
critical in the prevention of
foodborne illness. Hold only
cooked, hot food at 140°F
or higher. This cabinet is
not intended to cook or re-
heat food. Food must be at
appropriate temperature
before being placed into
cabinet.
140°F
41°F DANGER ZONE: 4 1° F
t o 1 40 ° F Bact eria
grow rapidly
COOK TO AT LEAST
165° F Destruction of
most bacteria
165°F
HOLD at 140°F or higher

10
DAILY CLEANING PROCEDURES
1. After all food products have been removed from the cabinet,
turn the power switch to “OFF” and allow the cabinet to cool.
2. Unplug the unit prior to any cleaning.
3. Remove the side heat duct and rack assemblies. Clean the
inside of the unit as well as the removed parts. Reinstall when
all parts are dry and clean.
4. Inspect and clean the areas where there are vents or filters,
making sure no water gets into the internal controls or
electrical areas of the cabinet.
5. Plastic control panel should be washed with a clean damp
cloth and chlorine-free detergent. Rinse thoroughly with clean
damp cloth and allow to dry. Do not use abrasive cleaners,
waxes, car polish, or substances containing strong aromatic
solvents or alcohol.
RECOMMENDED TIPS FOR CLEANING STAINLESS STEEL
Purpose Frequency Cleaning Agent Method of Application
Routine Daily Soap, ammonia Sponge with cloth, rinse with clear water
cleaning detergent and water and wipe dry.
Smears/ As Stainless steel cleaner Rub with soft cloth as directed on package.
Fingerprints needed or similar products Rub in direction of grain of stainless steel.
Do not use on vinyl trim.
Stubborn Daily Any chloride-free Apply with damp sponge or cloth. Rub in
spots and as or direction of grain of stainless steel. Rinse
stains needed phosphate-free thoroughly, especially if cleaner contains
cleaner chlorine bleach, do not use on vinyl trim.
Hard water Daily Vinegar Swab with cloth.
spots as needed Rinse with water and wipe dry.
CAUTION:
ELECTRIC SHOCK
HAZARD
Disconnect appliance from
electric power before cleaning.
CAUTION:
HOT SURFACE
Exposed surfaces can
be hot to the touch and may
cause burns. Allow appliance
to cool before cleaning.
IMPORTANT:
DO NOT spill or pour
water into controls,
control panel or wiring.
Water damage is not covered
by warranty.
CAUTION:
Beware of sharp edg-
es with sheet metal
during cleaning process.
CAUTION:
Cleansers, detergents, degreasers, sanitizers, or bleaching
agents that contain chlorides or phosphates will cause per-
manent damage to stainless steel products. The damage appears as
pits, eruptions, voids, small holes, severe discoloration or dulling of
the metal finish.
Water with high chloride content can also damage stainless steel.
If unsure of your water quality, we recommend you have it tested.
THIS DAMAGE IS PERMANENT, COSTLY TO REPAIR, AND IS
NOT COVERED BY THE WARRANTY.

11
CABINET MAINTENANCE
CASTERS
Caster bearings may be equipped with Zerk grease fittings so that
they may be easily lubricated with a grease gun. Lubricate bear-
ings at least once every six months.
REPLACING THE DOOR GASKET
1. Remove the screws located under the gasket on the cabinet.
2. Remove the gasket and discard.
3. Install the new gasket and replace the screws.
REVERSING THE DOOR
Reversing the door takes about 30 minutes & requires two people.
1. Using a small screwdriver, pry off the hinge covers and set
aside. Removing the covers will allow access to the inside
hinge screws. Remove the three screws that hold each hinge
to the cabinet. DO NOT REMOVE THE SCREWS THAT
HOLD THE HINGES TO THE DOOR. Remove the door, tak-
ing care not to let it fall.
2. Remove the door strike plate and screws adjacent to the door
opening on the cabinet. Reinstall door strike plate and screws
on opposite side of the cabinet.
3. Screw hinges onto opposite side of the door.
4. With the help of another person, hold door up to the cabinet
and attach with the screws removed in step one. Before tight-
ening the screws, be sure the door is flush, level and square.
Replace the hinge covers.
WARNING:
DO NOT perform
these procedures
while the cabinet is turned on
or heated. Turn off the power
and wait for the cabinet to cool
to room temperature.
CAUTION:
Do not move cabinet
unless door is secure-
ly closed. Serious damage to
hinges and door may result if
bumped into tables, walls, or
other equipment when the
doors are open.

HL7 SERIES WITH ANALOG CONTROL
120 VOLT, 2100 WATT, 17.5 AMP, 1 PH, 60 HZ or 120 VOLT, 1100 WATT, 9.2 AMP, 1 PH, 60HZ
12
WIRING DIAGRAM

13
TROUBLESHOOTING GUIDE
SYMPTOM POSSIBLE CAUSE SUGGESTED REMEDY
No power on display Not plugged in or circuit breaker
tripped
Check or reset circuit breaker
Connect to proper receptacle
Power cord damaged Check - replace if required
Power switch damaged or defective Check - replace if required
Food dries out too
quickly
Operation where product temp is too
high or food pans should be covered
Check product temps going into
holding cabinet; cover food pans
Control incorrectly set or defective Check proper operation or calibration
of control
Internal wiring error Call service technician
Element hi-limit trip / defective Call service technician
Takes too long to
get to temperature
Improper voltage Call service technician to verify
incoming voltage matches cabinet
specifications.
Unit is hot
but low or no airflow
Internal wiring error Call service technician
Circulation motor has quit Call service technician
Improper voltage Call service technician to verify
incoming voltage matches cabinet
specifications.
Unit is on, motors
are running but no
heat
NOTE:
The technical content of this manual,
including any wiring diagrams, schemat-
ics, parts breakdown illustrations and /
or adjustment procedures, is intended
for use ONLY by qualified technical
personnel.
NOTE:
For warranty service, call Carter-Hoffmann
direct at 800-323-9793 for authorization,
we will dispatch the nearest authorized
service agency.

14
Carter-Hoffmann Warranty:
Carter-Hoffmann (“CARTER-HOFFMANN”) warrants to the initial purchaser of its standard Carter
Line Products that CARTER-HOFFMANN will, at its option, repair or replace, during the warranty
period set forth below, any part of such products made necessary due to a defect in material or work-
manship which is present when the product leaves its factory and which manifests itself during the war-
ranty period under normal use and service.
This warranty applies only to original equipment owned and possessed by the initial purchaser and the
warranty period begins on the date of original shipment from the CARTER-HOFFMANN factory and
extends as follows: to component parts and labor for 12 months (36 months on hotLOGIX holding
cabinets and cook & hold cabinets); to refrigeration compressor unit for one year (limited to replace-
ment only - not to include labor for removal, repair or replacement).
Repair or replacements under this warranty will be performed, unless otherwise authorized in writing
by CARTER-HOFFMANN, at its factory. All parts or components to be repaired or replaced under this
warranty are to be shipped prepaid to CARTER-HOFFMANN, with reimbursement credit for such part
or component to be given if found by CARTER-HOFFMANN to be defective.
CARTER-HOFFMANN neither makes nor assumes and does not authorize any other person to make or
assume any obligation or liability in connection with its products other than that covered in this war-
ranty. This warranty applies only within the continental United States and Canada. In Alaska and Ha-
waii, this warranty applies only to and is limited to the supply of replacement parts.
Warranty Exclusions and Limitations:
Any implied warranty of merchantability or fitness for a particular purpose is hereby specifically dis-
claimed by CARTER-HOFFMANN. There are no warranties, expressed or implied, which extend be-
yond the description on the face hereof. This warranty does not cover and CARTER-HOFFMANN shall
not under any circumstances be liable for any incidental, consequential or other damages (such as in-
jury to persons or property, loss of time, inconvenience, loss of business or profits, or other matters not
specifically covered) arising in connection with the use of, inability to use, or failure of these products.
Specifications subject to change through product improvement and innovation.
3-YEAR WARRANTY on HOTLOGIX HOLDING CABINETS
Carter-Hoffmann
1551 McCormick Ave.
Mundelein, Illinois, 60060 USA
Phone: [phone] Toll free: 800-323-9793 Fax: [phone]
Sales and Marketing E-mail: [e-mail]
Service E-mail: [email protected]
Company Website: www.carter-hoffmann.com
