CASPR TRANSIT 120V User manual

Owner’s Manual
CAUTION: Read manual carefully for proper procedures and operation.
TRANSIT
Air & Surface Disinfection

2
Congratulations
on your purchase of a CASPR Group enhanced air and surface disinfection system.
This unit is designed to be mounted into any standard ceiling tile. Please read
and follow all safety warnings and service procedures outlined in this manual. Use
only genuine CASPR Group replacement parts available from your CASPR Group
Distributor.
If you have any questions concerning this or any CASPR Group product, contact
your CASPR Group Distributor.
Principles of Operation
CASPR Transit uses Natural Catalytic Conversion (NCC) to generate safe, low
levels of hydrogen peroxide. NCC technology replicates natural purifying processes
by using a high intensity light to activate a proprietary metal catalytic coating,
converting water vapor into hydrogen peroxide. Hydrogen peroxide acts as
an oxidizer inactivating surface and air pathogens. It can compromise cellular
integrity by disrupting cell walls, or internal molecular structures, rendering
contaminants harmless.
To learn more about the CASPR Transit and other CASPR Group products and
technologies, please visit our website at www.CASPRgroup.com.
Table of Contents
Warnings ................................................................................................... 3
Specications.............................................................................................. 3
Unit Diagrams............................................................................................. 4
Installation ................................................................................................. 5
Filter Replacement....................................................................................... 5
Cleaning the Unit......................................................................................... 6
NCC Cell Replacement.................................................................................. 6
Cell Disposal ............................................................................................... 8
Troubleshooting........................................................................................... 8
Replacement parts (purchased separately): .................................................... 8
Warranty Information................................................................................... 9

3
TRANSIT 120V TRANSIT 24V TRANSIT 12V
Weight 4.0 lbs 4.0 lbs 4.0 lbs
Dimensions
(WxLxH)
9” x 10” x 2.6”
11” x 12” x 2.6” (ush mount)
9” x 10” x 2.6”
11” x 12” x 2.6” (ush mount)
9” x 10” x 2.6”
11” x 12” x 2.6” (ush mount)
Electrical
Input
100-240VAC 50/60Hz 1.8A
277VAC 50/60Hz 0.9A
(277VAC - North America only)
9-36VDC 1.5A 9-36VDC 1.5A
Amp. Draw DC 0.65A DC 0.57A AC 0.02A
Air ow
(CFM)
17.9 17.9 17.9
Noise (dBA) 48 48 48
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should always be taken.
READ ALL INSTRUCTIONS BEFORE USING THIS PRODUCT
WARNING!
To reduce the risk of re, electrical shock, or injury:
• Use only as described in this manual.
• Do not attempt to repair or adjust any of the electrical or mechanical functions.
Contact Customer Service for service information.
• Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Do not allow children around the unit.
• Do not handle appliance with wet hands.
• Do not allow foreign objects to enter the ventilation openings.
• Keep hair, clothing, ngers, and all parts of body away from openings.
• Do not touch NCC bulb with bare hands.
WARNING
WARNING! - UV light in operation. Disconnect unit from
power supply before servicing. Failure to follow warnings
may result in severe eye damage.
Specications

4
Unit Diagrams

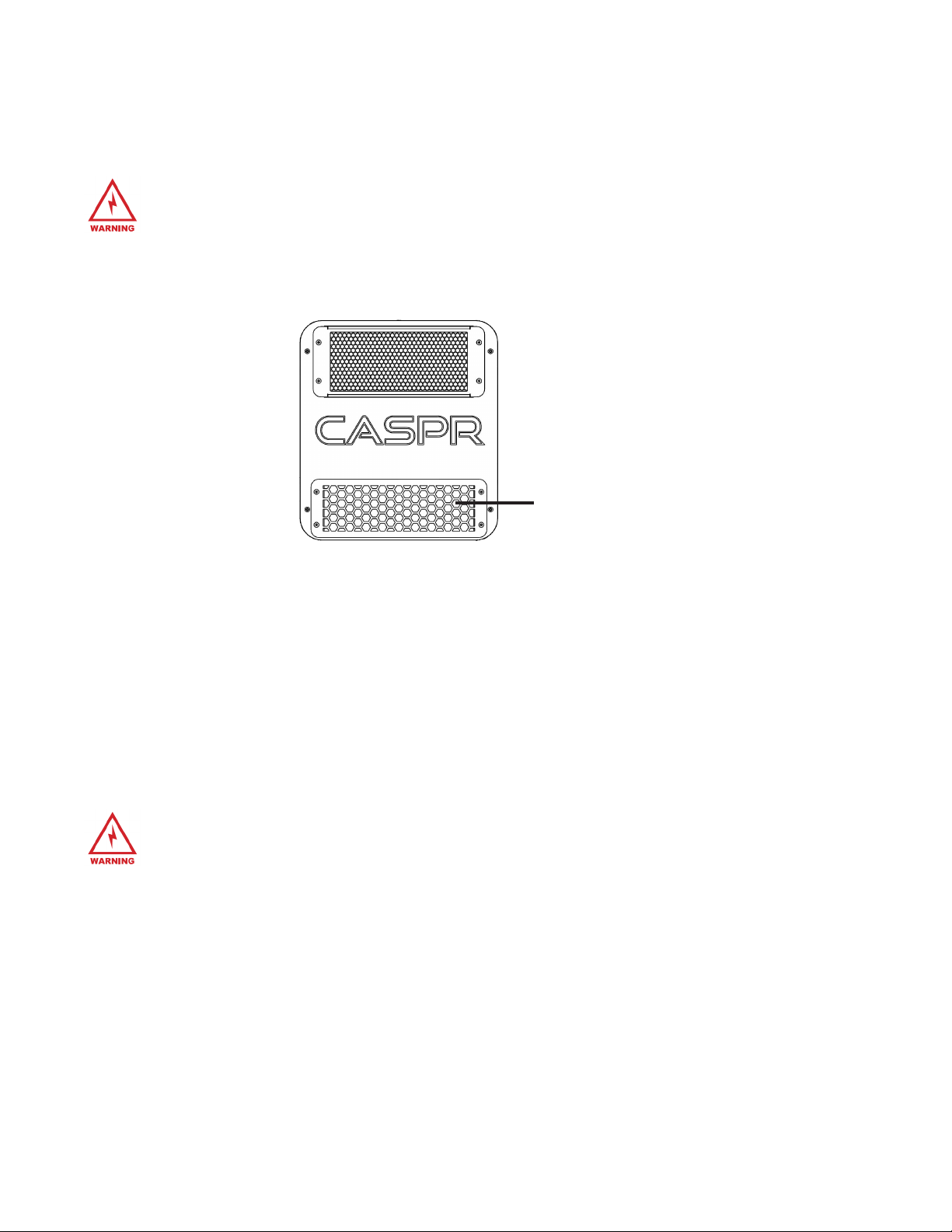

Unit Front
Air Outlet
Filter
Unit Back
Security
Mounting Holes

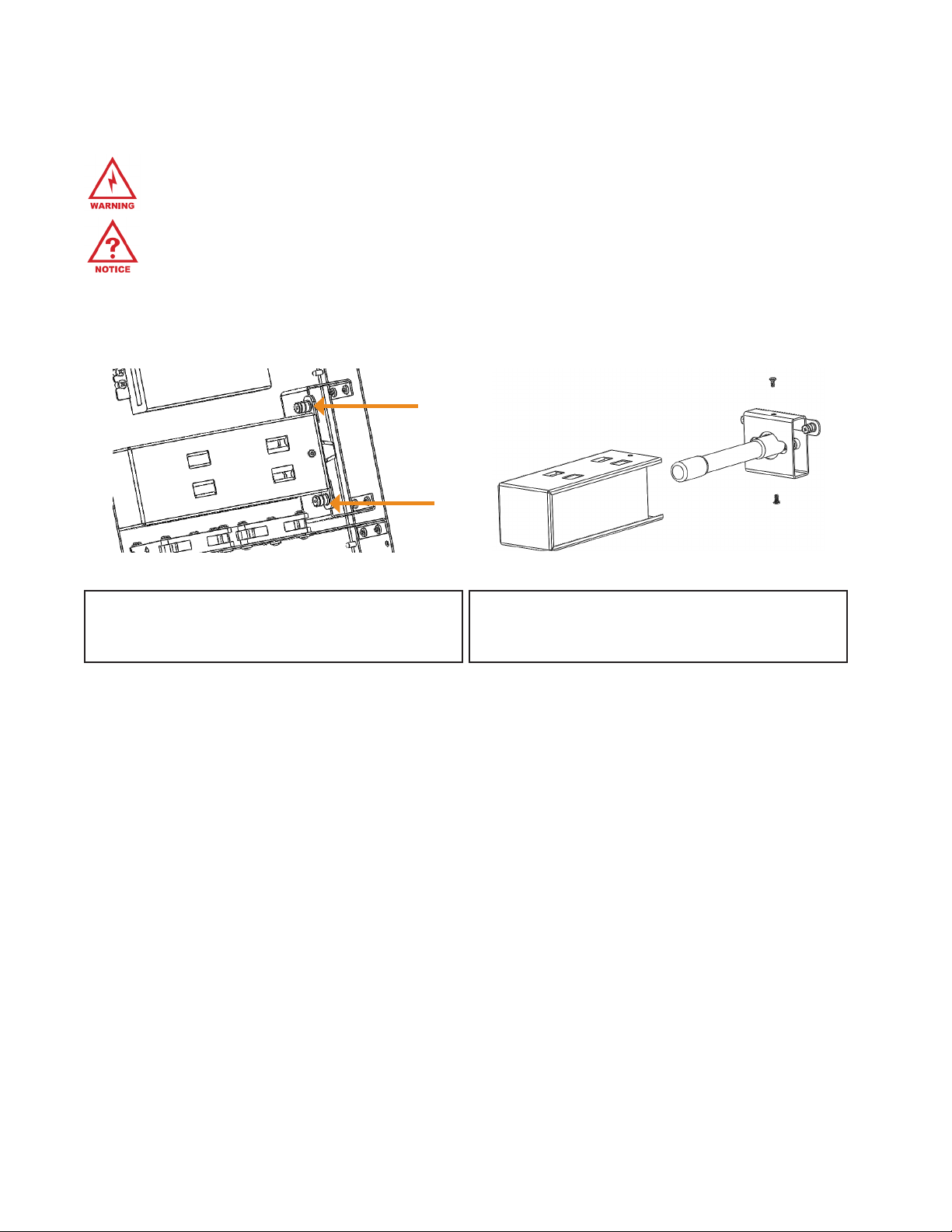

Unit Internals
NCC Cell
Flush Mounting Bracket

5
Installation
Before installation, identify wiring routes in order to select the most optimal
location for this install.
All electrical wiring should be done by a licensed technician or mechanic
that has experience locating and wiring low voltage.

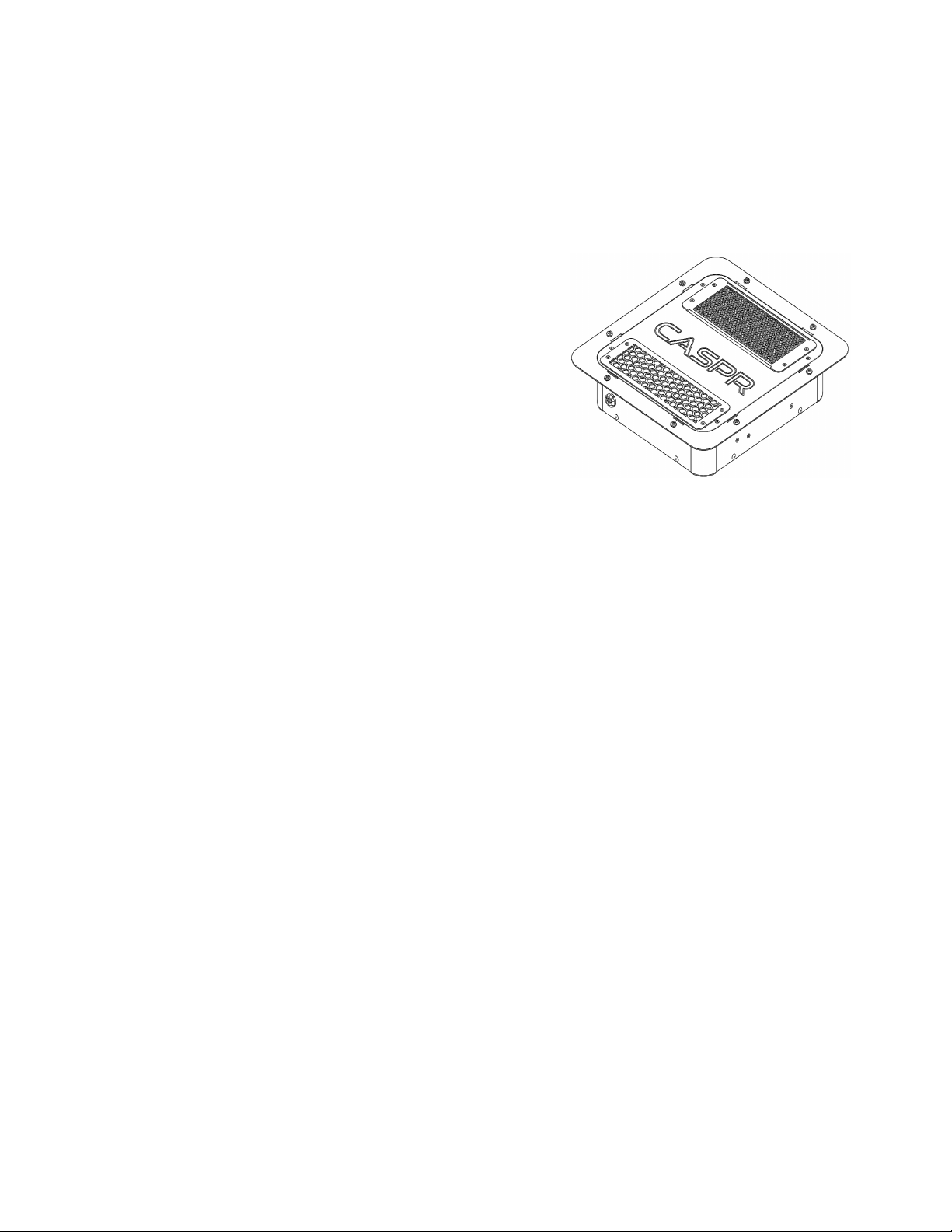

Flush Mount Installation
1. Cut hole where the unit will be inset into the
wall. Unit is 9” x 10” x 2.6”.
2. Place unit into the cut hole.
3. Use self-tapping screws to attach the unit to
the surface.
4. Connect wiring into the 24VAC or the 12VAC
power source. Refer to wiring guidelines below.
Surface Mount Installation
1. Identify where the unit will be placed / Cut hole for wire (If needed)
2. Attach the unit ush to the surface that is being installed.
3. Connect wiring into the 24VAC or 12 VAC power sources. Refer to wiring
guidelines below.
Wiring Guidelines
• A fuse must be installed at the source of the power supply when
installing a CASPR Transit unit onto a vehicle.
• Vehicles are subject to vibration; when running wire throughout the vehicle, be
sure to include slack in all wiring.
• 18 gauge stranded wire should always be used.
