1. Introduction
This document provides a guideline on operating and configuring Castles UPT1000B.
The scope of this document includes setting up the UPT1000B, basic operation,
application life cycle, and some advance features.

Castles Technology Co., Ltd. All Right Reserved. Pg. 6
2. Hardware Setup
2.1. Parts of the UPT1000B
Front View
MSR
Contactless LED Indicator
Contactless
Reader
MSR LED
Indicator
Proximity
Sensor
Bill Acceptor
2.8”Touch
Screen
LED Indicator
ICC Reader

Castles Technology Co., Ltd. All Right Reserved. Pg. 7
Rear View
SIM
SAM
Power
USB Port
COM
BT Antenna
GSM Antenna

Castles Technology Co., Ltd. All Right Reserved. Pg. 8
3. Program manager
The UPT1000B is the terminal without keypad. Please follow the steps below to
connect PC and UPT1000B for controlling.

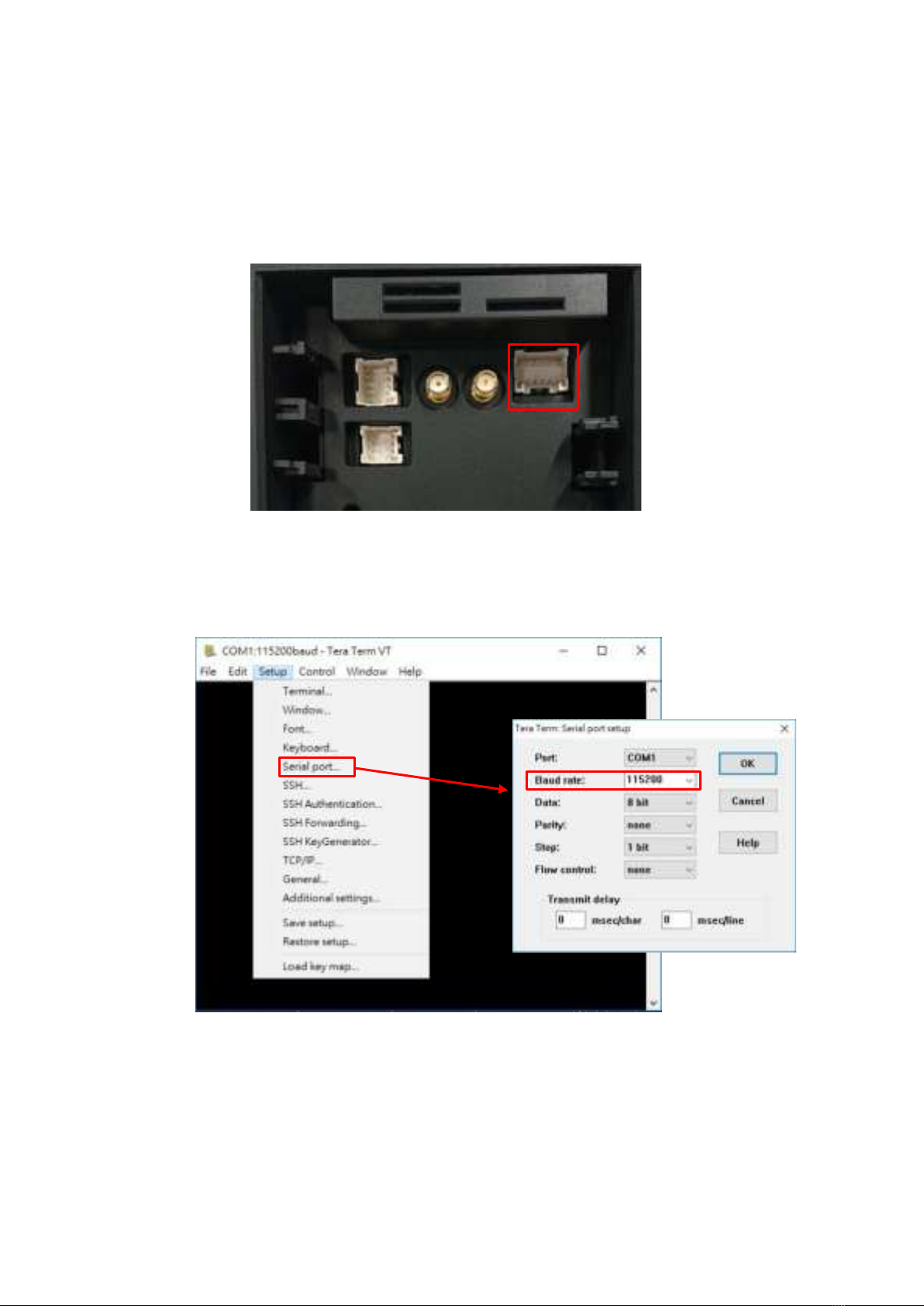

▪Power on UPT1000B and connect COM Port to PC.
▪Run the application program such as “TeraTerm” or “PuTTY” on PC.
▪Select “Serial port” to set the com port. The baud rate should be set to
“115200”.
▪Press any key on keyboard to refresh screen if doesn’t show “Program
Manager” on “Tera Term” or PuTTY“.
COM Port

Castles Technology Co., Ltd. All Right Reserved. Pg. 9
Once the power is on in normal status, UPT1000B will enter Program Manager if
no default application selected. All user applications are listed in Program
Manager. User can select an application and run the application, view the
application info, delete the application, or set application to the default one to run
once the power is on. Users may enter System Menu to configure UPT1000B
settings.
Program Manager
▪Press [0] button to enter System Menu.
▪Press [1] button to toggle default application selection.
▪Press [2] button to delete application.
▪Press [3] button to view application info.
Program Manager
-----------01/02
1.App1
2.App2
0:Download

Castles Technology Co., Ltd. All Right Reserved. Pg. 10
▪Press [OK] button to run application.
▪Press [ ↑] or [↓] as the up and down button to select application.
System Menu
Page 1 Page 2
Page 3
▪Press [↑] button to previous page.
▪Press [↓] button to next page.
System Menu
1.Download AP
2.System Info
3.Memory Status
4.Sys Settings
5.Test Utility
6.Factory Reset
7.Power Off
8.FK PWD Change
9.Share obj Mng
0:Download
System Menu
1.Embedded TMS
2.Font Mng
3.Debug Tools
4.ULD KEY HASH
5.HW Detect
6.Bluetooth Setup
7.Plug-in Mng
8.Key Injection
9.TP Calibration
0:Download
System Menu
1.Key Bridge
0:Download

Castles Technology Co., Ltd. All Right Reserved. Pg. 11
4. Appendix
4.1. FCC Warning
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one of
the following measures:
⚫Reorient or relocate the receiving antenna.
⚫Increase the separation between the equipment and receiver.
⚫Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
⚫Consult the dealer or an experienced radio/TV technician for help.
FCC Caution:
➢Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
➢This transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter.
Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.

Castles Technology Co., Ltd. All Right Reserved. Pg. 12
4.2. Safety Warning for Power Source
Warining
1. Warning: Power cord shall be connected to a socket-outlet with earthing connection.
2. The equipment is intended to be supplied by external power source (UL listed/ IEC 60950-
1/ IEC 62368-1) which output complies with SELV, LPS, output rating 9-48Vdc, min. 1.5-
0.5A, ambient temperature min. 65°C.
3. Warning: Risk of explosion if battery is replaced by an incorrect type. Dispose of expended
battery in accordance with local disposal regulations.
Attention
1. Attention: le cordon d'alimentation doit être branché sur une prise secteur avec mise à la
terre.
2. L'équipement est destiné à être alimenté par une source d'alimentation externe
(répertoriée UL / CEI 60950-1 / CEI 62368-1) dont la sortie est conforme à la norme
SELV, LPS, dont la tension nominale de sortie est 9-48Vdc, et le courant min. 1,5-0,5A
et la température ambiante inférieure à 65° C.
3. Attention: Risque d'explosion si la batterie est remplacée par une de type incorrect.
Éliminer la pile usagée conformément à la réglementation locale en vigueur.

Castles Technology Co., Ltd. All Right Reserved. Pg. 13
4.3. Industry Canada statement
This device complies with ISED’s licence-exempt RSSs. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause
undesired operation.
Le présent appareil est conforme aux CNR d’ ISED applicables aux appareils radio
exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) le
dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter
tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement
indésirable.
Radiation Exposure Statement:
This equipment complies with ISED radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with greater than 20cm
between the radiator & your body.
Déclaration d'exposition aux radiations:
Cet équipement est conforme aux limites d'exposition aux rayonnements ISED établies
pour un environnement non contrôlé. Cet équipement doit être installé et utilisé à plus de
20cm entre le radiateur et votre corps.
4.4. Detachable Antenna Usage
This radio transmitter [IC: 27350-U1B001] has been approved by Innovation, Science
and Economic Development Canada to operate with the antenna types listed below, with
the maximum permissible gain indicated. Antenna types not included in this list that have
a gain greater than the maximum gain indicated for any type listed are strictly prohibited
for use with this device.
Le présent émetteur radio [IC: 27350-U1B001] a été approuvé par Innovation, Sciences
et Développement économique Canada pour fonctionner avec les types d'antenne
énumérés ci-dessous et ayant un gain admissible maximal. Les types d'antenne non
inclus dans cette liste, et dont le gain est supérieur au gain maximal indiqué pour tout
type figurant sur la liste, sont strictement interdits pour l'exploitation de l'émetteur.
Manufacturer
Model
Antenna Type
Max Gain (dBi)
Impedance (Ω)
ARISTOTLE ENTERPRISES
BT
Fixed external antenna
-0.1 dBi
50 ohm
SPORTON INTERNATION INC
NFC
Loop antenna
N/A
50 ohm

Castles Technology Co., Ltd. All Right Reserved. Pg. 14
Antenna Type
Dipole
Brand
Aristotle
Antenna Connector
SMA R/A PLUG
Model
RFA-US-T1000G-2M-A5
Antenna Gain (dBi)
WCDMA Band 2
0.7
WCDMA Band 4
0.7
WCDMA Band 5
1
LTE Band 2
0.7
LTE Band 4
0.7
LTE Band 5
1
LTE Band 12
2
LTE Band 13
2
LTE Band 14
2
LTE Band 66
0.7
~ END ~
