Cateye CC-AT200W User manual

CATEYE ADVENTURE
CC-AT200W
Quick Start
Click the button and follow the in-
structions.
START

Thank you for purchasing our cyclocomputer CATEYE ADVENTURE.
This Quick Start Manual explains how to set up the computer and how to install the
unit on your bicycle.
Please set up the unit according to the specified procedure, then it will be ready for use
as a cyclocomputer.
Before use, read the instruction manual that comes with the product
thoroughly to the end to understand the functions of this unit, and to use it
safely in a correct manner.
Next

This PDF contains a movie file.
When you click on the movie screen, a message regarding security appears. Click the
“Trust in the text” or “Play” button to close the message.
Click the screen again to play the movie.
Next

CATEYE ADVENTURE
Quick Start Manual Contents
Click the item you wish to view.
Return to a Cover
Setting up the computer
How to install the speed sensor (Movie)
Sea level altitude correction
How to install the bracket (Movie)

Operation of buttons
Set up the computer by operating the buttons as follows.
Check the button position before you start setting up.
Press the MODE button on the back of
the computer.
Press the SSE button on the face of the
computer and the MODE button on the
back simultaneously.
Click
Click
Click
MODE SSE +MODE
Next

CATEYE ADVENTURE
Quick Start Manual Setting up the computer
Setting the speed unit
Entering the tire circumference
Searching the sensor ID
Setting the clock display
Measuring screen
(Setup completed)
Setting the temperature unit
Setting the hour
Setting the minute
Formatting operation Formatting operation
Press the MENU button on the back of the computer
and the AC button simultaneously.
Press and hold the* MENU button until you release
the AC button.
After full lighting of the screen, the computer switch-
es to the speed unit setting screen to start setup.
ACAC
MENU
MENU
Full lighting Setting the speed unit
Return to Contents
Next
Return

CATEYE ADVENTURE
Quick Start Manual Setting up the computer
Entering the tire circumference
Searching the sensor ID
Setting the clock display
Measuring screen
(Setup completed)
Setting the temperature unit
Setting the hour
Setting the minute
Setting the speed unit
Formatting operation
Setting the speed unit
Setting the speed unit
When the MODE button is pressed, either “km/h” or “mph”
is selected for the speed unit display. Select the display of
your choice.
After selecting, press the SSE button and the MODE but-
ton simultaneously to proceed to the next step “Setting
the temperature unit”.
MODE
SSE
MODE
MODE
km/h ↔mph To the next step
(Press SSE / MODE simultaneously)
Return to Contents
Next
Return

CATEYE ADVENTURE
Quick Start Manual Setting up the computer
Entering the tire circumference
Searching the sensor ID
Setting the clock display
Measuring screen
(Setup completed)
Setting the hour
Setting the minute
Setting the temperature unit
Setting the speed unit
Formatting operation Setting the temperature unit
When the MODE button is pressed, either “°C” (Celsius)
or “°F” (Fahrenheit) is selected for the temperature unit
display. Select the display of your choice.
After selecting, press the MENU button to proceed to the
next step “Entering the tire circumference”.
Setting the tempera-
ture unit
MENU
To the next step
MODE
˚C ↔˚F
Return to Contents
Next
Return

CATEYE ADVENTURE
Quick Start Manual Setting up the computer
Searching the sensor ID
Setting the clock display
Measuring screen
(Setup completed)
Setting the hour
Setting the minute
Entering the tire circumference
Setting the temperature unit
Setting the speed unit
Formatting operation Entering the tire circumference
Enter the tire circumference (mm) of your bicycle with 4
digits using the tire circumference reference table.
Pressing the MODE button increases the value flashing,
and pressing the SSE button and the MODE button simul-
taneously moves to the next digit.
After entering, press the MENU button to proceed to the
next step “Searching the sensor ID”.
Entering the tire
circumference
MODE
SSE
MODE
MODE
Increase the value Move digit
(Press SSE / MODE
simultaneously)
MENU
To the next step
Return to Contents
Next
Return
Tire circum-
ference refer-
ence table

CATEYE ADVENTURE
Quick Start Manual Setting up the computer
Setting the clock display
Measuring screen
(Setup completed)
Setting the hour
Setting the minute
Searching the sensor ID
(1/2)
Entering the tire circumference
Setting the temperature unit
Setting the speed unit
Formatting operation Searching the sensor ID
Keep the computer 30 cm (12”) away from the sensor,
and press and hold the RESET button of the sensor.
A sensor ID signal is sent when you release the* RESET
button after pressing and holding it.
OK
!
RESETRESET
...
RESETRESET
NO!
Under going search
of the sensor ID
Keep about 30 cm (12”) away. Distance is too close or too far.
Return to Contents
Next
Return
Searching the
sensor ID
(Movie)

CATEYE ADVENTURE
Quick Start Manual Setting up the computer
Setting the clock display
Measuring screen
(Setup completed)
Setting the hour
Setting the minute
Searching the sensor ID
(2/2)
Entering the tire circumference
Setting the temperature unit
Setting the speed unit
Formatting operation Searching the sensor ID
When the computer receives the ID signal from the sen-
sor successfully, it displays the ID number, then proceeds
directly to the setting clock display screen.
Searching of sensor
ID completed
Return to Contents
Next
Return

CATEYE ADVENTURE
Quick Start Manual Setting up the computer
Measuring screen
(Setup completed)
Setting the hour
Setting the minute
Setting the clock display
Searching the sensor ID
Entering the tire circumference
Setting the temperature unit
Setting the speed unit
Formatting operation Setting the clock display
When the MODE button is pressed, either “12h” or “24h”
is selected for the clock display. Select the display of your
choice.
After selecting, press the SSE button and the MODE but-
ton simultaneously to proceed to the next step “Setting
the hour”.
Clock display
MODE
24h ↔12h To the next step
SSE
MODE
MODE
(Press SSE / MODE simultaneously)
Return to Contents
Next
Return

CATEYE ADVENTURE
Quick Start Manual Setting up the computer
Measuring screen
(Setup completed)
Setting the minute
Setting the hour
Setting the clock display
Searching the sensor ID
Entering the tire circumference
Setting the temperature unit
Setting the speed unit
Formatting operation Setting the hour
Pressing the MODE button increases the value flashing
(“Hour” of the clock). Enter any value.
After entering, press the SSE button and the MODE button
simultaneously to proceed to the next step “Setting the
minute”.
Hour
MODE
Increase the value To the next step
SSE
MODE
MODE
(Press SSE / MODE simultaneously)
Return to Contents
Next
Return

CATEYE ADVENTURE
Quick Start Manual Setting up the computer
Measuring screen
(Setup completed)
Setting the minute
Setting the hour
Setting the clock display
Searching the sensor ID
Entering the tire circumference
Setting the temperature unit
Setting the speed unit
Formatting operation Setting the minute
Pressing the MODE button increases the value flashing
(“Minute” of the clock). Enter any value (Pressing and
holding MODE rapidly increases the value.).
After entering, press the MENU button to switch to the
measuring screen.
Minute
MODE
Increase the value
MENU
Setup is completed.
To the measuring screen
Return to Contents
Next
Return

CATEYE ADVENTURE
Quick Start Manual Setting up the computer
Measuring screen
(Setup completed)
Setting the minute
Setting the hour
Setting the clock display
Searching the sensor ID
Entering the tire circumference
Setting the temperature unit
Setting the speed unit
Formatting operation Now, setup of the computer is completed.
If the bracket and speed sensor are not installed to your
bicycle, return to Contents, click the movies of how to
install the bracket and speed sensor, and install them ac-
cording to the instructions.
Measuring screen
Return to Contents
Return
Return to Contents

Operation of buttons
The sea level altitude is corrected by operation of buttons as follows.
“Sea level altitude correction” describes the case when the computer is installed on the bracket.*
Press around the dots on the face of the
computer, without touching the SSE but-
ton.
Press the SSE button along with the
face of the computer.
Operation of the MODE button Operation of the SSE +MODE buttons
Click
Click
Click
Next

CATEYE ADVENTURE
Quick Start Manual Sea level altitude correction
Selecting the correction
method
Applying the sea level
altitude
Entering the sea level
altitude
This unit determines the altitude by converting the change in atmo-
spheric pressure and temperature, therefore it may cause deviation
from the actual sea level altitude depending on the ever-changing
atmospheric pressure and temperature. It is recommended to correct
the sea level altitude just before measurement.
1.
Press the MODE button to display the sea level altitude on the measuring screen.
2. When you press and hold the MODE button, the screen switches to “Setting
the sea level altitude correction”.
Measuring screen
(sea level altitude display)
Sea level altitude correction
(Press and hold)
MODE
Return to Contents
Next

CATEYE ADVENTURE
Quick Start Manual Sea level altitude correction
Selecting the correction
method
Applying the sea level
altitude
Entering the sea level
altitude
The following two methods can be used for the sea level altitude correction.
ADJUST (Sea level altitude correction)•
Enter the altitude at the current point.
Enter the actual value at the point where the sea level altitude is
known, such as the altitude along the seashore, or at a triangu-
lation point sign, etc.
After selecting* ADJUST, press and hold the MODE button and the SSE button
simultaneously to reset to the default (value according to ISO2533).
HOME (Home altitude setting)•
Preset a specific sea level altitude.
Once you preset the sea level altitude of your home in advance,
you can start with the correct sea level altitude by selecting
HOME before starting from your home.
The sea level altitude of your home can be obtained using mapping software,*
such as Google Earth.
Google Earth is a trademark of Google Inc.*
Return to Contents
Next
Return

CATEYE ADVENTURE
Quick Start Manual Sea level altitude correction
Applying the sea level
altitude
Entering the sea level
altitude
Selecting the correction
method (1/2)

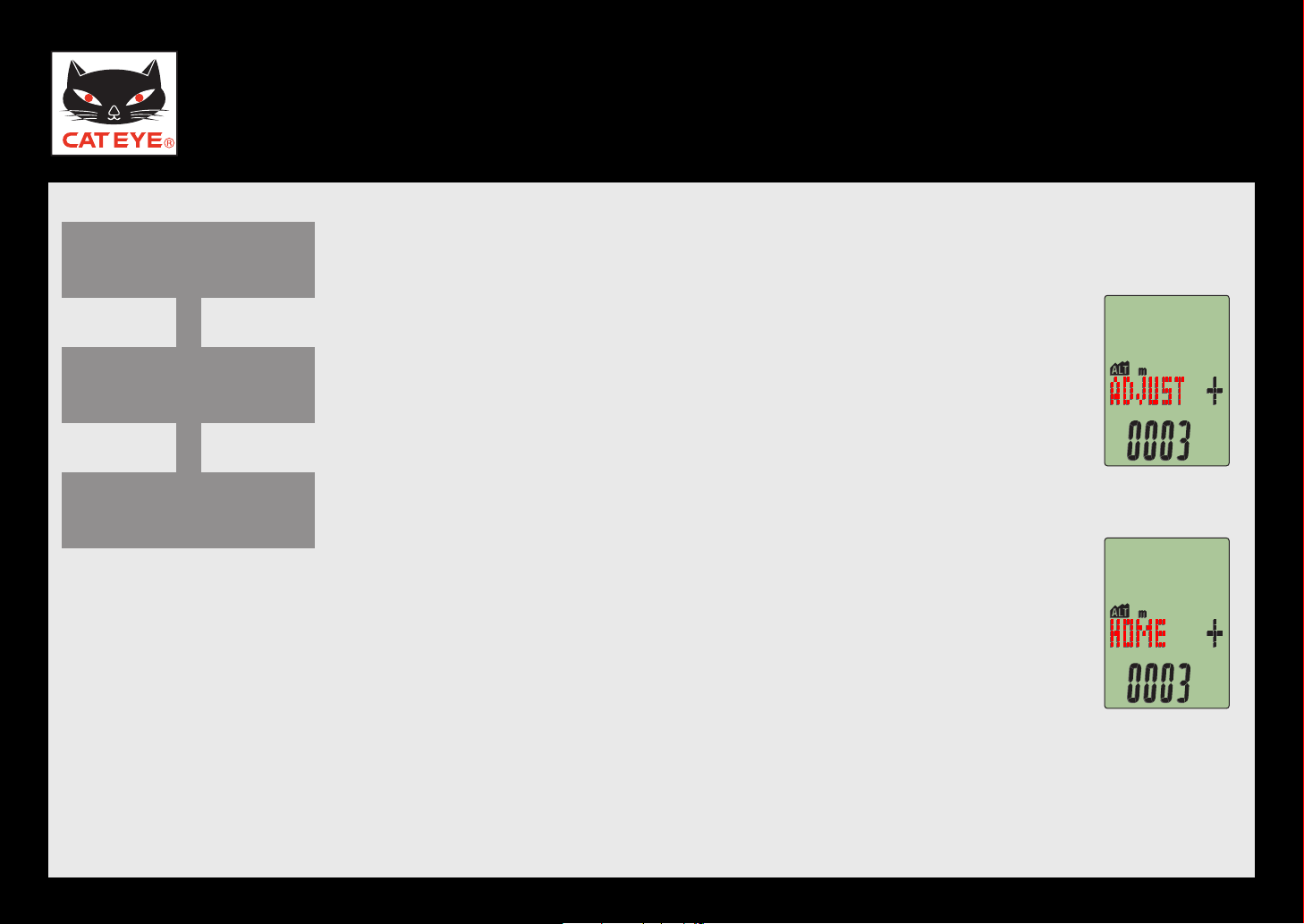

Correction method
MODE
ADJUST ↔HOME
Selecting the correction method
When the MODE button is pressed, either “ADJUST” or
“HOME” is selected. Select the correction method of your
choice.
Return to Contents
Return
Next (when HOME is selected)
Next (when ADJUST is selected)

CATEYE ADVENTURE
Quick Start Manual Sea level altitude correction
Applying the sea level
altitude
Entering the sea level
altitude
Selecting the correction
method (2/2)
Correction method To the next step
SSE + MODE
(Press SSE / MODE simultaneously)
Selecting the correction method
After selecting, press the SSE button and the MODE but-
ton simultaneously to proceed to the next step “Entering
the sea level altitude”.
Return to Contents
Next
Return
