Cayin SMP-2200 User manual

Digital Signage Player
SMP-2100
SMP-2200/SMP-2210
SMP-2300/SMP-2310
SMP-6000
SMP-8000/8000QD
Quick Start Guide
快速安裝手冊

Contents
1. Product Overview............................................................. 01
1.1 SMP-2100..................................................................... 01
1.2 SMP-2200/SMP-2210.............................................. 02
1.3 SMP-2300..................................................................... 03
1.4 SMP-6000..................................................................... 04
1.5 SMP-8000/8000QD.................................................. 05
2. Installing your SMP Player ............................................ 06
2.1 Hardware Installation............................................... 06
2.2 Wall-Mounting the Player...................................... 09
3. Logging in to Web Manager........................................ 11
3.1 Offline Operation (Local)........................................ 11
3.2 Remote Operation - DHCP (Auto IP) ................. 12
3.3 Remote Operation - Static IP................................ 13
3.4 CAYIN Device Seeker ............................................... 15
3.5 Activating your SMP................................................. 16
4. Online Help......................................................................... 17

ENGLISH
中文
01
1. Product Overview
1.1 SMP-2100
Front View
Rear View
COMON/OFF
HDMI 1
HDMI 2
123
6
58
7

Quick Start Guide
02

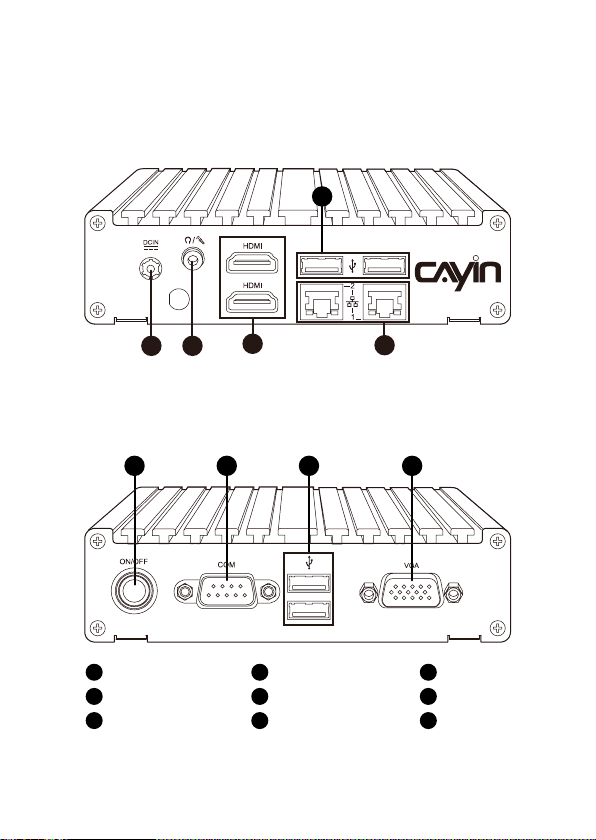

1.2 SMP-2200/SMP-2210
Front View
Rear View
7
6 8 9
Power Connector
USB x 2
RS-232
Audio-out
Ethernet LAN x 2
USB x 2
HDMI x 2
PWR Button
VGA
1 2
4 5 6
7 8 9
3
123
4
5

ENGLISH
中文
03
1.3 SMP-2300/SMP-2310
Front View
123
5
4
6
Rear View
73 9 10 11 8
Power Connector
HDMI x 3
Reset Button
Mic-in (function disabled)
Ethernet LAN x 2
ATX/AT Power Switch (function disabled)
Power Button
Audio-out
USB x 3
Power/HDD Indicators
RS-232
1 2
4 5
6 7 8
3
910 11

Quick Start Guide
04
1.4 SMP-6000
Front View
1 2 3
Rear View
4 6 8 9 10 11 12 13
5 7
USB x 2
RS-232 x 2
Ethernet LAN
S-Video-in
Power Connector
Power, HDD & LAN Indicators
VGA
USB x 2
Audio-in
Power Button
DVI
HDMI
Audio-out
1 2
4 5 6
7 8 9
10 11 12
13
3

ENGLISH
中文
05
1.5 SMP-8000/8000QD
Front View
DP 1 DP 2 DP 3 DP 4
1234
Rear View
5 6 7 8 9
DisplayPort 1.2
DC-IN
USB 3.0 x 2
DisplayPort 1.1
HDD
COM
USB 3.0 x 2
LAN
PWR Button

Quick Start Guide
06
2. Installing your SMP Player
2.1 Hardware Installation
Step 1 Connect an Ethernet cable from your router or hub to the player’s
LAN port. (By default, SMP will get an IP address from a DHCP server.)
Step 2 Connect the VGA/DVI/HDMI cable from the player to your screen.
(The default resolution will be your screen’s native resolution.)
Step 3 If you would like to configure system settings directly from the player,
please connect a keyboard and a mouse to any of the USB ports.
Step 4 Connect the power adapter to a socket. SMP will turn on automati-
cally.
Step 5 You will see the LOGIN page once the hardware installation is com-
plete.
SMP-2100
1
HDMI 1
HDMI 2
42
3

ENGLISH
中文
07

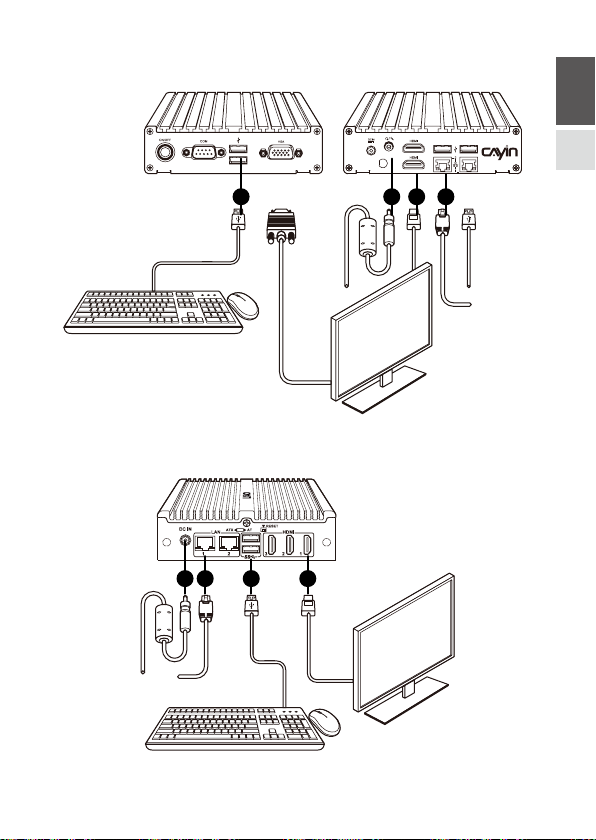

SMP-2200/ SMP-2210
SMP-2300/SMP-2310
34 21
3 4 2 1

Quick Start Guide
08

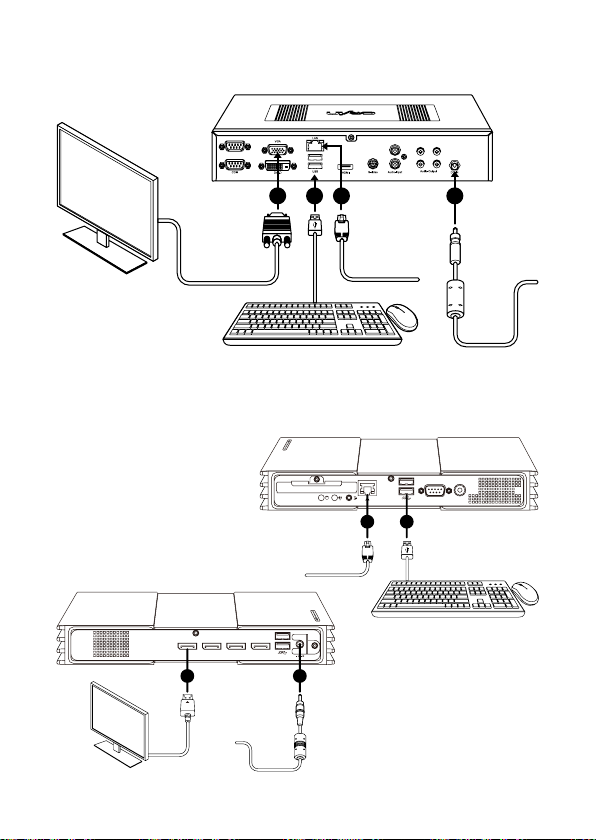

SMP-6000
13 42
SMP-8000/8000QD
1 3
DP 1 DP 2 DP 3 DP 4
2 4

ENGLISH
中文
09

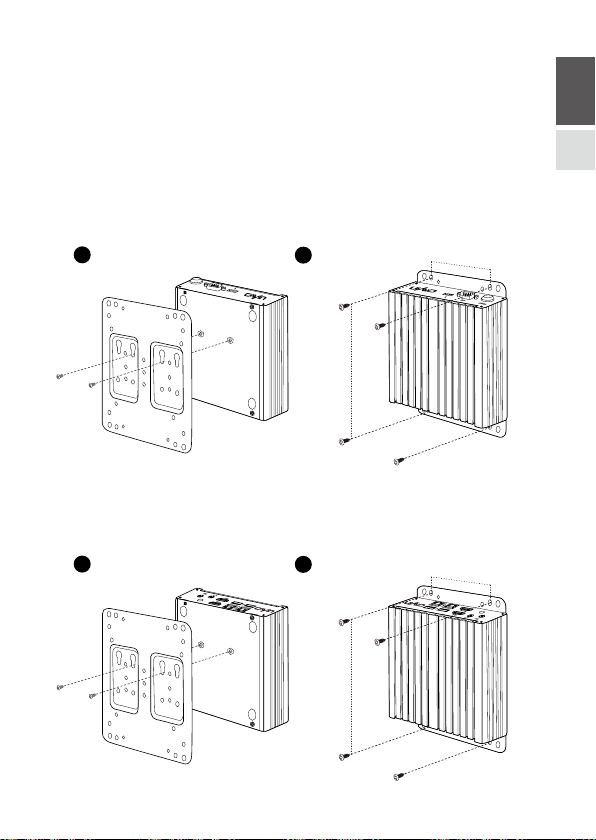

2.2 Wall-Mounting the Player
Step 1 Attach the brackets to your SMP player and secure them with
provided mounting screws.
Step 2 Hang your SMP player to a suitable place and carefully secure it with
provided screws.
SMP-2100
SMP-2200/ SMP-2210
1
1
2
2
80mm
126mm
80mm
126mm

Quick Start Guide
10

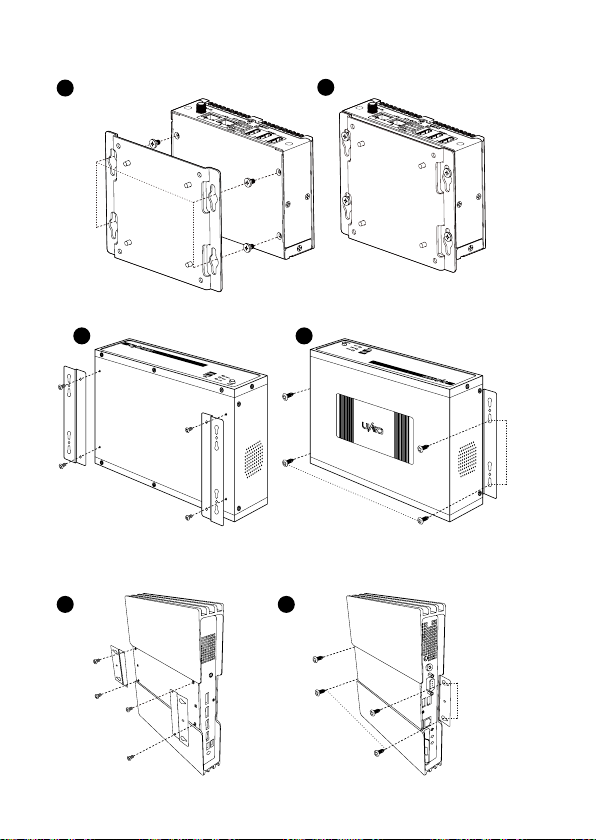

SMP-2300/SMP-2310
12
60mm 124mm
SMP-6000
1 2
293mm
84mm
SMP-8000/8000QD
1 2
192mm
52.5mm

ENGLISH
中文
11
3. Logging in to Web Manager
You can log in SMP’s management platform, Web Manager, with or without
network connection. The procedures will be slightly different based on your
network environment.
3.1 Offline Operation (Local)
You can manage SMP without network connection.
Step 1 Connect a display, a keyboard and a mouse to the SMP player and
connect the power adapter to a socket to turn on the system.
Step 2 You will see the login page of Web Manager after the system boots
up. However, the player will start playing contents after the system
boots up if you have already configured playback settings on the
player. You can press Ctrl+F10 to switch to the login page of Web
Manager, and press Ctrl+F1 to switch back to the playback mode.
Step 3 Enter your username and password and select the language display
for your user interface. Then, click Login.
• Default Username: webadmin
• Default Password: admin

Quick Start Guide
12
3.2 Remote Operation - DHCP (Auto IP)
If you are in the DHCP network, SMP players will get an IP address automati-
cally after installation. You can start managing it remotely from your PC.
1. If the SMP player and the PC are in the same LAN
You can use CAYIN Device Seeker to locate the player and open Web Man-
ager.
2. If the SMP player and the PC are NOT in the same LAN
You can open a browser and type http://ip_address in the address bar to
access Web Manager. However, you need to know the exact IP address in
advance and the IP address might be changed by the DHCP server. Therefore,
you might consider using a static IP address in this case.
When you see the login page of Web Manager, enter your username and
password and select the language display for your user interface. Then, click
Login.
• Default Username: webadmin
• Default Password: admin

ENGLISH
中文
13
3.3 Remote Operation - Static IP
If you are in a static IP network, please follow the steps below to log in and
complete network settings.
Step 1 Connect a keyboard and a mouse to USB connectors on the SMP
player and connect the power adapter to a socket to turn on the
system. If the player starts playing contents after the system boots up,
press Ctrl+F10 to switch to the login page of Web Manager.
Step 2 Enter your username and password and select the language display
for your user interface. Then, click Login.
• Default Username: webadmin
• Default Password: admin
Step 3 After logging in Web Manager, select NETWORK > Ethernet.
Step 4 Click Static IP Address and complete all related network settings of
this SMP player, e.g. IP address, Subnet mask, Gateway, and DNS.
Step 5 After completing, click Save. Then, the SMP player will reboot.

Quick Start Guide
14
Step 6 You can remove the keyboard and mouse from this SMP player now,
and start managing it remotely from your PC.
• If the SMP player and the PC are in the same LAN (Local Area
Network), you can use CAYIN Device Seeker to locate the player
and open Web Manager.
• If the SMP player and the PC are NOT in the same LAN, you can
open a browser and type http://ip_address in the address bar to
access the Web Manager.

ENGLISH
中文
15
3.4 CAYIN Device Seeker
CAYIN Device Seeker is a handy tool for you to search all available SMP play-
ers and CMS servers in the same LAN. Please follow the steps below to use it.
Step 1 Insert the product CD into your CD-ROM, and run CAYIN Device
Seeker (\Tool\Device Seeker\seeker.exe). You can copy the file to your
PC for future management. You can also download it from the link
below: https://www.cayintech.com/support/downloads.html.
2
3
4
Step 2 Click Seek and the seeker will search all available SMP players and
CMS servers in the same LAN.
Step 3 If you want to open Web Manager of a device, select it and double
click the device name. You can also click on a device name, and click
Open Web.
Step 4 If you want to update contents into the device, select the device you
want to connect, and click Open Folder. Then, you can open the Me-
dia Folder of that device and upload files via Network Shares (Network
Neighborhood).
If your PC and SMP players or CMS servers are not in the same LAN, the Device
Seeker will not function properly. Please open a browser and enter the IP ad-
dress of the SMP player or CMS server. Once you have successfully logged in,
you can start managing the device.
NOTE

Quick Start Guide
16
3.5 Activating your SMP
Once you are logged in, you will need to activate the appliance to complete
the installation process and receive full access.
Step 1 Click on the Activate button in System Overview, under
System>License.
1
Step 2 If the player has internet connection, click Activate.
Step 3 If the player is not connected to the internet, click Generate. You will
have to mail the generated .rc file to your sales representative. Once
your representative completes the activation, you will receive a reply
with an activated .cert file. Choose the .cert file, and click Upload.
(Please refer to Online Help for more information on activating your SMP.)
23
Unregistered players will only display full screen video playback in an alphabeti-
cal order.
NOTE

ENGLISH
中文
17
4. Online Help
The SMP User’s Guide provides more detailed information of all features. If
you have questions about any specific function, please log in Web Manager,
go to the configuration page of that function, and click HELP on top of the
window. Then, the system will show you the reference information of that
function.
CAYIN Technology Co., Ltd.
3F., No. 57, Sec. 3, Zhongshan N. Rd.,
Zhongshan Dist., Taipei City 104, Taiwan
TEL: [phone]
FAX: [phone]
https://www.cayintech.com
Copyright © 2021 CAYIN TECHNOLOGY CO., LTD. All Rights Reserved.
All contents in this manual are the intellectual property of CAYIN Technology
Co., Ltd. All brand names, icons, and trademarks that are not the property of
CAYIN Technology are the property of their respective holders.
