CB2 Dwight 5-Shelf Bookcase User manual

Made in Taiwan - r06 Page 1 of 3
dwight 5-SHELF BOOKCASE
assembly hardware
wall mounting hardware
components
tools required
Thank you for purchasing the Dwight 5-Shelf
Bookcase.This page lists all the contents included in the
box. Please take the time to identify the hardware as well
as the individual components to this product. As you
unpack and prepare for assembly, place the contents on
a carpeted or padded area to protect them from
damage.
Note: 2 people are required to safely assemble this product.
Missing hardware?
Please call 800.606.6387 for replacements.
(We recommend the use of hand tools instead of power tools)
Customer Service 800.606.6252 | Latest instructions available at www.cb2.com
phillips head screwdriver
allen wrench (included)
20 - glass
bumpers
4 - levelers24 - bolts
2 - side frames
(1 left, 1 right)
1 - crossbrace
4 - crossbars5 - glass shelves
(shown in order of
smallest to largest)
2 - large
screws
2 - plastic
anchors
2 - wall
straps
4 - wall
brackets
1 - top frame

dwight 5-SHELF BOOKCASE
Made in Taiwan - r06 Page 2 of 3
12
34

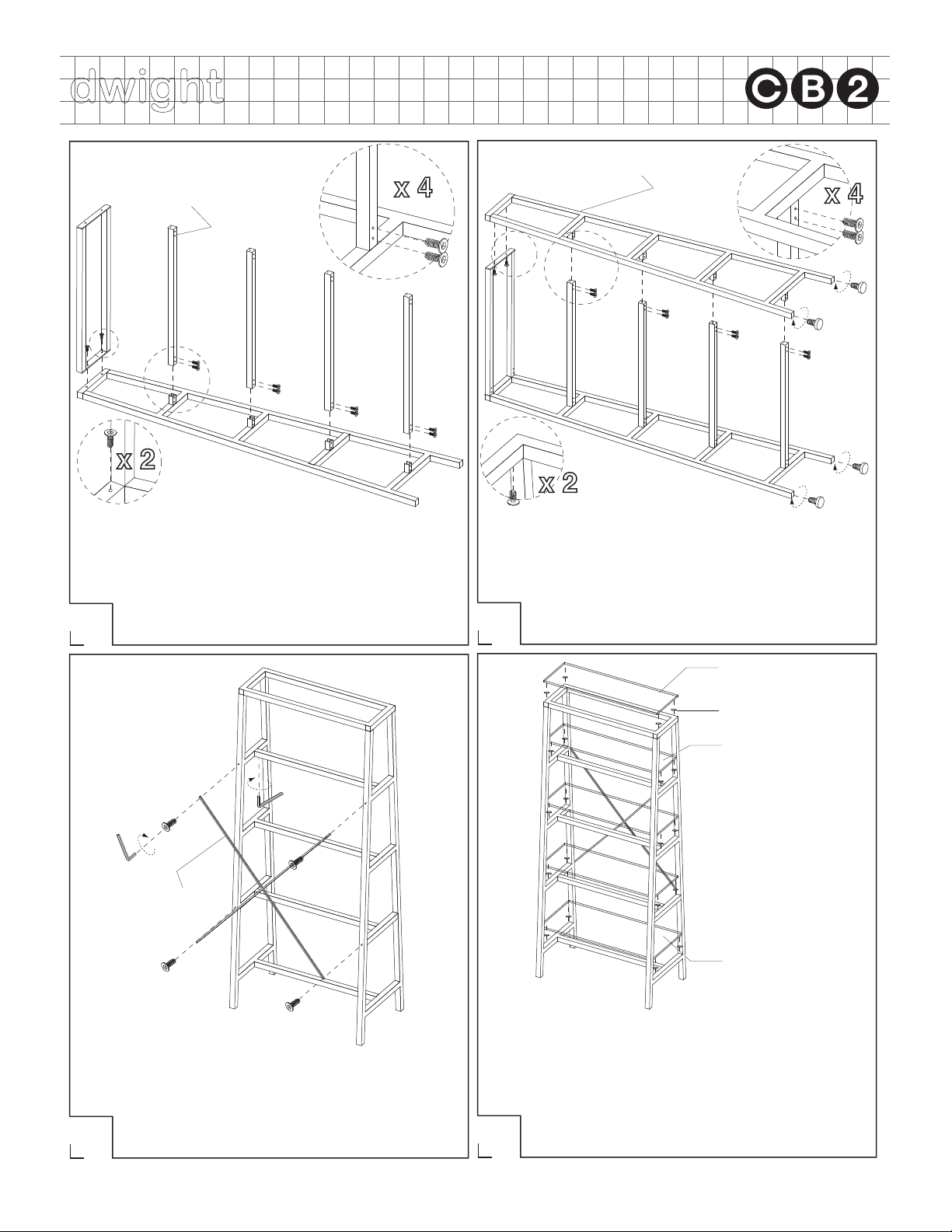

A. Place left side frame on a clean, padded
surface. Attach top frame to left side frame with
2 bolts as shown, using an allen wrench. Do not
fully tighten the bolts until further instructions.
B. Fit 4 crossbars onto corresponding brackets
of left side frame. Secure each crossbar with 2
bolts as shown. Do not fully tighten the bolts.
A. Fit 6 crossbars onto corresponding brackets
of right side frame Attach each crossbar with 2
bolts as shown. Do not fully tighten the bolts.
B. Insert 2 levelers to bottom of each side frame
as shown. Turn levelers clockwise to secure.
A. With assistance of another adult, carefully
position bookcase upright. Attach cross brace
to back of bookcase with 4 bolts as shown.
B. At this point, secure all bolts with an allen
wrench. Do not over tighten the bolts.
A. Adhere 4 glass bumpers per shelf as shown.
B. Carefully place glass shelf (labeled TOP)
onto top of bookcase and smallest to largest
glass shelves onto remaining shelves as shown.
Adjust levelers as necessary.
Assembly is now complete.
left side frame
crossbar
NOTE: Make sure pilot
holes in crossbars are
positioned towards the
bottom during assembly
A
B
B
left side frame
right side frame
NOTE: Make sure pilot holes in side
frames are positioned towards the
back during assembly
BACK VIEW OF
ASSEMBLY
A
B
cross brace
glass bumper
largest
glass shelf
TOP glass shelf
smallest
glass shelf
NOTE:
Do not
fully tighten
bolts
NOTE: Do
not fully
tighten bolts
NOTE: Do not
over tighten bolts
Customer Service 800.606.6252 | Latest instructions available at www.cb2.com
B
B
C
NOTE: Make sure each
shelf is securely supported
by each glass bumper
A
B
top
frame
A
A
A
A. Attach top frame to right side frame with 2
bolts as shown. Do not fully tighten the bolts.
B. Fit 4 crossbars onto corresponding brackets
of right side frame. Secure each crossbar with 2
bolts as shown. Do not fully tighten the bolts.
C. Insert 2 levelers to bottom of each side frame
as shown. Turn levelers clockwise to secure.

wall mounting assembly
WALL
cleaning and care
weight limitations
Clean surfaces with a dry or damp soft cloth. Do not use abrasive cleaners.
1st (labeled TOP) shelf: 20lbs max; 2nd (smallest) shelf: 19lbs max; 3rd shelf:
22lbs max; 4th shelf: 26lbs; 5th (largest) shelf: 29lb max
dwight 5-SHELF BOOKCASE
Made in Taiwan - r06 Page 3 of 3
Customer Service 800.606.6252 | Latest instructions available at www.cb2.com
E
A
These instructions are for drywall mounting only. For safe
installation it is essential to use hardware appropriate for your wall
type. Mount to wood wall studs whenever possible. If you are
unsure of what type of fasteners to use, consult your local hard-
ware store or a qualified professional. This product is only deter-
rent, it is not a substitute for proper adult supervision.
A. With an allen wrench, remove top 2 bolts from crossbrace
as shown. At this point, re-attach crossbrace and 2 wall brack-
ets with 2 bolts.
B. With the assistance of another adult, place the unit in desired
location against the wall. Mark the location of the hole in the
bracket on the wall. Move the unit out of the workspace.
C. Drill holes slightly smaller in diameter than the drywall
anchors. Insert 1 plastic anchor into each hole until they are
flush to the wall.
D. Insert 1 screw through each wall bracket and into the
plastic anchor. Secure, but do not over tighten with a phillips
head screwdriver.
E. Place the bookcase back into position against the wall and
thread the wall strap through both brackets and pull until tight.
Wall mounting is now complete.
C
D
