SERVICE MANUAL
FOR
MODEL SSP-561-D
HANDSFREE STAINLESS STEEL TELEPHONE
WITH AUTOMATIC DIAL FEATURE
EQUIPPED WITH SPK1.07 FIRMWARE
(OPTIONAL ADA FEATURE)
Serving the Telephone Industry Since 1930
Communication Equipment 519 W South Park Street
& Engineering Company Okeechobee, FL 34972
Voice: 863-357-0798
Fax: [phone]

Issue 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
2
IMPORTANT INFORMATION
FOR
CUSTOMER
Please fill in before you continue.
The following information is necessary when calling CEECO for assistance.
MODEL NUMBER MODEL SSP-561-D W/SPK1.07
FIRMWARE
SERIAL NUMBER
DATE MANUFACTURED
LOCATION INSTALLED
For us to better serve you, please have this information available when calling for
technical support.
CEECO
Communication Equipment & Engineering Company
519 W South Park Street
Okeechobee, FL 34972
863-357-0798- telephone
863-357-0006- facsimile
[email protected]
www.ceeco.net

Issue 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
3
TABLE OF CONTENTS
SECTION PAGE
1.0 INTRODUCTION..................................................................................................... 4
2.0 GENERAL................................................................................................................. 4
3.0 PROGRAMMING .................................................................................................... 5
PROGRAMMING CONTINUED........................................................................... 6
PROGRAMMING CONTINUED........................................................................... 7
4.0 OPERATION ............................................................................................................ 7
5.0 RECOMMENDED TOOLS AND TEST EQUIPMENT ...................................... 7
7.0 TESTING................................................................................................................... 9
8.0 SPECIFICATIONS................................................................................................... 9
9.0 PARTS LIST ........................................................................................................... 10
10.0 FCC NOTICE.......................................................................................................... 11
11.0 REPAIR AND RETURN INFORMATION......................................................... 12
12.0 WARRANTY POLICY .......................................................................................... 13
13.0 DIAGRAM............................................................................................................... 14

Issue 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
4
1.0 INTRODUCTION
The practices in this manual provide installation and maintenance information for
Model SSP-561-D Telephone, equipped with SPK1.07UNVL firmware.
The information in this manual is subject to change without notification.
For information not included in this manual, please call or write:
CEECO
Customer Service
519 W South Park Street
Okeechobee, FL 34972
863-357-0798- telephone
863-357-0006- facsimile
[email protected]
www.ceeco.net
2.0 GENERAL
2.1 The CEECO hands free telephone is a sturdy, vandal resistant, stainless
steel speakerphone with an optional ADA feature. Instead of a
hookswitch and handset, the telephone has a press to start/press to stop
button for the initiation and termination of phone calls. Manual volume
control is also provided inside the telephone on the PC board.
2.2 The microphone is muted during periods of dial tone to deter the use of
hand held dialers to make fraudulent calls.
2.3 Incoming calls may be allowed or blocked depending on the
programming.
2.3 Programming is accomplished by way of a DTMF keypad, which is
provided separately.

Issue 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
5
3.0 PROGRAMMING
NOTE: It is recommended that you ground yourself to prevent ESD
damage to the PCB(s).
3.1 Connect the telephone to a working telephone line or a DTMF test set.

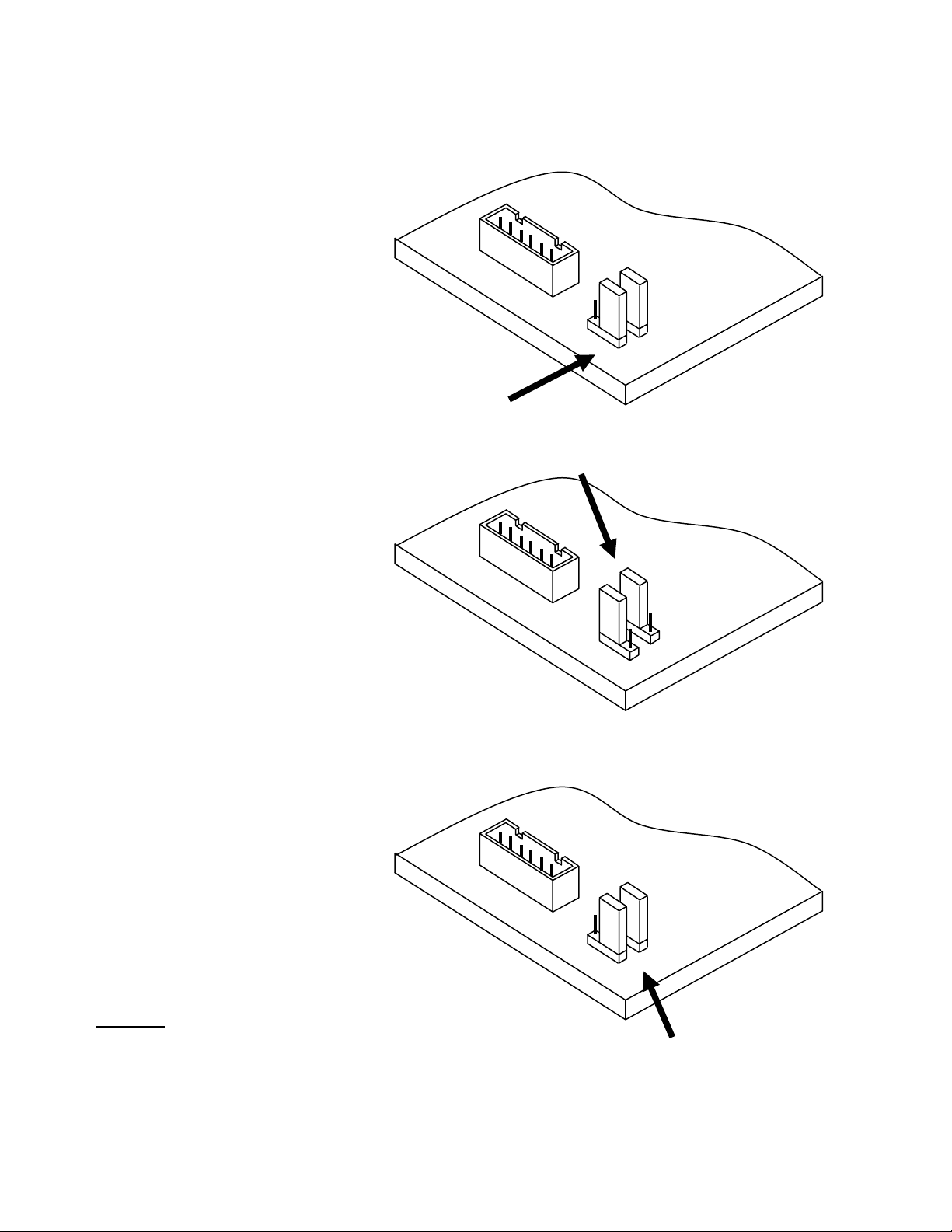

3.2 Locate the pair of plastic mini-jumpers along the edge of the PC board.
Move them to the “on” or inner most position as depicted in the diagram
on the last page of this manual.
3.3 Press the “CALL & HANGUP” button and wait for dial tone before
entering programming digits.
3.4 Enter #97#18#, which will clear all user programmable memory.
NOTE: Once the # key has been entered, you may hear a fast busy tone,
an operator recording, or other Central Office signals. Please disregard
these sounds and continue programming, as they will have no effect on the
programming.
3.5 Each programming location is accessed by dialing the # sign and the
corresponding two digit code. The previous contents of the location are
automatically erased when the location code is accessed.
3.6 Enter #00 to enter the telephone options location. By entering a selected
number of 0-9 for each of the ten digits represented on the following page,
the phone is customized for the particular installation. Enter the ten (10)
selected digits now.

Issue 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
6
PROGRAMMING CONTINUED
Location #00
Digit 1
0Always 0 for this model.
Digit 2
0No incoming calls allowed.
1Incoming calls allowed.
Digit 3
0No conversation time-out.
1-9 Minute(s) conversation time-out.
Digit 4
0Always 0 for this model.
Digit 5
0Always 0 for this model.
Digit 6
0Deactivate ADA feature.
9Activate ADA feature.
Digit 7
0Always 0 for this model.
Digit 8
0Do not dial PBX access number #18.
1Dial PBX number stored in location #18.
Digit 9
0Always 0 for this model.
Digit 10:
0No wink detect.
1-9 Length of the wink detect.
(1=50ms incremental to 450 ms. 5 is recommended).
EXAMPLE: Dial #00 0160000005. The phone will be set as follows:
Digit 1- Always 0.
Digit 2- Incoming calls allowed.
Digit 3- 6 minute conversation time out.
Digit 4- Always 0.
Digit 5- Always 0.
Digit 6- ADA deactivated.
Digit 7- Always 0.
Digit 8- Do not dial PBX access number.
Digit 9- Always 0.
Digit 10- 250 ms wink detect.
•Be sure to log your entries below for future reference.
(OPTION TABLE) #00 0 _ _ 0 0 _ 0 _ 0 _
1 2 3 4 5 6 7 8 9 10

Issue 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
7
PROGRAMMING CONTINUED
3.7 In order to cause the phone to automatically dial a number (Auto dial)
when the button is pressed, enter #19 followed by the desired number.
The number may range from 1-11 digits. The time-out disconnect feature
(if programmed) will start after this number has been dialed.
EXAMPLE: Enter #19 5551212. This will cause the phone to
automatically dial the seven-digit number, 5551212, when the “CALL &
HANGUP” button is pressed.
3.8 If a PBX number must first be dialed before the auto dial number, enter
#18 followed by the desired PBX access number. The number may
range from 1-11 digits. Provided that a 1 was entered under Digit 8 in
section 3.6, the PBX number will automatically dial first, followed by a 1
second pause, and then the auto dial number from section 3.7 will
automatically dial.
EXAMPLE: Enter #18 18001234567. This will cause the phone to
automatically dial 18001234567, followed by a 1-second pause, followed
by the automatic dialing of the number programmed in section 3.7.
3.9 When programming is finished, press the “CALL & HANGUP” button to
hang up the phone. Return the two mini-jumpers to the “off” or
outermost position, as depicted on the last page of this manual. Secure the
telephone to its mounting. The phone is now ready for use.
4.0 OPERATION
To make a call, press the “CALL & HANGUP” button located on the front of the
telephone and wait to hear dial tone. The LED will illuminate red
at this time and the programmed auto-dial numbers will dial out on the line.
When the called party answers, the LED will turn GREEN after a maximum of
four seconds (assuming the ADA feature is activated). When the call is complete,
press the “CALL & HANGUP” button to hang up the phone. The call will be
terminated and the LED will go out.
NOTE: If the telephone is being used to make emergency calls, CEECO cannot
assume responsibility for the called party’s response.
5.0 RECOMMENDED TOOLS AND TEST EQUIPMENT
Volt/Ohm Meter 5/16" Nut driver 3/8" Nut Driver DTMF Test Set
Security Tool (CEECO Part Number 301-037) Flat Blade Screw Driver

Issue 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
8
6.0 INSTALLATION NOTES AND ASSEMBLY INSTRUCTIONS
6.1 Using a 301-037 security tool (sold separately), loosen and remove the
security screws.
6.2 The security tool is for a standard 5/32" button head screw generally used
on the framework of the phone booths.
6.3 Separate the faceplate assembly from the apparatus box by pulling the
faceplate forward.
6.4 The apparatus box is designed to be mounted flush on any flat vertical
surface. Mounting holes are provided on the back and all sides of the
apparatus box.(If applicable)
6.5 Run the inside station wire into the apparatus box and terminate on the
RJ11C terminal block inside.
6.6 The use of a gas tube, or carbon station protector is recommended. The
station ground should not exceed 50 ohms.
6.7 Plug the modular line cord from the faceplate assembly into the RJ11C
terminal block.
6.8 Dress the line cable away from the security screws and seat the faceplate
into the apparatus box.
6.9 Secure the faceplate assembly by tightening the security screws.
*****WARNING*****
A. Never install telephone wiring during a lightning storm.
B. Never install telephone jacks in wet locations unless the jack is
specifically designed for wet locations.
C. Never touch uninsulated telephone wires or terminals unless
the telephone line has been disconnected at the network
interface.
D. Use caution when installing or modifying telephone lines.

Issue 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
9
7.0 TESTING
Action: Connect the telephone to the telephone line.
Press the “CALL & HANGUP” button.
Reaction: Dial tone is heard and red LED illuminates.
Programmed number(s) automatically dials out.
Action: The called party answers.
Reaction: A normal speakerphone conversation is allowed.
The LED illuminates green (optional ADA feature) after a
maximum of 4 seconds.
Action: Finish the conversation.
Press the “CALL & HANGUP” button to hang up the phone.
Reaction: The LED goes out.
The call is terminated.
8.0 SPECIFICATIONS
Input Power: C.O. Line Powered (48-52 Volt Loop)
Loop Current: 23 mA min. 80 mA max.
Impedance: 600 Ohms.
Signaling: DTMF, 70 ms tone, 50 ms spacing.
Output: -4.0 to –6.0 dbm.
Environmental: Temperature 0°C to 50°.
Humidity 20% to 90%.
Programming: Via DTMF keypad.
Dimensions: 10.25” wide x 13.125” high x 2.625” deep
(SSP) (handset on hook).
Mounting: Vertical surface mount.
Weight: Approximately 8 lbs.
UL listed no.: 60F5
FCC registration: BW8USA-73021-MT-E
Ringer equivalence: 0.4a
Type jack: RJ11C

Issue 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
10
9.0 PARTS LIST
QUANTITY PART NUMBER DESCRIPTION
4 406-019 Outer cover security screw
1 301-018 Modular line cord
1 301-054-UL Modular Connector (RJ11C)
1 700-008 Keypad Cable
1 660-000 CEECO SPK PC board
1 705-110 Connectorized Keypad
1 6020 Momentary Panel Switch
1 14024 Speaker
1 14067 Microphone
1 391-002 Stainless Steel Panel
1 361-01 Mounting Box
1 12017 Ringer
OPTIONS
1 301-037 Security Tool.

Issue 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
11
10.0 FCC NOTICE
10.1 FCC REGISTRATION AND REPAIR INFORMATION
Your new telephone has been registered with the Federal Communication
Commission (FCC) in accordance with Part 68 of its rules. The FCC
requires that you be advised of certain requirements involving the use of
this telephone.
10.2 CONNECTION WITH THE NATIONWIDE TELEPHONE NETWORK
The FCC requires that you connect this telephone to the Nationwide
Telephone Network through a registered jack provided by the Telephone
Company in your area. This jack is a modular outlet, which you can order
from your local telephone company.
10.3 NOTIFICATION TO THE TELEPHONE COMPANY
Before connecting this telephone, the FCC requires that you notify your
local telephone company business office. The number is in the front of
your phone book.
Tell them: The "line" to which you will connect the telephone (that is,
your phone number) and the telephone's FCC registration number and
ringer equivalence number. These numbers are listed in section 9.0.
The FCC further requires that you notify your local telephone company
when permanently disconnecting this telephone.

Issue 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
12
11.0 REPAIR AND RETURN INFORMATION
11.1 WARRANTY REPAIR
Any device returned requiring warranty service, repair or credit must be
accompanied with a "Return Material Authorization" (RMA) FORM. It
must include return shipping instructions, original purchase order number
and special marking instruction. A description of the trouble observed
must be attached to the defective unit. This information must be inside the
shipping container.
11.2 DIRECT ALL INQUIRES TO:
CEECO
Repair Department
863-357-0798- telephone
863-357-0006- facsimile
[email protected]
www.ceeco.net
11.3 NON-WARRANTY REPAIR
CEECO will repair equipment out of warranty for a set charge plus parts.
The customer must pay the shipping costs both directions.
11.4 RETURN FOR CREDIT
Material may be returned for credit only with prior approval. Material
authorized for return is subject to a 20% restocking charge based on the
manufacturer’s list price. Return RMA must be requested no later than 30
days after original shipment.

Issue 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
13
12.0 WARRANTY POLICY
12.1 GENERAL
CEECO products are guaranteed to be free of defects in material and
workmanship for a period of 12 months from the date of original
shipment, if properly installed and maintained. This warranty is limited to
the value of material only.
CEECO will repair or replace any unit during this period if found to be
defective for reasons other than abuse and improper use or improper
installation. It is the buyer’s responsibility to return the defective unit to
the factory. CEECO will then repair or replace any defective parts and
return them to the buyer free of charge.
12.2PRINTED CIRCUIT BOARDS
Printed circuit boards should not be repaired in the field. If a unit is found
to be faulty, replace it with another unit and return the faulty unit to
CEECO for repair. Modifications by any one other than CEECO will void
the warranty.

Issue 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
14
13.0 DIAGRAM
When programming is
completed, move the mini
jumpers to the OFF
position.
NOTE:
Do not leave the mini jumpers in the ON position;
this will decrease battery life.
Move the mini jumpers to the
ON position BEFORE going
off-hook.
Locate the mini jumpers
on the corner of the PCB.
O
N
OF
F
O
N
OF
F
O
N
OF
F
