Celexon Ceiling Recessed Electric Professional Plus User manual

Operating instructions
Celexon Ceiling Recessed Electric
Professional Plus
Thank you for purchasing this product.
For optimum performance and safety, please read these instructions carefully
before connecting or operating this product. Please retain these instructions for future
reference.
Version: 32422_061

1
The purpose of these operating instructions is to familiarise you with the operation of
this product. Therefore, keep these instructions in a safe place so that you can refer to
it at any time.
• Before installation, please refer to the enclosed data sheet for further safety and use
instructions.
• Do not begin installation until you have read and understood the complete
operating instructions.
• Carry out the installation with another person to ensure safe installation.
• Remove the product from its packaging and remove all packaging material. Make
sure that there is no packaging material on or in the product. If you notice any
damage to the packaging, also check whether there is any damage to the pro-
duct. If you notice any external damage to the unit or any unexpected or unusual
functioning, the product must not be used any further. Immediately contact the
dealer from whom you purchased the product or celexon directly (Web:
www.celexon.co.uk, Mail: [e-mail]) for further information.
• To ensure trouble-free operation, the product may only be used indoors. It is NOT
suitable for outdoor use.
• The use of the appliance and accessories is forbidden to children under 16 years of
age.
• Ensure that no children play with the appliance or are in the vicinity without
supervision.
• Conversion or modication of the product impairs product safety.
• Caution: Risk of injury! Never open the product without authorisation. Never carry
out repair yourself!
• Do not use the product near gas or water appliances or in a dusty environment.
• Handle the product with care. It can be damaged by knocks, blows or falling from
even a small height.
• Keep the product away from moisture and heat.
• Never immerse the product in water or other liquids.
• Use the product only in its intended manner. Use for any other purpose may damage
the product or its surroundings.
• Tighten the screws, but do not overtighten them. Overtightening the screws (e.g.
by using a cordless screwdriver) can cause damage and affect the secure hold of
the screen.
WARNINGS

2
• Suspended loads must be checked for strength and load-bearing capacity at least
twice a year.
• Children should not use the screen or play under it unsupervised.
• Caution: Risk of injury! The unit closes ush and rmly in its retracted state, keep
ngers, hands or other small parts away from the opening.
• All supply lines and cables must not be subjected to additional loads and must be
laid in such a way that they are not damaged or crushed.
• Failure to observe the above instructions may result in personal injury and damage
to the product or equipment connected to it. Incorrect installation or use may also
invalidate the warranty.
• If you are unsure about the use of the product, please contact specialist personnel,
your dealer or celexon directly (Web: www.celexon.co.uk, Mail: [e-mail]).
• Technical changes and errors expected
The manufacturer accepts no responsibility for damage to property or personal injury,
if the screen is used outside the recommended specications, or in the event of improper
installation. Do not use this screen in the vicinity of heaters or air conditioners. Also,
do not mount the product in direct sunlight or in front of a window. Due to the tempe-
rature-sensitive PVC surface, the projection screen fabric may be permanently damaged.
We recommend that you wait approx. 2 hours after delivery before installing the projecti-
on screen. This way you will allow the screen to acclimatise, especially when moving from
a cold to a warm environment (or vice versa).
Please avoid any stains on the surface of the screen. These may not be able to be re-
moved.
The positions of the end points are already optimally set at the factory and should
not be changed. Especially with electric screens, the entire length of the fabric should
always be used in order to achieve the best atness. An adjustment of a few cm of the
end points should only be made by persons with specialist knowledge and in consulta-
tion with the manufacturer. Incorrect adjustment can result in damage to the projection
surface.

3
TECHNICAL DATA
DISCLAIMER
The information in this document is subject to change without notice by the
manufacturer. Changes will be added to subsequent versions of this manual.
Errors expected.
CARE INSTRUCTIONS
NEVER clean the screen with alcohol or other cleaning agents containing
solvents. Use only a soft and clean cloth. If necessary, dirt can be removed from
the surface with a mild soap solution (max. 5%). It is essential to avoid contact
with pointed or sharp objects. These could permanently damage the projecti-
on screen fabric. Further instructions can be found in the enclosed projection
screen instructions.
Voltage: 220 V ~ 240 V, 50 Hz
Consumption: 130 W (MAX)
0,4 W (Standby)
Control: Cable switch or optionally available
control systems

4
IN THE BOX
INSTALLATION NOTES
Before installation, please check that all the parts listed above are included! If
parts are missing, contact the dealer from whom you purchased the product
and wait for the parts to arrive before completing the installation.
Install the screen in a position that is fully visible to all viewers! The optimum
installation height corresponds to the position of the viewers in the centre
of the screen with the screen fabric extended: eye level = lower third of the
screen surface.
1 x Screen
4 x Threaded rods (D)
2 x Mounting bracket (A)
4 x Metal dowels (E)
2 x Inspection cover (B)
1 x Allen key 5mm (F)
1 x Allen key (C)
1 x Allen key 8mm (L)
INSTALLATION
Please take the ceiling cut-out dimension from the following list and create a
corresponding cut-out in your suspended ceiling.
STEP 1: CEILING CUT-OUT
Viewing area
of screen
Length of Ceiling
cut-out
Width of Ceiling
cut-out
202 cm 11 cm
180 cm 222 cm 11 cm
200 cm 244 cm 11 cm
220 cm 264 cm 11 cm
240 cm 284 cm 11 cm
280 cm 329 cm 13,5 cm
300 cm 349 cm 13,5 cm

5

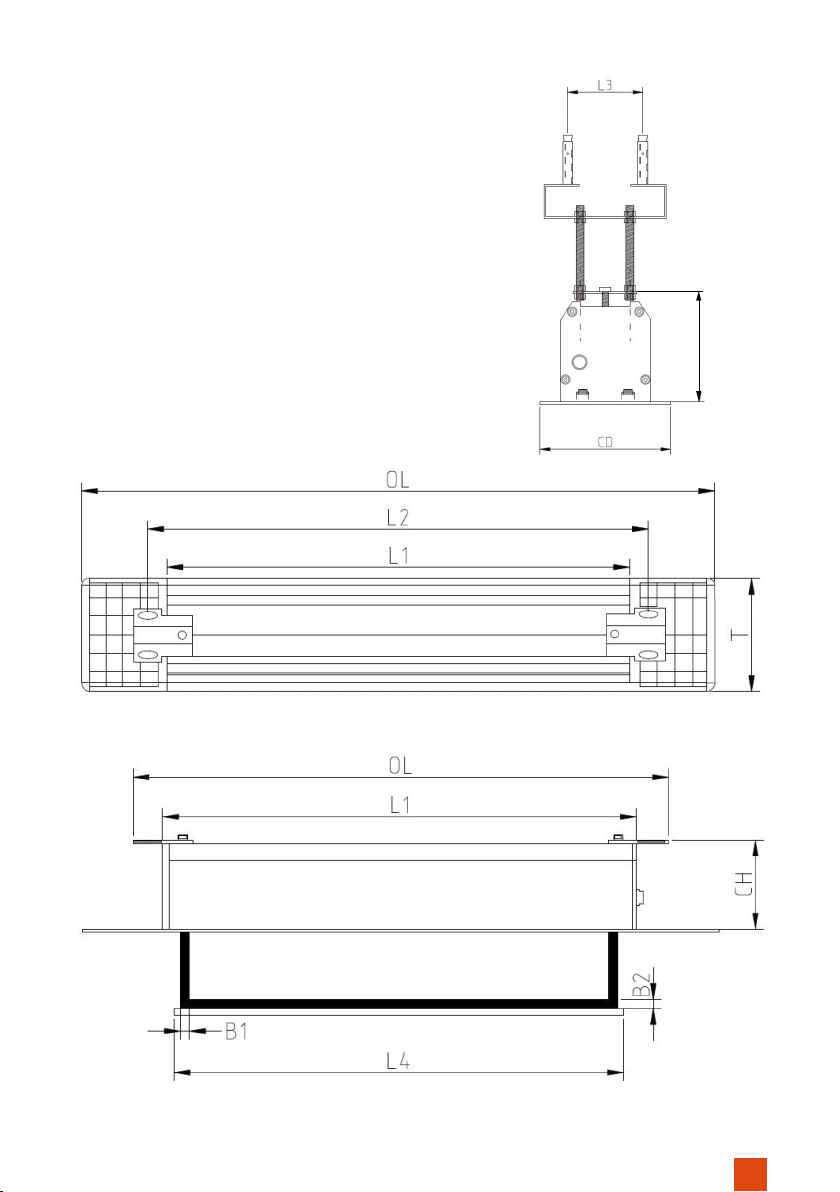

To be on the safe side, you can also check the
cut-out dimensions as follows
Measure the length „L1“ as well as the depth
„CD“ of the screen housing as shown in the
illustrations. Add 190mm to the length „L1”
and subtract 25mm from the width „CD“.
CH

6
Article
description
(B x H)
Dimen-
sion
(L1)
Dimen-
sion
(L2)
Dimen-
sion
(L3)
Width
dowel bar
(L4)
Housing
dimensions
(OlxCHxCD)
Ceiling cut-
out dimension
160x160 cm 182,6 cm 186,6 cm 9,4 cm 172,2 cm 206,6x10,3x13,6 cm 201,6x11,1 cm
180x180 cm 202,6 cm 206,6 cm 9,4 cm 192,2 cm 226,6x10,3x13,6 cm 221,6x11,1 cm
200x200 cm 224,6 cm 228,6 cm 9,4 cm 214,2 cm 248,6x10,3x13,6 cm 243,6x11,1 cm
220x220 cm 244,6 cm 248,6 cm 9,4 cm 234,2 cm 268,6 x10,3x13,6 cm 263,6x11,1cm
240x240 cm 264,6 cm 268,6 cm 9,4 cm 254,2 cm 288,6x10,3x13,6 cm 283,6x11,1 cm
280x280 cm 309,8 cm 313,8 cm 9,4 cm 296,3 cm 312,4x12,7x16,0 cm 328,8x13,5 cm
160x120 cm 182,6 cm 186,6 cm 9,4 cm 172,2 cm 206,6x10,3x13,6 cm 201,6x11,1 cm
180x135 cm 202,6 cm 206,6 cm 9,4 cm 192,2 cm 226,6x10,3x13,6 cm 221,6x11,1 cm
200x150 cm 224,6 cm 228,6 cm 9,4 cm 214,2 cm 248,6x10,3x13,6 cm 234,6x11,1 cm
220x165 cm 244,6 cm 248,6 cm 9,4 cm 234,2 cm 268,6x10,3x13,6 cm 263,6x11,1 cm
240x280 cm 264,6 cm 268,6 cm 9,4 cm 254,2 cm 288,6x10,3x13,6 cm 283,6x11,1 cm
280x210 cm 309,8 cm 313,8 cm 9,4 cm 296,3 cm 312,4x12,7x16,0 cm 328,8x13,5 cm
300x225 cm 329,8 cm 333,8 cm 9,4 cm 316,3 cm 339,5x12,7x16,0 cm 348,8x13,5 cm
160x90 cm 182,6 cm 186,6 cm 9,4 cm 172,2 cm 206,6x10,3x13,6 cm 201,6x11,1 cm
180x102 cm 202,6 cm 206,6 cm 9,4 cm 192,2 cm 226,6x10,3x13,6 cm 221,6x11,1 cm
200x113 cm 224,6 cm 228,6 cm 9,4 cm 214,2 cm 248,6x10,3x13,6 cm 243,6x11,1 cm
220x124 cm 244,6 cm 248,6 cm 9,4 cm 234,2 cm 268,6x10,3x13,6 cm 263,6x11,1 cm
240x135 cm 264,6 cm 268,6 cm 9,4 cm 254,2 cm 288,6x10,3x13,6 cm 283,6x11,1 cm
280x158 cm 309,8 cm 313,8 cm 9,4 cm 296,3 cm 312,4x12,7x16,0 cm 328,8x13,5 cm
300x169 cm 329,8 cm 333,8 cm 9,4 cm 316,3 cm 339,5x12,7x16,0 cm 348,8x13,5 cm
160x110 cm 182,6 cm 186,6 cm 9,4 cm 172,2 cm 206,6x10,3x13,6 cm 201,6x11,1 cm
180x112 cm 202,6 cm 206,6 cm 9,4 cm 192,2 cm 226,6x10,3x13,6 cm 221,6x11,1 cm
200x125 cm 224,6 cm 228,6 cm 9,4 cm 214,2 cm 248,6x10,3x13,6 cm 243,6x11,1 cm
220x137 cm 244,6 cm 248,6 cm 9,4 cm 234,2 cm 268,6x10,3x13,6 cm 263,6x11,1 cm
240x150 cm 264,6 cm 268,6 cm 9,4 cm 254,2 cm 288,6x10,3x13,6 cm 283,6x11,1 cm
280x175 cm 309,8 cm 313,8 cm 9,4 cm 296,3 cm 312,4x12,7x16,0 cm 328,8x13,5 cm
300x187 cm 329,8 cm 333,8 cm 9,4 cm 316,3 cm 339,5x12,7x16,0 cm 348,8x13,5cm

7
STEP 2: PREPARE THE SCREEN
Loosen the screws of the mounting
plate above the screen housing. Slide
the mounting plates to the ends of the
housing and tighten the screws.
Please make sure that the holes for the
threaded rods are not blocked by the
housing.
STEP 3: PREDRILLING
Drill four holes in your load-bearing (concrete) ceiling and insert the metal do-
wels (E).The distance between the holes should be L+ 40mm x 94mm.
If necessary, use other dowels and screws to suit your structural conditions.
Now attach the four mounting brackets (A) to your ceiling. Make sure that the
brackets are held rmly and securely to ensure a safe and long-lasting instal-
lation of the screen.
Then attach the threaded rods (D) to the mounting brackets and screw one
hexagon nut over each to the height of the suspended ceiling. If necessary, the
threaded rods must be shortened by the user to suit the dimensions required.

8
Insert the screen into the
cut-out opening in the cei-
ling. Make sure that the four
threaded rods go through
the holes in the mounting
plates.
Now turn a hexagon nut on
each threaded rod to secure
the screen.
STEP 4: MOUNTING THE SCREEN
Now correct the position
of the screen with the help
of the hexagonal nuts to
ensure a totally horizontal
position in the ceiling. Use a
spirit level to ensure perfect
alignment of the screen.
Suspended
Ceiling
Hexagonal
nut
Threaded rods

9
Finally, attach the inspection covers (B) to the side of the screen housing. To
remove them, pull the covers down and away from the housing.
OPERATION
STEP 1: SAFETY CHECK
Insert the plug into the socket (ensure correct voltage). The cable must not
be laid on hot surfaces or stretched. When using an extension make sure it
has the correct specication. The wall control box must be mounted with the
cable outlet on the underside. The cable switch can be replaced by an infrared
or radio control set from celexon. These must be connected by qualied elec-
tricians.
CONTROL VIA THE CABLE SWITCH
STEP 2: EXTEND THE SCREEN (FIG. 2)
Slide the switch down. The screen ex-
tends and stops automatically at the
set end point.
Make sure that no objects or persons
obstruct the extension of the screen.

10
STEP 3: RETRACT THE SCREEN (FIG. 3)
Slide the switch upwards. The screen
retracts and stops automatically at
the housing or the upper end point.
Make sure that no objects or persons
obstruct the retraction path of the of
the screen.
STEP 4: STOP THE SCREEN
To stop the screen manually, slide the switch to the centre position.
To stop the screen manually, slide the switch to the centre position.It is possible to set the stop
points. Please request the instructions for this procedure from your specialist dealer or directly via
www.celexon.com

11
Manufacturer: celexon Europe GmbH
Address: Gutenbergstraße 2, 48282 Emsdetten, DE
Product name: celexon Ceiling Recessed Electric Professional Plus
Products that are marked with the CE mark meet all requirements of the relevant
EU directives. The EU declaration of conformity can be downloaded from the
following address: www.celexon.de/zertikate
INFORMATION ON EU CONFORMITY
The symbol indicates the separate collection of electrical and electronic
devices in EU countries. Please do not throw the device into household
waste. Find out about the return system applicable in your country and
contact your local authority or your local waste and pollutant collection
point if you have any questions about the disposal process

12
Manufacturer: celexon Europe GmbH
Address: Gutenbergstraße 2, 48282 Emsdetten, DE
Product name: celexon Ceiling Recessed Electric Professional Plus
Products that are marked with the UKCA mark meet all requirements of the
relevant UK directives. The UK declaration of conformity can be downloaded
from the following address: www.celexon.de/zertikate
INFORMATION ON UK CONFORMITY
The symbol indicates the separate collection of electrical and electronic
devices in EU countries. Please do not throw the device into household
waste. Find out about the return system applicable in your country and
contact your local authority or your local waste and pollutant collection
point if you have any questions about the disposal process
