Challenger Lifts CL12A Instruction manual

Rev. 01/23/2023
Installation, Operation & Maintenance Manual
Two Post Surface Mounted Lift
MODEL CL12A
12,000 LBS.CAPACITY
3000 LBS.PER ARM
2311 South Park Rd, Louisville, Kentucky 40219
Email:[email protected] Web site:www.challengerlifts.com
Office 800-648-5438 /502-625-0700 Fax [phone]
IMPORTANT: READ THIS MANUAL COMPLETELY BEFORE
INSTALLING or OPERATING LIFT

Model CL12A
Installation, Operation and Maintenance
Page 2
Rev. 01/23/2023
CL12-IOM-A.doc
GENERAL SPECIFICATIONS –STANDARD AND QUICK CYCLE (CL12A-HT AND CL12A-HT-QC)
See Figure 1 CL12A-LC CL12A CL12A-1 CL12A-2
(-6”) (MAX) (-6”) (MAX) (-6”) (MAX)
AColumn Height 143”
[11’-11”]
158”
[13’- 2”]
164”
[13’-8”]
170”
[14’-2”]
176”
[14’- 8”]
182”
[15’-2”]
188”
[15’- 8”]
Ceiling Height Required 144” [12’] 159” 165” 171” 177” 183” 189”
BFloor to Overhead Switch 136 ½” 152” 158” 164” 170” 176” 182”
CRise Height (Screw Pads Highest Position) 74 ¾” 78 ¾”
Cylinder Stroke 68” 72”
DScrew Pad Height 5” to 6 5/8”
Stack Adapter Height 3” & 6”
EOverall Width (3 OPTIONS AT INSTALL) (-12”) 142” (-6”) 148” (MAX) 154”
FInside of Columns (-12”) 114 ½” (-6”) 120 ½” (MAX) 126 ½”
GTo Nearest Obstruction (-12”) 7’-0” (-6”) 7’-3” (MAX) 7’-6”
Drive Thru Clearance (-12”) 103 ½” (-6”) 109 ½”
(
(MAX) 115 ½”
* Lifting Capacity*
(Hydraulic Pressure at Cap.)
12,000 lbs. (3000 lbs. Per Arm)
(3200 psi)
** Rise Time (approx..) 60 Sec. 63 Sec.
Motor 2HP, Single Phase, 60Hz, 208/230
Optional – 2HP, Three Phase, 50/60Hz, for 208 or 230 or 460
* Lift capacity ratings are based on loads equally distributed on all four arms.
** Lifting and lowering speeds may vary depending on the weight of the vehicle.
G
G
G
G
Fig. 1a - General Specifications Fig. 1b - Service Bay Layout

Model CL12A
Installation, Operation and Maintenance
Page 3
Rev. 01/23/2023
CL12-IOM-A.doc
V ERTICAL C LEARANCE
Check the height of the area where the lift is to be
installed. Clearance should be calculated based on
the full raised height of the lift.
Failure by purchaser to
provide adequate clearance
could result in unsatisfactory
lift performance, property damage, or personal
injury.
F LOORING
Be certain you have the proper concrete floor to
properly handle the loaded lift. Floor should be in
generally good condition with no large cracks, spalling
or deterioration.
Minimum requirements for concrete are 4 inches
minimum depth, with steel reinforcement, 3500
psi, cured for 28 days per local commercial
practice. Floor should be level within 3/8 inch over the
installation area. No anchors should be installed
within 8 inches of any crack, edge, or expansion joint.
If these conditions cannot be met, a pad may be
poured to accommodate the lift.
Check with local building inspectors and/or permits
office for any special instructions or approvals
required for your installation.
A qualified person should be consulted to address
seismic loads and other local or state requirements.
Failure by purchaser to
provide the recommended
mounting surface could result
in unsatisfactory lift performance, property
damage, or personal injury.
L OCATION
This lift has been evaluated for indoor use only with
an operating ambient temp. range of 5 – 40°C (41–
104°F)
E LECTRICAL R EQUIREMENTS
For lift installation and operation, it is necessary to
have a dedicated circuit with circuit breaker or time
delay fuse. Refer to wiring diagram for circuit sizing.
S AFETY N OTICES AND D ECALS
For your safety, and the safety of others, read and
understand all of the safety notices and decals
included here.
R
EAD ENTIRE MANUAL BEFORE ASSEMBLING , INSTALLING ,
OPERATING
, OR SERVICING THIS EQUIPMENT .
P
ROPER MAINTENANCE AND INSPECTION IS NECESSARY
FOR SAFE OPERATION
.
DO
NOT OPERATE A DAMAGED LIFT .
Safety decals similar to those shown here are found
on a properly installed lift. Be sure that all safety
decals have been correctly installed. Verify that all
authorized operators know the location of these
decals and fully understand their meaning. Replace
worn, faded, or damaged decals promptly.
Do not attempt to raise a
vehicle on the lift until the lift
has been correctly installed
and adjusted as described in this manual.
WARNING
WARNING
WARNING

Model CL12A
Installation, Operation and Maintenance
Page 4
Rev. 01/23/2023
CL12-IOM-A.doc
RECEIVING
The shipment should be thoroughly inspected as soon
as it is received. The signed bill of lading is
acknowledgement by the carrier of receipt in good
condition of shipment covered by our invoice.
If any of the goods called for on this bill of lading are
shorted or damaged, do not accept them until the
carrier makes a notation on the freight bill of the
shorted or damaged goods. Do this for your own
protection.
NOTIFY Challenger Lifts AT ONCE if any hidden
loss or damage is discovered after receipt.
IT IS DIFFICULT TO COLLECT FOR LOSS OR
DAMAGE AFTER YOU HAVE GIVEN THE CARRIER
A CLEAR RECEIPT.
File your claim with Challenger Lifts promptly.
Support your claim with copies of the bill of lading,
freight bill, and photographs, if available.
Component Packing List
PART #
QTY
/
LIFT
DESCRIPTION
12809*-P1 POWER COLUMN ASSEMBLY
12809*-I1 IDLER COLUMN ASSEMBLY
CL12A-HW-A 1 HARDWARE BOX
12503-3S 1 3-STAGE ARM PACK
12820-143
2
COLUMN EXT.ASSY CL12A-LC
12820-164 COLUMN EXT.ASSY CL12A-0
12820-176 COLUMN EXT.ASSY CL12A-1
12820-188 COLUMN EXT.ASSY CL12A-2
12815 1 OVERHEAD BEAM
A2066 1 OVERHEAD SHUTOFF BAR ASSY
B2064-01 1 OVERHEAD LIMIT SWITCH
12803-* 1 SYNC.CABLE PACK
12804-* 1 LOCK RELEASE CABLE ASS’Y
B2206-6 2 ADAPTER EXTENSION (6”)
B2206-3 4 ADAPTER EXTENSION (3”)
B2209 2 ADAPTER RACK
AB-9858
1
STANDARD 1PH POWER UNIT
AB-11530 QC 1PH POWER UNIT
AD-9858 3 PH POWER UNIT
CL12A-LP-A 1 LITERATURE PACK
INSTALLATION
IMPORTANT:Always wear safety glasses while installing lift.
TOOLS (MINIMUM REQUIRED)
a. Tape measure, 16ft
b. Chalk line
c. 4ft level
d. 10” adjustable wrench
e. Standard open end wrenches 7/16”, 1/2",
(2) 9/16”, (2) 11/16”, 3/4"
f. 5/16” allen wrench
g. Needle nose pliers
h. Hammer drill with 3/4” dia. carbide tipped bits
i. 2 lb hammer
j. Torque wrench: 150 ft.-lbs. min. w/ 1-1/8” socket
k. 12 ft. stepladder
l. Anti-Seize lubricant (for arm pins and foot pad
screw threads and stop rings)
LAYOUT
Note:
This lift can be installed at two different heights
and three different widths. The Cable adjustment
for the Height and Width variations will be
accommodated by the Lower Sheave Bracket.
The height and width must be established before
beginning, as this will determine the lower
sheave position.
1) Once the general location of the lift has been
determined, ensure that the proper conditions
exist per page 3.
2) Determine which side of the bay the power unit
will be located and identify the column assembly
with the power unit bracket.
3) Lay out the service bay according to the
architect’s plans or owner’s instructions (see Fig
1b–Service Bay Layout). Failure to install in this
orientation can result in personal and property
damage.
LIFT PREPARATION
4) With column assemblies lying flat, remove cable
and hose rolls from inside the column.
5) Manually push carriages up enough to unhook the
cylinder hose from the base plate tabs. Proceed
with pushing the cylinder and carriage up enough
to access all five sheave locations on the sheave
bracket, see Fig 3.

Model CL12A
Installation, Operation and Maintenance
Page 5
Rev. 01/23/2023
CL12-IOM-A.doc
6) Determine the sheave location on the lower
bracket based on the overall height and width of
the lift at its chosen configuration. Use the
General Specifications table from page 2 and
Fig 2 below.
Note: The column has been assembled with the
sheave in the highest position on the bracket for
the lift installed at max height and max width.
MAX WIDTH
NARROWED (-6")
NARROWED (-12")
MAX WIDTH
NARROWED (-6")
NARROWED (-12")
LOWERED (-6")
MAX HEIGHT
WIDTH
SETTING
HEIGHT
SETTING
MAX WIDTH
NARROWED (-6")
NARROWED (-12")
MAX WIDTH
NARROWED (-6")
NARROWED (-12")
LOWERED (-6")
MAX HEIGHT
WIDTH
SETTING
HEIGHT
SETTING
MAX WIDTH
NARROWED (-6")
NARROWED (-12")
MAX WIDTH
NARROWED (-6")
NARROWED (-12")
LOWERED (-6")
MAX HEIGHT
WIDTH
SETTING
HEIGHT
SETTING
MAX WIDTH
NARROWED (-6")
NARROWED (-12")
MAX WIDTH
NARROWED (-6")
NARROWED (-12")
LOWERED (-6")
MAX HEIGHT
WIDTH
SETTING
HEIGHT
SETTING
Fig. 2 –Sheave Position in Lower Bracket
7) The sheave must be removed and reassembled
to route the synchronizer cable. Remove the bolt,
sheave pin, bearing disc, sheave, and spacer
bushing, Fig. 3.
8) Route a cable through a carriage and out the
bottom. Route it back up and into the inside hole
at the top of the carriage, see Fig 3. Ensure
cables do not twist or wrap around hoses
during routing.
9) Install a nut and jam nut at the cable end, Fig 3.
10) Reinstall the sheave. Place the bearing disc
inside the bracket centered over the bracket hole
based on the chosen install height. Install the
cable on the sheave and slide into place. Stack
the spacer bushing onto the sheave assembly.
Still holding the sheave assembly, slide the pin
into place and secure it with the bolt, see Fig 3.
11) Pull tension on the free end of the cable and
ensure proper routing. While pulling tension on
the cable, slide the cylinder and carriage down
until the carriage is 8” from the baseplate. Slide
the hydraulic cylinder down and route the
hydraulic hose around the hose guide tabs to
prevent rotation of the cylinder, Fig 4. While
pulling tension on the cable to avoid kinking, slide
the carriage and cylinder down to base of lift.
BASE PLATE
BASE PLATE
BASE PLATE
BASE PLATE
Fig. 3 – Cable Routing
Fig. 4 - Hose Connection

Model CL12A
Installation, Operation and Maintenance
Page 6
Rev. 01/23/2023
CL12-IOM-A.doc
12) Assemble column extension to column by lining
up the correct set of holes and using the 3/8”-16 x
3/4" lg. hex flange head bolts, Fig. 5.
Note: the column extensions are adjustable by
6” except for the CL12A-LC.
Fig. 5 – Column Extension Assembly
13) Repeat the cable routing / lower sheave install
and the column extension install for the other
column.
14) Erect and align both column assemblies.
LOCK PAWL
15) Install the lock components on the Power & Idler
columns as shown in Fig. 6a & 6b. The D-Rings
used to connect both ends of the Long 3/8 OD
Spring act as chain links. Feed one end of the D-
Ring through both items and squeeze the link
closed with pliers until ends overlap as shown.
Power Side
Fig. 6a – Power Locking Pawl Assembly
Idler Side
Idler Side
Idler Side
Idler Side
Idler Side
Idler Side
Idler Side
Idler Side
Idler Side
Idler Side
Idler Side
Idler Side
Idler Side
Idler Side
Idler Side
Idler Side
Fig. 6b – Idler Locking Pawl Assembly

Model CL12A
Installation, Operation and Maintenance
Page 7
Rev. 01/23/2023
CL12-IOM-A.doc
ANCHORING
The anchor bolts must be installed at least 8” from
any crack, edge, or expansion joint. Recheck the
area around both base plates.
Use a concrete hammer drill with a 3/4 inch carbide
bit. Tip diameter should conform to ANSI Standard
B94.12-1977 (.775 to .787). Do not use excessively
worn bits or bits, which have been incorrectly
sharpened. A core bit may be necessary if an
obstruction is encountered. Never substitute with
shorter anchor.
16) Recheck “Inside of Columns” dimension (Fig. 1).
17) Using the base plate as a template, drill one
anchor hole. Drill through the floor if possible or to
a depth of 5 inches minimum.
18) Clean the hole inside and out.
19) Assemble a washer and nut to the anchor with nut
just below impact section of bolt. Drive the anchor
into the hole until the nut is 3/4” above the
baseplate (leaving room for shims).
Complete steps 17 thru 19 for the six (6) exposed
anchors (one at a time) around each column.
20) Raise both carriages (275 lbs. ea.) high enough to
drill the two inner anchor holes on each column.
Measure both carriage heights to ensure they are
in the same lock position.
21) IMPORTANT:Place a safety support inside each
column as a backup to the locks, since the
hydraulic cylinders are no longer engaged with
the carriages.
22) Repeat steps 17 thru 19 for the two (2) anchors
under each carriage.
23) Shim both columns to plumb using the shims
provided as shown in Fig. 7. DO NOT shim more
than 1/2" at any given point. Use a level no less
than 24” in length to plumb columns.
24) Drive all the anchors until nut and washer contact
baseplate.
Fig. 7 – Column Shimming
25) Tighten Power Column anchors and recheck
column for plumb. Re-shim if necessary. Torque
to 150 foot pounds to set anchors.
26) Loosen Idler Column anchors 1/8” and proceed
with the Overhead Beam installation.
OVERHEAD
27) Before raising overhead into position install 4 (2
per column) hex flange bolts and nuts in bottom
hole of column extension (see Fig. 8 Installation
Aid) for temporary support of overhead. Lift
overhead assembly up into position and install
with 8 each (4 per column) 3/8”-16 x 3/4” lg. hex
flange bolts and hex flange nuts per side as
shown in Fig. 8. For the max width position, the
outer overhead holes will be used. For the (-6”)
width, use one set of outer overhead holes and
one set of inner overhead holes. For the (-12”)
width, use the inner sets of overhead holes.
Fig. 8 – Overhead Assembly
28) Check idler column shimming. Use additional
shims (see Fig. 7) to remove any gaps that may
have been created while installing overhead
beam. Tighten anchor bolts and re-check column
for plumb. Torque to 150 foot-pounds.

Model CL12A
Installation, Operation and Maintenance
Page 8
Rev. 01/23/2023
CL12-IOM-A.doc
29) Attach the Overhead Limit Switch to the rear set
of holes on the Power Side of the Overhead
Beam using the hardware already attached to
the switch bracket, Fig. 9.
Fig. 9 – Overhead Limit Switch Power Side
30) Repeat for Idler Side – Attach the Idler Bracket
to the rear set of holes on the Idler Side of the
Overhead Beam using the hardware already
attached to the bracket, Fig. 10. Note the
orientation of the Idler Bracket. The narrow
slot needs to be facing towards the Power
Column.
Fig. 10 – Overhead Bracket Idler Side
31) Carefully insert the Shutoff Bar into the Power
Side Switch Bracket over the limit switch and pin
the Shutoff Bar to the Idler Side Bracket with the
10mm dia. x 55mm Lg. clevis pin & hairpin
cotter.

Model CL12A
Installation, Operation and Maintenance
Page 9
Rev. 01/23/2023
CL12-IOM-A.doc
SYNCHRONIZER CABLES
32) Route the free end of a cable coming out the top
of the carriage up and over the upper sheaves and
back down the opposite side. Install a 3/8x3 cable
trapping bolt with a nut on each side of the
overhead support plate at each sheave, Fig. 11.
Do this for both cables.
Fig. 11 – Column Ext. Cable Trapping
33) Mount synchronizer cables to carriages as shown
in Fig. 12.
Fig. 12 – Cable Attachment at the Carriage
Hydraulics
IMPORTANT: To ensure proper hose fitting seal
without damage to the fitting follow this procedure
for each hose connection: Screw flared fitting on
finger tight. Rotate flared fitting 1 1/2 hex flats (90
deg.). Back the flared fitting off one full turn. Again
tighten flared fitting finger tight, then rotate flared
fitting 1 1/2 hex flats (90 deg.).
Fig. 13 – Idler Hose Routing & Hose Brackets
34) Install the Hose Guide Brackets and Hose
Support Tabs to both the Idler & Power Columns
using 1/4”-20NC x 3/4” lg. hex flange bolt and nut,
see Fig 13.
35) Uncoil Idler side hose and Overhead hose and
attach them together. Route the loose end up the
Idler Side column extension and attach to the
Hose Support Tab with a “P” Clamp, Fig. 13.
(Each hose clamp requires one 3/8”-16NC x 3/4”
lg. hex flange bolt and one hex flange nut.)
Remove slack and tighten the clamp.
36) Route hose across overhead through both Hose
Guide Brackets, Fig.13, and down through the
Power Side column extension. Do not attach
clamps to the Overhead Hose at this time.
37) Uncoil Power Column hose and loosely attach it
to the hydraulic tee fitting (in hardware box). Note:
CL12A-1 & CL12A-2 will require two extension
hoses (supplied) to be attached to the tee
fitting to extend the power column hose and to
the power unit to extend the power unit hose.
38) Bring the Power Unit Hose and Power Side Hose
up the column to the lowest available hole of the
column extension. Insert steel tubing end of the
Power Unit Hose into the extension (outside in)
and loosely connect to the tee. Leave the
assembly hanging.

Model CL12A
Installation, Operation and Maintenance
Page 10
Rev. 01/23/2023
CL12-IOM-A.doc
39) Install a steel line clamp and hose clamp on the
outside of the power column extension to secure
the power unit hose, as shown in Fig 14. (Use
1/4”-20NC x 3/4” lg. hex flange bolt, Spacer, and
hex flange nut for steel line clamp. The Spacer
goes between the Power Side Column Extension
and Line Clamp.) Note: The steel line inside the
column should be horizontal.
1
4-20NC NUT
1
4NYLON SPACER
HYD. LINE CLAMP
1
4-20NC x 3 4BOLT
POWER UNIT
HOSE
3
8HOSE CLAMP
5
16-18NC PPHS
3
8-16NC x 3
4BOLT
3
8-16NC NUT
3
8HOSE CLAMP
POWER SIDE
COLUMN
EXTENSION
STEEL LINE
CLAMP
HOSE CLAMP
POWER UNIT
HOSE
SPACER 1/4"-20
3/8"-16 BOLT
O-RING ELBOW
1
4-20NC NUT
1
4NYLON SPACER
HYD. LINE CLAMP
1
4-20NC x 3 4BOLT
POWER UNIT
HOSE
3
8HOSE CLAMP
5
16-18NC PPHS
3
8-16NC x 3
4BOLT
3
8-16NC NUT
3
8HOSE CLAMP
POWER SIDE
COLUMN
EXTENSION
STEEL LINE
CLAMP
HOSE CLAMP
POWER UNIT
HOSE
SPACER 1/4"-20
3/8"-16 BOLT
O-RING ELBOW
1
4-20NC NUT
1
4NYLON SPACER
HYD. LINE CLAMP
1
4-20NC x 3 4BOLT
POWER UNIT
HOSE
3
8HOSE CLAMP
5
16-18NC PPHS
3
8-16NC x 3
4BOLT
3
8-16NC NUT
3
8HOSE CLAMP
POWER SIDE
COLUMN
EXTENSION
STEEL LINE
CLAMP
HOSE CLAMP
POWER UNIT
HOSE
SPACER 1/4"-20
3/8"-16 BOLT
O-RING ELBOW
1
4-20NC NUT
1
4NYLON SPACER
HYD. LINE CLAMP
1
4-20NC x 3 4BOLT
POWER UNIT
HOSE
3
8HOSE CLAMP
5
16-18NC PPHS
3
8-16NC x 3
4BOLT
3
8-16NC NUT
3
8HOSE CLAMP
POWER SIDE
COLUMN
EXTENSION
STEEL LINE
CLAMP
HOSE CLAMP
POWER UNIT
HOSE
SPACER 1/4"-20
3/8"-16 BOLT
O-RING ELBOW
Fig. 14 - Power Unit Hose Clamps
40) If installing a CL12A-LC, CL12A-0 or CL12A-1,
use the Routing Diagram C in Fig 15. If installing
a CL12A-2 use the table in Fig 14 to determine
the proper routing diagram A, B, OR C.
CL12A-2 Max Width and Height CL12A-2 6" Reduced Height without Reduced Width CL12A-2 6" or 12" Reduced Width without Reduced Height CL16-2 6" Reduced Height with 6" or 12" Reduced Width CL16-0 ALL Widths and Heights
CL12A-2
HEIGHT
CL12A-2 WIDTH
STD -6" -12"
MAX
-6"
AB
C
HOSE ROUTING TABLE
HOSE ROUTING DIAGRAMS
B
BC
BC
A
CL12A-2 Max Width and Height CL12A-2 6" Reduced Height without Reduced Width CL12A-2 6" or 12" Reduced Width without Reduced Height CL16-2 6" Reduced Height with 6" or 12" Reduced Width CL16-0 ALL Widths and Heights
CL12A-2
HEIGHT
CL12A-2 WIDTH
STD -6" -12"
MAX
-6"
AB
C
HOSE ROUTING TABLE
HOSE ROUTING DIAGRAMS
B
BC
BC
A
CL12A-2 Max Width and Height CL12A-2 6" Reduced Height without Reduced Width CL12A-2 6" or 12" Reduced Width without Reduced Height CL16-2 6" Reduced Height with 6" or 12" Reduced Width CL16-0 ALL Widths and Heights
CL12A-2
HEIGHT
CL12A-2 WIDTH
STD -6" -12"
MAX
-6"
AB
C
HOSE ROUTING TABLE
HOSE ROUTING DIAGRAMS
B
BC
BC
A
CL12A-2 Max Width and Height CL12A-2 6" Reduced Height without Reduced Width CL12A-2 6" or 12" Reduced Width without Reduced Height CL16-2 6" Reduced Height with 6" or 12" Reduced Width CL16-0 ALL Widths and Heights
CL12A-2
HEIGHT
CL12A-2 WIDTH
STD -6" -12"
MAX
-6"
AB
C
HOSE ROUTING TABLE
HOSE ROUTING DIAGRAMS
B
BC
BC
A
Fig. 15 – Overhead Hose Routing Diagram
41) Route the overhead hose based on the lifts height
and width. To make a loop, twist the hose. Loosely
connect the overhead hose to the other end of the
tee.

Model CL12A
Installation, Operation and Maintenance
Page 11
Rev. 01/23/2023
CL12-IOM-A.doc
42) Tighten the three hose fitting connections at the
Tee taking care not to twist or change the lay of
any hose. Install and tighten the “P” clamp on the
power side to hold up the connection to the tee,
see Fig 16.
Fig. 16 – Power Side Hose Routing
43) Install the rest of the overhead hose clamps as
shown in Fig 15 depending on the lift
configuration.
44) Each column hose should connect to its cylinder
with a 90 degree elbow rotated up from horizontal
and be routed thru the Hose Guide Tabs as shown
in Fig. 17.
Fig. 17 - Hose Connection
45) Slightly loosen the 90 Degree Fitting jam nut at
the bottom of the Power Side Cylinder. Rotate
fitting to remove the slack from the power side
hose and tighten jam nut. Note: This is not
necessary for the Idler side.
46) Mount Power Unit to power unit bracket on the
column as shown in Fig. 14. The mounting
hardware, (4) 5/16”-18 hex nuts, are pre-installed
on power unit mounting bracket.
47) Install 9/16”-18 O-ring elbow (in hardware box) into
power unit, and attach free end of power unit hose
to elbow, Fig.14.
48) Attach the power unit hose to the column and
column extension using the hose clamps, Fig.14.
49) BE CERTAIN ALL FITTINGS AND CONNECTIONS ARE
TIGHT. IT IS THE INSTALLERS RESPONSIBILITY TO
ENSURE SYSTEM IS LEAK-FREE. Fill the Power Unit
with three gallons of clean 10wt anti-foam anti-
rust hydraulic oil or Dexron III ATF. DO NOT USE
OILS WITH DETERGENTS.
LOCK RELEASE
50) Pick one end of the Lock Release Cable
Assembly and attach its Threaded Adjustment
Sleeve to the Upper Mounting Tab on the power
side lock. Insert the adjustment sleeve into the
mounting tab notch and position the adjustment
sleeve nuts so the bottom of the sleeve sticks out
approx. 3/8” from bottom hex jam nut, Fig. 18a.
Fig. 18a-Lock Release – Power Side
51) Connect clevis end of the cable assembly to the
center tab of the lever assembly using a clevis pin
and (2) E-clips, Fig. 18a.
52) Route other end of lock release cable up thru
power side column extension, over and thru idler
side column extension, and down to mounting
location on idler column.

Model CL12A
Installation, Operation and Maintenance
Page 12
Rev. 01/23/2023
CL12-IOM-A.doc
53) Attach the Lower Mounting Tab to the idler
column using the 5/16-18 x 3/8 long Phillips pan
head screw. Rotate slightly to be in-line with
connection to lock pawl as shown in Fig. 18b.
Fig. 18b-Lock Release – Idler Side
54) Hook the 1/2” O.D. (short) spring to the left side of
the Lock Pawl Tab, collapse the clevis at the end
of the lock release cable, and hook the clevis to
the bottom of the 1/2” O.D. spring, Fig. 18b.
55) Mount lock release cable threaded adjustment
sleeve to lower mounting tab using jam nuts.
56) Use wire ties provided to secure lock cable to the
hydraulic hose.
ARM INSTALLATION
57) Extend the foot pad to both extents and apply
“anti-seize” to the retaining ring.
58) Arm restraint assemblies should be installed on
carriage as shown in Fig. 19.
Fig. 19-Arm Restraint
59) Install inner arm gear to bottom of arm using (2)
M10 x 25 Hex bolts as shown in Fig. 20. Do not
tighten bolts at this time.
Fig. 20-Inner Arm Gear
60) Lubricate the arm pin or carriage arm pin hole with
“anti-seize” and install the arms.
61) Adjust placement of inner arm gear until gears
fully engage with one another throughout the
rotation of the arm and tighten bolts.
62) Adjust the hex head bolt in the bottom of the arm
restraint shaft so the arm is allowed to rotate freely
when lift is completely lowered, Fig. 21.
Fig. 21-Bolt Adjustment

Model CL12A
Installation, Operation and Maintenance
Page 13
Rev. 01/23/2023
CL12-IOM-A.doc
ADAPTER RACK INSTALLATION
63) Locate the two pre-drilled holes on the back of
each column 19” up from the top of the base plate
and tap 5/16-18. Center the adapter rack and
attach with 5/16-18NC Phillips Pan Head Screws
supplied, Fig. 22.
Fig 22-Adapter Rack Installation
SAFETY DECAL PLACEMENT
64) Clean surface of the rear column above the power
unit and install Safety Decals, Page 3 and Fig. 23.
Fig. 23-Safety Decal Placement
ELECTRICAL
See Figure 25 for the following steps.
65) Wire-tie Limit Switch cord to power unit hose.
66) Connect the Overhead Limit Switch Cord to
Power Unit, Fig. 25.
67) Connect Power Unit to suitable electrical source
as shown in Fig. 25.
IMPORTANT:AFTER WIRING HAS BEEN
COMPLETED,TEST OPERATION OF POWER UNIT &
OVERHEAD LIMIT SWITCH.WHILE RAISING LIFT,
OPERATE OVERHEAD SHUTOFF BAR.POWER UNIT
MOTOR SHOULD STOP WHEN SHUTOFF BAR IS
RAISED.

Model CL12A
Installation, Operation and Maintenance
Page 14
Rev. 01/23/2023
CL12-IOM-A.doc
FINAL ADJUSTMENTS
HYDRAULICS
68) Lower the lift to the floor and raise the lift
approximately one foot.
69) Start with Idler side first. Slowly and carefully
loosen the bleed plug on top of the cylinder just
enough to allow the entrapped air to escape.
Repeat for power side.
70) Raise lift 6 inches. Repeat step 69 until no air
comes out of cylinder.
71) Pressure test hydraulic system. Energize power
unit, raise lift to full rise and continue to run motor
for additional 10 seconds. (NOTE: pressure relief
will make a high pitch squeal sound for these 10
seconds.) Check hydraulic system for leaks.
72) Energize power unit again for 10 seconds. With a
clean rag, wipe down both cylinder rods. (The
cylinders are shipped with a small amount of clear
anti-corosive lubricant that will be forced out
through the wiper when the lift reaches full rise.)
If lubricant is not wiped clean from the
cylinder rod, the cylinder will apear to be
leaking.
SYNCHRONIZING CABLES
73) Raise lift and ensure carriages lower into same
lock position.
74) Adjust synchronizing cables so the tension is
equal in both cables and carriages are firmly
sitting on locks.
75) Cycle lift to ensure that latches operate
simultaneously. Adjust if necessary.
LOCK RELEASE
76) Lower lift to the floor and snap plastic cover over
Power Column lock assembly.
77) Pull and release Power Column lock release
handle while watching Idler Column lock. Adjust
lower threaded sleeve cable adjuster jam nuts on
Idler Column until Idler Column lock disengages
and engages fully. When properly adjusted, the
idler column lock should just come to rest against
the back of the column when engaged and fully
out against the tab when disengaged. Tighten
Idler Column lower tab jam nuts.
IMPORTANT: IF IDLER SIDE LOCK PAWL DOES NOT
FULLY DISENGAGE,DAMAGE MAY RESULT TO IDLER SIDE
CARRIAGE AND OR CABLE SYNCHRONIZING SYSTEM.
78) Tighten threaded sleeve cable adjuster jam nuts
and install lock release knob.
79) Tighten and trim wire ties.
80) Snap plastic cover over Idler lock assembly (align
release cable with notches in cover).
ARM PIN KEEPER INSTALL
81) Install the arm pin into the arm assembly and
carriage.
82) Raise lift high enough to gain access underneath
the carriage. Make Sure Lift Is In Locks Before
Proceeding.
83) Slide the provided washer onto pin up against the
inner bevel gear.
84) Install the provided retaining ring onto the pin with
tool, Fig 24.

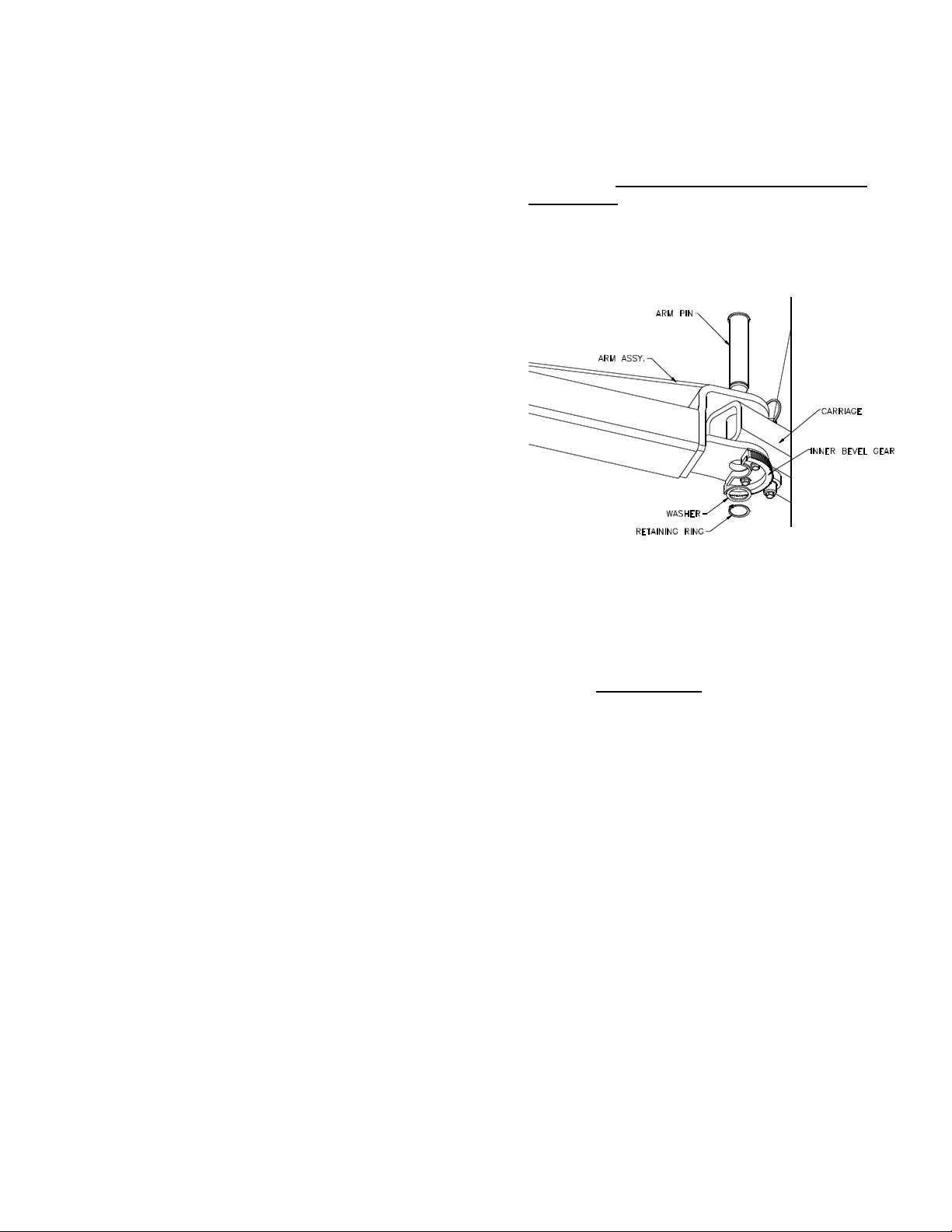

Fig 24 –Arm Pin Keeper Install
FINAL CHECKOUT PROCEDURE
85) Demonstrate the operation of the lift to the
owner/operator/employer using a typical vehicle
and review correct and safe lifting procedures
using the Lifting It Right booklet as a guide.
86) Return all provided literature (including this
manual) to the literature pack envelope and
deliver the envelope to the
owner/operator/employer.
87) Complete the online warranty registration (refer
to the included warranty statement).

Model CL12A
Installation, Operation and Maintenance
Page 15
Rev. 01/23/2023
CL12-IOM-A.doc
1
5
4
6
(Normally Open)
M
FIELD
CONECTIONS
FIELD
CONECTIONS
A2A1
T9
T5
T4
T6
M
T8
T3
T7
T2
T1
12
34
56
L3
L2
L1
T3
T2
T1
FACTORY WIRED FOR
208−240V
6
4
2
5
3
1
RECONNECTIONS FOR
440−480V
T3
T2
T1
T9
T6
T7
T4
T8
T5
FOR THREE PHASE
M
FOR SINGLE PHASE
Wiring Diagram
Fig. 23 – Electrical Wiring Diagram

Model CL12A
Installation, Operation and Maintenance
Page 16
Rev. 01/23/2023
CL12-IOM-A.doc
OPERATION PROCEDURE
SAFETY NOTICES AND DECALS
This product is furnished with graphic safety
warning labels, which are reproduced on page
3 of these instructions. Do not remove or
deface these warning labels, or allow them to
be removed or defaced. For your safety, and
the safety of others, read and understand all of
the safety notices and decals included.
OWNER/EMPLOYER RESPONSIBILITIES
This lift has been designed and constructed according
to ANSI/ALI ALCTV-2011 standard. The standard
applies to lift manufactures, as well as to owners and
employers. The owner/employer’s responsibilities as
prescribed by ANSI/ALI ALOIM-2008, are summarized
below. For exact wording refer to the actual standard
provided with this manual in the literature pack.
The Owner/Employer shall ensure that lift
operators are qualified and that they are trained in
the safe use and operation of the lift using the
manufacturer’s operating instructions; ALI/SM 93 -
1, ALI Lifting it Right safety manual; ALI/ST-90 ALI
Safety Tips card; ANSI/ALI ALOIM-2008,
American National Standard for Automotive Lifts-
Safety Requirements for Operation, Inspection
and Maintenance; ALI/WL Series, ALI Uniform
Warning Label Decals/Placards; and in case of
frame engaging lifts, ALI/LP-GUIDE, Vehicle
Lifting Points/Quick Reference Guide for Frame
Engaging Lifts.
The Owner/Employer shall establish procedures
to periodically inspect the lift in accordance with
the lift manufacturer’s instructions or ANSI/ALI
ALOIM-2008, American National Standard for
Automotive Lifts-Safety Requirements for
Operation, Inspection and Maintenance; and the
employer shall ensure that the lift inspectors are
qualified and that they are adequately trained in
the inspection of the lift.
The Owner/Employer shall establish procedures
to periodically maintain the lift in accordance with
the lift manufacturer’s instructions or
ANSI/ALIOIM-2008, American National Standard
for Automotive Lifts-Safety Requirements for
Operation, Inspection and Maintenance; and the
employer shall ensure that the lift maintenance
personnel are qualified and that they are
adequately trained in the maintenance of the lift.
The Owner/Employer shall maintain the periodic
inspection and maintenance records
recommended by the manufacturer or ANSI/ALI
ALOIM-2008, American National Standard for
Automotive Lifts-Safety Requirements for
Operation, Inspection and Maintenance.
The Owner/Employer shall display the lift
manufacturer’s operating instructions; ALI/SM 93 -
1, ALI Lifting it Right safety manual; ALI/ST-90 ALI
Safety Tips card; ANSI/ALI ALOIM-2008,
American National Standard for Automotive Lifts-
Safety Requirements for Operation, Inspection
and Maintenance; and in the case of frame
engaging lift, ALI/LP-GUIDE, Vehicle Lifting
Points/Quick Reference Guide for Frame
Engaging Lifts; in a conspicuous location in the lift
area convenient to the operator.
IMPORTANT SAFETY INSTRUCTIONS
When using your garage equipment, basic safety
precautions should always be followed, including
the following:
1. Read all instructions.
2. Care must be taken as burns can occur from
touching hot parts.
3. To reduce the risk of fire, do not operate
equipment in the vicinity of open containers
of flammable liquids (gasoline).
4. Keep hair, loose clothing, fingers, and all
parts of body away from moving parts.
5. Use only as described in this manual. Use
only manufacturer’s recommended
attachments.
6. ALWAYS WEAR SAFETY GLASSES.
Everyday eyeglasses only have impact
resistant lenses, they are not safety glasses.
SAVE THESE INSTRUCTIONS

Model CL12A
Installation, Operation and Maintenance
Page 17
Rev. 01/23/2023
CL12-IOM-A.doc
LIFTING A VEHICLE
1) Ensure that the lifting arms are parked, out to full
drive thru position.
2) Center the vehicle between the columns in the
service bay and position the vehicle’s center of
gravity midpoint between the columns. NOTE: the
center of gravity is based on the weight distribution
and is not the same as the center point of the
vehicle.
DO NOT EXCEED 3000 POUNDS PER ARM.
DO NOT ATTEMPT TO LIFT THE VEHICLE WITH ONLY TWO
ARMS,AS THIS WILL VOID THE WARRANTY
ENSURE THAT THE HIGHEST POINT ON THE VEHICLE WILL
CONTACT THE OVERHEAD LIMIT SWITCH BAR.
DO NOT PLACE THE VEHICLE IN THE SERVICE BAY
BACKWARDS.
REFER TO THE VEHICLE MANUFACTURERS SERVICE
MANUAL,TECHNICAL BULLETINS,“VEHICLE LIFTING
POINTS GUIDE”(ALI/LP-GUIDE)OR OTHER
PUBLICATIONS TO LOCATE THE RECOMMENDED LIFTING
POINTS.
3) Position the arms and adapters so all four pads
contact the vehicle simultaneously.
The vehicle should remain level during lifting.
4) Press the raise button until all four wheels are off
the ground. Test the stability of the vehicle by
attempting to rock the vehicle. Check adapters for
secure contact with vehicle lift points. If the vehicle
seems unstable, lower the lift and readjust the
arms. If the vehicle is stable, raise the vehicle to a
height a few inches above the desired working
height.
5) Depress the lowering valve handle to lower the
vehicle until the latches on both columns engage.
The vehicle should remain level when both latches
are engaged. If one side engages and the other
continues to descend, stop lowering the vehicle,
raise it several inches, and try again to engage both
latches.
Always lower lift into locks before entering the
area beneath the vehicle.
Always use safety stands when removing or
installing heavy components.
LOWERING AVEHICLE
1) Ensure that the area under the vehicle is clear of
personnel and tools.
2) Press the Raise Button until both latches are free.
3) Disengage the locks by pulling down on the lock
release lever.
4) Lower the vehicle by depressing the lowering valve
handle.
5) Continue to lower the vehicle until the carriages
stop against the base plate. Retract the extension
arms, and park them.
LOSS OF POWER
If for any reason the lift will not raise off of the locks or
the locks will not retract, consult factory authorized
personnel.
DO NOT OVERRIDE ANY SAFETY FEATURE IN AN
ATTEMPT TO LOWER THE LIFT.
MAINTENANCE
To avoid personal injury, permit only qualified
personnel to perform maintenance on this equipment.
Maintenance personnel should follow lockout/tagout
instructions per ANSI Z244.1.
The following maintenance points are suggested as
the basis of a routine maintenance program. The
actual maintenance program should be tailored to the
installation. See ANSI/ALI ALOIM booklet for periodic
inspection checklist and maintenance log sheet.
If lift stops short of full rise or chatters, check fluid
level and bleed both cylinders per Installation
Instructions.
Replace all Safety, Warning or Caution Labels if
missing or damaged (See Installation instructions
page 3.)
Daily
Keep lift components clean.
Check for loose or broken parts.
Check hydraulic system for fluid leaks.
Check adapters for damage or excessive wear.
Replace as required with genuine Challenger Lifts
parts.
Check the lock release activation. When properly
adjusted, both locks should be in a vertical position
when lock release lever is pulled and should return
to an engagement position when the lever is
released.
Weekly
Check synchronizer cables and sheaves for wear.
Replace as required with genuine Challenger Lifts
parts.
Check synchronizer cable tension per Installation
Instructions. Adjust if necessary.
Monthly
Torque concrete anchor bolts to 80 ft-lbs.
Visually inspect concrete floor for cracks and/or
sprawls within 12” of base plate
Check overhead shutoff switch. While raising lift,
operate overhead shutoff bar. Power Unit motor
should stop when bar is raised.
Lubricate carriage slide tracks with heavy viscous
grease. (Grease all (4) corners of both columns.)
If any problems are encountered, contact your
local service representative.

Model CL12A
Installation, Operation and Maintenance
Page 18
Rev. 01/23/2023
CL12-IOM-A.doc
PARTS BREAKDOWN
Fig A. Column Extension & Overhead
ITEM # PART # QTY/LIFT DESCRIPTION
1 12810-P 1 POWER COLUMN WELD
12810-I IDLER COLUMN WELD
2
12821-143
2
COLUMN EXTENSION WELD FOR CL12-LC
12821-164 COLUMN EXTENSION WELD FOR CL12-0
12821-176 COLUMN EXTENSION WELD FOR CL12-1
12821-188 COLUMN EXTENSION WELD FOR CL12-2
3 12815 1 OVERHEAD
4 A2067 1 SHUTOFF BAR
5 31129 1 SHUTOFF BAR CUSHION
6 B2064-01 1 LIMIT SWITCH PACKAGE
(INCLUDES SWITCH w/ CORD, BOTH BRACKETS, & ITEMS 7-10)
7 B2065-3 4 M6 x 14mm PHILLIPS PAN HEAD SCREW
8 B2065-4 4 M6 SERRATED FLANGE HEX NUT
9 B2065-5 1 CLEVIS PIN 10mm x 55 Lg.
10 GJY12-3 1 HAIRPIN COTTER
11 A1153 30 3/8-16NC HEX. FLG. HD. C.S x ¾” Lg.
12 A1154 38 3/8-16NC HEX. FLG. NUT
13 A1122-12 2 HYD. HOSE CLAMP
14 A2159 4 3/8-16NC x 3” Lg. HEX HEAD CAP SCREW
15 12825 2 HOSE GUIDE BRACKET (PIPE)
16 A2125 8 1/4-20NC x 3/4" Lg. SER. FLG. CAP SCREW
17 40085 8 1/4-20NC HEX. FLG. NUT
18 12750 2 HOSE SUPPORT BRACKET (T)
19 40346 8 ZIP TIE 8” Lg. (FOR PENDANT CORDS, DPC ONLY)
20 31118 4 ZIP TIE 3 1/2" Lg. (FOR LOCK RELEASE CABLE)
Replace all worn, damaged, or broken parts with parts approved by Challenger Lifts Inc.
or with parts meeting Challenger Lifts Inc. specifications.
Contact your local Challenger Lifts Parts Distributor for pricing and availability.
(Call Challenger Lifts Inc. [phone] for the Parts Distributor in your area)

Model CL12A
Installation, Operation and Maintenance
Page 19
Rev. 01/23/2023
CL12-IOM-A.doc
PARTS BREAKDOWN (continued)
Fig B. Lock-Power/Idler
ITEM # PART # QTY/LIFT DESCRIPTION
21 12616 2 LOCK WELD
22 12518 2 LOCK RETAINER
23 12073 4 5/16”-18 x 5/8" Lg. THREAD CUTTING PAN HEAD SCREW
24 37072 2 LOCK COVER
25 37042 2 PIVOT ROD
26 37031 4 5/32 SPEED NUT
27
12804-LC
1
LOCK RELEASE CABLE ASSEMBLY (CL12-LC)
12804-0 LOCK RELEASE CABLE ASSEMBLY (CL12-0)
12804-1 LOCK RELEASE CABLE ASSEMBLY (CL12-1)
12804-2 LOCK RELEASE CABLE ASSEMBLY (CL12-2)
28 12715 1 3/8 ” O.D. LONG EXTENSION SPRING
29 12716 2 D-RING CONNECTOR LINK
30 A1131 3 3/8” O.D. EXTENSION SPRING
31 12654 1 3/8” x 3 ¼” LONG CLEVIS PIN
32 12658 2 NYLON SPACER
33 A1142-12 1 LOCK RELEASE CLEVIS
34 A1134 1 STUD HANDLE
35 A1143 2 3/8”-16 HEX JAM NUT
36 36096 1 BALL HANDLE
37 40126 1 1/8” x 1 ½” COTTER PIN
38 37119 1 CLEVIS PIN KIT
39 A1130-02 1 LOCK CABLE MOUNTING TAB (BLACK)
40 A1132 1 1/2" O.D. SHORT EXTENSION SPRING
41 10335 7 5/16-18NC x 3/8” Lg. PHILLIPS PAN HEAD SCREW
42 A1122-12 2 HYD. HOSE CLAMP
43 B2209 2 ADAPTER ORGANIZER RACK
44 B2206-3 4 STACK ADAPTER EXTENSION – 3”
45 B2206-6 2 STACK ADAPTER EXTENSION – 6”
Replace all worn, damaged, or broken parts with parts approved by Challenger Lifts Inc.
or with parts meeting Challenger Lifts Inc. specifications.
Contact your local Challenger Lifts Parts Distributor for pricing and availability.
(Call Challenger Lifts Inc. [phone] for the Parts Distributor in your area)

Model CL12A
Installation, Operation and Maintenance
Page 20
Rev. 01/23/2023
CL12-IOM-A.doc
PARTS BREAKDOWN (continued)
Fig C. Hydraulics
ITEM # PART # QTY/LIFT DESCRIPTION
45 16138R 2 HYD. RAM CYLINDER (68” STROKE) (CL12-LC ONLY)
39097R 2 HYD. RAM CYLINDER (72” STROKE)
46 12791-LC 2 COLUMN HOSE (LOW CEILING HEIGHT, LENGTH 130”)
12791-0 COLUMN HOSE (STD. HEIGHT, LENGTH 151”)
47 12792-0 1 OVERHEAD HOSE (STD. HEIGHT, LENGTH 187”)
48 12539-012 2 1 FT. HOSE EXTENSION (CL12-1, LENGTH 12”)
12539-024 2 FT. HOSE EXTENSION (CL12-2, LENGTH 24”)
49 12793-LC 1 POWER UNIT HOSE (LOW CEILING HEIGHT, LENGTH 73”)
12793-0 POWER UNIT HOSE (STD.HEIGHT, LENGTH 88”)
50 39103 1 TEE FITTING
51 1
POWER UNIT - SEE PARTS BREAKDOWN Fig F. Electrical
52 16167 3 90 DEG. O-RING ELBOW
53 31025 1 LINE CLAMP
54 12748 1 1/4-20 x 1/4 NYLON SPACER
55 A2125 1 1/4"-20 x 3/4” HEX FLANGE NUT
56 40085 1 1/4”-20 HEX FLANGE NUT
Replace all worn, damaged, or broken parts with parts approved by Challenger Lifts Inc.
or with parts meeting Challenger Lifts Inc. specifications.
Contact your local Challenger Lifts Parts Distributor for pricing and availability.
(Call Challenger Lifts Inc. [phone] for the Parts Distributor in your area)
