Challenger Lifts Magnum Versymmetric OE-9 Instruction manual

Rev. 02/12/08
INSTALLATION, OPERATION & MAINTENANCE MANUAL
VersymmetricTM Two Post
Surface Mounted Lift
MODEL OE-9
9,000 LBS. CAPACITY
2250 LBS. PER ARM
200 Cabel Street, P.O. Box 3944 Louisville, Kentucky 40201-3944
Email:[email protected] Web site:www.challengerlifts.com
Office 800-648-5438 /502-625-0700 Fax [phone]
IMPORTANT: READ THIS MANUAL COMPLETELY BEFORE
INSTALLING or OPERATING LIFT

Model OE-9
Installation, Operation and Maintenance
Page 2 Rev. 02/1208
A1151_MAGNUM.doc
GENERAL SPECIFICATIONS
See Figure 1 OE-9 OE-9-1 OE-9-2
AAdjustable Column Height 11’-8” or 11’-2” 12’-8” or 12’-2” 13’-8” or 13’-2”
BFloor to Overhead Switch 11’-2” or 10’-8” 12’-2” or 11’-8” 13’-2” or 12’-8”
CRise Height (Screw Pads Highest Position) 74 5/8”
DCylinder Height (Full Stroke) 11’-11”
EAdjustable Overall Width 11’-2” or 10’-8“ or 10’-2”
FScrew Pad Height 4 ¼” to 6 ¾”
GInside of Columns 109” or 103” or 97”
Drive Thru Clearance 89” or 83” or 77”
Ceiling Height Required 12’-0” 12’-9” 13’-9”
* Maximum Capacity 9,000 lbs. (2250 lbs.Per Arm)
** Lifting Time 60 Sec. (approximate)
** Lowering Time 30 Sec. (approximate)
Motor 2HP, Single Phase, 60Hz, 208/230
Optional – 2HP, Three Phase, 50/60Hz, for 208 or 230 or 460
Dimensions in BOLD are “Standard” settings.
Installing the lift at a narrow setting (E=103”or97”)may adversely affect ability to reach some
vehicle pick up points and requires cutting the overhead shutoff bar.
* Lift capacity ratings are based on loads equally distributed on all four arms.
** Lifting and lowering speeds may vary depending on weight of vehicle.
(USE AS REFERENCE ONLY)
SEE CHART ABOVE
(USE AS REFERENCE ONLY)
SEE CHART ABOVE
(USE AS REFERENCE ONLY)
SEE CHART ABOVE
(USE AS REFERENCE ONLY)
SEE CHART ABOVE
F
E
E
F
E
F
E
F
G
G
G
G
C
C
C
C
A
D
B
B
DAB
DAB
DA
144" [12'-0"]
MIN. TO
NEAREST
OBSTRUCTION
144" [12'-0"]
MIN. TO
NEAREST
OBSTRUCTION
144" [12'-0"]
MIN. TO
NEAREST
OBSTRUCTION
144" [12'-0"]
MIN. TO
NEAREST
OBSTRUCTION
6' TO NEAREST
OBSTRUCTION
OR 7' TO
NEAREST WALL
1012" REF
108" [9'-0"]
MIN.TO
NEAREST
OBSTRUCTION
108" [9'-0"]
MIN.TO
NEAREST
OBSTRUCTION
1012" REF
6' TO NEAREST
OBSTRUCTION
OR 7' TO
NEAREST WALL
108" [9'-0"]
MIN.TO
NEAREST
OBSTRUCTION
1012" REF
6' TO NEAREST
OBSTRUCTION
OR 7' TO
NEAREST WALL
108" [9'-0"]
MIN.TO
NEAREST
OBSTRUCTION
1012" REF
6' TO NEAREST
OBSTRUCTION
OR 7' TO
NEAREST WALL
(INSIDE COLUMN TO COLUMN)
SEE CHART ABOVE
COLUMN BASE PLATES
COLUMN BASE PLATES
(INSIDE COLUMN TO COLUMN)
SEE CHART ABOVE
COLUMN BASE PLATES
(INSIDE COLUMN TO COLUMN)
SEE CHART ABOVE
COLUMN BASE PLATES
(INSIDE COLUMN TO COLUMN)
SEE CHART ABOVE
DRIVE ON
DIRECTION
DRIVE ON
DIRECTION
DRIVE ON
DIRECTION
DRIVE ON
DIRECTION
Fig 1a - General Specifications Fig1b - Service Bay Layout

Model OE-9
Installation, Operation and Maintenance
Page 3 Rev. 02/1208
A1151_MAGNUM.doc
WARNING
VERTICAL CLEARANCE
Check the height of the area where the lift is to
be installed. Clearance should be calculated
based on the full raised height of the lift.
Failure by purchaser to
provide adequate
clearance could result in
unsatisfactory lift performance, property
damage, or personal injury.
FLOORING
Be certain you have the proper concrete floor to
properly handle the loaded lift. Floor should be in
generally good condition with no large cracks,
spalling or deterioration.
Minimum requirements for concrete are 4
inches minimum depth, with steel
reinforcement, 3500 psi, cured for 28 days per
local commercial practice. Floor should be
level within 3/8 inch over the installation area. No
anchors should be installed within 8 inches of any
crack, edge, or expansion joint. If these
conditions cannot be met, a pad may be poured
to accommodate the lift.
Check with local building inspectors and/or
permits office for any special instructions or
approvals required for your installation.
Failure by purchaser to
provide the recommended
mounting surface could
result in unsatisfactory lift performance,
property damage, or personal injury.
LOCATION
This lift has been evaluated for indoor use only
with an operating ambient temp. range of 5 –
40°C (41–104°F)
ELECTRICAL REQUIREMENTS
For lift installation and operation for single phase
units, it is necessary to have a dedicated circuit
with a double pole 25 amp circuit breaker or time
delay fuse.
SAFETY NOTICES AND DECALS
For your safety, and the safety of others, read
and understand all of the safety notices and
decals included here.
READ ENTIRE MANUAL BEFORE
ASSEMBLING, INSTALLING,
OPERATING, OR SERVICING THIS
EQUIPMENT.
PROPER MAINTENANCE AND
INSPECTION IS NECESSARY FOR SAFE
OPERATION.
DO NOT OPERATE A DAMAGED LIFT.
Safety decals similar to those shown here are
found on a properly installed lift. Be sure that all
safety decals have been correctly installed on the
Power Unit reservoir. Verify that all authorized
operators know the location of these decals and
fully understand their meaning. Replace worn,
faded, or damaged decals promptly.
Do not attempt to raise a
vehicle on the lift until the
lift has been correctly
installed and adjusted as described in this
manual.
WARNING
WARNING

Model OE-9
Installation, Operation and Maintenance
Page 4 Rev. 02/1208
A1151_MAGNUM.doc
RECEIVING
The shipment should be thoroughly inspected as
soon as it is received. The signed bill of lading is
acknowledgement by the carrier of receipt in
good condition of shipment covered by our
invoice.
If any of the goods called for on this bill of lading
are shorted or damaged, do not accept them until
the carrier makes a notation on the freight bill of
the shorted or damaged goods. Do this for your
own protection.
NOTIFY Challenger Lifts AT ONCE if any
hidden loss or damage is discovered after
receipt.
IT IS DIFFICULT TO COLLECT FOR LOSS OR
DAMAGE AFTER YOU HAVE GIVEN THE
CARRIER A CLEAR RECEIPT.
File your claim with Challenger Lifts promptly.
Support your claim with copies of the bill of
lading, freight bill, and photographs, if available.
Component Packing List
PART # QTY/
LIFT DESCRIPTION
A1001-P1 Power Column Ass’y
A1001-I1 Idler Column Ass’y
A1060 1 Overhead (Mid Section)
A1061 2 Overhead (End Section)
A1005 1 Hardware Box
A1002 1 Arm Pack
A1055-0 Column Extension for CL9
A1055-1 Column Extension for CL9-1
A1055-2
2
Column Extension for CL9-2
A1003-0 Sync Cable Pack for CL9
A1003-1 Sync Cable Pack for CL9-1
A1003-2
1
Sync Cable Pack for CL9-2
36035 1 Overhead Shut-Off Bar Ass’y
36027 1 Mercury Switch
A1004 1 Hydraulic Hose Pack
A1201-15
A1203-15 1 Power Unit – 1 Phase
Power Unit – 3 Phase
A1150 1 Literature Pack
INSTALLATION
IMPORTANT:Always wear safety glasses while installing lift.
TOOLS (MINIMUM REQUIRED)
a. Banding Cutter
b. Tape measure, 16ft
c. Chalk line
d. 4ft level
e. 10” adjustable wrench
f. Standard open end wrenches 7/16”, 1/2",
(2) 9/16”, (2) 11/16”, 3/4"
g. 5/16” allen wrench
h. Needle nose pliers
i. Hammer drill with 3/4” diameter carbide
tipped bit
j. 2lb hammer
k. Torque wrench: 150 foot pounds minimum
with 1 1/8” socket
l. 12 ft. Step ladder
m. Pull wire or fish tape
n. Anti-Seize lubricant (for arm pins)
o. 3/4” O.D. Pipe cutter (if installing lift at narrow
width setting)
LAYOUT
1) Layout the service bay according to the
architect’s plans or owners instructions (see
Fig 1b). Be certain that the proper conditions
exist, see page 3.
2) Assemble column extension to column using
3/8-16 x 3/4" lg Hex flange head bolt. repeat
for opposite column and extension.
3) Erect both column assemblies. Align the
notches in column base, Fig 2, with the
installation lines. (HINT: It may be easier to
install the lower synchronizer cable, Fig 7b,
before columns are raised)
ANCHORING
4) The anchor bolts must be installed at least 8
inches from any crack, edge, or expansion
joint.
5) Use a concrete hammer drill with a 3/4 inch
carbide bit. Tip diameter should conform to
ANSI Standard B94.12-1977 (.775 to .787).
Do not use excessively worn bits or bits
which have been incorrectly sharpened. A
core bit may be necessary if an obstruction is
encountered. Never substitute with shorter
anchor.
6) Recheck “Inside of Columns” dimension,
Fig 1. Drill the anchor holes using the base
plate as a template. Drill through the floor if
possible or to a depth of 5 inches minimum.
7) Vacuum dust from the hole for proper holding
power.

Model OE-9
Installation, Operation and Maintenance
Page 5 Rev. 02/1208
A1151_MAGNUM.doc
8) Shim both columns to plumb using the shims
provided as shown in Fig 2. DO NOT shim
more than 1/2" at any given point. Use a level
no less than 24” in length to plumb columns.
ALIGNMENT NOTCH
ALIGNMENT NOTCH
ALIGNMENT NOTCH
ALIGNMENT NOTCH
ALIGNMENT NOTCH
ALIGNMENT NOTCH
ALIGNMENT NOTCH
ALIGNMENT NOTCH
Fig 2 – Column Shimming
9) Assemble washer and nut to anchor with nut
just below impact section of bolt. Drive
anchor into hole until nut and washer contact
base.
10) Tighten power column anchors and recheck
column for plumb. Reshim if necessary.
Torque to 150 foot pounds to set anchors.
OVERHEAD BEAM
11) Assemble the (3) part overhead with (12) 3/8-
16 x 3/4” lg hex flange head bolts and (12)
hex flange nuts using Fig 1 on page 2 as
reference for proper width. Before raising
overhead into position install 4 each (2 per
column) hex flange bolts and nuts in middle
hole of column extension (see Fig 3
Installation Aid) for temporary support of
overhead. Lift overhead assembly up into
position and install with 6 each (3 per
column) 3/8-16 x 3/4” lg hex flange bolts and
hex flange nuts per side as shown in Fig 3.
Fig 3 – Overhead Assembly
12) Check idler column shimming. Use additional
shims (see Fig. 2) to remove any gaps that
may have been created while installing
overhead beam. Tighten anchor bolts and re-
check column for plumb. Torque to 150 foot
pounds.
13) Install Overhead Limit Switch to Power
Column using (1) 3/8” pivot pin, (1) 3/8” flat
washer and (1) hairpin cotter pin as shown in
Fig 4a.
IMPORTANT: switch tube cord is to be oriented
above pivot pin as shown below.
HAIRPIN COTTER PIN
PROPER ORIENTATION
TUBE CORD MUST BE
ABOVE PIVOT PIN FOR
3/8" FLAT WASHER
PROPER ORIENTATION
3/8" FLAT WASHER
PROPER ORIENTATION
ABOVE PIVOT PIN FOR
TUBE CORD MUST BE
PROPER ORIENTATION
HAIRPIN COTTER PIN
3/8" FLAT WASHER
PROPER ORIENTATION
ABOVE PIVOT PIN FOR
TUBE CORD MUST BE
PROPER ORIENTATION
HAIRPIN COTTER PIN
3/8" FLAT WASHER
PROPER ORIENTATION
ABOVE PIVOT PIN FOR
TUBE CORD MUST BE
PROPER ORIENTATION
HAIRPIN COTTER PIN
Fig 4a – Overhead Limit Switch
Sub-Assembly
IMPORTANT: The “standard” setting for the
INSIDE OF COLUMNS dimension is 109 inches. If
the lift is to be installed at 103” or 97”, use tubing
cutter to shorten the end opposite where
attachment hole is. See chart below for cut
length.
Inside of Column 109” 103” 97”
Shutoff Bar Length 107 ¼” 101 ¼” 95 ¼”
14) Insert shut-off bar in switch tube on power
column side and take other end to idler side.
Attach shut-off bar to idler column with (1)
3/8” pivot pin, (6) 3/8” flat washer and (1)
hairpin cotter pin as shown in Fig 4b.
Insure that both switch tube and shut-off
assemblies pivot freely for proper
operation.
3/8" PIVOT PIN
SHUTOFF BAR
(6) 3/8" FLAT WASHERS
HAIRPIN COTTER PIN
HAIRPIN COTTER PIN
(6) 3/8" FLAT WASHERS
SHUTOFF BAR
3/8" PIVOT PIN
HAIRPIN COTTER PIN
(6) 3/8" FLAT WASHERS
SHUTOFF BAR
3/8" PIVOT PIN
HAIRPIN COTTER PIN
(6) 3/8" FLAT WASHERS
SHUTOFF BAR
3/8" PIVOT PIN
Fig 4b – Overhead Limit Switch
Sub-Assembly

Model OE-9
Installation, Operation and Maintenance
Page 6 Rev. 02/1208
A1151_MAGNUM.doc
15) Assemble the sheaves, spacers and washers
onto the sheave pin as shown in Fig 5. Set in
cradle with all assembly parts between the
two plates.
Fig 5 – Sheave Assembly
LOCKING PAWL
16) Install Power Column locking pawl and lock
release clevis with 5/8” diameter x 1 1/2” lg
shoulder bolt and 1/2”-13 nylon lock nut,
Fig. 6. Attach 3/8” O.D. extension spring to
upper hole in locking pawl and other end to
hole in bracket welded to column.
Fig 6 – Locking Pawl Assembly
17) Attach ½” O.D. extension spring to hole
located on bottom side of Idler Column lock
pawl and install using 5/8” shoulder bolt and
lock nut, Fig 6. Attach 3/8” O.D. spring the
same as Power side.
SYNCHRONIZER CABLES
18) Manually raise the carriages approximately
32 inches to gain access to the cable-tie-off
tabs located on the carriage ladder. Insure
that the top of the hydraulic cylinder is out of
the way but still retained in the opening of the
top plate of the carriage as shown in Fig 7a.
19) Note the cable trap device on the top
sheaves, remove the 3/8 bolt and
reassembly at each location after routing the
cable. Fig 8. Route synchronizing cables
using Fig 7a and attach ends to cable-tie-off
tabs using Fig’s 7b & 7c.
Fig 7a – Cable Routing
Fig 7b – Attaching Cable from Below
Fig 7c – Attaching Cable from Above

Model OE-9
Installation, Operation and Maintenance
Page 7 Rev. 02/1208
A1151_MAGNUM.doc
20) Once cables are routed install the lower
cable trap devices sliding along the inside
edge of the column and under the sheave.
Fig 8. Note (2) lower cable trap devices are
packaged in the hardware box included with
the lift.

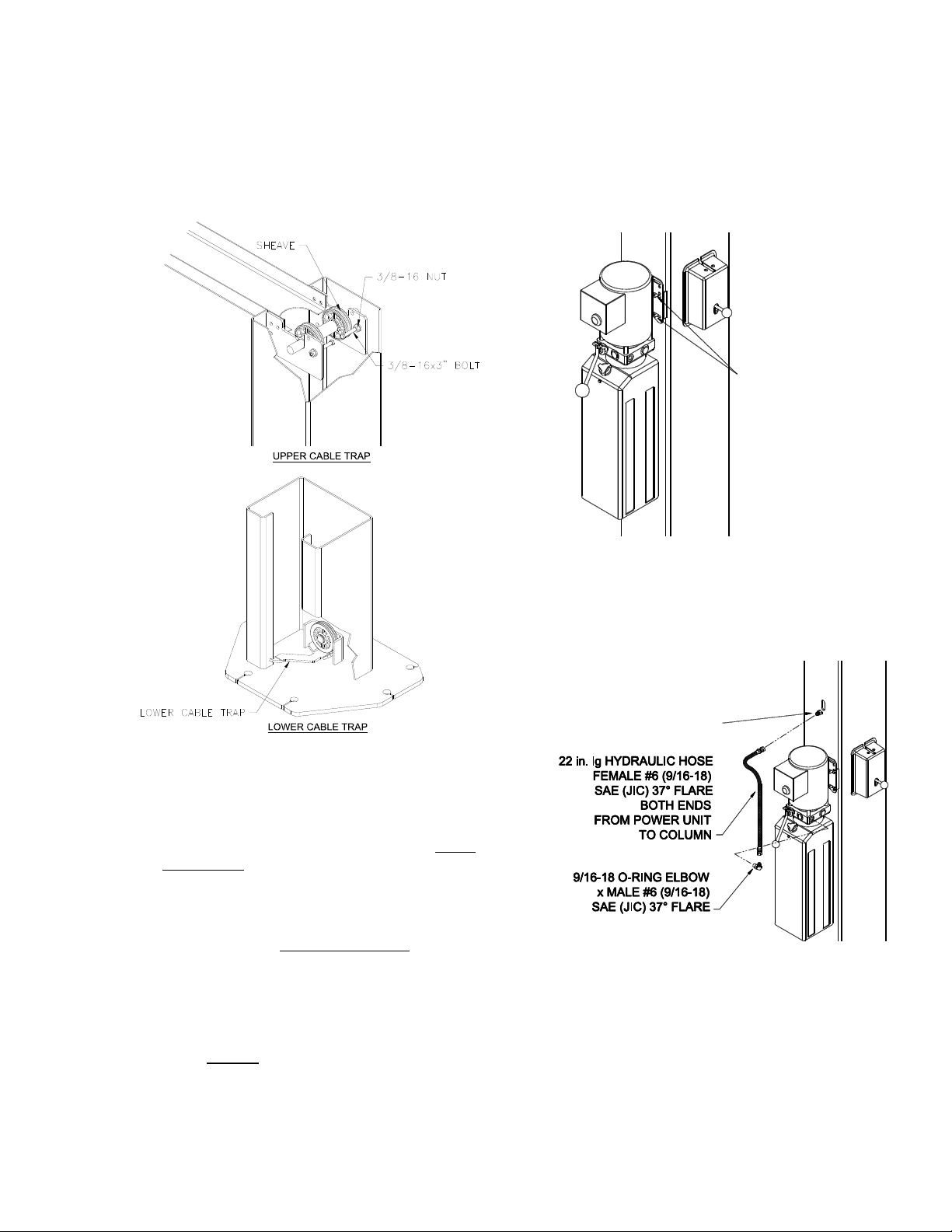

Fig 8 – Cable Trap
SYNCHRONIZER CABLE ADJUSTMENT
This method requires adjusting the cable ends at
the power column only.
21) At the power side carriage adjust the Cable
from Above until the power column carriage
is 1/8” off its locking pawl.
NOTE: The Lower Cable should NOT be tight
before beginning this step.
22) Now adjust the Cable from Below until the
power column carriage contacts its locking
pawl. Grab the back of the locking pawl and
wobble it. Continue tightening until the lock
pawl is tight.
When the cables have been adjusted
properly, neither locking pawl will wobble by
hand. (tighten the power column lower cable to
tighten the power column locking pawl or the
power column upper cable for the idler column
locking pawl.
23) Tighten the thin Jam Nuts against the Cable
Adjustment Nut.
POWER UNIT & HYDRAULIC HOSE
24) Mount Power Unit to power column as shown
in Fig 9. The mounting hardware, (4)
5/16”-18 hex nuts, are pre-installed on power
unit mounting bracket.
5/16"-18 HEX NUT
(4) REQUIRED
5/16"-18 HEX NUT
(4) REQUIRED
5/16"-18 HEX NUT
(4) REQUIRED
5/16"-18 HEX NUT
(4) REQUIRED
Fig 9 – Power Unit Mounting
25) Attach hydraulic elbow fitting (in hardware box)
threading the 9/16-18 O-ring end to power
unit. See Fig 10. CAUTION not to damage
rubber O-ring.
BULKHEAD BRANCH TEE
MALE #6 (9/16-18)
SAE (JIC) 37° FLARE
(FACTORY INSTALLED)
BULKHEAD BRANCH TEE
MALE #6 (9/16-18)
SAE (JIC) 37° FLARE
(FACTORY INSTALLED)
BULKHEAD BRANCH TEE
MALE #6 (9/16-18)
SAE (JIC) 37° FLARE
(FACTORY INSTALLED)
BULKHEAD BRANCH TEE
MALE #6 (9/16-18)
SAE (JIC) 37° FLARE
(FACTORY INSTALLED)
Fig 10 – Hydraulic Hose from Power Unit to
Power Column.
IMPORTANT – To insure proper hose fitting
seal without damage to the fitting follow this
procedure for each hose connection: Screw
flared fitting on finger tight. Rotate flared fitting 1
1/2 hex flats (90 deg.). Back the flared fitting off
one full turn. Again tighten flared fitting finger
tight, then rotate flared fitting 1 1/2 hex flats (90
deg.).
26) Thread power unit hydraulic hose (22” lg in
hardware box) into elbow on power unit.

Model OE-9
Installation, Operation and Maintenance
Page 8 Rev. 02/1208
A1151_MAGNUM.doc
Thread opposite end of hose into male #6
fitting (factory installed) attached to power
column as shown in Fig 10.
27) From Idler Column route the hydraulic hose
(factory installed from cylinder to top of column)
up to Overhead. LOOSEN FACTORY INSTALLED
CLAMP AT TOP OF IDLER COLUMN AND GENTLY PULL UP
ANY SLACK FROM HOSE. Install a hose clamp in
column extension and in overhead beam with
(1) 3/8”-16 x 3/4" lg. hex flange bolt and hex
flange nut per clamp as shown in Fig 11a.
SNAKE EXCESS HOSE
IN OVERHEAD WHEN
INSTALLING AT NARROW
OR LOWERED SETTING
HYDRAULIC HOSE CLAMP WITH
3/8"-16 HEX FLANGE BOLT & NUT
HYDRAULIC HOSE CLAMP WITH
3/8"-16 HEX FLANGE BOLT & NUT
SNAKE EXCESS HOSE
IN OVERHEAD WHEN
INSTALLING AT NARROW
OR LOWERED SETTING
HYDRAULIC HOSE CLAMP WITH
3/8"-16 HEX FLANGE BOLT & NUT
SNAKE EXCESS HOSE
IN OVERHEAD WHEN
INSTALLING AT NARROW
OR LOWERED SETTING
HYDRAULIC HOSE CLAMP WITH
3/8"-16 HEX FLANGE BOLT & NUT
SNAKE EXCESS HOSE
IN OVERHEAD WHEN
INSTALLING AT NARROW
OR LOWERED SETTING
Fig 11a – Hydraulic Hose from Idler Column to
Overhead.
(Sync cables removed for clarity)
28) Route hydraulic hose from Idler column
across Overhead to the Power Column and
down inside of Power Column (routing is
identical to Idler Column) to male #6 JIC
bulkhead “T” fitting. Loosely attach hose to
“T”. If this is an extended height lift (model
CL9-1 or CL9-2), an extension hose (supplied)
will connect the Idler hose to the “T” fitting.
29) While gently pulling slack up from the “T”
fitting to the top of the power column
extension, twist the hose until it lays flat in
the overhead beam. (When installing lift at
narrow or low setting, excess hose should be
snaked in bottom of overhead, Fig 11a.
When installing at narrow and low setting,
form a loop in the column extension between
the overhead support plate and the inside
wall of the column extension, Fig 11b.)
Install hose clamps identical to idler side, one
hose clamp at the top of the column, one at
the top of the column extension and one at
the end of the overhead. Fig 11b. Tighten
connection at “T” fitting.
SNAKE EXCESS HOSE
IN OVERHEAD WHEN
INSTALLING AT NARROW
OR LOWERED SETTING
HYDRAULIC HOSE CLAMP
WITH 3/8"-16 HEX FLANGE
BOLT & NUT
LOOP EXCESS HOSE
IN COLUMN EXT. WHEN
INSTALLING AT NARROW
AND LOWERED SETTING
LOOP EXCESS HOSE
IN COLUMN EXT. WHEN
INSTALLING AT NARROW
AND LOWERED SETTING
SNAKE EXCESS HOSE
IN OVERHEAD WHEN
INSTALLING AT NARROW
OR LOWERED SETTING
HYDRAULIC HOSE CLAMP
WITH 3/8"-16 HEX FLANGE
BOLT & NUT
LOOP EXCESS HOSE
IN COLUMN EXT. WHEN
INSTALLING AT NARROW
AND LOWERED SETTING
SNAKE EXCESS HOSE
IN OVERHEAD WHEN
INSTALLING AT NARROW
OR LOWERED SETTING
HYDRAULIC HOSE CLAMP
WITH 3/8"-16 HEX FLANGE
BOLT & NUT
LOOP EXCESS HOSE
IN COLUMN EXT. WHEN
INSTALLING AT NARROW
AND LOWERED SETTING
SNAKE EXCESS HOSE
IN OVERHEAD WHEN
INSTALLING AT NARROW
OR LOWERED SETTING
HYDRAULIC HOSE CLAMP
WITH 3/8"-16 HEX FLANGE
BOLT & NUT
Fig 11b – Hydraulic Hose from Overhead to
Power Column.
(Sync cables removed for clarity)
30) BE CERTAIN ALL FITTINGS AND CONNECTIONS
ARE TIGHT. IT IS THE INSTALLERS
RESPONSIBILITY TO INSURE SYSTEM IS LEAK-
FREE. Fill the Power Unit with three gallons of
clean 10wt anti-foam anti-rust hydraulic oil or
Dexron III ATF. DO NOT USE OILS WITH
DETERGENTS.
FOR LIFTS WITH OPTIONAL DUAL PENDANT
CONTROL, SKIP STEPS 26 THRU 31 AND
REFER INSTEAD TO THE “DUAL PENDANT
CONTROL INSTALLATION & OPERATION
MANUAL SUPPLEMENT”.
LOCK RELEASE
31) Attach Mechanical Lock Release Cable
Assembly to Power Column Lock Release
Clevis using the 3/16” diameter x 1/2" long
pin and (2) “C” clip retainers, Fig 12.
32) Insert threaded sleeve portion of cable
assembly in slot located on tab above locking
pawl, Fig 12. One jam nut should be located
on each side of tab. Position threaded sleeve
with ½” of thread below tab as indicated in
Fig 12 and tighten jam nuts.

Model OE-9
Installation, Operation and Maintenance
Page 9 Rev. 02/1208
A1151_MAGNUM.doc
Fig 12 – Power Column Lock Assembly
33) Route opposite end of cable assembly up left
side of Power Column and into column
through access slot (3/8”x4” Lg.) in bottom of
Column Extension. Following the path of the
hydraulic line, route cable assembly across
overhead clear of moving parts and back out
through access slot in bottom of idler side
column extension (again use left slot when
viewed from outside of column). Attach Cable
Assembly to the hydraulic hose with loosely
fit wire ties.
NOTE: DO NOT kink cable assembly when
routing. Tighten and trim wire ties after final cable
adjustments have been made.
34) Attach Adhesive-Backed Tab to Idler Column
left of the lock assembly (Fig 13). Route
Lock Release Cable down left side of Idler
Column and secure with loosely fit wire tie to
Adhesive-Backed Tab. Attach Cable clevis to
1/2" O.D. Extension Spring.
Fig 13 – Idler Column Lock Assembly
35) Insert threaded sleeve portion of cable
assembly in slot located on tab below lock
pawl, Fig 12. With one jam nut located on
each side of tab, adjust the threaded sleeve
to begin to pull tension on the ½” O.D. spring.
Snug jam nuts by hand.
THE LOCK RELEASE CABLE ADJUSTMENT IS NOT
COMPLETE UNTIL THE LIFT HAS BEEN LOWERED AND
“FINAL ADJUSTMENTS” HAVE BEEN MADE.
ARM INSTALLATION
36) Lubricate the arm pin or carriage arm pin
hole with “anti-seize” and install the arms.
Insure that the arm restraint gears engage
and disengage properly. Arm restraints
should disengage when lift is fully lowered. If
any binding occurs, insure that the large gear
mounted to the arm has been factory
installed tight against the arm pin.
ELECTRICAL
37) Wire tie Limit Switch cord to Power Column
hose inside column and down to hose “T”
fitting. Route cord out slot and tie to Power
Unit hose.
38) Connect the Overhead Limit Switch Cord to
Power Unit as shown in Fig 14.
39) Connect Power Unit to suitable electrical
source as shown in Fig 14.
40) IMPORTANT: AFTER WIRING HAS BEEN
COMPLETED, TEST OPERATION OF POWER UNIT
& OVERHEAD LIMIT SWITCH. WHILE RAISING
LIFT, OPERATE OVERHEAD SHUTOFF BAR.
POWER UNIT MOTOR SHOULD STOP WHEN
SHUTOFF BAR IS RAISED.

Model OE-9
Installation, Operation and Maintenance
Page 10 Rev. 02/1208
A1151_MAGNUM.doc
FINAL ADJUSTMENTS
HYDRAULICS
41) Lower the lift to the floor and raise the lift
approximately one foot.
42) Start with Idler side first. Slowly and carefully
loosen the bleed plug on top of the cylinder
just enough to allow the entrapped air to
escape. Repeat for power side.
43) Energize the power unit and raise 6 inches.
Repeat previous step until no air comes out
of cylinder.
44) Pressure test hydraulic system. Energize
power unit, raise lift to full rise and continue
to run motor for additional 10 seconds.
(NOTE: pressure relief will make a high pitch
squeal sound for these 10 seconds.) Check
hydraulic system for leaks.
45) Energize power unit again for 10 seconds.
With a clean rag, wipe down both cylinder
rods. (The cylinders are shipped with a small
amount of clear anti-corosive lubricant that
will be forced out through the wiper when the
lift reaches full rise.) If lubricant is not
wiped clean from the cylinder rod, the
cylinder will apear to be leaking.
SYNCHRONIZING CABLES
46) Cycle lift to insure that latches operate
simultaneously. Lower lift onto locks and
insure that neither lock will wobble (it is
possible for one carriage to be resting on its
lock while the other carriage is being
supported by the synchronizing cable).
LOCK RELEASE CABLE
47) Lower lift to the floor and snap plastic cover
over Power Column lock assembly.
48) Pull and release Power Column lock release
handle while watching Idler Column lock.
Adjust lower threaded sleeve cable adjuster
jam nuts on Idler Column until Idler Column
lock disengages and engages fully. When
properly adjusted, the idler column lock
should just come to rest against the back of
the column when engaged and fully out
against the tab when disengaged. Tighten
Idler Column lower tab jam nuts.
IMPORTANT: IF IDLER SIDE LOCK PAWL DOES NOT
FULLY DISENGAGE, DAMAGE MAY RESULT TO IDLER
SIDE CARRIAGE AND OR CABLE SYNCHRONIZING
SYSTEM.
49) Tighten threaded sleeve cable adjuster jam
nuts and install lock release knob.
50) Tighten and trim wire ties.
51) Snap plastic cover over Idler lock assembly
(align idler side lock release cable with
notches in lock cover flange).

Model OE-9
Installation, Operation and Maintenance
Page 11 Rev. 02/1208
A1151_MAGNUM.doc
1
5
4
6
(Normally Open) M
Wiring Diagram
A2A1
T9
T5
T4
T6
M
T8
T3
T7
T2
T1
12
34
56
L3
L2
L1
T3
T2
T1
FOR SINGLE PHASE
FACTORY WIRED FOR
208−240V
6
4
2
5
3
1
RECONNECTIONS FOR
440−480V
T3
T2
T1
T9
T6
T7
T4
T8
T5
FOR THREE PHASE
M
FIELD
CONECTIONS
Fig 14 – Electrical Wiring Diagram

Model OE-9
Installation, Operation and Maintenance
Page 12 Rev. 02/1208
A1151_MAGNUM.doc
OWNER/OPERATOR CHECKLIST
52) Demonstrate the operation of the lift to the
owner/operator and review correct and safe
lifting procedures using the Lifting It Right
booklet as a guide.
53) Complete the Installation Checklist/Warranty
Validation questionnaire with the owner.
Review the terms of the warranty registration
card, and return the card and a copy of the
questionnaires to:
Challenger Lifts, Inc.
200 Cabel Street
Louisville, KY. 40206
OPERATION PROCEDURE
SAFETY NOTICES AND DECALS
This product is furnished with graphic safety
warning labels, which are reproduced on
page 3 of these instructions. Do not remove
or deface these warning labels, or allow them
to be removed or defaced. For your safety,
and the safety of others, read and understand
all of the safety notices and decals included.
OWNER/EMPLOYER RESPONSIBILITIES
This lift has been designed and constructed
according to ANSI/ALI ALCTV-1998 standard.
The standard applies to lift manufactures, as well
as to owners and employers. The
owner/employer’s responsibilities as prescribed
by ANSI/ALI ALOIM-2000, are summarized
below. For exact wording refer to the actual
standard provided with this manual in the
literature pack.
The Owner/Employer shall insure that lift
operators are qualified and that they are trained
in the safe use and operation of the lift using the
manufacturer’s operating instructions; ALI/SM
93 -1, ALI Lifting it Right safety manual; ALI/ST-
90 ALI Safety Tips card; ANSI/ALI ALOIM-2000,
American National Standard for Automotive Lifts-
Safety Requirements for Operation, Inspection
and Maintenance; ALI/WL Series, ALI Uniform
Warning Label Decals/Placards; and in case of
frame engaging lifts, ALI/LP-GUIDE, Vehicle
Lifting Points/Quick Reference Guide for Frame
Engaging Lifts.
The Owner/Employer shall establish
procedures to periodically inspect the lift in
accordance with the lift manufacturer’s
instructions or ANSI/ALI ALOIM-2000, American
National Standard for Automotive Lifts-Safety
Requirements for Operation, Inspection and
Maintenance; and the employer shall insure that
the lift inspectors are qualified and that they are
adequately trained in the inspection of the lift.
The Owner/Employer shall establish
procedures to periodically maintain the lift in
accordance with the lift manufacturer’s
instructions or ANSI/ALIOIM-2000, American
National Standard for Automotive Lifts-Safety
Requirements for Operation, Inspection and
Maintanence; and the employer shall insure that
the lift maintenance personnel are qualified and
that they are adequately trained in the
maintenance of the lift.
The Owner/Employer shall maintain the
periodic inspection and maintenance records
recommended by the manufacturer or ANSI/ALI
ALOIM-2000, American National Standard for
Automotive Lifts-Safety Requirements for
Operation, Inspection and Maintenance.
The Owner/Employer shall display the lift
manufacturer’s operating instructions; ALI/SM
93 -1, ALI Lifting it Right safety manual; ALI/ST-
90 ALI Safety Tips card; ANSI/ALI ALOIM-2000,
American National Standard for Automotive Lifts-
Safety Requirements for Operation, Inspection
and Maintenance; and in the case of frame
engaging lift, ALI/LP-GUIDE, Vehicle Lifting
Points/Quick Reference Guide for Frame
Engaging Lifts; in a conspicuous location in the
lift area convenient to the operator.

Model OE-9
Installation, Operation and Maintenance
Page 13 Rev. 02/1208
A1151_MAGNUM.doc
LIFTING A VEHICLE
1) Insure that the lifting arms are parked, out to
full drive thru position.
2) Position the vehicle in the service bay so that
the vehicle’s center of gravity is on a line
between the two columns, and so the vehicle
is centered between the two columns.
DO NOT EXCEED 2250 POUNDS PER ARM.
DO NOT ATTEMPT TO LIFT THE VEHICLE WITH
ONLY TWO ARMS, AS THIS WILL VOID THE
WARRANTY
INSURE THAT THE HIGHEST POINT ON THE
VEHICLE WILL CONTACT THE OVERHEAD LIMIT
SWITCH BAR.
DO NOT PLACE THE VEHICLE IN THE SERVICE
BAY BACKWARDS.
REFER TO THE VEHICLE MANUFACTURERS
SERVICE MANUAL, TECHNICAL BULLETINS,
“VEHICLE LIFTING POINTS GUIDE” (ALI/LP-
GUIDE) OR OTHER PUBLICATIONS TO LOCATE
THE RECOMMENDED LIFTING POINTS.
3) Position the arms and adapters so all four
pads contact the vehicle simultaneously.
The vehicle should remain level during lifting.
4) Raise the lift until all four wheels are off the
ground. Test the stability of the vehicle by
attempting to rock the vehicle. Check adapters
for secure contact with vehicle lift points. If the
vehicle seems unstable, lower the lift and
readjust the arms. If the vehicle is stable,
raise the vehicle to a height a few inches
above the desired working height.
5) Lower the vehicle until the safety latches on
both columns engage. The vehicle should
remain level when both latches are engaged.
If one side engages and the other continues to
descend, stop lowering the vehicle, raise it
several inches, and try again to engage both
latches.
Always lower lift into locks before entering
the area beneath the vehicle.
Always use safety stands when removing or
installing heavy components.
LOWERING A VEHICLE
1) Insure that the area under the vehicle is clear
of personnel and tools.
2) Raise the vehicle until both latches are free.
3) Disengage the latches by pulling down and
holding the lock release lever.
4) Lower the vehicle by depressing the lowering
valve handle.
5) Continue to lower the vehicle until the
carriages stop against the base plate. Retract
the extension arms, and park them.
MAINTENANCE
To avoid personal injury, permit only qualified
personnel to perform maintenance on this
equipment.
The following maintenance points are suggested
as the basis of a preventive maintenance
program. The actual maintenance program
should be tailored to the installation. See
ANSI/ALI ALOIM booklet for periodic inspection
checklist and maintenance log sheet.
• If lift stops short of full rise or chatters, check
fluid level and bleed both cylinders per
Installation Instructions.
• Replace all Safety, Warning or Caution Labels
if missing or damaged (See Installation
instructions page 3.)
Daily
• Keep lift components clean.
• Check for loose or broken parts.
• Check hydraulic system for fluid leaks.
• Check adapters for damage or excessive wear.
Replace as required with genuine Challenger
Lifts parts.
• Check lock release activation. When properly
adjusted, the idler column lock should rest
firmly against the back of the column when
engaged and against the spring mount tab
when disengaged.
Weekly
• Check synchronizer cables and sheaves for
wear. Replace as required with genuine
Challenger Lifts parts.
• Check lock release cable adjustment per
Installation Instructions step 42.
IMPORTANT: IF IDLER SIDE LOCK PAWL DOES
NOT FULLY DISENGAGE, DAMAGE MAY RESULT
TO IDLER SIDE CARRIAGE AND OR CABLE
SYNCHRONIZING SYSTEM.
• Check synchronizer cable tension per
Installation Instructions. Adjust if necessary.
Monthly
• Torque concrete anchor bolts to 80 ft-lbs.
• Check overhead shutoff switch. While raising
lift, operate overhead shutoff bar. Power Unit
motor should stop when bar is raised.
• Lubricate carriage slide tracks with heavy
viscous grease. (Grease all (4) corners of both
columns.)
If any problems are encountered, contact
your local service representative.

Model OE-9
Installation, Operation and Maintenance
Page 14 Rev. 02/1208
A1151_MAGNUM.doc

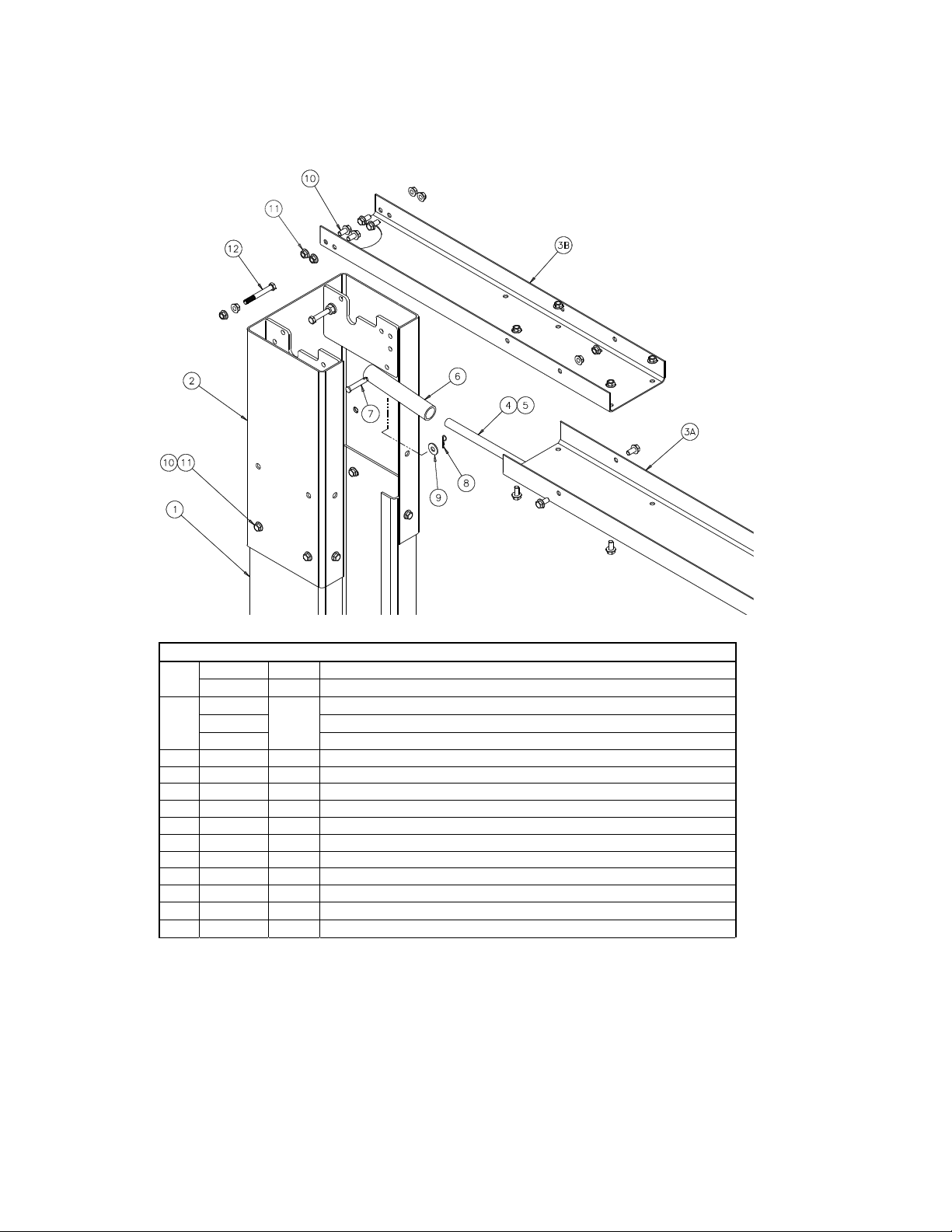

PARTS BREAKDOWN
Fig A. Column & Overhead
ITEM # PART # QTY/LIFT
DESCRIPTION
A1010-P 1 POWER COLUMN WELD
1 A1010-I 1 IDLER COLUMN WELD
A1055-0 COLUMN EXTENSION WELD – OE-9
A1055-1 COLUMN EXTENSION WELD – OE-9-1
2
A1055-2
2
COLUMN EXTENSION WELD – OE-9-2
3A A1060 1 OVERHEAD CHANNEL (MID SECTION)
3B A1061 2 OVERHEAD CHANNEL (END SECTION)
4 36074 1
SHUTOFF BAR
5 31129 1
PAD
6 36027 1
OVERHEAD LIMIT SWITCH
7 A1064 2
3/8 DIA x 1 7/8 Lg. CLEVIS PIN (SHUTOFF BAR)
8 40124 2
HAIRPIN COTTER PIN
9 31036 7
3/8" FLAT WASHER
10 A1153 36 3/8-16NC HEX.FLG.HD.C.S X 3/4" Lg.
11 A1154 38 3/8-16NC HEX.FLG.NUT
12 A2159 4 3/8-16 x 3”Lg NC HEX.FLG.HD.C.S.
Replace all worn or broken parts with genuine Challenger Lifts Inc. parts.
Contact your local Challenger Lifts Parts Distributor for pricing and availability.
(Call Challenger Lifts Inc. [phone] for the Parts Distributor in your area)

Model OE-9
Installation, Operation and Maintenance
Page 15 Rev. 02/1208
A1151_MAGNUM.doc
PARTS BREAKDOWN (continued)
Fig B. Lock
FOR LIFTS EQUIPPED WITH
DUAL PENDANT CONTROL
REFER TO SEPERATE
"DUAL PENDANT CONTROL
MANUAL SUPPLEMENT"
FOR LIFTS EQUIPPED WITH
DUAL PENDANT CONTROL
REFER TO SEPERATE
"DUAL PENDANT CONTROL
MANUAL SUPPLEMENT"
FOR LIFTS EQUIPPED WITH
DUAL PENDANT CONTROL
REFER TO SEPERATE
"DUAL PENDANT CONTROL
MANUAL SUPPLEMENT"
FOR LIFTS EQUIPPED WITH
DUAL PENDANT CONTROL
REFER TO SEPERATE
"DUAL PENDANT CONTROL
MANUAL SUPPLEMENT"
ITEM # PART # QTY/LIFT
DESCRIPTION
A1135-0 LOCK RELEASE CABLE ASSEMBLY – OE-9
A1135-1 LOCK RELEASE CABLE ASSEMBLY –OE-9-1
20
A1135-2
1
LOCK RELEASE CABLE ASSEMBLY – OE-9-2
21 A1140 2 LOCK PAWL
22 A1133 2 LOCK COVER
23 30020 2 LOCK PIN (5/8 x 1 1/2" Lg. SHOULDER BOLT)
24 37013 2 LOCK PIN RETAINER (1/2-13NC HEX LOCK NUT)
25 37119 1 CLEVIS PIN KIT
26 A1131 2 LOCK SPRING (3/8" O.D.)
27 A1132 1 CABLE SPRING (1/2" O.D.) – Idler side ONLY
28 A1141 1 LOCK RELEASE CLEVIS ASSEMBLY – Power side ONLY
29 36096 1 BALL HANDLE – Power side ONLY
Replace all worn or broken parts with genuine Challenger Lifts Inc. parts.
Contact your local Challenger Lifts Parts Distributor for pricing and availability.
(Call Challenger Lifts Inc. [phone] for the Parts Distributor in your area)

Model OE-9
Installation, Operation and Maintenance
Page 16 Rev. 02/1208
A1151_MAGNUM.doc
PARTS BREAKDOWN (continued)
Fig C. Hydraulics
ITEM # PART # QTY/LIFT
DESCRIPTION
A1201-15 POWER UNIT 1ph, 60 Hz, 208-230V
35 A1203-15 1 POWER UNIT 3ph, 60 Hz, 208-230/460V
36 16167 1 HYD ELBOW, 9/16 O-RING MALE TO #6 MALE FLARE
37 A1123-PU 1 HYD HOSE ASSEMBLY, POWER UNIT (22” LONG)
38 A1120 1 BULKHEAD TEE, #6 MALE 37 DEGREE FLARE
39101-024
1 COLUMN EXTENSION HOSE, OE-9-1 (24” LONG)
39 39101-048
1 COLUMN EXTENSION HOSE, OE-9-2 (48” LONG)
40 A1123-I 1 HYD HOSE ASSEMBLY, IDLER COLUMN (326” LONG)
41 A1122-12 7 HOSE CLAMP
42 16138 2 CYLINDER (68” STROKE X 2” BORE)
43 A1121 2 STRAIGHT ADAPTER, 9/16 MALE O-RING TO #6 MALE FLARE
44 A1123-P 1 HYD HOSE ASSEMBLY, POWER COLUMN (81” LONG)
Replace all worn or broken parts with genuine Challenger Lifts Inc. parts.
Contact your local Challenger Lifts Parts Distributor for pricing and availability.
(Call Challenger Lifts Inc. [phone] for the Parts Distributor in your area)

Model OE-9
Installation, Operation and Maintenance
Page 17 Rev. 02/1208
A1151_MAGNUM.doc
PARTS BREAKDOWN (continued)
Fig D. Synchronizer
ITEM # PART # QTY/LIFT
DESCRIPTION
A1115-0 SYNCHRONIZER CABLE – OE-9 (32’-8”) [ Cable Pack #A1003-0 ]
A1115-1 SYNCHRONIZER CABLE – OE-9-1 (34’-8”) [ Cable Pack #A1003-1 ]
50
A1115-2
2 SYNCHRONIZER CABLE – OE-9-2 (36’-8”) [ Cable Pack #A1003-2 ]
51 A1116 4 ½-20NF HEX NUT
52 A1117 4 ½-20NF HEX JAM NUT
53 A1041 6 SHEAVE ASSEMBLY (3 ½” DIA. X ¼” GROOVE)
54 A1062 2 SHEAVE PIN
55 A1063-S 4 SHORT SHEAVE SPACER
56 A1063-L 2 LONG SHEAVE SPACER
57 36013 10 1" I.D. SPACER WASHER
58 36014 2 1" EXT. RETAINING RING
59 A1158 2 CL9 LOWER CABLE TRAP
Replace all worn or broken parts with genuine Challenger Lifts Inc. parts.
Contact your local Challenger Lifts Parts Distributor for pricing and availability.
(Call Challenger Lifts Inc. [phone] for the Parts Distributor in your area)

Model OE-9
Installation, Operation and Maintenance
Page 18 Rev. 02/1208
A1151_MAGNUM.doc
PARTS BREAKDOWN (continued)
Fig E. Carriage & 3-Stage Arms
ITEM # PART # QTY/LIFT
DESCRIPTION
70 A1025 2 CARRIAGE WELD
71 A1040 16 SLIDE BLOCK
72 A1078 4 ARM PIN WELD
73 A1070 4 INNER GEAR
74 12568 8 3/8-16NCx1 Lg. HEX.FLG.LOCK.HD.C.S. GR.5 ZN PLT
75 A1075 4 PULL RING
76 A1073 4 SHAFT
77 31109 4 COMPRESSION SPRING (RESTRAINT SHAFT)
78 A1072 4 OUTER GEAR
79 36014 4 1” EXT. RETAINING RING
B2210-P 1 FRONT FEMALE ARM WELD (POWER)
80 B2210-I 1 FRONT FEMALE ARM WELD (IDLER)
81 B17252R 2 FRONT INTERMEDIATE ARM WELD
82 B2218 2 FRONT MALE ARM WELD
33 B2220 2 REAR FEMALE ARM WELD
84 B2230 2 REAR INTERMEDIATE ARM WELD
85 B2235 2 REAR MALE ARM WELD
86 B17258 8 M10 STOP SCREW
87 B2250 4 FOOT PAD ASSEMBLY (ITEMS NO: 86, 87, 88, 89, 90, 91)
88 B2208 4 RUBBER INSERT
89 B2205 4 FOOT PAD WELD
90 B17256 4 2 x 30mm ROUND WIRE RETAINING RING
91 B17254 4 THREADED SLEEVE
92 B17257 8 3 x 45mm ROUND WIRE RETAINING RING
93 B17276-1 4 THREADED INSERT
94 B2211 4 ROLL PIN, 6mm DIA x 30mm Lg
B2202 1 ARM PACK, CL10, 3-STAGE
B2203U-P 1 FRONT ARM ASSEMBLY (POWER)
B2203U-I 1 FRONT ARM ASSEMBLY (IDLER)
B2204U 2 REAR ARM ASSY.
A1077 4 ARM RESTRAINT SHAFT ASSY (ITEMS NO: 75, 76, 77, 78, 79)
Replace all worn or broken parts with genuine Challenger Lifts Inc. parts.
Contact your local Challenger Lifts Parts Distributor for pricing and availability.
(Call Challenger Lifts Inc. [phone] for the Parts Distributor in your area)

Model OE-9
Installation, Operation and Maintenance
Page 19 Rev. 02/1208
A1151_MAGNUM.doc
PARTS BREAKDOWN (continued)
Fig F. Carriage & 2-Stage Arms
ITEM # PART # QTY/LIFT DESCRIPTION
110 A1091 2 REAR FEMALE ARM WELD
A1094-R 2 MALE ARM WELD (REAR), SQUARE FOOT PAD MODELS
111
B1094U-R 2 OPTIONAL MALE ARM WELD (REAR), ROUND STACK PAD MODELS
112 A1104 4 FOOT PAD RUBBER INSERT
113 A1101 4 FOOT PAD WELD
114 31061 8 1/4-20 KEPS NUT
115 39111 4 FOOT PAD RETAINER RING
A1086-P 1 FRONT FEMALE ARM WELD (POWER)
116
A1086-I 1 FRONT FEMALE ARM WELD (IDLER)
A1094-F 2 MALE ARM WELD (FRONT), SQUARE FOOT PAD MODELS
117
B1094U-F 2 OPTIONAL MALE ARM WELD (FRONT), ROUND STACK PAD MODELS
118 31305 4 3/8 MALE ARM RETAINER SCREW
119 31037 4 3/8 LOCK WASHER
A1090 2 REAR ARM ASSY (ITEMS NO: 110, 111, 118, 119)
A1085-P 1 FRONT ARM ASSY (POWER) (ITEMS NO: 116, 117, 118, 119)
A1085-I 1 FRONT ARM ASSY (IDLER) (ITEMS NO: 116, 117, 118, 119)
A1100 4 FOOT PAD ASSY (ITEMS NO: 112, 113, 114, 115)
Replace all worn or broken parts with genuine Challenger Lifts Inc. parts.
Contact your local Challenger Lifts Parts Distributor for pricing and availability.
(Call Challenger Lifts Inc. [phone] for the Parts Distributor in your area)

Model OE-9
Installation, Operation and Maintenance
Page 20 Rev. 02/1208
A1151_MAGNUM.doc
BLANK PAGE
