Haklift VAINOSH230 User manual

Haklift Oy
Asessorinkatu 3-7
20780 Kaarina, Finland
Tel. [phone]
[e-mail]
www.haklift.com
Lifting Solutions Group
Axel Johnson International
Rev. 20200115
ORIGINAL INSTRUCTIONS
KÄÄNNÖS ALKUPERÄISESTÄ KÄYTTÖOHJEESTA
ÖVERSÄTTNING AV ORIGINAL BRUKSANVISNING
ELECTRIC MINI WIRE WINCH
SÄHKÖVAIJERIVINSSI
ELEKTRISK VAJERVINSCH
VAINOSH230, VAINOSH300, VAINOSH500

Haklift Oy
Asessorinkatu 3-7
20780 Kaarina, Finland
Tel. [phone]
[e-mail]
www.haklift.com
Lifting Solutions Group
Axel Johnson International
HAKLIFT ELECTRIC MINI WIRE ROPE WINCH INTRODUCTION
Electric wire rope winch is designed for building sites, commercial and domestic, as well as various
construction workplaces, such as warehousing, buildings, storage areas, factories in general, as well as
domestic applications.
1. PREFACE
⚫Please read this Instruction manual carefully before you start using the electric hoist. You will find many
useful hints which will help you to keep the hoist always in its first-class condition.
⚫You are kindly requested to read this manual thoroughly, to follow scrupulously the instructions given
and for safety reasons, avoid controlling, adjusting or performing procedures other than those specified.
⚫This hoist has been designed and built in full compliance with EN ISO 12100, ISO 14121 and EN 60204
standards on machine and further modification, with high-quality materials and particularly studying the
possibilities to reduce as much as possible the risks of accident.
⚫Foreword to the operating instructions
The operating instructions are designed to familiarize the user with the hoist and its designated use.
⚫The instruction manual contains important information on how to operate the hoist safety, properly and
most efficiently. Observing these instructions helps to avoid danger, to reduce repair costs and
downtimes and to increase the reliability and life of the hoist.
⚫The instruction manual is to be supplemented by the respective national rules and regulations for accident
prevention and environmental protection.
The operating instructions must always be available wherever the hoist is in use.
These operating instructions must be applied by any person in change of carrying out work with and on
the hoist, such as
•operation including setting up, troubleshooting in the course of work, care of consumables
•maintenance (serving, inspection, repair) and/or
•transport
This electric hoist is designed and built in full compliance with the safety standard, please read carefully
before installing the machine. You will find many hints to keep the machine in its best condition, also to
avoid the risk of accident.
⚫In addition to the operating instructions and to the mandatory rules and regulations for accident
⚫Prevention and environment protection in the country and place of use of the hoist, the generally
recognized technical rules for safe and proper working must also be observed.

Haklift Oy
Asessorinkatu 3-7
20780 Kaarina, Finland
Tel. [phone]
[e-mail]
www.haklift.com
Lifting Solutions Group
Axel Johnson International
2. SAFETY INSTRUCTION
2.1 Safety regulations
2.1.1 General safety rules
1. This electric hoist is designed for lifting products only. Do not apply the electric hoist for lifting person.
2. The electric hoist should be mounted on a flat solid place.
3. Installing the electric hoist at a proper levelling condition to ensure the chain arranged neatly. This may
avoid chain friction against the hoist body.
4. Make sure your power source complies with the voltage indicated on the electric hoist before connecting
the power wires to the power source.
5. Connect the power wires. Tighten the terminals securely.
6. Make sure the electric hoist has been properly grounded. The power circuit should be equipped with an
electric shock breaker.
7. Before operating the electric hoist, read and follow the instructions for allowable lifting weight, speed and
voltage etc. Indicated on the attached plate.
8. Do not exceed the rated lifting capacity of the electric hoist. Allowable lifting weight is indicated on the
attached plate.
9. The electric hoist should be operated by a skilled operator. Before operating the electric hoist check again
if all lock screws are tightened securely without loosening.
10. Before operating the electric hoist check to see if the chain runs to the correct direction and the brake
works normally.
11. Do not allow any person approaches under the electric hoist, bracket or weight.
12. Select a proper location for mounting the electric hoist, to prevent the lifting weight bumping against any
construction, steel frame or construction beam etc while lifting.
13. Always keep the chain in a good condition.
14. Lift weight vertically. Do not lift weight in a slant or horizontal direction. Do not have weight hooked on the
chain for a long time.
15. Do not use the electric hoist to pull out any object fixed in the floor or any construction.
16. When the electric hoist is running, keep your hands or any object away from it to avoid danger.
17. Prevent control wire or power wire from hooking or contacting by the chain. This may avoid electric shock
or any danger.
18. In case any malfunction or abnormal noise occurs during operation, stop the electric hoist immediately.
Check and repair it immediately for safety.
19. Do not alter the electric circuit or use any other replacement parts not supplied from the original
manufacturer. This avoids affection on the hoist performance or any accident.
20. The operator is requested to fully obey the safety rules listed for safety protection.

Haklift Oy
Asessorinkatu 3-7
20780 Kaarina, Finland
Tel. [phone]
[e-mail]
www.haklift.com
Lifting Solutions Group
Axel Johnson International
2.1.2 Electrical safety rules
1. Before installing, please pay attention to the input rated voltage and current and make sure the hoist is
grounded, in order to prevent accident.
2. There must be a main power switch (main breaker) at main input side of electric control system.
3. Remember to disconnect the main power before repair, maintenance and clean.
4. Unauthorized or untrained personnel cannot repair or maintain any electric equipment.
5. The keys of electric box and mode select should be conserved by authorized personnel. Don’t give the
key or authorized code to unauthorized personnel.
6. Comply with the maintenance instruction to repair and maintain the electric equipment.
7. Before operating the hoist, check all of the electric equipments and parts are broken or damaged or not. If
there is something broken or damaged, replace a new one immediately and please note its original rated
specification.
8. After connecting power, check the direction of motor rotation and the direction of hoist is correct or not.
9. Please check whether the function of emergency stop button is normal or not. The emergency stop button
is used under emergency situation to cut off power of hoist. (Operator usually misunderstand that the hoist
is broken down when they forgot to release the emergency stop button.)
10. Please check whether the function of each safety parts is normal or not, such as emergency stop button,
emergency stop wire, interlocking switch, main power switch, safety valve, limit switch, and etc.
11. Please check whether the screws of each terminal base are tightened or not. If the screws loose, screw
them tightly.
12. The wiring practices of electric control system must be complied with circuit diagram.
2.1.3 Safety rules of winch
1. Don't misuse the hoist, to avoid danger.
2. Before start the hoist, make sure all the protecting covers are not breakdown and damage.
3. If the mechanism or any part breakdown, operator should stop the hoist immediately and then examine
and repair it.
4. If it results abnormal sound during operation, operator should stop the hoist immediately and then examine
and repair it.
5. If abnormal temperature phenomenon happens during operation, operator should stop the hoist
immediately and then examine and repair it.
6. Don’t modify the original design of mechanical structure, in order to keep the best efficiency and security.
7. Please store the spare parts and tools well, and avoid moist and damage.
8. Untrained or unauthorized operator is prohibited operating, installing or maintaining hoist.
9. Please maintain and repair the hoist according to service instruction.
10. Please replace broken part according to the specification in part list.

Haklift Oy
Asessorinkatu 3-7
20780 Kaarina, Finland
Tel. [phone]
[e-mail]
www.haklift.com
Lifting Solutions Group
Axel Johnson International
2.2 Checklist of electrical and safety function
Item
Content inspection and safety requirement
Result
Comment
1
Is every terminal protected by isolation plate?
YES
2
Does technician follow the procedure number to wire?
YES
3
Are the diameter of grounding wire and each circuit according with safety
requirement of designed electrical circuit?
YES
4
Is fuse according with safety requirement of designed electrical circuit?
YES
5
Are the screws on electric box fixed tightly?
YES
6
Is the electric box equipped with a ventilator (e.g. fan)?
YES
7
Does the design of electric box conform to IP requirement?
YES
8
Is all the function of every control switch and component described specifically
on this operation manual?
YES
9
Are input voltage, frequency, and phase marked correctly?
YES
10
Is the machine earthed?
YES
11
Is there an independent earth copper plate equipped inside electric box?
YES
12
Is every function of control device regular?
YES
13
Is the emergency stop device functional?
YES
14
Is the rotary direction of motor or transmission correct?
YES
15
Is the cover functional (fixed or movable)?
YES
16
Is the machine set stable?
YES
17
Has the machine a CE mark?
YES
18
Has the machine a nameplate?
YES

Haklift Oy
Asessorinkatu 3-7
20780 Kaarina, Finland
Tel. [phone]
[e-mail]
www.haklift.com
Lifting Solutions Group
Axel Johnson International
3. MINI WIRE WINCH DESCRIPTION
3.1 General characteristics
3.1.1 Usage
Fit for various workplace applications, such as general factories, warehouse, construction, plumbing, and
agriculture industries. Designed for unique rigging applications encountered at small venues, lightweight, quiet,
and portable. Operates on 230V.
3.1.2 Features
Braking: Dual braking system combines dynamic and mechanical braking, provides instant and safe braking.
Gearing: Precision machined gears heat treated for strength and durability, the ball or needle bearings at all
rotating points run in oil bath lubrication for a quieter, smoother and cooler operation.
Upper limit switch: When hook disc touch it, the motor will automatically stop.
Lower limit switch: The design is in order to prevent wire rope under-wound
Push button: Easy to maintenance, simply layout of the control with 7 m power cable as standard and
emergency stop as option.
IP RATE: IP54.
3.2 Specifications
Len
gth
(m
m)
Widt
h
(mm
)
Heig
ht
(mm)
Capa
city.
(kg)
Stand
ard
Contr
ol
capel
(m)
Lifting
speed
m/s
Wire
(mm
)
SF
Protect
class
ED
%
No. of
start
per h
Elect.
Weight
(kg)
Model
lift(m)
cable
(m)
Mitat
VAINOS
H500
240
210
670
500
30
7
50HZ-
11
7
WLL X
4
F
30
%
300
5
29
VAINOS
H300
240
210
670
300
60
50HZ-
12
5
28
VAINOS
H230
240
180
660
230
30
50HZ-
19
21.5

Haklift Oy
Asessorinkatu 3-7
20780 Kaarina, Finland
Tel. [phone]
[e-mail]
www.haklift.com
Lifting Solutions Group
Axel Johnson International
4. PRE-USE PREPARATION
4.1 Notice and inspection before operation
4.1.1 Mechanical check
1. Are all transport protection facilities removed?
2. Is there any mechanical damage?
3.Are all the safety device, safety covers refitted from the set-up installation?
4. Are all hoist unit correctly aligned and locked in position?
5. Are all mobile and rotating parts exempt of foreign bodies? Is there mobility unimpaired (tools wire, yarns,
waste, etc.)
4.1.2 Electrical check
1. Are all ground conductors connected?
2. Are all cables connected?
3. Is there any mechanical damage of electrical control operating and indicator units
4. Are all plug-in connection to the winch fitted correctly?
5. Are all the cable near mobile parts fixed correctly?
6. Are the cable fitting tightened?
7. Were wire rests and metal objects removed and cleaned away from switch box, junction box, control
cabinets, and operating panel?
8. Are frequency inverters motor set for the correct V/Hz ratio if applied?
9. Are the drive rotating direction correct?
4.2 Expected use and limits of use
Specification of essential parts:
Please refer to the list of specification in operation manual.
This winch is expected to be used under industrial environment:
The well lighting, well ventilation, clean environment, dry, and maintains a normal temperature.
The winch needs the following supplies:
Electric power: single phase/ 230V/ 50Hz.
Working Duty (ED%):
30%.
No more than 20 minutes use within 60 minutes frame.
The required technique and experience during safety operation and use. They should be a proficient operator
or trained staff.

Haklift Oy
Asessorinkatu 3-7
20780 Kaarina, Finland
Tel. [phone]
[e-mail]
www.haklift.com
Lifting Solutions Group
Axel Johnson International
5. TRANSPORT, INSTALL AND DISMANTLE
5.1 Transport
Always carry the hoist with two hands.
5.2 Install
5.2.1 Environmental precautions
The following environmental conditions may adversely affect the winch:
.
Low temperature below -10°C
High temperature above 40°C
High humidity conditions above 90%
In organic, chemical, or explosive
conditions
In wet weather conditions or snow
(Cause rust or short circuit)
In heavy dusty conditions
(Cause malfunction or poor performance)

Haklift Oy
Asessorinkatu 3-7
20780 Kaarina, Finland
Tel. [phone]
[e-mail]
www.haklift.com
Lifting Solutions Group
Axel Johnson International
5.2.2 Power cord insertion
▪Insert the power plug into the power
receptacle of the winch, firmly hand tighten
by turning the locking ring clockwise.
▪Be sure to lock the cord onto
the holder mounted on the winch.
▪Do not allow the cords to be tangled
into the wire rope and drum
▪The normal length of the cord is 15 feet.
Longer cords up to can be used,
however to avoid any malfunction,
or any decrease in power efficiency
do not exceed a total length of 32 feet cord
Determining the appropriate cord based on length required
Grounding
▪To prevent the risk of electric shock, the power plug must be plugged into a matching grounded
socket.
Switch / pendant cord connection
▪Insert the pendant plug into the pendant receptacle of the winch and tighten it by turning the locking
ring clockwise. Be sure to hook the cord on the holder.
▪To extend the length of the cord connect an extension cord of 15 feet max. Do not exceed 50 feet in
total

Haklift Oy
Asessorinkatu 3-7
20780 Kaarina, Finland
Tel. [phone]
[e-mail]
www.haklift.com
Lifting Solutions Group
Axel Johnson International

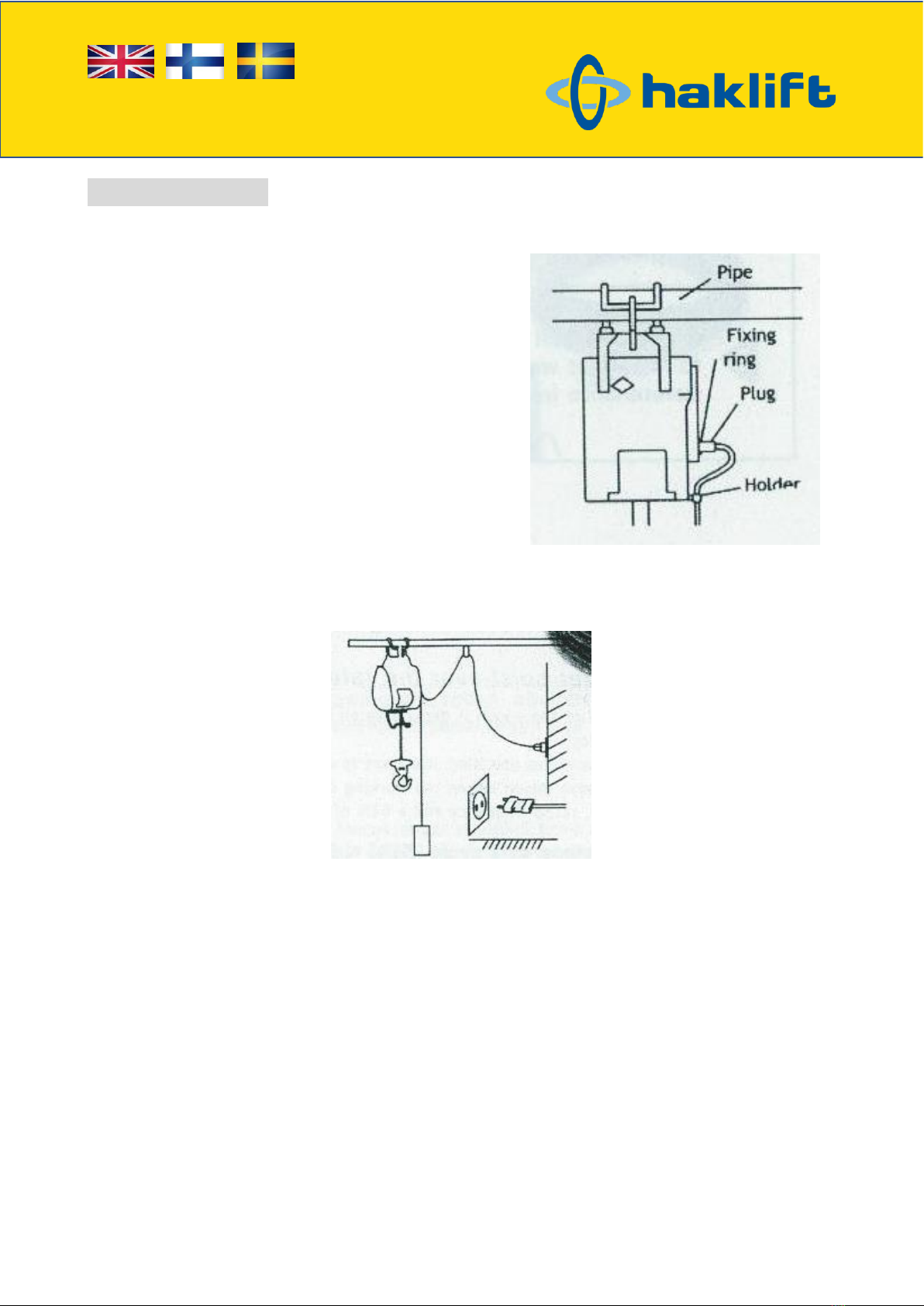

5.2.3 Mounting
▪The winch is designed to be hung or mounted on a firm or stable bar or bracket. Which ensures the
winch doesn’t move from side to side, or swing in a 360°
▪As an optional accessory the winch Bracket
can be purchased.
▪When hung, do not allow the body or load
to be caught by any obstruction.
Be sure to lock the hanger for extra safety
Never hang from the hook only.
This hook is not designed to take a load
5.2.4 Emergency stop button
Check the function of emergency stop button is normal or not. The emergency stop button is used for cutting
off the power supply that should be optional in any time. (Customer might forget to release the emergency stop
button, during operation, and misunderstand the machine is broken down.)

Haklift Oy
Asessorinkatu 3-7
20780 Kaarina, Finland
Tel. [phone]
[e-mail]
www.haklift.com
Lifting Solutions Group
Axel Johnson International
5.2.5 Continuous rating
Never use the winch beyond the 20 minutes permitted per hour.
The life of the winch depends on the conditions of the load and working frequency. During long operating
periods make sure to use the winch within its continuous rating.
Continuous rating means the amount of allowable usage within one hour which is 25% or 15 minutes per hour
or 300 starts per hour. The maximum number of starts means the number of times the motor starts within the
hour.
6. OPERATION
6.1 Control device: Control panel
6.2 Operating procedure
The person who is untrained or unfamiliar with the operation procedure is prohibited from operating machine.
Preparation before working
▪Check all safety and environmental conditions
▪Ensure there are a minimum of five (5) wraps of wire wound around the drum
▪Check the wire rope and discard should there be any signs of excessive wear, too many broken wires,
corrosion, or other defects.
▪One wire rope consists of 7 strands. One strand has 19 wires. So one of the 7 strands must not have
more than 3 of the 19, damaged wires.
▪Connect the main power source and ensure grounding.
▪Do not lift loads exceeding the rated load.
▪Always use power source at the rated voltage.

Haklift Oy
Asessorinkatu 3-7
20780 Kaarina, Finland
Tel. [phone]
[e-mail]
www.haklift.com
Lifting Solutions Group
Axel Johnson International
Up and Down control switch
▪To lift a load. Press ▲ Button
▪To lower a load. Press ▼ Button
6.3 Handling precautions
WARNING
Pay close attention to the following instructions.
Incorrectly operating the winch may result in personal injury or equipment damage.
Never try to lift a load more
than the rated capacity
Always remain in control. Never
leave a load unattended
Don’t work, walk or stand under
an operating winch
Never ride on the hook, sling,
or load

Haklift Oy
Asessorinkatu 3-7
20780 Kaarina, Finland
Tel. [phone]
[e-mail]
www.haklift.com
Lifting Solutions Group
Axel Johnson International
A minimum of five (5) wraps of rope
around the drum is necessary to
support the rated load
Always look up when working the winch.
Watch for overhead danger
Be sure to lift a load vertically. Any slack
may allow wire to be tangled.
Prior to lifting make sure the brake is
performing correctly.
If any malfunction is detected stop the
operation immediately.
Never wrap the load with the wire
rope

Haklift Oy
Asessorinkatu 3-7
20780 Kaarina, Finland
Tel. [phone]
[e-mail]
www.haklift.com
Lifting Solutions Group
Axel Johnson International
Wire rope with one or more of the following
defects must be replaced immediately.
1. Kink
2. Distortion
3. Corrosion
4. Showing signs of excessive wear or if 1
of the 7 strands has more than 3 of the
19 wires damaged
Do not pull the control pendant to
move/pull a load
Do not exceed the continuous rating
Do not rapidly change from
Lifting to Lowering
Never work on or weld on a
suspended load
Stop operation immediately if the
wire rope slackens.
Ensure the slings are fixed in the
centre of the swivel hook
Other Important Precautions
Stop operating the winch if there is an
abnormal noise or vibration in the gear
box.
Do not use the winch or the wire rope
as grounding for a welding machine
Make sure the load being lifted is well
balanced and secured before
commencing.

Haklift Oy
Asessorinkatu 3-7
20780 Kaarina, Finland
Tel. [phone]
[e-mail]
www.haklift.com
Lifting Solutions Group
Axel Johnson International
7. MAINTENANCE AND ADJUSTMENT
7.1 Periodical checking
Parts
Checks
Checking
Method
Timing
Daily
3mths/
20 hrs
1
year
3
years
1
Brake
Performance
Visual




Wearing of pressed plate
Decomposition Check




Broken springs
Decomposition check




2
Carbon
Brushes
Wearing
Decomposition Check




3
Motor
Condition of insulation
Visual




Staining damage
Visual




Carbon Powder accumulation
Decomposition Check




4
Control Assy
Working
Manual




Outer damage of switch cords
Visual




Connection of earth wire
Visual




Condition of Insulation
Visual




5
Safety
devices
Over prevention function
Visual




Reverse winding prevention function
Visual




Distortion over winding function
Visual




Wrong rotary direction-winding
Visual




6
Wire Rope
Kinking
Visual




Broken wires
Visual




Decreased diameter by more than
10%
Visual




Deforming or corrosion
Visual




7
Swivel hook
&
Distortion
Visual




Hanger
Damage
Visual




Loosening
Visual





Haklift Oy
Asessorinkatu 3-7
20780 Kaarina, Finland
Tel. [phone]
[e-mail]
www.haklift.com
Lifting Solutions Group
Axel Johnson International
It is important that:
1. Only qualified persons can conduct any form of checking
2. Each Item listed above is to be carried out according to the specified timing
Swivel hook
▪Put a new wire rope through the hole of the round plate of the swivel hook
▪Insert a sleeve pin through the thimble of the wire rope
▪Insert a pin through the sleeve pin and bend it with pliers
Drum
▪Insert a new wire rope w/clamp through the limit switch lever and insert it into the hole of the drum
▪Put a P.T. screw into the hole of the drum and tighten it by a hexagon key
▪Uneven winding of the rope may cause the load to swing thus damaging the rope and reducing its life
swan
Oil lubrication
▪The winch is prefabricated at the factory and do not require initial lubrication.
▪Re-lubrication interval depends upon service.
Carbon brush replacement
▪It is essential to check the carbon brushes periodically. If the length is less than 7.5 mm, it is necessary
to replace the carbon brushes immediately.
▪When replacing, smoothly insert carbon brushes into carbon holders, then put brush caps into the
holes.
▪Before tightening the carbon brush holders, make sure they are positioned correctly.
▪A set of carbon brushes consists of 2 pieces. Always replace 2 pieces on opposite sides of the winch
body at the same time.
8
Drum
Rupture of Flange
Visual




Wearing
Visual




9
Gear Case
Damaged
Visual




Check oil level
Measuring




Lubrication for couplings
Measuring




10
Fastenings
Loosening
Manual





Haklift Oy
Asessorinkatu 3-7
20780 Kaarina, Finland
Tel. [phone]
[e-mail]
www.haklift.com
Lifting Solutions Group
Axel Johnson International
7.2 Braking and winding devices
7.2.1 Braking
•Braking is via a mechanical brake and an electronic generated brake. The brake distance from time of
braking until stopping completely should be within 1.5 % of rope length wound during 1 minute.
This can be determined by simply timing the amount of rope that is wound in 1 minute and calculated
by 1.5%.
•The rope speed with no load is faster than that with the rated load. The brake distance with no load
will be longer, but still within 1.5% of rope length
7.2.2 Over-winding lift prevention device
▪A special mechanism prevents over-winding when lifting. When the swivel hook touches the limit lever, lifting
is automatically stopped.
▪If the limit lever is set to close to the winch body, it will cause serious damage to the limit lever and winch
body.
7.2.3 Reverse-winding prevention device
A special mechanism prevents reverse over-winding:
•When lowering if the rope is fully extended, this device will cause the wire rope to shift its position from
the front, toward the back.
•To disengage this device the wire rope needs to be shifted back to the front position. To do this pull
and hold the rope downward and press the ↑ button.

Haklift Oy
Asessorinkatu 3-7
20780 Kaarina, Finland
Tel. [phone]
[e-mail]
www.haklift.com
Lifting Solutions Group
Axel Johnson International
7.3 Troubleshooting
If the winch fails to start after several attempts or the winch’s operation appears to be defective, check the
following:
Observed Anomaly
Possible Cause
Solution
No Reaction after pressing
the buttons on the control
pendant
No power
Check power source
Disconnection of plug, power cord or
pendant cord
Replace or repair
Damaged motor resulting from
overload
Replace
Burnt diode assy
Replace
Considerable voltage drop
Adjust to rated voltage
Wearing of carbon brushes
Replace carbon brushes
Brake distance too long
Wearing of lining, pressed plate and
pawl
Replace
Disconnection of electronic generated
braking
Repair nut cord or Replace D type
resister
Voltage Too high
Adjust to rated voltage
No over-winding Prevention
while swivel hook touches
limit lever
Disconnection of electronic generated
braking
Repair nut cord or Replace D type
resister
Malfunction of limit switch
Replace
Lifting speed too slow
Overload
Reduce Load
Considerable voltage drop
Adjust to rated voltage and check
the section of the power cord

Haklift Oy
Asessorinkatu 3-7
20780 Kaarina, Finland
Tel. [phone]
[e-mail]
www.haklift.com
Lifting Solutions Group
Axel Johnson International
NB: All mechanical or electrical work must be carried out by a qualified person
Electrical leakage or shock
Burnt motor resulting from overload
Replace motor
Wearing of carbon brushes
Replace carbon brushes and clean
any carbon powder in the motor
Water invaded motor or push button
Dry it or replace motor if badly
saturated
Abnormal sound in gear
box
Insufficient oil resulting from oil
leakage
Replace oil seal and refill with
sufficient oil
Distortion of gear box
Repair

Haklift Oy
Asessorinkatu 3-7
20780 Kaarina, Finland
Tel. [phone]
[e-mail]
www.haklift.com
Lifting Solutions Group
Axel Johnson International
HAKLIFT SÄHKÖKÄYTTÖINEN VAIJERIVINTTURI - JOHDANTO
Hakliftin sähkökäyttöinen vintturi on suunniteltu käytettäväksi rakentamisessa, niin kaupallisessa kuin
kotirakentamisessakin sekä niihin liittyvillä työpaikoilla ja rakennustyömailla; varastoissa ja muissa
rakennuksissa, sekä yleisesti varastoalueilla ja tehdasalueilla.
1. ENNEN KÄYTTÖÄ
⚫Lue käyttöohjemanuaali huolellisesti ennen laitteen käyttöä. Löydät ohjeista useita hyödyllisiä vihjeitä
nostimen käyttämiseksi siten, että se säilyy ensiluokkaisessa käyttövalmiudessa.
⚫Ohje on kirjoitettu siinä tarkoituksessa, että se luetaan huolella ennen käyttöä ja siinä esitettyjä ohjeita
noudatetaan tarkasti. Turvallisuuden takaamiseksi vältä kaikkia ohjeessa mainitsemattomia käyttötapoja
ja asennuksia.
⚫Tämä nostin on suunniteltu ja valmistettu EN ISO 12100, ISO 14121, EN 14492 ja EN 60204 standardeja
noudattaen, korkealaatuisista materiaaleista ja onnettomuusriskin pienentämiseen huomiota kiinnittäen.
⚫Käyttöohjeet sisältävät tärkeää tietoa siitä, miten nostinta käytetään turvallisesti, oikein ja tehokkaasti.
Näiden ohjeiden noudattaminen auttaa välttämään vaaratilanteiden syntymistä, estämään
käyttöseisauksia, alentamaan kunnostuskuluja ja muita laitteen huoltokustannuksia, sekä lisäämään
nostimen luotettavuutta ja pidentämään sen käyttöikää.
⚫Käyttöohjeisiin on sovellettava voimassaolevaa lainsäädäntöä ja työturvallisuussäädöksiä
onnettomuuksien estämiseksi ja ympäristön suojelemiseksi. Ohjeet on pidettävä laitteen käyttäjän
saatavilla kaikissa tilanteissa, mukaan lukien
➢Laitteen käyttö, asennukset, ongelmanratkaisu, laiteosien huoltaminen.
➢Huolto (ylläpito, tarkistukset, kunnostus) sekä/tai
➢Kuljetus
2. TURVALLISUUSOHJEET
2.1 Turvallisuussäädökset
2.1.1 Yleiset turvallisuussäädökset
1. Vintturi on tarkoitettu tavaroiden nostamiseen. Henkilönostaminen ei ole sallittua.
2. Vintturi tulee ripustaa erillisen, kestävän palkin varaan.
3. Aseta vintturi sopivalle tasolle siten että vaijerin liikkumavara säilyy riittävänä. Tämä estää vaijerin
rispaantumisen vintturirunkoa vasten kelaamisen aikana.
4. Varmista, että virtalähde (volttimäärä) on yhteensopiva vintturin kanssa ennen laitteen liittämistä
virtalähteeseen.
