Chamberlain ELITE Series Manual instruction

SETUP AND OPERATION MANUAL
LiftMaster
845 Larch Avenue
Elmhurst, IL 60126-1196
ELITE SERIES COMMERCIAL HIGH-TRAFFIC
AC GATE OPERATORS
SL3000101U
1 HP Single Phase
SL3000103U
1 HP Three Phase
SL3000501U
1/2 HP Single Phase
Model SL3000U
CSW200101U
1 HP Single Phase
CSW200103U
1 HP Three Phase
CSW200501U
1/2 HP Single Phase
Model CSW200U
This manual downloaded from http://www.manualowl.com

1
TABLE OF CONTENTS
SAFETY 2
SAFETY SYMBOL AND SIGNAL WORD REVIEW ..................................2
IMPORTANT SAFETY INFORMATION ....................................................2
OPERATOR OVERVIEW 3
SL3000U................................................................................................3
CSW200U ..............................................................................................4
CONTROL BOARD 5
CONTROL BOARD REFERENCE .............................................................5
LEARN BUTTON.....................................................................................6
DIAGNOSTIC DISPLAY ..........................................................................6
HANDING BUTTONS..............................................................................6
BIPART DELAY DIAL .............................................................................6
TIMER-TO-CLOSE (TTC) DIAL...............................................................6
FORCE DIAL...........................................................................................7
TEST BUTTONS .....................................................................................7
STATUS LEDS........................................................................................7
THREE BUTTON CONTROL STATION TERMINALS................................8
FIRE DEPT TERMINALS.........................................................................8
LOOP TERMINALS.................................................................................8
EYES/EDGE TERMINALS .......................................................................9
LOCK TERMINALS.................................................................................9
EXPANSION BOARD 10
EXPANSION BOARD REFERENCE........................................................10
EXIT FAIL SWITCH...............................................................................10
AC FAIL SWITCH .................................................................................10
ANTI TAIL SWITCH..............................................................................10
QUICK CLOSE SWITCH........................................................................10
AUX RELAY 1 AND 2 ...........................................................................11
EYE/EDGE TERMINALS........................................................................12
CONTROL STATION TERMINALS ........................................................12
LOOP INPUTS......................................................................................13
POWER BOARD 13
ADJUSTMENT 14
ADJUST THE LIMITS ...........................................................................14
OBSTRUCTION TEST ...........................................................................15
ERASE LIMITS.....................................................................................15
PROGRAMMING 16
REMOTE CONTROLS (NOT PROVIDED)..............................................16
LIFTMASTER INTERNET GATEWAY (NOT PROVIDED) .......................17
ERASE ALL CODES..............................................................................17
TO REMOVE AND ERASE ALL MONITORED
ENTRAPMENT PROTECTION AND VEHICLE DETECTION DEVICES.....17
SETTINGS 18
GATE OPERATOR SETUP EXAMPLES .................................................18
DUAL GATE SETTINGS........................................................................19
WIRING 19
SAMS WIRING WITH RELAYS NOT ENERGIZED.................................19
FIELD WIRING .....................................................................................20
MAINTENANCE 21
MAINTENANCE ....................................................................................21
TROUBLESHOOTING 22
DIAGNOSTIC CODES ...........................................................................22
OPERATOR ALARM .............................................................................25
ACCESSORIES 26
REPAIR PARTS 27
SL3000U..............................................................................................27
CSW200U ............................................................................................28
WARRANTY 29
This manual downloaded from http://www.manualowl.com

2
SAFETY
To reduce the risk of SEVERE INJURY or DEATH:
• READ AND FOLLOW ALL INSTRUCTIONS.
• ANY maintenance to the operator or in the area near the operator
MUST NOT be performed until disconnecting the electrical power (AC
or solar and battery) and locking-out the power via the operator
power switch. Upon completion of maintenance the area MUST be
cleared and secured, at that time the unit may be returned to service.
• Disconnect power at the fuse box BEFORE proceeding. Operator
MUST be properly grounded and connected in accordance with
national and local electrical codes. NOTE: The operator should be on
a separate fused line of adequate capacity.
• NEVER let children operate or play with gate controls. Keep the
remote control away from children.
• ALWAYS keep people and objects away from the gate. NO ONE
SHOULD CROSS THE PATH OF THE MOVING GATE.
• The entrance is for vehicles ONLY. Pedestrians MUST use separate
entrance.
• Test the gate operator monthly. The gate MUST reverse on contact
with a rigid object or reverse when an object activates the non-
contact sensors. After adjusting the force or the limit of travel, retest
the gate operator. Failure to adjust and retest the gate operator
properly can increase the risk of INJURY or DEATH.
• Use the manual disconnect release ONLY when the gate is NOT
moving.
• KEEP GATES PROPERLY MAINTAINED. Read the owner’s manual.
Have a qualified service person make repairs to gate hardware.
• ALL maintenance MUST be performed by a LiftMaster professional.
• Activate gate ONLY when it can be seen clearly, is properly adjusted
and there are no obstructions to gate travel.
• SAVE THESE INSTRUCTIONS.
IMPORTANT SAFETY INFORMATION
To protect against fire and electrocution:
• DISCONNECT power (AC or solar and battery) BEFORE installing or
servicing operator.
For continued protection against fire:
• Replace ONLY with fuse of same type and rating.
MECHANICAL
ELECTRICAL
SAFETY SYMBOL AND SIGNAL WORD
REVIEW
When you see these Safety Symbols and Signal Words on the following
pages, they will alert you to the possibility of Serious Injury or Death if
you do not comply with the warnings that accompany them. The hazard
may come from something mechanical or from electric shock. Read the
warnings carefully.
When you see this Signal Word on the following pages, it will alert you
to the possibility of damage to your gate and/or the gate operator if you
do not comply with the cautionary statements that accompany it. Read
them carefully.
IMPORTANT NOTE:
• BEFORE attempting to install, operate or maintain the operator, you
must read and fully understand this manual and follow all safety
instructions.
• DO NOT attempt repair or service of your gate operator unless you
are an Authorized Service Technician.
This manual downloaded from http://www.manualowl.com

3

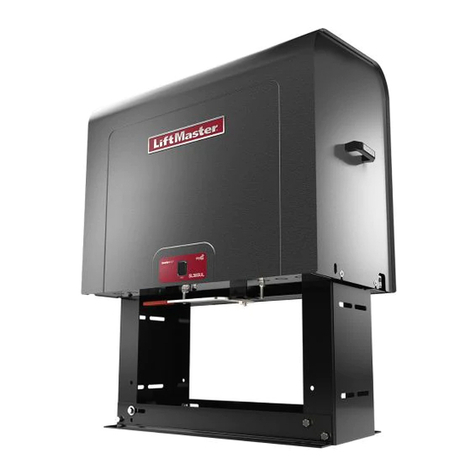

OPERATOR OVERVIEW
MANUAL RELEASE HANDLE
Pull the manual release handle to
manually open and close the gate.
JUNCTION BOX
Page 20
ACCESSORY POWER
OUTLET
JUNCTION BOX
Page 20
EXPANSION BOARD
Pages 10-13
AC POWER SWITCH
The AC Power switch on the operator
will turn the incoming 120/240 Vac
power ON or OFF.
CONTROL BOARD
Pages 5-9
DUST GUARD
COVER
ANTENNA
RESET BUTTON
• Press the reset button to stop a moving gate during a
normal open/close cycle, like a stop button.
• Press the reset button once while the gate is in open
position to disable the Timer-to-Close. The gate will stay
in the open position. To restart the Timer-to-Close either
press the reset button or activate the gate with a
programmed remote control.
• Press the reset button to shut off the alarm and reset the
operator.
SL3000U
LIMIT SWITCHES
Pages 14-15
POWER BOARD
(Located behind the control board)
Page 13
This manual downloaded from http://www.manualowl.com

4
OPERATOR OVERVIEW
CSW200U
MANUAL RELEASE HANDLE
Pull the manual release handle to
manually open and close the gate.
FRONT COVER
ACCESSORY POWER
OUTLET
JUNCTION BOX
Page 20
EXPANSION BOARD
Pages 10-13
AC POWER SWITCH
The AC Power switch on the operator will turn the
incoming 120/240 Vac power ON or OFF.
CONTROL BOARD
Pages 5-9
DUST GUARD
ANTENNA
RESET BUTTON
• Press the reset button to stop a moving gate during a normal
open/close cycle, like a stop button.
• Press the reset button once while the gate is in open position
to disable the Timer-to-Close. The gate will stay in the open
position. To restart the Timer-to-Close either press the reset
button or activate the gate with a programmed remote
control.
• Press the reset button to shut off the alarm and reset the
operator.
LIMIT SWITCHES
Pages 14-15
REAR COVER
OPERATOR ARM
CLUDGE COVER
JUNCTION BOX
Page 20
POWER BOARD
(Located behind the control board)
Page 13
This manual downloaded from http://www.manualowl.com

5

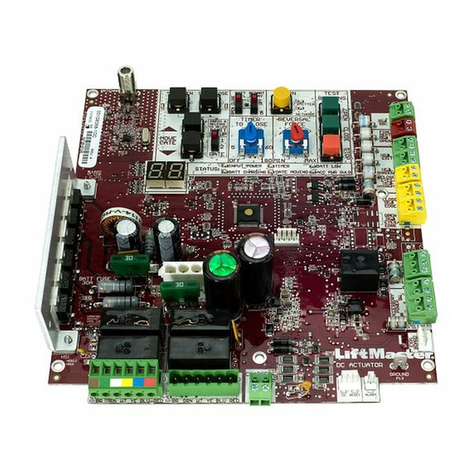

CONTROL BOARD
COMM
LINK
BA
BIPART
DELAY
2
4
6
8
HANDING
OPEN
LEFT
OPEN
RIGHT
ANTENNA CURRENT
SENSOR MOTOR DRIVE RPM & LIMITS ALARM EXP.
BOARD
24 VAC IN
CLASS 2 SUPPLY
24 VAC
500 mA MAX
ID RESET
GND
HANDING BUTTONS
Pages 6, 14
BIPART
DELAY
Page 6
LEARN BUTTON
Pages 6, 16-17
TEST BUTTONS
Pages 7, 24
CONTROL STATION
TERMINALS
Page 8
EXPANSION BOARD CONNECTION
Factory installed.
ACCESSORY POWER
TERMINALS
LOCK TERMINALS
Page 9
DUAL GATE TERMINALS
For dual gate connection.
EYES/EDGE TERMINALS
Page 9
LOOP TERMINALS
Page 8
FIRE DEPARTMENT
TERMINALS
Page 8
DIAGNOSTIC CODES
Pages 6, 24-26
TIMER-TO-CLOSE
Page 6
FORCE DIAL
Page 7
STATUS LEDS
Page 7
GROUND
POWER
ALARM
Factory installed.
RPM SENSOR AND LIMITS
Factory installed.
MOTOR
Factory installed.
PRODUCT ID AND RESET
Factory installed.
CONTROL BOARD REFERENCE
CURRENT SENSOR
Factory installed
(model CSW200U only).
This manual downloaded from http://www.manualowl.com

6
BIPART DELAY
TIMER-TO-CLOSE (TTC)
LEARN BUTTON
DIAGNOSTIC DISPLAY
CONTROL BOARD
The LEARN button is used for programming (refer to Programming).
The diagnostic display will show the operator type, firmware version, and codes. The operator type will display as “SL” followed by a “30”
which indicates the operator type as SL3000U. The operator type will display as “SG” followed by a “20” which indicates the operator type
as CSW200U. The firmware version will show after the operator type, example “1.2”. For more information about the codes refer to the
Troubleshooting section.
The handing buttons are used to determine which direction the gate will open and they are also used to set the limits
(refer to the Adjustment section).
OPEN RIGHT If the operator is installed on the right side of the drive when looking out of the property, a swing gate
will swing to the right (turn counter clockwise) when opening and a slide gate will slide to the right when
opening.
OPEN LEFT If the operator is mounted on the left side of the drive when looking out of the property, a swing gate will swing to the left (turn
clockwise) when opening and a slide gate will slide to the left when opening.
NOTE: For gates installed on the outside of the property, the setting will be opposite. Determine the direction by looking towards the property from the
outside.
HANDING BUTTONS
Used in dual gate applications where a maglock, solenoid lock, or decorative overlay would require one gate to close before the other.
The BIPART DELAY is also used in applications where one gate travels a longer distance than the other.
ON The operator with the BIPART DELAY dial ON will delay from the close limit when opening and be the first to close from
the open limit.
OFF No affect.
The TTC is factory set to OFF (0). Rotate the TIMER-TO-CLOSE dial to the desired setting (0 to 180 seconds). Any radio command, single
button control, or CLOSE command on the control board prior to the TTC expiring will close the gate. The TTC is reset by any signals from
the open controls, loops, close edges, and close photoelectric sensors.
0 seconds (OFF) The gate will remain open until the operator receives another command from a control.
1-180 seconds (ON) The gate will automatically close after the specified time period.
HANDING
OPEN
LEFT OPEN RIGHT
BIPART
DELAY
2
4
6
8
This manual downloaded from http://www.manualowl.com

7
STATUS LEDS
LED STATE DEFINITION
INPUT POWER OFF OFF state
ON AC power available
TIMER OFF The timer is disabled
ON The timer is enabled
1 blink/second The timer is running
2 blinks/second The timer is paused
8 blinks/second The timer is cancelled
GATE MOVING OFF The gate is stopped
ON The gate is opening or closing
1 blink/second E1 (single entrapment)
8 blinks/second E2 (double entrapment)
ACC PWR OVLD OFF OFF state
ON Accessory overload protector opened
TEST BUTTONS
CONTROL BOARD
FORCE DIAL
The FORCE DIAL on the control board is used for fine tuning the force in cases where wind or environmental changes may affect the gate
travel. Based on the length and weight of the gate it may be necessary to make additional force adjustments. The force setting should be
high enough that the gate will not reverse by itself nor cause nuisance interruptions, but low enough to prevent serious injury to a person.
The force setting is the same for both the open and close gate directions.
1. Open and close the gate with the TEST BUTTONS.
2. If the gate stops or reverses before reaching the fully open or closed position, increase the force by turning the force control slightly
clockwise.
Perform the “Obstruction Test” after every force setting adjustment:
1. Open and close the gate with the TEST BUTTONS, ensuring that the gate is stopping at the proper open and close limit positions.
2. Place a solid object between the open gate and a rigid structure. Ensure that the gate, the solid object, and the rigid structure can withstand the
forces generated during this obstruction test.
3. Run the gate in the close direction. The gate should stop and reverse upon contact with the solid object. If the gate does not reverse off the solid
object, reduce the force setting by turning the force control slightly counter-clockwise. The gate should have enough force to reach both the open
and close limits, but MUST reverse after contact with a solid object.
4. Repeat the test for the open direction.
Used to operate the gate (OPEN, STOP and CLOSE). Also used to view the code history (refer to the Troubleshooting section).
This manual downloaded from http://www.manualowl.com

8
CONTROL BOARD
LOOP TERMINALS
The Loop terminals are used for connecting loops and various control devices such as telephone entry keypads, vehicle probes, etc. Connect the
accessory to the terminals based on how the accessory should function.
TERMINALS FUNCTION WIRING EXAMPLE
EXIT and COM This input is a soft open command (maintained switch does not
override external safeties and does not reset alarm condition).
Used for exit probe, telephone entry, external exit loop detector,
or any device that would command the gate to open.
• Opens a closing gate and holds open an open gate, if
maintained, pauses Timer-to-Close at OPEN limit.
+
+
+
–
–
–
SHADOW and COM This input is used for external shadow loop detector when loop
is positioned under the swing of the gate.
• Holds open gate at open limit
• Only active when the gate is at the OPEN limit, disregarded at
all other times
• Pauses Timer-to-Close at OPEN limit
INTERRUPT and COM This input is used for photoelectric sensors and external
interrupt loop detector when loop is on the outside of the gate.
• Holds open gate at open limit
• Stops and reverses a closing gate to open limit
• Pauses Timer-to-Close at OPEN limit, activates quick close
and anti-tailgate features when enabled on the expansion
board
FIRE DEPT TERMINALS
TERMINALS FUNCTION WIRING EXAMPLE
FIRE DEPT (-) and
OPEN (+) FIRE DEPT and OPEN terminals act as a hard open. Maintained
input overrides (ignores) external safeties (photoelectric sensor
and edge), pauses Timer-to-Close momentary input logic as
single button control and safeties remain active, re-enables
Timer-to-Close.
+
–
THREE BUTTON CONTROL STATION TERMINALS
TERMINALS FUNCTION WIRING EXAMPLE
OPEN and COMM Opens a closed gate. Hard open (maintained switch overrides
external safeties and resets alarm condition). If maintained,
pauses Timer-to-Close at OPEN limit. Opens a closing gate and
holds open an open gate (within line-of-sight).
CLOSE and COMM Closes an open gate. Hard close (maintained switch overrides
external safeties and resets alarm condition within line-of-sight)
STOP and COMM Stops a moving gate. Hard stop (maintained switch overrides
Open and Close commands and resets alarm condition). If
maintained, cancels Timer-to-Close at OPEN limit. Overrides
Open and Close commands (within line-of-sight).
+
+
+
N.C.
–
This manual downloaded from http://www.manualowl.com

9
LOCK TERMINALS
MAGLOCK WIRING
TERMINALS FUNCTION WIRING EXAMPLE
NC and COM Normally Closed (N.C.) output for maglocks. Relay
activates prior to motor activation and during
motor run. Relay is off when motor is off.
CO
L
B
PLY
AX
-
+
SOLENOID LOCK WIRING
NO and COM Normally Open (N.O.) output for solenoid locks.
Relay activates prior to motor activation and
during motor run. Relay is off when motor is off.
CO
L
B
PLY
AX
-
+
EYES/EDGE TERMINALS
The EYES/EDGE terminals are used for connecting accessories such as entrapment protection devices and vehicle detection devices. At least one
external monitored entrapment protection device is required prior to gate movement. Monitored entrapment protection devices should have been
installed with the operator at the time of installation. The vehicle detection devices may be monitored or non-monitored, but only ONE monitored
device may be connected to each input, inclusive of entrapment protection devices. Multiple non-monitored devices can be wired to the same input.
A monitored device sends a pulsed signal to the operator so the operator is aware of the device. If the operator does not receive the signal from the
device indicating it is working properly, it will not run in that direction.
TERMINALS FUNCTION WIRING EXAMPLE
CLOSE EYES/
INTERRUPT The CLOSE EYES/INTERRUPT input is for
photoelectric sensor vehicle detection for the close
direction. When an obstruction is sensed during gate
closing the gate will open to the full open position.
This input will be disregarded during gate opening and
resets the Timer-to-Close.
+
+
+
–
–
–
M
K
A
CLOSE EDGE The CLOSE EDGE input is for edge sensor vehicle
detection for the close direction. When an obstruction
is sensed during gate closing the gate will reverse to
the full open position, disengaging the Timer-to-Close.
This input will be disregarded during gate opening.
OPEN EYES/
EDGE The OPEN EYES/EDGE input is for photoelectric sensor
or edge sensor vehicle detection for the open
direction. When an obstruction is sensed during gate
opening the gate will reverse for 4 seconds then stop.
This input will be disregarded during gate closing.
CONTROL BOARD
This manual downloaded from http://www.manualowl.com
