Champlain ACM-101A User manual

4”
IMPORTANT
ACM-101A; ACM-101A-ST
Hardware • Jeu de pièces
Champlain Plastics Inc.
87 Pillsbury Road
Rouses Point, NY 12979
(INS-1101A-rev2)
P1 P2 P3
x 1
P2A
x 1x 2 x 2
P4 x 1
x 4
x 8 x 8 x 8 x 4 x 4
x 8 x 8 x 4
!
" # $ % & x 4
'
( ) *
ÉTAPE 5
Il est nécessaire d'être deux
personnes pour installer
l'échelle dans la piscine.
S'assurer que l'espace entre la
paroi intérieure de la piscine et
l'échelle soit de 2" et que
chaque muret et chaque
marche soient bien fixés à
l'échelle.
AVERTISSEMENT :
L'espace entre la paroi
intérieure de la piscine et
l'échelle ne doit pas excéder
4" afin d'éviter qu'une
personne n'y demeure
coincée lors de la baignade.
ÉTAPE 6
Installer les crochets (9) de
façon on à ce qu'ils
s'agrippent bien au rebord de
la piscine et les fixer au moyen
des longs boulons (8) et des
écrous (10).
STEP 5
Two people are needed to put
the ladder in the pool. Make sure
that the space between the
pool's inner wall and the ladder is
2" and that each barrier and each
step is properly attached to the
ladder.
WARNING: The space
between the pool's inner wall
and the ladder should be no
more than 4" to prevent
entrapment between the ladder
and pool wall.
STEP 6
Install all four hooks (8) onto the
anchor points under the platform
(P4 ) using the long bolts (9) and
the lock nut (10). Each pair of
hooks (9) should be installed
facing each other on the inside of
the ladder with the knob of the
bolt facing to the outside. Before
tightening the hooks with the
knob on the long bolts, adjust
them so they securely grip the
top rail of the pool.
IMPORTANT SAFETY INSTRUCTIONS
CAUTION: To prevent damage to the ladder and to minimize risk
of injury follow these instructions carefully.
• Install ladder on a solid base.
• For ENTRY/EXIT of pool, FACE THE LADDER AT ALL TIMES.
This ladder must be used only to enter and exit the pool. Any
other use could damage the ladder and pool structure.
• NO JUMPING. NO DIVING.
• To prevent entrapment or drowning, do not
swim through, behind or around the ladder.
WARNING: The space between the inner pool wall
and the ladder should be no more than 4" to
prevent entrapment between ladder and pool wall.
NOTE: This ladder is designed and manufactured
for above ground pools which are 48", 52" or 54" in height.
The ladder must be removed from the pool and stored in a
dry place for the winter.
NOTES IMPORTANTES DE SÉCURITÉ
ATTENTION : Afin d'éviter d'endommager l'échelle et pour
minimiser les risques de blessures, respecter attentivement les
indications suivantes.
• Installer l'échelle sur une base solide.
• Pour ENTRER/SORTIR de la piscine, TOUJOURS SE PLACER
FACE À L'ECHELLE. Cette échelle doit être utilisée seulement
pour entrer et sortir de la piscine. Toute autre utilisation pourrait
endommager l'échelle et la structure de la piscine.
• NE PAS SAUTER. NE PAS PLONGER.
• Ne pas nager à travers, derrière ou autour de l'échelle afin
d'éviter qu'une personne n'y demeure coincée et se noie.
AVERTISSEMENT : L'espace entre la paroi intérieure de la
piscine et l'échelle ne doit pas excéder 4" afin d'éviter qu'une
personne n'y demeure coincée lors de la baignade.
NOTE : Cette échelle est conçue et fabriquée pour convenir aux
piscines hors terre d'une hauteur de 48", 52" ou 54".
L'échelle doit être sorti de la piscine et remisé dans un
endroit sec pour l'hiver.
By/Par : Champlain Plastics Inc.
87 Pillsbury Road, Rouses Point, NY 12979 INS-1101A-rev2
A
ACM-101A; ACM-101A-ST
A
A
E5
E6
%
&
'
AVERTISSEMENT :
Cette échelle doit être
utilisée seulement pour
entrer et sortir de la
piscine. Toute autre
utilisation pourrait
endommager l'échelle et la
structure de la piscine.
ÉTAPE 1
Fixer les pieds (1) à la base
de l'échelle (P1) en utilisant 4
rondelles en acier inoxydable
(3) et 4 vis (2). Insérer les 4
bouchons (4) sous les pieds.
ÉTAPE 2
Insérer les cadres de
l'échelle (P2 & P2A) dans les
bases assemblées (E1).
Selon la hauteur de la
piscine (48"; 52"; 54"),
ajuster les bases (E1) à la
hauteur désirée. Insérer les 8
boulons (5) dans les trous
déjà perforés et bien serrer
avec les 8 rondelles (6) et les
8 écrous (7).
WARNING: This ladder
must be used to enter and
exit the pool ONLY. Any other
use could damage the ladder
and pool structure.
STEP 1
Attach two of the feet (1) onto
one of the "U" shaped ladder
bases (P1) using a stainless
steel screw (2), a stainless
steel washer (3) and a plastic
cap (4) for each pad. Repeat
for the second "U" shaped
ladder base with two more feet.
STEP 2
Insert one of the ladder frames
(P2) into one of the assembled
ladder bases (E1). Adjust the
height of P2 plus E1 for the
height of the pool, 48", 52" or
54". Secure the ladder base
(E1) to the ladder frame (P2) by
inserting four bolts (5) into the
four predrilled holes and
fastening them with four
washers (6) and four nuts (7).
Repeat with the second ladder
frame with latch box (P2A) and
a ladder base (E1).
!
"
#
$
P1
E1
ÉTAPE 3
NOTE: À cette étape
l'alignement est critique. De
la gelée de pétrole peut être
utilisée pour faciliter
l'assemblage.
Insérer les cadres de
l'échelle (E2) dans les
rampes (P3). S'assurer que
les lettres «A» inscrites sur
les deux portions de rampe
soient du même côté.
S'assurer que les points
d'ancrage des crochets (ret.
Étape #7), situés sous les
barres transversales des
rampes, soient alignés les
uns par rapport aux autres.
S'assurer également que les
ergots d'arrêt situés de
chaque côté du cadre de
l'échelle (E2) soient bien
enclenchés dans les rampes
(P3).
ÉTAPE 4
Insérer la plate-forme (P4)
entre les deux rampes, en
s'assurant que la lettre «A»
inscrite sur la planchette soit
du même côté que les lettres
«A» inscrites sur les rampes.
Fixé solidement avec 4 vis
(3) et 4 rondelles (2).
STEP 3
NOTE: In this step alignment is
critical. Petroleum jelly may be
used if necessary to make the
fit easier. Insert the assembled
ladder frame without the latch
box (P2) from E2 into both
handrails making sure that the
letter “A" on both handrails is
facing in the same
direction.The ladder frame
assembly with the latch box
(P2A) is inserted into the two
handrails on the side away
from the letter “A".
STEP 4
Slide the upper platform (P4) in
between the two handrails,
making sure that the letter "A"
written on the step is facing the
same side as the letter "A" on
the handrails. Attach firmly
using 4 screws (3) and 4
washers (2).
%&
'
E2
48"
52"
54"
P2AP2 &
E1
ACM-101A; ACM-101A-ST
#
"
A
A
E4
P4
E3
P3
P2A
P2
A
A
A
AVERTISSEMENT :
Cette échelle doit être
utilisée seulement pour
entrer et sortir de la
piscine. Toute autre
utilisation pourrait
endommager l'échelle et la
structure de la piscine.
ÉTAPE 1
Fixer les pieds (1) à la base
de l'échelle (P1) en utilisant 4
rondelles en acier inoxydable
(3) et 4 vis (2). Insérer les 4
bouchons (4) sous les pieds.
ÉTAPE 2
Insérer les cadres de
l'échelle (P2 & P2A) dans les
bases assemblées (E1).
Selon la hauteur de la
piscine (48"; 52"; 54"),
ajuster les bases (E1) à la
hauteur désirée. Insérer les 8
boulons (5) dans les trous
déjà perforés et bien serrer
avec les 8 rondelles (6) et les
8 écrous (7).
WARNING: This ladder
must be used to enter and
exit the pool ONLY. Any other
use could damage the ladder
and pool structure.
STEP 1
Attach two of the feet (1) onto
one of the "U" shaped ladder
bases (P1) using a stainless
steel screw (2), a stainless
steel washer (3) and a plastic
cap (4) for each pad. Repeat
for the second "U" shaped
ladder base with two more feet.
STEP 2
Insert one of the ladder frames
(P2) into one of the assembled
ladder bases (E1). Adjust the
height of P2 plus E1 for the
height of the pool, 48", 52" or
54". Secure the ladder base
(E1) to the ladder frame (P2) by
inserting four bolts (5) into the
four predrilled holes and
fastening them with four
washers (6) and four nuts (7).
Repeat with the second ladder
frame with latch box (P2A) and
a ladder base (E1).
!
"
#
$
P1
E1
ÉTAPE 3
NOTE: À cette étape
l'alignement est critique. De
la gelée de pétrole peut être
utilisée pour faciliter
l'assemblage.
Insérer les cadres de
l'échelle (E2) dans les
rampes (P3). S'assurer que
les lettres «A» inscrites sur
les deux portions de rampe
soient du même côté.
S'assurer que les points
d'ancrage des crochets (ret.
Étape #7), situés sous les
barres transversales des
rampes, soient alignés les
uns par rapport aux autres.
S'assurer également que les
ergots d'arrêt situés de
chaque côté du cadre de
l'échelle (E2) soient bien
enclenchés dans les rampes
(P3).
ÉTAPE 4
Insérer la plate-forme (P4)
entre les deux rampes, en
s'assurant que la lettre «A»
inscrite sur la planchette soit
du même côté que les lettres
«A» inscrites sur les rampes.
Fixé solidement avec 4 vis
(3) et 4 rondelles (2).
STEP 3
NOTE: In this step alignment is
critical. Petroleum jelly may be
used if necessary to make the
fit easier. Insert the assembled
ladder frame without the latch
box (P2) from E2 into both
handrails making sure that the
letter “A" on both handrails is
facing in the same
direction.The ladder frame
assembly with the latch box
(P2A) is inserted into the two
handrails on the side away
from the letter “A".
STEP 4
Slide the upper platform (P4) in
between the two handrails,
making sure that the letter "A"
written on the step is facing the
same side as the letter "A" on
the handrails. Attach firmly
using 4 screws (3) and 4
washers (2).
%&
'
E2
48"
52"
54"
P2AP2 &
E1
ACM-101A; ACM-101A-ST
#
"
A
A
E4
P4
E3
P3
P2A
P2
A
A
A
4”
IMPORTANT
ACM-101A; ACM-101A-ST
Hardware • Jeu de pièces
Champlain Plastics Inc.
87 Pillsbury Road
Rouses Point, NY 12979
(INS-1101A-rev2)
P1 P2 P3
x 1
P2A
x 1x 2 x 2
P4 x 1
x 4
x 8 x 8 x 8 x 4 x 4
x 8 x 8 x 4
!
" # $ % & x 4
'
( ) *
ÉTAPE 5
Il est nécessaire d'être deux
personnes pour installer
l'échelle dans la piscine.
S'assurer que l'espace entre la
paroi intérieure de la piscine et
l'échelle soit de 2" et que
chaque muret et chaque
marche soient bien fixés à
l'échelle.
AVERTISSEMENT :
L'espace entre la paroi
intérieure de la piscine et
l'échelle ne doit pas excéder
4" afin d'éviter qu'une
personne n'y demeure
coincée lors de la baignade.
ÉTAPE 6
Installer les crochets (9) de
façon on à ce qu'ils
s'agrippent bien au rebord de
la piscine et les fixer au moyen
des longs boulons (8) et des
écrous (10).
STEP 5
Two people are needed to put
the ladder in the pool. Make sure
that the space between the
pool's inner wall and the ladder is
2" and that each barrier and each
step is properly attached to the
ladder.
WARNING: The space
between the pool's inner wall
and the ladder should be no
more than 4" to prevent
entrapment between the ladder
and pool wall.
STEP 6
Install all four hooks (8) onto the
anchor points under the platform
(P4 ) using the long bolts (9) and
the lock nut (10). Each pair of
hooks (9) should be installed
facing each other on the inside of
the ladder with the knob of the
bolt facing to the outside. Before
tightening the hooks with the
knob on the long bolts, adjust
them so they securely grip the
top rail of the pool.
IMPORTANT SAFETY INSTRUCTIONS
CAUTION: To prevent damage to the ladder and to minimize risk
of injury follow these instructions carefully.
• Install ladder on a solid base.
• For ENTRY/EXIT of pool, FACE THE LADDER AT ALL TIMES.
This ladder must be used only to enter and exit the pool. Any
other use could damage the ladder and pool structure.
• NO JUMPING. NO DIVING.
• To prevent entrapment or drowning, do not
swim through, behind or around the ladder.
WARNING: The space between the inner pool wall
and the ladder should be no more than 4" to
prevent entrapment between ladder and pool wall.
NOTE: This ladder is designed and manufactured
for above ground pools which are 48", 52" or 54" in height.
The ladder must be removed from the pool and stored in a
dry place for the winter.
NOTES IMPORTANTES DE SÉCURITÉ
ATTENTION : Afin d'éviter d'endommager l'échelle et pour
minimiser les risques de blessures, respecter attentivement les
indications suivantes.
• Installer l'échelle sur une base solide.
• Pour ENTRER/SORTIR de la piscine, TOUJOURS SE PLACER
FACE À L'ECHELLE. Cette échelle doit être utilisée seulement
pour entrer et sortir de la piscine. Toute autre utilisation pourrait
endommager l'échelle et la structure de la piscine.
• NE PAS SAUTER. NE PAS PLONGER.
• Ne pas nager à travers, derrière ou autour de l'échelle afin
d'éviter qu'une personne n'y demeure coincée et se noie.
AVERTISSEMENT : L'espace entre la paroi intérieure de la
piscine et l'échelle ne doit pas excéder 4" afin d'éviter qu'une
personne n'y demeure coincée lors de la baignade.
NOTE : Cette échelle est conçue et fabriquée pour convenir aux
piscines hors terre d'une hauteur de 48", 52" ou 54".
L'échelle doit être sorti de la piscine et remisé dans un
endroit sec pour l'hiver.
By/Par : Champlain Plastics Inc.
87 Pillsbury Road, Rouses Point, NY 12979 INS-1101A-rev2
A
ACM-101A; ACM-101A-ST
A
A
E5
E6
%
&
'

This manual suits for next models

1

Other Champlain Lighting Equipment manuals

Champlain ACM-41AS User manual

Champlain

Champlain ACM-41AS User manual

Champlain ACM-197 User manual

Champlain

Champlain ACM-197 User manual

Champlain ACM-101AS User manual

Champlain

Champlain ACM-101AS User manual

Champlain ACM-42 User manual

Champlain

Champlain ACM-42 User manual

Champlain ACM-19500 User manual

Champlain

Champlain ACM-19500 User manual

Champlain ACM-122-1 User manual

Champlain

Champlain ACM-122-1 User manual

Champlain ACM-124S User manual

Champlain

Champlain ACM-124S User manual

Champlain ACM-19296 User manual

Champlain

Champlain ACM-19296 User manual

Champlain ACM-192 User manual

Champlain

Champlain ACM-192 User manual

Champlain ACM-852 User manual

Champlain

Champlain ACM-852 User manual

Champlain ACM-41A User manual

Champlain

Champlain ACM-41A User manual

Champlain ACM-122 User manual

Champlain

Champlain ACM-122 User manual

Champlain ACM-121S User manual

Champlain

Champlain ACM-121S User manual

Champlain ACM-123-2 User manual

Champlain

Champlain ACM-123-2 User manual

Popular Lighting Equipment manuals by other brands

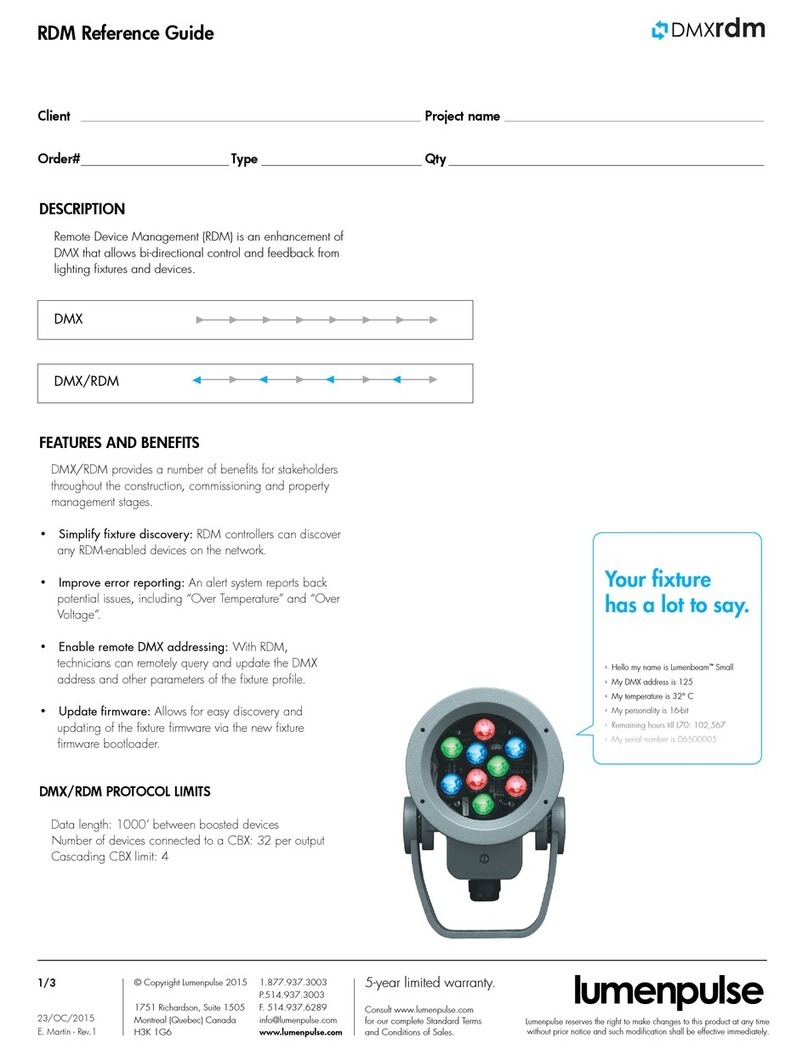

Lumenpulse DMXrdm reference guide

Lumenpulse

Lumenpulse DMXrdm reference guide

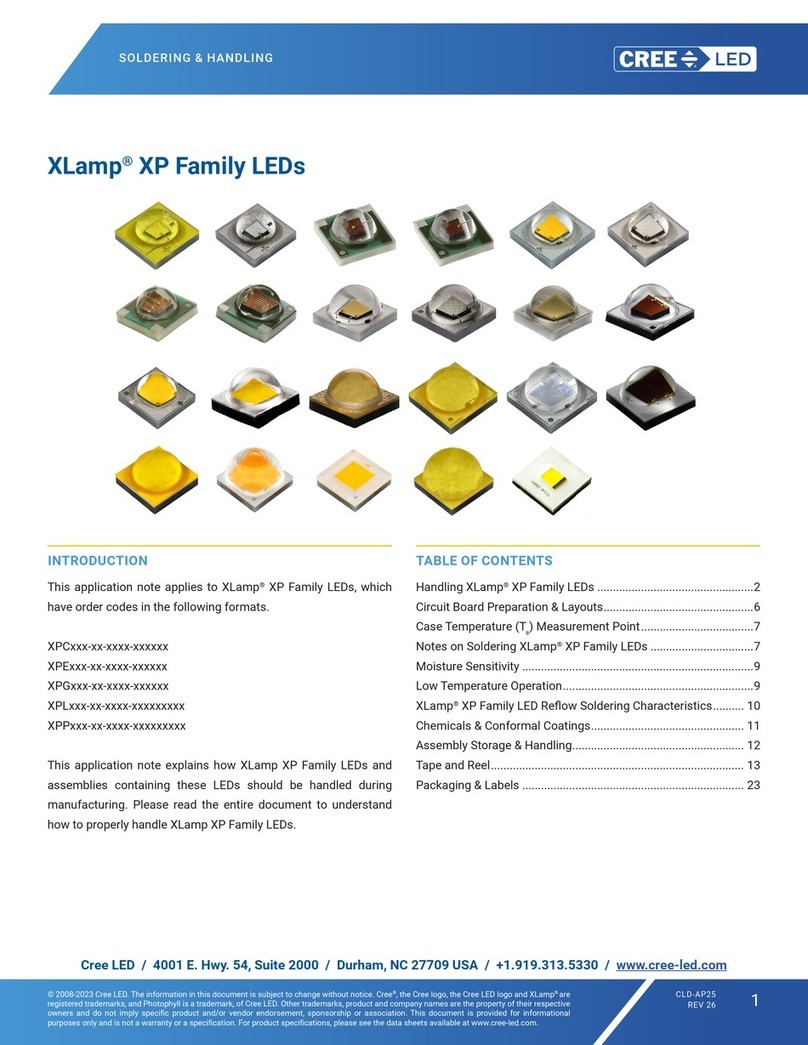

CREE-LED XLAMP XP Series Soldering & Handling

CREE-LED

CREE-LED XLAMP XP Series Soldering & Handling

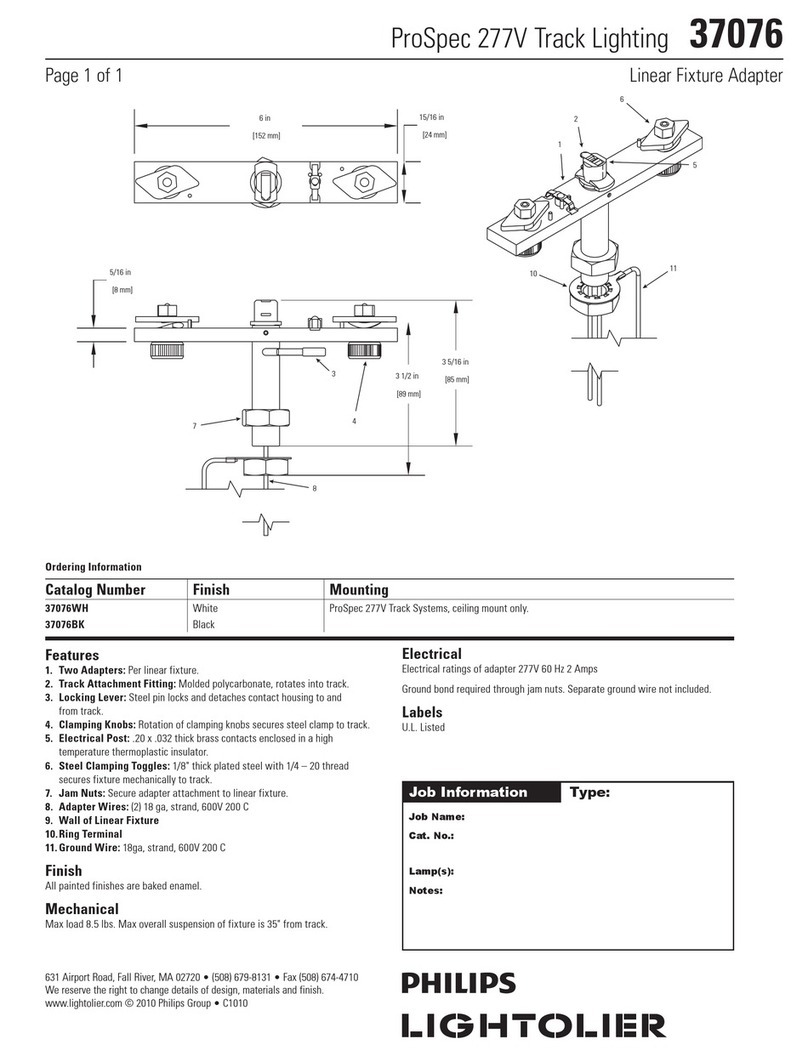

Lightolier ProSpec 37076 specification

Lightolier

Lightolier ProSpec 37076 specification

BARRON EXITRONIX VLEDC Series installation instructions

BARRON

BARRON EXITRONIX VLEDC Series installation instructions

Melink ML1B5W20-GU15RGBCCT instruction manual

Melink

Melink ML1B5W20-GU15RGBCCT instruction manual

Light Sky F1000 WASH-50R user manual

Light Sky

Light Sky F1000 WASH-50R user manual

AEG A18SL Original instructions

AEG

AEG A18SL Original instructions

Springtree HD202 WW user manual

Springtree

Springtree HD202 WW user manual

TEC-MAR 1810 Mounting instruction

TEC-MAR

TEC-MAR 1810 Mounting instruction

IMMAX NEO user manual

IMMAX

IMMAX NEO user manual

InoTec CLS 24.1-7Ah Mounting and operating instructions

InoTec

InoTec CLS 24.1-7Ah Mounting and operating instructions

WE-EF FLC122LED Installation and maintenance instructions

WE-EF

WE-EF FLC122LED Installation and maintenance instructions

Robe DigitalSpot 7000 DT user manual

Robe

Robe DigitalSpot 7000 DT user manual

Beamz Pro COB150 RGBW user manual

Beamz Pro

Beamz Pro COB150 RGBW user manual

REMKO SLE Series Assembly and operating instructions

REMKO

REMKO SLE Series Assembly and operating instructions

IOTA P-40 instruction manual

IOTA

IOTA P-40 instruction manual

Hunza ULTRA 12 SPOT installation instructions

Hunza

Hunza ULTRA 12 SPOT installation instructions

Chauvet Ovation E-260WW user manual

Chauvet

Chauvet Ovation E-260WW user manual

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.
