LEGRAND CP Electronics Vitesse Modular User manual

Vitesse Modular™
Reinventing lighting connection systems

Please call [phone] or visit www.cpelectronics.co.uk for more information
The global move towards
energy saving
Reducing the energy consumption of buildings is no
longer something to work towards. A range of pressing
global drivers has made it an immediate requirement.
The unprecedented rise in energy prices, coupled with
the radically altered economic landscape, has forced
organisations to reduce their energy overheads in order
to remain competitive.
Greater focus on preserving our natural environment is
also forcing organisations to reduce their carbon footprint,
not only to meet new legislation, but also the growing
pressure from customers that their suppliers have
proactive environmental policies.
Helping organisations to
achieve their objectives
CP Electronics is a world leader in helping
organisations to achieve their energy consumption
objectives. We benet from over 40 years in the
design and manufacture of cutting-edge energy
saving controls for heating, lighting and ventilation.
Our products and solutions are used in commercial,
public sector and domestic environments of all sizes.
Furthermore, we provide technical advice and customer
care that ensure you always achieve the best results
and an optimal return on investment.
Welcome to CP Electronics
Leaders in energy saving controls for commercial,
public sector and domestic environments
Innovation. Functionality.
Simplicity.
Every single CP Electronics product brings something
new to lighting, heating and ventilation control.
Our ethos has always been to innovate new ways
for our customers to save money and minimise
their environmental impact without sacricing
functionality or aesthetic.
These underpinning values are complemented by a
constant drive towards simplicity. Design, installation
and maintenance professionals benet from practical
simplicity, whilst end-users benet from highly
intuitive user-friendly controls.
A reputation for detail
and quality
Attention to detail and quality has made
CP Electronics a name to trust. Exceptional reliability
has even enabled us to provide a 5 year warranty as
standard, on all our products.
CP Electronics has achieved the following certied
standards which reect the highest levels of quality
and performance:
BS EN ISO 14001:2004 – International recognition of
the company’s environmental management systems
ISO 9001 Accreditation – International recognition
of quality management systems
OHSAS 18001 Accreditation – Occupational Health
and Safety Management
CE – All products where applicable carry the CE mark

Contents
3
The Vitesse Modular™System 4–7
An overview of the features and benets Vitesse
Modular brings you
Wiring Diagrams 8–9

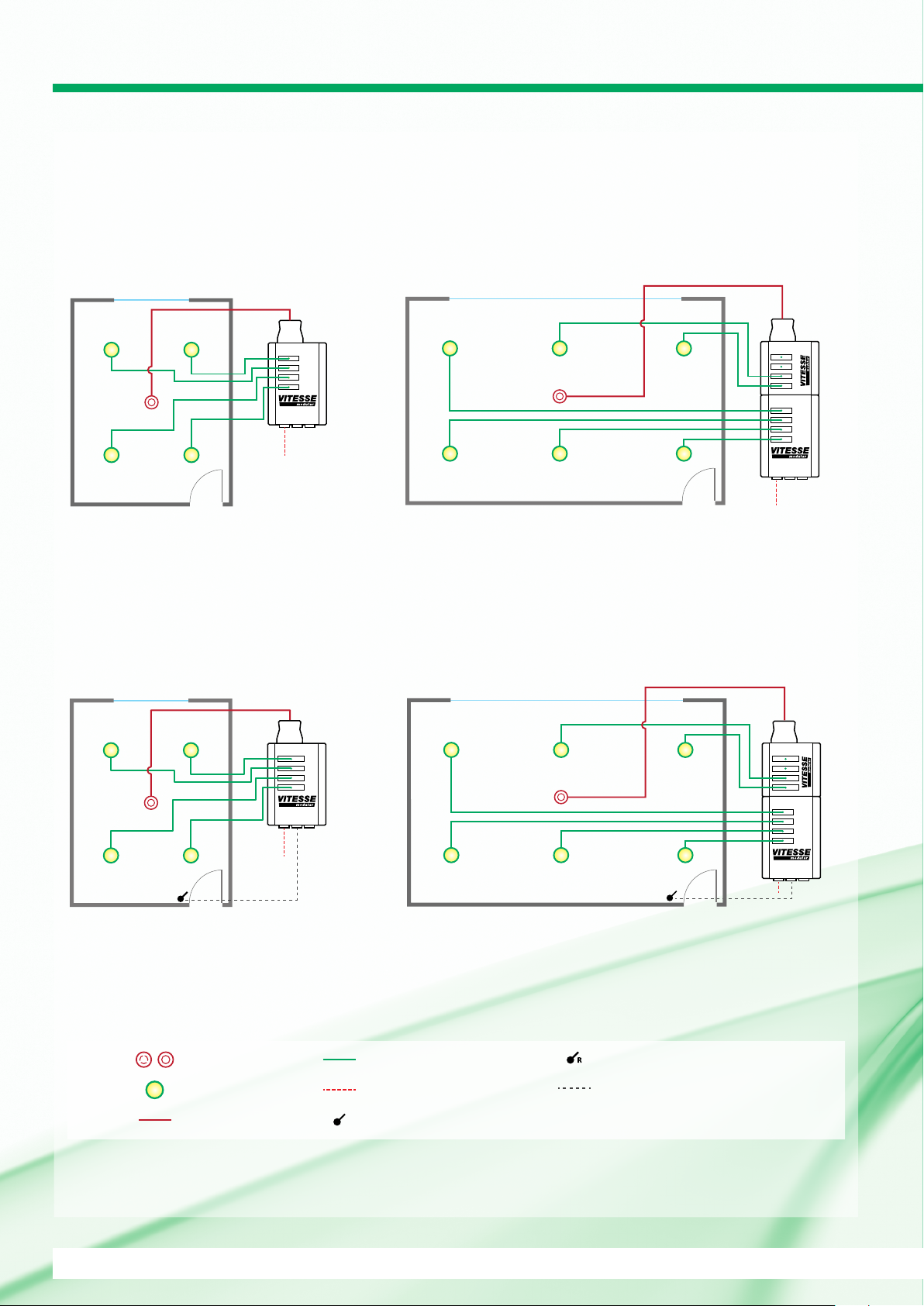

Typical wiring layouts for switching
and dimming detectors
Product Overview 10
Quick list of key components
Switching Products 11–13
Four pole connections for standard
non-dimming luminaires
2-Channel Switching Products 14–16
2-channel is for use in applications that require
two independently switched circuits.
Dimming Products 17–19
Six pole connections for luminaires tted with a
dimming ballast.
Technology Guide
Learn more about the innovative energy-saving
features of our product ranges.
Presence and absence detection explained.................................21
PIRs and microwave detectors compared.......................................21
Switching detectors with lux level sensing.....................................22
Direct dimming detectors with
lux level sensing..................................................................................................... 22–23

For sales support please call [phone]
4
Vitesse Modular™ |The Vitesse Modular™ System

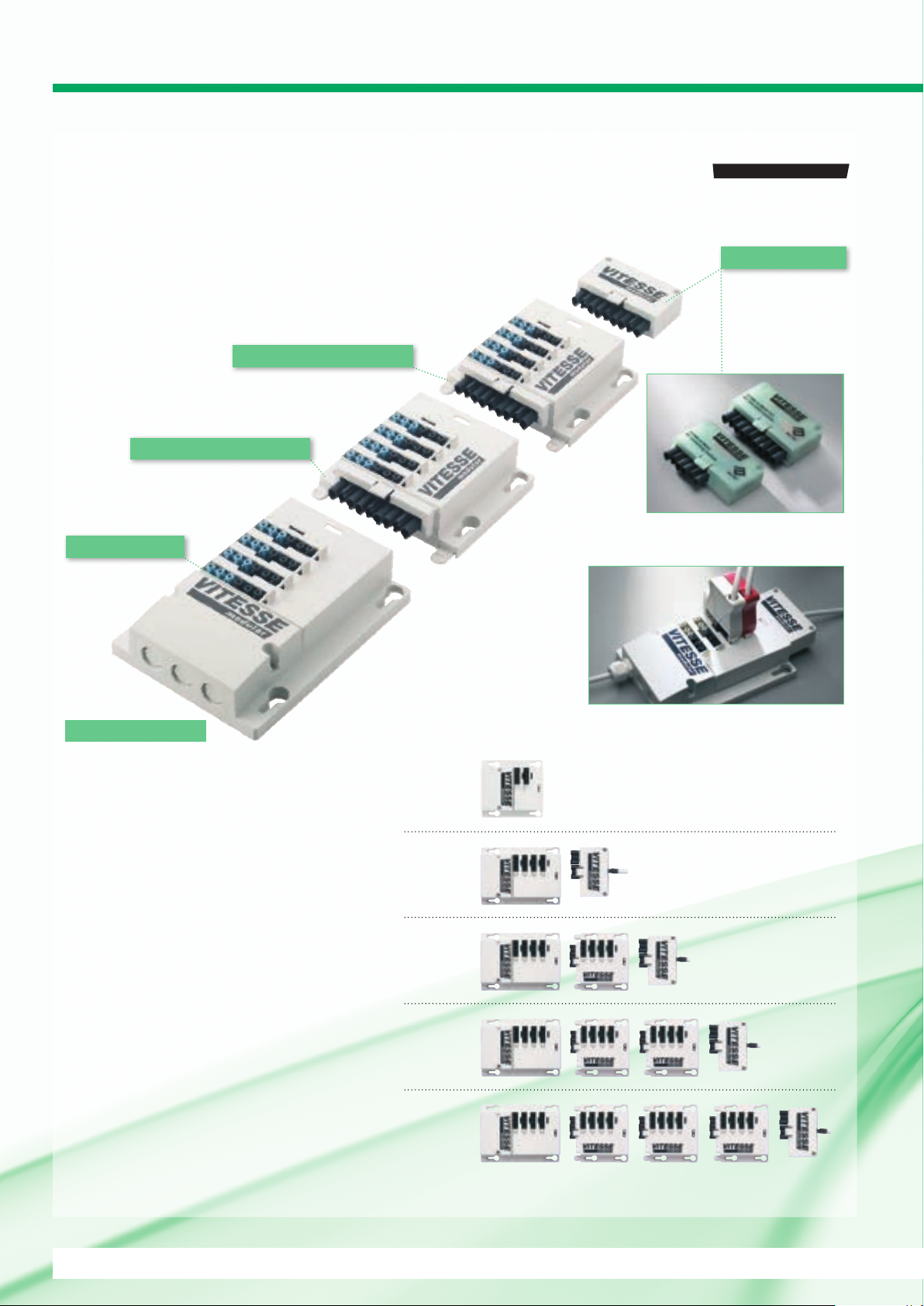

The Vitesse Modular™ System
As its name suggests, Vitesse Modular relies on a modular design which
means you simply add ‘modules’ as and when they are needed.
Packed with innovative features, Vitesse Modular
is a cost eective method of providing power
and control for lighting installations in industrial,
commercial and retail buildings.
It grows and adapts
to suit the installation
From 2-way to 16-way using
the 4-way extender modules…
it couldn’t be simpler.
Once Vitesse Modular
is installed,
modules can be added (or removed)
depending on future requirements.
Also, as there are so few parts,
you don’t have to waste space in a
warehouse or vehicle with a huge
variety of dierent parts just in case
you might need them.
6 pole system for dimming illustrated. 4 pole
system also available for simple switching.
An-10 wireless switching module.
Connection Module
4-way Extender Module
4-way Extender Module
Starter Module
PATENTED PRODUCT
*Connection Module only required for dimming, detector or SELV switch connections.
VITESSE
modular
VITESSE
plus
VITESSE
rapid
VITESSE
modular
VITESSE
plus
VITESSE
rapid
*
*
*
*
4-way
8-way
12-way
16-way
2-way

For further technical specications please visit www.cpelectronics.co.uk
The Vitesse Modular™ System |Vitesse Modular™
5
Simple connectivity
The mains input is connected using the spacious wiring compartment;
and control inputs and outputs are pluggable using industry standard
connectors as shown as a typical layout below.
Ease of xing
Vitesse Modular provides easy installation options for all locations.
Slab mounting
Can be mounted
directly onto slab.
Channel nut mounting
Can be mounted
using channel nut
fixings.
BESA box connection
Compatible
with BESA box
connection.
Marco clip mounting
Can be mounted
using Marco clips.
Luminaire
Detector lead
View the Vitesse Modular installation video
at www.cpelectronics.co.uk/green-i
Supply lead to
emergency luminaire
Supply lead to luminaire
Permanent
supply (230V)
Drop rod mounting option

For sales support please call [phone]
Vitesse Modular™ |The Vitesse Modular™ System
6

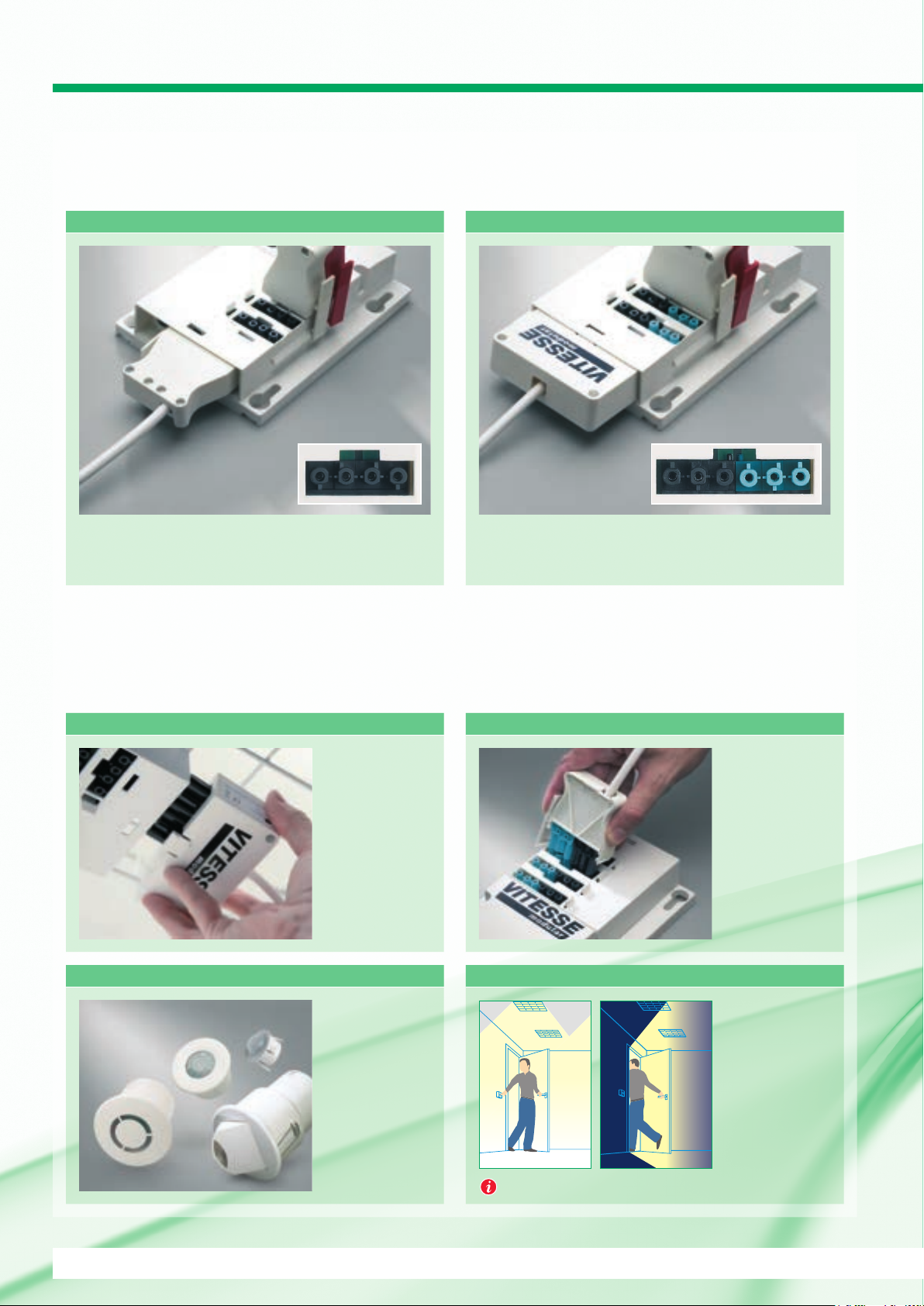

Flexible to your project demands
Vitesse Modular can adapt to various installation requirements with regards to
functionality & connectivity.
Separate pluggable connectionsSELV switching module
Separate pluggable
connections for
detectors and
control devices so
valuable channel
outputs are not
wasted.
The Vitesse Modular
SELV module
removes the need
for RCD protection
and provides
IEE 17th Edition
compliant lighting
installations.
Choice of switching or dimming
Vitesse Modular oers you the choice of switching or dimming to suit your installation.
Easy presence/absence detector connection
Simple pluggable
connection to
provide presence/
absence detection
when used with
our full range of
available detectors.

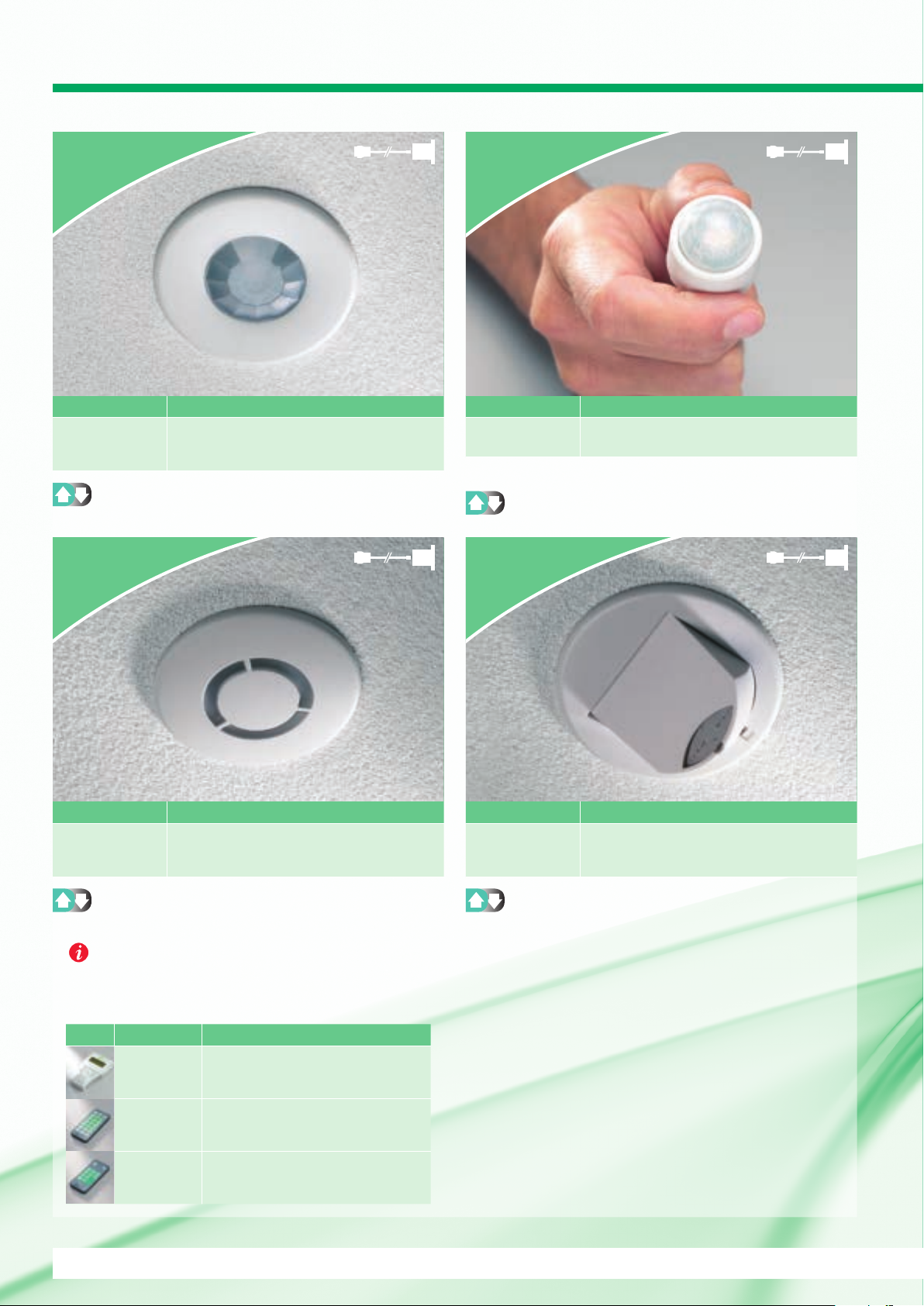

PIR and microwave detectors
Full range of lighting
control products
such as PIR and
Microwave Presence
detectors. Presence
detection provides
automatic switch
on and automatic
switch off.
see page 21 for more information
Six pole connection for dimmingFour pole connection for switching
Six pole connections for luminaires fitted with a dimming
ballast allows switching and dimming when used with Presence
detectors or a SELV dimming module.
Four pole connections for standard non-dimming luminaires allows
switching or automatic control with Presence detectors or a SELV
switching module. Available with 2-channel switching, see page 9.

For further technical specications please visit www.cpelectronics.co.uk
The Vitesse Modular™ System |Vitesse Modular™
7
Future-proof your lighting design
A project might evolve over time. Our simple solutions make adaption easy.

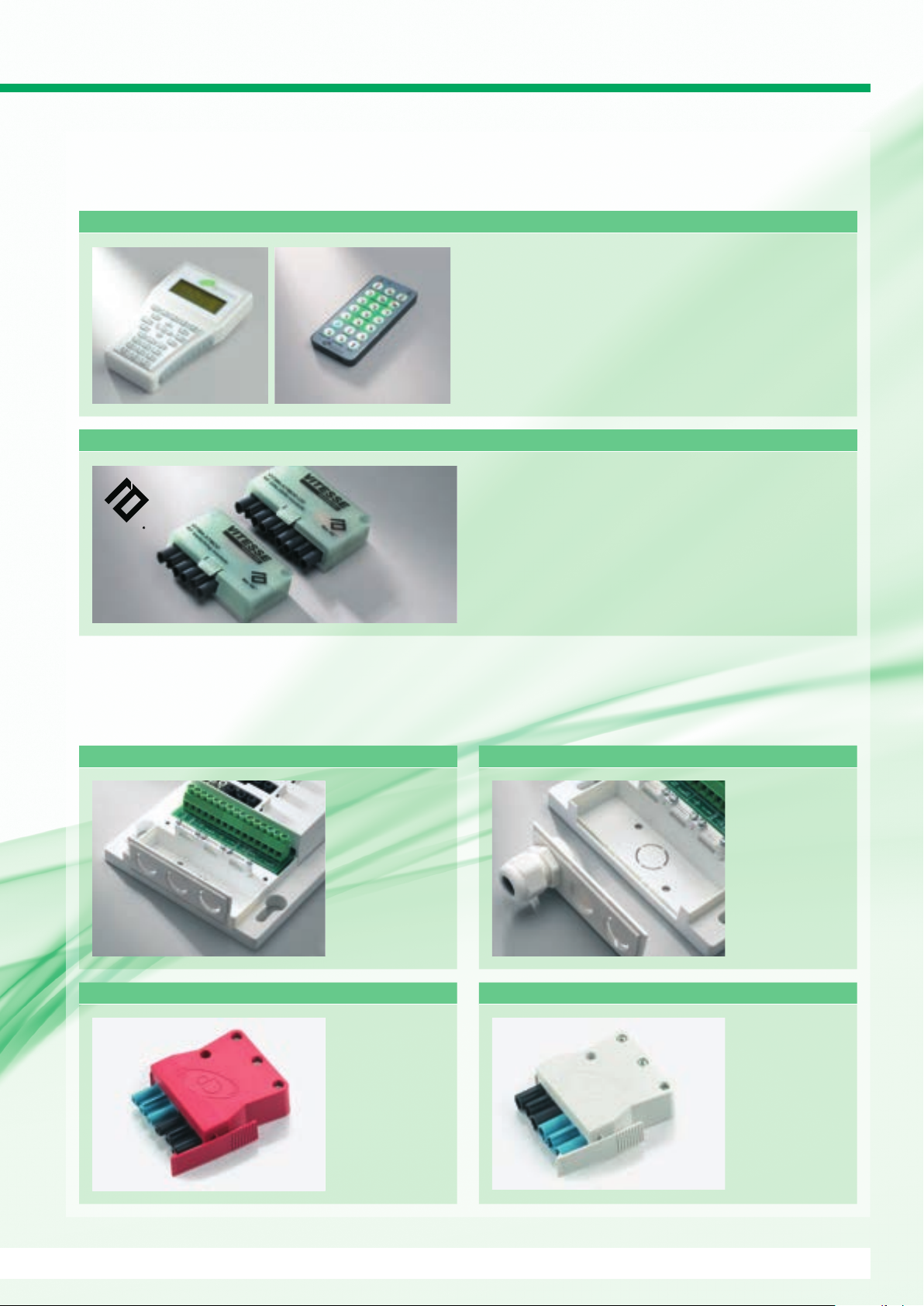

Versatile wiring options
Vitesse Modular has been designed for hassle-free wiring on-site.
Detachable cable entry plate and integral cable clamps
Detachable cable
entry plate for
hassle-free wiring.
Cable clamps
can be used with
grommets or cable
glands.
Large terminal compartments and blocks
Lots of space
for really easy
connections.
Large terminals
accept 4mm
2
cable.
Red luminaire connectors for emergency ttings
Red luminaire
connectors –
easy to track
emergency circuits
whilst on-site.
Series 166 format pluggable connectors
Series 166 format
connectors – no
need for proprietary
connectors.
Easy to connect
pluggable luminaires.
Embracing wireless technology through our An-10 system
An-10 wireless technology allows you to install a fully featured
lighting control system easily and with minimal disruption.
An-10 has been specifically created to allow you to embrace the
advantages of wirelesstechnology, while at the same time offering all
of the features and functionalitydemanded by modern day lighting
control systems.
Visit our website for more details on An-10.
An-10
Programming handsets
Our range of infrared (IR) handsets have been designed to allow
simple configuration, programming and maximum user convenience.
There‘s a handset to suit every user whether it‘s the commissioning
engineer configuring hundreds of detectors, or a contractor setting
up two of three detectors.
UNLCDHS UHS5

For sales support please call [phone]
Vitesse Modular™ |Wiring Diagrams
8
PLEASE NOTE: These wiring diagrams are to be used as a guide only. For further details please refer to our product user guides.
Typical wiring layouts for switching
and dimming detectors
Switching
Dimming
230V
supply
Detector
VITM4-S
Four luminaire room
Presence non-dimming room with detector.
230V
supply
Detector
VITM4-S VITM4-E
Six luminaire room
Presence non-dimming room with detector.
VITM6-S VITM6-E
230V
supply
Detector
DIMDIM
DIM
Six luminaire room
Absence and window row dimming room with detector.
VITM6-S
230V
supply
DIM DIM
Detector
Four luminaire room
Absence and window row dimming room with detector.
Luminaire leads
Power supply
230V two position centre retractive
momentary switch (not supplied)
230V single position momentary
switch (not supplied)
Drop to manual switch (not supplied)
Detectors
Luminaires
Detector leads

For further technical specications please visit www.cpelectronics.co.uk
Wiring Diagrams |Vitesse Modular™
9
PLEASE NOTE: VITM 4 and 6 are not intercompatible

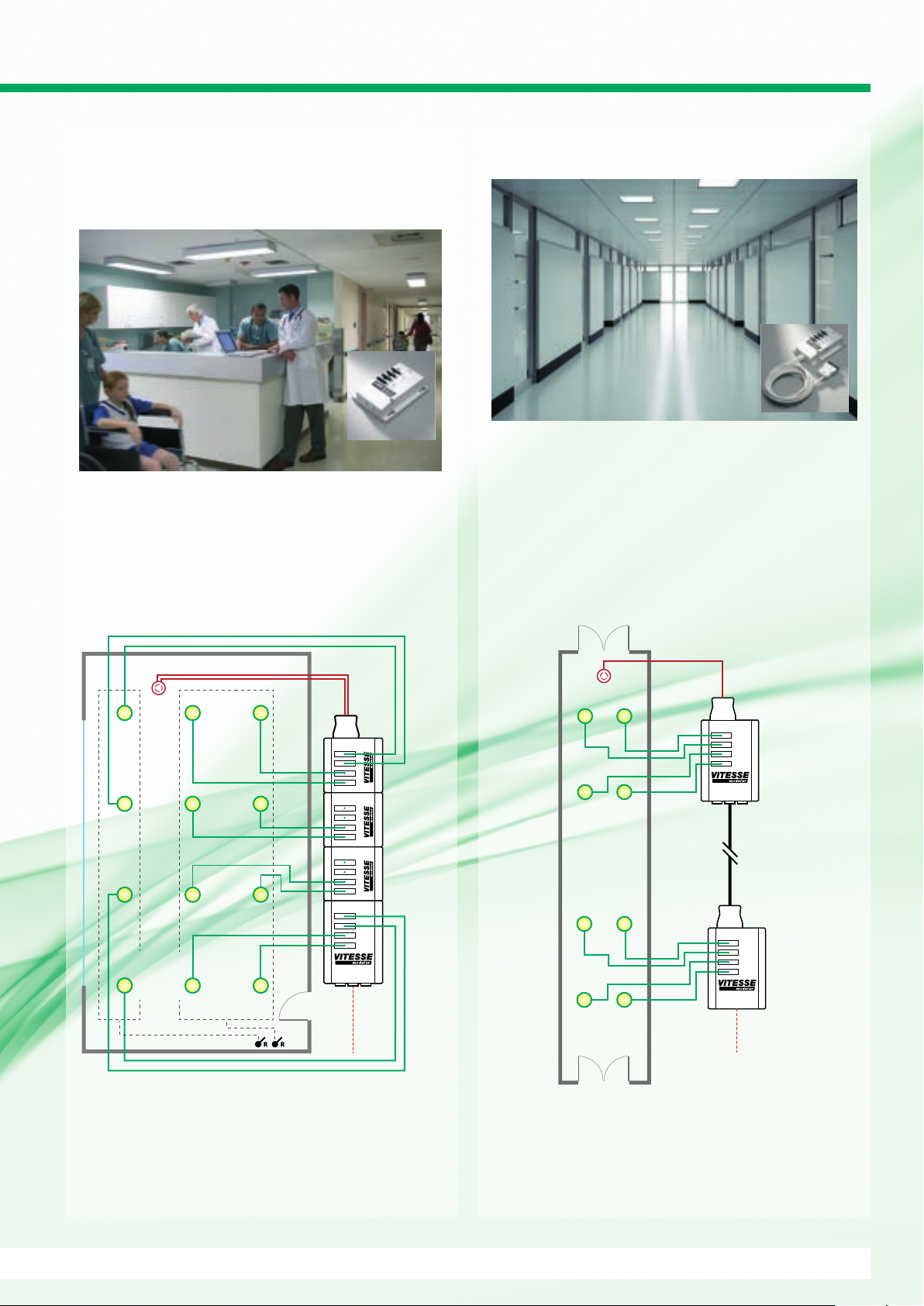

Dedicated corridor solution
Vitesse Modular offers a dedicated corridor solution.
Switching and dimming versions are available in a pre-wired
configuration, VITM4-SD5 and VITM6-SD5, enabling luminaires
in corridors or passageways to be easily connected.
See page 11 and 17 for corridor solution products.
230V
supply
VITM4-S or
VITM6-S
Up to 5m
Detector pre-wired
with 3m flex.
VITM4-SD5
or VITM6-SD5
pre-wired with
5m flex and plug.
Microwave
detector
2-channel switching
Ideal for installations that have essential and
non-essential supplies.
Non-dimming distribution box for use in applications that
require supplies for switching lighting and/or ventilation circuits.
The 2-channel, 2-supplies VITM4-S-2CH-2S is ideal for hospitals
where there is essential and non-essential supply.
See page 14 for 2-channel products.
1 1 2 2 1 1 2 2 1 1 2 2 1 1 2 2
Microwave detector
2CH-E
2CH-E
2CH-E
VITM4-2CH-S
Channel 2
Channel 1
230V
supply

10
For sales support please call [phone]

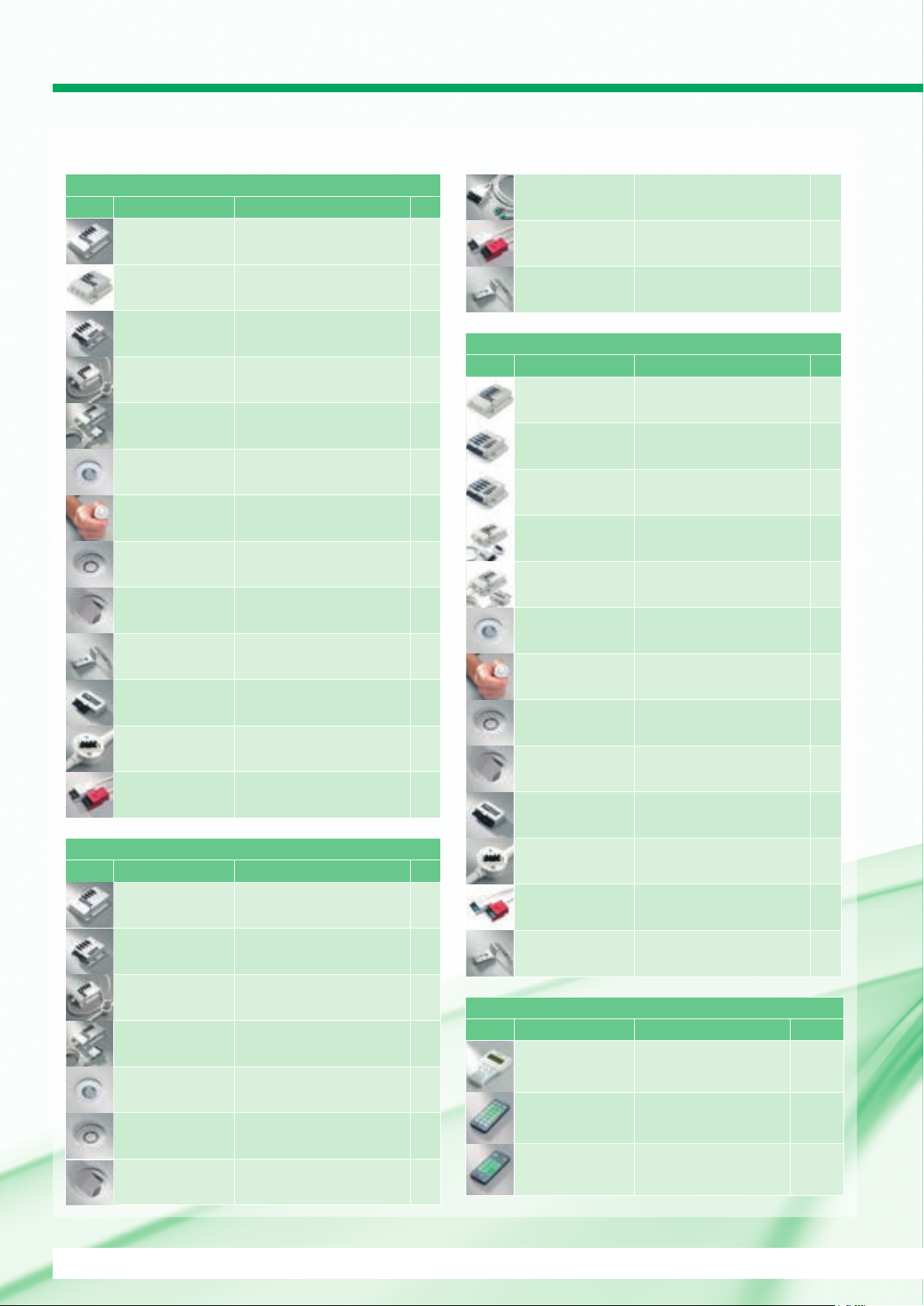

Vitesse Modular™ |Product Overview
Switching Products
Code Description Pg
VITM4-S Starter module with 4 pole,
4 outputs 11
VITM4-S2 Starter module with 4 pole,
2 outputs 11
VITM4-E Extender module with 4 pole,
4 outputs 11
VITM4-SL1 Pre-wired package 11
VITM4-SD5 Pre-wired corridor module. 11
VITM4-EBDSPIR-
PRM
Compact PIR
presence/absence detector 12
VITM4-EBMHS-PRM Miniature PIR presence detector 12
VITM4-MWS6-PRM Low profile microwave
presence/absence detector 12
VITM4-MWS3A-PRM Adjustable head microwave
presence/absence detector 12
VITM-MCFUSC VITM Marco basket fixing clip 13
VITM4-SELVMOD SELV switching module 13
VITM-ROSE Ceiling rose 13
Luminaire leads & connectors 13
2-Channel Switching Products
Code Description Pg
VITM4-S-2CH Starter module with 4 pole,
4 outputs 14
VITM4-E-2CH Extender module with 4 pole,
4 outputs 14
VITM4-S-2CH-2S Starter module with 4 pole,
4 outputs. 2-channel, 2-supplies 14
VITM4-E-2CH-2S Extender module with 4 pole,
4 outputs. 2-channel, 2-supplies 14
EBDSPIR-PRM-2CH Compact PIR presence/
absence detector 15
MWS6-PRM-2CH Low profile microwave
presence/absence detector 15
MWS3A-PRM-2CH Adjustable head microwave
presence/absence detector 15
2-channel detector leads 15
Luminaire leads & connectors 16
VITM-MCFUSC VITM Marco basket fixing clip 16
Dimming Products
Code Description Pg
BVITM6-S Starter dimming module with 6
pole, 4 outputs 17
BVITM6-S2 Starter module with 6 pole,
2 outputs 17
BVITM6-E Extender dimming module with
6 pole, 4 outputs 17
BVITM6-SL1 Pre-wired dimming package 17
BVITM6-SD5 Pre-wired corridor module,
5 metres of cable 17
VITM6-EBDSPIR-
DD
Compact PIR presence/absence
detector 18
VITM6-EBMHS-DD Miniature PIR presence detector 18
VITM6-MWS6-DD Low profile microwave
presence/absence detector 18
VITM6-MWS3A-DD Adjustable head microwave
presence/absence detector 18
VITM6-SELVMOD SELV switching and dimming
module 19
VITM-ROSE Ceiling rose 19
Luminaire leads & connectors 19
VITM-MCFUSC VITM Marco basket fixing clip 19
Programming Handsets
Code Description Pg
UNLCDHS Professional commissioning
handset 12, 16, 18
UHS5 Commissioning handset 12, 16, 18
UHS7 User handset 12, 16, 18
Product overview

11
For further technical specications please visit www.cpelectronics.co.uk
Switching Products |Vitesse Modular™

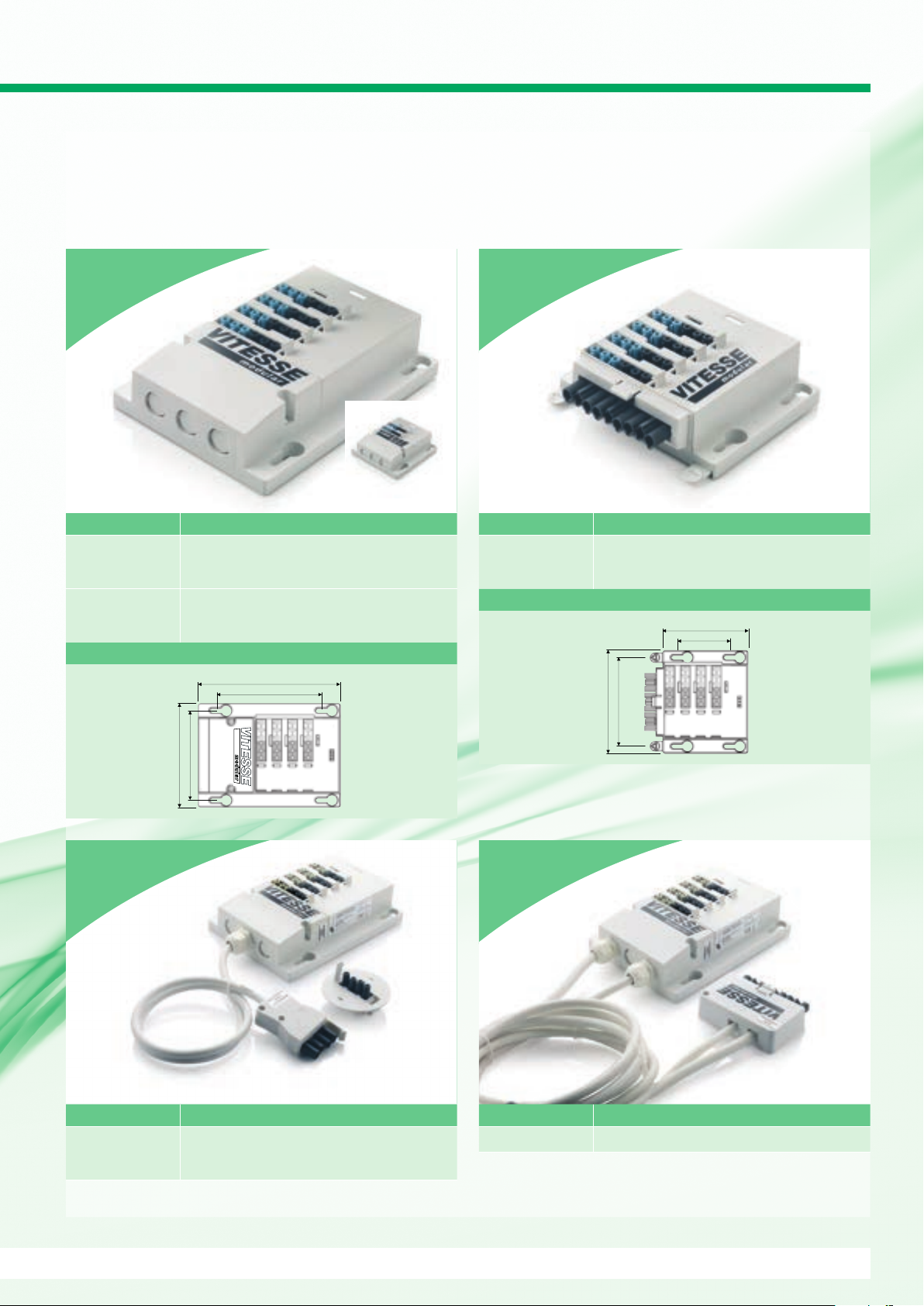

Vitesse Modular switching modules,
detectors & accessories
Vitesse Modular provides easy installation options for all locations.
Order Code Description
VITM4-S Starter module with 4 pole, 4 outputs. Power rating
of system 16A (at 230VAC). Rating of each output 10A
(at 230VAC)
VITM4-S2 Starter module with 4 pole, 2 outputs. Power rating
of system 16A (at 230VAC). Rating of each output 10A
(at 230VAC)
Dimensions
VITM4-S
202mm
150mm
146mm
127mm
Starter Module
VITM4-S
Order Code Description
VITM4-E Extender module with 4 pole, 4 outputs. Power rating
of system 16A (at 230VAC). Rating of each output 10A
(at 230VAC)
Dimensions
VITM4-E
146mm
127mm
122mm
75mm
Extender Module
VITM4-E
Pre-wired Package
Order Code Description
VITM4-SL1 Pre-wired package includes 4 pole 4 output starter
module, ceiling rose, 4 pole connector plug and 1
metre of cable. BESA box not included
VITM4-SL1
Order Code Description
VITM4-SD5 Pre-wired corridor module. 5 metres of cable
VITM4-SD5
VITM4-S2

For sales support please call [phone]
12
Vitesse Modular™ |Switching Products
Order Code Description
VITM4-EBDSPIR-
PRM
Compact ceiling mounted PIR presence/absence
detector with lux level sensing, time delay function and
infrared override
VITMR-EBSPIR-
PRM
Same as VITM4-EBDSPIR-PRM plus connector and
ceiling rose
Supplied with 3m
lead and plug.
EBDSPIR
Supplied with
3m lead and plug
(from PSU).
EBMHS
Order Code Description
VITM4-EBM-
HS-PRM
Miniature PIR presence detector with lux level sensing,
time delay function and infrared override
(Note: this detector does not support absence detection)
Supplied with 3m
lead and plug.
MWS3A
Order Code Description
VITM4-MWS3A-
PRM
Adjustable head microwave presence/absence
detector with lux level sensing, infrared override and
time delay function
VITMR-MW-
S3A-PRM
Same as VITM4-MWS3A-PRM plus connector and
ceiling rose
Supplied with 3m
lead and plug.
MWS6
Order Code Description
VITM4-MWS6-PRM Low profile microwave presence/absence detector with
lux level sensing, infrared override and time delay function
VITMR-MWS6-
PRM
Same as VITM4-MWS6-PRM plus connector
and ceiling rose
Marco Basket
Fixing Clip
Order Code Description
VITM-MCFUSC VITM Marco basket fixing clip
Order Code Description
UNLCDHS Professional commissioning handset
UHS5 Commissioning handset
UHS7 User handset
The IR transmitting and receiving
technology in our handsets and detectors
has been carefully designed to allow
programming from ground level.
PROGRAM
FROM
GROUND
LEVEL

For further technical specications please visit www.cpelectronics.co.uk
13
Switching Products |Vitesse Modular™

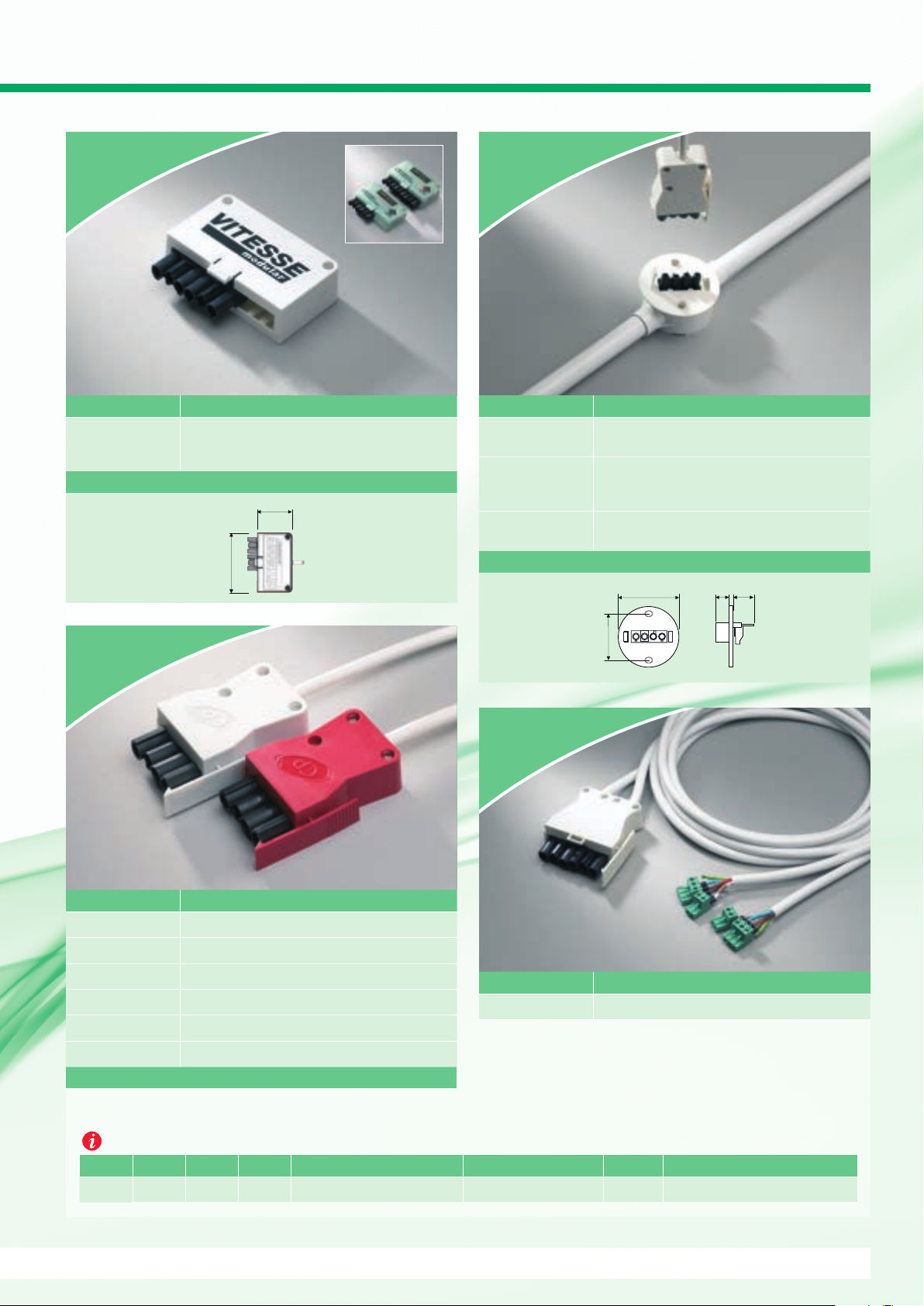

Luminaire Leads
& Connectors
Switching
Order Code Description
VITM4L303100W 3 core luminaire lead (white), 1.0mm2 , (3 metres)
VITM4L305100W 3 core luminaire lead (white), 1.0mm2, (5 metres)
VITM4L403100R 4 core luminaire lead (red), 1.0mm2, (3 metres)
VITM4L405100R 4 core luminaire lead (red), 1.0mm2, (5 metres)
VITM4-LPW 4 pole luminaire connector (white)
VITM4-LPR 4 pole luminaire connector (red)
Other cable lengths are available upon request
Dual Detector
Leads
Order Code Description
VITM4-LD3-PRM* Dual detector lead for two PRM detectors (3 metre)
*Only for single channel detectors
Switching Module.
To be used for manual switching only – no detector
Refer to
An-10 brochure
for options
VITM4-
SELVMOD
Order Code Description
VITM4-SELVMOD Switching module – simple connection of switches
using SELV removes the need for RCD protection.
Includes integral time delay feature
Dimensions
VITM4-SELVMOD
95mm
55mm
Ceiling Rose
Order Code Description
VITM-ROSE Ceiling rose with connector plug. BESA box not
included. Power Rating of system 16A (at 230VAC)
VITM-ROSE-R Ceiling rose with Red connector plug. Suitable for
emergency fittings. BESA box not included.
Power Rating of system 16A (at 230VAC)
VITM-ROSE-NP Ceiling rose, no connector plug. BESA box not
included. Power Rating of system 16A (at 230VAC)
Dimensions
50.3mm
74mm 15mm 21mm
50.3mm
74mm 15mm 21mm
Order Code Guidelines for Cables
Prex Poles Lead Core Length in Metres Cable Area Type Plug Colour
VITM 4 L 3/4 03 or 05 (other lengths to order) 1.0mm2(1.5mm2to order) 0 = lsf W (White) or R (Red) B (Black) to order

14
For sales support please call [phone]
Vitesse Modular™ |2-channel Switching Products

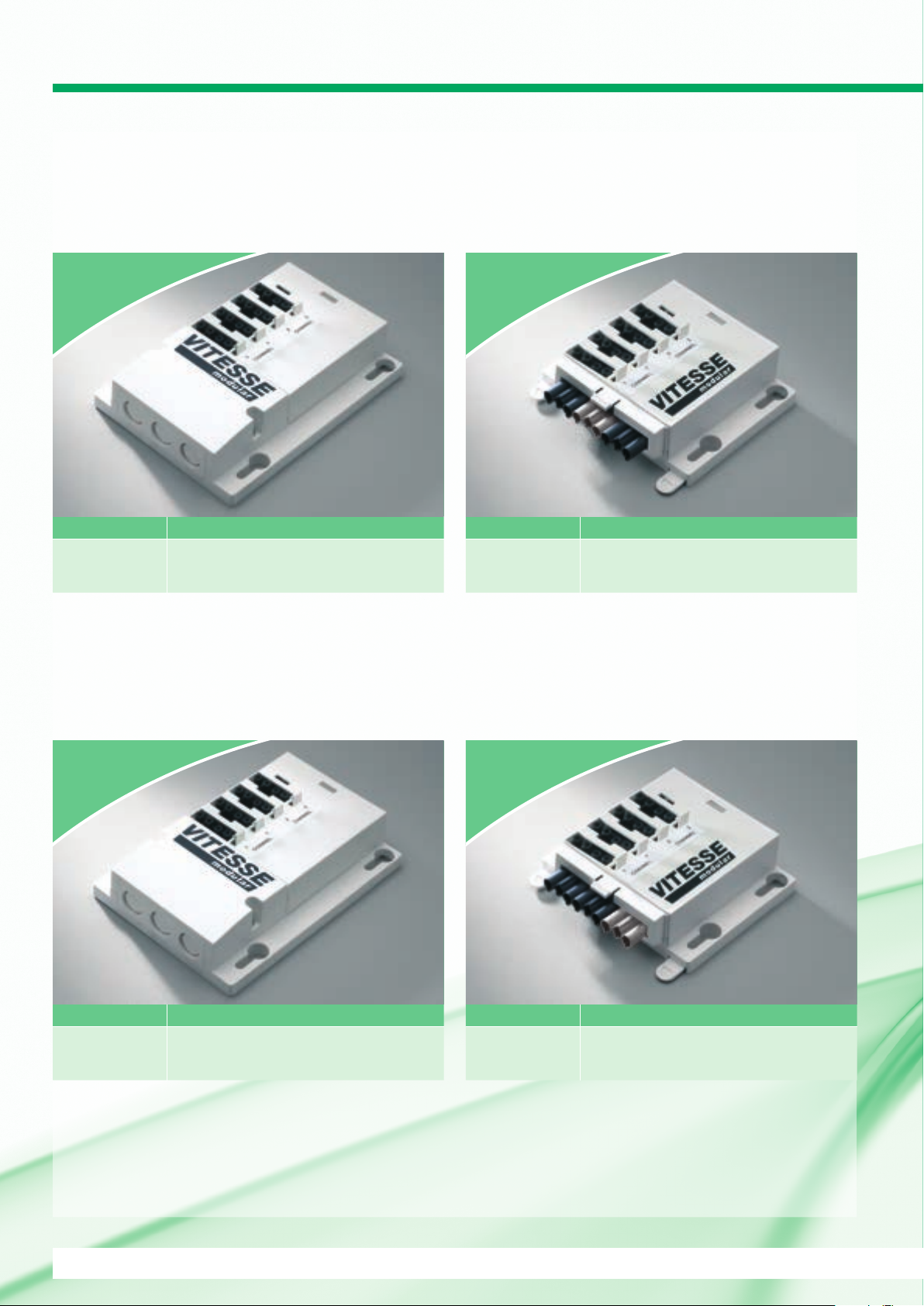

2-channel switching options
Non-dimming distribution box for use in applications that require two
independently switched lighting circuits, or lighting and ventilation circuits.
Learn more on page 9.
Order Code Description
VITM4-S-2CH Starter module with 4 pole, 4 outputs. 2-channel.
Power rating of system 16A (at 230VAC).
Rating of each output 10A (at 230VAC)
Starter Module
VITM4-S-2CH
Order Code Description
VITM4-E-2CH Extender module with 4 pole, 4 outputs. 2-channel.
Power rating of system 16A (at 230VAC).
Rating of each output 10A (at 230VAC)
Extender Module
VITM4-E-2CH
2-channel, 2-supplies switching options
Non-dimming distribution box for use in applications that require two
independent supplies for switching, lighting and/or ventilation circuits.
Essential and non-essential. Learn more on page 9.
Order Code Description
VITM4-S-2CH-2S Starter module with 4 pole, 4 outputs. 2-channel,
2-supplies. Power rating of system 16A (at 230VAC).
Rating of each output 10A (at 230VAC)
Starter Module
VITM4-S-2CH-2S
Order Code Description
VITM4-E-2CH-2S Extender module with 4 pole, 4 outputs. 2-channel,
2-supplies.Power rating of system 16A (at 230VAC).
Rating of each output 10A (at 230VAC)
VITM4-E-2CH-2S

15
For further technical specications please visit www.cpelectronics.co.uk
2-channel Switching Products |Vitesse Modular™

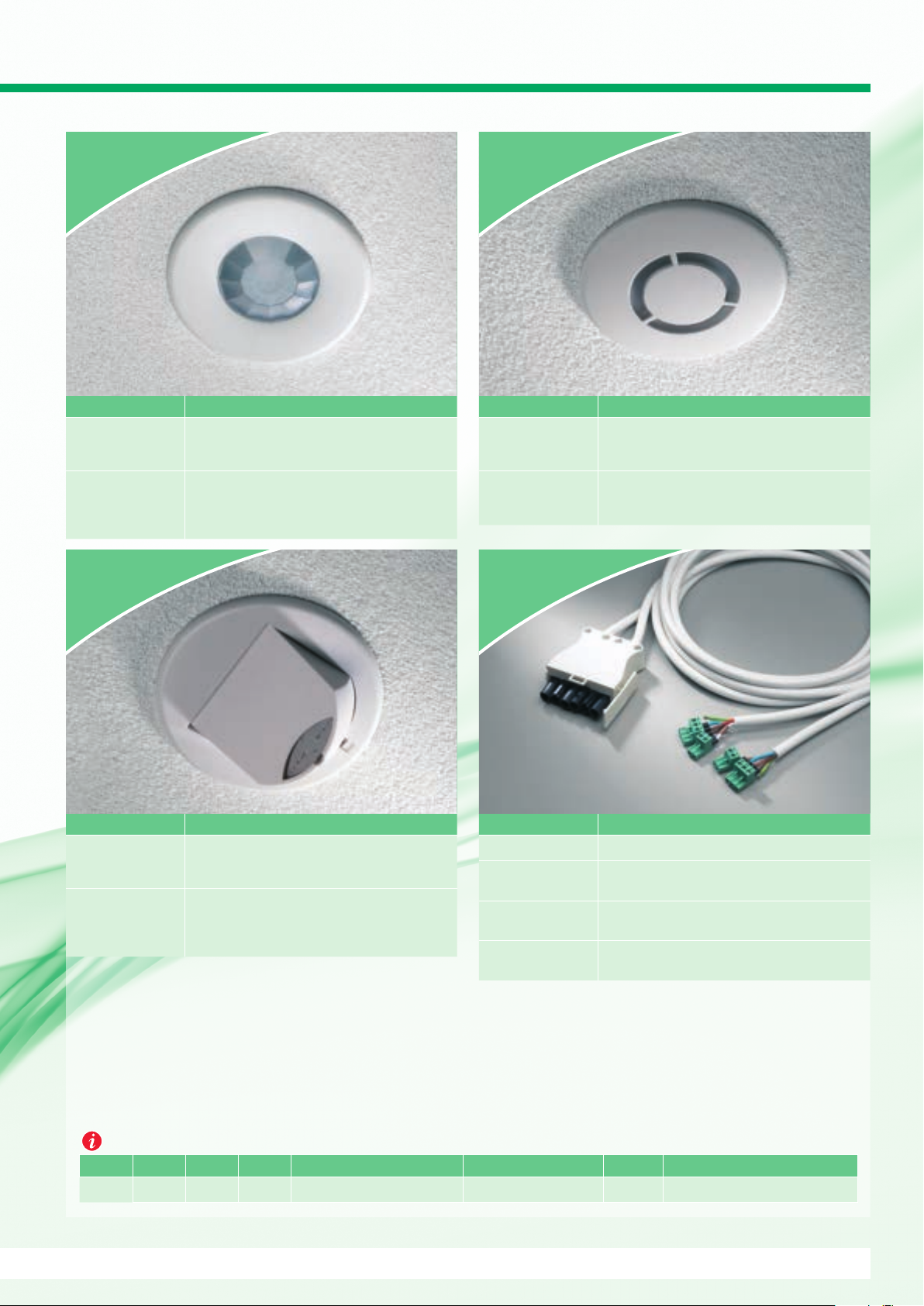

Order Code Description
MWS3A-PRM-2CH Adjustable head microwave presence/absence
detector with lux level sensing, infrared override and
time delay function. 2-channel
MWS3A-PRM-2CH-
NC
Adjustable head microwave presence/absence
detector with lux level sensing, infrared override
and time delay function. Normally closed fail safe
contacts. 2-channel
Order Code Guidelines for Cables
Prex Poles Lead Core Length in Metres Cable Area Type Plug Colour
VITM 4 L 3/4 03 or 05 (other lengths to order) 1.0mm2(1.5mm2to order) 0 = lsf W (White) or R (Red) B (Black) to order
Order Code Description
EBDSPIR-PRM-2CH Compact ceiling mounted PIR presence/absence
detector with lux level sensing, time delay function
and infrared override. 2-channel
EBDSPIR-PRM-2CH-
NC
Compact ceiling mounted PIR presence/absence
detector with lux level sensing, time delay function
and infrared override. Normally closed fail safe
contacts. 2-channel
N.B Please order
leads separately
EBDSPIR
Order Code Description
MWS6-PRM-2CH Low profile microwave presence/absence detector
with lux level sensing, infrared override and time delay
function. 2-channel
MWS6-PRM-2CH-
NC
Low profile microwave presence/absence detector
with lux level sensing, infrared override and time delay
function. Normally closed fail safe contacts. 2-channel
MWS6
MWS3A
Order Code Description
VITM4-L3-2CH 2-channel detector lead for single detector (3 metre)
VITM4-LD3-2CH 2-channel dual detector lead for two detectors
(3 metre)
VITM4-L3-2CH-2S 2-channel, 2-supplies detector lead for
single detector (3 metre)
VITM4-LD3-2CH-2S 2-channel, 2-supplies dual detector lead for
two detectors (3 metre)
Detector
Leads
N.B Please order
leads separately
N.B Please order
leads separately

For sales support please call [phone]
16
Vitesse Modular™ |2-channel Switching Products
Order Code Description
VITM-MCFUSC VITM Marco basket fixing clip
Marco Basket
Fixing Clip
Order Code Description
VITM4L303100W 3 core luminaire lead (white), 1.0mm2, (3 metres)
VITM4L305100W 3 core luminaire lead (white), 1.0mm2, (5 metres)
VITM4L403100R 4 core luminaire lead (red), 1.0mm2, (3 metres)
VITM4L405100R 4 core luminaire lead (red), 1.0mm2, (5 metres)
VITM4-LPW 4 pole luminaire connector (white)
VITM4-LPR 4 pole luminaire connector (red)
Other cable lengths are available upon request
Luminaire Leads
& Connectors
Switching
Order Code Description
UNLCDHS Professional commissioning handset
UHS5 Commissioning handset
UHS7 User handset
The IR transmitting and receiving
technology in our handsets and detectors
has been carefully designed to allow
programming from ground level.
PROGRAM
FROM
GROUND
LEVEL

For further technical specications please visit www.cpelectronics.co.uk
17
Dimming Products |Vitesse Modular™
Vitesse Modular dimming modules,
detectors & accessories
Our VITM6 range is designed for use with dimming luminaires.
Order Code Description
BVITM6-S Starter module with 6 pole, 4 outputs. Power rating
of system 16A (at 230VAC). Rating of each output 10A
(at 230VAC)
BVITM6-S Starter module with 6 pole, 2 outputs. Power rating
of system 16A (at 230VAC). Rating of each output 10A
(at 230VAC)
Dimensions
VITM6-S
202mm
150mm
146mm
127mm
Starter Dimming Module
BVITM6-S
Order Code Description
BVITM6-E Extender module with 6 pole, 4 outputs. Power Rating
of system 16A (at 230VAC). Rating of each output 10A
(at 230VAC)
Dimensions
VITM6-E
146mm
127mm
122mm
75mm
Extender Dimming Module
BVITM6-E
Pre-wired Dimming Package
Order Code Description
VITM6-SL1 Pre-wired dimming package includes 6 pole 4 output
starter dimming module, Ceiling Rose, 4 pole connector
plug and 1 metre of cable. BESA box not included
VITM6-SL1
Order Code Description
VITM6-SD5 Pre-wired corridor module. 5 metres of cable
VITM6-SD5
BVITM6-S2

For sales support please call [phone]
18
Vitesse Modular™ |Dimming Products
Order Code Description
VITM6-EBDSPIR-
DD
Compact ceiling mounted PIR presence/absence
detector with Direct Dim and time delay function (up
to 20 ballasts). DALI/DSI
Supplied with 3m
lead and plug.
EBDSPIR
Order Code Description
VITM6-EBMHS-DD Miniature PIR presence detector with Direct Dim and
time delay function (up to 10 ballasts). DALI/DSI
(Note: this detector does not support Absence detection)
Supplied with
3m lead and plug
(from PSU).
EBMHS
Order Code Description
VITM6-MWS6-DD Low profile microwave presence/absence detector
with Direct Dim and time delay function (up to 20
ballasts). DALI/DSI
Analogue dimming (AD) detectors available on request
Supplied with 3m
lead and plug.
MWS6
Order Code Description
VITM6-MWS3A-DD Adjustable head microwave presence/absence
detector with Direct Dim and time delay function (up
to 20 ballasts). DALI/DSI
Supplied with 3m
lead and plug.
MWS3A
Order Code Description
UNLCDHS Professional commissioning handset
UHS5 Commissioning handset
UHS7 User handset

For further technical specications please visit www.cpelectronics.co.uk
19
Dimming Products |Vitesse Modular™
Order Code Guidelines for Cables
Prex Poles Lead Core Length in Metres Cable Area Type Plug Colour
VITM 6 L 3/4/5/6 03 or 05 (other lengths to order) 1.0mm2(1.5mm2to order) 0 = lsf W (White) or R (Red) B (Black) to order
Marco Basket
Fixing Clip
Order Code Description
VITM-MCFUSC VITM Marco basket fixing clip
Order Code Description
VITM6-SELVMOD Dimming and switching module – simple connection
of switches using SELV removes the need for
RCD protection. When used in conjunction with
DALI/DSI ballasts, the Module allows switching and
up/down dimming
Dimensions
VITM6-SELVMOD
95mm
55mm
Dimming and Switching Module.
To be used for manual switching/dimming only – no detector
Refer to
An-10 brochure
for options
VITM6-
SELVMOD
Order Code Description
VITM-ROSE Ceiling rose with connector plug. BESA box not
included. Power Rating of system 16A (at 230VAC)
VITM-ROSE-R Ceiling rose with Red connector plug. Suitable for
emergency fittings. BESA box not included. Power
Rating of system 16A (at 230VAC)
VITM-ROSE-NP Ceiling rose, no connector plug. BESA box not
included. Power Rating of system 16A (at 230VAC)
Dimensions
50.3mm
74mm 15mm 21mm
50.3mm
74mm 15mm 21mm
Ceiling Rose
Order Code Description
VITM6L303100W 3 core luminaire lead (white), 1.0mm² (3 metres)
VITM6L305100W 3 core luminaire lead (white), 1.0mm² (5 metres)
VITM6L403100R 4 core luminaire lead (red), 1.0mm² (5 metres)
VITM6L405100R 4 core luminaire lead (red), 1.0mm² (3 metres)
VITM6L503100W 5 core luminaire lead (white), 1.0mm2, (3 metres)
VITM6L505100W 5 core luminaire lead (white), 1.0mm2, (5 metres)
VITM6L603100R 6 core luminaire lead (red), 1.0mm2, (3 metres)
VITM6L605100R 6 core luminaire lead (red), 1.0mm2, (5 metres)
VITM6-LPW 6 pole luminaire connector (white)
VITM6-LPR 6 pole luminaire connector (red)
Other cable lengths are available upon request
Luminaire Leads
& Connectors
Dimming

Vitesse Modular™ |Technology Guide
20
www.cpelectronics.co.uk
Technology Guide
Our Vitesse Modular Lighting
Connection System works with our
cutting edge products.
Find out more about the technology behind our signature
detector ranges through this comprehensive guide.
You can also download free BREEAM-compliant lighting
specications from www.cpelectronics.co.uk/apps
Presence and absence detection explained....................................21
PIRs and microwave detectors compared..........................................21
Switching detectors with lux level sensing........................................22
Direct dimming detectors with
lux level sensing........................................................................................................22-23
