Chauvin Arnoux PAC 11 User manual

GB - User’s manual
PAC 11
北京海洋兴业科技股份有限公司（证券代码：839145）
电话：[phone]
www.hyxyyq.com

9
Deutsch ...................................................................................................................... 16
Italiano ........................................................................................................................ 23
Español ...................................................................................................................... 30
Thank you for purchasing a AC/Dc current clamp.
For best results from your instrument:
read these operating instructions carefully,
comply with the precautions for use.
WARNING, risk of DANGER! The operator must refer to these instructions whenever this
danger symbol appears.
Application or withdrawal authorized on conductors containing dangerous voltages. Type A
current sensor as per IEC 61010-2-032.
Equipment protected by double insulation.
The CE marking indicates conformity with European directives, in particular LVD and EMC.
The rubbish bin with a line through it indicates that, in the European Union, the product must
undergo selective disposal in compliance with Directive WEEE 2002/96/EC.
SAFETY PRECAUTIONS
Only use the PAC 11 clamp indoors.
Do not expose the clamp to running water.
Do not use the PAC 11 clamp on uninsulated conductors at a voltage of more than 600 V in relation
to the earth.
For measurements on DC current, check zero output. Adjust if necessary (see “Operating procedure”).
During measurement, ensure that the conductor is in line with the markings on the jaws and that the
clamp closes correctly.
Your clamp is supplied with a set of adhesive labels. Choose the label for your language and stick it
to the back of the case.
WARRANTY
Our guarantee is applicable for twelve months after the date on which the equipment is made
available (extract from our General Conditions of Sale, available on request).
北京海洋兴业科技股份有限公司（证券代码：839145）
电话：[phone]
www.hyxyyq.com

10
SUMMARY
1. PRESENTATION.....................................................................................................................11
2. DESCRIPTION........................................................................................................................11
3. OPERATING PROCEDURE ...................................................................................................11
3.1. Switching ON...............................................................................................................11
3.2. DC Zero adjustment ....................................................................................................11
3.3. Measurement...............................................................................................................12
3.4. Overload indication......................................................................................................12
3.5. Auto OFF .....................................................................................................................12
4. SPECIFICATIONS...................................................................................................................12
4.1. Reference conditions...................................................................................................12
4.2. Operating conditions....................................................................................................13
4.3. Metrological specications...........................................................................................13
4.4. Mechanical specications............................................................................................15
4.5. Electrical specications ...............................................................................................15
4.6. electromagnetic compatibility ......................................................................................15
北京海洋兴业科技股份有限公司（证券代码：839145）
电话：[phone]
www.hyxyyq.com

11
1. PRESENTATION
The PAC 11 current clamp measures DC or AC currents, without opening the circuit they are owing in.
The current clamp is used as an accessory for multimeters, recorders, etc.
This clamp measures DC currents up to 600 A and AC currents up to 400 A rms (600 A peak). It outputs
the form and amplitude of the current measured as a voltage image of the primary current.
The clamp has two ranges, 40 A (sensitivity 10 mV/A) and 400 A (sensitivity 1 mV/A), a zero adjust push
button, auto off feature to economise the battery power supply and two light indicators, one for faults
(over-range / incorrect zero reset), the other for power supply.
2. DESCRIPTION
See descriptive diagram at the end of the User Manual.
➀Passage of the conductor
➁Jaws
➂Protective non-slip guard
➃Automatic zero DC button
➄Red fault light (over range / incorrect zero adjustment)
➅Green light indicating correct power supply
➆3-position sliding switch (off / selection of 1 mV/A or 10 mV/A ranges)
➇Hand-held parts
➈Fitted lead 1.5 m
➉Safety plug Ø 4 mm
3. OPERATING PROCEDURE
3.1. SWITCHING ON
Set the sliding switch ➆to the appropriate position, 40 A range (sensitivity 10 mV/A) or 400 A range
(sensitivity 1 mV/A). Correct operation is indicated by a green light ➅indicating that the battery is in
good condition.
After approximately 10 minutes of operation of the clamp without manipulation of the control buttons, the
power supply cuts off automatically (see “ Auto off ” below).
If this green indicator does not come on when the clamp is switched on, or goes out before it has operated
for 10 minutes, it is necessary to replace the battery.
3.2. DC ZERO ADJUSTMENT
Ensure that the jaws of the clamp are correctly closed and that they do not enclose any conductor. Connect
the clamp to your measurement instrument. Press the auto zero button ➃. The red light ➄comes on
for approximately three seconds to indicate that the instrument is on zero calibration. If zero can not be
obtained, this indicator light remains lit to indicate the fault.
北京海洋兴业科技股份有限公司（证券代码：839145）
电话：[phone]
www.hyxyyq.com

12
3.3. MEASUREMENT
After having switched on the clamp, connected it to the measurement instrument on the appropriate
range, and followed the auto zero procedure (see the two paragraphs above), clamp the conductor to
be measured ➀between the jaws of the clamp.
The value is displayed on the measurement instrument.
Depending on the sensitivity selected on the clamp and the range of your measurement instrument, apply
the conversion ratio to get the value of the current.
On DC current measurement, ensure that the arrow located on the external edge of the jaws
➁ corresponds to the direction of the current owing in the conductor (source ⇒receiver).
3.4. OVERLOAD INDICATION
Detection of overload of the range of the clamp is indicated by the red light ➄. This indicator ashes for
a peak current greater than 60 A on the 40 A range (10 mV/A) or 600 A on the 400 A range (1 mV/A).
3.5. AUTO OFF
The PAC 11 has an Auto Off feature which switches off 10 minutes after the clamp has been switched
on, without the controls being used.
When the clamp is switched off by this automatic function, the switch ➆ must rst be set to the OFF
position before being switched on again.
This function can be overridden by the user when switching on. Simply press the auto zero button ➃at
the same time as setting the switch ➆from the OFF position to the 1 mV/A or
10 mV/A position. If the green indicator ➅ ashes whilst the zero reset button is being pressed, this
indicates that the auto off function has been inhibited.
4. SPECIFICATIONS
Ranges Input/output
ratio
Measurement extent
AC rms peak max DC
40 A 10 mV/A 0.2 ... 40 A 0.2 ... 60 A 0.4 ... 60 A
400 A 1 mV/A 0.5 ... 400 A 0.5 ... 600 A 0.5 ... 600 A
4.1. REFERENCE CONDITIONS
- Temperature : 18 ... 28°C
- Humidity rate : 20 ... 75% RH
- Battery voltage : 9 V ± 0.1 V
- Position of conductor : centred on the markings of the clamp
- Magnetic eld : Earth’s DC eld
- Absence of external AC magnetic eld
- Absence of electric eld
- Measurement for a DC current or an AC sinusoidal current ≤65 Hz
- Impedance of the measurement instrument : ≥1 MWand ≤100 pF
北京海洋兴业科技股份有限公司（证券代码：839145）
电话：[phone]
www.hyxyyq.com

13
4.2. OPERATING CONDITIONS
The instrument must be used in the following conditions to satisfy the safety of the user and the metrological
performance :
- Use indoors
- Working altitude : ≤2000 m
- Transportation altitude : ≤12 000 m

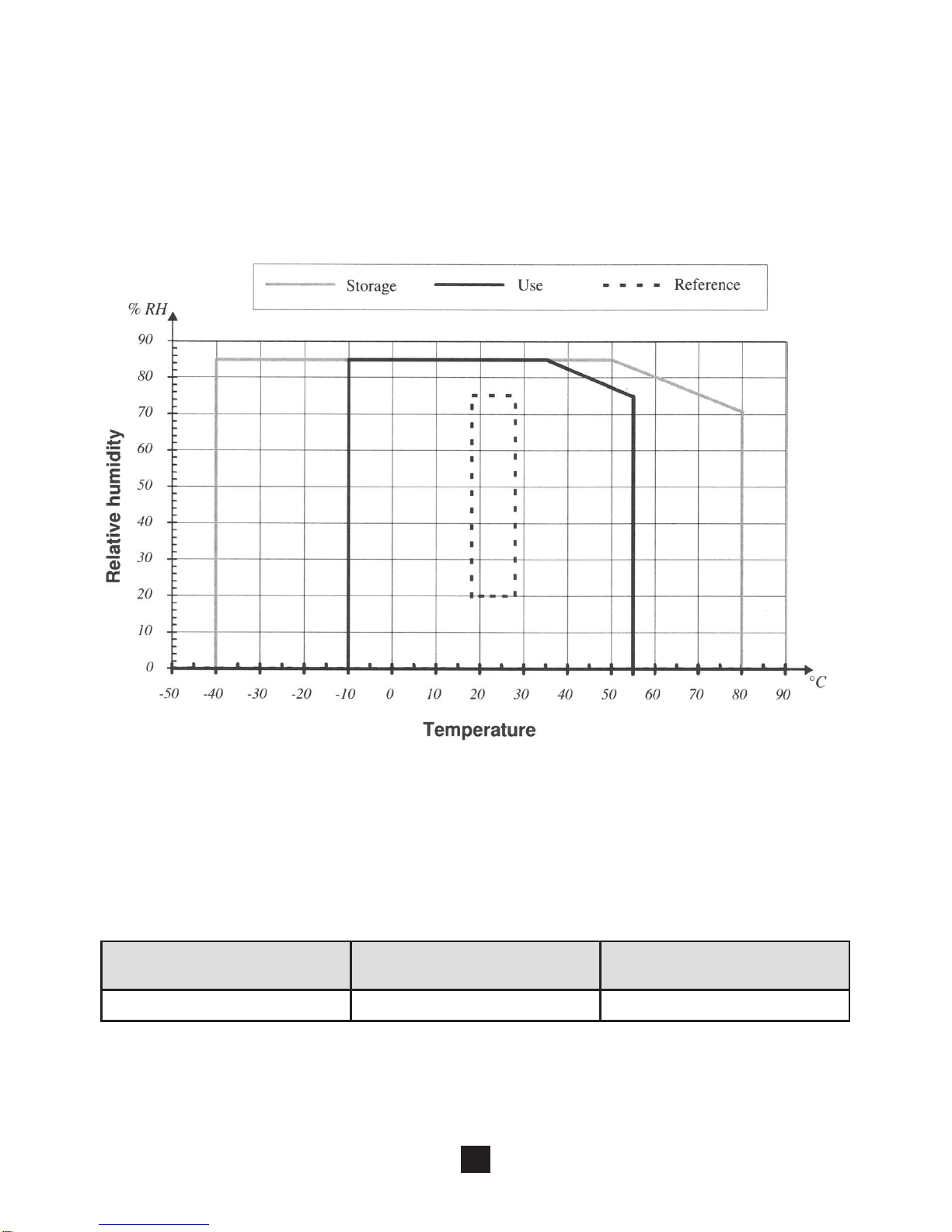

- Environmental conditions : see graph below
4.3. METROLOGICAL SPECIFICATIONS
All the errors are indicated as a % of Vs (value of the output voltage).
- Output impedance : 100 W
- Zero adjustment : ± 10 A by automatic step from 25 to 40 mA approx.
40 A range (10 mV/A)
Intrinsic error in the eld of reference
Primary current 0.5 ... 40 A 40 ... 60 A
(on DC only)
Accuracy ≤1.5 % + 5 mV ≤1.5 %
北京海洋兴业科技股份有限公司（证券代码：839145）
电话：[phone]
www.hyxyyq.com

14
Phase error (45 ... 65 Hz)
Primary current 10 ... 20 A 20 ... 40 A
Phase shift ≤3° ≤2.2°
- Rise time from 10 to 90 % Vs : ≤100 µs
- Fall time from 90 to 10 % Vs : ≤100 µs
- Output noise : from DC ... 1 kHz ≤8 mV or 0.8 Acc
from DC ... 5 kHz ≤12 mV or 1.2 Acc
from 0.1 Hz ... 5 kHz ≤2.0 mV rms or 0.2 A rms
400 A range (1 mV/A)
Intrinsic error in the reference range
Primary current 0.5 ... 100 A 100 ... 400 A 400 ... 500 A 500 ... 600 A
(on DC only)
Accuracy ≤1.5 % + 1 mV ≤2 % ≤2.5 % ≤3 %
Phase error (45 ... 65 Hz)
Primary current 10 ... 300 A 300 ... 400 A
Phase shift ≤2.2° ≤1.5°
- Rise time from 10 to 90 % Vs : ≤70 µs
- Fall time from 90 to 10 % Vs : ≤70 µs
- Output noise : from DC ... 1 kHz ≤1 mV or 1 A peak - peak
from DC ... 5 kHz ≤1.5 mV or 1.5 A peak - peak
from 1 Hz ... 5 kHz ≤500 µV rms or 0.5 A rms
Distortion parameters
Maximum distortion of the frequency on the measurement (to be added to the error in the
reference range) : from 65 to 440 Hz - 1%
from 440 to 2000 Hz - 3.5%
from 2 to 30 kHz - 3 dB
Battery voltage : ≤0.1% / V
Temperature : ≤300 ppm /°C or 0.3% /10°C
Humidity 10...85% RH at ambient temperature : ≤0.5%
Position of a conductor f ∅20 mm : from DC to 440 Hz < 0.5%
from 440 Hz to 1 kHz < 1%
from 1 kHz to 2 kHz < 3%
from 2 kHz to 5 kHz < 10%
Adjacent conductor carrying an AC current 50 Hz, at 23 mm from the clamp : < 10 mA/A
Distortion of an external eld 400 A/m (50 Hz) on centred cable : < 1.3 A
Common mode rejection : > 65 dB A/V
Residual magnetism : < 10 mA/A
北京海洋兴业科技股份有限公司（证券代码：839145）
电话：[phone]
www.hyxyyq.com

15
4.4. MECHANICAL SPECIFICATIONS
- Watertightness : IP 30 in accordance with IEC 529
- Clamping diameter : 1 cable ∅30 mm (or 2 cables ∅24 mm)
a busbar of cross section 50 x 10 mm
- Outside dimensions of clamp : 224 x 97 x 44 mm
- Fitted lead : 1.5 m
- Weight : 440 g approx
- Drop height : to IEC 68-2-32
- Protection from shocks : 100 g in accordance with IEC 68-2-27
- Vibrations : to IEC 68-2-6
4.5. ELECTRICAL SPECIFICATIONS
- Power supply : 9 V battery (type 6LR61, 6LF22 or NEDA 1604)
- Battery life : approx 50h with an alkaline battery
Operating limits
On DC current : 3000 A permanent
On AC : 1000 A permanent up to 1 kHz
The maximum permitted current (AC) on overload from 1 kHz is dened in accordance with the following
formula :
Ip max =
Electric shocks
Instrument with dual insulation or strengthened insulation in accordance with IEC 61010-2-032.
Between the primary, the secondary and the hand-held part located below the guard, dielectric test
voltage: 7850 V DC
Maximum common mode voltage between the conductor on which the measurement is made and the
earth, or the output and the earth:
- 600 V for installations of category III and degree of pollution 2
Installation category and degree of pollution in accordance with IEC 664 and 664A
4.6. ELECTROMAGNETIC COMPATIBILITY
Emissions and immunity in an industrial setting compliant with IEC 61326-1.
1000
F(kHz)
北京海洋兴业科技股份有限公司（证券代码：839145）
电话：[phone]
www.hyxyyq.com

16
English ......................................................................................................................... 9
Italiano ........................................................................................................................ 23
Español ...................................................................................................................... 30
Wir bedanke uns bei Ihnen für den Kaus des zangenstromwandler für oszilloskop und das damit
entgegengebrachte Vertrauen.
Für die Erlangung eines optimalen Betriebsverhaltens Ihres Gerätes bitten wir Sie:
diese Bedienungsanleitung sorgfältig zu lesen,
die Benutzungshinweise genau zu beachten.
ACHTUNG, GEFAHR! Sobald dieses Gefahrenzeichen irgendwo erscheint, ist der Benutzer
verpichtet, die Anleitung zu Rate zu ziehen.
Anbringung oder Abnahme zulässig an Leitungen unter Gefährdungsspannung. Stromsonde
Typ A gemäß IEC 61010 2 032.
Das Gerät ist durch eine doppelte Isolation geschützt.
Die CE-Kennzeichnung bestätigt die Übereinstimmung mit den europäischen Richtlinien,
insbesondere der Niederspannungs-Richtlinie und der EMV-Richtlinie.
Der durchgestrichene Mülleimer bedeutet, dass das Produkt in der europäischen Union gemäß
der WEEE-Richtlinie 2002/96/EG einer getrennten Elektroschrott-Verwertung zugeführt werden
muss.
SICHERHEITSHINWEISE
Verwenden Sie den Zangenstromwandler PAC 11 nur in Innenräumen !
Den Stromwandler nicht mit Wasser bespritzen oder in Wasser eintauchen.
Verwenden Sie den Zangenstromwandler PAC 11 niemals an nicht isolierten Leitern, die ein Potential
von mehr als 600 V gegenüber Erde aufweisen.
Vergewissern Sie sich vor Gleichstrommessungen, daß der Zangenausgang auf Null liegt. Nehmen
Sie gegebenenfalls einen Nullabgleich der Zange vor (siehe “Bedienungshinweise”).
Achten Sie bei Messungen darauf, daß die Lage des Leiters mit den Markierungen auf den
Zangenbacken übereinstimmt und daß die Backen richtig geschlossen sind.
Der Zangenstromwandler wird mit einem Satz Aufklebe - Etiketten geliefert. Etikett in entsprechender
Sprache auf das Gerät aufkleben.
GARANTIE
Unsere Garantie erstreckt sich auf eine Dauer von zwölf Monaten ab dem Zeitpunkt der
Bereitstellung des Geräts (Auszug aus unseren allg. Verkaufsbedingungen. Erhältlich auf Anfrage).
北京海洋兴业科技股份有限公司（证券代码：839145）
电话：[phone]
www.hyxyyq.com

37
5. ANNEXE / APPENDIX / ANHANG / ALLEGATO / ANEXO
Description, voir page 4
Description, see page 11
Beschreibung, siehe Seite 18
Descrizione, vedere pag. 25
Para la descripciòn, véase página 32








ON
北京海洋兴业科技股份有限公司（证券代码：839145）
电话：[phone]
www.hyxyyq.com
