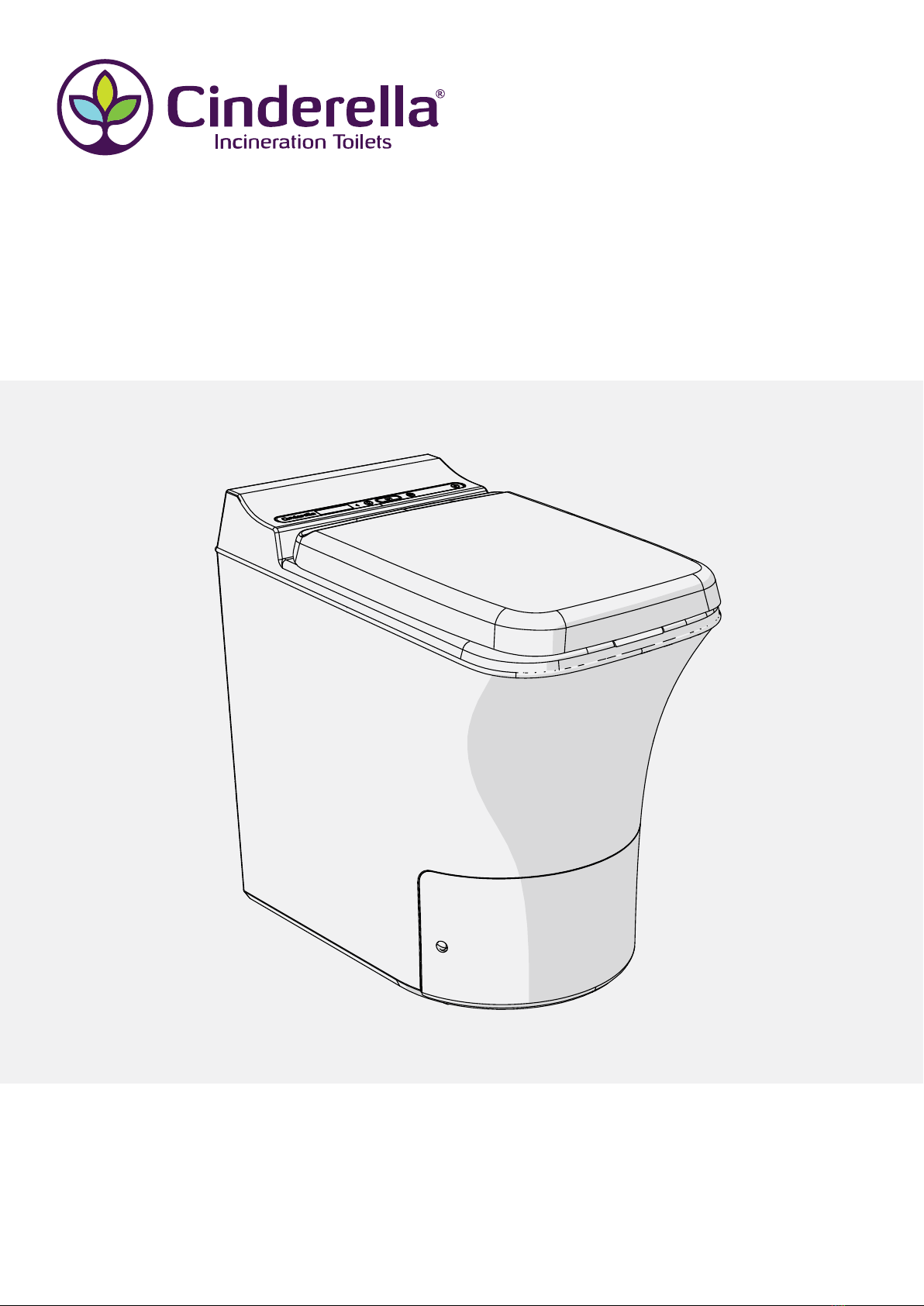

Cinderella FREEDOM User manual

CINDERELLA FREEDOM
CINDERELLA FREEDOM AUS/NZ
Product manual
English
Document number: D000348
Revision number: 02
Cinderella Freedom Product Manual | 01.06.2022

2
CONTENTS
1. GENERAL SECTION 3
1.1 INTRODUCTION 3
1.2 APPLICATION ACCORDING TO REGULATIONS 3
1.3 OPERATING INSTRUCTIONS GUIDE 3
1.4 LIMITATION OF LIABILITY 3
1.5 LISTINGS AND CERTIFICATIONS 3
1.6 GENERAL SAFETY INSTRUCTIONS 4
1.7 APPLIANCE RATING PLATE 5
1.8 CINDERELLA ONLINE 5
1.9 UNPACKING THE TOILET AND ACCESSORIES 5
2. INSTALLATION SECTION 6
2.1 SECURING THE TOILET TO THE FLOOR 6
2.2 MEASUREMENT SPECIFICATIONS CINDERELLA FREEDOM 7
2.3 FLUE PIPE INSTALLATION 8
2.3.1 FLUE PIPE SPECIFICATION 9
2.3.2 HORIZONTAL FLUE PIPE SPECIFICATIONS 10
2.3.3 VERTICAL FLUE PIPE SPECIFICATIONS 11
2.4 INLET AIR 12
2.5 GAS INSTALLATION 13
2.6 ELECTRIC CONNECTION 14
2.7 CHECKLIST TO VERIFY THE COMPLETE INSTALLATION 14
2.8 PERFORMANCE TEST TO VERIFY THE SYSTEM FUNCTIONALITY 15
3. USER SECTION 16
3.1 INTENDED USE AND HANDLING 16
3.2 GENERAL SAFETY 16
3.3 SAFETY WHEN OPERATING WITH GAS 16
3.4 SAFE OPERATIONS 17
3.5 CINDERELLA FREEDOM SAFETY FEATURES 17
3.6 IMPORTANT USER INFORMATION 18
3.7 THE CONTROL PANEL 19
3.8 USING THE CINDERELLA FREEDOM TOILET 20
3.9 OPERATING THE FRONT COVER AND ASH CONTAINER 21
3.10 APPLIANCE ORIENTATION 22
4. GENERAL MAINTENANCE INSTRUCTIONS 22
4.1 END PRODUCT CHARACTERISTICS 23
4.2 CUSTOMER MAINTENANCE 23
4.2.1 EMPTYING AND CLEANING THE ASH CONTAINER 23
4.2.2 STEAM-CLEANING THE CATALYTIC CONVERTER 24
4.2.3 INSPECTING THE CATALYTIC CONVERTER 25
4.2.4 CLEANING THE BOWL 25
4.2.5 MAINTENANCE DURAVENT FLUE PIPE SYSTEM 26
4.3 PROFESSIONAL MAINTENANCE 26
4.3.1 RINSING THE EXHAUST SYSTEM AND CATALYTIC CONVERTER 26
5.0 TROUBLESHOOTING AND FAQ 27
5.1 TROUBLESHOOTING TABLE 28
6. REPAIRS AND SPARE PARTS 29
6.1 SPARE PARTS LIST 29
6.2 APPLIANCE PROCESS OVERVIEW 30
6.3 TECHNICAL ORIENTATION 30
6.4 WIRE DIAGRAM 31
7. WARRANTY 31

3
1. GENERAL SECTION
1.1 INTRODUCTION
It is essential to ensure proper ventilation in accordance with the guidelines in this manual to guarantee the
functionality of your new Cinderella toilet. Improper installation may cause malfunction, wear and/or odours
and will void the warranty. When installing the appliance, the technical and administrative regulations of AS/NZS
5601.1 and the local authority where the toilet is installed must be adhered to. ULPG cylinders must be installed
in accordance with AS/NZS 5601.1 or AS/NZS 596.
1.2 APPLICATION ACCORDING TO REGULATIONS
This appliance is designed to burn bodily waste products and small sanitary products such as toilet paper and
baby or face wipes. This appliance must not be installed in a mobile or portable installation (e.g. mobile home,
mobile shed, recreational vehicle or caravan).
1.3 OPERATING INSTRUCTIONS GUIDE
Please read this instruction manual carefully before installation and rst use. Store these instructions in a safe
place so you can refer to them when required. If you pass on the product to someone else, hand over this
instruction manual along with it.
These instructions provide you with the necessary guidance for proper installation, handling and maintenance
of the product. It is important that both the installer and the user familiarise themselves with the instructions
given in this manual. The manual also contains information on professional maintenance and any necessary
information for service and repairs.
1.4 LIMITATION OF LIABILITY
The manufacturer accepts no liability for damage in the following cases:
• Faulty installation or connection
• Damage to the product resulting from mechanical factors and/or incorrect connection voltage
• Alterations to the product without express permission from the manufacturer
• Use for purposes other than those described in the operating manual
• Non-observation of the operating and maintenance instructions
• Application not in accordance with the regulations or provisions
• Use of non-original bowl liners and spare parts
1.5 LISTINGS AND CERTIFICATIONS
The Cinderella Freedom AUS/NZ has been extensively tested by Underwriters Laboratory in accordance with the
Global-Mark certication scheme. The toilet is tested and certied to the Gas Safety standard AS/NZS 5263.0.
AUSTRALIA AND NEW ZEALAND
GAS SAFETY CERTIFICATION
®
DO NOT REMOVE
AUSTRALIA AND NEW ZEALAND
GAS SAFETY CERTIFICATION
®
DO NOT REMOVE
DO NOT REMOVE
DO NOT REMOVE
AUSTRALIA ONLY
GAS SAFETY CERTIFICATION
DO NOT REMOVE
TM
AUSTRALIA ONLY
GAS SAFETY CERTIFICATION
DO NOT REMOVE
TM
AUSTRALIA ONLY
GAS SAFETY CERTIFICATION
DO NOT REMOVE
TM
AUSTRALIA ONLY
GAS SAFETY CERTIFICATION
DO NOT REMOVE
TM

4
1.6 GENERAL SAFETY INSTRUCTIONS
WARNING!
Safety instruction: Failure to observe this instruction could cause fatal or serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction could lead to injury.
NB!
Failure to observe this instruction could cause material damage and impair the
function of the product.
NOTE!
Supplementary information for operating the product.
WARNING!
• Do not spray aerosols in the vicinity of this appliance while it is in operation.
• Do not use or store ammable materials in or near this appliance.
• Do not place articles on or against this appliance.
• Do not modify this appliance..
CAUTION!
• Danger of crushing! Do not place your hand on the hinge or underneath the toilet seat
and lid while open, as there is no soft-close function on the lid and seat.
• Do not empty the ash container when hot.
• Before activating, ensure that the power supply line and plug are dry.
NB!
• During transport, only hold the toilet by the toilet shell. Never hold the toilet by the gas
connection, power cord, front cover, lid or seat or exhaust outlet.
• Check that the voltage specication on the type plate is the same as that of the energy
supply.
• Only use power cables with a suitable cross section.
• Danger of overheating! Always ensure sucient ventilation so that the heat and
emissions generated during incineration can dissipate from the ue pipe. Ensure proper
air ow for the system. Always ensure sucient ventilation into the room where the
toilet is installed. Make sure that the toilet is suciently far away from walls or other
objects so that air can circulate.
WARNING!
• Do not operate the incinerating toilet if it is visibly damaged.
• If the DC power cable for this toilet is damaged, it must be replaced by the manufacturer,
customer service or a similarly qualied person in order to prevent safety hazards.
• Never use a naked ame to check the toilet gas connections for any leakage.
• This toilet may only be repaired by qualied personnel. Inadequate repairs may cause
serious hazards.
• Only use ULPG gas (not natural gas or auto LPG).
• Only operate the toilet with the pressure shown on the type plate on the back of
the toilet.

5
1.7 APPLIANCE RATING PLATE
The appliance rating plate can be found on the back plate of the incineration toilet. From this plate you can read
the model identication, serial number, toilet ratings and support detail. You will need these details whenever
you contact the customer service centre or when ordering spare parts.
1.8 CINDERELLA ONLINE
Register your Cinderella
After registration you may receive relevant information about
our products and available support systems. In the event of
theft, registered toilets will be in our manufacturer database.
Download documentation
You can download product documentation from our online
documentation centre, where you will nd owner
manuals, service manuals and a Disassembly of Waste
Electrical and Electronic Equipment (WEEE) manual.
Service and spare parts
Select country of origin and receive a list of local dealers
where you can obtain service and spare parts.
CINDERELLA
MODEL: CG-ANZ-01
SERIAL: 2123 600028
Cinderella Eco Group Norway
Australian subsidiary:
Cinderella Eco Australia Pty Ltd
Sydney, New South Wales 2000
For sales/support visit: www.cinderellaeco.com
AUSTRALIA AND NEW ZEALAND
GAS SAFETY CERTIFICATION
®
DO NOT REMOVE
AUSTRALIA AND NEW ZEALAND
GAS SAFETY CERTIFICATION
®
DO NOT REMOVE
DO NOT REMOVE
DO NOT REMOVE
AUSTRALIA ONLY
GAS SAFETY CERTIFICATION
DO NOT REMOVE
TM
AUSTRALIA ONLY
GAS SAFETY CERTIFICATION
DO NOT REMOVE
TM
AUSTRALIA ONLY
GAS SAFETY CERTIFICATION
DO NOT REMOVE
TM
AUSTRALIA ONLY
GAS SAFETY CERTIFICATION
DO NOT REMOVE
TM
RIGID PIPE CONNECTION ONLY!
SUITABLE ONLY FOR INDOOR INSTALLATION!
DO NOT OPERATE THIS APPLIANCE BEFORE CHECKING FOR GAS LEAKS!
SEE WARNING LABEL WITH THIS ICON IN OWNER’S MANUAL FOR ADDITIONAL INFORMATION
Appliance Specications
VOLTAGE........................................ 12V DC
CURRENT ....................................... 4 A
FAN BLOWER:................................ 12V DC
GAS TYPE: ...................................... ULPG
GAS SUPPLY PRESSURE: ............... 2.75 kPa
TOTAL GAS CONSUMPTION......... 9.8 MJ/h
INJECTOR / ORIFICE SIZE .............. 1 mm
CAPACITY....................................... 4 VISITS PR. HOUR
CIRCUIT BOARD............................. G2
YEAR OF MANUFACTURING......... 2022
DESIGNED FOR STATIONARY STRUCTURES
1.9 UNPACKING THE TOILET AND ACCESSORIES
NOTE!
• When unpacking the Cinderella Freedom appliance use the pre-xed strip on the bottom
of the box. Release the strip all around the box and lift up the box.
• The contents of the box are loose inside the box and it is therefore important to unpack
the toilet in a place where you have control over items that may fall out.

6
1
5
4
6
2
3
7
2
1
3
Box 1/2 Cinderella Freedom ANZ Qty
1 Cinderella Freedom ANZ 1
2Bowl liners 1
3Product manual 1
4Vent duct 1
5Gas ttings 2
6 Docking station 1
7 Screws 3,5 mm 3
Box 2/2 Installation Kit Qty
1 Flue terminal w/ spark arrestor 5” 1
2Reduction Tee 5x4” 1
3Cinderella Adapter 1
2. INSTALLATION SECTION
2.1 SECURING THE TOILET TO THE FLOOR
It is essential to secure the toilet to the oor, and the Cinderella Freedom is therefore delivered with a custom
docking station to make this possible. It is important to be sure of the location of the toilet before fastening the
docking station to the oor. To install the docking station and toilet;
1. Remove the front cover
2. Cut away the transport safety strip, securing the ash container.
3. Removing the ash container, see page 18 for instructions operating the ash container.
4. Remove the two rear screws that secure the toilet to the shell, using two 10mm wrenches. It will be necessary
to hold on to the top while turning from the bottom, hold on to the screws.
5. Place the toilet on the docking and nd the desired positioning of the appliance, make a mark on the oor to
secure the location of the toilet. Then remove the toilet and fasten the docking to the oor.
NOTE!
This appliance must be installed by a qualied plumber /gas tter who can provide a
certicate of compliance in accordance with AS/NZS 5601.1. It is essential to ensure proper
ventilation in accordance with the guidelines in this manual to guarantee the functionality
of your new Cinderella toilet. Improper installation may cause malfunction, wear or odours
and will void the warranty.
Read each section carefully before starting the installation of the toilet. Always make sure
that the work is carried out by professionals in accordance with local regulations.

7
2
13
56
4
6. Place the toilet back the docking and fasten the toilet by crewing back the screws you released earlier from
the top of the appliance bottom plate and into the docking.
SPECIFICATIONS CINDERELLA FREEDOM
Seated height 540 mm
Height 600 mm
Width 390 mm
Depth 590 mm (adapter 698mm)
Ventilation outlet 110 mm
Weight 34 kg
2.2 MEASUREMENT SPECIFICATIONS CINDERELLA FREEDOM

8
2.3 FLUE PIPE INSTALLATION
NB!
• This appliance must be installed in accordance with AS/NZS 5601.1.
• This appliance must be installed with DuraVent ue pipes, materials must comply with
AS/NZS 5601.1.
• This appliance must not be installed in a mobile or portable installation (e.g. mobile
home, mobile shed, recreational vehicle or caravan).
• This appliance must not be installed in locations with other air-dependent equipment
that could adversely aect the system, such as ventilators or open re sources.
• This appliance must only be installed by a licensed/authorised person.
• The toilet must be placed on a rm and level base.
• Your Cinderella Freedom incinerating toilet can be installed on a heated oor.
• This appliance must be secured to the oor (see section 2.1 of this manual).
• When installed in environments where condensation may accumulate, adequate
condensation draining must be installed.
• The T-bend must be accessible when installed, so that the drainage pipe can be rinsed,
and the ue pipe cleaned.
CAUTION!
Before cutting any holes, always check that you will not cut any electrical wiring or water
pipes.
NOTE!
• This appliance is designed and certied to be installed with DuraVent’s Type B Gas
Vent system. For detailed instruction on how to install the ue pipes, tolerances and
ue pipe specications please refer to DuraVent’s installation manuals, which can be
downloaded from their website: duravent.com/installation-instructions/
• This manual refers to a selection of pipes and accessories from DuraVent’s type B
system, which t the special parts supplied with the toilet. It is important to familiarize
yourself with the various components and restrictions, in order to achieve the best
possible installation and correct product functionality.

9
2.3.1 FLUE PIPE SPECIFICATION
A
B
C
D
Horizontal tubes
Ø117,5 mm (4 5/8")
Vertical tubes
Ø143 mm (5 5/8")
When installing the pipes, it is important to rst assemble the tee and horizontal pipe length, before mounting
the adapter to the toilet. This is to ensure that you get the correct starting point for the vertical pipe. When you
have the desired positioning of your pipes, you simply mount the adapter to the device by marking the hole
pattern on the back wall. Remove the adapter and drill the holes (3 mm) according to the markings, fasten the
adapter using the 3,5 mm screws supplied with the appliance.
A. Rotate horizontal pipe onto the reduction tee
B. Rotate adapter onto the horizontal pipe
C. Attach adapter to the appliance
D. Install the vertical pipes and ue terminal cap
NOTE!
• When installing the Cinderella Freedom
appliance, it is required to use 4 ‘’ pipes for
horizontal pipe section, and 5 ‘’ pipes for
vertical pipe section. This is to preserve an
optimal ow eect and ensure good product
functionality.
• The appliance is delivered with specially
adapted parts from DuraVent: adapter,
Increaser tee and ue terminal, to be
used upon installation of the product. It is
important to calculate the length of vertical
and horizontal pipe sections in accordance
with local regulations and the instructions
given in this manual.
• The DuraVent Type B round pipes are
designed with a screw coupling system which
makes it easy to rotate the various parts
together, but this means that you cannot cut
the pipes to the desired length. It is therefore
important to look at the instructions and
pipes lengths as set out in this manual, and
calculate which parts that are needed for the
installation of the toilet.

10
DURAVENT TYPE B - ROUND PIPES (HORIZONTAL SECTION)
Part.no
LENGTH OUTER DIAMETER INNER DIAMETER
INCHES MM INCHES MM INCHES MM
4GV06 6 152 4 5/8 118 4 102
4GV24 18 458 4 5/8 118 4 102
5GVTR4 Reduction tee 5 inch to 4 inch
Minimum 25 mm
300 140 250520
120
520
4GV24 4GV24
4GV6
2.3.2 HORIZONTAL FLUE PIPE SPECIFICATIONS
For specications on horizontal ue pipe installation, see illustration as presented below. The table is used to
calculate the distances and possible variants based on a selection of components from the Type-B system.
NOTE!
The outer diameter of the DuraVent pipes for horizontal is 118mm , this will have to be
taken into consideration if planning a through-the-wall installation. Installations through-
the-wall will have to be done in accordance with the DuraVent installation instructions and
AS/NZS 5601.1.
NB!
The horizontal pipe section should be no longer than 1000 mm

11
4480 4030 3875
3600
600
600
415
600
600
5GVTR4
5GVVTH
5GV18
5GV12
5GV36 (4x)
5GV36 (5x)
5GV36 (4x)
5GV36 (4x)
5GVVTH
5GVVTH
5GVVTH
DURAVENT TYPE B - ROUND PIPES (VERTICAL SECTION)
PART.NO
LENGTH OUTER DIAMETER INNER DIAMETER
INCHES MM INCHES MM INCHES MM
5GV12 12 305 5 5/8 143 5 127
5GV18 18 458 5 5/8 143 5 127
5GV36 36 915 5 5/8 143 5 127
2.3.3 VERTICAL FLUE PIPE SPECIFICATIONS
For specications on vertical ue pipe installation, see illustration as presented below. The table is used to
calculate the distances and possible variants based on a selection of components from the Type-B system.
NB!
• The vertical pipe section should be no longer than 4500mm (4.5m)
• No additional bends are allowed
• The ue termination should be no less than 1000mm from the roof surface
1000
1000
1000
1000

12
2.4 INLET AIR
It is required to install adequate venting in accordance with AS/NZS 5601.1. The air inlet vent should preferably
be installed as close to the Cinderella toilet as possible, to ensure a good air supply to the toilet and reduce the
environmental impact in the toilet room. It is important that there are no other air-dependent installations used
at the same time as the toilet, e.g. an extractor fan or replace. The Cinderella Freedom toilet draws air mainly
from the underside of the toilet. It is therefore possible to have the air intake underneath the toilet. This allows
you to insulate the air as much as possible in the toilet and minimise the environmental impact in the toilet
room.
50 mm
OPEN
NB!
The inlet vent’s minimum dimensions must be 160 mm (diameter)/ 201 cm². We
recommend that you use the supplied vent.
• The vent must be open at all times. Remember to clean the vent at regular intervals.
• Make sure that there is no conict between the toilet’s air supply and other
installations, such as a replace or extractor fan.
• Do not use a separate ventilation fan or similar to extract air from the room where the
toilet is installed when using the Cinderella Freedom toilet.
• If you have open ventilation under the toilet, it may be advisable to use a mesh over
the hole to keep insects and vermin from entering the toilet. Make sure that the mesh
is not too ne as this will impede the air ow.
NOTE!
The air inlet vent must always
remain open when using the
Cinderella toilet.
NOTE!
If the installed air vent has an
adjustable opening, always make
sure to leave it open by a mini-
mum of (50 mm) when operating
the toilet.

13
2.5 GAS INSTALLATION
This Appliance must be installed by a qualied plumber /gas tter who can provide a certicate of compliance in
accordance with AS/NZS 5601.1. This appliance is designed to be used with ULPG gas and is to be installed with
rigid piping only.
CAUTION!
• This toilet must only be connected to the gas supply by an authorised person in
accordance with the technical and administrative regulations of the country in which
the toilet is installed, i:.e. AS/NZS 5601.1.
• Only operate the toilet at the pressure shown on the type plate on the back of the
toilet.
• Only operate the toilet with the type of gas shown on the type plate on the back of
the toilet.
• The toilet is suitable only for indoor installation
SPECIFICATIONS VALUE NOTES
Fuel consumption 9.8 MJ/h
Inlet gas pressure 2.75 kPa
Gas type ULPG
Gas connection appliance ¼’’ NTP female
Male straight increaser threaded tting ¼’’ NTP to ¼’’ BSP Delivered with appliance
Elbow 90 degree angled threaded tting ¼’’ BSP to ½” BSP Delivered with appliance
Gas installation Rigid pipes only In accordance with AS/NZS 5601.1.
Orice size 1 mm

14
12V WIRING GUIDE
Amps 1 m 2 m 5 m 6 m 8 m 10 m
42 mm² 2 mm² 2 mm² 4 mm² 4 mm² 4 mm²
When connecting the toilet to the mains DC power, take the following into consideration:
• Make sure the cable has sucient current rating for the expected load in the circuit, including a margin of
safety.
• Make sure the cable cross section is dimensioned for the intended cable run length, and that the cable will
not cause the voltage to drop.
• Always check the polarity of the cables before connecting as reverse polarity connection is not covered under
warranty.
NOTE!
• The connection cable must be laid in such a way that it does not come into contact with
sharp edges.
• Changes to the internal electrical installation or the connection cable must be
performed by a professional tradesman or a similarly qualied person in order to
prevent safety hazards.
CONTROL ITEMS CONFORMANCE
The complete installation is in accordance with AS/NZS 5601.1
The appliance is properly mounted to the oor
The gas connection is in accordance with the specications on the appliance rating plate
The appliance is installed with rigid gas pipes
The appliance is powered with 12V DC, min. 4A
The appliance is vented with DuraVent ue pipes
The supplied DuraVent ue terminal is used on the top of the ue pipe
The ue pipe is no longer than 4.5 m
The ue termination is no less than 1000 mm from the roof surface
There is adequate venting in the room in accordance with AS/NZS 5601.1
Safe draining is installed where condensation is likely to accumulate
2.7 CHECKLIST TO VERIFY COMPLETE INSTALLATION
Power requirements INPUT CURRENT FUSE
12V DC (11 – 14.4V) 4 A 10 A
Power consumption HIBERNATION MODE STANDBY MODE INCINERATING MODE
0.005 A 0.09 A 1.3 A
Connection polarity CROSS SECTION POSITIVE NEGATIVE
2 mm² Red Black
The respective negative and positive cables of the DC connection must not be joined to one another in a
camper, as this can cause electrical interference and damage to electrical components. The 12V supply must
be connected on its own circuit direct to the battery, with a 10 A fuse at the start of the circuit. Use the 12V wire
guide to calculate the correct cable size according to the cable length.
2.6 ELECTRIC CONNECTION
The correct voltage, frequency and amperage must be supplied to the appliance from a dedicated, earthed
circuit that is protected by a properly sized circuit breaker. The proper voltage, frequency and amperage are
listed in this manual, and on the product rating plate on the back of the toilet. Please note: This toilet requires a
12V 4A DC supply. If you require to operate it from a 240V AC power point (GPO) please request the approved
power supply from your dealer.

15
2.8 PERFORMANCE TEST TO VERIFY SYSTEM FUNCTIONALITY
When the “Start” button is pressed, the incineration cycle will be activated. The estimated incineration time
for the verication test is approximately 60 – 70 minutes. The yellow light will be lit when the incineration is
ongoing, and the complete test should be completed without any fault indications or system interruptions. The
toilet will have to cool down to the point that the fan has stopped before the ash container can be removed. The
cooling phase can take from 30 – 60 minutes, depending on the ambient cooling temperature.
The end result should only be ne white dust. Any end results deviating from this or an incineration time
exceeding 80 minutes may indicate a restriction in the ue vent or a lack of oxygen. Check that the installation is
in accordance with the specications in section 2.5.
1 meter
1,2 liter
2
13
60 - 70 minutes
56
4
CAUTION!
The ash container will get very hot while incinerating. Do not remove the front lid until the
toilet has cooled completely and the fan has stopped.

16
3.2 GENERAL SAFETY
WARNING!
• Do not operate the incineration toilet if it is visibly damaged.
• If the connection cable for the toilet is damaged, it must be replaced by the
manufacturer, customer service or a similarly qualied person in order to prevent
safety hazards.
• This incineration toilet may only be repaired by qualied personnel. Unauthorised
repairs can result in considerable danger or damage to the toilet.
• Cleaning and user maintenance may not be carried out by unsupervised children.
• Do not use any explosive substances or ammable cleaning agents, such as spray cans
with propellants when cleaning the toilet.
NB!
• The toilet is solely designed to burn bodily waste products and small sanitary products
such as tampons, sanitary pads and baby, face and cleaning wipes.
• Young children must be supervised when they use Cinderella incineration toilets.
3.3 SAFETY WHEN OPERATING WITH GAS
WARNING!
• Never use an unshielded ame to check gas-bearing parts and pipes for leakage, as this
presents a risk of re or explosion.
• In case of gas odour:
– Close the gas supply stopcock and the valve on the cylinder.
– Open all windows and leave the room.
– Do not turn any electrical switches on or o.
– Put out any naked ames.
– Have the gas system checked by a specialist.
3. USER SECTION
3.1 INTENDED USE AND HANDLING
The Cinderella Freedom toilet is intended for indoor installation and use in residential homes, second homes,
outhouses, site welfare units, boathouses, pool houses and cabins.
The toilet is solely designed to burn bodily waste products and small sanitary products such as toilet paper,
sanitary pads and baby, face and cleaning wipes. Using the Cinderella Freedom to burn other items constitutes
misuse and will void your warranty.
DO NOT PUT THE FOLLOWING ITEMS INTO THE TOILET
• Excessive amounts of paper of any kind
• Newspaper
• Paper towels
• Flammable liquids or materials
• Cigarette lighters
• Cigarettes or cigars
• Petrol
• Alcoholic drinks or liquors
• Alcohol or rubbing alcohol
• Nail polish remover
• Lighter uid
• Lamp oil / kerosene
• Aerosol containers
• Glass or plastic bottles or containers etc.
HOW TO HANDLE THE WASTE
DO NOT THROW IN TOILET

17
3.4 SAFE OPERATIONS
3.5 CINDERELLA FREEDOM SAFETY FEATURES
• The incineration process is inactive while the toilet lid is open. The incineration will not start until the seat and
lid are closed.
• The hatch to the incineration chamber CANNOT remain open while the toilet is still hot (e.g. during cleaning).
This is only possible when the toilet has cooled down and the fan has stopped.
• Should a ventilation problem arise and the internal temperature of the toilet increases to more than 105 °C,
incineration will be interrupted and a warning message displayed. This situation requires a manual reset to
ensure the ventilation issue is addressed before the toilet can be used again.
• If the ash container is improperly positioned after emptying, incineration will not start and a warning light
and message will be displayed.
• If the combustion chamber hatch mechanism gets jammed or is prevented from closing properly,
incineration will not start and an error message will be displayed.
• The Cinderella Freedom’s smart software includes a ’’watchdog’’ function that monitors the temperature
while incineration is taking place. If any deviations from the normal temperature range are detected, this will
immediately result in the incineration stopping and a warning message being displayed.
CAUTION!
• The ash container in the toilet will become very hot when the toilet is in use. Make sure
the safety cover is in place when the toilet is in use. Do not empty the ash container
until the toilet has cooled completely.
• The seat and lid do not have a soft-close function. Take care not to crush your hands or
ngers when closing the lid and seat.
NB!
Danger of poor incineration and overheating of the system!
• Always use a new bowl liner when using the toilet.
• Always ensure sucient ventilation so that the heat generated during the operation
can dissipate.

18
Long period
No use
1 hour
Max 4 visits
Long period
Max 4 visits
3.6 IMPORTANT USER INFORMATION
NOTE!
• Always remember to place a new liner in the toilet bowl before use, one liner per
person, per visit
• The toilet lid must always be closed when the toilet is not in use. Incineration will not
start or continue until the lid has been closed.
• The incineration cycle could take up to 180 minutes from the most recent visit.
• The fan will continue to run until incineration is completed and the internal
temperature of the toilet has returned to the normal range. Cooling can take up to
120 minutes after incineration is completed, depending on the temperature of the air
provided for cooling.
• Your Cinderella toilet may be used at any point during the incineration or cooling
processes. Incineration is interrupted during use. Be sure to close the lid and press
‘‘Start’’ at the completion of each visit.
Capacity: 4 persons
The Cinderella Freedom is designed to handle up to four visits per hour. To avoid overload, more
than six visits per hour is not recommended. Overloading the toilet with many visits in a short
period of time, without completing an incineration cycle, can result in odours and leakage, and may
damage the toilet.
Emptying Frequency
The total liquid capacity of the system’s waste container is 5 L. The ash container should be emptied
frequently (once a week) for best operation. This ensures more ecient incineration and helps keep
the catalytic converter cleaner.
If your ash container has not been removed (by weekly emptying routines), your Cinderella Freedom
will display a message to empty the container after 90 incineration cycles, and will lock out further
visits if not emptied after 120 visits. We recommend that you empty the toilet as often as possible to
ensure better incineration eciency and less wear of the product.
Failing to empty the ash container when full may cause damage to the toilet and void your warranty.
Preparing your toilet for a lengthy period of non-use
In cases of longer periods of non-use, the waste must be incinerated, and the ash container
emptied.
Short period of increased use
Should the situation require an unusually high number of guests to use the toilet for a short period
of time, please follow these tips:
1. Empty the ash container completely before guests arrive.
2. Preheat the toilet before use by opening and closing the lid then pressing the Start button.
3. Ensure guests are instructed to use a bowl liner and press “Start” after every visit.
4. Check regularly to ensure the toilet lid is closed and the yellow incineration light is still lit.
5. You may need to run an extra incineration cycle or two before emptying the ash container to
ensure that the waste has been fully incinerated.
1 hour
Max 4 visits
1 hour
7
Empty Once a week
Empty

19

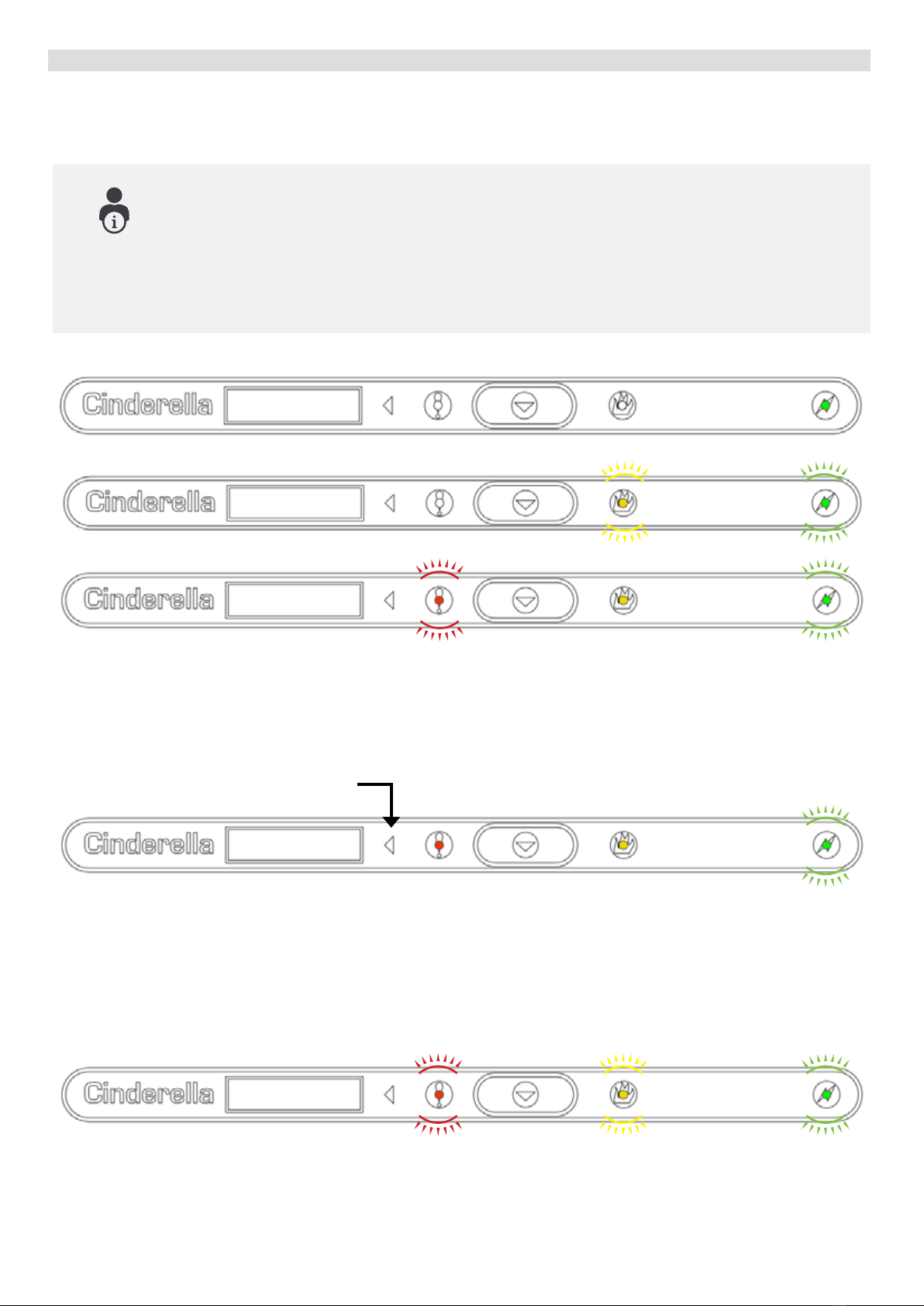

3.7 THE CONTROL PANEL
The control panel is equipped with a combination of light, sound and display messages that will give the best
possible user experience. There are a number of light and sound combinations that will tell the user about the
status of the system. It is important that all users familiarise themselves thoroughly with these signals before
use. An overview of all the light and sound signals can be found in the troubleshooting table in section 5.1.
NOTE!
• A green light indicates that the toilet is connected to the power supply. When only the
green light is lit, the toilet is in standby and ready for use.
• A yellow light indicates an ongoing incineration process and will light constantly while
the toilet is in incineration mode
• A red light indicates interruption and will alert the user that the toilet is no longer
incinerating or in standby.
Emptying indicator
Your Cinderella Freedom will indicate when it is time to empty the ash container. The display will read ‘‘EMPTY
THE ASH CONTAINER” and you will hear three short beeps when the toilet lid is opened. If not emptied within a
certain amount of uses, the toilet will lock down. At this point the yellow, red and green lights are constantly lit
and the display will read ‘‘TOILET LOCKED CONTAINER FULL”. You will hear three short beeps every ten seconds
until the ash container is emptied.
Selecting your language
Hold down the “Select language” button for three seconds until “Language” is displayed on the rst text line.
The current language will be displayed on the second line. Push the ”Select language” button repeatedly until the
desired language is displayed. The new language will be saved a few seconds after you press the button, and the
toilet will resume operation.
Standby
Incineration mode
System interrupted
Language select button

20

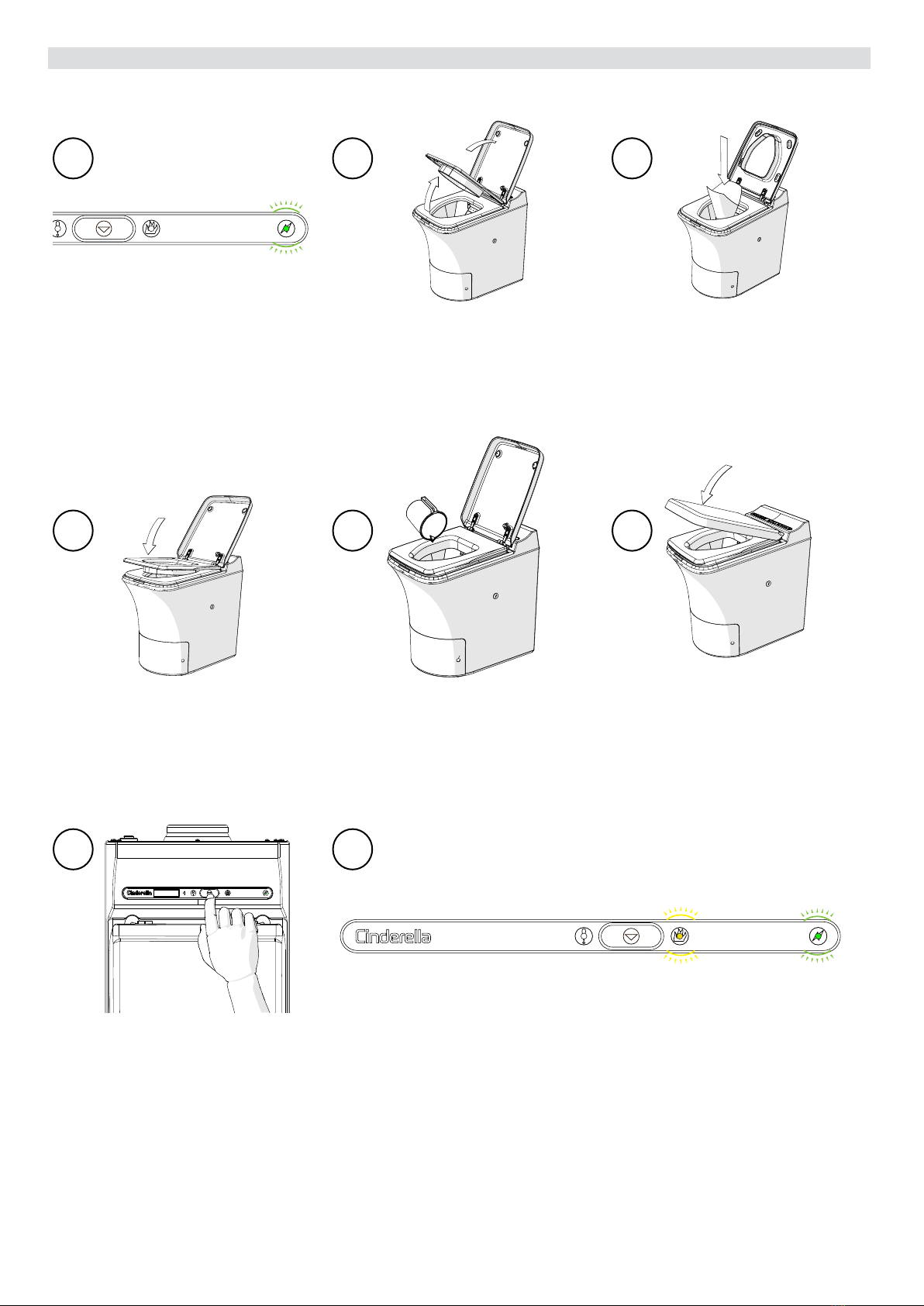

3.8 USING THE CINDERELLA FREEDOM TOILET
1. Check that the green light on the
control panel is lit, indicating the
unit is powered and ready for use.
2. Lift the toilet lid and seat. A red
light starts ashing. The ventilation
fan starts.
3. Place a bowl liner in the bowl.
Use a new bowl liner for every visit.
4. Lower the seat. The toilet is
ready for use.
5. Use the toilet as usual. If little
waste is produced, it may be
helpful to pour some water into the
bowl to add weight.
6. Close the toilet lid.
7. Push the “Start” button to drop
the bowl liner and its contents
into the incineration chamber.
Incineration begins as soon as the
hatch is closed. The toilet is now
ready for the next user.
8. A constant yellow light will display during active incineration. The toilet
may be used at any point. This will temporarily interrupt incineration.
Incineration time may vary based on the number of visits and amount of
waste.
3
4 5 6
7
1 2
8
