Circontrol Rapid Series Instruction Manual

Installation & User Manual
Post eVolve
Rapid Series

Post eVolve Rapid
Series Manual
COPYRIGHT INFORMATION
This document is copyrighted, 2021 by Circontrol, S.A. All rights are reserved.
Circontrol, S.A. reserves the right to make improvements to the products
described in this manual at any time without notice.
No part of this manual can be reproduced, copied, translated or transmitted in
any form or by any means without the prior written permission of the original
manufacturer. Information provided in this manual is intended to be accurate and
reliable. However, the original manufacturer assumes no responsibility for its
use, or for any infringements upon the rights of third parties that may result from
its use.
All other product names or trademarks are properties of their respective owners.

Here’s your guide to
install Post eVolve Rapid
1 — So, Hello! 02
2 — Before the installation 04
A - Important safety instructions 04
B - Electrical wiring considerations 05
C - Important Electrical Safety Instructions 06
D - EVSE Classification 07
3 — Overview 08
4 — Dimensions 10
5 — Installation 12
A - Space requirements 13
B - Foundation 14
C - Opening 15
D - Positioning 16
E - Unit fixation 17
F - Metal plate 17
G -Wiring 18
H - Verification 19
6 — How to use Basic Post 20
7 — Technical Data 22
8 — Need help? 24

02
Post eVolve Rapid Manual
1

03
This manual provides commissioning and use instructions information about
Post eVolve Rapid, which has been designed and tested to allow electric
vehicle charging, specified in IEC 61851.
This document has different sections such as step-by-step installation
procedure and technical data.
ELECTRIC RISK
Take precautions to make the electrical connection inside the
unit. Unit must be disconnected from any power source during
commissioning.
ATTENTION!
Indicates that the damage to property can occur if appropiate
precautions are not taken.
So, hello!
THE FOLLOWING SYMBOLS ARE USED FOR IMPORTANT
SAFETY INFORMATION IN THIS DOCUMENT
• Compliant with IEC 61851; Electric vehicle conductive
charging system (IEC 61851-1 and IEC 61851-23).
• Compliant with IEC 62196; Plugs, sockets-outlets, vehicle
connectors and vehicle inlets- Conductive charging of
electric vehicles (IEC 62196-1, IEC 62196-2 and IEC 62196-3).
• Directives: 2014/53/UE, Radio and Telecommunication
Terminal equipment; 2014/30/UE, Electromagnetic
Compatibility (EMC); 2014/35/UE, Low Voltage.
• Meets the CCS specification, DIN SPEC 70121. ISO 15118
ready.

04
Post eVolve Rapid Manual
2
Refer to TECHNICAL DATA section for more information about
environmental installation conditions.
The Charge Point is designed for installation at indoor and outdoor areas. For
each of the different conditions of installation, the unit must be installed safely
and ensure adequate protection.
• Charge point must not be installed in
areas where there is potential risk of
explosion or any salinity level.
• Charge point must not be installed
in industrial areas with high level of
humidity or pollutants.
• Do not install the Charge Point where
falling objects may damage the
equipment.
• The surface where the Charge
Point is placed must withstand the
mechanical forces.
• Do not use this unit for anything other
than electric vehicle charging modes
are expected in IEC 61851.
• Do not modify this unit. If modified,
CIRCONTROL will reject all
responsibility and the warranty will
be void.
• Comply strictly with electrical safety
regulations according to your country.
• Do not make repairs or manipulations
with the unit energized.
• Only trained and qualified personnel
should have access to the electrical
parts inside the Charge Point.
• Check the installation annually by
qualified technician.
• Remove from service any item that
has a fault that could be dangerous for
users (broken plugs, caps that don’t
close...).
• Use only Circontrol supplied spare
parts.
• Do not use this unit if the enclosure
or the EV connector is broken,
cracked, open, or shows any
other indication of damage.
Read carefully all the instructions before starting in order to
ensure properly installation of the Charge Point.
AImportant safety instructions

05
Before installation
Take into consideration this section before start wiring
connections of the Charge Point.
1 — ELECTRICAL PROTECTIONS
Charge point may not include elements of electrical protection.
If this equipment has internal electrical protections, are installed in each
socket-outlet for the protection of the user against an electrical failure,
according to the international standard IEC 61851-1:2017.
In order to guarantee the total protection of the users and the installation
(power supply line included) in front of any electrical hazard, it is mandatory
to install a main circuit breaker (MCB) and a residual current device (RCD)
upstream of the charge point.
These electrical protections and the rest of the installation have to be
aligned with the local and national rules. The selectivity of the protections
has to be guaranteed at all times.
2 — POWER SUPPLY LINE DIMENSIONING
The dimensioning of the input power supply line of the charge point must
be checked by a qualified electrician. Note that various factors such as
cable length between distribution board and charge point, maximum output
current of the charge point may have influence of the selected cable.
In such cases, increasing the cable cross-section it is required to adapt the
temperature resistance of the power supply line.
3 — MAXIMUM OUTPUT CURRENT
Please refer to the TECHNICAL DATA section to consult the default factory
settings from maximum output current of the charge point.
Depending on the model this value may vary.
BElectrical wiring considerations

06
Post eVolve Rapid Manual
• Avoid contact with energized
electrical circuits.
• Disconnect the power source
before servicing or repairing
electrical equipment.
• Use only tools and equipment
with non-conducting handles
when working on electrical
devices.
• Never use metallic pencils or
rulers, or wear rings or metal
watchbands when working with
electrical equipment.
• Enclose all electric contacts
and conductors so that no one
can accidentally come into
contact.
• When it is necessary to handle
equipment that is plugged in, be
sure hands are dry and, when
possible, wear nonconductive
gloves, protective clothes and
shoes with insulated soles.
• Never handle electrical
equipment when hands, feet, or
body are wet or perspiring, or
when standing on a wet floor.
Important Electrical Safety
Read carefully all the instructions before starting in
order to ensure properly handling of electrical parts.
A safe work environment is not enough to control all potential electrical
hazards. It is recommended to be very cautious and work safely. So, the
safety rules shown below could help to control risks of injury or death from
workplace hazards.
C
Instructions

07
DEVSE Classification
Classification of the unit according to the IEC 61851-1:2017:
1 — Power supply Input • EV supply equipment connected to
AC supply network
• Permanently connected
2 — Power supply Output • DC EV supply equipment
3 — Environmental conditions • Indoor and outdoor
4 — Access • Equipment for locations with
restricted access and;
• Equipment for locations with non-
restricted access.
5 — Mounting method • Stationary equipment
- Ground mounted; floor mounted
6 — Protection against electric shock • Class I
7 — Charging modes • Mode 4

08
Post eVolve Rapid Manual
3
What’s included:
Charge Point
Installation &
User Manual
Foundation
Kit
Electric
cabinet key +
security key
+

09
Overview
1
5
3
2
1 — Hat
2 — LED beacon light
3 — Holder
4 — Cable
5 — Key lock access
6 — Ventilation
7 — Base
8 — Start button
9 — Stop button
10 — Cable roller
11 — Cable gland
12 — Screen
13 — RFID reader
14 — Credit card
payment *
6
7
8
5
5
9
6
10
1
5
3
2
6
7
5
5
6
11
10
1
4
5
3
2
6
7
12
5
5
14
6
11
10
13
Basic Serie Master SerieSatellite Serie
(*) Depending on the model, the components can vary.
11

10
Post eVolve Rapid Manual
4

11

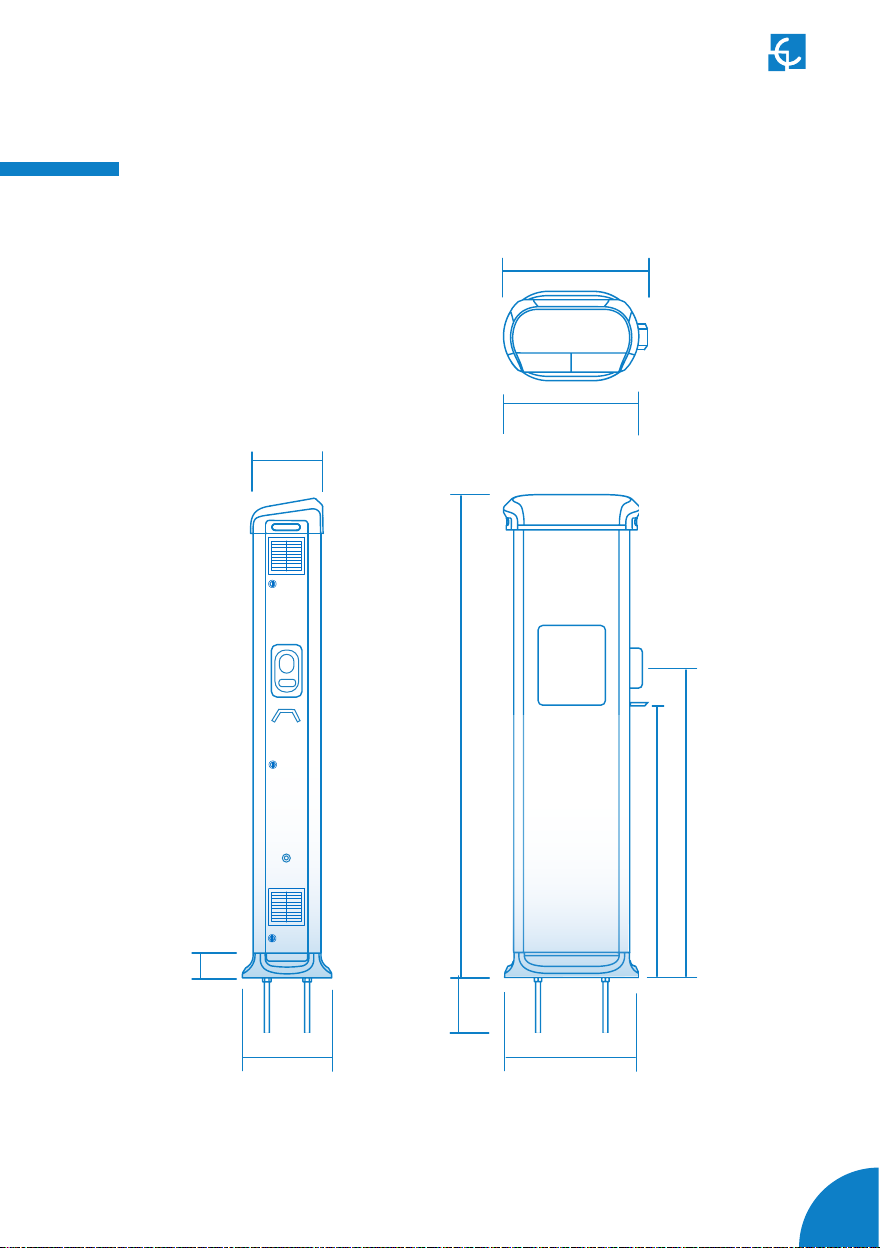

Dimensions
446
234
1750
80
281
Measures in mm
479
288 438
1064
1198

12
Post eVolve Rapid Manual
5
What is needed:
Nuts
DIN 934 M16
Washers
DIN 9021 M16
Templates
Foundation bolts
16x
2x
4x
4x

13
Installation
ASpace requirements
100
500 500
x*
Measures in mm
When installing the unit, respect the minimum distances for maintenance and safety
reasons.
Please comply accordingly to your country specifications.
The next picture shows how it should be installed.
• Do not install near areas where water or fluids can penetrate into the unit.
• Do not install the unit on unstable terrain.
(x*) If Bollard Impact Protector is installed, keep 500 mm as a minimum distance
in order to give enough space to open the frontal door of the Charge Point for
maintenance tasks.

14
Post eVolve Rapid Manual

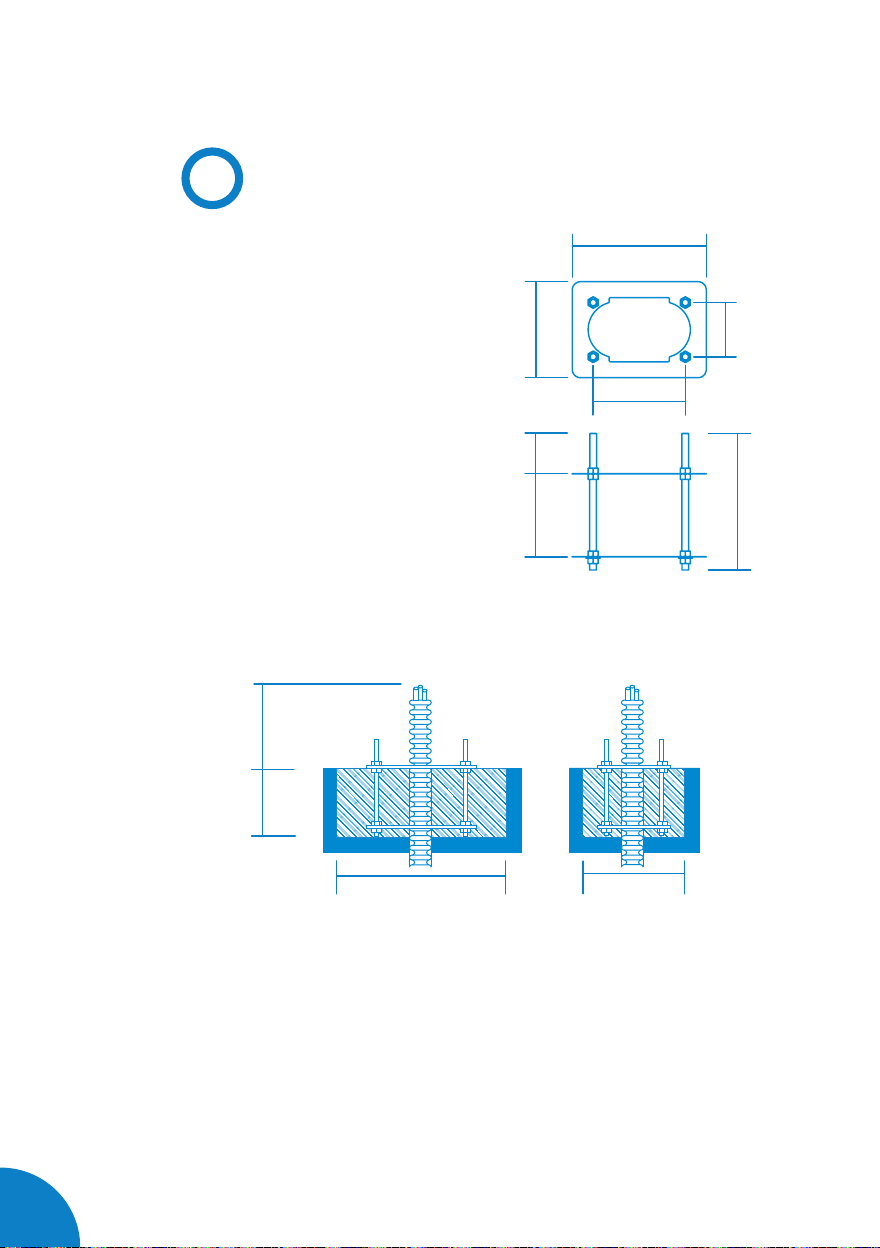

BFoundation
450
250
119
230
320
300
Measures in mm
• Place the foundation bolts
into the template using the
provided nuts with the help of a
24mm open-end wrench.
• Once the kit is assembled, it
must be placed in the ground
taking into consideration the
following measures.
Note: If there is any further doubt about the terrain regarding the installation of this
unit, due to the weight and dimensions, it will be necessary to define a final solution
to install the unit. It shall be performed an specific technical project made by an
architectural firm prior to its installation.
220
130
500 300
Front view Side view
400

15
C
1 2
Opening
1. Introduce provided eVolve Rapid security key in the lock located at the mid
partoftheunitandtheelectriccabinetkeyatthetopandbottomlocksoftheunit.
Then, the unit is unlocked and ready to be opened.
2. Pull outward the Tamper switch* to operate the Charge Point.
(*) Tamper Switch: The Charge Point has a security switch (antitamper protection)
installed that will avoid any charging session if the doors are opened. It has three
positions.
1. Operative postition: The Charge Point is closed.
2. Error position: The Charge Point is opened without supervision.
3. Maintenance position: The Charge Point is opened under
maintenance (Pulling otward the tamper switch).

16
Post eVolve Rapid Manual
DPositioning
1. Remove the template nuts before proceeding.
2. Place the Charge Point through the four foundation bolts. Make sure that the
Charge Point pre-holes of the metal plate match with the cable glands.
Post eVolve Rapid can be placed at outdoor or indoor areas to charge electric vehicles.
This product series is designed to be placed on the ground.

17
• Firmly tighten the 4 nuts using a 24mm open-end wrench.
EUnit fixation
• It is recommended to install cable glands (not supplied) in pre-holes position.
• Assembly metal plate using the 4 supplied screws.
FMetal plate
4x

18
Post eVolve Rapid Manual
L1
L2
L3
N
GWiring
THREE-PHASE CHARGE POINT
Connect to the 400VAC.
Do not forget to connect the ground cable to the ground terminal
Terminal block maximum cross-section: 16mm2
Type of cable allowed by the terminal block: Aluminium & copper
Make sure all screws are securely tightened at 4...5 Nm
S
Al/Cu
