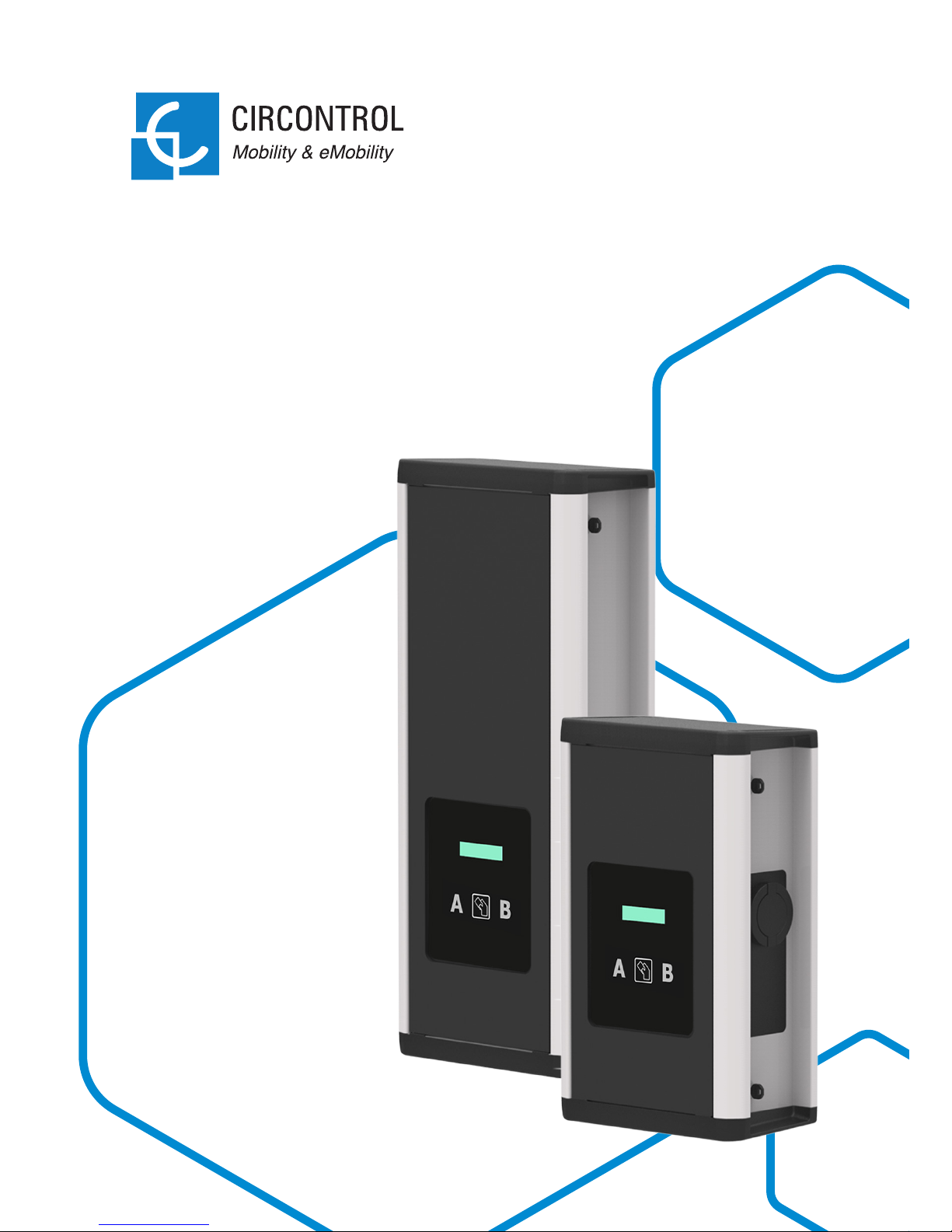

Circontrol Wallbox eVolve Series User manual

Wallbox
eVolve
Series
Instruction Manual

Wallbox eVolve Series
Instruction Manual
COPYRIGHT INFORMATION
This document is copyrighted, 2017 by Circontrol, S.A. All rights are reserved.
Circontrol, S.A. reserves the right to make improvements to the products
described in this manual at any time without notice.
No part of this manual can be reproduced, copied, translated or transmitted in
any form or by any means without the prior written permission of the original
manufacturer. Information provided in this manual is intended to be accurate and
reliable. However, the original manufacturer assumes no responsibility for its
use, or for any infringements upon the rights of third parties athat may result
from its use.
All other product names or trademarks are properties of their respective owners.

01
1 — So, hello!
2 — Features
3 — How to use it?
4 — How to configure it?
5 — 3G Communications
6 — Integrations
7 — OCPP 1.5
8 — Monitoring
9 — Technical Data
10 — Need help?
Here’s your
guide to use and
configure eVolve.
02
04
06
08
20
24
26
34
38
40

02
Wallbox eVolve Series Instruction Manual
This manual provides information about the usability and configuration of
the Wallbox eVolve Smart, which has been designed and tested to allow
electric vehicle charging, specified in IEC 61851.
It contains all the necessary information for safe use and help to get the
best performance from it with step-by-step configuration instructions.
ATTENTION!
Indicates that the damage to property can occur if appropiate
precautions are not taken.
1
THE FOLLOWING SYMBOLS ARE USED FOR IMPORTANT
SAFETY INFORMATION IN THIS DOCUMENT
• Complies with IEC 61851, Electric vehicle conductive charging
system (IES 61851-1 and IEC 61851-22)
• Complies with IEC 62196, Plugs, socket-outlets, vehicle
couplers and vehicle inlets (IEC 62196-1 and IEC 62196-2).
• Standards: 2014/35/UE, LVD;2014/30/UE, EMC.
• RFID complies with ISO 14443A/B

03
So, hello!
The Charge Point may not include elements of electrical protection.
• Read all the instructions before
using and configurating this
product.
• Do not use this unit for anything
other than electric vehicle
charging.
• Do not modify this unit. If
modified, CIRCONTROL will
reject all responsibility and the
warranty will be void.
• Comply strictly with electrical
safety regulations according to
your country.
• Do not make repairs or
manipulations with the unit
energised.
• Only trained and qualified
personnel should have access to
electrical parts inside the device.
• Check the installation annually by
a qualified technician.
• Remove from service any item
that has a fault that could be
dangerous for users (broken
plugs, caps that don’t close...).
• Use only Circontrol supplied
spare parts.
• Do not use this product if the
enclosure or the EV connector is
broken, cracked, open, or shows
any other indication of damage.
IMPORTANT SAFETY INFORMATION
Read carefully all the instructions before manipulating
the unit.

04
Wallbox eVolve Series Instruction Manual
2
4
1
1 - Display
3 - Plug A LED Beacon
2 - Proximity Card Reader
4 - Plug B LED Beacon
AB
CIRCONTROL
3
2

05
Features
Charge Point may not include elements of electrical protection.
• Display: Information about the
status of the connectors and
detailed data as kWh and duration
time.
• Connector Lock: Type 2
connector has a lock system
to avoid disconnection of EV
meanwhile is charging.
• Light beacon: Three colour
led indicates the status of the
connectors.
• RFID: User authentication.
• Ethernet: TCP/IP communication
for remote supervision and
configuration.
• 3G Modem (optional): For
those places where wired
communications are not
sufficient.
• Energy metering: Integrated
meter built is measuring power
and energy consumed by the EV
during a charge transaction.
• Remote access: For supervision
and control from everywhere.
• Charge transaction historics:
Charge Point is capable of storing
information about the charge
transactions.
• OCPP: Open standard
communication protocol, allows
communication between the
Charge Point and the Central
System.
MAIN FEATURES OF THE UNIT

06
Wallbox eVolve Series Instruction Manual
3

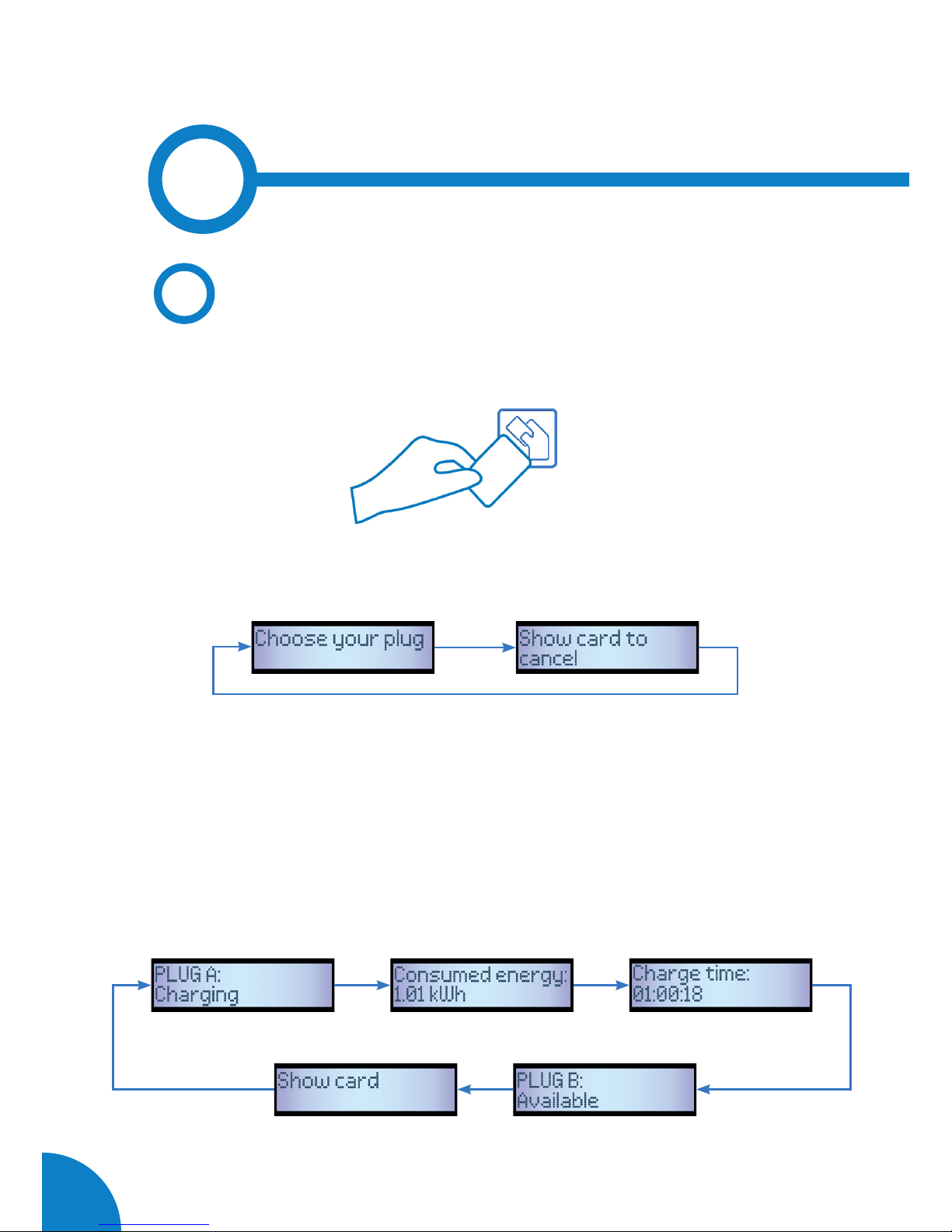

BStart Charging
1. The first step is to show the proximity card to the reader*
Once done, the Led Beacon turns Blue and the Display shows the following
sequence of messages:
2. Plug the cable to the vehicle, choose one available socket (in case there
are more than one) and plug the cable to the Charge Point.
Once done, the Display shows the following sequence of messages:
*If the proximity card reader is disabled, charge transaction starts
automatically when a vehicle is detected.

07
How to use it?

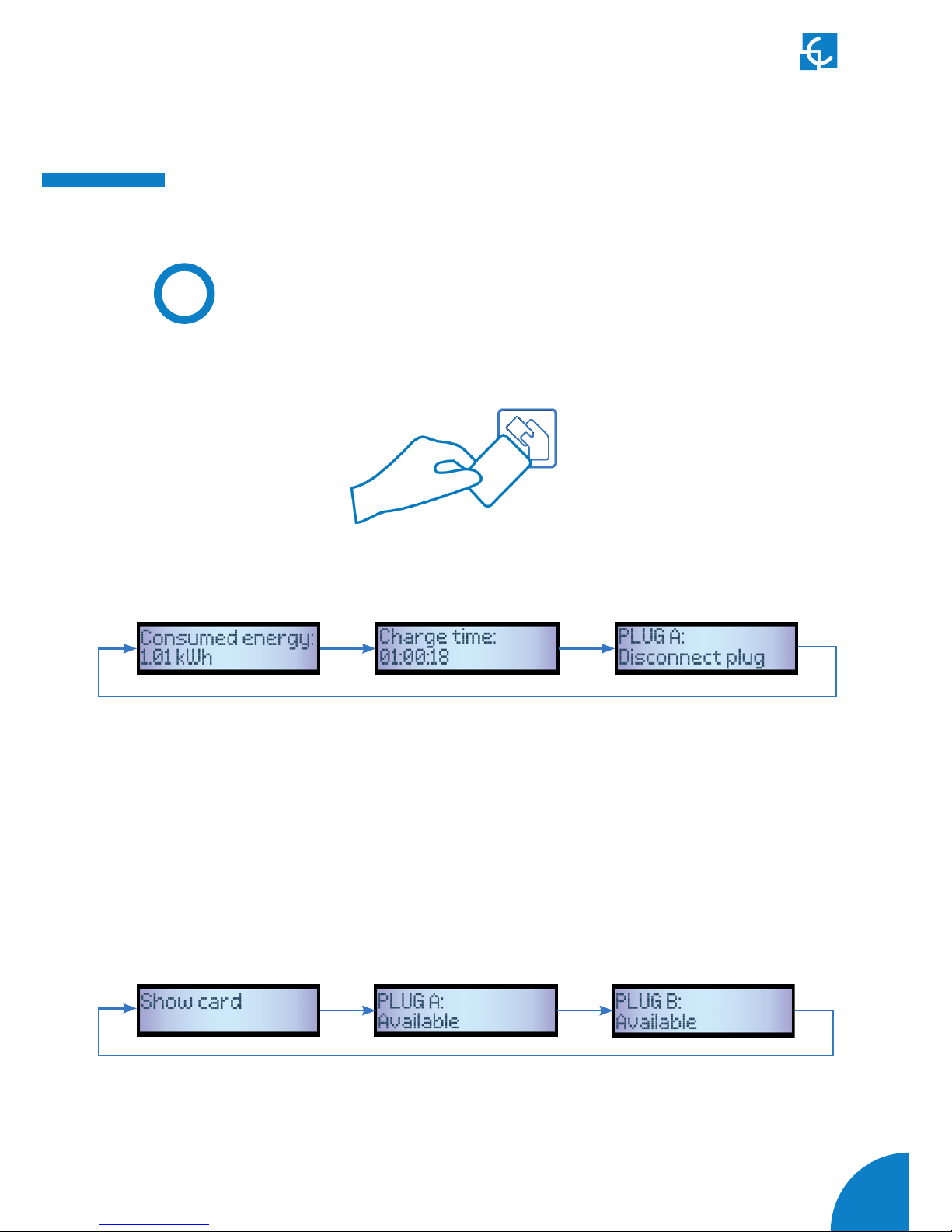

CStop Charging
1. The first step is to show the proximity card to the reader*
Once done, the Led Beacon turns Green and the Display shows the
summary of the charge transaction:
2. Unplug the cable from both sides.
Once done, the connector becomes available and the Display shows the
following sequence of messages:
*If the proximity card reader is disabled, charge transaction stops
automatically when a cable is disconnected from the vehicle.

08
Wallbox eVolve Series Instruction Manual
4
AIntroduction
The Charge Point can be configured and monitorized to establish
preferences or specific setup using integrated Ethernet communication
port allocated in the main controller device.
BWhat’s needed
Before proceeding with the configuration, make sure all the following is
ready:
Computer running Microsoft Windows,
at least Windows XP .
UTP Cable (Crossover recommended)
IPSetup.exe (Software provided by
Circontrol)

09
How to configure it?
Charge Point is delivered with default network setting of “DHCP enabled”.
It means that the charge station will try to obtain an IP address from a
DHCP server available on the network.
Connecting a PC directly with the Charge Point needs to be done with
static IP address. The PC and the Charge Point must be in the same
network and in the same range.

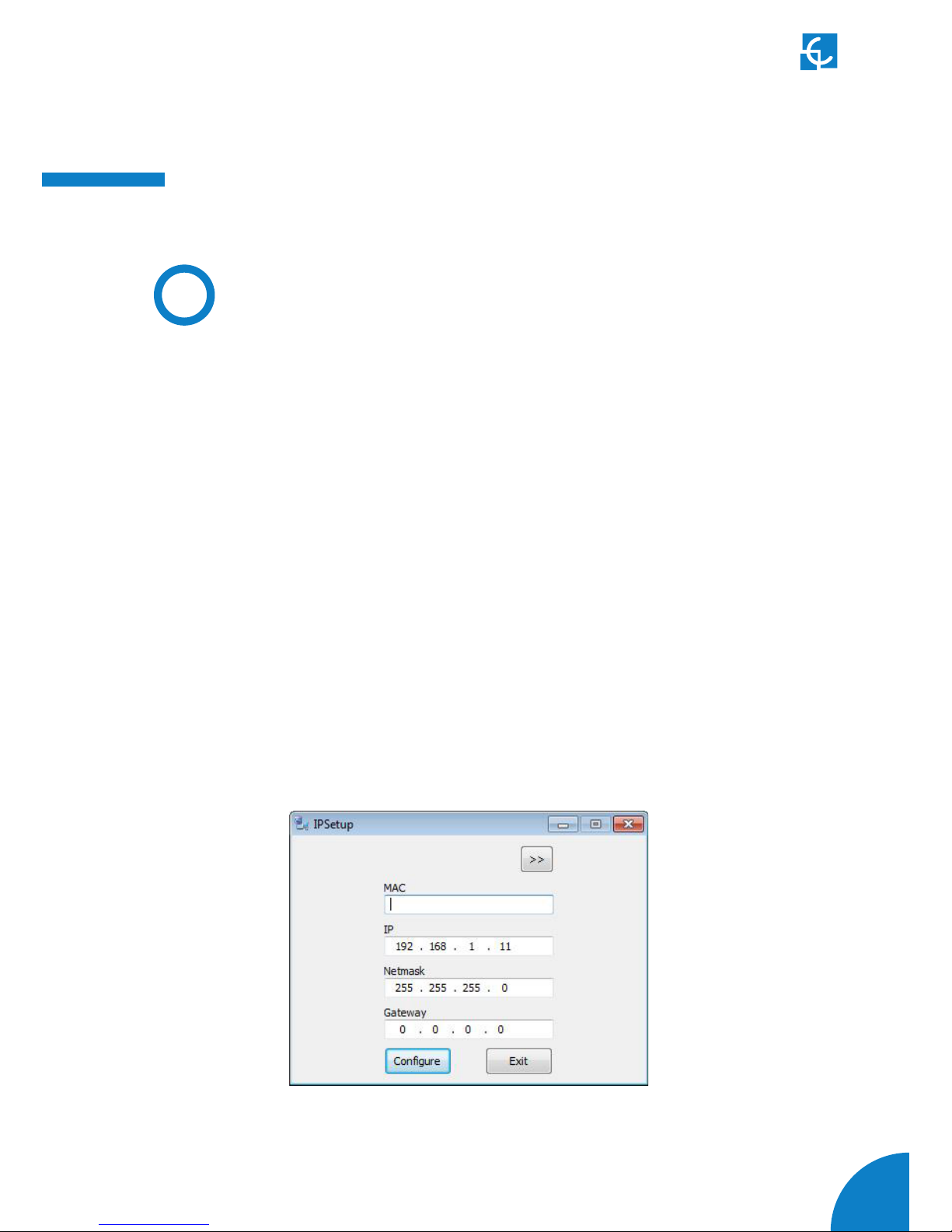

CConnection
In order to change the IP of the Charge Point, use “IP Setup”.
• Enter the MAC of the device
• Enter the desired IP Address
• Click on “Configure”

10
Wallbox eVolve Series Instruction Manual
DSetup web page
Setup web page allows managing networking setup, modem 3G setup,
upgrading the device and other options.
To access the setup web page, open a web
browser and enter the following address:
http://”IP ADDRESS”/html/setup.html

11
ENetwork setup
Value Description
Host name Name of the device on the network
DHCP Enable or disable the IP address assignment
by a DHCP server
DHCP Client ID Client ID associated to the DHCP Server (If
available)
Address IP address assigned to the charge point
Netmask Netmask of the network
This section provides basic configuration of the network parameters.

12
Wallbox eVolve Series Instruction Manual
FModem setup (only 3G models)
Value Description
APN Access point name
Consult SIM Card network operator
User Credentials assigned to the APN
*If credentials are not needed, insert “1234”
on both fields
Password
Reset timer (hours) Timer to reset the modem and
communications
Ping IP IP address where the Charge Point pings
Ping period (minutes) Period between pings
Reset on ping failure • Checked: enabled
• Unchecked: disabled
For enabling 3G integrated modem check this section, to set the
parameters provided by the SIM Card network operator.

13

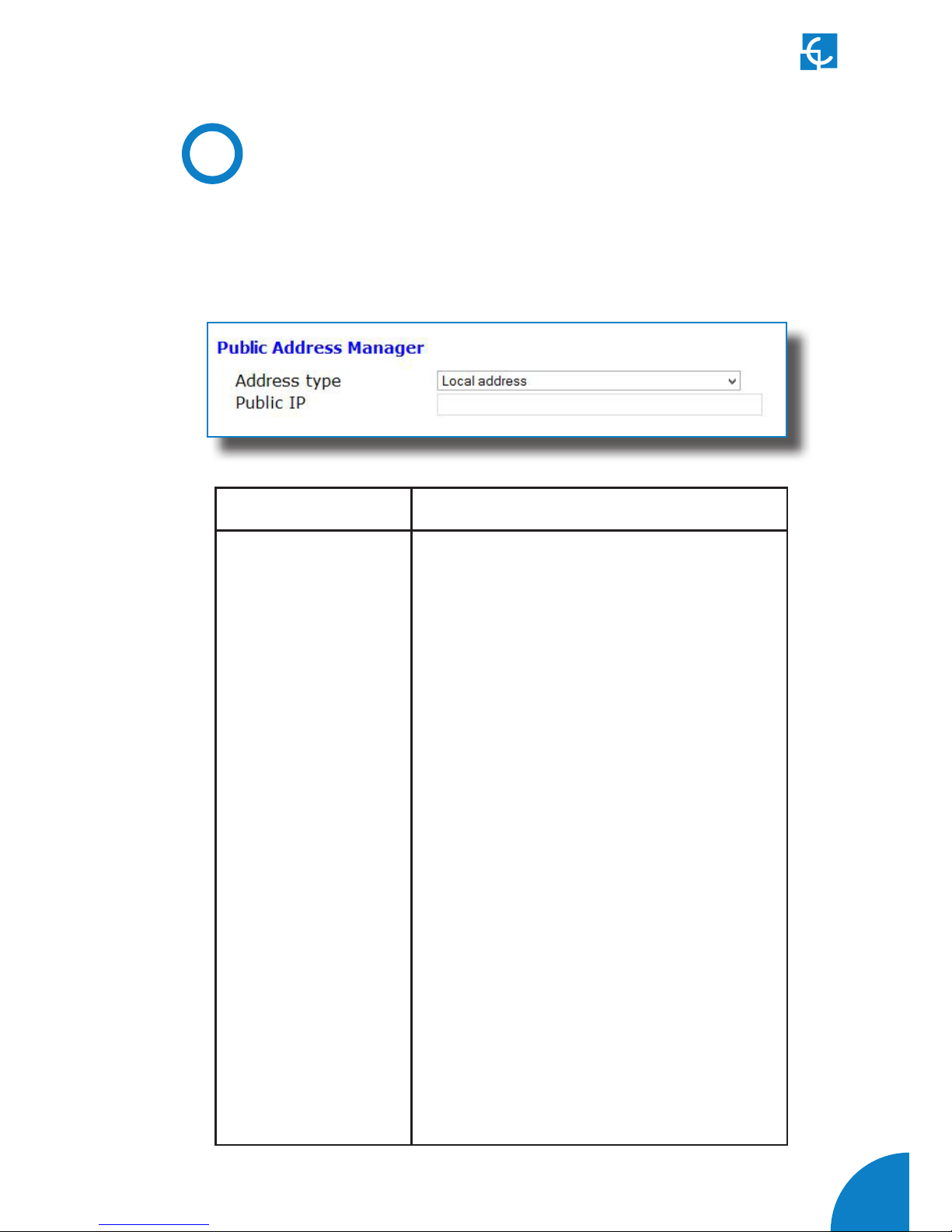

GPublic address manager
Value Description
Address type • Local address: select this option if the
OCPP central system is connected to the
same private network than the charge
point is already connected.
• Static address: select this option if the
external modem/router has static public
IP address.
Note: Public IP address or domain name must
be entered manually in the “Public IP” text
box.
• SIERRA Wireless Raven XE H2295EW:
Select this option only when SIERRA
Wireless RAVEN XE cellular router is
connected to the charge point.
• SIERRA Wireless AirLink LS300: Select
this option only when SIERRA Wireless
AirLink LS300 cellular router is connected
to the charge point.
• Embedded modem: Select this option
when using 3G integrated modem.
This section is for integrations and allows setting the IP address to
establish connection between the Charge Point and the Central System.

14
Wallbox eVolve Series Instruction Manual
HLocale setup
Value Description
Language Selecting desired language to show
This section allows changing the language of the Display.
ITime setup
Value Description
Primary NTP Server Synchronize the time through internet auto-
matically
Secondary NTP Server
Time zone Select the regional unit time according to the
location
Time Current date and time of the unit
This section allows setting the time and region unit time.

15

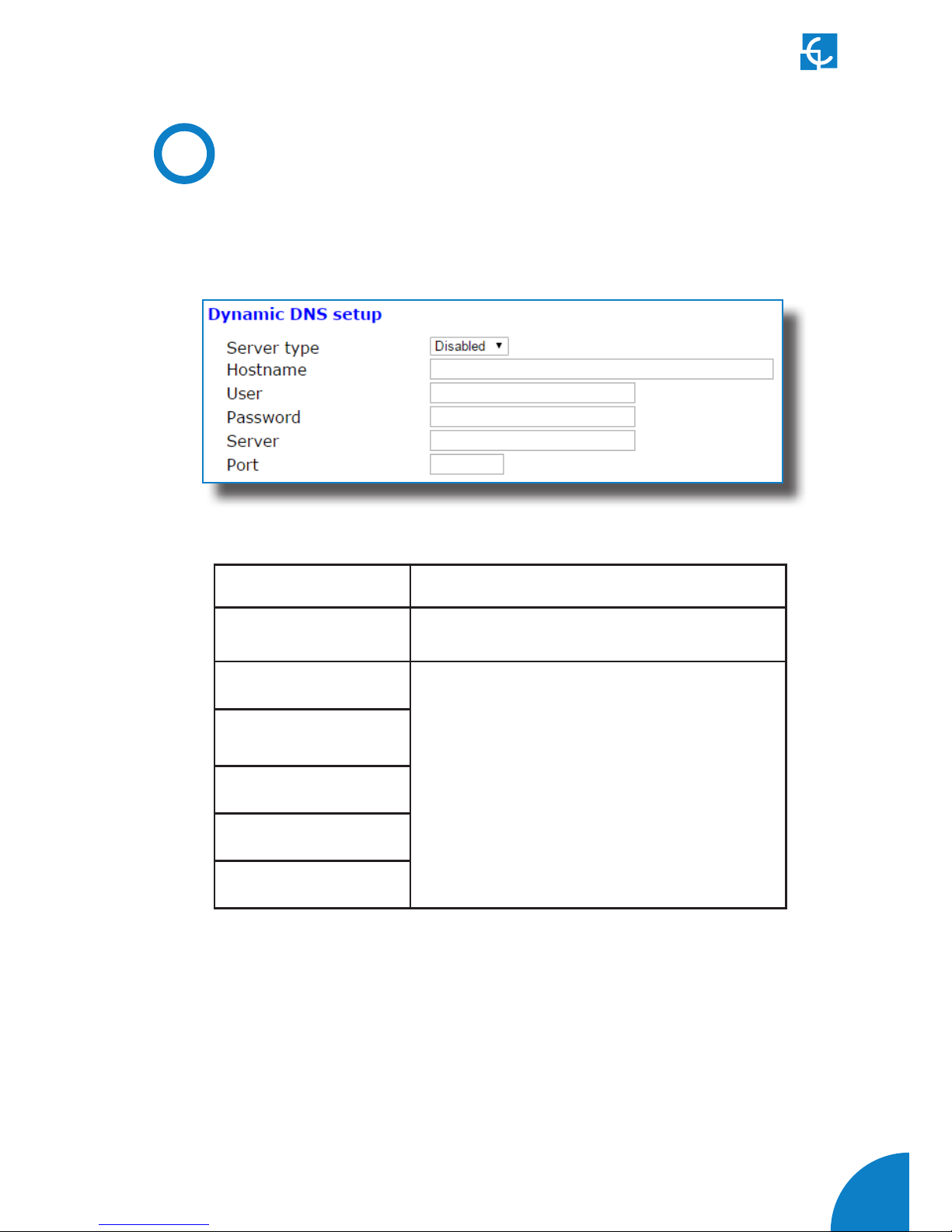

JDynamic DNS setup
Value Description
Server type Select the type of Dynamic DNS Server
Hostname Parameters provided by dynamic DNS server
User
Password
Server
Port
Dynamic DNS is a system that updates in real-time the public IP address
assigned to a domain name server.

16
Wallbox eVolve Series Instruction Manual

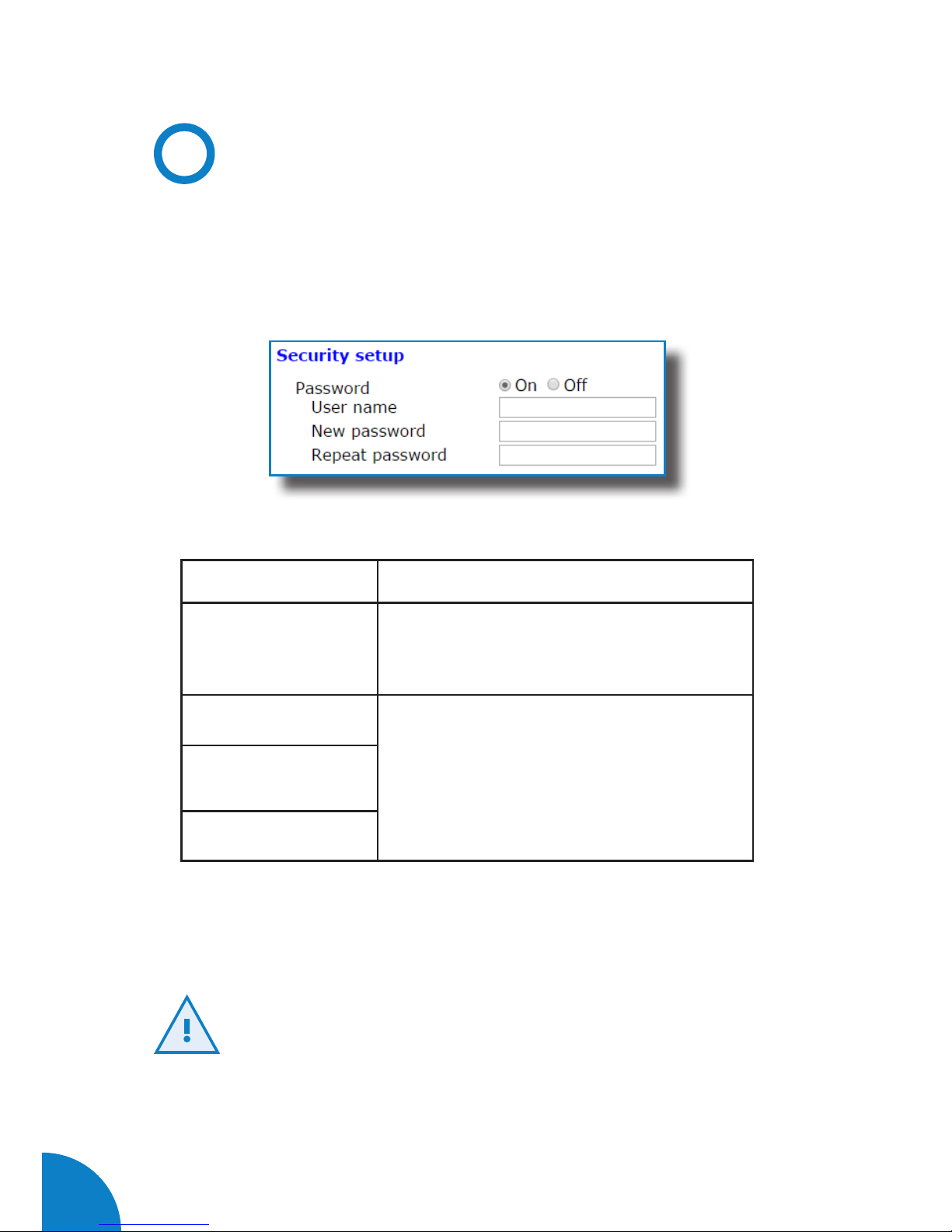

KSecurity setup
Value Description
Password • ON: authentication enabled
• OFF: authentication disabled
Username Username and password authentication for
setup.html web page
New password
Repeat password
Prevent unauthorised access to the setup web page.
All of the parameters are disabled by default factory settings.
Do not forget the credentials. There is no way to reset the device
to default factory settings.
It will require returning the unit to the service centre.

17
LSystem information
Value Description
MAC Identifier of the network card of the unit
Version Upgrade Version of the firmware currently installed
and link to the upgrade web page
Powerstudio version Engine version of PowerStudio
Devices status Link that allows viewing the status of the
configured devices
This section provides basic information about the unit.

18
Wallbox eVolve Series Instruction Manual
MSystem upgrade
Upgrade web page allows to upgrade the firmware of the Charge Point
remotely.
This file is provided by the service centre.
Firmware file transfer must not be interrupted. Failure of the file transfer
involves irreversible damage the main controller of the Charge Point.
It will require returning the unit to the service centre.
Ensure that the unit is not affected or powered off while updating.
Direct link: http://”IP ADDRESS”/html/upgrade.html
