English
Wireless Transmitter and Receiver
Art.no 18-8022 Model 6240
38-2469 6240
Please read theentire instruction manual before using and save it for future use.
We apologise for any text or photo errors and any changes of technical data.
If you have any questions concerning technical problems please contact our
Customer Service Department (see address on reverse.)
Safety
• Use only thesupplied or recommended net adaptor.
• For indoor use only.
• Never expose theproduct to moisture or humidity.
• Do not expose theproduct to extreme heat or direct sunlight.
• Never open theproduct. Risk for electrical shock.
Points worth bearing in mind!
• Other wireless equipment operating on thesame frequency band may
reduce therange of theproduct.
• The range of all wireless equipment is affected by obstacles between
the transmitter and thereceiver (a concrete wall reduces thesignal far
more than aplasterboard partition, for example).
If you are having problems with theoperation of thesystem,
try thefollowing solutions
• Switch off any other wireless equipment to check whether it could be causing
the problem.
• Move thewireless equipment and/or reduce thedistance, and reduce
thenumber of obstacles (walls, furniture, etc.) between thetransmitter
andthe receiver.

3
English
Product Description
A transmitter and receiver for wireless transfer of images and sound from video,
DVD, digital receivers, video camera etc. to TV or video. Wireless transfer even
for remote control.
• Signals go through walls and ceilings.
• Switchable for 4 different channels.
• Max range free area 25 metres. Remember that concrete walls and wireless
equipment like WLANs (wireless networks) or Bluetooth devices can decrease
therange between thetransmitter and receiver.
• Comes with transmitter, receiver, SCART cables, adaptor and IR cable.
TV (not included)

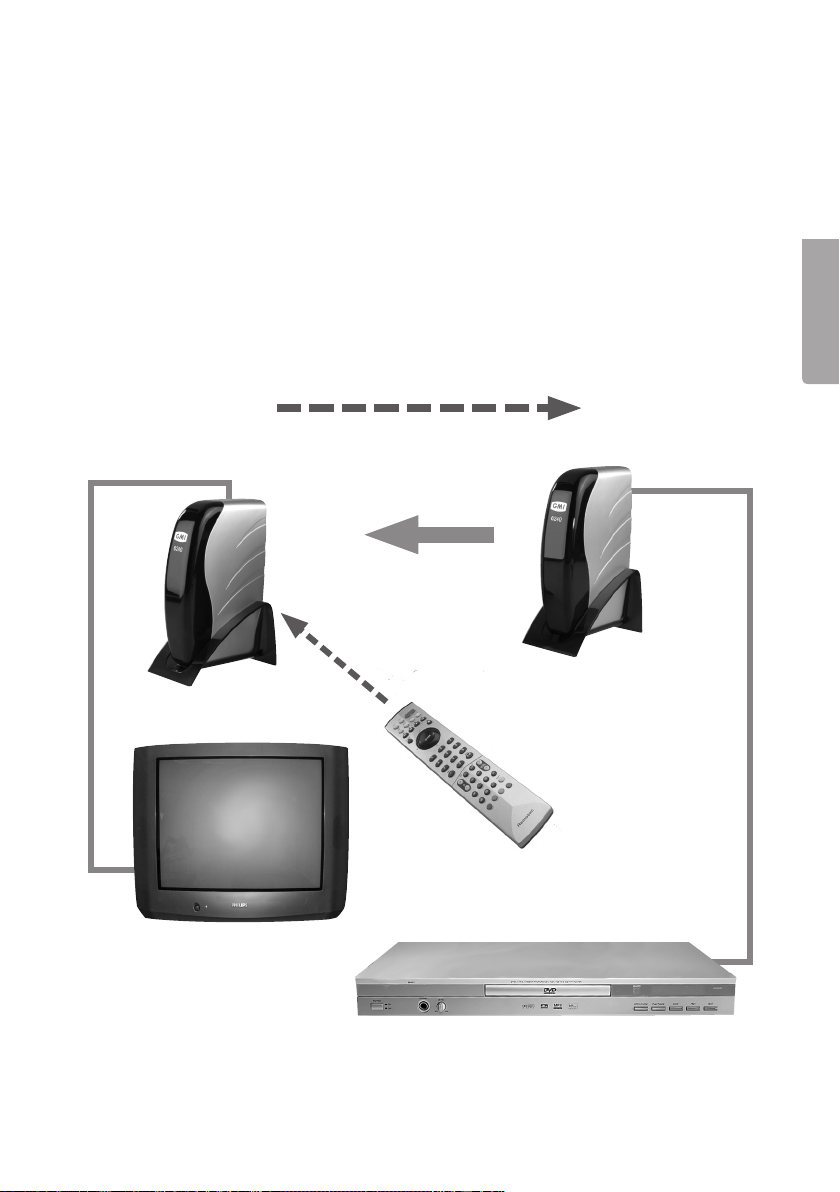

Receiver
Video/Audio Signals
Remote Control Signal
Signal Source e:g. DVD-player
(not included)
Transmitter
Remote Control
(not included)

4
English
6240
GMI
6240
GMI
REMOTE
EXTENDER DC 9V
250mA
CH.SET
1 2 3 4
L
AUDIO IN VIDEO IN
R
DC 9V
250mA
CH.SET
1 2 3 4
L
AUDIO OUT VIDEO OUT
R
6240
GMI 6240
GMI
REMOTE
EXTENDER DC 9V
250mA
CH.SET
1 2 3 4
L
AUDIO IN VIDEO IN
R
DC 9V
250mA
CH.SET
1 2 3 4
L
AUDIO OUT VIDEO OUT
R
6240
GMI
6240
GMI
REMOTE
EXTENDER DC 9V
250mA
CH.SET
1 2 3 4
L
AUDIO IN VIDEO IN
R
DC 9V
250mA
CH.SET
1 2 3 4
L
AUDIO OUT VIDEO OUT
R
6240
GMI 6240
GMI
REMOTE
EXTENDER DC 9V
250mA
CH.SET
1 2 3 4
L
AUDIO IN VIDEO IN
R
DC 9V
250mA
CH.SET
1 2 3 4
L
AUDIO OUT VIDEO OUT
R
F2 F1 R5 R1 R2 R4 R3
F1 F2 R1 R2 R4 R3
Buttons and Functions
Transmitter
F1 Indicator (ON/OFF)
F2 IR indicator
R1 Connection for adaptor
(9 V DC, 250 mA)
R2 Channel selector for transmission
(4 different channels can be chosen)
R3 Input for video signal
R4 Input for audio signal
R5 Connection for IR cable
Receiver
F1 Indicator (ON/OFF)
F2 IR indicator
R1 Connection for adaptor
(9 V DC, 250 mA)
R2 Channel selector (must select same
channel used for transmitter)
R3 Output for video signal
R4 Output for audio signal (right/left)

5
English
Installation & Use
The system functions best if you always place thetransmitter and receiver at
a higher level than theother parts of theAV device and if there are as little as possible
obstacles blocking thereceiver and transmitter.
Transmitter
Note!
Adjust all theconnections for audio and video before you connect to theadaptor.
1. Connect theincluded SCART cable which is labled “INPUT” from thetransmitter’s
input “AUDIO IN” and “VIDEO IN” to theSCART output of your AV device, e.g.
video, digital receiver, cable decoder etc. The transmitter is theunit which is labled
“TX” underneath.
2. Connect theadaptor to theconnection “DC 9V” on thetransmitter and then into
awall socket.
3. Select achannel for transfer by pushing thechannel switch laterally to thedesired
channel. Remember to also adjust thesame channel on thereceiver.
4. Turn off theAV system (e.g. video, digital receiver).
5. Connect theIR cable to theIR connection and place theIR cable’s rectangular
part in front of it or theAV equipment which will be controlled.
Note! The rectangular IR part must be facing towards theAV equipment’s.
Receiver
Note!
Adjust all theconnections for audio and video before you connect to theadaptor.
1. Connect theincluded SCART cable which is labled “OUTPUT” from
therececiever’s output “AUDIO OUT” and “VIDEO OUT” to afree SCART input on
your TV. Thereceiver is theunit which is labled “RX” underneath.
2. Connect theadaptor to theconnection “DC 9V” on thetransmitter and then into
awall socket.
3. Adjust to thesame channel for thetransfer to theadjusted one on thereceiver.
4. Turn off theAV system (e.g. video, digital receiver) if it is not already turned off.
5. Aim theremote control towards thereceiver window on thereceiver to control
theAV device.
6. Adjust theTV to AV position to receive images (TV in thereceiving room).
Thebutton for theAV channel (SCART channel) can be labled AV or awindow with
an arrow in it. See operator’s manual for your TV or video player for thebutton you
should use.
Note! You can not search for thechannel with channel searching as thesignal is
directly connected to theAV input.

6
English
Care and Maintenance
Dry with asoft, lightly moistened cloth. Never use solution or strong detergents.
Always remove theadaptor from thewall socket before cleaning.
Troubleshooting
Problem Possible cause Solution
No image or
sound.
The receiver and transmitter
are set on different channels.
Adjust thesame channel on
both units.
Too much distance between
thedistance thetransmitter
and thereceiver.
Move theunits closer together.
The transmitter or receiver are
not turned on.
Connect theadaptor to theback
of theunit.
SCART cables are
interchanged.
The SCART cable labled
”OUTPUT” must be connected
to thereceiver (”RX”).
Poor image/
sound
quality.
Interference. • Move thereceiver/transmitter
and try again.
• Change transfer channel
on both thetransmitter and
receiver.
For example microwave ovens,
Bluetooth-units, wireless
network and mobile phones
can interfere and cause bad
reception.
Shut off any disturbing sources
one after theother to localize
theinterfering unit.
The signal
source’s
remote
control does
not function.
IR cable is in wrong position. Check theconnection and
position of theIR cable.
Another wireless transmitter on
433 MHz disturbs transfer.
Shut off theinterering unit.
Sunlight or light from
fluorescent tubes hit
theIR receiver window.
Move thereceiver.

7
English
Disposal
Follow local ordinances when disposing of this product. If you are unsure about how
to dispose of this product contact your municipality.
Specifications
Transmitter
Frequency range 2.4–2.483 GHz
Modulation FM
Video input 1 Vpp @ 75 Ohm
Audio input 1 Vpp @ 10 kohm
Power Supply 9 V DC, 250 mA via included adaptor
Receiver
Frequency range 2.4–2.483 GHz
Modulation FM
Video output 1 Vpp @ 75 Ohm
Audio output 1 Vpp @ 10 kohm
Power Supply 9 V DC, 250 mA via included adaptor
Remote control transfer
Frequency 433.92 MHz
Transmitting power 1 mW
Range Up to 25 metres free area
Reception area IR 6 metres

8
Svenska
Trådlös sändare och mottagare
Art.nr 18-8022 Modell 6240
38-2469 6240
Läs igenom hela bruksanvisningen före användning och spara den sedan för
framtida bruk. Vi reserverar oss för ev. text- och bildfel samt ändringar av tekniska
data. Vid tekniska problem eller andra frågor, kontakta vår kundtjänst (se adress-
uppgifter på baksidan).
Säkerhet
• Använd endast medföljande eller rekommenderad nätadapter.
• Endast för inomhusbruk.
• Utsätt aldrig produkten för fukt eller väta.
• Utsätt aldrig produkten för stark värme eller direkt solljus.
• Öppna aldrig produkten. Risk för elektrisk chock.
Tänk på
• Att annan befintlig trådlös utrustning på samma frekvensband kan påverka
räckvidden negativt.
• Att räckvidden på all trådlös utrustning påverkas av vilka hinder som finns
mellan sändaren och mottagaren (t.ex. en betongvägg dämpar signalen
avsevärt mer än en gipsvägg).
Vid funktionsproblem, prova följande lösningar
• Stäng av övriga befintliga trådlösa utrustningar för att kontrollera om de kan
vara orsaken till problemet.
• Flytta den trådlösa utrustningen och/eller förkorta avståndet, samt minska
antalet hinder (väggar, möbler etc.) mellan sändaren och mottagaren.

9
Svenska
Produktbeskrivning
Sändare och mottagare för trådlös överföring av bild och ljud från video, dvd,
digitalmottagare, videokamera etc. till tv eller video. Även fjärrkontrollens signaler
överförs trådlöst.
• Signalerna går genom väggar och tak.
• Omkopplingsbar för 4 olika kanaler.
• Max räckvidd vid fri sikt 25 meter. Tänk på att betongväggar eller annan trådlös
utrustning t.ex. WLAN (trådlöst nätverk) eller Bluetooth kan förkorta räckvidden
mellan sändaren och mottagaren.
• Levereras med sändare, mottagare, SCART-kablar, nätadapter samt IR-kabel.
TV (medföljer ej)
Mottagare
Bild/ljud signaler
Fjärrkontrollssignalen
Signalkälla t.ex. DVD-spelare
(medföljer ej)
Sändare
Fjärrkontroll (medföljer ej)

10
Svenska
6240
GMI
6240
GMI
REMOTE
EXTENDER DC 9V
250mA
CH.SET
1 2 3 4
L
AUDIO IN VIDEO IN
R
DC 9V
250mA
CH.SET
1 2 3 4
L
AUDIO OUT VIDEO OUT
R
6240
GMI 6240
GMI
REMOTE
EXTENDER DC 9V
250mA
CH.SET
1 2 3 4
L
AUDIO IN VIDEO IN
R
DC 9V
250mA
CH.SET
1 2 3 4
L
AUDIO OUT VIDEO OUT
R
6240
GMI
6240
GMI
REMOTE
EXTENDER DC 9V
250mA
CH.SET
1 2 3 4
L
AUDIO IN VIDEO IN
R
DC 9V
250mA
CH.SET
1 2 3 4
L
AUDIO OUT VIDEO OUT
R
6240
GMI 6240
GMI
REMOTE
EXTENDER DC 9V
250mA
CH.SET
1 2 3 4
L
AUDIO IN VIDEO IN
R
DC 9V
250mA
CH.SET
1 2 3 4
L
AUDIO OUT VIDEO OUT
R
Knappar och funktioner
Sändare
F1 Indikator (ON/OFF)
F2 IR-indikator
R1 Anslutning för nätadapter
(9 V DC, 250 mA)
R2 Kanalväljare för sändningskanal
(4 olika kanaler kan väljas)
R3 Ingång för videosignal
R4 Ingång för ljudsignal (höger/vänster)
R5 Anslutning för IR-kabel
Mottagare
F1 Indikator (ON/OFF)
F2 IR-indikator
R1 Anslutning för nätadapter
(9 V DC, 250 mA)
R2 Kanalväljare (samma kanal som ställts in
på sändaren måste väljas)
R3 Utgång för videosignal
R4 Utgång för ljudsignal (höger/vänster)
F2 F1 R5 R1 R2 R4 R3
F1 F2 R1 R2 R4 R3
