Claypaky ALPHA SPOT HPE 1500 User manual

1
C61325
®
1
INST UCTION MANUAL
INDEX Congratulations on choosing a Clay Paky product!
We thank you for your custo .
Please note that this product, as all the others in the rich Clay
Paky range, has been designed and ade with total quality to
ensure excellent perfor ance and best eet your expectations
and require ents.
Carefully read this instruction manual in its entirety and keep it
safe for future reference. It is essential to know the information
and comply with the instructions given in this manual to ensure
the fitting is installed, used and serviced correctly and safely.
CLAY PAKY S.p.A. disclaims all liability for damage to the fitting
or to other property or persons deriving from installation, use and
maintenance that have not been carried out in conformity with this
instruction manual, which must always accompany the fitting.
CLAY PAKY S.p.A. reserves the right to modify the
characteristics stated in this instruction manual at any time and
without prior notice.
PRELIMINARY
ENGLISH
ALPHA SPOT HPE 1500
Pag.
2
3
4
5
7
14
22
22
23
Contents
Safety information
Unpacking and preparation
Installation and start-up
Control panel
Menu setting
Maintenance
Technical information
Cause and solution of problems
Channel functions

2
ALPHA SPOT HPE 1500

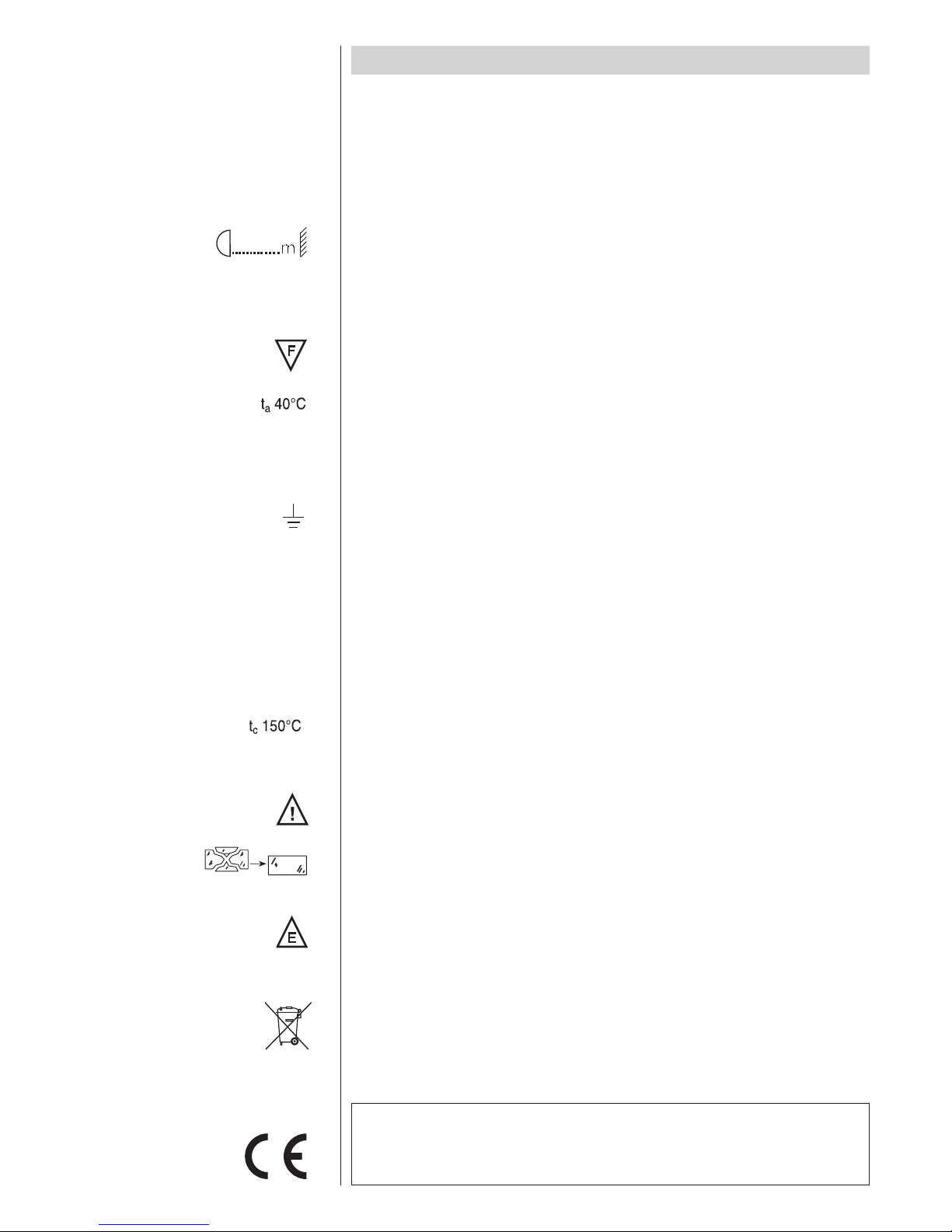

• Installation
Make sure all parts for fixing the projector are in a good state of repair.
Make sure the point of anchorage is stable before positioning the projector.
The safety chain must be properly hooked onto the fitting and secured to the framework, so that, if
the primary support system fails, the fitting falls as little as possible.
If the safety chain gets used, it needs to be replaced with a genuine spare.
• Minimum distance of illuminated objects
The projector needs to be positioned so that the objects hit by the beam of light are at least 5 metres
(16'5'') from the lens of the projector.
• Minimum distance from flammable materials
The projector must be positioned so that any flammable materials are at least 0.20 metres (8") from
every point on the surface of the fitting.
• Mounting surfaces
It is permissible to mount the fitting on normally flammable surfaces.
• Maximum ambient temperature
Do not operate the fixture if the ambient temperature (Ta) exceeds 40° C (104° F).
• IP20 protection rating
The fitting is protected against penetration by solid bodies of over 12mm (0.47”) in diameter (first
digit 2), but not against dripping water, rain, splashes or jets of water (second digit 0).
• Protection against electrical shock
Connection must be made to a power supply system fitted with efficient earthing (Class I appliance
according to standard EN 60598-1).
It is, moreover, recommended to protect the supply lines of the projectors from indirect contact
and/or shorting to earth by using appropriately sized residual current devices.
• Connection to mains supply
Connection to the electricity mains must be carried out by a qualified electrical installer.
Check that the mains frequency and voltage correspond to those for which the projector is designed
as given on the electrical data label.
This label also gives the input power to which you need to refer to evaluate the maximum number
of fittings to connect to the electricity line, in order to avoid overloading.
• Temperature of the external surface
The maximum temperature that can be reached on the external surface of the fitting, in a thermally
steady state, is 150°C (302°F).
• Maintenance
Before starting any maintenance work or cleaning the projector, cut off power from the mains supply.
After switching off, do not remove any parts of the fitting for at least 10 minutes. After this time the
likelihood of the lamp exploding is virtually nill. If it is necessary to replace the lamp, wait for another
20 minutes to avoid getting burnt.
The fitting is designed to hold in any splinters produced by a lamp exploding. The lenses must be
mounted and, if visibly damaged, they have to be replaced with genuine spares.
• Lamp
The fitting mounts a high-pressure lamp that needs an external igniter. This igniter is fitted onto the
apparatus.
- Carefully read the "operating instructions" provided by the lamp manufacturer.
- Immediately replace the lamp if damaged or deformed by heat.
• Battery
This product contains a rechargeable lead-acid battery. To preserve the environment, please
dispose the battery at the end of its life according to the regulation in force. Instructions on how to
remove the battery from the product are available on www.claypaky.it
SAFETY INFO MATION
The products referred to in this manual conform to the European Community Directives to which
they are subject:
•Low Voltage 2006/95/CE
•Electromagnetic Compatibility 2004/108/CE
5
1500W
IP20
Pb

3
ALPHA SPOT HPE 1500
UNPACKING AND P EPA ATION
Lamp 1500W
(fitted into projector)
099105
2 x 183102/802
1
90°
90°
90°
90°
LOCKED
UNLOCKED
PAN Mechanism Lock and elease (every 90°) - Fig. 2
TILT Mechanism Lock and elease (every 45°) - Fig. 3
2
45°
45°
45°
45°
45°
45°
UNLOCKED
LOCKED
3
Packing contents - Fig. 1

4
ALPHA SPOT HPE 1500
INSTALLATION AND STA T-UP
4
1
2
1
23
5

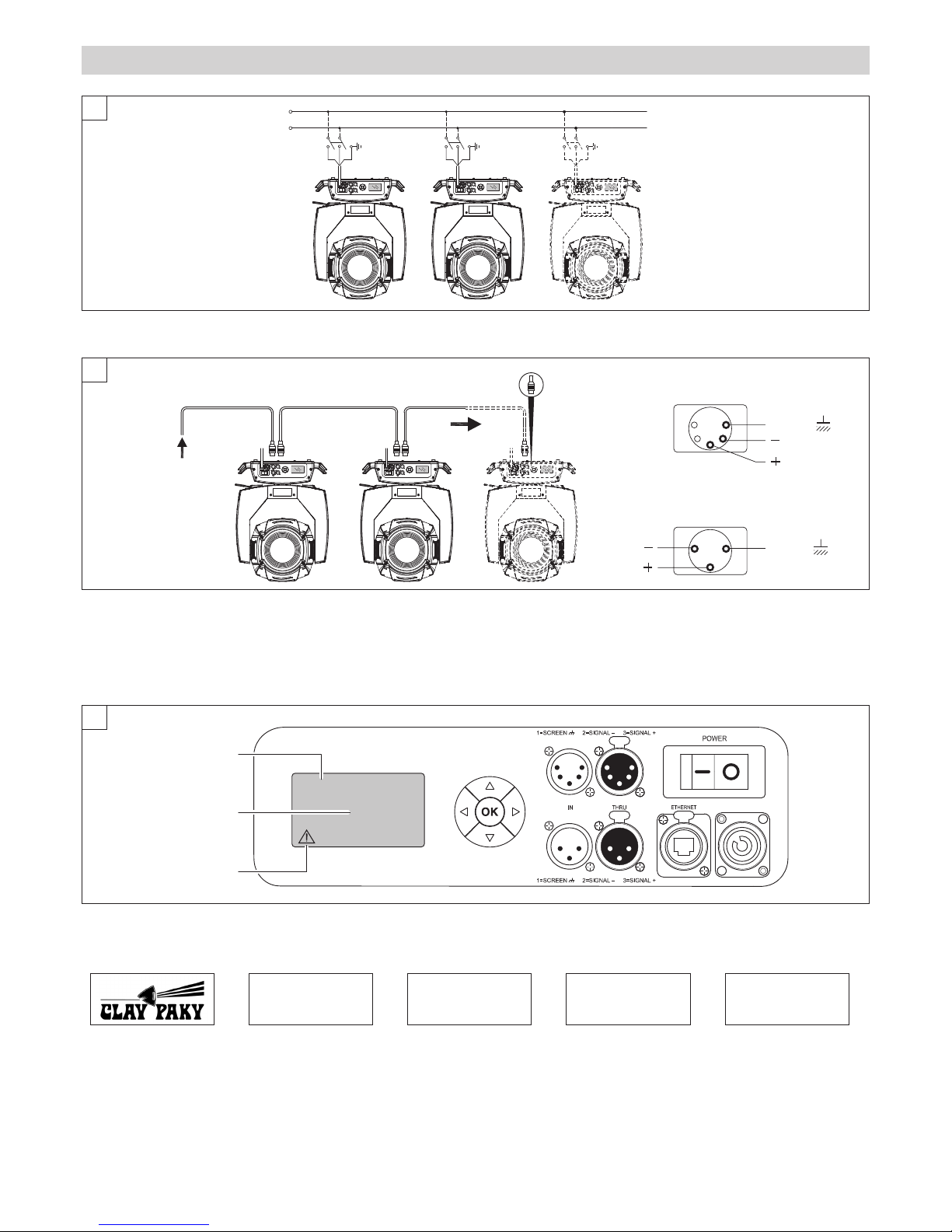

Connecting and disconnecting power cable - Fig. 5
Installing the projector - Fig. 4
The projector can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall.
WA NING: with the exception of when the projector is positioned on the floor, the safety ca le must e fitted. (Cod. 105041/003 availa le on request).
This must e securely fixed to the support structure of the projector and then connected to the fixing point at the centre of the ase.

5
ALPHA SPOT HPE 1500
CONT OL PANEL
Continue ➔
Switching on the projector - Fig. 8
Press the switch. The projector starts resetting the effects. At the same time, the following information scrolls on the display:
Model Firmware xxx (Fixture ID) System errors
Alpha SPOT HPE Version X.X.X Dmx Address xxx E: .........................
1500 Date - Hour W: .........................
On conclusion of resetting in case of absence of dmx signal, Pan and Tilt move to the “Home” position (Pan 50% - Tilt 50%). The control panel (Fig.
8) has a display and buttons for the complete programming and management of the projector menu. The display can be in one of two conditions:
rest status and setting status. When it is in the rest status, the display shows the projector’s DMX address and the Fixture ID address (if set).
During menu setting status, after a wait time (about 30 seconds) without any key having been pressed, the display automatically returns to rest status.
It should be noted than when this condition occurs, any possible value that has been modified but not yet confirmed with the
F
key will be cancelled.
1
2
Dmx Address
Warning Message
Fixture ID
MAINS
8
Connecting to the control signal line (DMX) - Fig. 7
Use a cable conforming to specifications EIA RS-485: 2-pole twisted, shielded, 120Ohm characteristic impedance, 22-24 AW , low capacity. Do not use
microphone cable or other cable with characteristics differing from those specified. The end connections must be made using XLR type 3 or 5-pin male/female
connectors. A terminating plug must be inserted into the last projector with a resistance of 120Ohm (minimum 1/4 W) between terminals 2 and 3.
IMPO TANT: The wires must not make contact with each other or with the metal casing of the connectors. The casing itself must be connected to the
shield braid and to pin 1 of the connectors.
L
N
6
7
SIGNAL
SCREEN
DMX 512
5 PIN
1
2
3
4
5
SIGNAL
SCREEN
1
3
2
DMX 512
3 PIN
SIGNAL
SIGNAL
DMX 512
Connecting to the mains supply - Fig. 6
Mains

6
ALPHA SPOT HPE 1500
28
28

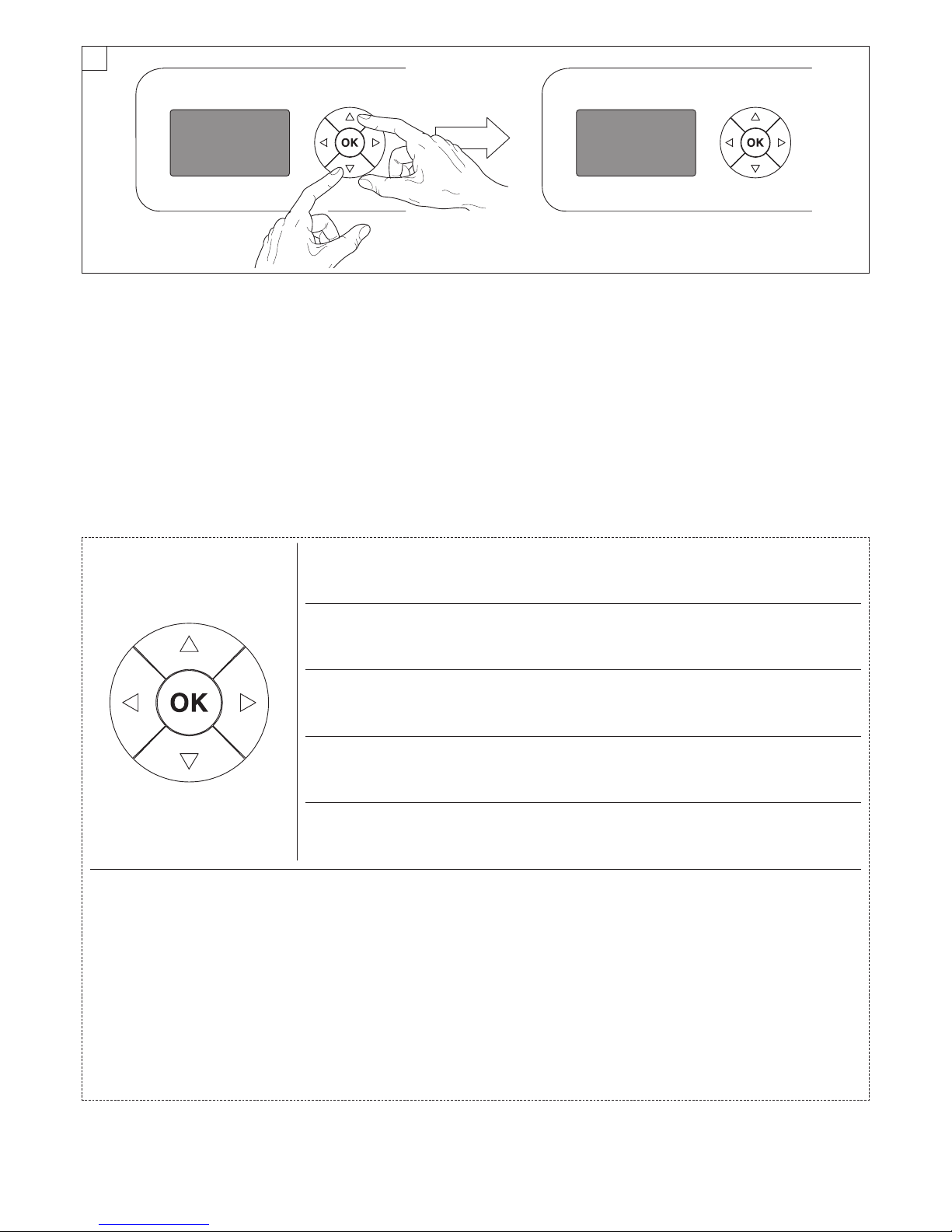

eversal of the display - Fig. 9
To activate this function, press UP
B
and DOWN
C
keys simultaneously while the display is in the rest mode. This status will be memorised and
maintained even for the next time it will be switched on. To return to the initial state, repeat the operation all over again.
Setting the projector starting address
On each projector, the starting address must be set for the control signal (addresses from 1 to 512).
The address can also be set with the projector switched off.
Setting the address: see pag. 8.
Setting the projector Fixture ID
On each projector, the Fixture ID address must be set for an easy identification of the fixtures in an installation (ID from 1 to 255).
The Fixture ID address can be set with the projector switched off.
Setting the Fixture ID: see pag. 8.
9
Functions of the buttons - Using the menu
Setting addresses and options with the projector disconnected
The projector’s DMX address, as well as other possible operating options, can also be set when the appliance is disconnected from the electricity supply.
All that is needed is to press
F
to momentarily activate the display and thus access the settings. Once the required operations have been carried out,
the display will switch off again after a wait time of 30 seconds.
USING THE MENU:
1) Press
F
once – “Main Menu” appears on the display.
2) Use the UP
B
and DOWN
C
keys to select the menu to be used:
• Setup (Setup Menu): To set the setting options.
• Option (Option Menu): To set the operating options
• Informations (Informations Menu): To read the counters, software version and other information.
• Manual Control (Manual control Menu): To trigger the test and manual control functions.
• Test (Test Menu): To check the proper functionning of effects
• Advanced (Advanced Menu): Access to the "Advanced menu" is recommended for a trained technical personnel.
To enable the "Advanced" see pag.13
3) Press
F
to display the first item in the selected menu.
4) Use the UP
B
and DOWN
C
keys to select the MENU items.
Confirms the displayed value, or activates the displayed function, or enters the successive
menu.
Decreases the value displayed (with auto-repetitions) or passes to the next item in the menu.
Increases the value displayed (with auto-repetitions) or passes to the previous item in a menu.
Return to the top level
Commute from units, tens, hundreds, in the "Address", "Fixture ID" and "Calibration" menù.
F
C
DOWN
B
UP
D
LEFT
E
RI HT

7
ALPHA SPOT HPE 1500
System
Errors
Information
Fixture
Hours
Lamp
Hours
4
Lamp
Manual
Control
Reset
Channel
65
MAIN MENU
MENU SETTING
Set Up Dmx
Address
Channel
Mode
Ethernet
Fixture ID
Option
Information
Manual
Control
Test
Advanced
13
Lamp
Strikes
System
Version
Board
Diagnost.
Dmx
Monitor
Fans
Monitor
Access code
1234
Advanced
Calibration
Upload
Firmware
Setup
Model
Pan / Tilt
Colour
Beam
obo
All
Test
Continue ➔
2
Lamp Dmx
Pan / Tilt
Color
Display
Option
Invert
Pan
Invert
Tilt
Swap
Pan-Tilt
Encoder
Pan-Tilt
Color
Mixing
Fixed Wheel
Shortcut
Setting Default
Preset
User
Preset 1
User
Preset 2
User
Preset 3
Shutter Shutter
On Error
Dimmer On
Shutter
Power Mode 1500-1200
Full fan speed
1200
Low fan speed
1500-1200
Auto fan speed

8
ALPHA SPOT HPE 1500
DMX ADD ESS
NOTE: without the DMX signal the Address (XXX) flashing
Allows you to select the DMX ADDRESS
1) Press
F
- the current DMX Adress appear on the display.
2) Use the UP
B
, DOWN
C
, RI HT
E
keys to plan the DMX
Address.
3) Press
F
to confirm the selection or LEFT
D
to keep current settings.
CHANNEL MODE
Allows you to select a channel arrangement from the two available.
1) Press
F
- the current settings appear on the display (Standard or
Vector).
2) Use the UP
B
and DOWN
C
keys to select one of the following
settings:
- Standard
- Vector
3) Press
F
to confirm the selection or LEFT
D
to keep current settings.
ETHE NET
Work in progress
FIXTU E ID
Allows you to select the FIXTURE ID
1) Press
F
- the current Fixture ID appear on the display.
2) Use the UP
B
, DOWN
C
, RI HT
E
keys to plan the Fixture ID.
3) Press
F
to confirm the selection or LEFT
D
to keep current settings.
NOTE: On grey the default options
LAMP DMX
Used for enabling lamp remote control channel.
1) Press
F
- the current settings appear on the display (On or Off).
2) Use the UP
B
and DOWN
C
keys to enable (On) or disable (Off)
the lamp remote control channel.
3) Press
F
to confirm the selection or LEFT
D
to keep current settings.
PAN / TILT
Invert pan
Used for reversing Pan movement.
1) Press
F
- the current settings appear on the display (On or Off).
2) Use the UP
B
and DOWN
C
keys to enable (On) or disable (Off)
PAN inversion.
3) Press
F
to confirm the selection or LEFT
D
to keep current settings.
Invert tilt
Used for reversing tilt movement.
1) Press
F
- the current settings appear on the display (On or Off).
2) Use the UP
B
and DOWN
C
keys to enable (On) or disable (Off)
Tilt inversion.
3) Press
F
to confirm the selection or LEFT
D
to keep current settings.
SET UP MENU
OPTIONS MENU
Set Up Dmx
Address
Channel
Mode
Ethernet
Fixture Id
Address xxx
Standard
Vector
Value xxx
Lamp Dmx
Pan / Tilt
Option On
Off
Invert
Pan
On
Off
Invert
Tilt
On
Off

9
ALPHA SPOT HPE 1500
Continue ➔
Swap Pan-Tilt
Used for swapping Pan and Tilt channels (as well as Pan fine and Tilt fine).
1) Press
F
- the current settings appear on the display (On or Off).
2) Use the UP
B
and DOWN
C
keys to enable (On) or disable (Off)
Pan and Tilt channel swap.
3) Press
F
to confirm the selection or LEFT
D
tto keep current settings.
Encoder Pan-Tilt
Used for enabling the Pan / Tilt encoders.
1) Press
F
- the current settings appear on the display (On or Off).
2) Use the UP
B
and DOWN
C
keys to enable (On) or disable (Off)
Pan / Tilt encoders.
3) Press
F
to confirm the selection or LEFT
D
to keep current settings.
COLO
Color mixing
Used for reversing the CMY color mixing system.
1) Press
F
- the current settings appear on the display (On or Off).
2) Use the UP
B
and DOWN
C
keys select one of the following settings:
R B color mixing mode
CMY color mixing mode
3) Press
F
to confirm the selection or LEFT
D
to keep current settings.
Fixed wheel short-cut
Used for optimizing color change time so that the disc turns in the direc-
tion that requires shorter movement.
1) Press
F
– the current settings appear on the display (On or Off).
2) Use the UP
B
and DOWN
C
keys to enable (On) or disable (Off)
color change optimization.
3) Press
F
to confirm the selection, or LEFT
D
to keep current settings.
SHUTTE
Shutter on error
Used for automatically closing the stop/strobe in the event of Pan/Tilt
position error.
1) Press
F
- the current settings appear on the display (On or Off).
2) Use the UP
B
and DOWN
C
keys to enable (On) or disable (Off)
automatic stop/strobe closing in the event of Pan/Tilt position error.
3) Press
F
to confirm the selection, or LEFT
D
to keep current settings.
Dimmer on Shutter
Enables automatic closing of the dimmer when the strobe is completely closed.
1) Press
F
– the current settings appear on the display (On or Off).
2) Use the UP
B
and DOWN
C
keys to enable (On) or disable (Off)
the automatic closing of the dimmer.
3) Press
F
to confirm the selection or LEFT
D
to keep current settings.
POWE MODE
Allows you to select a Power Mode from the three available.
1) Press
F
- the current settings appear on the display.
2) Use the UP
B
and DOWN
C
keys to select one of the following settings:
-1500-1200W Full fan speed: Lamp can change from full-power
(1500W) to half-power (1200W) using the LAMP CONTROL channel.
Fans always work at Full speed
-1200W Low fan speed: Lamp constantly works in half-power mode
(1200W) while the Fan always works at Low speed. With LAMP
CONTROL channel you can only switch the lamp ON and OFF.
-1500-1200W Auto fan speed: Lamp can change from full-power
(1500W) to half-power (1200W) using the LAMP CONTROL channel.
Automatically the fans switch from Full speed to Low speed respectively.
3) Press
F
to confirm the selection or LEFT
D
to keep current setting.
Color
Swap
Pan-Tilt
On
Off
Encoder
Pan-Tilt
On
Off
Color
Mixing
Rgb
Cmy
Fixwheel
Shortcut
On
Off
Shutter Shutter
On Error
On
Off
Dimmer On
Shutter
On
Off
Power Mode
1500-1200
Full fan speed
1200
Low fan speed
1500-1200
Auto fan speed

10
ALPHA SPOT HPE 1500
DISPLAY
Used for automatically reduce brightness on the display after about 30
seconds in idle.
1) Press
F
- the current settings appear on the display (On or Off).
2) Use the UP
B
and DOWN
C
keys to enable (On) or disable (Off)
the decreasing of display brightness.
3) Press
F
to confirm the selection or LEFT
D
to keep current
settings.
SETTING
Used to save 3 different settings of the items in the options menu and
relative submenus.
1) Press
F
- “Default preset” appears on the display.
2) Use the UP
B
and DOWN
C
keys to select one of the following
configurations:
- Default preset (*)
- User preset 1
- User preset 2
- User Preset 3
3) Press
F
- “Load preset X” appears on the display.
4) Use the UP
B
and DOWN
C
keys to select:
- Load preset X to recall a previously stored configuration.
- Save to preset X to store the current configuration.
a confirmation message (Are you sure?) appears on the display.
5) Select YES to confirm the selection or NO to keep the current setting
and return to the next higher level.
(*) DEFAULT PRESET
Used for restoring default values on all options menu items and relevant
submenus.
1) Press
F
, a confirmation message (Are you sure?) appears on the
display .
2) Select YES to confirm the selction or NO to keep current setting.
OPTION DEFAULT
Lamp DMX On
Invert Pan Off
Invert Tilt Off
Swap Pan-Tilt Off
Encoder Pan-Tilt On
Colour mixing CMY
Fixed Wheel Shortcut On
Shutter on error Off
Dimmer on Shutter Off
Display On
SYSTEM E O S
Shows a list of warnings and messages relevant to errors occurred since
the fixtures switching-on.
1) Pressing
F
you are allowed to reset the SYSTEM ERRORS list.
A confirmation message (Are you sure you want to clear error list ?)
appears on the display.
2) Select YES to reset the list or NO to go back.
FIXTU E HOU S
Used for displaying projector operating hours (total and partial).
1) Press
F
- Hours total and partial appears on the display.
Total counter
Counts the number of projector working life hours (from manufacture to
date).
Partial counter
Counts the number of partial projector working life hours since the
last reset to date.
2) Press
F
to reset partial projector working hours a confirmation
message (Are you sure?) appears on the display.
Information
INFO MATION MENU
Reset To
Dafault
o Back
Setting Default
Preset
Load
Preset 1
Save To
Preset 1
User
Preset 1
Load
Preset 2
Save To
Preset 2
User
Preset 2
Load
Preset 3
Save To
Preset 3
User
Preset 3
System
Errors
Fixture
Hours
Total XXX
Partial XXX
Reset...
On
Off
Display

11
ALPHA SPOT HPE 1500
Continue ➔
Lamp
Hours
Total XXX
Partial XXX
Reset...
3) Select YES to reset partial projectors counter or NO to keep the
current setting and return to the top menu level.
LAMP HOU S
Used for displaying the lamp working hours (total and partial).
1) Press
F
- Hours total and partial appears on the display.
Total counter
Counts the number of projector working hours with the lamp on (from
manufacture to date).
Partial counter
Counts the number of lamp working hours since the last reset to date.
2) Press
F
to reset partial lamp working hours, a confirmation message
(Are you sure ?) appears on the display.
3) Select YES to reset partial counter or NO to keep the current setting and
return to the top menu level
LAMP ST IKES
Used for displaying the number of times the lamp was turned on (total and
partial).
1) Press
F
- the number of times the lamp was turned on (total and
partial) appears on the display.
Total counter
Counts the number of times the lamp was turned on (from manufacture
to date).
Partial counter
Counts the number of times the lamp was turned on since the last
reset to date.
2) Press
F
to reset partial lamp strikes hours, a confirmation message
(Are you sure ?) appears on the display.
3) Select YES to reset partial counter or NO to keep the current setting
and return to the top menu level
SISTEM VE SION
Used for displaying the software and hardware version of each board
installed in the projector.
CPU brd (CPU board)
0: PT-3f (Pan / Tilt board)
1: 8-Ch (8 channel board)
2: 8-Ch (8 channel board)
3: 8-Ch (8 channel board)
BOA D DIAGNOSTIC
Used for displaying the status error of each board installed in the projector:
0: PT-3f (Pan / Tilt board)
1: 8-Ch (8 channel board)
2: 8-Ch (8 channel board)
3: 8-Ch (8 channel board)
DMX MONITO
Used for displaying the projector DMX channel level in bit (Val) and in
percentage (Perc).
System
Version
Board Revis. Hw.rv.
CPU brd x.x.x x.x
com.dev x.x
0: PT-3f x.x x.x
1: 8-Ch x.x x.x
2: 8-Ch x.x x.x
Board
Diagnost.
Dmx
Monitor
Board Status Err%
0:PT-3f ood 0.00
1:8-Ch ood 0.00
2:8-Ch ood 0.00
Val Perc
Cyan XXX X%
Magenta XXX X%
Yellow XXX X%
Color W. XXX X%
Strobe XXX X%
Dimmer XXX X%
Dimm.fine XXX X%
Iris XXX X%
Fix obo C. XXX X%
Rot. obo C. XXX X%
obo Rot. XXX X%
Prism C. XXX X%
Prism Rot. XXX X%
L. Frost XXX X%
M. Frost XXX X%
H. Frost XXX X%
Focus XXX X%
Pan XXX X%
Pan Fine XXX X%
Tilt XXX X%
Tilt Fine XXX X%
Function XXX X%
Reset XXX X%
Lamp On/Off XXX X%
Lamp
Strikes
Total XXX
Partial XXX
Reset...

12
ALPHA SPOT HPE 1500
LAMP
Used for turning lamp on and off from the projector control panel.
1) Pres
s
F
- the current settings appear on the display (On or Off).
2) Use the
UP
B
and DOWN
C
keys to turn the lamp on (On) or off (Off)
3) Press
F
to confirm the selection or LEFT
D
to keep current settings
and return to the top level.
ESET
Used for resetting the projector.
1) Press
F
to reset the projectors, a confirmation message (Are you sure ?)
appears on the display.
2) Select YES to starting reset the fixture or NO to keep the current setting
and return to the top menu level.
CHANNEL
Used for setting channel levels from the projector control panel.
1) Press
F
- the first channel appears on the display.
2) Use the UP
B
and DOWN
C
keys to select the required channel:
3) Press
F
and use the UP
B
and DOWN
C
keys to select the
required DMX level (value between 0 and 255).
4) Press LEFT
D
to return to the top menu level.
AUTOTEST
Allows you to check the proper functioning of effects.
1) Press
F
.
2) Use the UP
B
and DOWN
C
keys to select the required test.
3) Press
F
to confirm the selection or LEFT
D
to return to the top
menu level.
Test sequence:
Pan - Tilt effects (Pan & Tilt)
Colour effects (CMY, colour wheel)
Beam effects (Stopper-Strobe / Dimmer / Iris / Prism / Frost)
obo effects (Fixed gobo / Rotating gobo)
All effects
Channel Cyan xxx xx%
Magenta xxx xx%
Yellow xxx xx%
Colour W. xxx xx%
Strobe xxx xx%
Dimmer xxx xx%
Dimm. fine xxx xx%
Iris xxx xx%
Fix obo C. xxx xx%
Rot obo C. xxx xx%
obo rot. xxx xx%
Prism C. xxx xx%
Prism rot. xxx xx%
L. Frost xxx xx%
M. Frost xxx xx%
H. Frost xxx xx%
Focus xxx xx%
Pan xxx xx%
Pan fine xxx xx%
Tilt xxx xx%
Tilt fine xxx xx%
Function xxx xx%
Reset xxx xx%
Lamp On / Off xxx xx%
Test
Pan-Tilt
Colour
Beam
obo
All
TEST MENU
MANUAL CONT OL
Lamp
Manual
Control
On
Off
No
Yes
Reset
FANS MONITO
Used for displaying the speed of each fan installed in the projector:
Pwr.Sup (Power supply Fan)
Ball. IN (Ballast IN Fan)
Ball. Out (Ballast OUT Fan)
Eff.IN (Effects IN Fan)
Eff.OUT (Effects OUT Fan)
Iris (Iris Fan)
Lamp (Lamp Fan)
Fans
Monitor Fan Speed (RPM)
Pwr.Sup XXXX
Ball.In. XXXX
Ball.Out XXXX
Eff.In XXXX
Eff.Out XXXX
Iris XXXX
Lamp XXXX

13
ALPHA SPOT HPE 1500
To enable the "Advanced Menu" set up the "Access code" (1234) using the
UP
B
, DOWN
C
, RI HT
E
keys.
Press
F
- "Menu advanced" appears on the display
UP LOAD FI MWA E
Allows you to transfer the firmware from 1 fixture to all the connected fixtures.
1) Press
F
, a confirmation message appears on the display.
2) Select YES to start the firmware loading or NO to keep the current set-
ting and return to the top menu level
SETUP MODEL
Allows you to change the default model of projector.
1) Press
F
a confirmation message appears on the display.
2) Select YES to define the model of projector or NO to keep the current
setting and return to the top menu level.
CALIB ATION
Allows you to adjust effects from the control panel to obtain perfect unifor-
mity between the projectors.
1) Press
F
- “channels” appears on the display.
2) Using the UP
B
and DOWN
C
keys, select the effect you wish to
regulate.
3) Press
F
and use the RI HT
E
, UP
B
and DOWN
C
buttons to
make the adjustment by setting a value between 0 and 255.
4) Press
F
to confirm the selection or LEFT
D
to keep current set-
tings and return to the top level.
FACTO Y DEFAULT
Allows you to restore default values of all channels (128).
1) Press
F
– a confirmation message appears on the display (Reset
calibration to factory default ?).
2) Select YES to reset calibration to factory default or NO to keep the
current setting and return to the top menu level.
ADVANCED MENU
Advanced
Code
1234
Calibration
Pan 128
Tilt 128
Cyan 128
Magenta 128
Yellow 128
Prism Chg 128
Prism Rot. 128
Light Frost 128
Mid Frost 128
Heavy Frost 128
Dimmer 128
F. obo.Chg 128
Iris 128
R. obo.Chg 128
obo Rot. 128
Colour Wheel 128
Stop/Strobe 128
Focus 128
Factory Default
Yes / No
Upload
Firmware
Transfer the firmware on all
the connected fixtures ?
Are you sure ?
Yes/No
Setup
Model
Changing to a wrong model
may damage the fixture.
Are you sure ?
Yes/No

14
ALPHA SPOT HPE 1500
Locking and releasing Pan and Tilt movements - Refer to the instructions in the UNPACKIN AND PREPARATION section.
Opening the head covers - Fig. 11.
Closing the head covers - Fig. 12.
1/4 Turn
1
3
21
2
1/4 Turn
1
4
5
11 12
MAINTENANCE

15
ALPHA SPOT HPE 1500
Fan support plate opening and closing (Lower side) - Fig. 16
3
2
1
Lower Side
4
16
1
2
14
15
1
2
13

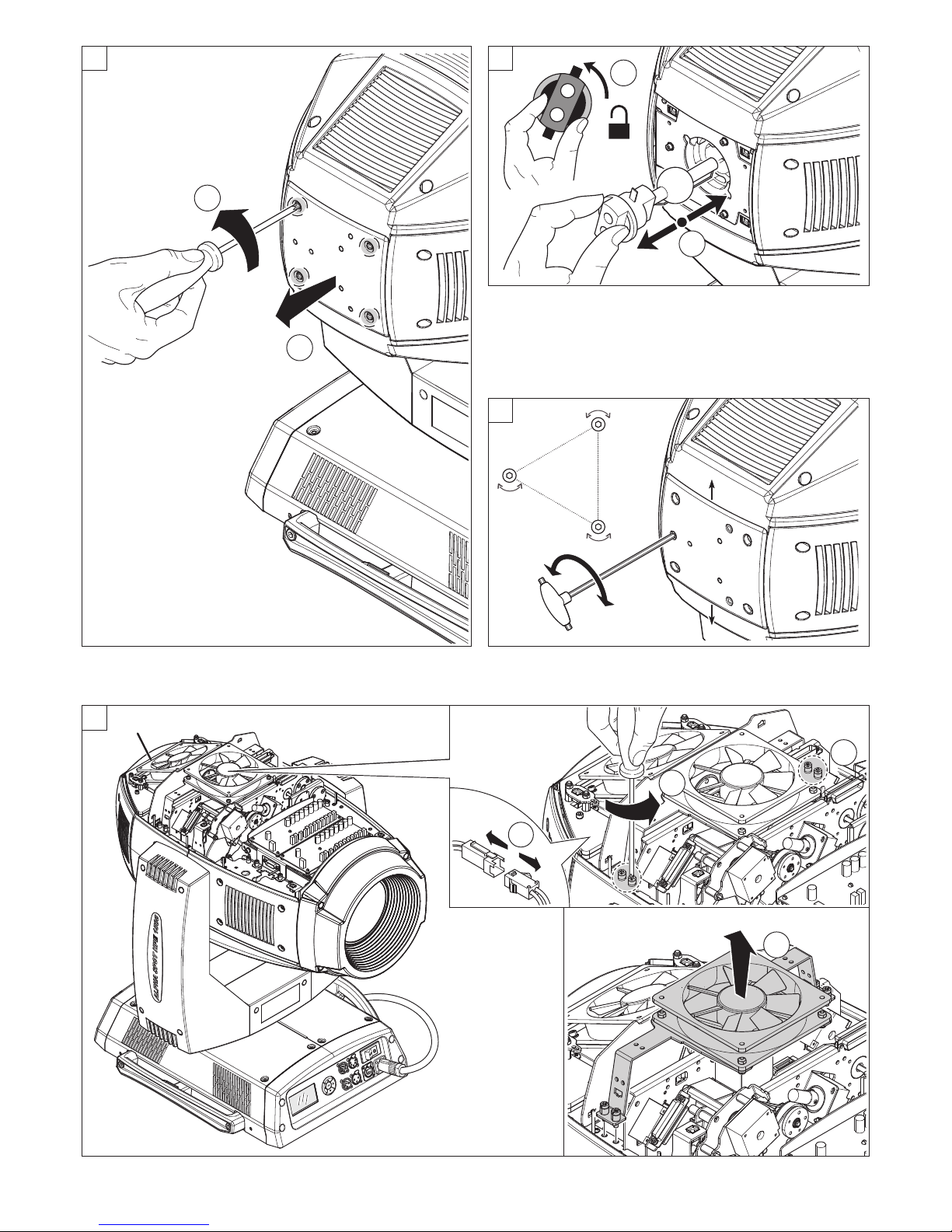

Lamp change - Fig 14
Take the new lamp out of its package and insert in the fitting.
WA NING: do not touch the lamp’s envelope with are hands.
Should this happen, clean the ul with a cloth soaked in alcohol
and dry it with a clean, dry cloth.
Lamp regulation - Fig. 15
To centre the lamp, turn the three adjusting screws as shown in the figure.
Opening and closing lamp compartment - Fig. 13
Continue ➔

16
ALPHA SPOT HPE 1500
Fan support plate opening and closing (Upper side) - Fig. 17
Upper Side
1
2
17
2
1
085911/001
085901/001
085903/001
085907/001
085912/001
085906/001
085904/001
085908/001
Lower Side
18

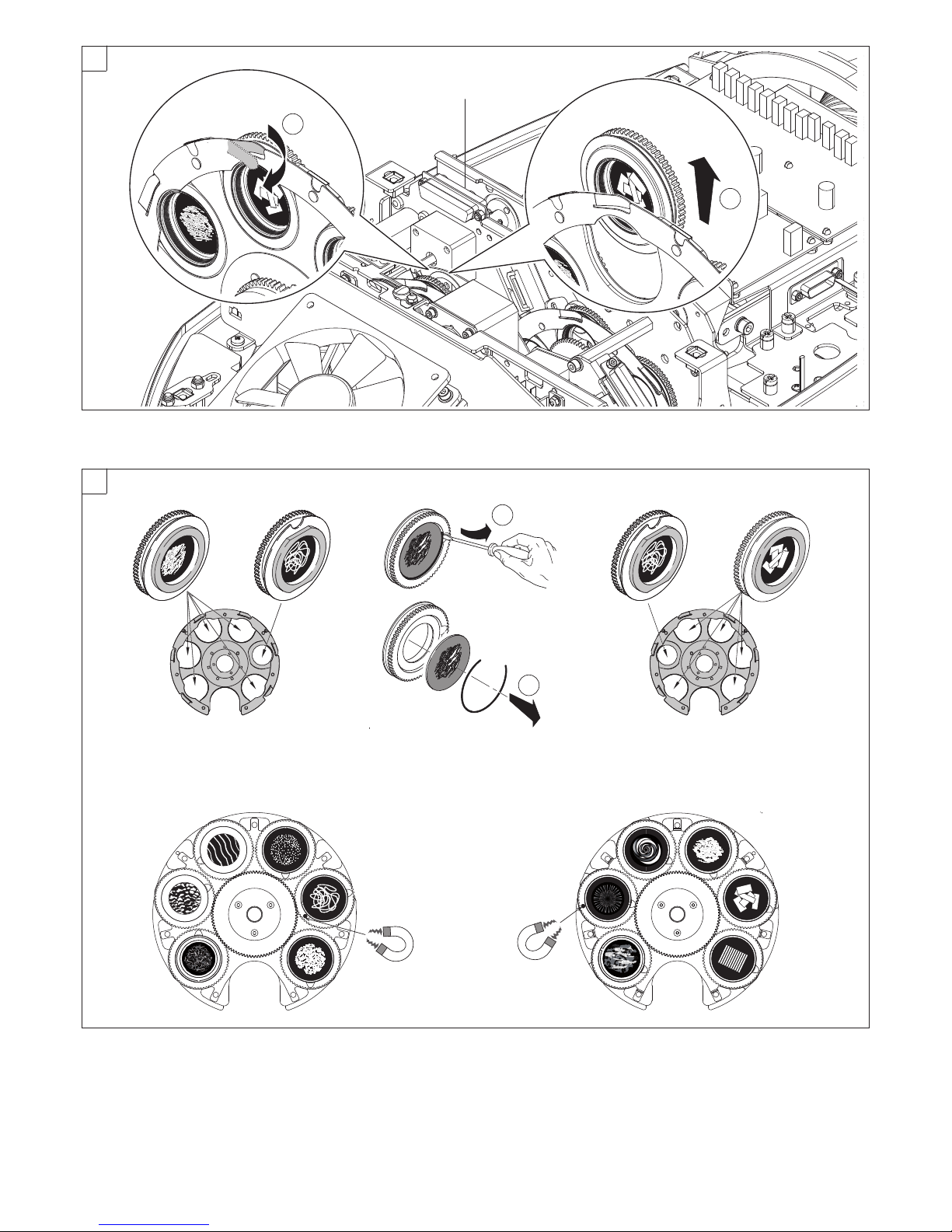

eplacing fixed gobos (ø 31.5 mm - max 25 mm image - thickness max 1 mm) - Fig. 18

17
ALPHA SPOT HPE 1500
19
Upper Side
1
2
GOBO ROTATION 1
084632/001
105115/802 084629/001
084628/001
105115/801 084624/001
GOBO
INDEX
GOBO ROTATION 2
084633/001
084630/001 084629/001
084627/001
08463/001 084624/001
GOBO
INDEX
1
2
20
eplacing rotating gobos (ø 37.4 mm - max 25 mm image – thickness 1 mm) - Fig. 20
IMPO TANT: Use only glass gobos on the rotating gobos wheels. For any further information contact CLAY PAKY.
Bearing group replacement - Fig. 19
Continue ➔

18
ALPHA SPOT HPE 1500
Periodical cleaning - Fig. 22
To ensure optimal operation and performance for a long time it is essential to periodically clean the parts subject to dust and grease deposits. The
frequency with which the following operations are to be carried out depends on various factors, such as the amount of the effects and the quality of the
working environment (air humidity, presence of dust, salinity, etc.).
Use a soft cloth dampened with any detergent liquid for cleaning glass to remove the dirt from the reflectors, from the lenses and filters. It is recommended
that the projector undergoes an annual service by a qualified technician for special maintenance involving at least the following operations:
•eneral cleaning of internal parts.
•Restoring lubrication of all parts subject to friction, using lubricants specifically supplied by Clay Paky.
•eneral visual check of the internal components, cabling, mechanical parts, etc.
•Electrical, photometric and functional checks; eventual repairs.
Upper Side Lower Side
22
21
Gobo orientation - Fig. 21
The pictures shown the correct gobos orientation.
To determine which side of a godo is coated, hold an odject up to it. On the
uncoated side, there is a space between the object and its reflection.
COATED GLASS GOBOS TYPE 1 COATED GLASS GOBOS TYPE 2
rey/Black side away
from lamp
Coated side
towards lamp
Coated side
Uncoated
side
Uncoated side
Reflective side towards lamp

19
ALPHA SPOT HPE 1500

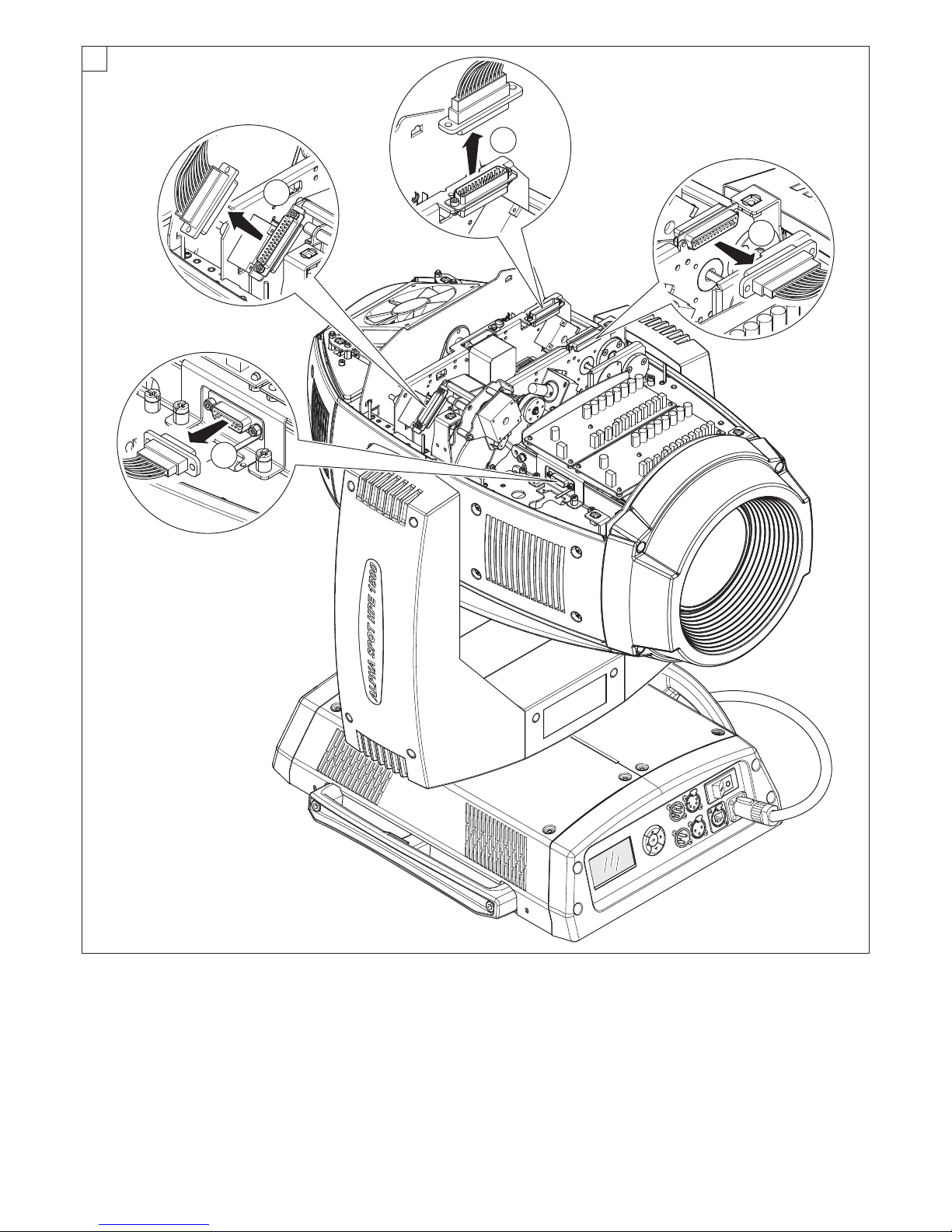

Extraction of the effect modules: Preliminary operations - Fig. 23
1
3
4
2
23
Continue ➔

20
ALPHA SPOT HPE 1500
6
5
Lower Side
9
8
7
10
Upper Side
11
Upper Side
12
14
13
15
Upper Side
Extraction of the effect modules - Fig. 24
IMPO TANT: Grasp the modules using the support structure and not the details which could get damaged.
Insertion of the effect modules: Repeat the operations indicated in Fig. 24 and 25 in reverse order
24
