Claypaky HY B-EYE K15 User manual

1
INST UCTION MANUAL
C61480
C61470
ENGLISH
HY B-EYE K15
HY B-EYE K25
Congratulations on choosing a Claypaky product!
We thank you for your custom.
Please note that this product, as all the others in the
rich Claypaky range, has been designed and made with
total quality to ensure excellent performance and best
meet your expectations and requirements.
INDEX
Page Contents
2 1. Safety information
3 2. Unpacking and preparation
4 3. Installation and start-up
4 3.1 nstalling the fixture
4 3.2 Connecting to manis supply
5 3.3 Connecting the control signal line: DMX / Art-Net
5 3.4 Switching on the fixture and basic SetUp
7 4. Maintenance
7 4.1 Maintenance and Caution
8 4.2 Battery removal
9 4.3 Opening the covers
10 5. Specifications
12 6. Cause and solution of problems

2
HY B-EYE K15 & K25
EN
IT
DE
ES
F
U
SAFETY INFO MATION
MPORTANT: Claypaky recommends you carefully read and keep the safety information on this product, also
available in digital format at the following link:
www.claypaky.com
Ref: [F S01 - Safety nformation HY B-EYE series]
INFO MAZIONI DI SICU EZZA
MPORTANTE: Claypaky raccomanda di leggere accuratamente e conservare le informazioni di sicurezza relative
a questo prodotto, sempre reperibili in versione digitale al seguente link:
www.claypaky.com
Rif: [F S01 - Safety nformation HY B-EYE series]
INFO MATIONEN ZU SICHE HEIT
W CHT G: Claypaky empfiehlt, die Sicherheitsinformationen bezüglich dieses Produkts genau zu lesen und
aufzubewahren. Sie sind in Digitalversion immer unter folgendem Link auffindbar:
www.claypaky.com
Ref: [F S01 - Safety nformation HY B-EYE series]
INFO MACIONES DE SEGU IDAD
MPORTANTE: Claypaky recomienda leer detenidamente y conservar la información de seguridad relativa a este
producto. Además, está disponible una versión digital de la misma en el siguiente enlace:
www.claypaky.com
Ref: [F S01 - Safety nformation HY B-EYE series]
CONSIGNES DE SÉCU ITÉ
MPORTANT: Claypaky recommande de lire attentivement et de conserver les informations de sécurité relatives à
ce produit, disponibles en version digitale au lien suivant:
www.claypaky.com
Réf. : [F S01 - Safety nformation HY B-EYE series]
ИНСТРУКЦИЮ ПО ТЕХНИКЕ БЕЗОПАСНОСТИ
ВАЖНО: Claypaky рекомендует внимательно прочитать и сохранить инструкци по технике безопасности
данного изделия, которая всегда доступна в электронном формате по следу щей ссылке:
www.claypaky.com
Наименование: [F S01 - Safety nformation HY B-EYE series]
1. SAFETY INFO MATION

3
HY B-EYE K15 & K25
45° 45°
45°
45°
45°
90°
90°
90°
90°
UNLOCKED
LOCKED

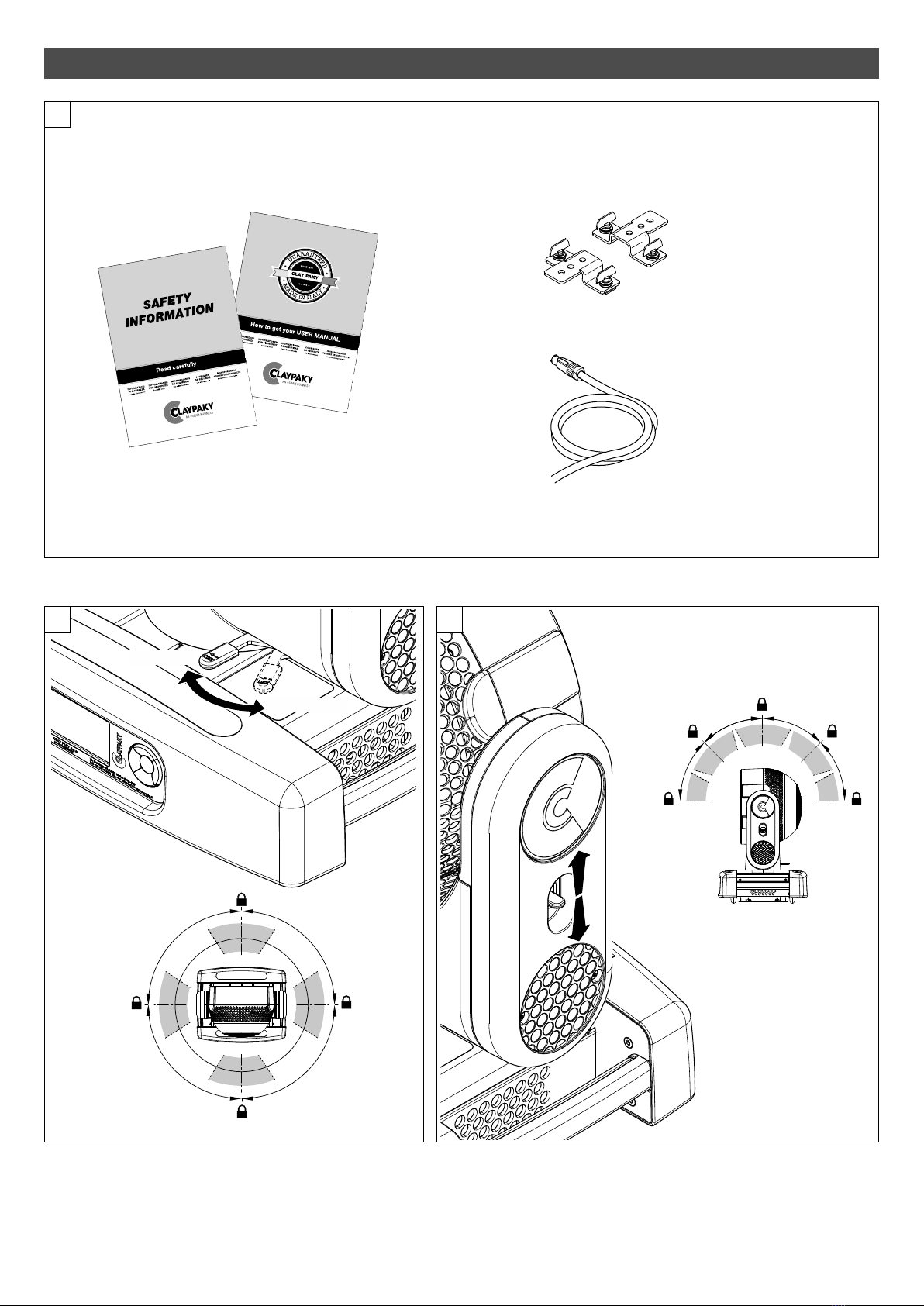

PAN Mechanism Lock and elease (every 90°) - Fig. 2
TILT Mechanism Lock and elease (every 45°) - Fig. 3
2 3
Packing contents - Fig. 1
2 x 183102/805
1
2. UNPACKING AND P EPA ATION

4
HY B-EYE K15 & K25
4
1
2
3
2
1
5
Connecting and disconnecting power cable - Fig. 5

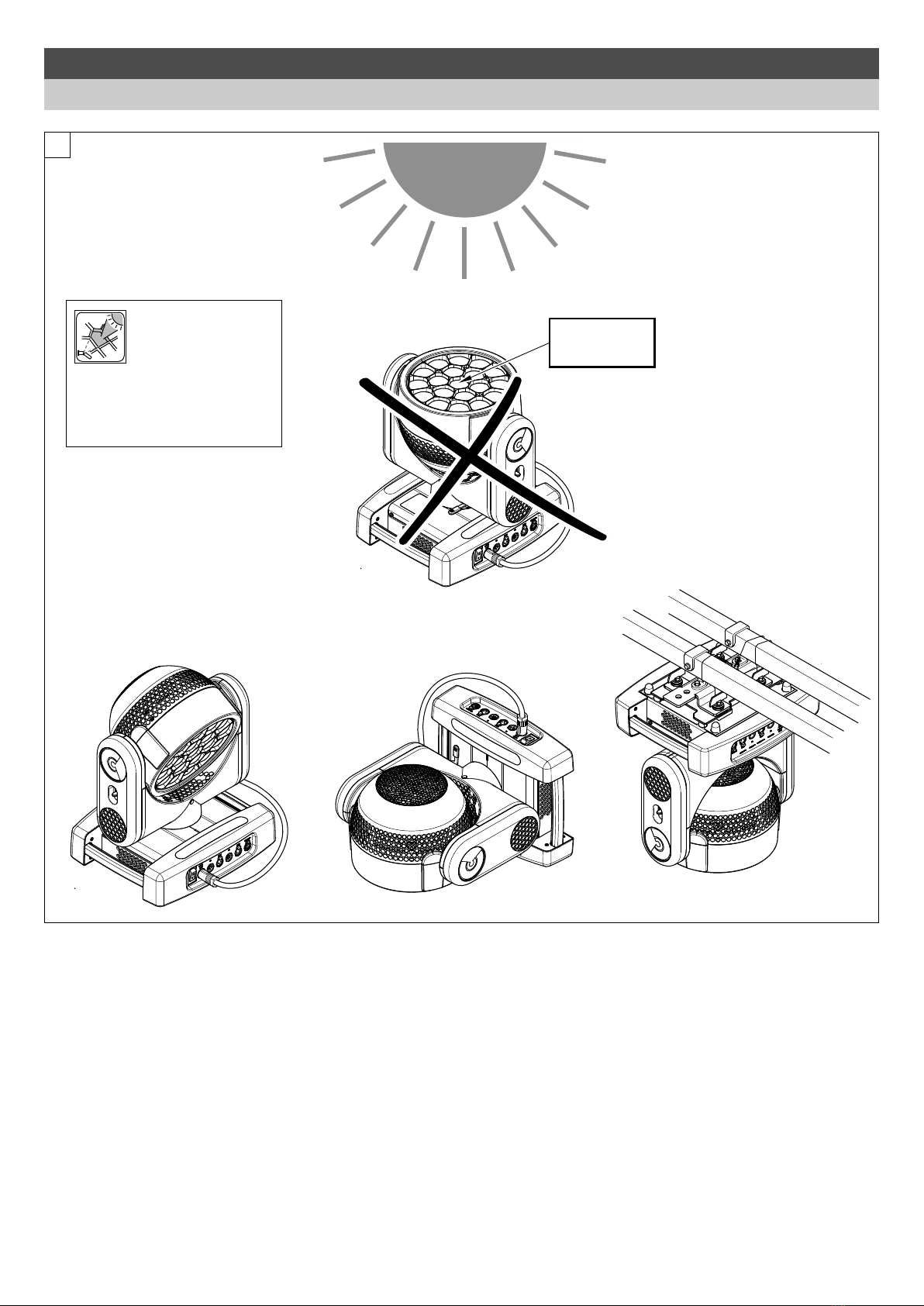

Installing the projector - Fig. 4
The projector can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall.
WA NING: with the exception o when the projector is positioned on the loor, the sa ety cable must be itted. (Cod. 105041/003 available on request).
This must be securely ixed to the support structure o the projector and then connected to the ixing point at the centre o the base.
3. INSTALLATION AND STA T-UP
3.1 Installing the fixture
3.2 Connecting to manis supply

5
HY B-EYE K15 & K25
Switching on the projector - Fig. 8
Press the switch. The projector starts resetting the effects. At the same time, the following information scrolls on the display:
Model Firmware xxx (Fixture ID) System errors
HY B-EYE Version X.X.X Dmx Address xxx E: .........................
Date - Hour W: .........................
On conclusion of resetting in case of absence of the dmx signal, Pan and Tilt move to the “Home” position (Pan 128 bit - Tilt 128 bit). The control panel
(Fig. 8) has a display and buttons for the complete programming and management of the projector menu. The display can be in one of two conditions:
rest status and setting status. When it is in the rest status, the display shows the projector’s DMX address and the Fixture D address (if set).
During menu setting status, after a wait time (about 30 seconds) without any key having been pressed, the display automatically returns to rest status.
t should be noted than when this condition occurs, any possible value that has been modified but not yet confirmed with the
F
key will be cancelled.
1
2
Dmx Address
War ning Message
Fixture ID
8

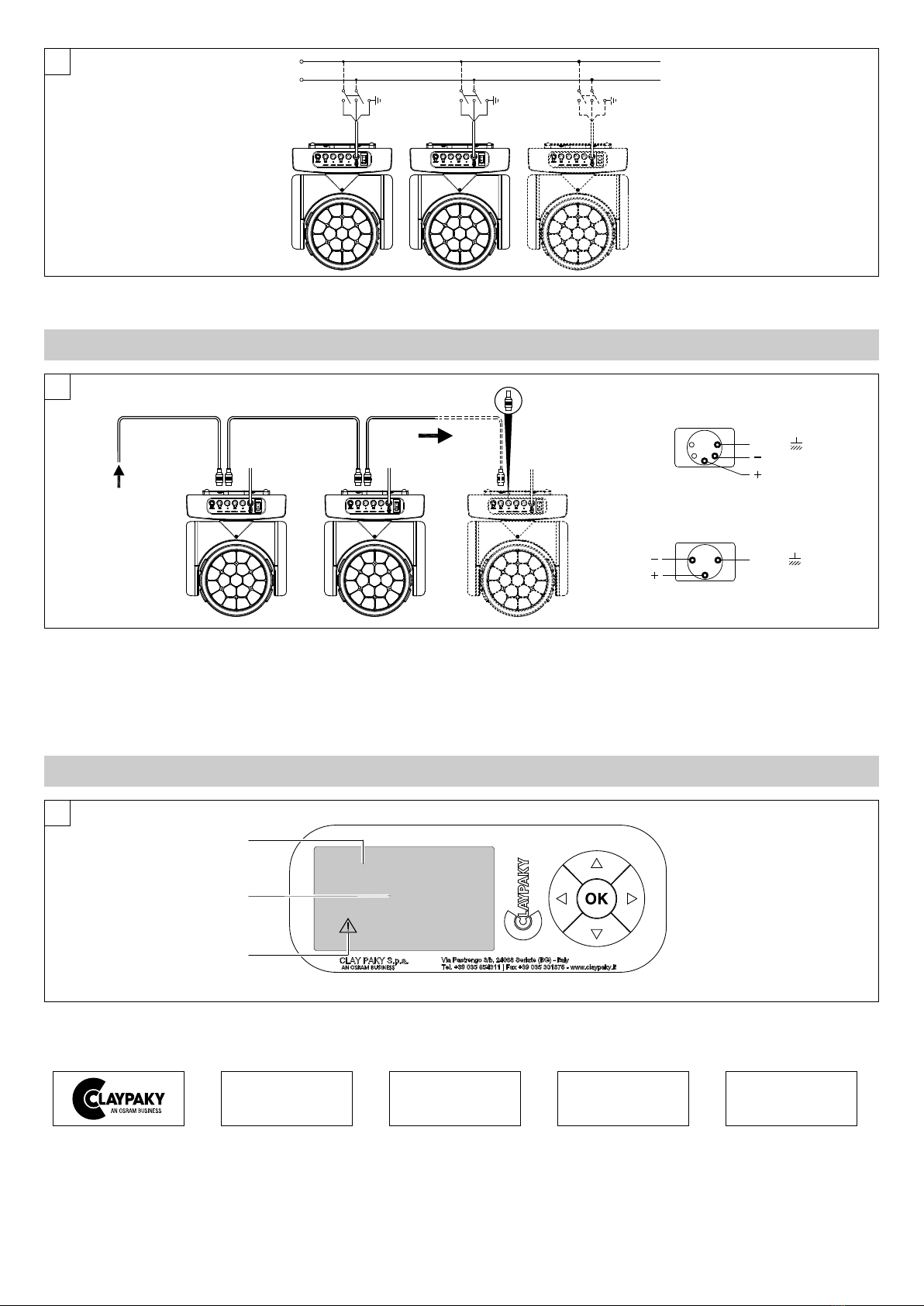

Connecting to the control signal line (DMX) - Fig. 7
Use a cable conforming to specifications E A RS-485: 2-pole twisted, shielded, 120Ohm characteristic impedance, 22-24 AWG, low capacity. Do not use
microphone cable or other cable with characteristics differing from those specified. The end connections must be made using XLR type 3/5-pin male/female
connectors. A terminating plug must be inserted into the last projector with a resistance of 120Ohm (minimum 1/4 W) between terminals 2 and 3.
IMPO TANT: The wires must not make contact with each other or with the metal casing of the connectors. The casing itself must be connected to the
shield braid and to pin 1 of the connectors.
SIGNAL
SCREEN
DMX 512
5 PIN
1
2
3
4
5
SIGNAL
SCREEN
1
3
2
DMX 512
3 PIN
SIGNAL
SIGNAL
Mains
6
7
Connecting to the mains supply - Fig. 6
Continue ➔
3.3 Connecting the control signal line: DMX / Art-Net
3.4 Switching on the fixture and basic SetUp

6
HY B-EYE K15 & K25
28
28

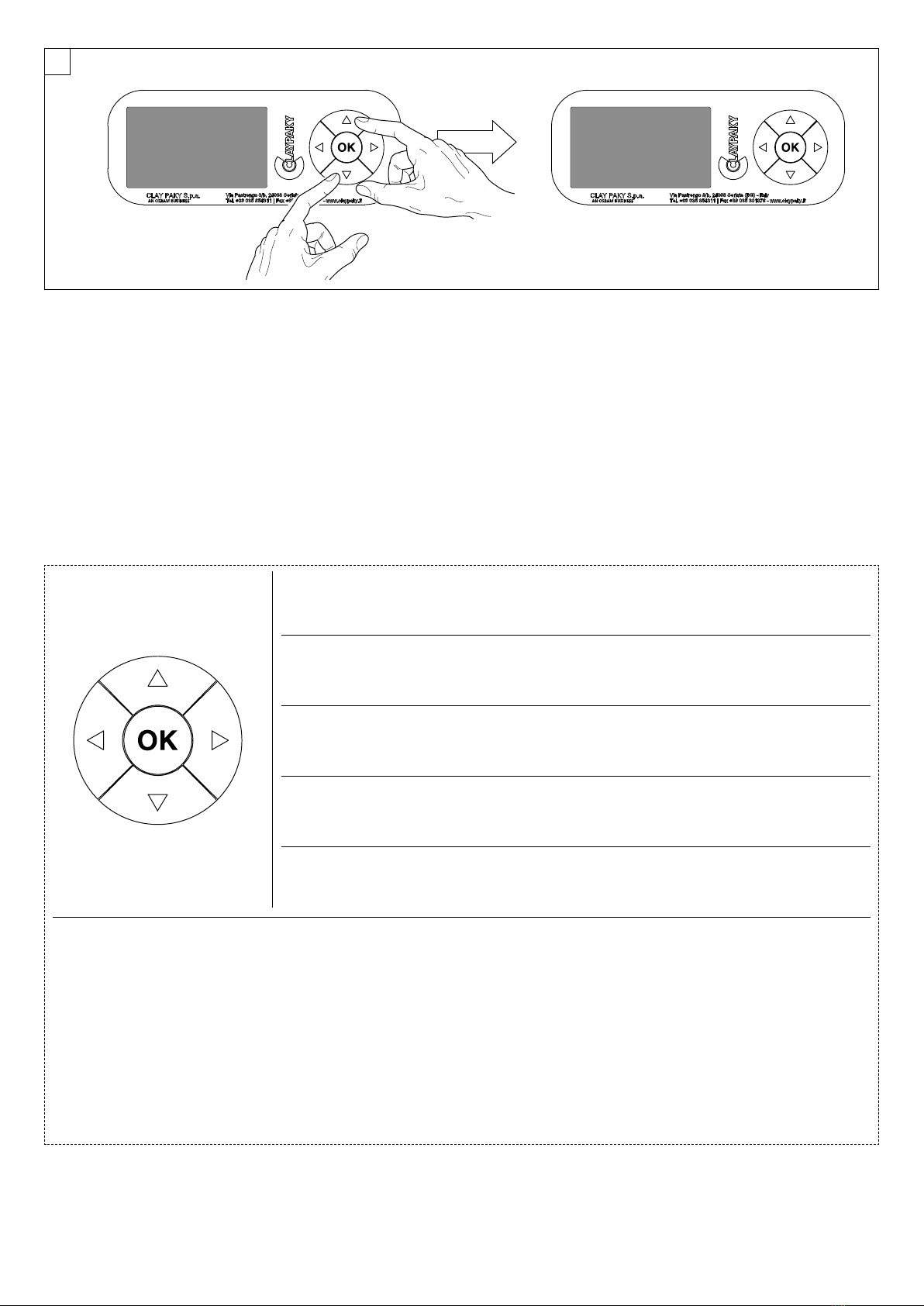

eversal of the display - Fig. 9
To activate this function, press UP
B
and DOWN
C
keys simultaneously while the display is in the rest mode. This status will be memorised and
maintained even for the next time it will be switched on. To return to the initial state, repeat the operation all over again.
Setting the projector starting address
On each projector, the starting address must be set for the control signal (addresses from 1 to 512).
The address can also be set with the projector switched off.
Setting the projector Fixture ID
On each projector, the Fixture D address must be set for an easy identification of the fixtures in an installation ( D from 1 to 255).
The Fixture D address can be set with the projector switched off.
9
Functions of the buttons - Using the menu
Setting addresses and options with the projector disconnected
The projector’s DMX address, as well as other possible operating options, can also be set when the appliance is disconnected from the electricity supply.
All that is needed is to press
F
to momentarily activate the display and thus access the settings. Once the required operations have been carried out,
the display will switch off again after a wait time of 30 seconds.
USING THE MENU:
1) Press
F
once – “Main Menu” appears on the display.
2) Use the UP
B
and DOWN
C
keys to select the menu to be used:
• Setup (Setup Menu): To set the setting options.
• Option (Option Menu): To set the operating options
• nformations ( nformations Menu): To read the counters, software version and other information.
• Manual Control (Manual control Menu): To trigger the test and manual control functions.
• Test (Test Menu): To check the proper functionning of effects
• Advanced (Advanced Menu): Access to the "Advanced menu" is recommended for a trained technical personnel.
3) Press
F
to display the first item in the selected menu.
4) Use the UP
B
and DOWN
C
keys to select the MENU items.
Confirms the displayed value, or activates the displayed function, or enters the successive
menu.
Decreases the value displayed (with auto-repetitions) or passes to the next item in the menu.
ncreases the value displayed (with auto-repetitions) or passes to the previous item in a menu.
Return to the top level.
Commute from units, tens, hundreds, in the "Address", "Fixture D" and "Calibration" menù.
F
C
DOWN
B
UP
D
LEFT
E
R GHT

7
HY B-EYE K15 & K25
CAUTION:
• To avoid damage to the internal parts of the fixture when the fixture is not working, is recommended to turn the head down before turning the fixture
off, so that the front lenses of the fixture are invested as little as possible from the sun.
• Set Zoom channel to 255-bit before turning off the projector to facilitate the packaging of the projector.
• It is recommended not to use compressed air with more than 4 atmospheres for cleaning the internal parts of the fixture, led board area.
This is to avoid damaging electronic components.
•To ensure optimal operation and performance for a long time it is essential to periodically clean the parts subject to dust and grease deposits. The
frequency with which the following operations are to be carried out depends on various factors, such as the amount of the effects and the quality of
the working environment (air humidity, presence of dust, salinity, etc.).
t is recommended that the projector undergoes an annual service by a qualified technician for special maintenance involving at least the following
operations:
- General cleaning of internal parts.
- Restoring lubrication of all parts subject to friction, using lubricants specifically supplied by Claypaky.
- General visual check of the internal components, cabling, mechanical parts, etc.
- Electrical, photometric and functional checks; eventual repairs.
Cleaning the lenses
Only use neutral soap and water to clean the lenses, then dry it carefully with a soft, non-abrasive cloth. (WARN NG: the use of alcohol or any other
detergent could damage the lenses).
Light collimation system
This product contains internal light
collimation system. Avoid intense
light from any angle.
Continue ➔
10
WARNING:
no alcohol
4. MAINTENANCE
4.1 Maintenance and Caution

1
2
3
5
4
6
8
HY B-EYE K15 & K25
Battery removal - Fig. 11
This product contains a rechargeable battery. To preserve the environment, please dispose the battery at the end of its life according to the
regulation in force.
11
4.2 Battery removal

1
2
3
4
9
HY B-EYE K15 & K25
12

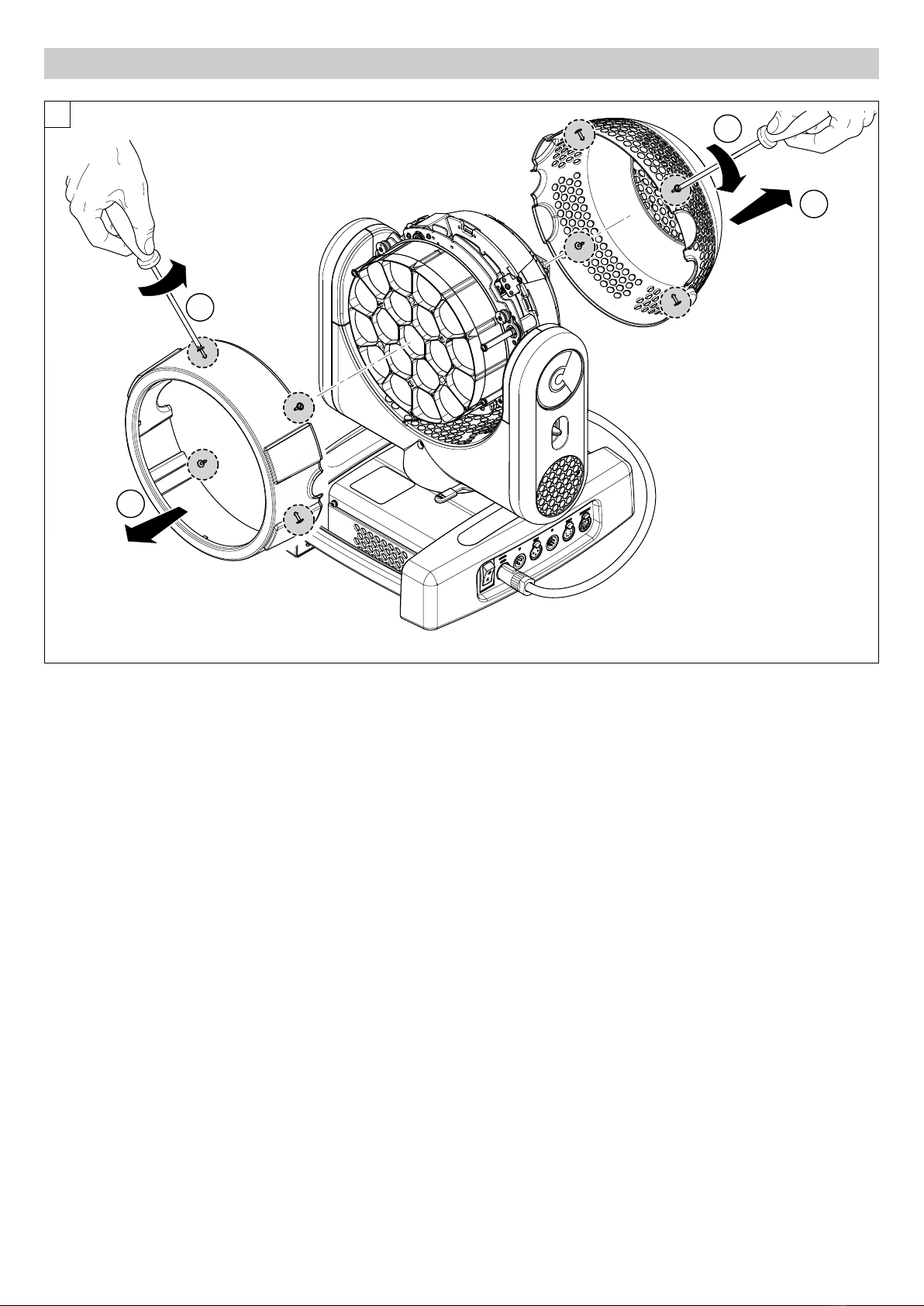

Opening the covers - Fig. 12
4.3 Opening the covers

10
HY B-EYE K15 & K25
HY B-EYE K15
POWE SUPPLIES
100-240V 50/60Hz
INPUT POWE
700 VA at 230V 50Hz
LIGHT SOU CE
19 RGBW LEDs driven at 30 Watt
- Type: OSRAM OSTAR - Stage LE RTDUW S2WN
- Color Temperature: 6,000 K
- Life: 50,000 hrs
OPTICS
4°-60° Electronic Zoom Range (pending)
EFFECTS SECTION
Three operating modes: wash, beam, FX (Kaleido effects)
Bi-directional Rotating Front Lens
Digital Wash-Beam Framing effect
Beam edge softening control (in Wash mode)
Pixel Patterning Macros with enhanced control
0-100% linear electronic dimmer
Adjustable speed stop/strobe effect, with instantaneous blackout
Dedicated channel for color temperature setting
White CT Emulation 2500-8000K
RGBW auto-tuning to lamp CT Emulation
Tungsten Lamp Emulation
Slow Strobe: 1 flash/sec; Fast Strobe: 25 flash/sec
CONT OL AND P OG AMMING
DMX protocol signal: US TT DMX 512
Art-Net / RDM
Display: Graphic LCD backlit b/w Display
Pan/Tilt Resolution: 16 bit
Dimmer Resolution: 16 bit
Movement control: Vectorial
DMX signal connection: 3 and 5 pole XLR input and output
Software upload through DMX input
BODY
Aluminum structure with die-cast plastic cover
Two side handles for transportation
PAN & T LT lock for transport and maintenance
MOVING BODY
Movement by means of two stepper motors, controlled by microprocessor
Automatic repositioning of PAN and T LT after accidental movement not controlled
by control unit
Travel:
- PAN = 540°
- T LT = 200°
ELECT ONICS
Long-life auto-charging buffer battery
Preset color and graphic effect macros
Function reset controllable from a central control unit
Menu-driven internal self-test function
Ethernet ready with RJ45 socket
Display: backlit black-and-white graphic LCD display
Electronic check-up of every single parameter with error alarm
DMX level monitoring on each channel
Automatic internal data transmission error diagnostics
Firmware upgrade even when the unit is not connected to the power supply
Firmware transfer from one light to another
SAFETY DEVICES
Automatic power safety derating in case of overheat of the LED board
Forced ventilation
WO KING POSITION
Working in any position
Hanging system: with fast-lock omega clamps (1/4 turn) on the base
CE MA KING
n conformity with the European Directives:
• 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
• 2014/30/EU - Electromagnetic Compatibility (EMC)
• 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
• 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
ETL
This product is available, on demand, with cETLus Listed Mark, that complies with
the UL 1573, UL 8750 and CSA C22.2 No. 166 standards.

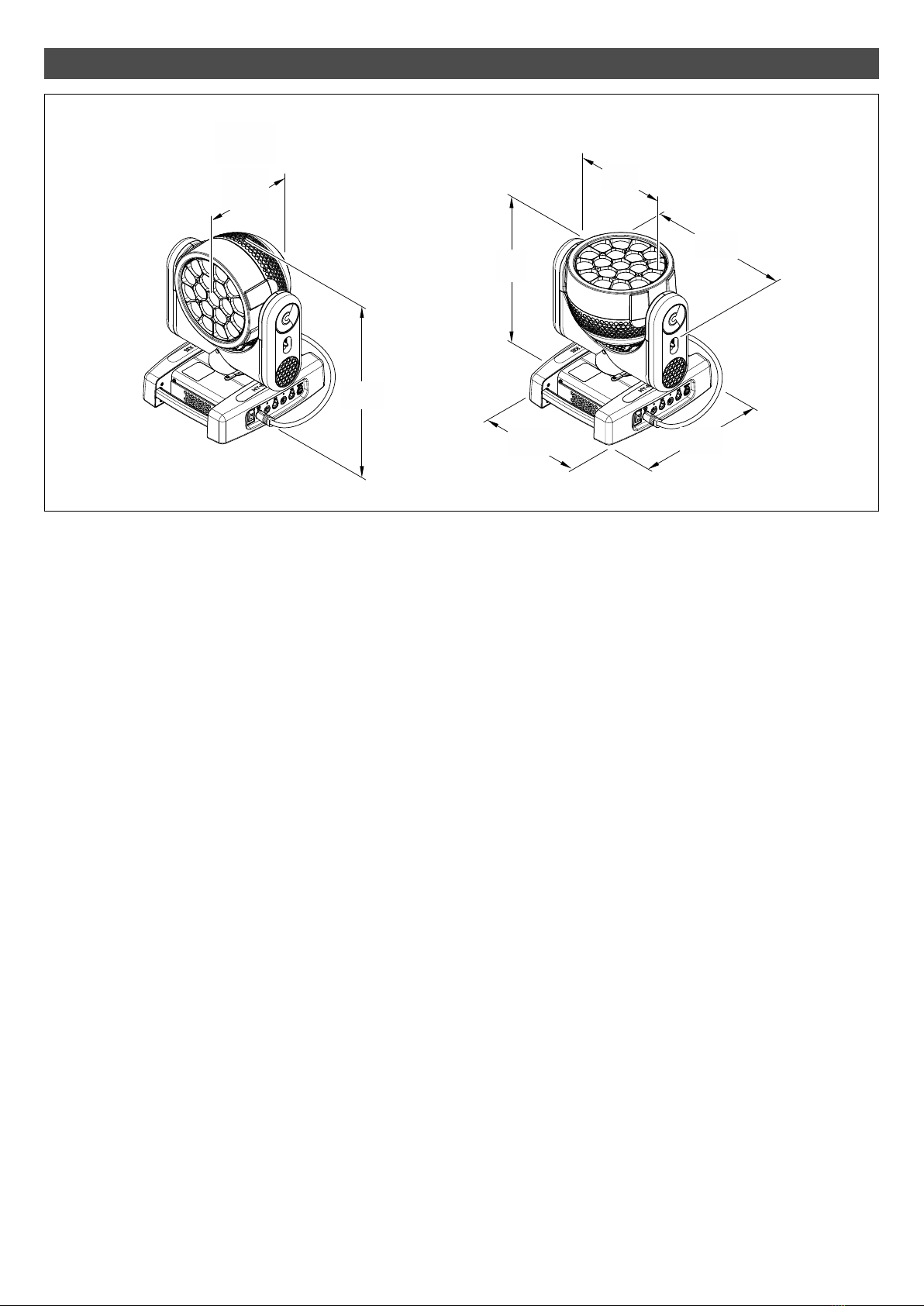

WEIGHT
20 Kg
496
(19.53")
224
(8.82")
Zoom IN
264
(10.39")
Zoom OUT
387
(15.24")
329
(12.95")
438
(17.24")
240
(9.45")
391
(15.39")

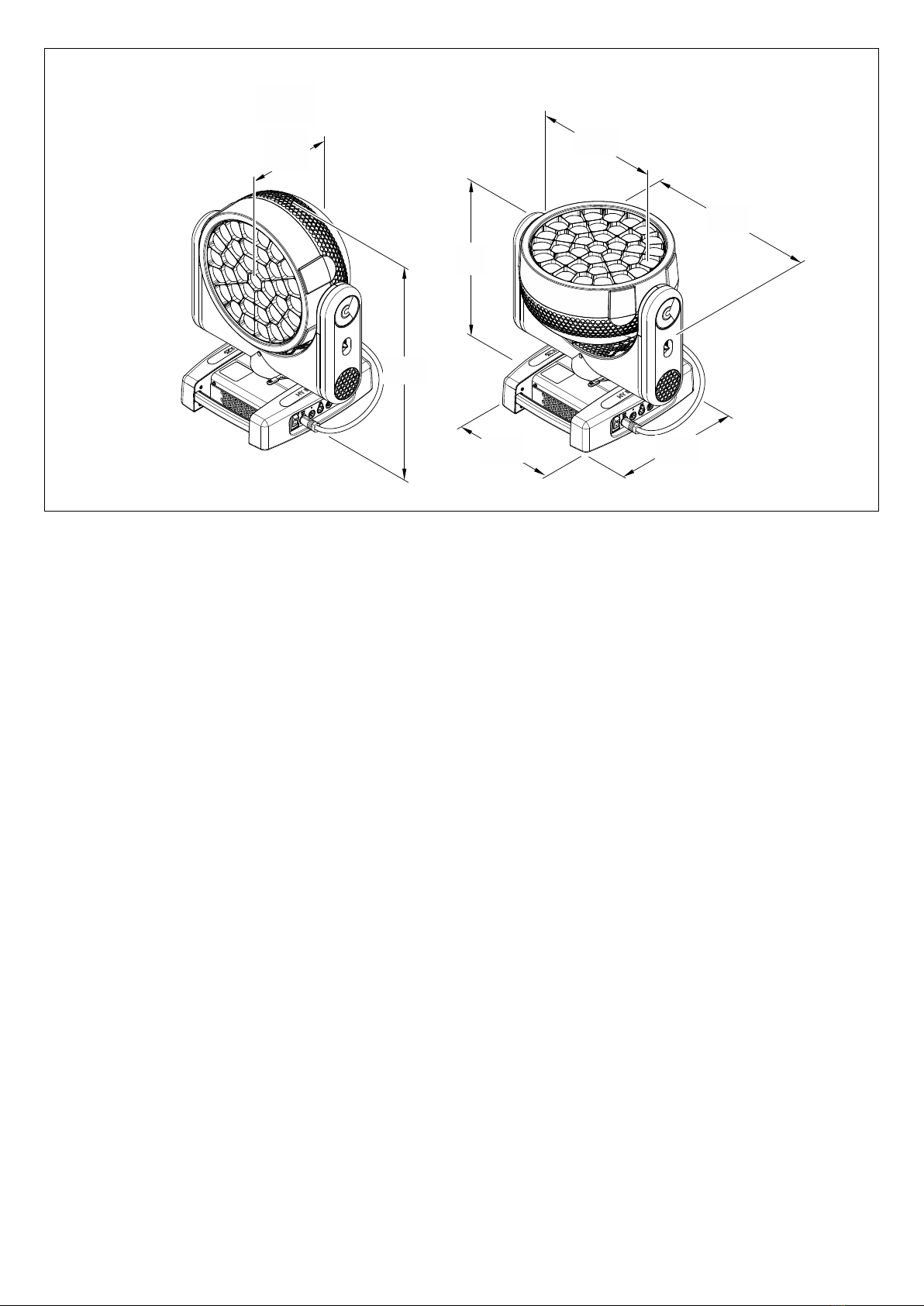

5. SPECIFICATIONS

11
HY B-EYE K15 & K25
590
(23.23")
482
(18.98")
337
(13.27")
488
(19.21")
251
(9.89")
Zoom IN
301
(11.85")
Zoom OUT
387
(15.24")
329
(12.95")
HY B-EYE K25
POWE SUPPLIES
100-240V 50/60Hz
INPUT POWE
1250 VA at 230V 50Hz
LIGHT SOU CE
37 RGBW LEDs driven at 30 Watt
- Type: OSRAM OSTAR - Stage LE RTDUW S2WN
- Color Temperature: 6,000 K
- Life: 50,000 hrs
OPTICS
4°-51° Electronic Zoom Range (pending)
EFFECTS SECTION
Three operating modes: wash, beam, FX (Kaleido effects)
Bi-directional Rotating Front Lens
Digital Wash-Beam Framing effect
Beam edge softening control (in Wash mode)
Pixel Patterning Macros with enhanced control
0-100% linear electronic dimmer
Adjustable speed stop/strobe effect, with instantaneous blackout
Dedicated channel for color temperature setting
White CT Emulation 2500-8000K
RGBW auto-tuning to lamp CT Emulation
Tungsten Lamp Emulation
Slow Strobe: 1 flash/sec; Fast Strobe: 25 flash/sec
CONT OL AND P OG AMMING
DMX protocol signal: US TT DMX 512
Art-Net / RDM
Display: Graphic LCD backlit b/w Display
Pan/Tilt Resolution: 16 bit
Dimmer Resolution: 16 bit
Movement control: Vectorial
DMX signal connection: 3 and 5 pole XLR input and output
Software upload through DMX input
BODY
Aluminum structure with die-cast plastic cover
Two side handles for transportation
PAN & T LT lock for transport and maintenance
MOVING BODY
Movement by means of two stepper motors, controlled by microprocessor
Automatic repositioning of PAN and T LT after accidental movement not
controlled by control unit
Travel:
- PAN = 540°
- T LT = 210°
ELECT ONICS
Long-life auto-charging buffer battery
Preset color and graphic effect macros
Function reset controllable from a central control unit
Menu-driven internal self-test function
Ethernet ready with RJ45 socket
Display: backlit black-and-white graphic LCD display
Electronic check-up of every single parameter with error alarm
DMX level monitoring on each channel
Automatic internal data transmission error diagnostics
Firmware upgrade even when the unit is not connected to the power supply
Firmware transfer from one light to another
SAFETY DEVICES
Automatic power safety derating in case of overheat of the LED board
Forced ventilation
WO KING POSITION
Working in any position
Hanging system: with fast-lock omega clamps (1/4 turn) on the base
CE MA KING
n conformity with the European Directives:
• 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
• 2014/30/EU - Electromagnetic Compatibility (EMC)
• 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
• 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
ETL
This product is available, on demand, with cETLus Listed Mark, that complies
with the UL 1573, UL 8750 and CSA C22.2 No. 166 standards.
WEIGHT
27 Kg

Clay Paky S.p.A. - Via Pastrengo, 3/b - 24068 Seriate (BG) taly - Tel. [phone] - Fax [phone] - www.claypaky.com
ST01D/001 – EN - Rev.0 09/2019
THE PROJECTOR W LL NOT SW TCH ON
PROBLEMS
ELECTRON CS NON-OPERAT ONAL
DEFECT VE PROJECT ON
REDUCED LUM NOS TY
POSSIBLE CAUSES CHECKS AND REMEDIES
No mains supply.
LED exhausted or defective.
Signal transmission cable faulty or disconnected.
ncorrect addressing.
Fault in the electronic circuits.
Lenses broken
Dust or grease deposited.
Check the power supply voltage.
Call an authorised technician.
Replace the cables.
Check addresses (see instructions).
Call an authorised technician.
Call an authorised technician.
Clean (see instructions).
6. CAUSE AND SOLUTION OF P OBLEMS
