Clear One Converge 560 User manual

Converge 560/590
USER’S MANUAL

ii Technical Services: 800.283.5936
TELEPHONE [phone]
1.801.974.3760
FAX [phone]
EMAIL [email protected]
TECHNICAL SUPPORT
MAX WIRELESS INSTALLATION AND OPERATION MANUAL
CLEARONE PART NO. 800-153-560 NOVEMBER 2005 (REV. 1.0)
© 2005 ClearOne Communications, iinc. All rights reserved. No part of this document m
ay be reproduced in any form or by any means without written permission from ClearOne
Communications. Printed in the United States of America. ClearOne reserves specific
privileges. Inforfrmation in this document is subject to change without notice

Table of Contents iii
TABLE OF CONTENTS
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
The Converge 560/590. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Basic Room Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Installation Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
CONNECTING THE CONVERGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Basic connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Auxiliary devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
RAV-WARE SOFTWARE CONFIGURATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Getting started with RAV-Ware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
RAV-Ware overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
RAV-Ware connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
RAV-Ware files. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Network find . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Configuring system settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Customizing Converge components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Microphone configurations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Line input and output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Record and playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Camera controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Dialer and phonebook usage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Advanced features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
USING THE CONVERGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Using the controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Programming phone preferences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

iv Technical Services: 800.283.5936
TABLE OF CONTENTS (CONTINUED)
WEB INTERFACE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Accessing the web interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Dial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Event log. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
System check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
APPENDIX. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Camera pinouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Serial commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141

Introduction 5
THE CONVERGE 560/590
The Converge product line is the first room audio conferencing solution with the sound
quality and flexibility of a professionally installed system. The Converge includes an audio
conferencing mixer that uses distributed acoustical echo-cancelling technology to provide
the most intelligible full-duplex audio conference experience possible. Features include:
• Audio mixer for high-quality audio performance in all acoustical environments.
• RF (radio frequency) controller or wired controller with call controls including auto-
answer, flash duration adjustment, ringer adjustment and phonebook with speed dial
capabilities.
• Internal telephone hybrid with touch-tone dialing capability.
• Microphone breakout box that enables a set of up to three microphones to be
connected to the Converge--these microphones can be table mics, portable mics, or
whatever type of microphone would be most suitable for the situation at hand. The
Converge 560 includes two breakout boxes connected together and the Converge
590 has three breakout boxes connected together.
SERVICE AND SUPPORT
If you need additional information on how to install, set up or operate your Converge
560/590, please contact us. We welcome and encourage your comments so we can
continue to improve our products and serve your needs.
TECHNICAL SUPPORT
Tel: [phone](USA) or 1-801-974-3760
Fax: [phone]
E-mail: [email protected]
Web: www.clearone.com
SALES AND CUSTOMER SERVICE
Tel: [phone] (USA) or 1-801-975-7200
Fax: [phone] (USA) or 1-801-977-0087
E-mail: [email protected]
PRODUCT RETURNS
All product returns require a return materials authorization (RMA) number. Please contact
ClearOne Technical Support before attempting to return your product. Make sure you
return all the items that shipped with your product and include a brief description of how
the product was being used when the problem occurred.
INTRODUCTION

6Technical Services: 800.283.5936
UNPACKING
Carefully remove all components of the Converge system from the packaging. Ensure that
you received the following items:
>Note: Rack mount ears are attached to the Mixer box. Refer to Chapter 2 of this
manual for installation instructions.
If any parts are missing, please call the Technical Support Group at 1-800-283-5936 (USA)
or 1-801-974-3760.
>Note: ClearOne is not responsible for product damage incurred during shipment. You
must make claims directly with the carrier. Inspect your shipment carefully for obvious
signs of damage. If the shipment appears damaged, retain the original boxes and
packing material for inspection by the carrier. Contact your carrier immediately.
RF Controller
or Wired Controller
Audio Mixer Microphone Breakout Box
(2 for Converge 560 &
3 for Converge 590)
MUTE
CONFERENCE
ON/OFF FLASH REDIAL





 
  
  





 


 

AAA Batteries
Qty: 4
(with RF controller)
Power Supply
12' Telephone Cable 7 ' RJ-45 Cable
Screw/Washer Rack Kit
Qty: 8
6' USB Cable
18” RJ-45 Cable
Qty: 2 for Converge 560
Qty: 3 for Converge 590
6' Power Cord
6' RCA Cable
Qty: 2
RAV-Ware Software
and Documentation CD
-30-10 -4 0 +4 +8+12
CONVERGE|590
123123123
AB C
ON/ OFF
INPUTMETERING
Microphone Breakout Box Rack Mount
FIGURE 1.1 Converge unpacking

Introduction 7
PRODUCT OVERVIEW
The following paragraphs give an overview of the Converge 560/590’s componenets.
RF (RADIO FREQUENCY) CONTROLLER/WIRED CONTROLLER
The RF controller/wired controller allows you to manage all calls, program user
preferences and adjust settings for your Converge.
KEY FUNCTIONS
MUTE
CONFERENCE
ON/OFF FLASH REDIAL
123
456
789
0#
*
ABC DEF
GHI JKL MNO
PQRS TUV WXYZ
HELP
LINE
PAUSE
MENU
ENTER
DOWN UP
PHONEBOOK
CLEAR
DOWN UP
VOLUME
FIGURE 1.2 Converge controller
FLASH
REDIAL
Function
Press once to dial the last number called.
Key
Press once to mute all microphones during a call.
Press again to unmute.
Press to activate the phone and access the dial tone. Press
again to hang up the phone.
Press once to dial stored numbers.
When you are in the Phonebook, use this key to delete characters or to
go back to the previous screen.
Press and hold for two seconds to display the status of the Converge.
(RF controller only)
Press to use call forwarding, access call waiting, or make a three-way
conference call (if supported by your telephone service).
Press down or up to navigate through the menu and phonebook.
Press while on a call to adjust call volume.
DOWN UP
STATUS
Press once to access the controller programming menu.
Once you are in the Menu, this key serves as the Enter key.
MENU
ENTER
PHONEBOOK
CLEAR
ON/OFF
VOLUME
MUTE
Indicates battery level (RF controller only)
LCD Icon
ANTENNA
SIGNAL
BATTERY
Function
Indicates commands are received and acknowledged by base unit and
represents the signal strength from the base unit to the RF controller.
FIGURE 1.3 Converge controller keypad functions

8Technical Services: 800.283.5936

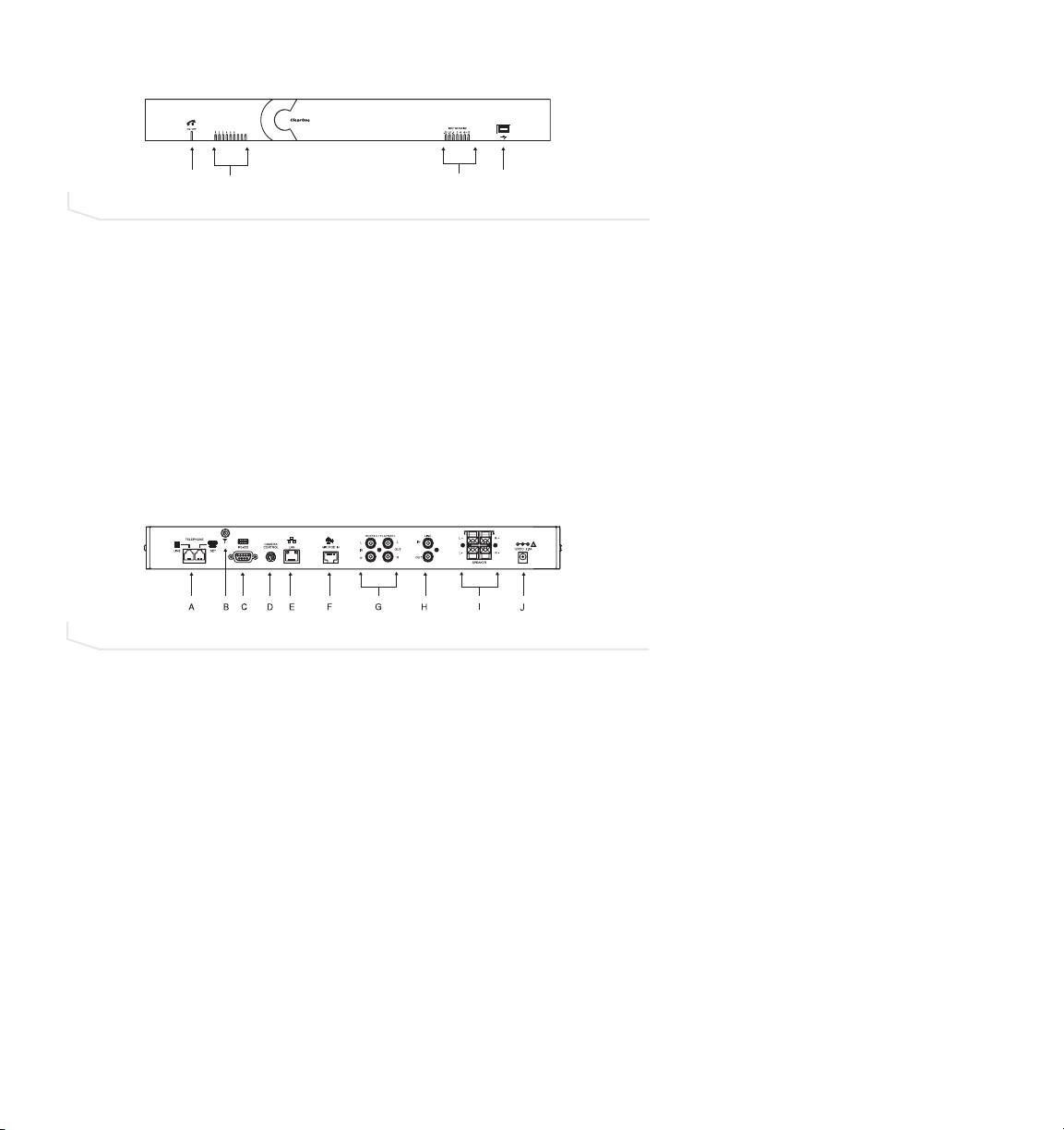

MIXER (FRONT)
A. Telephone LLED. This indicator lights red when the Converge is powered, but the telco
is on hook (not in use). The indicator lights green when the telco is off hook (in use)
and flashes green during an incoming call.
B. Microphone sstatus LLEDs. Nine indicators (Converge 590) or six indicators (Converge
560) indicate the activation status of the mic elements. When a mic element is gated,
the corresponding LED lights green. When mics are muted, the LEDs for the corre-
sponding mics turn red.
C. Meter LLEDs. These LEDs represents audio from all inputs.
D. USB pport. This port enables USB connection to a PC.
MIXER (BACK)
A. Telephone SSet, LLine. RJ-11 connection to an analog telephone jack and an analog
telephone set.
B. RF aantenna cconnector ((RF ccontroller). Connect the external RF antenna to this port.
C. RS-2232. RS-232 control port for connection to a control system such as AMX or
Crestron or to a computer.
D. Camera CControl. VISCA camera control port. This connection enables microphone
activation to trigger camera presets (voice tracking).
E. LAN. This is a 10/100 BaseT auto-detecting Ethernet port for system control through a
data network.
F. Mic PPod I
In. Use a Cat. 5 cable with RJ-45 connectors to connect the microphone
breakout boxes.
G. Playback IIn/Record OOut. RCA connection to record/playback devices such as a VCR.
H. Line IIn/Out. RCA connection to a codec, amplifier or sound card.
I. Speaker OOutput. Use speaker wire to connect these push terminals to the speakers.
J. Power 112VVDC. Power supply.

FIGURE 1.4 Converge mixer (front)
ANTENNA
FIGURE 1.5 Converge mixer (back)

Introduction 9
MICROPHONE BREAKOUT BOX
A. Power IIndicator. Indicates whether the breakout box is powered on or not--a green
light indicates ON.
B. Microphone CConnectors. You can connect up to three mics--the mics can be tabletop
mics, button mics, portable mics, etc.
C. Link CConnectors. Connect the link line to the IN connector using RJ-45 cable. Connect
the breakout box to the mixer using RJ-45 cable and connect the breakout box’s OUT
connector to the mixer’s IN connector.
FRONT VIEW
MIC 1 MIC 2 MIC 3
IN
OUT
REAR VIEW
A
B
C
FIGURE 1.6 Converge breakout box

10 Technical Services: 800.283.5936
BASIC ROOM DESIGN
To ensure best microphone and loudspeaker placement (ceiling- or wall-mount), please
use the manufacturer’s guidelines for the microphones and loudspeakers you choose to
use with your Converge system. For more information on Room Design, or to view the
Converge online training course, visit www.clearone.com.
MICROPHONES
Mic pick-up range depends on room conditions. Background noise, reflective hard
surfaces and the number of participants may affect the pick-up range. Take all of these
factors into account when determining the best placement of the microphones in your
Converge system and then adjust for your specific room conditions.
CEILING-MOUNT LOUDSPEAKERS
For best performance, ceiling loudspeakers should be installed as recommended by the
manufacturer, depending on the kind of microphone being used. For example, if you are
using ClearOne delta mics, then it is recommended that the ceiling loudspeakers be
installed directly above the microphones. For example, if you have a Converge 590 with
three ClearOne delta mics, you would install the ceiling loudspeakers above the first and
third mics.
WALL-MOUNT LOUDSPEAKERS
For best performance, place the left channel loudspeaker on the left side of the room and
the right channel loudspeaker on the right and make sure the back of each loudspeaker is
parallel to the front wall. (Refer to the manufacturer’s specifications and instructions for
ideal loudspeaker placement.)
FOR BEST RF CONTROLLER PERFORMANCE
• Do not install the Converge mixer in a metal cabinet unless you are using the remote
antenna accessory. Part number 910-153-050.
• Keep the mixer within line of sight of the RF controller, such as on the top of a
credenza.
• Ensure antenna is connected to the back of the mixer and is pointed up.
• If installing the mixer in an equipment rack, make sure it is placed at or near the top of
the rack.
FOR BEST AUDIO PERFORMANCE
• Use the provided cables.
• Do not move microphones while on a call.
• Speak at a normal conversation level and direct your voice toward the microphones.
• Do not place microphones next to fans, projectors or computers.

Introduction 11
INSTALLATION OVERVIEW
Carefully consider the following items in order to ensure yourself of a smooth installation
process.
READ THE USER MANUAL
Please read through this manual to familiarize yourself with the Converge system. Refer to
the Help file in RAV-Ware for information on the software. Read through all requirements
and safety information to be sure you set up and configure your Converge correctly.
MAKE SURE YOUR NETWORK IS READY
Review all system requirements. Then check with your network administrator to be sure
your network meets all the Converge requirements.
CONNECT CABLES
Connect cables. If you are planning on using the Converge for web or videoconferencing,
you’ll need to connect peripheral equipment. See Chapter 2, Connecting the Converge.
INSTALL SOFTWARE
Install RAV-Ware and then use to adjust sound levels and to configure settings for
additional equipment such as a video codec or a recording device. See Chapter 3, RAV-
Ware Software Configuration.
BEGIN USING
Use the controller to answer and make calls. See Chapter 4, Using the Converge.
SYSTEM REQUIREMENTS FOR RAV-WARE
>Note: Using a USB-to-serial adapter is not recommended.
Operating System and RAM Windows 2000 256 MB RAM
Windows XP 256 MB RAM
Processor 300 MHz Pentium III or better
Monitor 1024 x 768 SVGA (16 bit) high color
Video Card SVGA 1024 x 768 minimum
Free Hard Disk Space 20 MB minimum
RS-232 COM port Up to 115,200 baud rate
USB port USB 1.1–2.0
Flash Support Macromedia Flash Player 7.0
Component Requirement

12 Technical Services: 800.283.5936
NETWORK INFORMATION
To use Converge over a local area network (LAN), you need to know if the LAN uses
Dynamic Host Configuration Protocol (DHCP) or if you need a static IP address.
If the LAN uses DHCP, there is no need to make any network adjustments. If the LAN does
not use DHCP, gather the following information prior to LAN setup:
• The IP address to be assigned to the Converge.
• The subnet mask.
• The IP address of the default gateway.
• The network name to be assigned to Converge.

Connecting the Converge 13
BASIC CONNECTIONS
Connecting the Converge should be a smooth process. Once basic connections for audio
conferencing are made, the system is ready to use.
SETTING UP AUDIO CONFERENCING
1. If you are installing the mixer into a rack, remove the side panels, rotate them and
then reattach.
2. Connect the first microphone breakout box to the mixer with the 18” Cat. 5 cable.
CONNECTING THE CONVERGE
18”/45.72cm
Mixer
MIC 1 MIC 2 MIC 3
IN
OUT
MIC POD IN
RECORD / PLAYBACK
L
R
IN
L +
L -
R +
R -
SPEAKER
IN OUT
LINE
12VDC 2.5A
+
-
!
Breakout Box
FIGURE 2.1 Attach rack ears
FIGURE 2.2 Connect to first microphone breakout box

14 Technical Services: 800.283.5936
3. Connect the second and third microphone breakout boxes using the 18” Cat. 5
cables. (Third breakout box on the Converge 590 only).
4. Connect the microphones to the breakout boxes, as desired.
5. Connect the speakers to the mixer.
>Note: For best performance, speakers must be installed properly. Refer to the
manufacturer’s instructions included with your loudspeakers.
Mixer
MIC POD IN
RECORD / PLAYBACK
L
R
IN
L +
L -
R +
R -
SPEAKER
IN OUT
LINE
12VDC 2.5A
+
-
!
MIC 1 MIC 2 MIC 3
IN
OUT
Breakout Box #1
MIC 1 MIC 2 MIC 3
IN
OUT
MIC 1 MI
C
IN
OUT
Breakout Box #3
Breakout Box #2
60’

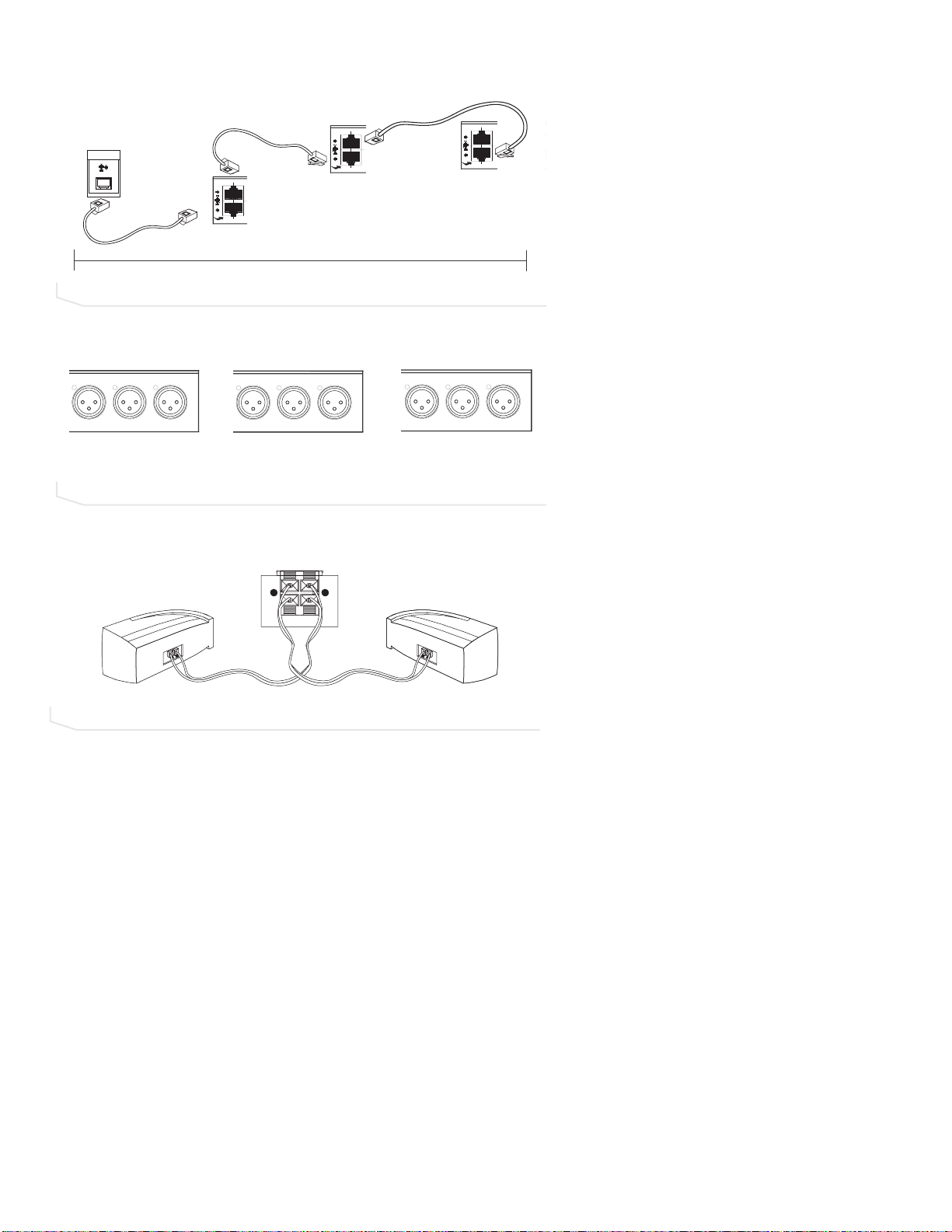

FIGURE 2.3 Connect additional microphone breakout boxes
Breakout Box #1
(Microphones A1-A3)
Breakout Box #3
(Microphones C1-C3)
Breakout Box #2
(Microphones B1-B3)
MIC 1 MIC 2 MIC 3
IN
OUT
MIC 1 MIC 2 MIC 3
IN
OUT
MIC 1 MIC 2 MIC 3
FIGURE 2.4 Connect microphones
L +
L -
R +
R -
SPEAKER
FIGURE 2.5 Connect speakers

Connecting the Converge 15
6. Using the RJ-11 cable, connect an analog telephone jack to the Line jack on the
mixer.
>Note: For instructions on connecting to a digital phone line, refer to page 20.
7. Using an RJ-11 cable (not supplied), connect an analog telephone set to the Set jack
on the mixer (optional).
8. Using the 7' Cat. 5 cable, connect the mixer to the network. (Network settings can be
changed in RAV-Ware.)
CAMERA
CONTROL LAN
RS-232
TELEPHONE
SET
LINE

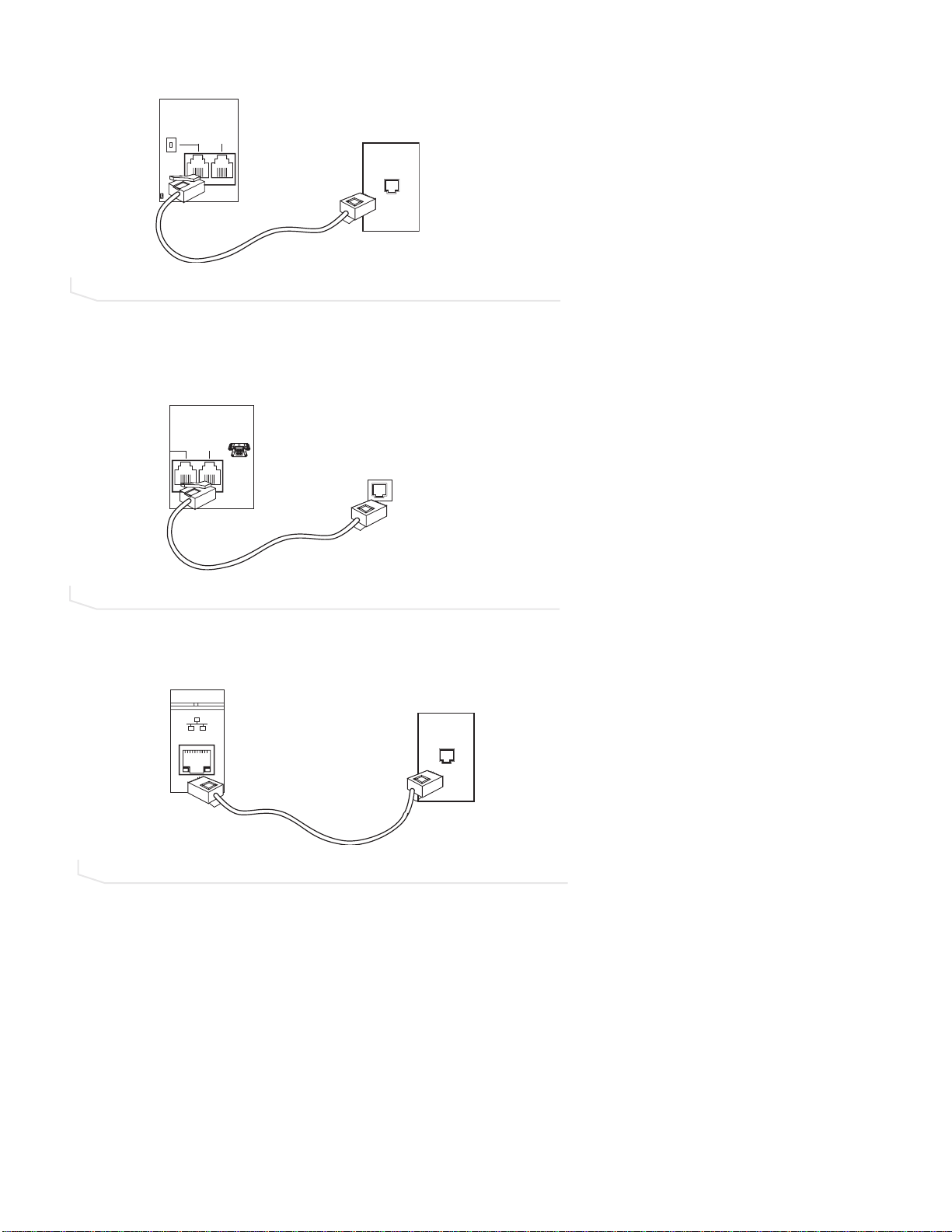

FIGURE 2.6 Connect telephone cable
CAMERA
CONTROL
RS-232
TELEPHONE
SET
Connection o
n
analog hands
et
FIGURE 2.7 Connection to analog handset
MIC POD IN
RECORD / PLAYBACK
L
R
L
R
IN
OUT
IN OUT
CAMERA
CONTROL
LAN
RS-232
SET
FIGURE 2.8 Connection to network

16 Technical Services: 800.283.5936
9. Using the power supply cords, connect the mixer to an electrical outlet.
10. If using the wired controller, connect the controller to the mixer’s RS-232 serial port
using the supplied RJ-11 to DB-9 adapter (see figure 2.10). If using the RF controller,
attach the external antenna and turn it until it is upright (see figure 2.11).
12VDC 2.5A
+
-
!
FIGURE 2.9 Connection to electrical outlet
TELEPHONE
LINE
RS-232
SET
FIGURE 2.11 Attach external antenna for RF controller
MIC POD IN
RECORD / PLAYBACK
L
R
L
R
IN
OUT
L +
L -
R +
R -
SPEAKER
IN OUT
LINE
CAMERA
CONTROL LAN
RS-232
TELEPHONE
SETLINE 12VDC 2.5A
+
-
!
40’/12.2m
MUTE
CONFERENCE
ON/OFF FLASH REDIAL





#$% &'(
)*+ ,-. /01
234 678 9:;<
*'.2
.+0'
2#7 '
/'07
'06'4
&190 72
2*10'$11-
%.'#4
&190 72
81.7/'
FIGURE 2.10 Attach wired controller to mixer

Connecting the Converge 17
11. If using the RF controller, insert four AAA batteries into the battery compartment in the
bottom of the unit.
AUXILIARY DEVICES
The mixer allows connection to a number of different audio and video peripherals, such as
video codecs, VCRs, cameras and computers.
CONNECTING VIDEO CODECS, AMPLIFIERS, AND SOUND CARDS
Line input/output devices such as video codecs, amplifiers and sound cards can be con-
nected to the Line In or Line Out connectors on the Converge mixer. These connectors
provide mono-audio.
To connect a video codec
1. Using an RCA cable, connect the Line IInon the Converge mixer to the line out on a
video codec.
2. Using an RCA cable, connect the Line OOut on the Converge mixer to the line in on a
video codec.
Batteries
Back of Controller
FIGURE 2.12 Insert batteries
IN
OUT
LINE
FIGURE 2.13 Connecting a Line In/Out device

18 Technical Services: 800.283.5936
To connect a sound card
1. Using an RCA cable, connect the Line IInon the Converge mixer to the line out on a
sound card.
2. Using an RCA cable, connect the Line OOut on the Converge mixer to the line in on a
sound card.
To connect to an amplifier
1. Using an RCA cable, connect the Line OOut or Record OOut on the Converge mixer to
the line in on an amplifier.
>Note: Use RAV-Ware to adjust the equalization and volume of these devices. Refer to
pages 39–46 for more information. When using RAV-Ware, be sure to drag the amplifi-
er to the correct device (either line out or record). This will properly assign the AEC
reference and change the volume command on the controller to control the external
amplifier volume.
IN
OUT
LINE
FIGURE 2.14 Connecting a sound card
IN
OUT
LINE
R
FIGURE 2.15 Connecting an amplifier

Connecting the Converge 19
CONNECTING VCRS AND DVD PLAYERS
You can record your audio/video conference or play audio using a playback device such
as a VCR or DVD player.
To connect to record/playback
1. For recording, connect the Left and Right Audio Out on the Converge to the left and
right audio in on the VCR or DVD player.
2. For playback, connect the Left and Right Audio In on the Converge to the left and
right audio out on the VCR or DVD player.
>Note: You can also connect a mono-signal device or a non-record/playback device to
these line in/out connectors.
CONNECTING PTZ CAMERAS
The Converge system provides voice-tracking capabilities through VISCA control port con-
nection to a Pan, Tilt, Zoom camera. Voice Tracking allows the camera to move to preset
positions based on microphone activation. For instructions on programming the presets,
see page 47.
To add a camera
1. Connect the camera to the Camera CControl port on the mixer.
>Note: The camera video out signal connects to a video codec.
PLAYBACK / RECORD
L
R
L
R
IN OUT
FIGURE 2.16 Connecting a record/playback device
CAMERA
CONTROL
FIGURE 2.17 Connecting a camera

20 Technical Services: 800.283.5936
CONNECTING FOR SERIAL CONTROL
You can connect a computer or a control device, such as an AMX or Crestron, to the
Converge mixer through the serial control port. See page 83 for a list of the serial
commands.
To connect to a computer through the serial port
1. Connect computer to Control port on the back of the mixer using a 9-pin straight-
through serial cable.
CONNECTING FOR USB CONTROL
You can also connect a computer to the Converge through the USB port.
To connect to a computer through the USB port
1. Connect computer to the USB port on the front of the mixer using a USB cable.
MIC POD IN
CAMERA
CONTROL LAN
RS-232
TELEPHONE
SET
FIGURE 2.18 Connecting a computer serially
FIGURE 2.19 Connecting a computer through the USB
