ClearSpan PB00590R3 User manual

1
CLEARSPAN™POLY BUILDINGS
Revision date: 05.08.18
©2018 ClearSpan™
All Rights Reserved. Reproduction
is prohibited without permission.
ClearSpan™

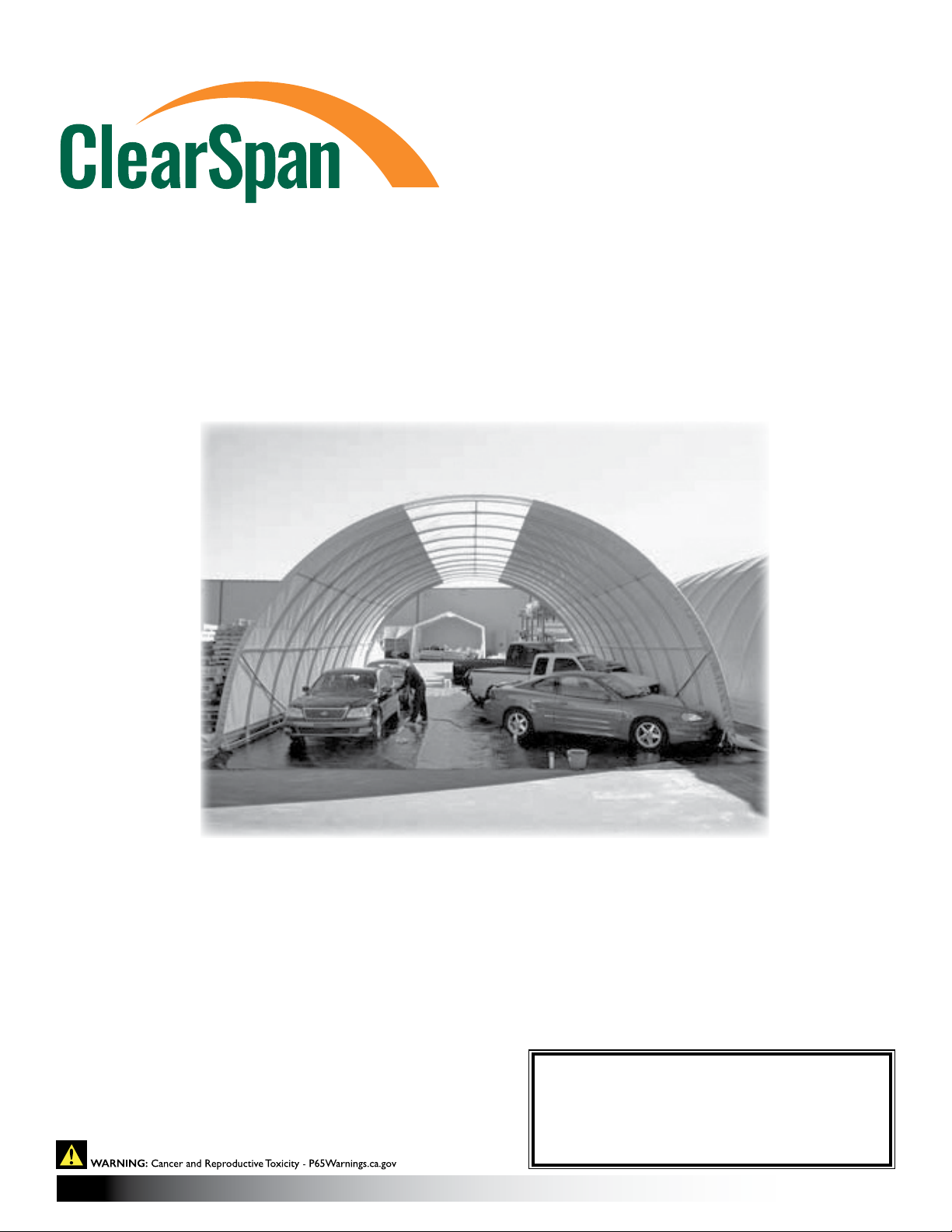

26' Wide Free-Standing Building
Photo may show a different but similar model.
STK# DIMENSIONS
PB00590R3/R4 26' W x 12' H x 24' L
PB00592R3/R4 26' W x 12' H x 36' L
PB00594R3/R4 26' W x 12' H x 48' L

CLEARSPAN™POLY BUILDINGS
2Revision date: 05.08.18
YOU MUST READ THIS DOCUMENT BEFORE YOU
BEGIN TO ASSEMBLE THE SHELTER.
Thank you for purchasing this ClearSpan™ shelter. When
properly assembled and maintained, this product will
provide years of reliable service. These instructions include
helpful hints and important information needed to safely
assemble and properly maintain the shelter. Please read
these instructions before you begin.
If you have any questions during the assembly, contact
Customer Service for assistance.
SAFETY PRECAUTIONS
• Wear eye protection.
• Wear head protection.
• Wear gloves when handling metal tubes.
• Use a portable GFCI (Ground Fault Circuit Interrupter)
when working with power tools and cords.
• Do not climb on the shelter or framing during or after
construction.
• Do not occupy the shelter during high winds,
tornadoes, or hurricanes.
• Provide adequate ventilation if the structure is
enclosed.
• Do not store hazardous materials in the shelter.
• Provide proper ingress and egress to prevent
entrapment.
ANCHORING INSTRUCTIONS
Prior to assembling this shelter, please read the anchoring
precautions and instructions included with the kit.
Anchoring instructions are included in the MUST READ
document. You must anchor the building after the frame is
assembled and before the cover is installed.
WARNING: The anchor assembly is an integral part
of the shelter construction. Improper anchoring may
cause shelter instability and failure of the structure.
Failing to anchor the shelter properly will void the
manufacturer’s warranty and may cause serious injury
and damage.
LOCATION
Choosing the proper location is an important step before
you begin to assemble the structure.
The following suggestions and precautions will help you
determine whether your selected location is the best
location.
• Never erect the structure under power lines.
• Identify whether underground cables and pipes are
present before preparing the site or anchoring the
structure.
• Location should be away from structures that could
cause snow to drift on or around the building.
• Do not position the shelter where large loads such as
snow and ice, large tree branches, or other overhead
obstacles could fall.
SITE
After choosing a location, proper preparation of the site is
essential. The following site characteristics will help ensure
the integrity of the structure.
• The support structure must be level to properly and
safely erect and anchor the frame.
• If the site is not level, use footing to provide a secure
base for the structure. Pre-cast concrete blocks,
pressure-treated wood posts, or poured footings are all
acceptable when properly used.
• Drainage: Water draining off the structure and from
areas surrounding the site should drain away from the
site to prevent damage to the site, the structure, and
contents of the structure.
WARNING: The individuals assembling this structure
are responsible for designing and furnishing all
temporary bracing, shoring and support needed during
the assembly process. For safety reasons, those who
are not familiar with recognized construction methods
and techniques must seek the help of a qualified
contractor.
ASSEMBLY NOTE: Install Tek screws using a
clutched drill driver running approximately 750 RPM
while applying approximately 50 lbs of force.
Do not use an impact driver!

3
CLEARSPAN™POLY BUILDINGS
Revision date: 05.08.18
ASSEMBLY PROCEDURE
Following the instructions as presented will help ensure
the proper assembly of your shelter. Failing to follow these
steps may result in an improperly assembled and anchored
shelter and will void all warranty and protection the owner is
entitled to.
The steps outlining the assembly process are as follows:
1. Verify that all parts are included in the shipment. Notify
Customer Service for questions or concerns.
2. Read these instructions, the Must Read document, and
all additional documentation included with the shipment
before you begin assembling the shelter.
3. Gather the tools, bracing, ladders (and lifts), and
assistants needed to assemble the shelter.
4. Check the weather before you install the roof cover
and any panels (if equipped). Do not install covers or
panels on a windy or stormy day.
5. Re-evaluate the location and site based on the
information and precautions presented in the
documentation included with the shipment.
6. Lay out the site (if this has not been completed).
7. Assemble the frame components in the order they are
presented in these instructions.
8. Assemble the frame including the bracing (if equipped).
9. Consult the Must Read document for anchoring
comments and instructions.
10. Install, tighten, and secure the end panel (if equipped)
and main cover. This applies to fabric covers that
stretch over the frame assembly.
11. Read the care and maintenance information at the end
of these instructions.
12. Complete and return all warranty information as
instructed.
LIST OF WORDS AND PHRASES
Before you begin, it is important to become familiar with the
words and phrases used in this instruction manual.
These words and phrases are common to most
ClearSpan™ shelters and identify the different parts of
the shelter. (Some are used in this document. Others may
not apply to this particular shelter.) These terms describe
the shipped parts and can also be found on the materials
list/spec sheets included with the shipment. To aid in the
assembly, read through the following definitions before you
begin to assemble your shelter.
• Conduit: An assembly of pipes used to secure the
main cover and end panels (if equipped). Purlins and
some strut assemblies also consist of connected pipes
to form a conduit. Each pipe joint of a conduit assembly
is secured with a self-tapping Tek screw.
• Coupler or Fitting: A part of the frame assembly
where legs, purlins and rafter pipes are inserted and
secured. In most instances, 3-Way and 4-Way couplers
are used. In some larger applications, couplers are
used to secure the joints of the different rafter sections
during the assembly of the rafters. Some shelters do
not use couplers.
• Base Plate: The part attached to and found at the base
of the rafter or leg of the shelter. Depending on the
shelter, the base plate is an optional purchase. Some
shelters do not offer an optional base plate; some use
1-Way connectors; others use ground posts.
• Must Read Document: This document includes
building and shelter anchoring instructions, steps for
end wall reinforcement, safety precautions, and notices
and warnings. The Must Read document is sent with all
shelters and buildings. If you did not receive a Must
Read document, contact Customer Service to request
one.
• On-Center: Term used to describe a measurement
taken from the vertical center of the rafter or frame
member to the vertical center of another.
• Purlin or Angled (or Lateral) Bracing: The pipe
assemblies that run perpendicular to the rafters
or framework that supports the main cover. These
assemblies are found on the sides and roof areas of
the assembled frame, are evenly spaced, and typically
run from the front to the back of the shelter.
• Plain or Straight Pipe: A term used to describe a pipe
that has the same diameter or width throughout its
entire length.
• Strut: A strut is usually a length of pipe with two
flattened ends and is used for diagonal bracing of the
shelter frame. A strut is typically secured to the frame
work by special brackets, bolts, and/or clamps.
• Swaged End or Swaged Pipe: The term "swaged''
refers to the tapered end of the pipe or tube. Swaged
ends of a pipe can be inserted into couplers and the
straight ends of other pipes of the same diameter.
• Tek Screw: A self-tapping fastener used to secure pipe
joints and to fasten brackets to rafters.

CLEARSPAN™POLY BUILDINGS
4Revision date: 05.08.18
REQUIRED TOOLS
The following list identifies the main tools needed to
assemble the shelter. Additional tools and supports may be
needed depending on the structure, location, and
application.
• Tape measure or measuring device
• Marker
• Variable speed drill and impact driver (cordless with
extra batteries works best)
• Wrenches or ratchet and socket set (recommended)
• Scissors or utility knife to cut cover material and strap
• Tool to cut cable to the required length
• Hammers, gloves, and eye protection
• Ladders, work platforms, and other machinery for lifting
designed to work safely at the height of the shelter
• Rope (or straps) for cover installation
UNPACK AND IDENTIFY PARTS
The following steps will ensure that you have all the
necessary parts before you begin to assemble the shelter.
1. Unpack the contents of the shipment and place where
you can easily inventory the parts. Refer to the Bill of
Materials/Spec Sheets.
2. Verify that all parts listed on the Bill of Materials/Spec
Sheets are present. If anything is missing or you have
questions, consult the Pictorial Parts Guide and all
shelter diagrams throughout these instructions for
clarification, or contact Customer Service.
NOTE: At this time, you do not need to open the plastic
bags containing the fasteners (if used).
QUICK START GUIDE
For a quick overview of this shelter and its components,
consult the Quick Start Guide near the back of these
instructions.

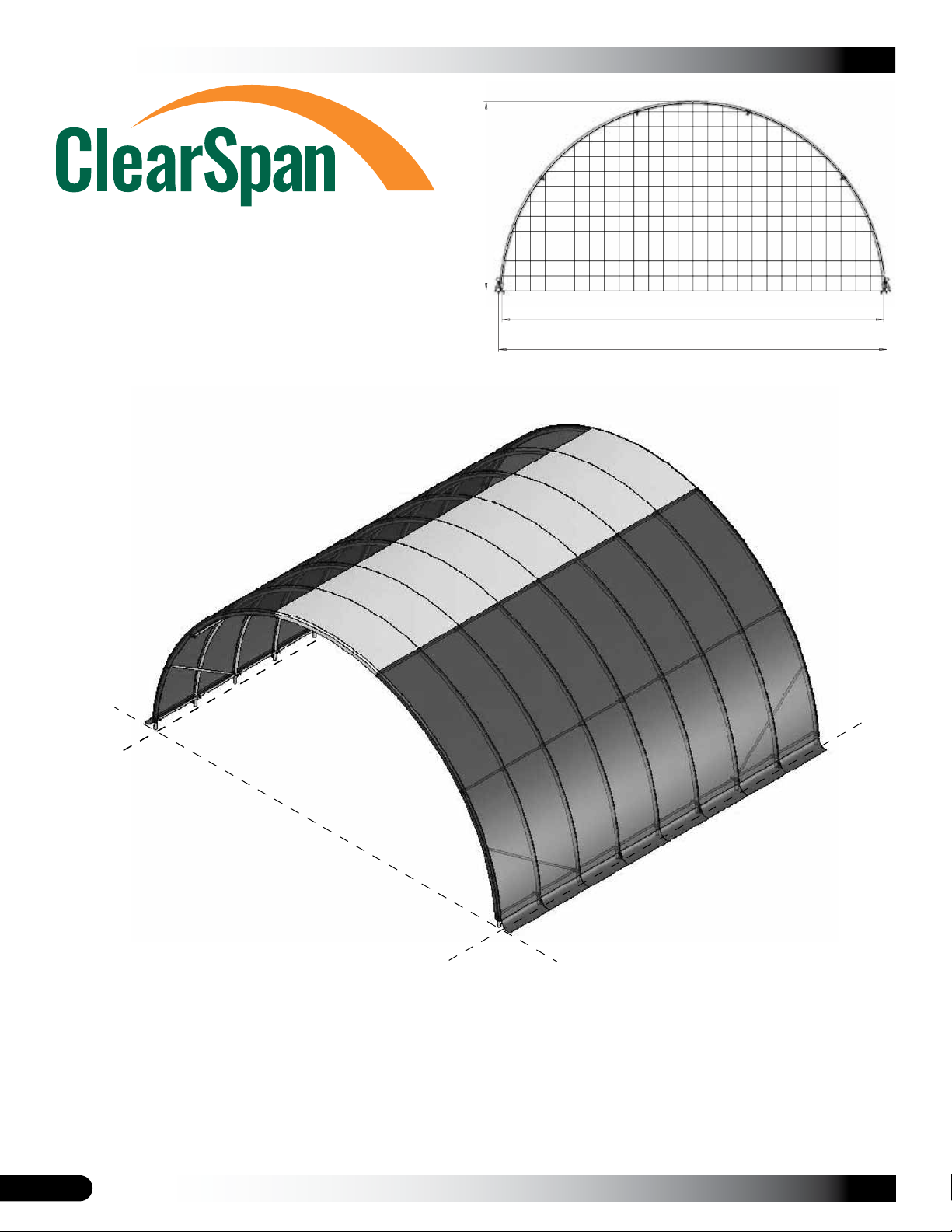

The pages of the Quick Start Guide show exploded views
of all critical connections. Use the diagrams in the Quick
Start section to assemble the frame of your building.
Consult the remainder of these instructions for important
details that will help during the construction.
SPECIAL NOTE: Boards for Frame Assembly
These instructions recommend installing a board under the
base plates along each side of the frame. The board runs
from front to the back of the building.
This board is not included with the shipment and must be
supplied by the customer. Treated lumber works best.
When installed properly, the board helps prevent the shelter
from sinking into the ground when anchored. The board
also provides a surface to attach base plates.
Consult these instructions, or contact Customer Service
for additional information regarding the installation of these
boards.

5
CLEARSPAN™POLY BUILDINGS
Revision date: 05.08.18

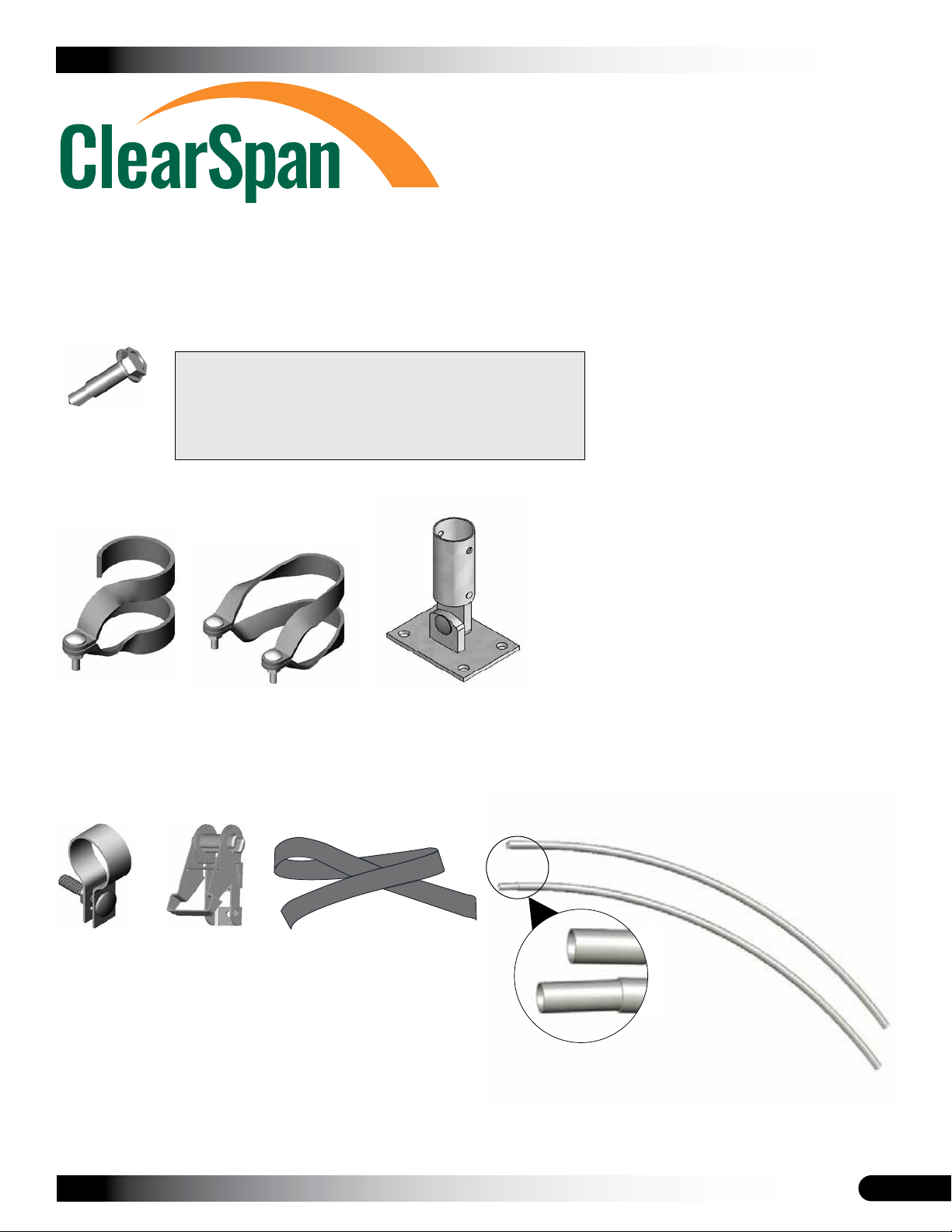

FA4482B
Tek Screw
102857
End Clamp
102547
Cross Connector
QH1061
Ratchet
103620b
Plain End Strap
Swaged
Plain

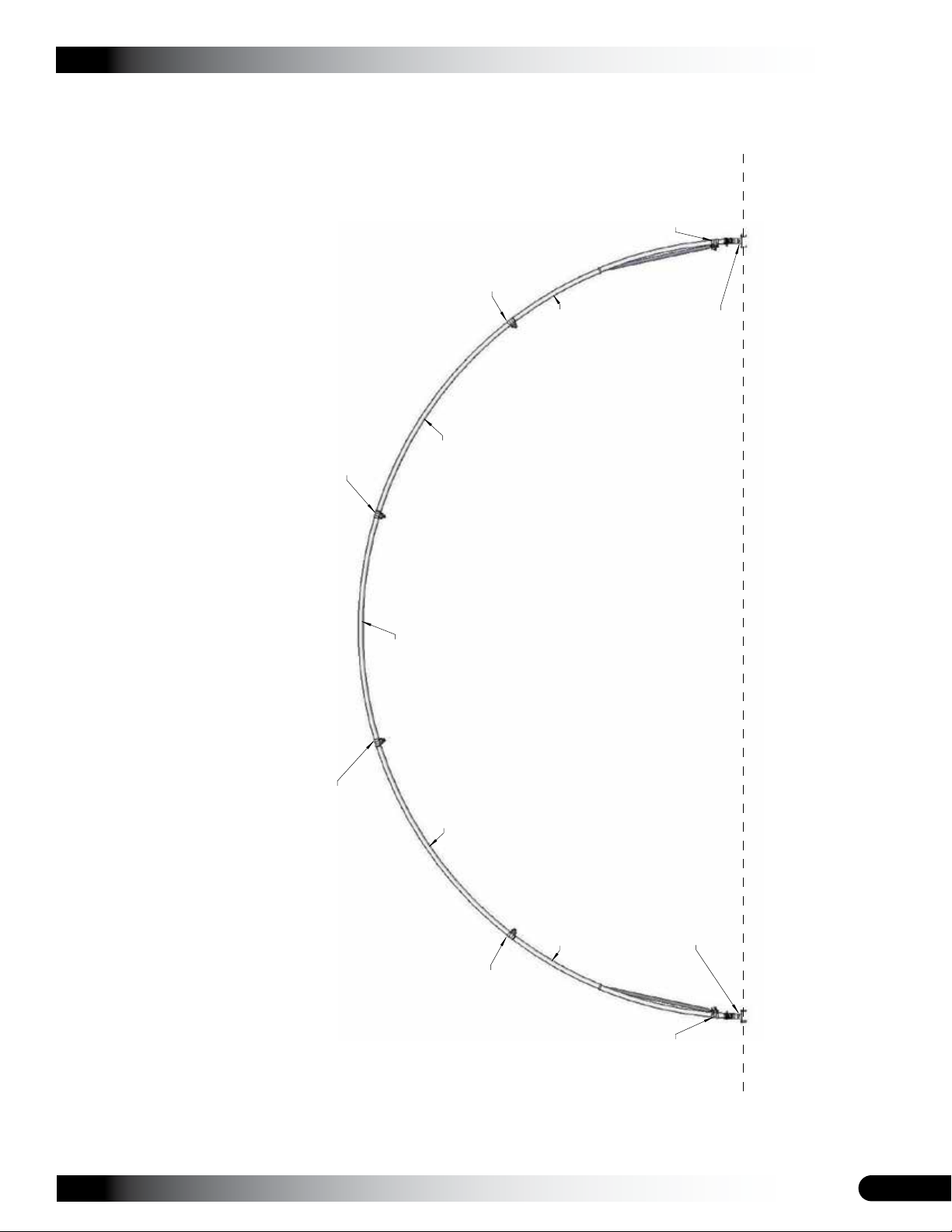

Swaged and Plain Rafter Sections
QH1400 &
QH1404
Band Clamp

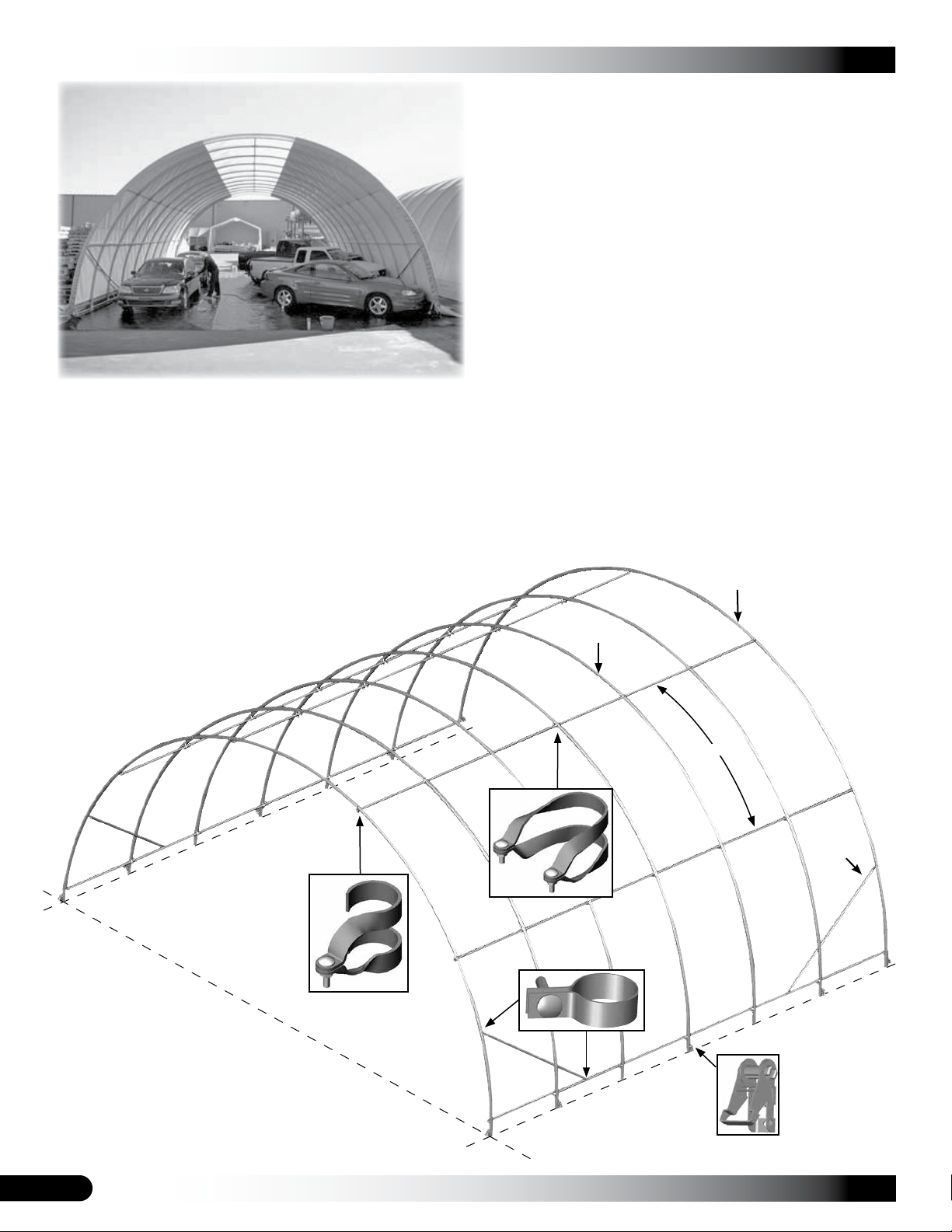

The following graphics and photos will help you identify the different parts of the building. Consult the Quick Start Guide
for additional details and diagrams. (All parts are not shown.)
104302
Base Plate
ASSEMBLY NOTE: Install Tek screws using a
clutched drill driver running approximately 750 RPM
while applying approximately 50 lbs of force.
Do not use an impact driver!

CLEARSPAN™POLY BUILDINGS
6Revision date: 05.08.18
End Rafter
Strut
Inside
Rafter
Purlins
ATTENTION: Frame shown may
differ slightly from actual frame.
Photo may show a different but similar model.
ClearSpan™
Free-Standing Building
OVERVIEW
This section describes assembling your free-standing
building. For details of each assembly procedure, consult
the Quick Start Guide and the individual sections of these
instructions. See illustration below to identify main parts of
shelter.
1. Layout the site and identify the required parts for each
assembly procedure.
2. Assemble all rafters.
3. Assemble and anchor the frame.
4. Prepare and install the main cover.
The instructions that follow describe assembling all rafters
and then constructing the frame. Depending on the number
of individuals assisting with the construction, it may be best
and more efficient to have someone assemble the rafters
and others assemble the frame as rafters are completed.
Other factors to consider during the assembly, especially
for buildings longer than 60', include:
• Amount of working area
• Available lifts and work platforms
• Number of assistants
Ground Level

7
CLEARSPAN™POLY BUILDINGS
Revision date: 05.08.18
LAY OUT THE BUILDING SITE
After the site is prepared, identify the location of the shelter
corners to help square the frame after it is assembled.
Taking these steps before assembling the shelter saves
time and ensures that the structure is positioned as
desired. The following procedure is a suggested method.
Its use depends on the size of the shelter, shelter
application, the footings, and the method used to anchor
the shelter.
SQUARE THE SITE
1. Identify a corner where a building rafter will be
positioned, drive in a stake, and string a line the exact
width of the building and stake in place. (Width of the
rafter is measured from center-to-center of the rafter
legs.)
2. Sting a line at least as long as the building from the first
stake at 90°.
NOTE: A transit can be used to ensure an accurate 90°
angle, or the 3-4-5 rule can be used. Refer to diagram.
Using multiples of 3-4-5 such as 6-8-10 or 12-16-20
helps to maintain an accurate 90° angle.
3. After squaring the position of the building and placing
a stake at all corners, string a line between the stakes
to mark the base of the building.
4. Next, paint or mark a line on the ground using the
strings between the stakes as guides.
NOTE: If boards are
used, drill holes through
them at evenly-spaced
intervals along the
length. Drive a rod
through each hole and
into the site to prevent
the boards from shifting
and to maintain the
on-center width of the
building.
Actual rafter is not shown.
Board
Rod or Ground
Stake
NOTE: Setting customer-supplied boards on the site in
the correct positions is another way to prepare for the
frame assembly.
The boards can be "pinned" in place using rods driven
into the site through evenly-spaced holes drilled in
the board. This prevents them from shifting during
assembly.
Building width is measured on-center.
5. After marking the outline of the building, continue with
the rafter assembly instructions.

CLEARSPAN™POLY BUILDINGS
8Revision date: 05.08.18
ASSEMBLING THE RAFTERS
NOTE: Assistance is required to assemble the rafters.
Gather the parts:
• Rafter pipe (#26R1902)
• Rafter pipe (#26R1901) & rafter pipe (#26R1901D)
• Purlin end clamps (#102857)
• Band clamps (#QH1404)
• Tek screws
• Magnetic nut setter (3/8'' x 2-9/16")
1˝
Tek screw
Rafter Assembly Procedure
Each rafter assembly consists of five (5) rafter sections:
four (4) swaged sections, one (1) plain section at top.
ATTENTION: Set four (4) of the above rafter pipe and
base plate assemblies aside to be used for end rafter
assembly shown on the next page.
2. Slide swaged portion of each rafter pipe into plain end
of pipe as shown.
3. With main rafter pipes seated at each joint and the
rafter positioned on a flat surface, secure each joint
using a single self-tapping Tek screw. Position Tek
screw approximately 1'' from pipe joint.
ATTENTION: Install screws so they will not touch cover
once it is installed. When attaching the base plate and
pipe assemblies, ensure base plates align with each
other on the same rafter.
Remember to set two (2) rafters aside for the next
procedure: END RAFTER ASSEMBLY.
4. Assemble rafters as described and continue with the
assembly of the two (2) end rafters.

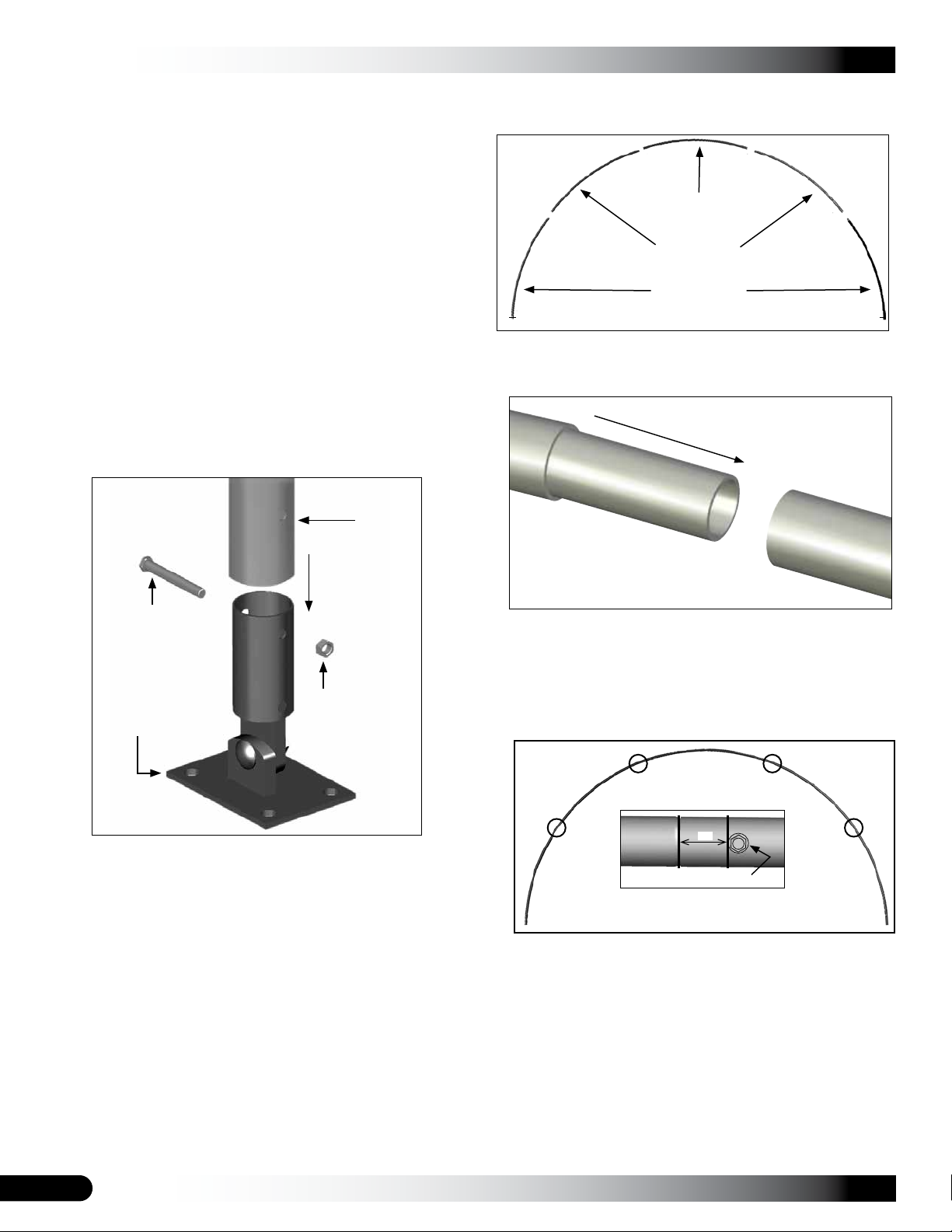

ATTACH BASE PLATES
1. Attach a base plate (104301) to each 26R1901D pipe
using a 5/16" hex head bolt (FAG336B) and a nut
(FALB02B).
2. Repeat step to attach all remaining base plates to the
26R1901D rafter pipe.
3. Continue with RAFTER ASSEMBLY instructions.
1. Select the five (5) pipes needed to assemble a rafter
and arrange these on a flat surface as shown below.
Bolt head to the
outside of the
shelter.
104301
Base Plate
FAG336B
Bolt
FALB02B
Nut
26R1901D
(#26R1901D)
(#26R1902)
(#26R1901)

9
CLEARSPAN™POLY BUILDINGS
Revision date: 05.08.18
RAFTER ASSEMBLY (CONTINUED)
4. Repeat procedure to assembly final end rafter.
5. Continue with next procedure.
Toward the inside
of the frame when
assembled.
#102856
End Rafter
Purlin
END RAFTER ASSEMBLY
In addition to the steps in the previous procedure, complete
the following steps for two (2) end rafters only.
1. Take one of the remaining assembled rafters and place
it on a flat surface.
2. Slide six (6) end clamps and two (2) band clamps onto
the rafter in the locations noted below. (Do not secure
the clamps to the rafter at this time. These clamps are
repositioned during the frame assembly when the
purlins are added.)
View of end rafter and clamps as shown is from the
outside when frame is assembled.
NOTE: Position all clamps as shown. Use a piece of
duct tape to keep clamps from sliding when rafter is
set in place if desired. Below: Position all end clamps
to prepare for frame assembly. Purlin pipe is installed
during frame assembly.
3. After installing clamps, ensure base plates are aligned.
See diagrams to the right.
Center Line of Rafter
Top View: Step 3
Base Plate
Rafter
Pipe

CLEARSPAN™POLY BUILDINGS
10 Revision date: 05.08.18
FRAME ASSEMBLY
Gather the parts:
• All rafter assemblies
• Pipe 1.315'' x 75'' swaged and pipe 1.315'' x 73.5'' plain
• Band clamps (#QH1400) and cross connectors
(#102547)
• Struts (#QH1308) and Tek screws
Frame Assembly Procedure
1. Stand one end rafter. The end rafters include the end
clamps. Be sure to position the bolt side of end clamp
to the inside of the frame when setting the rafter in
position. See the diagram below.
NOTE: Purlin pipe shown in the above diagram is
installed during the frame assembly.
2. Check that the rafter is standing straight (plumb) and
brace it in place.
4. Install the upper two (2) cross connectors on the inside
rafter and insert a purlin pipe through each connector
and through the upper end clamps near the top of the
end rafter. See circles above.
5. Verify that both rafters are plumb and properly spaced
on-center and tighten the upper clamps.
CAUTION: To prevent cover damage, the ends of the
purlins should extend no more than ½'' past the end
clamp. See diagram that follows Step 1. Do not allow
purlin to extend beyond the edge of the end rafter.
3. Using the on-center, rafter-to-rafter spacing, set an
inside rafter in position. (Additional assistants are
required to hold the inside rafter in position.) See chart
below for correct rafter spacing.
1/2''
Toward the inside
of the frame when
assembled.
6"-8"
6. Move to the lower clamp positions and repeat Step 4
to install the purlin pipes in those locations. See the
diagram above.
7. Slide a band clamp (#QH1400) on each of the two
bottom purlins between the second and third rafters.
Position the head of each band clamp bolts toward the
outside of the shelter.
Band Clamp
End Rafter
Purlin
SKU # Rafter Spacing
PB00590R3 / PB00592R3 / PB00594R3 36"
PB00590R4 / PB00592R4 / PB00594R4 48"
center-to-center
Lower clamp position
(Step 6)
Upper clamp
position

11
CLEARSPAN™POLY BUILDINGS
Revision date: 05.08.18
8. Move to the lower end of the rafters, verify that the
position of the purlin is 6"-8" above the finished grade,
and tighten the lower clamps and connectors.
FRAME ASSEMBLY (CONTINUED)
Inside of
shelter
1/2''
9. Install the remaining two (2) cross connectors and
purlins. Verify that the rafter spacing is on-center for the
shelter and tighten the connectors. See circles below.
10. Continue adding rafters and purlins until the frame is
nearly complete.
NOTE: Remember to add band clamps to the lower
purlins between the second and third rafter at the
remaining end of the frame for the installation of the
struts. Review Step 1 to set the final end rafter.
11. Finish each purlin with a 73.5" pipe and use the final
end rafter to complete the assembly.
NOTE: To prevent cover damage, DO NOT allow the
purlin to extend beyond the end rafter.
If the last end rafter is plumb and the purlin run extends
beyond the end of the rafter, cut the last section of
purlin pipe to the required length.
Typically purlin pipes do not require cutting. Verify that
the finished purlin run has the correct plain pipe before
cutting any pipe. Consult the Side Profile diagrams in
the Quick Start section for pipe identification.
CAUTION: To prevent cover damage, the ends of the
purlins should extend no more than ½'' past the end
clamp. Position the bolt side of the end clamps to the
inside of the shelter as shown.
6"-8"
Strut Installation Procedure
1. After the rafter assembly is complete, verify that the
band clamps are in the proper location. See diagram
below.
Positions of band clamps depend on the rafter spacing and
may differ slightly from what is shown.
End Rafter
Purlin
End Rafter
First Inside Rafter
Band Clamp
Lower Purlin
center-to-center

CLEARSPAN™POLY BUILDINGS
12 Revision date: 05.08.18
NOTE: Verify that the bolt heads are to the outside of
the shelter and tighten the nuts.
3. Install the remaining struts and tighten all band clamp
bolts.
4. Secure each band clamp to the purlin and rafter using
a Tek screw for each connection.
5. Return to each purlin joint and secure using a Tek
screw.
90°
Strut
FRAME ASSEMBLY (CONTINUED)

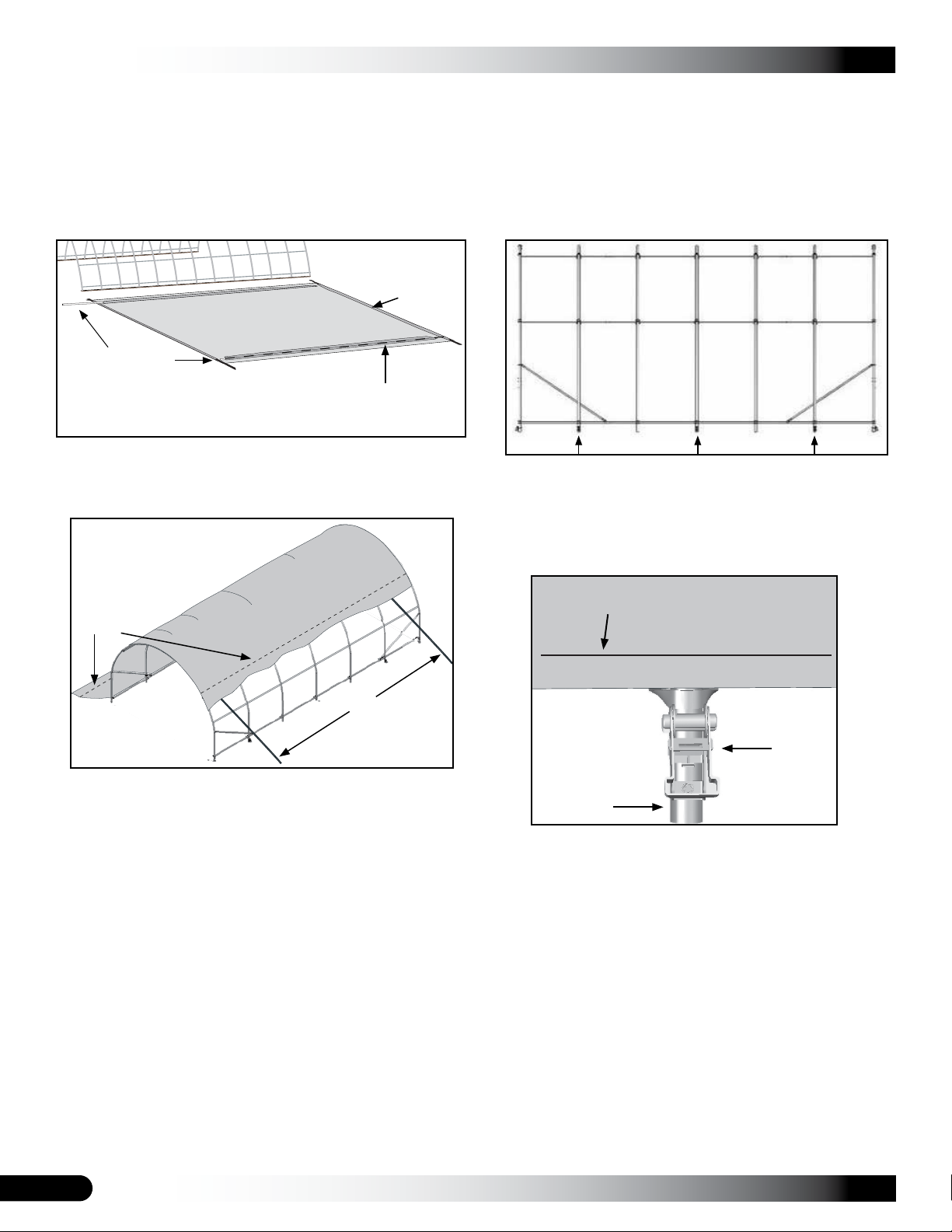

SQUARE THE ASSEMBLED FRAME
Gather the parts: Measuring tape and Tek screws
Complete these steps:
1. Square the frame by measuring diagonally corner-to-
corner and align all rafters as shown below.

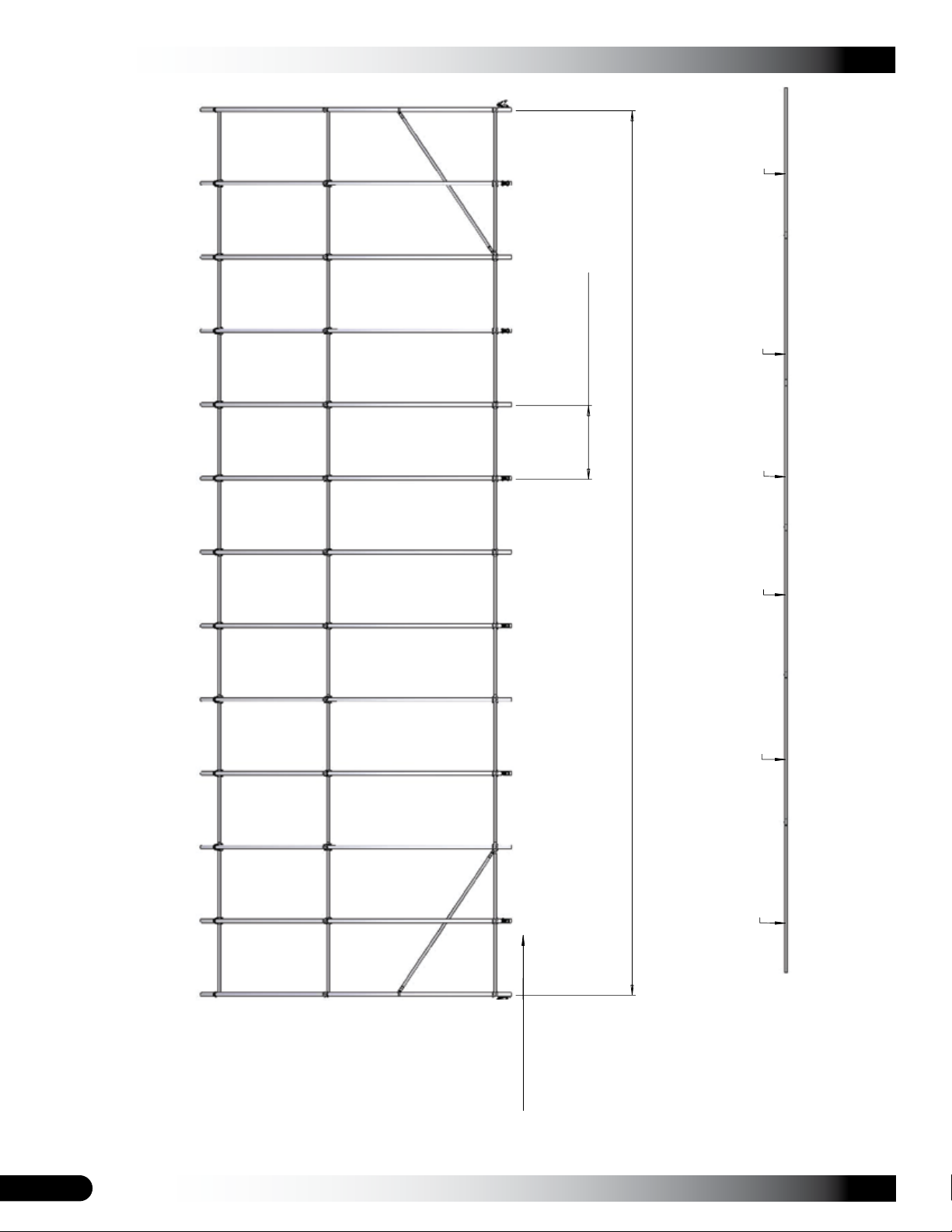

FRAME TOP VIEW
2. Verify that the width of each rafter is 26' center-to-
center. The frame is square when the two diagonal
measurements are the same. See previous diagram.
3. Continue by anchoring the frame.
2. Remove the bolts and attach a strut between the band
clamp on the purlin and the band clamp on the end
rafter. Position the strut so that it forms a triangle as
shown below.

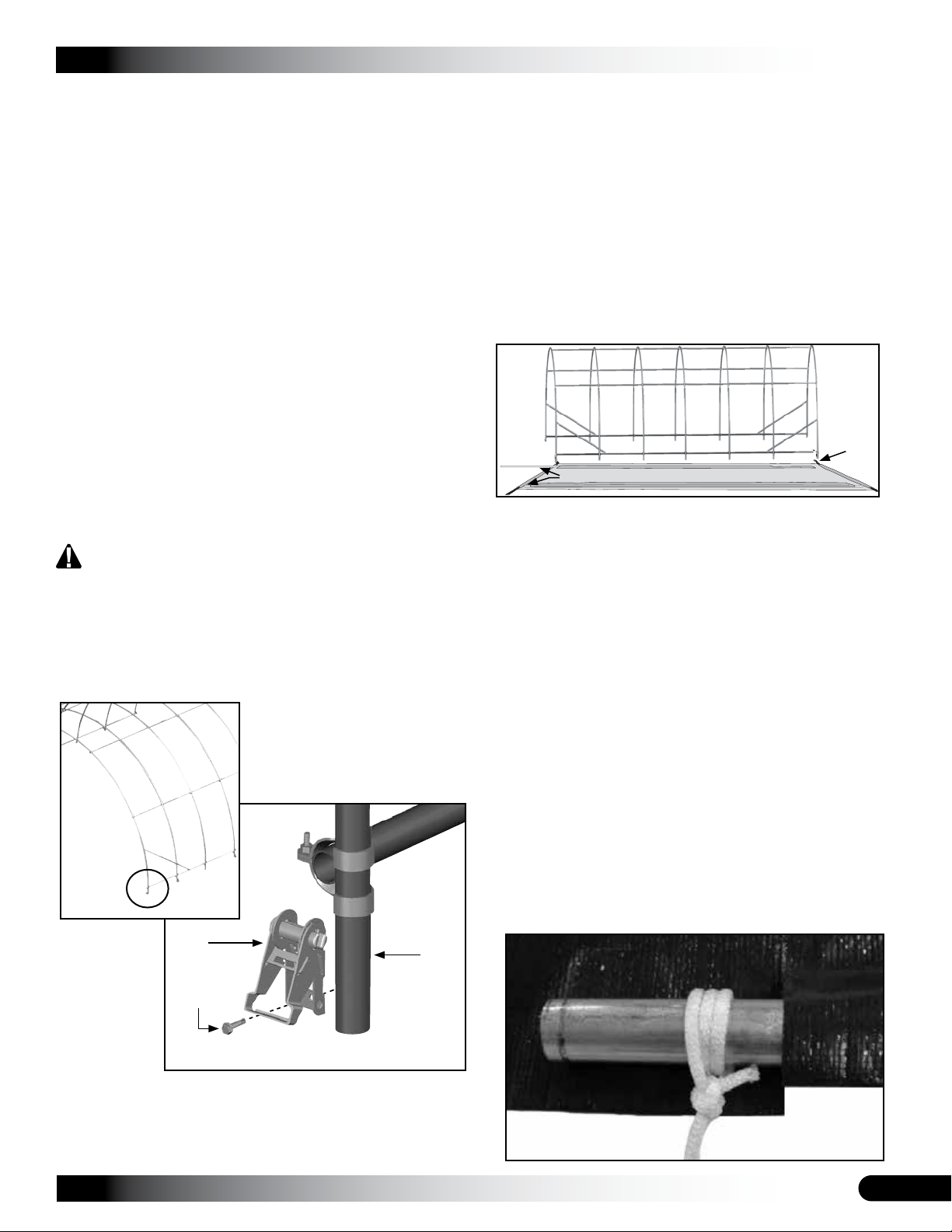

ANCHOR THE FRAME
Once the frame is anchored properly, continue with these
instructions.
WARNING: Securing the base plates to boards set on
the site is not a substitute for properly anchoring the
shelter. You must anchor the shelter as described in the
MUST READ document.
FAILING TO PROPERLY ANCHOR THE SHELTER
WILL RESULT IN DAMAGE TO THE SHELTER AND
MAY CAUSE PERSONAL INJURY.
READ THE MUST READ DOCUMENT TO PROPERLY
ANCHOR THE SHELTER.
After anchoring the frame, check the frame for rough
edges as described in the following procedure.
FINAL FRAME CHECK
1. Return to all frame connections and verify that bolts are
tight, including all base plate bolts.
2. Verify that each purlin splice is secured with a Tek
screw.
3. Verify that each purlin is secured to the end clamp and
cross connector and that each cross connector and
end clamp is secured to the rafter. See diagram below.
4. Inspect the frame for sharp areas that could damage
the cover. If found, file smooth and cover with layers of
duct tape to protect the cover.
5. Verify that all bolts are positioned with the heads to the
outside of the frame. Tape the bolts and rafter joints
before installing the cover.
6. Continue by installing the main cover.
Cross Connector
to Rafter Tek
Screw
Purlin to Cross
Connector Tek
Screw
Rafter
Purlin
ATTENTION: Rafter
shown may differ
from the actual
rafter. Steps to
secure the purlin to
the connector and
the connector to the
rafter are the same.
Position the Tek
screws so they will
not touch the cover
once it is installed.

13
CLEARSPAN™POLY BUILDINGS
Revision date: 05.08.18
PREPARE MAIN COVER
Gather the parts:
• Ratchet (1")
• Pipe 1.315" x 75" swaged
• Pipe 1.315" x 73.5" plain
• Cover
• Tek Screws
Assembly Procedure
The main cover is attached to the shelter sides using straps
and ratchets.
The main cover ends (front and back) are secured at each
corner using a ratchet attached to the end rafter leg. The
straps to secure the ends of the main cover come pre-
installed in the cover bonnet.
NOTE: When handling the main cover and setting it in
position, do not pull on the end straps. They will pull out of
the cover.
WARNING: To prevent damage to the cover and to
prevent serious personal injury, DO NOT attempt to
install the main cover on windy days.
1. Fasten a ratchet to the end rafter leg using a Tek screw
as shown below. Position the ratchet as low as possible
that still allows free operation. Repeat this step at all
remaining corners.
2. Assemble two main cover conduits. Start each conduit
assembly with one plain 73.5" pipe and add swaged
pipes to arrive at the correct length. Secure each pipe
joint with a Tek screw and wrap the joint with duct tape.
These cover conduits are inserted into the pockets
sealed to the main cover. The cover conduits are used
to tighten and secure the main cover.
3. After assembling the cover conduits, locate the main
cover and unfold it on a clean, smooth surface near the
frame.
NOTE: Unfold the main cover with the inside surface
facing up.
4. Locate the cover ends with strapping and align with the
front and back of the shelter. Do not insert any conduit
into a cover pocket that includes an installed strap.
5. Insert the cover conduits into the side pockets of the
main cover.
NOTE: Shelter shown above may differ from actual
frame in length or design.
Cover Conduits
Cover
Ends w/
Strapping
ATTACH MAIN COVER
Gather the parts:
• Main cover (with conduits inserted)
• Ropes long enough to reach over the frame (provided
by customer)
• Ratchets (1") and Tek screws
• Box cutter or utility knife
Assembly Procedure
1. To pull the cover over the frame, attach ropes to both
ends of the cover conduit. Wrap the rope around the
conduit a few times to prevent it from slipping off.
Ratchet End Rafter
Tek
Screw
Exploded View
See
Exploded
View

CLEARSPAN™POLY BUILDINGS
14 Revision date: 05.08.18
PREPARE MAIN COVER (CONTINUED)
NOTE: Depending on the length of the cover it may
be necessary to attach additional ropes to the cover
conduit between the end ropes by cutting a small
opening in the cover pocket and tying the rope around
the conduit. DO NOT cut through the main cover. Cut
through the conduit pocket only.
2. With all ropes attached to the cover conduit, lift the
conduit and carry the cover toward the base of the
frame.
Ropes
Cover
Conduit
NOTE: Diagram above is an example of the 24' shelter.
5. Divide the remaining number of ratchets in half. Place
the ratchets on the ground next to the rafter where they
will be attached.
NOTE: Ratchets are evenly spaced long each side of
the shelter and directly across from each other on the
same rafter assembly. Ratchet locations are identified
by the arrows in the following diagram.
Conduit in cover pocket
Rafter Leg
Ratchet
3. Toss the ropes over the frame and pull the cover into
position. One person is required at each rope.
4. Once the main cover is pulled into position, center the
cover on the frame and remove the ropes. Loosely
secure the ends of the cover to the ratchets attached to
the front and back end rafters.
ATTENTION: Do not tighten the straps at this time
Cover
Ends w/
Strapping
Cover Conduit
Side Pocket
Side Pocket
Attach ropes to this cover
conduit to pull cover
Actual frame is not shown.
6. Using the main cover conduit position and strap length
as guides, attach the ratchets to the rafters at the
proper height. Fasten ratchets to the outside or inside
of these rafters using a Tek screw for each ratchet.
Diagram shown above shows a ratchet attached to the
outside of the rafter. Actual rafter may differ from what
is shown.

15
CLEARSPAN™POLY BUILDINGS
Revision date: 05.08.18
ATTACH MAIN COVER (CONTINUED) SHELTER CARE AND MAINTENANCE
Proper care and maintenance of your shelter is important.
Check the following items periodically to properly maintain
your shelter.
• Regularly inspect the main cover and panels (if
equipped) to see that these remain tight and in proper
repair.
• Check the cable turnbuckles and cable clamps to see
that these remain tight. Tighten as needed. Check the
cable to verify that it is not worn, wearing on a frame
member, or touching the main cover or end panels (if
equipped). Some shelters do not use cables.
• Check connections and all fasteners to verify that they
remain tight.
• Do not climb or stand on the shelter at anytime.
• Remove debris and objects that accumulate on the
shelter. Use tools that will not damage the cover when
removing debris.
• Remove snow to prevent excess accumulation. Use
tools that will not damage the cover when removing
snow.
• Check the contents of the shelter to verify that
nothing is touching the cover, side panels, or the end
panels that could cause damage.
• Check the anchoring system to ensure that all
components are tight and in good repair.
• Review the MUST READ document for anchoring
requirements.
• Inspect all building components regularly. Replace all
worn or damaged parts promptly.
• If the shelter is disassembled and moved, inspect all
parts and connections before reassembling.
• For replacement or missing parts, call 1.800.245.9881
for assistance.
NOTE: With the exception of Truss Arch buildings,
ClearSpan™ shelters and greenhouses do not have any
tested loading criteria.
NOTE: DO NOT cut through the main cover. Cut
through the conduit pocket only.
9. Thread the strap ends into the ratchet and slightly
tighten.
7. Lift the cover skirt and cut a slit in the cover conduit
pocket at the rafter position.
8. Insert a 3' section of strap through the slit and around
the cover conduit.
NOTE: It may be necessary to remove excess strap if it
binds up in the ratchet.
10. Repeat the steps for the remaining ratchets.
11. Using additional help (if needed) tighten the main
cover beginning with the ratchets along the sides of the
shelter frame.
12. After the side ratchets are tightened, return to the front
and back end ratchets and tighten.
NOTE: Loosen the ratchets if needed to remove
excess strap and retighten. Loosen all ratchets if
needed to reposition the main cover on the frame and
then retighten the ratchets.
13. Fold the skirt of main cover down and over the ratchets
to complete the installation of the main cover.
14. Complete and return all warranty information.
15. Continue by reading the care and maintenance
information.

CLEARSPAN™POLY BUILDINGS
16 Revision date: 05.08.18
QUICK START GUIDE
26' Wide Free-Standing Building
12'-10
13/16"
Grid Represents12" Squares
F
F
R
R
O
O
N
N
T
T
Width
26'-0"
26'-51/2"
Frame shown may differ in length from actual frame.
Ground Level

17
CLEARSPAN™POLY BUILDINGS
Revision date: 05.08.18
FRONT PROFILE
26R1902
26R1901
26R1901D
26R1901
26R1901D
PURLIN CONNECTION
(OVERPIPECONNECTION)
PURLIN CONNECTION
(8"FROMGROUND)
PURLIN CONNECTION
(OVERPIPECONNECTION)
PURLIN CONNECTION
(OVERPIPECONNECTION)
PURLIN CONNECTION
(8"FROMGROUND)
PURLIN CONNECTION
(OVERPIPECONNECTION)
104302
BASE PLATES
104302
BASE PLATES
NOTE:CONNECT PURLINS TO THE
ENDRAFTERUSING ENDCLAMPS.
CONNECT PURLINS TO MID RAFTERS USINGCROSS CONNECTORS.
Ground Level

CLEARSPAN™POLY BUILDINGS
18 Revision date: 05.08.18
SIDE PROFILE - PB0590R3
Ratchets are attached on the sides of the rafters labeled with RRRR
R
24'-0"
Length
3'-0"
Rafter Spacing
131P0735
131S075 131S075 131S075
Typical Purlin Run
Attach all side ratchets to the rafters labeled with the letter R.

19
CLEARSPAN™POLY BUILDINGS
Revision date: 05.08.18
SIDE PROFILE - PB0590R4
Ratchets are attached on the sides of the rafters labeled with RRRR
24'-0"
Length
4'-0"
Rafter Spacing
131P0735
131S075 131S075 131S075
Typical Purlin Run
Attach all side ratchets to the rafters labeled with the letter R.

CLEARSPAN™POLY BUILDINGS
20 Revision date: 05.08.18
SIDE PROFILE - PB0592R3
131P0735
131S075 131S075 131S075 131S075 131S075
Typical Purlin Run
Ratchets are attached on the sides of the rafters labeled with RRRR
RRR
36'-0"
Length
3'-0"
Rafter Spacing
Attach all side ratchets to the rafters labeled with the letter R.
