Cx / Cx+ Troubleshooting Guide
Date: 11/07/13
This is a confidential controlled document and is the property of Colortrac Ltd.
It is not to be copied or reproduced in part or whole. It is intended for staff to read.
S
Sm ma ar rt tL LF F C Cx x / / C Cx x+ + S Sc ca an nn ne er rs s
T
Tr ro ou ub bl le es sh ho oo ot ti in ng g G Gu ui id de e

Cx Cx+ Troubleshooting Guide
Page 2 of 17
SmartLF Cx / Cx+ Scanners
Troubleshooting Guide
Issue 4
©Colortrac Ltd 2013
The product and the contents of this publication may be changed without prior notification.
Colortrac Ltd makes every effort to ensure this publication is free from error. Misprints, errors
or quality observations should be reported to Technical Support, Colortrac Ltd.
Colortrac Ltd shall not be liable for any damages, errors, issues or events that result from the
use of the equipment or this manual.
No part of this product or publication may be reproduced,
copied or transmitted in any form or by any means without
permission from:
International Technical Support Manager
Colortrac Ltd.
Units 3 –5 Brunel Court.
Burrel Road.
St Ives,
Huntingdon,
Cambridgeshire,
PE27 3LW.
United Kingdom.
Tel: [phone]
Fax: [phone]
www.colortrac.com

Cx Cx+ Troubleshooting Guide
Page 3 of 17
OVERVIEW
Common Fault
Possible Solution
Page
1. Noise When Scanning
Noisy Motor
5
Noisy Roller
Older Style Pinch Roller Plungers
Loose Belt
Loose Motor Drive Pulley
2. Image Does Not Look As It Should
Including: Lines On Image And Colour
Differences
Bad Normalisation
7
Out Of Stitch
Dirty / Scratched CIS Glass
Faulty CIS / Main Board
Main Drive Pulley
Lines On Image
CIS Tolerance
Firmware
Reset Flash to Factory
3. Error Messages
10006
11
10018
10022
C114
C20
Normalisation Error 14
4. USB Communication Problems
USB Cable
12
PC USB Port
Main Board

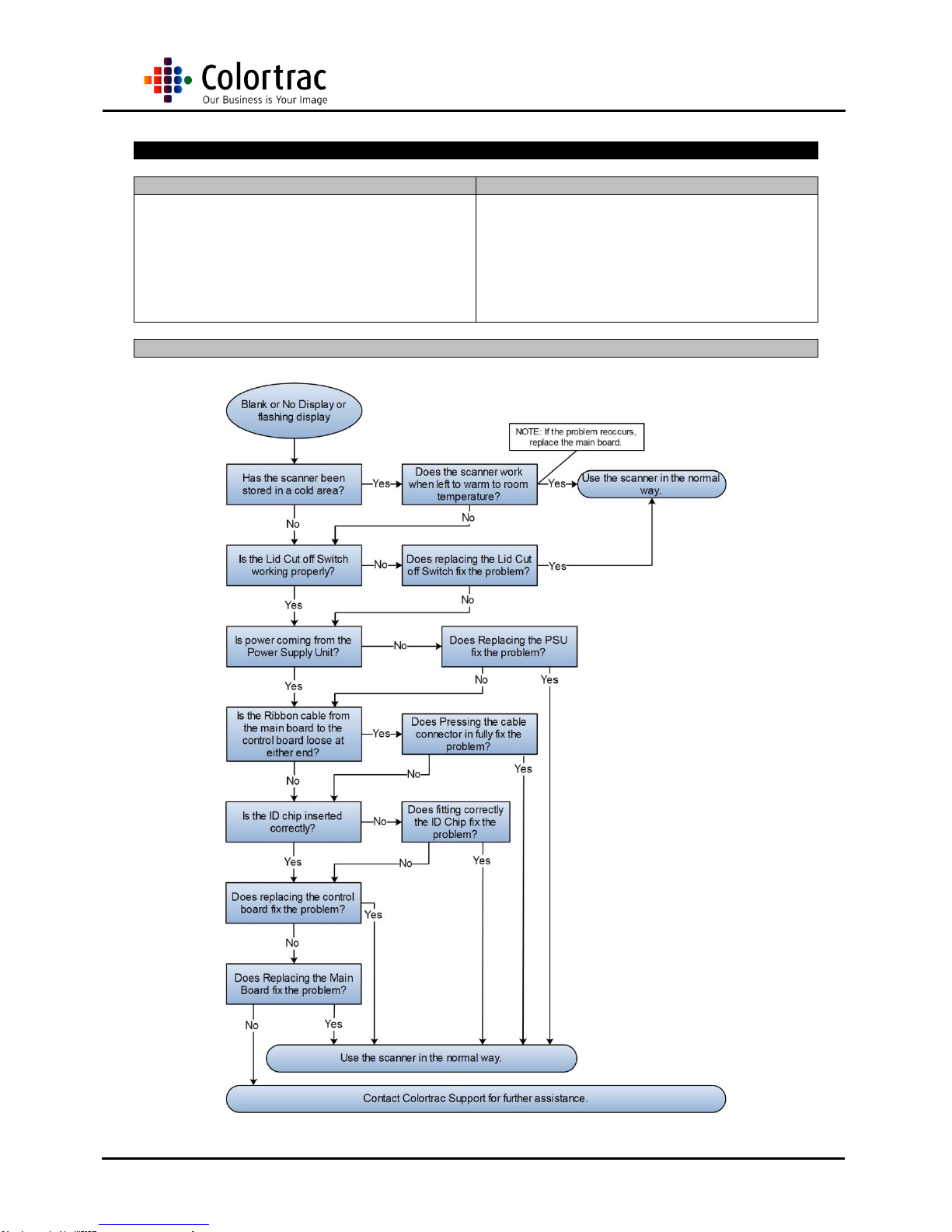

5. Blank Or No Display
Ribbon Cable From Main Board
14
Control Board
Main Board
Control Board ID Chip
PSU
6. Media Not Being Taken Into Scanner
Control Board
15
Paper Sensors
Paper Sensor Cable
Main Board
7. Miscellaneous Issues, Including:
16
Start / Stop During Scan.
Won’t scan highlighter pen.
Noise from fan.
Stitch values vary during a scan.
Scanned Image Wrong Width.
Extra boarder around a scan.
Stuck in ‘Initialise’.
Fringing on B&W horizontal lines.
Scanner locks up / hangs.
Black Scans.
Scanner keeps loosing stitch values.
Scanned image wrong length.

Cx Cx+ Troubleshooting Guide
Page 4 of 17
References within this Instruction Manual:
The Cx / Cx+ Service Manual can be found on:
www.colortracsupport.co.uk
User: colortrac
Password: available on request.
The firmware, driver and software updates can be found on:
www.colortrac.com/support/support_downloads.htm

Cx Cx+ Troubleshooting Guide
Page 5 of 17
1. Noise When Scanning
Fault
Possible Solution
Loud noise when scanning during operation.
1. Noisy Motor
2. Noisy Roller Bearings
3. Older Style Pinch Roller Plungers
4. Loose Belt
5. Loose Motor Drive Pulley
1.1 SUGGESTED PROBLEM AREAS
4
1
2
3
5

Cx Cx+ Troubleshooting Guide
Page 6 of 17
1.2 FLOW GRAPH

Cx Cx+ Troubleshooting Guide
Page 7 of 17
2. Image Does Not Look As It Should
Fault
Possible Solution
Image does not look as it should.
1. Bad normalisation
2. Out of Stitch
3. Dirty / Scratched CIS Glass
4. Faulty CIS / Main Board
5. Main Drive Pulley
6. Lines On Image
7. CIS Tolerance
8. Firmware
9. Reset Flash To Factory
2.1 IMAGE EXAMPLES
Original
Scanned Image
1. Bad image quality with washed out or
incorrect colours is normally down to the
scanner needing normalisation.
Insert the white target into the scanner with
the matt side face up.
Open the Utilities program, and on the front
page, press Full Normalisation and allow the
process to complete.
2. When the image between 2 CIS points has a
step, it is because the scanner needs to be
stitched, an electrical adjustment for making
the scanner see an image equally across all
the CIS arrays.
Open the Utilities program and stitch the
scanner as described in the service manual.
1
2

Cx Cx+ Troubleshooting Guide
Page 8 of 17
3. Fine lines down the image can be either dirt1or a scratches2on the glass or dirt being picked up
from the paper tray and dragged through. If the line is contineous through the scan, clean the glass
and re-normalise. If it starts and appears to disapear further down the scan, clean the paper tray
and try again. Scratched glass needs replacing.
2
1

Cx Cx+ Troubleshooting Guide
Page 9 of 17
Black Area
Black Section
4. A black area in an image can be down to CIS, cable or Main Board. A black area3completely over
one CIS can be either the CIS, the cable or the main board, where as a black section4of a CIS is
more likely to be the cable and / or CIS; the main board is not as likely. Easiest thing to try first, in
all cases, is the cable. Re-seat it at the Main Board end, making sure there are no broken cores or
damage visible. A CIS can be swapped within the CIS Mounting Bracket to check to see if the
problem is a CIS, or to move the faulty CIS to the end of the scanner if the customer does not use
the full width of the scanner. The Main Board is the next easiest thing to swap to see if the problem
goes away. Refer to service manual for procedures.
5. Early versions of the software created completely black scans of a 0mb file size. This was a bug in
the software. Make sure the software is up to the latest version from the Colortrac website:
http://www.colortrac.com/support/support_downloads.htm
3
4

Cx Cx+ Troubleshooting Guide
Page 10 of 17
Distorted Start of Scan
Colourmatch
6. A distorted image at the beginning of a scan,
or at the point where the scanner has stopped
and started during a scan, is down to the
Motor Drive Pulley being loose on the motor,
or the main timing belt being loose.
See service manual procedures.
7. Colour differences between 2 CIS can be
down to the scanner needing normalisation,
or the glass or paper hold down roller not
seating properly over the CIS, make sure
there is correct and even gap between the
paper hold down rollers and glass. Some
times the colour imbalance can be down to
the tolerance between 2 CIS, which is
common in all CIS scanners.
8. Some times image problems, particually if the image looks currupt and completely unrecognisable,
can be solved by resetting the scanner. Use the "Reset Flash to Factory" in the passworded area
of the utilities program to do this, making sure you record the motor speed and stitch values before
running this process, and re-insert them again afterwards. Normalisation completes the process.
