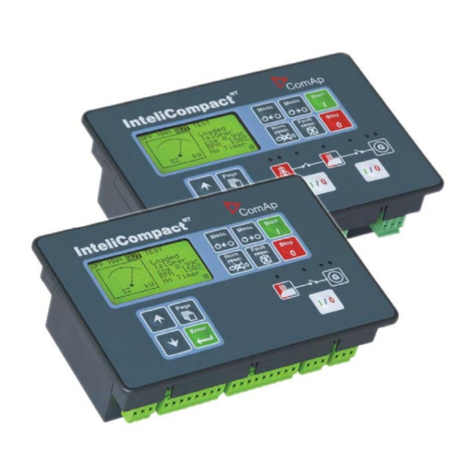

ComAp InteliCompact NT User manual

Reference Guide

Paralleling gen-set controller
SW version 2.1, May 2016
Copyright ©2015 ComAp a.s.
ComAp a.s.
Kundratka 17, 180 00 Praha 8, Czech Republic
Tel: [phone], Fax: [phone]
E-mail:[e-mail], www.comap.cz

InteliCompactNT, SW version 2.1
InteliCompact-NT-2.1-Reference Guide.pdf, ©ComAp –May 2015
2
Table of contents
1Document information................................................................................................................... 7
1.1 Clarification of notation............................................................................................................... 8
1.2 Conformity Declaration............................................................................................................... 8
2System overview............................................................................................................................ 9
2.1 General description .................................................................................................................... 9
2.2 Configurability and monitoring.................................................................................................... 9
2.2.1 LiteEdit............................................................................................................................. 10
2.2.2 InteliMonitor ..................................................................................................................... 11
2.2.3 WinScope......................................................................................................................... 11
2.2.4 WebSupervisor ................................................................................................................ 11
2.3 Applications overview............................................................................................................... 12
2.3.1 Single applications........................................................................................................... 12
2.3.2 Multiple applications ........................................................................................................ 12
2.4 True RMS measurement.......................................................................................................... 13
3Installation .................................................................................................................................... 14
3.1 Mounting................................................................................................................................... 14
3.2 Package contents..................................................................................................................... 14
3.3 Dimensions............................................................................................................................... 15
3.4 Terminal diagram...................................................................................................................... 16
3.5 General..................................................................................................................................... 16
3.6 Wiring........................................................................................................................................ 17
3.7 Grounding................................................................................................................................. 17
3.8 Power supply............................................................................................................................ 17
3.8.1 Power supply fusing......................................................................................................... 19
3.9 Voltage and current inputs ....................................................................................................... 19
3.10 Speed measurement................................................................................................................ 21
3.10.1 Pickup.............................................................................................................................. 21
3.10.2 Generator frequency........................................................................................................ 22
3.10.3 Additional running engine indication................................................................................ 22
3.11 Binary inputs............................................................................................................................. 23
3.12 Binary outputs........................................................................................................................... 23
3.13 Analog inputs............................................................................................................................ 24
3.13.1 Tristate inputs .................................................................................................................. 25
3.14 Circuit breakers ........................................................................................................................ 26
3.14.1 Breaker control outputs.................................................................................................... 26
3.14.2 MCB special requirements............................................................................................... 27
3.15 AVR interface ........................................................................................................................... 27
3.15.1 IG-AVRi............................................................................................................................ 27
3.15.2 AVR list............................................................................................................................ 30
3.16 Speed governor interface......................................................................................................... 42
3.16.1 Speed governor list.......................................................................................................... 43
3.17 CAN bus wiring......................................................................................................................... 50
3.18 Recommended CAN/RS485 connection.................................................................................. 51
3.18.1 CAN bus connection........................................................................................................ 51
3.18.2 RS485 connection ........................................................................................................... 51
3.19 Extension modules................................................................................................................... 53
3.19.1 IGS-PTM.......................................................................................................................... 53
3.19.2 IGL-RA15 remote annunciator......................................................................................... 54
3.19.3 IL-NT-AOUT8................................................................................................................... 55
3.19.4 IL-NT BIO8....................................................................................................................... 55
3.19.5 IC-NT CT-BIO7................................................................................................................ 57
3.20 Communication modules.......................................................................................................... 59
3.20.1 IL-NT RS232.................................................................................................................... 59
3.20.2 IL-NT RS232-485............................................................................................................. 60
3.20.3 IL-NT S-USB.................................................................................................................... 60

InteliCompactNT, SW version 2.1
InteliCompact-NT-2.1-Reference Guide.pdf, ©ComAp –May 2015
3
3.20.4 IB-Lite............................................................................................................................... 61
3.20.5 IL-NT GPRS..................................................................................................................... 62
3.20.6 InternetBridge-NT ............................................................................................................ 64
3.21 EFI engines .............................................................................................................................. 65
3.21.1 Differences between a classic and EFI-engine application............................................. 65
3.22 Typical wiring –EFI engine ...................................................................................................... 68
3.23 Typical wiring –classic engine................................................................................................. 69
3.24 Emergency Stop....................................................................................................................... 71
4Putting it into operation............................................................................................................... 72
4.1 Programming the configuration ................................................................................................ 72
4.2 Programming the firmware....................................................................................................... 72
4.3 Programming a non-responsive controller ............................................................................... 73
4.5 Factory default configuration.................................................................................................... 74
4.5.1 SPtM................................................................................................................................ 74
4.5.2 MINT................................................................................................................................ 75
4.6 Step-by-step guide ................................................................................................................... 76
5Operator guide.............................................................................................................................. 78
5.1 Front panel elements................................................................................................................ 78
5.2 User interface modes ............................................................................................................... 80
5.3 Display screens and pages structure....................................................................................... 80
5.4 View measured values ............................................................................................................. 82
5.5 Setpoints –view and change ................................................................................................... 82
5.6 Browsing the history log ........................................................................................................... 83
5.7 Browsing alarms....................................................................................................................... 84
5.8 Entering the password.............................................................................................................. 85
5.9 Controller information screen ................................................................................................... 85
5.10 Controller language selection................................................................................................... 87
5.11 User interface mode selection.................................................................................................. 87
5.12 Display contrast adjustment ..................................................................................................... 87
6Function description.................................................................................................................... 88
6.1 Island operation flowchart ........................................................................................................ 88
6.2 Parallel operation flowchart...................................................................................................... 89
6.3 Operating modes...................................................................................................................... 90
6.3.1 OFF.................................................................................................................................. 90
6.3.2 MAN................................................................................................................................. 90
6.3.3 AUT.................................................................................................................................. 91
6.3.4 TEST................................................................................................................................ 91
6.4 Engine start .............................................................................................................................. 92
6.4.1 Diesel engine................................................................................................................... 92
6.4.2 Gas engine....................................................................................................................... 94
6.5 Stabilization .............................................................................................................................. 96
6.6 Connecting to the load.............................................................................................................. 96
6.6.1 Connecting to dead bus................................................................................................... 97
6.6.2 Synchronizing .................................................................................................................. 97
6.7 Parallel to mains operation –SPtM.......................................................................................... 98
6.7.1 Ramping the power up..................................................................................................... 98
6.7.2 Load control..................................................................................................................... 98
6.7.3 Power factor control......................................................................................................... 98
6.7.4 Object load dependent auto start .................................................................................... 99
6.7.5 Ramping the power down................................................................................................ 99
6.7.6 Peak load shaving ........................................................................................................... 99
6.7.7 Export Limit...................................................................................................................... 99
6.8 Parallel to mains operation –MINT........................................................................................ 102
6.8.1 Ramping the power up................................................................................................... 102
6.8.2 Load control modes ....................................................................................................... 102
6.8.3 Power factor control....................................................................................................... 102
6.8.4 Ramping the power down.............................................................................................. 102
6.9 Island operation –SPtM......................................................................................................... 102
6.9.1 Island to PtM transfers................................................................................................... 103

InteliCompactNT, SW version 2.1
InteliCompact-NT-2.1-Reference Guide.pdf, ©ComAp –May 2015
4
6.10 Island operation –MINT......................................................................................................... 103
6.11 Power management ............................................................................................................... 104
6.11.1 The concept................................................................................................................... 104
6.11.2 Basics ............................................................................................................................ 104
6.11.3 Reserves, minimal running power ................................................................................. 105
6.11.4 Priorities......................................................................................................................... 105
6.11.5 Load Demand Start/Stop ............................................................................................... 106
6.11.6 Reaction to alarms......................................................................................................... 108
6.11.7 Related binary inputs..................................................................................................... 108
6.11.8 Related binary outputs................................................................................................... 109
6.11.9 Load Demand Swap ...................................................................................................... 109
6.11.10 Related binary inputs..................................................................................................... 110
6.11.11 Related binary outputs................................................................................................... 110
6.11.12 “How to” examples:........................................................................................................ 110
6.11.13 Related setpoints and values......................................................................................... 111
6.12 AMF function .......................................................................................................................... 111
6.12.1 Mains failure detection................................................................................................... 111
6.12.2 Healthy mains detection ................................................................................................ 112
6.12.3 The AMF procedure....................................................................................................... 112
6.13 Engine cool down and stop .................................................................................................... 112
6.13.1 Stopped gen-set evaluation........................................................................................... 113
6.14 Alarm management................................................................................................................ 113
6.14.1 Alarm handling............................................................................................................... 114
6.14.2 Alarm states................................................................................................................... 114
6.14.3 Alarm types –Yellow level............................................................................................. 115
6.14.4 Alarm types –Red level................................................................................................. 115
6.14.5 Sensor fail detection (FLS) ............................................................................................ 115
6.14.6 Remote alarm messaging.............................................................................................. 116
6.14.7 Alarmlist......................................................................................................................... 117
6.14.8 ECU Alarmlist................................................................................................................. 117
6.14.9 Built-in alarms................................................................................................................ 118
6.15 History log............................................................................................................................... 118
6.16 Exercise timers....................................................................................................................... 121
6.16.1 MINT.............................................................................................................................. 122
6.16.2 SPtM.............................................................................................................................. 122
6.17 Analog switches...................................................................................................................... 122
6.18 Power switch .......................................................................................................................... 123
6.19 Regulation loops..................................................................................................................... 123
6.19.1 SPtM.............................................................................................................................. 123
6.19.2 MINT.............................................................................................................................. 124
6.19.3 Regulation control loops overview................................................................................. 125
6.19.4 PI regulation adjustment................................................................................................ 125
7Setpoints..................................................................................................................................... 127
7.1 Password protection............................................................................................................... 127
7.2 Setpoint synchronization ........................................................................................................ 127
7.3 Setpoint groups ...................................................................................................................... 127
7.3.1 Setpoints –Process Control .......................................................................................... 128
7.3.2 Setpoints –Basic Settings............................................................................................. 128
7.3.3 Setpoints –Comms Settings ......................................................................................... 128
7.3.4 Setpoints –Engine Params........................................................................................... 129
7.3.5 Setpoints –Engine Protect ............................................................................................ 129
7.3.6 Setpoints –Gener Protect ............................................................................................. 129
7.3.7 Setpoints –Pwr Management........................................................................................ 130
7.3.8 Setpoints –AMF Settings .............................................................................................. 130
7.3.9 Setpoints –Sync/Load Ctrl............................................................................................ 131
7.3.10 Setpoints –Volt/PF Control ........................................................................................... 131
7.3.11 Setpoints –ExtI/O Protect ............................................................................................. 131
7.3.12 Setpoints –SMS/E-Mail................................................................................................. 131
7.3.13 Setpoints –AnalogSwitches.......................................................................................... 132
7.3.14 Setpoints –Date/Time ................................................................................................... 132

InteliCompactNT, SW version 2.1
InteliCompact-NT-2.1-Reference Guide.pdf, ©ComAp –May 2015
5
7.3.15 Setpoints –Sensors Spec ............................................................................................. 132
8Values.......................................................................................................................................... 133
8.1 Invalid flag .............................................................................................................................. 133
8.2 Value groups .......................................................................................................................... 133
8.2.1 Values –Engine............................................................................................................. 133
8.2.2 Values –Generator........................................................................................................ 134
8.2.3 Values –Mains .............................................................................................................. 134
8.2.4 Values –Bus.................................................................................................................. 135
8.2.5 Values –Pwr Management............................................................................................ 135
8.2.6 Values –Controller I/O .................................................................................................. 135
8.2.7 Values –Extension I/O .................................................................................................. 135
8.2.8 Values –Statistics ......................................................................................................... 136
8.2.9 Values –Date/Time....................................................................................................... 136
8.2.10 Values –Info.................................................................................................................. 136
9Binary input functions............................................................................................................... 137
9.1Common functions.................................................................................................................. 137
9.2 MINT specific.......................................................................................................................... 137
9.3 SPtM specific.......................................................................................................................... 137
10 Binary output functions....................................................................................................... 138
10.1 Common functions.................................................................................................................. 138
10.2 ECU info ................................................................................................................................. 138
10.3 Alarm mirrors.......................................................................................................................... 139
10.4 MINT specific.......................................................................................................................... 140
10.5 SPtM specific.......................................................................................................................... 140
11 Communication .................................................................................................................... 141
11.1 Direct cable connection.......................................................................................................... 141
11.2 Modem connection................................................................................................................. 142
11.2.1 Recommended GSM modems ...................................................................................... 142
11.2.2 Modem setup procedure................................................................................................ 143
11.3 Internet connection................................................................................................................. 143
11.3.1 SPtM .............................................................................................................................. 143
11.3.2 MINT.............................................................................................................................. 144
11.3.3 Using a web browser ..................................................................................................... 145
11.3.4 IB-Lite setup procedure ................................................................................................. 145
11.3.5 System integration......................................................................................................... 146
11.3.6 InternetBridge-NT setup procedure............................................................................... 146
11.3.7 IG-IB setup procedure ................................................................................................... 146
11.3.8 SNMP............................................................................................................................. 146
11.3.9 AirGate........................................................................................................................... 146
11.3.10 Locate............................................................................................................................ 146
11.4 Modbus protocol..................................................................................................................... 147
11.5 IC-NT-RD Remote display software....................................................................................... 148
12 Maintenance.......................................................................................................................... 149
12.1 Backup battery replacement................................................................................................... 149
13 Troubleshooting ................................................................................................................... 151
14 Technical data....................................................................................................................... 154
14.1 Power supply.......................................................................................................................... 154
14.2 Operating conditions............................................................................................................... 154
14.3 Physical dimensions............................................................................................................... 154
14.4 Standard conformity ............................................................................................................... 154
14.5 Binary inputs........................................................................................................................... 155
14.6 Binary outputs......................................................................................................................... 155
14.7 Analog inputs.......................................................................................................................... 155
14.8 Generator/Mains measurements............................................................................................ 155
14.9 Pickup input............................................................................................................................ 156
14.10Charging alternator pre-excitation circuit................................................................................ 156
14.11AVR output ............................................................................................................................. 156

InteliCompactNT, SW version 2.1
InteliCompact-NT-2.1-Reference Guide.pdf, ©ComAp –May 2015
6
14.11.1 IG-AVRi module............................................................................................................. 156
14.11.2 IG-AVRi Trans/LV.......................................................................................................... 156
14.11.3 IG-AVRi Trans/100 ........................................................................................................ 157
14.12Governor output...................................................................................................................... 157
14.13Remote communication interface........................................................................................... 157
14.14Extension modules interface .................................................................................................. 157
14.15Interface to other controllers................................................................................................... 157
14.15.1 Recommended CAN cables .......................................................................................... 158
15 Language support ................................................................................................................ 159
16 Appendix ............................................................................................................................... 160
16.1 Table of setpoints ................................................................................................................... 160
16.1.1 Group: Process Control ................................................................................................. 160
16.1.2 Group: Basic Settings.................................................................................................... 164
16.1.3 Group: Comms Settings ................................................................................................ 168
16.1.4 Group: Engine Params.................................................................................................. 174
16.1.5 Group: Engine Protect ................................................................................................... 179
16.1.6 Group: Gener Protect .................................................................................................... 183
16.1.7 Group: Pwr Management............................................................................................... 188
16.1.8 Group: AMF Settings ..................................................................................................... 195
16.1.9 Group: Sync/Load Ctrl ................................................................................................... 199
16.1.10 Group: Volt/PF Ctrl ........................................................................................................ 204
16.1.11 Group: ExtI/O Protect .................................................................................................... 205
16.1.12 Group: SMS/E-Mail........................................................................................................ 208
16.1.13 Group: AnalogSwitches ................................................................................................. 209
16.1.14 Group: Date/Time .......................................................................................................... 211
16.1.15 Group: Sensors Spec .................................................................................................... 215
16.2 Table of values ....................................................................................................................... 218
16.2.1 Group: Engine................................................................................................................ 218
16.2.2 Group: Generator........................................................................................................... 221
16.2.3 Group: Mains ................................................................................................................. 227
16.2.4 Group: Bus..................................................................................................................... 231
16.2.5 Group: Pwr Management............................................................................................... 233
16.2.6 Group: Controller I/O ..................................................................................................... 235
16.2.7 Group: Extension I/O ..................................................................................................... 239
16.2.8 Group: Statistics............................................................................................................. 241
16.2.9 Group: Date/Time .......................................................................................................... 243
16.2.10 Group: Info..................................................................................................................... 244
16.3 Table of binary input functions ............................................................................................... 246
16.3.1 Common functions......................................................................................................... 246
16.3.2 MINT specific................................................................................................................. 250
16.3.3 SPtM specific................................................................................................................. 251
16.4 Table of binary output functions ............................................................................................. 252
16.4.1 Common functions......................................................................................................... 252
16.4.2 ECU info......................................................................................................................... 260
16.4.3 Alarm mirrors ................................................................................................................. 262
16.4.4 MINT specific................................................................................................................. 272
16.4.5 SPtM specific................................................................................................................. 273
16.5 Table of internal alarms.......................................................................................................... 274

InteliCompactNT, SW version 2.1
InteliCompact-NT-2.1-Reference Guide.pdf, ©ComAp –May 2015
7
1 Document information
InteliCompact-NT® – Reference guide
Written by: Jan Tomandl, Revised by: Jan Donat, Jan Podlipny
©2013 ComAp a.s.
Kundratka 17, Praha 8, Czech Republic
Phone: [phone], fax: [phone]
Web: HTTP://WWW.COMAP.CZ, e-mail: [e-mail]
DOCUMENT HISTORY
REVISION NUMBER
RELATED SW.VERSION
DATE
1
1.0
30.05.2008
2
1.1
25.03.2009
3
1.2
22.10.2009
4
1.2.2
11.05.2010
5
1.3.1
28.11.2011
6
1.4
06.03.2013
7
2.0
30.4.2014
8
2.1
19.05.2016
This documentation is also available in electronic form as a Windows help file
InteliCompact-NT.chm. The help can be opened from Windows Explorer or directly
from the LiteEdit menu bar (if a connection is established to an InteliCompactNT
controller).
Pressing F1 in the LiteEdit setpoint, values or configuration window will open the help
with the context of currently selected setpoint, value and binary input or output
function.

InteliCompactNT, SW version 2.1
InteliCompact-NT-2.1-Reference Guide.pdf, ©ComAp –May 2015
8
1.1 Clarification of notation
HINT
This type of paragraph points out details to help user installation/configuration.
NOTE:
This type of paragraph calls readers’attention to a notice or related theme.
CAUTION!
This type of paragraph highlights a procedure, adjustment, etc. which may cause damage or improper
functioning of the equipment if not carried out correctly and may not be clear at first sight.
WARNING!
This type of paragraph indicates things, procedures, adjustments, etc. which demand a high level of
attention, otherwise personal injury or death may occur.
1.2 Conformity Declaration
The following described machine complies with the appropriate basic safety and
health requirement of the EC Low Voltage Directive No: 73/23 / EEC and EC
Electromagnetic Compatibility Directive 89/336 / EEC based on its design and type,
as brought into circulation by us.

InteliCompactNT, SW version 2.1
InteliCompact-NT-2.1-Reference Guide.pdf, ©ComAp –May 2015
9
2 System overview
2.1 General description
InteliCompactNT (also IC-NT) Family controllers are comprehensive gen-set controllers for single and
multiple generating sets operating in stand-by or parallel modes. A modular construction allows
upgrades to different levels of complexity in order to provide the best solution for various customer
applications. The controllers are equipped with a powerful graphic display showing icons, symbols and
bar graphs for intuitive operation, which, together with its high level of functionality, sets new
standards in Gen-set controls.
The key features are:
Easy-to-use operation and installation. The factory default configuration covers most
applications
Various customizations are possible thanks to its configurability
Excellent remote communication capabilities
High level of support for EFI engines (most world producers)
High reliability
2.2 Configurability and monitoring
One of the key features of the controller is the system’s high level of adaptability to the needs of each
individual application and wide possibilities for monitoring. This can be achieved by configuring and
using the powerful ComAp PC/mobile tools.
Supported configuration and monitoring tools:
- LiteEdit –complete configuration and single gen-set monitoring
- InteliMonitor –multiple site monitoring and setpoint setting
- WinScope –special graphical monitoring software
- WebSupervisor –web-based system for monitoring and controlling
oWebSupervisor mobile –supporting application for smartphones
NOTE:
Use the LiteEdit PC software to read, view and modify configuration from the controller or disk and
write the new configuration to the controller or disk.
The firmware of InteliCompactNT contains a large number of binary inputs and outputs needed for all
necessary functions available. However, not all functions are required at the same time on the same
gen-set and also the controller hardware does not have so many input and output terminals. One of
the main tasks of the configuration is mapping of “logical” firmware inputs and outputs to the “physical”
hardware inputs and outputs.
Configuration parts:
1. Mapping of logical binary inputs (functions) or assigning alarms to physical binary input
terminals
2. Mapping of logical binary outputs (functions) to physical binary output terminals
3. Assigning sensor characteristics and alarms to analog inputs
4. Assigning control values and output characteristics to analog outputs
5. Selection of peripheral modules which are connected to the controller and doing the same as
the above for them
6. Selection of ECU type if an ECU is connected
7. Changing the language of the controller interface

InteliCompactNT, SW version 2.1
InteliCompact-NT-2.1-Reference Guide.pdf, ©ComAp –May 2015
10
CONFIGURATION OF
BINARY INPUTS AND
OUTPUTS
“Logical”inputs
“Logical”outputs
Main program (control loop)
Alarm
management
FIRMWARE
CONTROLLER
Physical input terminals
Physical output terminals
PRINCIPLE OF BINARY INPUTS AND OUTPUTS CONFIGURATION
The controller is shipped with a default configuration, which should be suitable for most standard
applications. This default configuration can be changed only by using a PC with the LiteEdit software.
See LiteEdit documentation for details.
NOTE:
You need one of communication modules to connect the controller to a PC with LiteEdit. There is a
special easy removable service module for cases when no communication module is permanently
attached.
Once the configuration is modified, it can be saved to a file for later usage with another controller or for
backup purposes. The file is called archive and has the file extension .aic. An archive contains a full
image of the controller at the time of saving (if the controller is online for the PC) except the firmware.
Besides configuration it also contains current adjustment of all setpoints, all measured values, a copy
of the history log and a copy of the alarm list.
The archive can be simply used for cloning controllers, i.e. preparing controllers with identical
configuration and settings.
2.2.1 LiteEdit
Configuration and monitoring tool for InteliCompactNT, InteliLiteNT and other controllers. See more in
LiteEdit Reference Guide.
This tool provides the following functions:
- Direct, modem or internet communication with
the controller
- Offline or online controller configuration
- Controller firmware upgrade
- Reading/writing/adjustment of setpoints
- Reading of measured values
- Browsing of controller history records
- Exporting data into a XLS file
- Controller language translation

InteliCompactNT, SW version 2.1
InteliCompact-NT-2.1-Reference Guide.pdf, ©ComAp –May 2015
11
2.2.2 InteliMonitor
PC Monitoring tool for Inteli controllers. See more in the
InteliMonitor Reference Guide.
This tool provides the following functions:
- Online monitoring of a controller or whole site
- Fully customizable SCADA diagram
- Reading/writing/adjustment of setpoints
- Reading of measured values
- Browsing of controller history records
2.2.3 WinScope
Special graphical controller monitoring software. See
more in the WinScope Reference guide.
This tool provides the following functions:
- Monitoring and archiving of ComAp controller’s
parameters and values
- View of actual/historic trends in controller
- On-line change of controllers’ parameters for
easy regulator setup
2.2.4 WebSupervisor
Web-based system for monitoring and controlling ComAp controllers. See more at the WebSupervisor
webpage.
This tool provides the following functions:
- Site and fleet monitoring
- Reading of measured values
- Browsing of controller history records
- On-line notification of alarms
- E-mail notification
- Also available as a smartphone application

InteliCompactNT, SW version 2.1
InteliCompact-NT-2.1-Reference Guide.pdf, ©ComAp –May 2015
12
2.3 Applications overview
2.3.1 Single applications
The typical scheme of a single parallel to mains application is shown below. The controller controls
two breakers –a mains breaker and a generator breaker. Feedback from both breakers is required.
MCB
3x
K4
MCB
MCB CLOSE/OPEN
GCB
3x
K3
GCB
GCB CLOSE/OPEN
G1
3Ph UM
3Ph UG
3x
InteliCompactNT
SPtM
BO
BI
3Ph IG
IG-AVRi
SG+
AVRi
SPEED GOVERNOR
CAN1
AVR
ECU
MCB
GCB
MCB FEEDBACK
GCB FEEDBACK
ECU
SINGLE PARALLEL TO MAINS APPLICATION
2.3.2 Multiple applications
The typical schemes are multiple island-parallel application without mains and multiple parallel
application with mains. Both are shown below. The controller controls one breaker only, the generator
breaker. Feedback from the generator breaker is required. For parallel to mains operation also mains
breaker feedback is required.
GCB
3x
K3
GCB
GCB CLOSE/OPEN
G1
3Ph UB
3Ph UG
3x
InteliCompactNT
MINT
BO
BI
3Ph IG
IG-AVRi
SG+
AVRi
SPEED GOVERNOR
GCB
K3
GCB
GCB CLOSE/OPEN
G2
3Ph UB
3Ph UG
3x
InteliCompactNT
MINT
BO
BI
3Ph IG
IG-AVRi
SG+
AVRi
SPEED GOVERNOR
SYS START/STOP
SYS START/STOP
START/STOP
CAN2
CAN2
AVR
AVR
CAN
CAN
CAN1
CAN1
ECU
ECU
ECU
ECU
GCB
GCB FEEDBACK
GCB
GCB FEEDBACK
ISLAND-PARALLEL OPERATION WITHOUT MAINS

InteliCompactNT, SW version 2.1
InteliCompact-NT-2.1-Reference Guide.pdf, ©ComAp –May 2015
13
GCB
3x
K3
GCB
GCB CLOSE/OPEN
G1
3Ph UB
3Ph UG
3x
InteliCompactNT
MINT
BO
BI
3Ph IG
IG-AVRi
SG+
AVRi
SPEED GOVERNOR
GCB
K3
GCB
GCB CLOSE/OPEN
G2
3Ph UB
3Ph UG
3x
InteliCompactNT
MINT
BO
BI
3Ph IG
IG-AVRi
SG+
AVRi
SPEED GOVERNOR
SYS START/STOP
SYS START/STOP
SYS START/STOP
CAN2
CAN2
AVR
AVR
CAN
CAN
CAN1
CAN1
ECU
ECU
ECU
ECU
MCB
3x
K4
MCB
MainsCompactNT
BO
BI CAN
MCB MCB FEEDBACK
3Ph IM
3Ph UM
3Ph UB
MCB CLOSE/OPEN
REM START/STOP
MCB FEEDBACK
MCB FEEDBACK
MCB FDB MIRROR
GCB
GCB FEEDBACK
GCB
GCB FEEDBACK
ISLAND-PARALLEL OPERATION WITH AMF AND WITHOUT PARALLELING
2.4 True RMS measurement
This controller measures AC values based on the True RMS principle. This principle corresponds
exactly to the physical definition of alternating voltage and current effective values. Under normal
circumstances the mains voltage and current should have a pure sinusoidal waveform. However,
some nonlinear elements connected to the mains produce harmonic waveforms with frequencies of
multiples of the basic mains frequency and this may result in deformation of the voltage and/or current
waveforms. The True RMS measurement gives accurate readings of effective values not only for
pure sinusoidal waveforms, but also for deformed waveforms.
NOTE:
The harmonic deformation causes that the Power Factor of a generator working parallel with the
mains cannot reach values in a certain range around the PF 1.00. The higher the deformation, the
wider the power factor dead range. If the requested power factor is adjusted inside the dead range,
the controller cannot reach the requested value because of this fact.

InteliCompactNT, SW version 2.1
InteliCompact-NT-2.1-Reference Guide.pdf, ©ComAp –May 2015
14
3 Installation
3.1 Mounting
The controller is to be mounted onto the switchboard door. The requested cut-out size is 175x115 mm.
Use the screw holders delivered with the controller to fix the controller into the door as described in the
pictures below. Recommended tightening torque is 0,15 –0,2 Nm.
3.2 Package contents
The package contains:
Controller
Mounting holders
Terminal blocks
NOTE:
The package does not contain a communication module. The required module should be ordered
separately.

InteliCompactNT, SW version 2.1
InteliCompact-NT-2.1-Reference Guide.pdf, ©ComAp –May 2015
15
3.3 Dimensions
29
58
47
185
125 110
80
168
D+
+-
NT
InteliCompact
Mounting cutout size: 175 x 115 mm
NOTE:
The dimensions are in millimetres and are the same for both versions –SPTM and MINT.

InteliCompactNT, SW version 2.1
InteliCompact-NT-2.1-Reference Guide.pdf, ©ComAp –May 2015
16
3.4 Terminal diagram
MINT
SPTM
3.5 General
To ensure proper function:
Use grounding terminals.
Wiring for binary inputs and analog inputs must not be run with power cables.
Analog and binary inputs should use shielded cables, especially when the length is more than
3 m.

InteliCompactNT, SW version 2.1
InteliCompact-NT-2.1-Reference Guide.pdf, ©ComAp –May 2015
17
3.6 Wiring
Tightening torque, allowed wire size and type, for the Field-Wiring Terminals:
Based on terminal type:
1. PA256:
SPECIFIED TIGHTENING TORQUE 0.5 NM (4.4 IN-LB)
2. 2EDGK:
SPECIFIED TIGHTENING TORQUE 0.4 NM (3.5 IN-LB)
For field type terminals:
Use only diameter 2.0–0.5 mm (12–26 AWG) conductor, rated for 75 °C minimum.
For Mains (Bus) Voltage and Generator Voltage terminals
Use only diameter 2.0-0.5 mm (12–26 AWG) conductor, rated for 90 °C minimum.
Use copper conductors only.
3.7 Grounding
The shortest possible piece of wire should be used for controller grounding. Use cable min. 2.5 mm2.
A brass M4x10 screw with star washer securing ring type grounding terminal shall be used.
The negative “-” battery terminal must be properly grounded.
Switchboard and engine must be grounded at a common point. Use as short a cable as
possible to the grounding point.
3.8 Power supply
To ensure proper function:
Use min. power supply cable of 1.5 mm2
The maximum continuous DC power supply voltage is 36 V DC. The maximum allowable power
supply voltage is 39 V DC. The InteliCompact’s power supply terminals are protected against large
pulse power disturbances. When there is a potential risk of the controller being subjected to
conditions outside its capabilities, an outside protection device should be used.
It is necessary to ensure that potential difference between the generator current COM terminal
and the battery “-” terminal is maximum ±2 V. Therefore, it is strongly recommended to
interconnect these two terminals together.
HINT:
The InteliCompactNT controller should be grounded properly in order to protect against lighting strikes!!
The maximum allowable current through the controller’s negative terminal is 4A (this is dependent on
binary output load).

InteliCompactNT, SW version 2.1
InteliCompact-NT-2.1-Reference Guide.pdf, ©ComAp –May 2015
18
For connection with a 12 V DC power supply, the InteliCompactNT includes internal capacitors that
allow the controller to continue operation during cranking if the battery voltage dip occurs. If the battery
voltage is 10 V before the dip and it recovers to 7 V within 100 ms the controller continues operating.
During this voltage dip, the controller screen backlight may turn on and off but the controller keeps
operating.
It is possible to further support the controller by connecting the external capacitor and separating
diode or I-LBA module:
+
-
T1A
+-
+
-
D
C
+
Relays
Controller
Starter
Battery
12 VDC
The capacitor size depends on the required time. It shall be approximately in the thousands of
microfarads.
The capacitor size should be 5000 microfarad to withstand a 150 ms voltage dip under the following
conditions:
Voltage before dip is 12 V, after 150 ms the voltage recovers to the min. allowed voltage, i.e. 8 V.
HINT:
Before the battery is discharged the message "Low BackupBatt" appears.
Or by connecting a special I-LBA Low Battery Adaptor module:
+
-
T1A
+-
+
-
Relays
Controller
Starter
Battery
12 VDC
I-LBA
+ +
--
The I-LBA module ensures a min. 350 ms voltage dip under following conditions:
Communication and extension plug-in modules are connected.
Voltage before dip is 12 V and after 350 ms the voltage recovers to the min. allowed voltage
5 V.
The I-LBA enables controller operation from 5 V DC (for 10 to 30 seconds).
The wiring resistance from the battery should be up to 0.1 Ωfor proper function of the I-LBA.
HINT:
I-LBA may not eliminate voltage drop when used with the low temperature (-40 °C) version of the
controller and the display heating element is on (below 5 °C). The current drain of the heating element
exhausts LBA capacitors very fast.

InteliCompactNT, SW version 2.1
InteliCompact-NT-2.1-Reference Guide.pdf, ©ComAp –May 2015
19
3.8.1 Power supply fusing
A one-amp fuse should be connected in line with the battery positive terminal to the controller and
modules. These items should never be connected directly to the starting battery.
Fuse value and type depends on the number of connected devices and wire length.
The recommended fuse type (not fast) is T1A due to internal capacitors charging during
power up.
+-
T1A
IC-NT
+
-
Battery HUGE
LOADS
STARTER
3.9 Voltage and current inputs
WARNING!
Risk of personal injury due to electric shock when manipulating voltage terminals under voltage! Be
sure the terminals are not under voltage before touching them.
WARNING!
Do not open the secondary circuit of current transformers when the primary circuit is closed!!! Open
the primary circuit first!
Use 1.5 mm2cables for voltage connection and 2.5 mm2for current transformers connection.
Adjust nominal voltage, nominal current, CT ratio and PT ratio by appropriate setpoints in the Basic
Settings group. Learn about how to view and change setpoints in the User interface chapter.
VOLTAGE MEASUREMENT WIRING
A)
G
L1
L2
L3
N
N L3L2L1
GENERATOR
N L3L2L1
MAINS / BUS

InteliCompactNT, SW version 2.1
InteliCompact-NT-2.1-Reference Guide.pdf, ©ComAp –May 2015
20
B)
G
L1
L2
L3
N
N L3L2L1
GENERATOR
N L3L2L1
MAINS / BUS
C)
G
L1
L2
L3
N L3L2L1
GENERATOR
N L3L2L1
MAINS / BUS
D)
G
L1
N
N L3L2L1
GENERATOR
N L3L2L1
MAINS / BUS
Wiring to be used with IC-NT-
MINT-MonoPhase or IC-NT-
SPTM-MonoPhase archive for
Mono or Single Phase
applications.
CURRENT MEASUREMENT WIRING
E)
G
L1
L2
L3
COM
L3L2L1
KL
klKL
klKL
kl
