user manual
EN
CONDTROL NEO X200
LASER LEVEL
SAFETY INSTRUCTIONS
Attention! This user manual is an essential part of this product.
The user manual should be read carefully before you use the product
for the first time. If the product is given to someone for temporary
use, be sure to enclose user manual to it.
- Do not misuse the product
- Do not remove warning signs and protect them from abrasion,
because they contain information about safe operation of the
product.
-Do not look into the laser beam or its reflection, with unprotected
eye or through an optical instrument. Do not point the laser beam at
people or animals without the need. You can dazzle them.
-To protect your eyes close them or look aside.
- Always install the product in such a way, so that laser line is below
or above eye level.
- Do not let unauthorized people enter the zone of product operation.
- Store the product beyond reach of children and unauthorized
people.
- It is prohibited to disassemble or repair the product yourself. Entrust
product repair to qualified personnel and use original spare parts
only.
- Do not use the product in explosive environment, close to flammable
materials.
- Laser intensive glasses are used for better recognition of the laser
beam, do not use them for other purposes. Laser glasses do not
protect from laser radiation as well as ultraviolet radiation and reduce
color perception.
LASER RADIATION!
Do not stareinto beam
Class 2 laser
<1 mW, 630-670 nm
IEC 60825-1: 2007-03

55
user manual
LASER LEVEL
EN
CONDTROL NEO X200
PRODUCT DESCRIPTION
Laser level NEO X200 CONDTROL is intended to build and check
vertical and horizontal planes and lines.
The product has 2 operating modes:
- locked compensator, to build inclined planes and lines;
- automatic levelling to project horizontal and vertical planes
and lines. Levelling function allows to automatically compensate
irregularities within self-levelling range of ±4,5°.
Pulse mode allows using laser receiver to increase working range of
the instrument or to work when laser is hard to be defined in bright
lighting conditions.
- Avoid heating the batteries to avoid the risk of explosion and
electrolyte leakage. In case of liquid contact with skin, wash it
immediately with soap and water. In case of contact with eyes, flush
with clean water during 10 minutes and consult the doctor.

66
user manual
EN
CONDTROL NEO X200
LASER LEVEL
1
2
5

77
user manual
LASER LEVEL
EN
CONDTROL NEO X200
1 - Laser lines exit window
2 - Control panel
3 - Battery cover
4 - 5/8’’ mounting thread
5 - Compensator lock
6 - Mounting screw hole
7 - Mounting clip
8 - Belt mount hole
8
34
6
7

88
user manual
EN
CONDTROL NEO X200
LASER LEVEL
Control panel
1 – Switch on/off laser lines
2 – Switch on/off pulse mode
3 - Indication of leveling mode/locked pendulum/low battery
4 - Indication of pulse mode
1
3 4
2

99
user manual
LASER LEVEL
EN
CONDTROL NEO X200
TECHNICAL SPECIFICATIONS
Working range/with receiver 20 m / 60 m
Self-levelling accuracy ±0,3 mm/m
Self-levelling range ± 4,5°
Operating temperature 0°C ... +50°C
Storage temperature 
Tripod mounting thread 5/8’’
Laser type Class II 635 nm < 1 mW
Power supply 
Dust and moisture protection rate IP54
Dimensions 
Weight 0,5 kg
SET
NEO X200
Laser level NEO X200, magnetic holder, adapter 5/8’’ – 1/4’’, cable tie,
pouch, batteries 2 pcs, user manual.
NEO X200 Set
Laser level NEO X200, tripod 5/8’’, magnetic holder, adapter 5/8’’ –
1/4’’, cable tie, batteries 2 pcs, user manual, hard case.
NEO X200 Kit
Laser level NEO X200, magnetic holder, adapter 5/8-1/4, cable tie,
batteries 2 pcs., magnetic target, wall mount, glasses, user manual,
plastic case.

1010
user manual
EN
CONDTROL NEO X200
LASER LEVEL
OPERATION
Before start operation remove the battery cover, insert the batteries,
observing correct polarity. Put battery cover back.
Use alkaline batteries only. Both batteries should be of the same type
and brand with the same charge level. If indicator starts flashing
red while operation replace the batteries.
Place an instrument on a firm and stable surface or a tripod.
Move the switch bar to activate necessary operating mode:
1) Automatic leveling mode
Move the switch bar to ON position . The pendulum is unlocked.
The indicator turns green.
If the instrument is out of the range of automatic compensation it will
emit sound signal.
Short press button to switch on laser lines.
Short press to switch on pulse mode. Indicator will be
green. Short press again to switch off pulse mode.
To switch off the instrument move the switch bar to OFF position .
2) Projection of inclined lines
Move the switch bar to OFF position . The pendulum is locked.
Indicator turns red.
Long press button during 3 seconds to switch on/off required
laser lines. Long press during 3 seconds to switch on pulse
mode. Indicator will be green. Long press again to
switch off pulse mode.

1111
user manual
LASER LEVEL
EN
CONDTROL NEO X200
ACCURACY CHECK
Check of horizontal line
Check of horizontal line is carried out by using 2 walls located opposite
each other at a distance of 5m.
1. Put the instrument as close as possible to the wall so that laser
emitters are located opposite the wall.
2. Move lever lock to unlocked position and switch on horizontal
plane.
Mark location of horizontal line on the wall as A1.
3. Turn the instument by 180° and mark location of horizontal line on
another wall as B1.

1212
user manual
EN
CONDTROL NEO X200
LASER LEVEL
max 1.5 mm
4. Turn the instrument to the right. Measure vertical deviation of
horizontal line from point B1. If deviation exceeds 1,5 mm – please
contact service center.
5. Repeat actions in paragraph 4 by turning the instrument to the left.

1313
user manual
LASER LEVEL
EN
CONDTROL NEO X200
6. Install the instrument closer to the opposite wall. Mark location of
horizontal line on the wall as B2.
7. Turn the instrument by 180° and mark location of horizontal line on
the opposite wall as A2.
8. Measure vertical distance between marks A1, A2 and B1, B2. If
distance between measured values exceeds 3 mm – please contact
service center.

1414
user manual
EN
CONDTROL NEO X200
LASER LEVEL

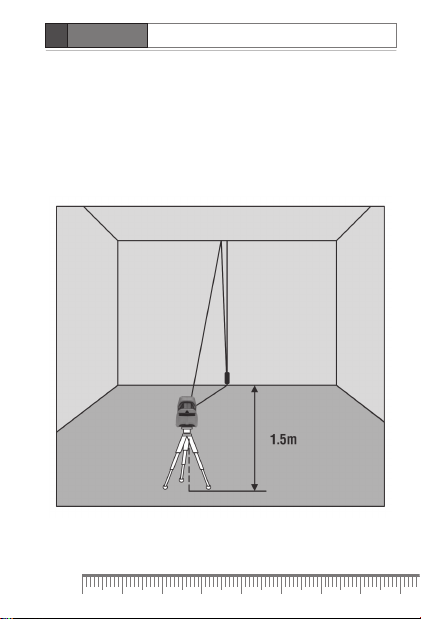

Check of vertical line
Use a plumb bob as a reference of a vertical. Place the instrument at
distance of 1,5 m from the plumb bob.
1. Move lever lock to unlocked position, then switch on vertical
plane and align vertical laser line with the low point of plumb bob.
2. If deviation between the laser line and the plumb line exceeds



1515
user manual
LASER LEVEL
EN
CONDTROL NEO X200
CARE AND MAINTENANCE
Attention! The product is an accurate optical mechanic device and
requires careful handling. Check the accuracy before using.
To increase the operating time and avoid the risk of unintentional
blindness switch the laser on only when you are ready to make
measurements.
If operated near objects or air streams with different from the
environment temperature the laser line may tremble due to
heterogeneity of the atmosphere. The longer is the distance, the more
trembling can be observed
The width of the laser line increases with the increasing of the
operating distance. The layout should be made along the axis of the
laser line. For maximum accuracy, use the middle portion of the laser
line.
It should be noted that the shape of the laser line on the object’s

the surface relative to the laser plane.
Maintenance of the following recommendations will extend the life
of the device:
- Transport and carry the product only with locked compensator.
- Keep the product clean and protected from any bumps, dust and
dampness; do not allow getting moisture, dust or other dirt inside of
the product.
- In case if any moisture goes into the product, remove the batteries
and take it to the service center.
- Do not keep or use the device for a long time at high humidity
conditions.
- Keep the instrument clean and wipe it with a clean and soft cloth.
Mishandling of the following rules can cause electrolite leakage
from the batteries or other damages:
- Remove the batteries from the product if you do not use it for a long
time.
- Do not use different battery types with different charge levels.
- Do not leave discharged batteries in the product.

1616
user manual
EN
CONDTROL NEO X200
LASER LEVEL
UTILIZATION
Expired tools, accessories and package should be passed for waste
recycle. Please send the product to the following address for proper
recycle:
CONDTROL GmbH
Im Wiegenfeld 4
85570 Markt Schwaben
Germany
Do not throw the product in municipal waste!

and their components must be collected separately and submitted to
environmentally friendly recycle of wastes.
WARRANTY
All CONDTROL GmbH products go through post-production control
and are governed by the following warranty terms. The buyer’s
right to claim about defects and general provisions of the current
legislation do not expire.
          
discovered while warranty period, that represent the defect in
material or workmanship in full volume and at its own expense.
            


or improper use, malfunction of the product caused by failure to
observe the instructions of this user manual, untimely maintenance
and service and insufficient care, the use of non-original accessories
and spare parts. Modifications in design of the product relieve the
seller from responsibility for warranty works. The warranty does not
cover cosmetic damage, that doesn’t hinder normal operation of the
product.

repair of the device.


1717
user manual
LASER LEVEL
EN
CONDTROL NEO X200

is not renewed or extended.
    
associated with a defect of the device, rental cost of alternative
equipment for the period of repair.
This warranty applies to German law except provision of the United
Nations Convention on contracts for the international sale of goods

In warranty case please return the product to retail seller or send it
with description of defect to the following address:
CONDTROL GmbH
Im Wiegenfeld 4
85570 Markt Schwaben
Germany

1818
Bedienungsanleitung
KREUZLINIENLASERDE
CONDTROL NEO X200
SICHERHEITSHINWEISE
Bitte lesen und befolgen Sie fuer die sichere Verwendung Ihres
Geraets alle Anweisungen. Warnschilder muessen stets sichtbar
und erkennbar sein. Bewahren Sie diese Bedienungsanleitung auf
und werfen Sie sie nicht weg. Bei nicht fachgerechter Anwendung
koennen Sie Laserstrahlung ausgesetzt sein.
Sie erhalten Ihr Geraet mit einem Warnschild in Englisch. Bitte
beachten Sie das hier abgebildete Warnschild in Deutsch.
Richten Sie den Laserstrahl niemals auf Personen oder Tiere. Blicken
Sie nicht in den Laserstrahl, auch nicht mit optischen Instrumenten.
Sie gefaehrden Ihr Augenlicht. Ihr Geraet erzeugt Laserstrahlung
der Klasse 2 gemaess EN60825-1. Die Laserbrille dient nicht als
Schutzbrille, sondern zur besseren Sichtbarkeit des Laserstrahls. Sie
bietet keinen Schutz vor Laserstrahlung. Die Laserbrille kann nicht
als Sonnenbrille verwendet werden. Der Einsatz im Strassenverkehr
ist verboten. Die Laserbrille schuetzt nicht vor UV-Licht und
verringert die Wahrnehmung von Farbunterschieden. Reparatur
und Wartung duerfen nur durch Fachpersonal mit Qualifikation
erfolgen, das originale Ersatzkomponenten einsetzt. Kinder duerfen
aus Sicherheitsgruenden das Geraet nur unter Aufsicht benutzen.
Verwenden Sie das Geraet nicht in der Naehe von brennbaren Stoffen,
da im Geraet Funken entstehen koennen. Die Halterung des Geraets
beinhaltet Magnete. Verwenden Sie sie daher nicht in der Naehe von
Herzschrittmachern, da deren Funktion durch Magnetfelder gestoert
werden kann. Vermeiden Sie ebenso die Naehe zu magnetischen
Datentraegern oder Geraeten, die auf Magnetfelder reagieren. Die
Folge koennen Datenloeschungen oder –zerstoerung sein.
LASERSTRAHLUNG!
Nicht in den strahl blicken
Laserklasse 2
<1 mW, 630-670 nm
IEC 60825-1: 2007-03

1919
Bedienungsanleitung
KREUZLINIENLASERDE
CONDTROL NEO X200
BESTIMMUNGSGEMAESSER GEBRAUCH
Der Multiline –Kreuzlinienlaser NEO X200 CONDTROL wird zur
Ermittlung und Ueberpruefung von horizontalen und vertikalen
Linien.
Das Gearet hat zwei Betriebsarten:
- Zum Erzeugen Laser- Linien und –Ebene mit jeglichen Neigungen;
- Mit Nivellierautomatik der Gehaeuseneigung bis zum ±4,5° zum
Erzeugen waagrechten und senkrechten Laser- Linien und –Ebenen.
Empfaengerbetrieb ist dazu bestimmt, Reichweite zu erweitern und
Laserstrahlen von Linienlaser bei Tageslicht zu lokalisieren.

2020
Bedienungsanleitung
KREUZLINIENLASERDE
CONDTROL NEO X200
1
2
5
