Conel SPECTRE v3 LTE User manual

Cellular router
SPECTRE v3 LTE
USER’S MANUAL
WWW.INFOPULSAS.LT / [email protected]

USED SYMBOLS
Used Symbols
Danger – important notice, which may have an influence on the user’s safety or the function
of the device.
Attention – notice on possible problems, which can arise in specific cases.
Information, notice – information, which contains useful advice or special interest.
GPL License
Source codes under GPL license are available free of charge by sending an email to:
[email protected].
Conel s.r.o., Sokolska 71, 562 04 Usti nad Orlici, Czech Republic
Manual Rev. 1 issued in CZ, December 1, 2014
i

CONTENTS
Contents
1 Safety Instruction 1
2 Product Disposal Instructions 2
3 Router Description 3
3.1 UsageoftheRouter ................................. 4
4 Contents of Package 6
5 Router Design 7
5.1 Routerversions.................................... 7
5.2 Deliveryidentification ................................ 8
5.3 Orderingcodes.................................... 8
5.4 Basic dimensions of router box . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
5.5 Mechanical dimensions and mounting recommendations . . . . . . . . . . . . . 10
5.6 Removing from the DIN rail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
5.7 Description of the rear panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5.8 Description of the front panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5.8.1 Statusindication ............................... 13
5.8.2 PowerconnectorPWR............................ 14
5.8.3 Antenna connector ANT, DIV, GPS and WIFI . . . . . . . . . . . . . . . 15
5.8.4 SIMcardreader ............................... 16
5.8.5 MicroSDcardreader............................. 16
5.8.6 Ethernet Port (ETH0 and ETH1) . . . . . . . . . . . . . . . . . . . . . . 17
5.8.7 USBPort ................................... 18
5.8.8 I/OPort .................................... 19
5.8.9 Reset ..................................... 21
5.9 Interfacesdescription ................................ 22
5.9.1 RS232interface ............................... 22
5.9.2 RS232-RS485/422 interface . . . . . . . . . . . . . . . . . . . . . . . . 24
5.9.3 SWITCHinterface .............................. 26
6 First Use 27
6.1 Connecting the router before first use . . . . . . . . . . . . . . . . . . . . . . . 27
6.2 Start.......................................... 28
6.3 Configuration ..................................... 28
6.3.1 Configuration over web browser . . . . . . . . . . . . . . . . . . . . . . . 28
7 Technical Parameters 30
ii

CONTENTS
7.1 Technical parameters of router . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
7.2 Technical parameters of module . . . . . . . . . . . . . . . . . . . . . . . . . . 30
7.3 Technical parameters of GPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
7.4 Technical parameters I/O port . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
7.5 Other technical parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
8 Recommended Literature 33
9 Troubleshooting 34
10 FAQ 35
11 Customers Support 37
iii

LIST OF FIGURES
List of Figures
1 Access to the Internet from LAN . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2 Backed up access to the Internet . . . . . . . . . . . . . . . . . . . . . . . . . . 4

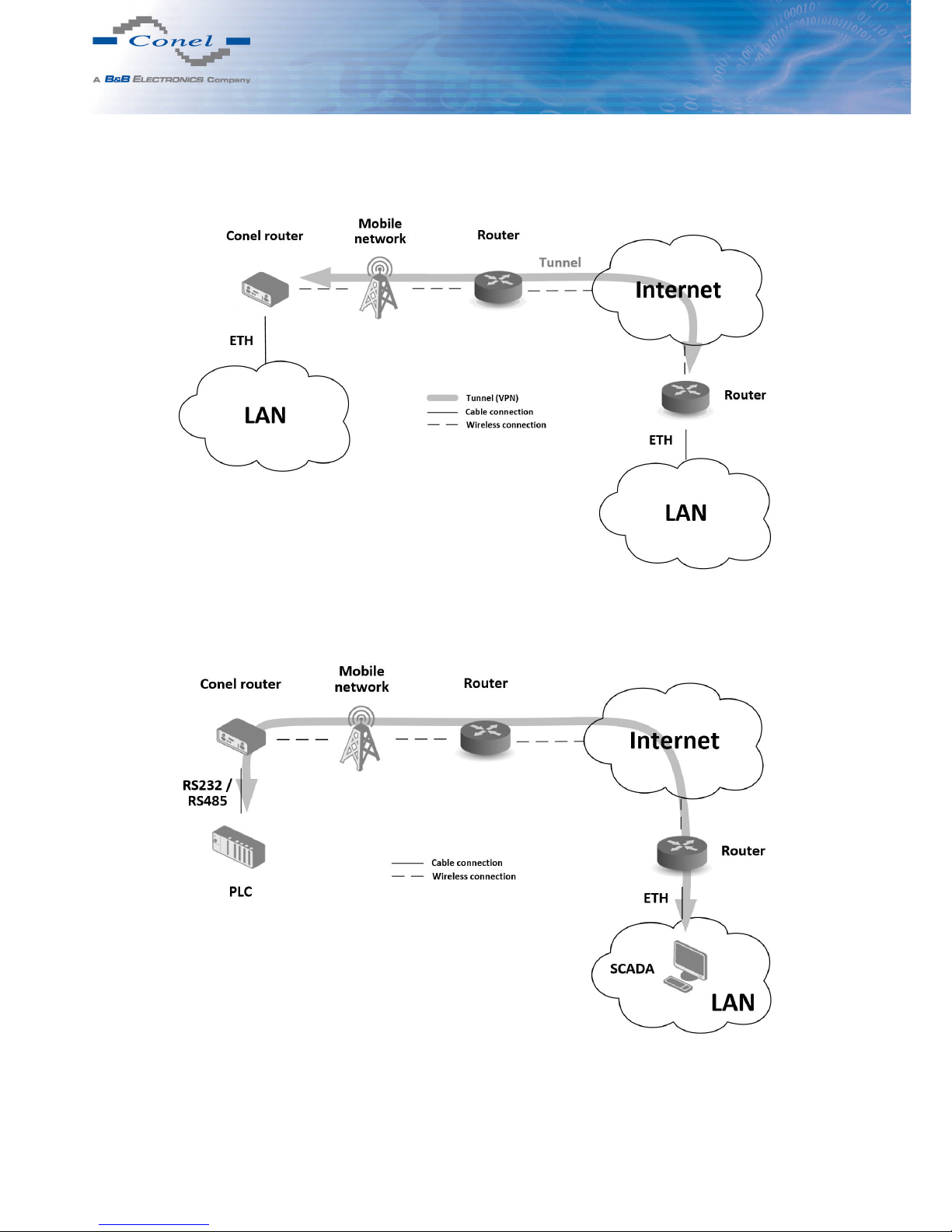

3 UsingVPNtunnel .................................. 5
4 SerialGateway .................................... 5

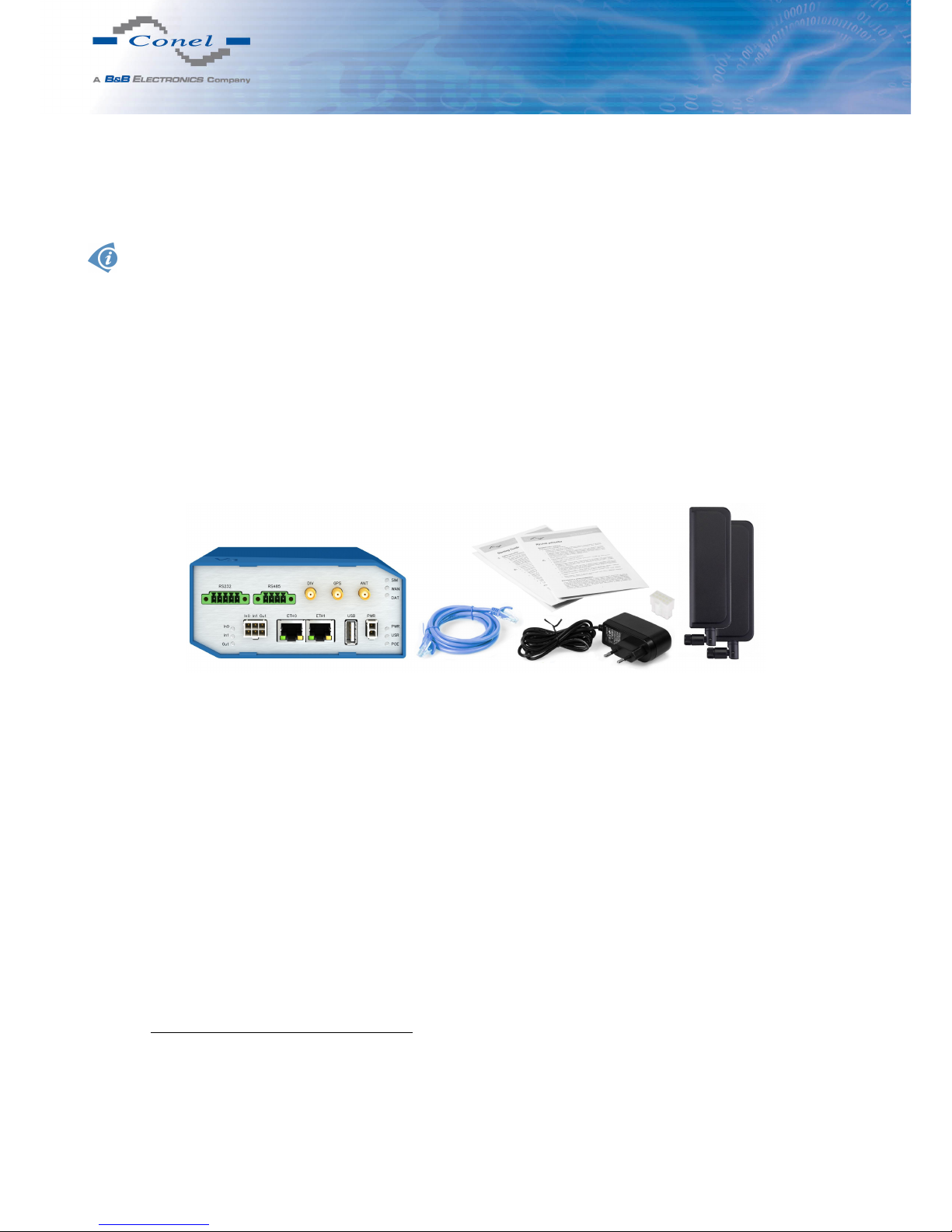

5 Contentsofpackage................................. 6
6 Basicversion ..................................... 7
7 Version with SWITCH interface . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
8 BasicversionwithWiFi ............................... 7
9 Version with SWITCH interface and WiFi . . . . . . . . . . . . . . . . . . . . . . 7
10 Version with RS485/232 interface . . . . . . . . . . . . . . . . . . . . . . . . . . 8
11 Version with RS232 interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
12 Version with RS485/232 and WiFi . . . . . . . . . . . . . . . . . . . . . . . . . . 8
13 Labelexample .................................... 8
14 Basic dimensions of router box . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
15 Default position of DIN holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
16 RemovingfromtheDINrail ............................. 11
17 SPECTRE v3 LTE front panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
18 Powerconnector ................................... 14
19 Connection of power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
20 Externalantenna ................................... 15
21 Connectingoftheantenna.............................. 15
22 SIMcards....................................... 16
23 SDcard ........................................ 17
24 Ethernetconnector.................................. 17
25 Connection of ethernet cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
26 USBconnector .................................... 18
27 I/Oconnector..................................... 19
28 Binaryinputsconnection............................... 20
29 Binaryoutputconnection .............................. 20
30 Routerreset...................................... 21
31 Version with RS232 interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
32 RS232connector................................... 23
33 Meterconnectiontorouter.............................. 23
34 Version with RS232-RS485/422 interface . . . . . . . . . . . . . . . . . . . . . 24
35 RS232connector................................... 24
36 RS485/422connector ................................ 25
37 Connectionofjumpers................................ 25
38 VersionwithSWITCHboard............................. 26
39 Routerconnection .................................. 27
40 Entering the IP address of the router . . . . . . . . . . . . . . . . . . . . . . . . 28
41 Entering login information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
iv

LIST OF FIGURES
42 Routerwebinterface................................. 29
v

LIST OF TABLES
List of Tables
1 Routerversions.................................... 7
2 Deliveryidentification ................................ 8
3 Orderingcodesoverview .............................. 9
4 Typeofrouterbox .................................. 9
5 Typeofpowersupply................................. 9
6 Examplesofordercode ............................... 9
7 Frontpaneldescription................................ 12
8 Statusindication ................................... 13
9 Connection of power connector . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
10 Technical specifications of microSD card . . . . . . . . . . . . . . . . . . . . . . 16
11 Connection of Ethernet connector . . . . . . . . . . . . . . . . . . . . . . . . . . 17
12 Connection of USB connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
13 ConnectionofI/Oport ................................ 19
14 Characteristicsofinputs ............................... 19
15 Description of reset and restart router . . . . . . . . . . . . . . . . . . . . . . . 21
16 Connection of RS232 connector . . . . . . . . . . . . . . . . . . . . . . . . . . 22
17 State indication of RS232 port . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
18 Technical specifications of RS232 port . . . . . . . . . . . . . . . . . . . . . . . 23
19 Connection of RS232 connector . . . . . . . . . . . . . . . . . . . . . . . . . . 24
20 Connection of RS485 connector . . . . . . . . . . . . . . . . . . . . . . . . . . 24
21 Connection of RS422 connector . . . . . . . . . . . . . . . . . . . . . . . . . . 25
22 Technical parameters of router . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
23 Technical parameters of module . . . . . . . . . . . . . . . . . . . . . . . . . . 31
24 Technical parameters of GPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
25 Characteristicsofinputs ............................... 32
26 Other technical parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
vi

1. SAFETY INSTRUCTION
1. Safety Instruction
Please, observe the following instructions:
•The router must be used in compliance with all applicable international and national laws
and in compliance with any special restrictions regulating the utilization of the router in
prescribed applications and environments.
•To prevent possible injury to health and damage to appliances and to ensure that all
the relevant provisions have been complied with, use only the original accessories.
Unauthorised modifications or utilization of accessories that have not been approved
may result in damage to the router and in a breach of applicable regulations. Unautho-
rized modifications or utilization of accessories that have not been approved may result
in the termination of the validity of the guarantee.
•The router can not be opened.
•Before handling of the SIM card turn off the router and disconnect it from power supply.
•Caution! The SIM card could be swallowed by small children.
•It must not be exceeded by the maximum voltage 60 V DC power connector on the router.
•Do not expose the router to extreme ambient conditions. Protect the router against dust,
moisture and high temperature.
•The router should not be used at petrol stations of flammable and explosive materials.
We remind the users of the duty to observe the restrictions concerning the utilization
of radio devices at petrol stations, in chemical plants, or in the course of blasting works
in which explosives are used.
•Switch off the router when travelling by plane. Utilization of the router in a plane may
endanger the operation of the plane or interfere with the mobile telephone network, and
may be unlawful. Failure to observe these instructions may result in the suspension
or cancellation of telephone services for the respective client, or, it may result in legal
sanctions; it may also result in both eventualities.
•When using the router in the close proximity of personal medical devices, such as cardiac
pacemakers or hearing aids, you must proceed with heightened caution.
•If it is in the proximity of TV sets, radio receivers and personal computers, the telephone
may cause interference.
•It is recommended that you should create an appropriate copy or backup of all the im-
portant settings that are stored in the memory of the device.
1

2. PRODUCT DISPOSAL INSTRUCTIONS
2. Product Disposal Instructions
The WEEE (Waste Electrical and Electronic Equipment: 2002/96/EC) directive has been
introduced to ensure that electrical/electronic products are recycled using the best available
recovery techniques to minimize the impact on the environment. This product contains high
quality materials and components which can be recycled. At the end of it’s life this product
MUST NOT be mixed with other commercial waste for disposal. Check the terms and condi-
tions of your supplier for disposal information.
2

3. ROUTER DESCRIPTION
3. Router Description
Cellular router SPECTRE v3 LTE is designed for wireless communication in mobile net-
works that make use of LTE, HSPA+, UMTS, EDGE or GPRS technology. Due to the high
speed of data transfer up to 100 Mbit/s (download) and up to 50 Mbit/s (upload) is this router
an ideal solution for wireless connection of traffic and security camera systems, individual
computers, LAN networks, automatic teller machines (ATM) and other self-service terminals.
As a standard, cellular router is equipped with two Ethernet 10/100, one USB 2.0 Host
port, two binary inputs and one output (I/O connector). The device also has two readers for 3
V and 1.8 V SIM cards, which are placed on the rear panel of the router. An integral part of
the router is also a memory card reader. This reader allows SPECTRE v3 LTE to operate with
microSD cards and increase storage space of the router up to 64 GB (32 GB in case of SDHC
cards). The router can be equipped with WiFi module on customer’s request, however it is not
possible to add it to the router at some time in the future. Richer range of interfaces is avail-
able in versions containing one of these ports: SWITCH, RS232 or RS485/RS232. These are
three switched Ethernets, serial interface RS232 and combination of serial interface RS485
and RS232. SPECTRE v3 LTE is supplied either in a plastic or metal casing, based on the
requirements of the customer.
For configuration of the cellular router is available web interface protected by password.
Web interface provides (after logging in) detailed statistics about the router activities, signal
strength, detailed system log etc. This device supports the creation of VPN tunnels using tech-
nologies IPSec, OpenVPN and L2TP for secure communications. There are also supported
functions such as DHCP, NAT, NAT-T, DynDNS, NTP, VRRP, control by SMS, backup primary
connection and many other functions.
Other diagnostic functions ensuring continuous communication include automatic inspec-
tion of PPP connection offering an automatic restart feature – in case of connection losses, or
hardware watchdog which monitors the status of the router. With the help of a special window
(start up script window) you may insert Linux scripts for various actions. For some applica-
tions the key option to create several different configurations for one LTE wireless router and
the option to switch between them (for example via SMS, binary input status, etc.) is essen-
tial. Cellular wireless routers SPECTRE v3 LTE may automatically upgrade configuration and
firmware from server. This allows mass reconfiguration of many routers in one time.
For further facilitating of workikg with routers can be used any additional software, e.g.
R-SeeNet for permanent traffic monitoring of routers.
Examples of possible applications
•mobile office
•fleet management
•security system
•telematic
•telemetric
•remote monitoring
•vending and dispatcher machines
3

3. ROUTER DESCRIPTION
3.1 Usage of the Router
The router is primarily intended for these four basic situations:
I. Access to the Internet from LAN
Figure 1: Access to the Internet from LAN
II. Backed up access to the Internet (from LAN)
Figure 2: Backed up access to the Internet
4

3. ROUTER DESCRIPTION
III. Secure networks interconnection or using VPN
Figure 3: Using VPN tunnel
IV. Serial Gateway
Figure 4: Serial Gateway
5

4. CONTENTS OF PACKAGE
4. Contents of Package
Basic delivered set of router includes:
•router,
•power supply,
•crossover UTP cable,
•up to three external antennas,
•loose power and I/O connector (+8 pins1),
•clip for the DIN rail,
•paper start guide.
Figure 5: Contents of package
1These pins are designed for cables with a diameter from 0.2 to 0.8 mm2
6

5. ROUTER DESIGN
5. Router Design
5.1 Router versions
SPECTRE v3 LTE router is supplied in the following versions (see table below). All versions
are available in plastic or metal box according to customer requirements.
Router versions SIM BIN BOUT USB SD ETH WiFi 232 485
Basic version 2 x 2 x 1 x 1 x 1 x 2 x
Basic version with WiFi 2 x 2 x 1 x 1 x 1 x 2 x 1 x
Version with SWITCH board 2 x 2 x 1 x 1 x 1 x 5 x
Version with SWITCH board & WiFi 2 x 2 x 1 x 1 x 1 x 5 x 1 x
Version with RS232 board 2 x 2 x 1 x 1 x 1 x 2 x 1 x
Version with RS485/232 board 2 x 2 x 1 x 1 x 1 x 2 x 1 x 1 x
Version with RS232/485 & WiFi 2 x 2 x 1 x 1 x 1 x 2 x 1 x 1 x 1 x
Table 1: Router versions
Figure 6: Basic version
Figure 7: Version with SWITCH interface
Figure 8: Basic version with WiFi
Figure 9: Version with SWITCH interface and WiFi
7

5. ROUTER DESIGN
Figure 10: Version with RS485/232 interface
Figure 11: Version with RS232 interface
Figure 12: Version with RS485/232 and WiFi
5.2 Delivery identification
Trade name Type name Other
SPECTRE v3 LTE SPECTRE-v3-LTE Router in a plastic or metal box
Table 2: Delivery identification
Figure 13: Label example
5.3 Ordering codes
Ordering codes overview is shown in the table below.
Name Order code Features – interfaces
SPECTRE v3 LTE set SR303000xy∗LTE module PLS8, 2x ETH, 1x USB, 2x BI, 1x BO,
1x microSD reader, 2x SIM reader
SPECTRE v3 LTE set SR303100xy∗LTE module PLS8, 2x ETH, 1x USB, 2x BI, 1x BO,
1x microSD reader, 2x SIM reader, WiFi
Continued on next page
8

5. ROUTER DESIGN
Continued from previous page
Name Order code Features – interfaces
SPECTRE v3 LTE set SR303001xy∗LTE module PLS8, 5x ETH, 1x USB, 2x BI, 1x BO,
1x microSD reader, 2x SIM reader
SPECTRE v3 LTE set SR303101xy∗LTE module PLS8, 5x ETH, 1x USB, 2x BI, 1x BO,
1x microSD reader, 2x SIM reader, WiFi
SPECTRE v3 LTE set SR303002xy∗LTE module PLS8, 2x ETH, 1x USB, 2x BI, 1x BO,
1x microSD reader, 2x SIM reader, RS232
SPECTRE v3 LTE set SR303003xy∗LTE module PLS8, 2x ETH, 1x USB, 2x BI, 1x BO,
1x microSD reader, 2x SIM reader, RS232, RS485
Table 3: Ordering codes overview
∗The user replaces letters "x" and "y" with one of the following values:
Letter x – type of router box
Type of box Number in code
Plastic 1
Metal 2
Table 4: Type of router box
Letter y – type of connector on the power supply
Type of power supply Number in code
Europe 1
UK & Ireland 2
Australia 3
Table 5: Type of power supply
Examples of complete order code:
Order code Features – interfaces Box Power supply
SR30300011 LTE module PLS8, 2x ETH, 1x USB, 2x BI, 1x BO,
1x microSD reader, 2x SIM reader
plastic Europe
SR30300122 LTE module PLS8, 5x ETH, 1x USB, 2x BI, 1x BO,
1x microSD reader, 2x SIM reader
metal UK & Ireland
SR30310113 LTE module PLS8, 5x ETH, 1x USB, 2x BI, 1x BO,
1x microSD reader, 2x SIM reader, WiFi
plastic Australia
Table 6: Examples of order code
9

5. ROUTER DESIGN
5.4 Basic dimensions of router box
Figure 14: Basic dimensions of router box
5.5 Mechanical dimensions and mounting recommendations
Mounting recommendations:
•possibility to be put on a work surface,
•DIN rail with clips CPD3 (or CKD3 for metal version) are included.
For the most of applications with a built-in router in a switch board it is possible to recognize two
kinds of environments:
•no public and industry environment of low voltage with high interference,
•public environment of low voltage without high interference.
For both of these environments it is possible to mount router to a switch board, the following there
is no need to have examination immunity or issues in connection with EMC according to EN 60439-1
ed.2:00 + A1:04.
For compliance of EN 60439-1 ed.2:00 + A1:04 specification it is necessary to observe next as-
sembly of the router to the switch – board:
•For whip antennas we recommend to observe a distance of 6 cm from cables and metal surfaces
on every side due to the elimination of interference. While using an external antenna except for
the switch-board it is necessary to fit a lightening conductor.
•Before mounting a router on sheet-steel we recommend using a "cable" antenna.
•For every cables we recommend to bind the bunch, we recommend for this use:
–Length of the bunch (combination of power supply and data cables) can be maximum
1.5 m. If the length of data cables exceeds 1.5 m or in the event of, the cable leads towards
the switch – board. We recommend installing over – voltage protectors (surge suppressors).
–With data cables they mustn’t carry cables with reticular tension ∼230 V/50 Hz.
•Sufficient space must be left before individual connectors for handling of cables,
•For correct function of the router we recommend to use in the switch-board earth-bonding distri-
bution frame for grounding of power supply of router, data cables and antenna.
10

5. ROUTER DESIGN
5.6 Removing from the DIN rail
Default position of CPD3 holder (or CKD3 holder for metal version), which is used for mounting the
router on a DIN rail, is shown in the following figure:
Figure 15: Default position of DIN holder
For removing from the DIN rail it is necessary to lightly push upward the router so that the top part
of the CPD3 holder (or CKD3 for metal version) hitched to the DIN rail get out of this rail and then fold
out the top part of the router away from the DIN rail.
Figure 16: Removing from the DIN rail
11

5. ROUTER DESIGN
5.7 Description of the rear panel
The rear panel contains only two holders for SIM card (SIM1 and SIM2), holder for SD card (SD)
and RST button used to restore default configuration and reboot the router.
5.8 Description of the front panel
On the front panel is the following:
Caption Connector Description
PWR 2-pin Connector for the power supply adapter
ETH0 RJ45 Connector for connection into the local computer network
ETH1 RJ45 Connector for connection into the local computer network
ANT SMA Connector for main antenna
DIV SMA Connector for diversity antenna
GPS SMA Connector for GPS antenna
WiFi R-SMA Connector for WIFI antenna (only for versions with WiFi
module!)
USB USB-A 2.0
Host
Connector for connection of USB devices to the router. Sup-
ports devices with PL-2303 and FTDI USB/RS232 converters.
I/O 6-pin Connector for connection of the binary input and output.
Table 7: Front panel description
Figure 17: SPECTRE v3 LTE front panel
12

5. ROUTER DESIGN
5.8.1 Status indication
About router status inform nine LED indicators on the front panel. Each ETH port has two additional
LEDs that provide information about port status.
Caption Color State Description
PWR Green Blinking
On
Fast blinking
Router is ready
Starting of the router
Updating firmware
USR Yellow — Function of this LED diode can be selected by user
POE Yellow
Green
— —
SIM Yellow
Green
On (Yellow color)
On (Green color)
The first SIM card is active
The second SIM card is active
WAN Yellow 1x flash per sec.
2x flash per sec.
3x flash per sec.
Signal strength is from –50 dBm to –69 dBm
Signal strength is from –70 dBm to –89 dBm or differ-
ence between neighbours cells is exactly 3 dBm
Signal strength is from –90 dBm to –113 dBm or differ-
ence between neighbours cells is smaller than 3 dBm
DAT Red Blinking Communication in progress on radio channel
IN0 Green On Binary input no. 0 is active
IN1 Green On Binary input no. 1 is active
OUT Yellow On Binary output is active
ETH0
ETH1
Green On
Off
Selected 100 Mbit/s
Selected 10 Mbit/s
ETH0
ETH1
Yellow On
Blinking
Off
The network cable is connected
Data transmission
The network cable is not connected
Table 8: Status indication
State indication of WAN LED is updated every 10 seconds.
13
