Cooper Lighting CMS185, CMS185W User manual

FRANÇAIS
ESPAÑOL
ENGLISH
MS185, CMS185
MS185W, CMS185W
Instruction Manual
Instrucciones
Directives
MS185,MS185W I.S. 325-1417 1/7/04 3:59 PM Page 1

Congratulations. You have purchased a Regent motion activated floodlight. This
security lighting system will provide years of convenience and protection for your
home and family.
How it works
Your Regent motion activated floodlight senses heat
images from objects such as people, large animals and
automobile engines. When motion is detected, the lights
will automatically turn on. Once motion has stopped, the
lights will turn off after a preselected time delay. Your
motion activated floodlight may also be used as a stan-
dard floodlight.

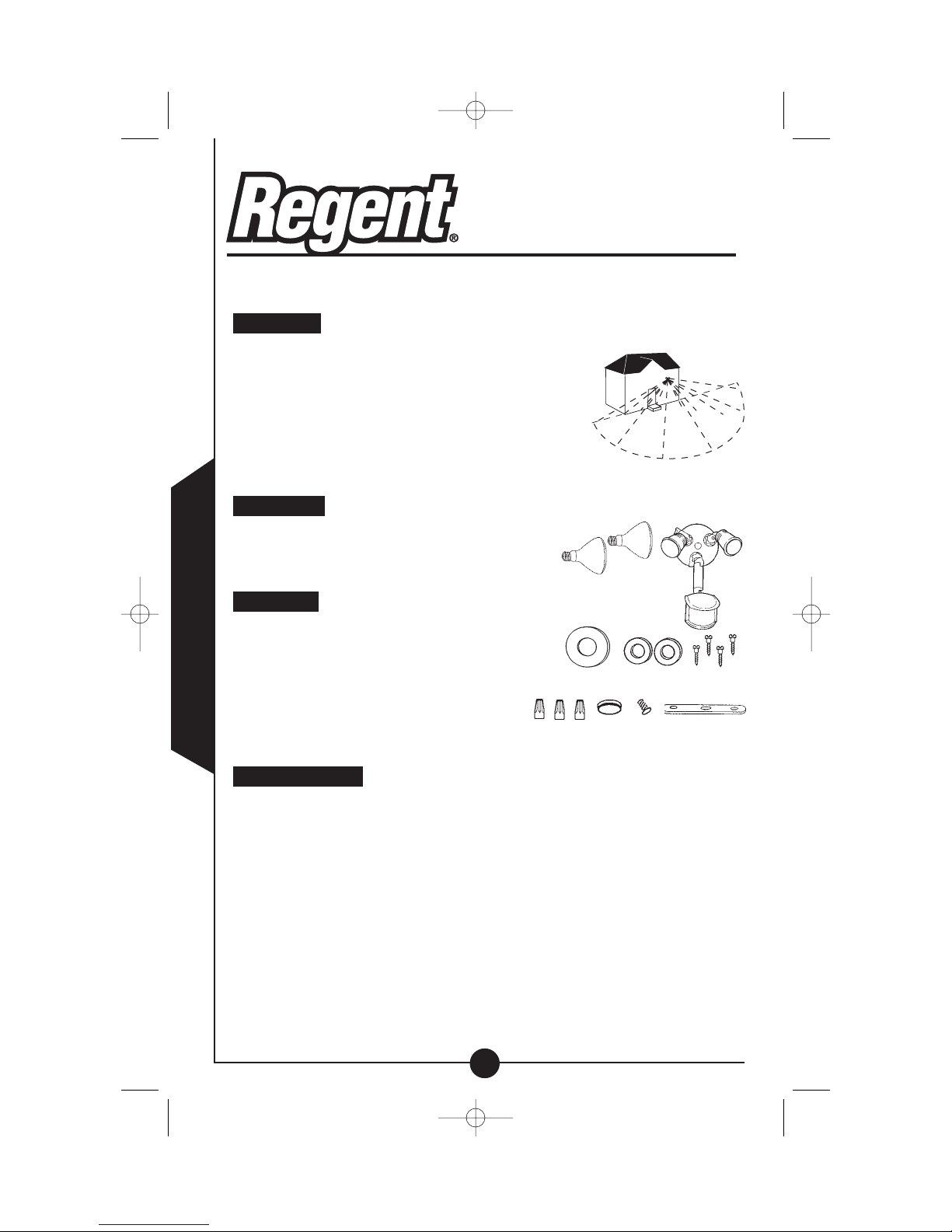

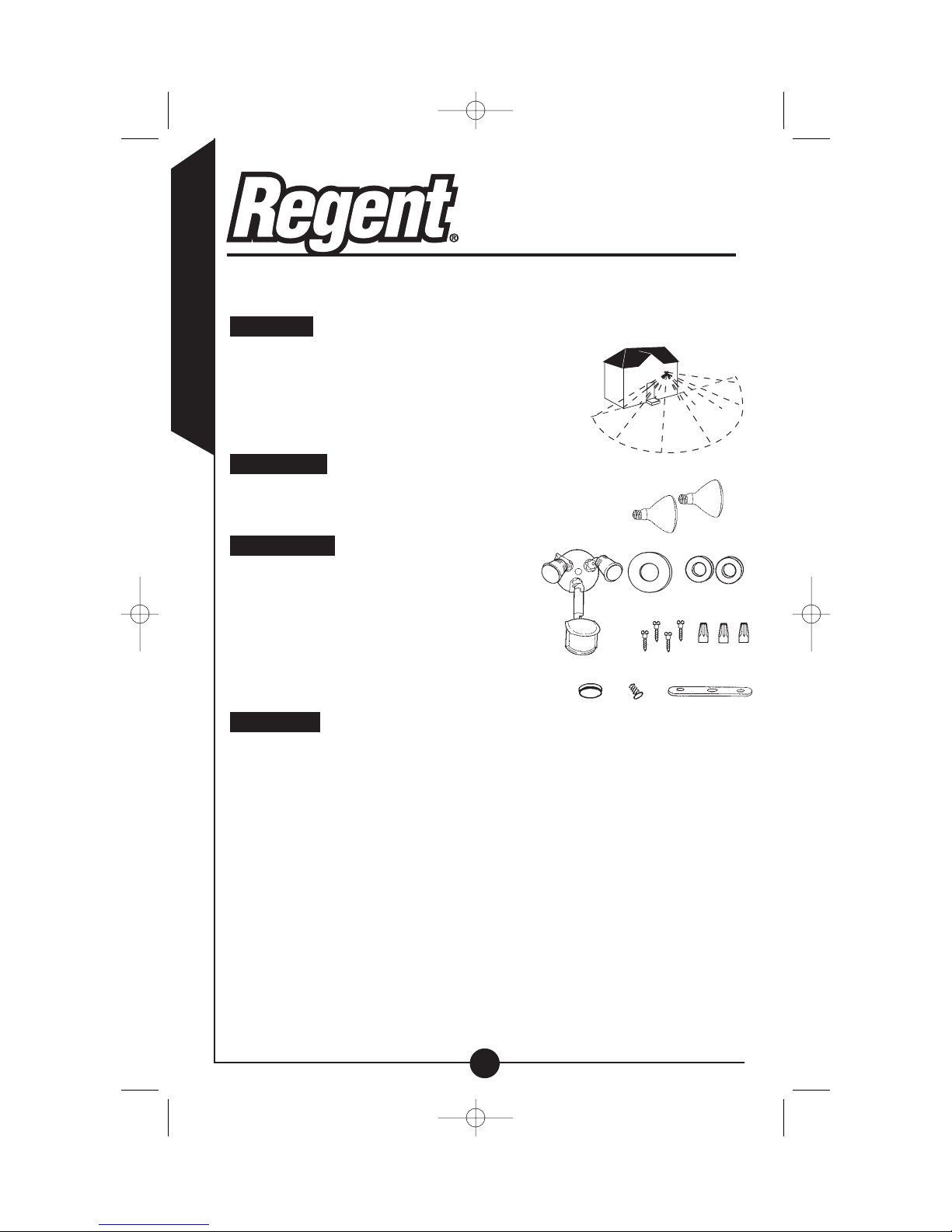

What you need
Phillips screwdriver
Outdoor weatherproof silicone caulking
(2) 150 Watt (max) PAR 38 floodlight bulbs (A)
What’s included
Motion detector and light fixture (B)
Coverplate gasket (C)
(2) Lampholder gaskets (D)
(4) Mounting bracket screws (E)
(3) Wire nuts (F)
Color matched center hole plug (G)
Center bolt (H)
Mounting bracket (I)
What to know
For outdoor use only.
UL and cUL LISTED for wet locations.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation. Under Part 15 of the FCC Rules, any changes or
modifications to the motion detector described in this instruction sheet that are not
expressly approved by Cooper Lighting could void the user’s authority to operate
the equipment. NOTE: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful inter-
ference in a residential installation. This equipment generates, uses and can radi-
ate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encour-
aged to try to correct the interference by one or more of the following measures:
2
ENGLISH
MS185, CMS185 (Bronze)
MS185W, CMS185W (White)
70 foot
180 degrees
A
BCD
EF
GHI
MS185,MS185W I.S. 325-1417 1/7/04 3:59 PM Page 2

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Fixture must be connected to a 120 Volt, 60 Hz 2.5, 300 watt power source. Any
other connection voids warranty.
This motion activated twin floodlight should be installed by persons with experi-
ence in household wiring or by a qualified electrician. The electrical system, and
the method of electrically connecting the fixture to it, must be in accordance with
the National Electrical Code and local building codes.
For proper operation and protection against damage, the motion sensor head
adjustment knobs must be facing the ground.
Disassembly of your fixture will void the warranty.
For best results
Install your fixture 8-12 feet above ground (motion detector is
less sensitive above 12 feet).
Locate fixture so motion moves across detection zone (J).
Locate fixture away from heat producing sources to prevent
false triggering. Also be very careful not to include objects
such as windows, white walls and water in the detection zone whenever possible.
Locate fixture away from moving objects such as trees and street traffic.
Do not install more than one motion activated floodlight on one wall switch.
Mounting your fixture
Step 1: Turn off the power at the main
fuse/breaker box. Check to make
sure power has been disconnected
before continuing.
Step 2: Line up the holes on the mounting brack-
et with the holes on your junction box.
Using either (2) #6 screws or (2) #8
screws (depending on size of the holes in your
junction box), attach the mounting bracket to your
junction box (K).
Step 3: Thread fixture wires through coverplate gasket.
Step 4: Connect black wire to house black wire and con-
nect white wire to house white wire using wire
nuts provided.
Step 5: Attach fixture to the junction box with two screws
provided.
Step 6: Attach fixture to the mounting bracket using the center bolt provided.
Insert plastic color matched plug in center bolt hole for finished appear-
ance.
Step 7: Apply silicone caulking around edges of coverplate
and in any open holes to provide a watertight
seal from rain and moisture.
Step 8: Insert gaskets into lampholder assembly, tight-
ly against lampholder and screw bulbs into
each lampholder. (Do not overtighten bulbs).
Step 9: Turn power on at main fuse/breaker box.
ENGLISH
3
J
Round Rectangular (horizontal) Octagonal
Your fixture mounts
to the following standard
junction boxes:
K
(eave mount)
(wall mount)
MS185,MS185W I.S. 325-1417 1/7/04 3:59 PM Page 3

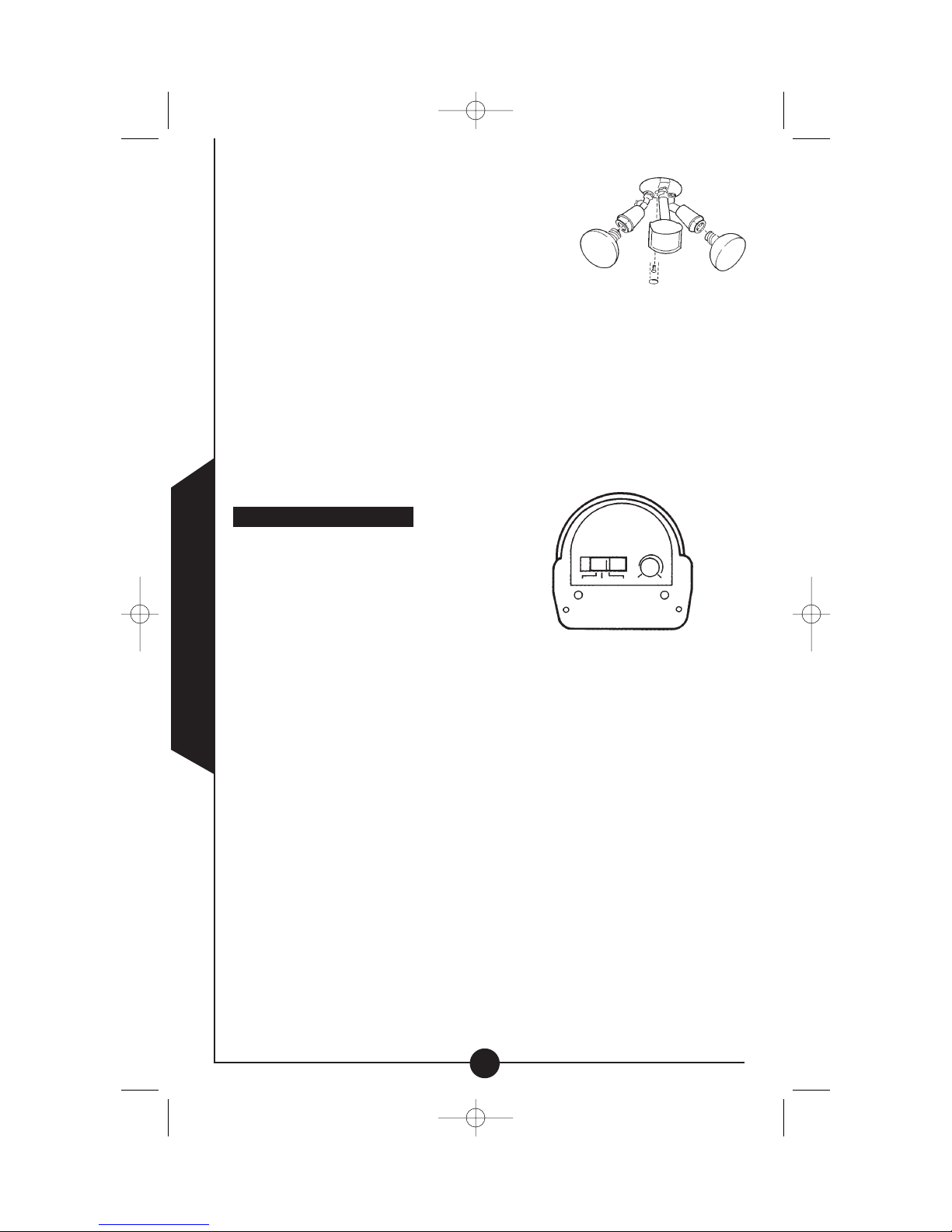

How to operate your fixture
Step 1: Move slide switch on bottom of the sen-
sor to “TEST”. Set sensitivity knob to
medium (halfway) (L).
Step 2: Turn on the power to fixture. Allow fix-
ture to warm up approximately 40 sec-
onds before testing. (Lights will come on
and stay on during warm-up
period.)
Step 3: Aim sensor head toward desired detection area, maintaining a 15° down
angle to allow moisture to drain. NOTE: Maintain air spacing between
lamps and sensor head, at least 1”. Make sure sensor head is positioned
with control switches facing towards the ground.
Step 4: Walk across the detection zone at the farthest distance you wish your
detector to detect motion.
Step 5: Adjust sensitivity until you get desired results. Lights will turn off 4 sec-
onds after all motion stops.
Step 6: Move slide switch to 4 MIN or 12 MIN (AUTO mode). At dusk, lights will
operate in the AUTO setting.
How to select your desired feature
4
ENGLISH
THIS IS THE
BOTTOM SIDE
OF THE MOTION
DETECTOR
L
TEST 4 MIN 12 MIN SENSITIVITY
Auto Setting
(motion activated)
Lights should turn on with
motion only at night and
should turn off after
4 or 12 minutes.
4 MIN
or
12 MIN Keep the power to the fixture on.
Dusk to Dawn Setting
(activated only at night)
Lights should stay on from
dusk to dawn and then reset
to the auto setting next
dawn.
4 MIN
or
12 MIN Turn power on and off twice within 3 seconds.
Standard Floodlight
Setting
Lights should stay on
continuously both day and
night (must be reset
manually).
TEST Turn power on and off twice
within 3 seconds.
Test Setting
Lights should turn on with
motion both day and night.
Lights should turn off after
4 seconds.
TEST Keep the power to the
fixture on.
Return to Auto Setting
(motion activated)
From any of the above
settings.
4 MIN
or
12 MIN
Turn the power “OFF” for at
least 40 seconds., then
back “ON”.
Mode of
operation: Set slide switch on sensor to: How to set power switch:
MS185,MS185W I.S. 325-1417 1/7/04 3:59 PM Page 4

What to do if . . .
ENGLISH
5
Is there power to the fixture?
Check to see that the circuit breaker has not
been tripped.
Be sure the wall switch is in the “ON” position.
Be sure that the bulbs are not burned out or
broken.
Is the surrounding external ambient light too bright?
(If so the unit may think it’s daytime.)
Re-aim the head.
Relocate or reposition the unit away from the
light.
TURN OFF POWER BEFORE CONTINUING.
Is the wiring to the fixture loose?
Check wiring, and reconnect if necessary using
wire nuts provided.
OUTDOOR LIGHTS DO
NOT COME ON WITH
MOTION AT NIGHT
OUTDOOR LIGHTS
COME ON FOR NO
APPARENT REASON
AT NIGHT
LIGHTS STAY ON AT
NIGHT AND DO NOT
TURN OFF
LIGHTS CONTINUOUSLY
BLINK ON AND OFF AT
NIGHT
LIGHTS ARE ON
DURING THE DAY
Is there motion in the detection zone?
Make sure the sensor is not picking up moving
objects such as trees, traffic, etc.
TEST FOR YOURSELF
Cover the sensor lens with cardboard to pre-
vent sensor from detecting motion. If the lights
stay off, something in the detection zone is
triggering the sensor.
If this is the case, reduce the sensitivity.
Reposition motion sensor.
*If the lights stay on with sensor lens covered,
contact customer service.
Is there motion in the detection zone?
Make sure the sensor is not picking up moving
objects such as trees, traffic, etc.
If this is the case, reduce the sensitivity.
Reposition motion sensor.
If there is no motion, then the unit may be in the
override mode.
Turn the light switch to the “OFF” position for
40 seconds, and then back to the “ON” posi-
tion. This will send the unit back into the
AUTO mode.
*If the lights continue to stay on, contact
customer service.
The light given off from the unit’s own lamps are
affecting the motion sensor.
Re-aim lamps.
Reposition motion sensor.
Is the switch on the bottom of the motion sensor in
the test mode?
Move the switch to the 4 MIN or 12 MIN
position.
Is the motion detector shadowed?
Reposition motion sensor.
MS185,MS185W I.S. 325-1417 1/7/04 3:59 PM Page 5

Two year limited warranty
Cooper Lighting (“the Company”) warrants this product (“the product”) against
defects in material or workmanship for a period of two years from date of origi-
nal purchase, and agrees to repair or, at the Company’s option, replace a
defective product without charge for either replacement parts or labor during
such time. This does not include labor to remove or install fixtures.
This warranty is extended only to the original purchaser of the product. A pur-
chasers receipt or other proof of date of original purchase acceptable to the
Company is required before warranty performance shall be rendered.
This warranty only covers product failure due to defects in materials or work-
manship which occurs in normal use. It does not cover the bulb or failure of
the product caused by accident, misuse, abuse, lack of reasonable care, alter-
ation, or faulty installation, subjecting the product to any but the specified elec-
trical service or any other failure not resulting from defects in materials or work-
manship. Damage to the product caused by separately purchased, non-
Company brand replacement bulbs and corrosion or discoloration of brass
components are not covered by this warranty.
There are no express warranties except as described above.
THE COMPANY SHALL NOT BE LIABLE FOR INCIDENTAL, SPECIAL OR
CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PROD-
UCT OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. ALL
IMPLIED WARRANTIES, IF ANY, INCLUDING IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE
LIMITED IN DURATION TO THE DURATION OF THIS EXPRESS WARRANTY.
Some states do not allow the exclusion or limitation of incidental or consequen-
tial damages, or limitations on how long an implied warranty lasts, so the above
exclusions or limitations may not apply to you.
No other warranty, written or verbal, is authorized by the Company. This war-
ranty gives you specific legal rights, and you may also have other rights which
vary from state to state.
To obtain warranty service, please write to Cooper Lighting, 1121 Highway 74
South, Peachtree City, GA 30269. Enclose product model number and prob-
lems you are experiencing, along with your address and telephone number.
You will then be contacted with a solution, or a Return Goods Authorization
number and full instructions for returning the product. All returned products
must be accompanied by a Return Goods Authorization Number issued by the
Company and must be returned freight prepaid. Any product received without
6
ENGLISH
Is the surrounding external ambient light too bright?
(If so the unit may think it’s daytime.)
Re-aim the head.
Relocate or reposition the unit away from the
light.
Are you allowing adequate time to enter the Dusk
to Dawn mode?
Turn power on and off twice within 3 seconds.
Is there more than one fixture on an indoor wall
switch?
If so, put them on separate switches.
CANNOT ACTIVATE
DUSK TO DAWN MODE
AT NIGHT (OVERRIDE)
MS185,MS185W I.S. 325-1417 1/7/04 3:59 PM Page 6

a Return Goods Authorization Number from the Company will be refused.
Cooper Lighting is not responsible for merchandise damaged in transit.
Repaired or replaced products shall be subject to the terms of this warranty
and are inspected when packed. Evident or concealed damage that is made in
transit should be reported at once to the carrier making the delivery and a
claim filed with them.
ENGLISH
7
Customer First Center 1121 Highway 74 South, Peachtree City, GA 30269 USA
www.cooperlighting.com
Patent 5,381,323
© 2004 Cooper Lighting
Reproductions of this document without prior written approval of Cooper Lighting are strictly prohibited.
MS185,MS185W I.S. 325-1417 1/7/04 3:59 PM Page 7

Felicitaciones. Usted ha adquirido una lámpara de alta intensidad activada por
movimiento Regent. Este sistema de iluminación de seguridad le proporcionará
años de conveniencia y protección para su familia y su hogar.
Cómo funciona
La lámpara de alta intensidad activada por movimiento
detecta imágenes térmicas de objetos tales como
personas, animales grandes y motores de automóviles.
Cuando se detecte movimiento, la luz se encenderá
automáticamente. Una vez que el movimiento haya
cesado, la luz se apagará después de un tiempo
de retardo preseleccionado. Esta lámpara de alta inten-
sidad activada por movimiento también puede
ser utilizada como una lámpara de alta intensidad están-
dar.
Qué se requiere
Destornillador phillips
Calafateo impermeable
(2) Focos para lámparas de alta intensidad
PAR 38 de 150 watts (MÁX) (A)
Qué se incluye
Detector de movimiento y portalámparas (B)
Junta obturadora de la placa de la cubierta (C)
(2) Junta obturadora del receptáculo (D)
(4)Tornillos de la escuadra de montaje (E)
(3)Tuercas de cable (F)
Tapón del agujero central del mismo color (G)
Perno central (H)
Escuadra de montaje (I)
Qué se necesita saber
Se debe utilizar en exteriores solamente.
Aprobado por UL y cUL para su utilización en áreas mojadas.
Este dispositivo cumple con la parte 15 de las reglas de la FCC. Su funcionamien-
to está sujeto a las dos condiciones siguientes: (1) Este dispositivo no debe causar
interferencia dañina, y (2) este dispositivo debe aceptar cualquier interferencia
recibida, incluida la que pueda causar funcionamiento indeseado. Según lo estipu-
lado en la Parte 15 de las reglas de FCC, cualquier cambio o modificación hecha
al detector de movimiento descrito en esta hoja de instrucciones que no esté
expresamente aprobado por Cooper Lighting podría anular la autorización otorga-
da al usuario para utilizar este equipo. NOTA: Este equipo fue probado en servicio
y encontrado de conformidad con los límites para un dispositivo digital Clase B, de
acuerdo a lo estipulado en la Parte 15 de las reglas de FCC. Estos límites tienen
como fin proporcionar protección razonable contra la interferencia perjudicial en
una instalación residencial. Este equipo genera, utiliza y puede irradiar energía de
radiofrecuencia, y si no se instala y usa de acuerdo con las instrucciones, puede
8
ESPAÑOL
MS185, CMS185 (Bronce)
MS185W, CMS185W (Blanco)
70 pies
21 m
180 grados
A
CD E
FGH
B
I
MS185,MS185W I.S. 325-1417 1/7/04 3:59 PM Page 8

causar interferencia perjudicial para las radiocomunicaciones. Sin embargo, no
existe ninguna garantía de que no ocurrirá interferencia en una instalación en par-
ticular. Si este equipo llegara a causar interferencia perjudicial para la recepción
de radio o de televisión, lo que puede determinarse encendiendo y apagando el
equipo, se recomienda al usuario tratar de corregir la interferencia tomando una o
más de las medidas siguientes:
Cambie la orientación o ubicación de la antena receptora.
Aumente la separación entre el equipo y el receptor.
Conecte el equipo a un tomacorriente en un circuito diferente de aquel al
cual está conectado el receptor.
Consulte con el concesionario o un técnico en radio/televisión competente.
El portalámparas se debe conectar a una fuente de energía de 60 Hz, 120 Voltios,
2.5A / 300 watt. Cualquier otro tipo de conexión anula la garantía.
La lámpara de alta intensidad dual activada por movimiento debe ser instalada
por personas con experiencia en conexiones eléctricas de hogares o por un elec-
tricista calificado. El sistema eléctrico y el método utilizado para la conexión eléc-
trica de este portalámparas al mismo debe regirse por el Código Eléctrico
Nacional y por los códigos locales de construcción.
Para un funcionamiento y protección adecuados contra posibles daños, los
botones de ajuste de la cabeza del sensor de movimiento se deben ajustar en
dirección al piso.
Si por alguna razón se desarma el portalámparas, la garantía quedará automátic-
mente eliminada.
Para obtener mejores resultados
Instale su portalámparas a 8-12 pies (2.4 – 3.7 m) del piso.
El detector de movimiento es menos sensible si se encuen-
tra a una altura superior a los 12 pies (3.7 m).
Coloque el portalámparas de manera que se mueva por
toda la zona de detección (J).
Coloque el portalámparas lejos de fuentes de calor para
prevenir una falsa activación. Siempre que sea posible trate de no introducir en el
área de detección objetos tales como calefactores, aparatos de aire acondiciona-
do, respiraderos de lavaderos y superficies reflectantes tales como ventanas,
paredes blancas y agua.
Coloque el portalámparas lejos de objetos en movimiento tales como árboles y
tráfico callejero.
No instale más de una lámpara de alta intensidad activada por movimiento en un
interruptor de pared.
Montaje del farol
Paso 1: Desactive la fuente de
alimentación en la caja de
fusibles/interruptor automático
principal. Revisar para asegurarse
que la corriente haya sido
desconectada antes de continuar.
Paso 2: Alinee los agujeros en la escuadra de montaje
con los agujeros en su caja de conexiones.
Usando ya sea (2) tornillos #6 ó (2) tornillos #8
(dependiendo del tamaño de los agujeros en
la caja de conexiones), fije la escuadra de
montaje a la caja de conexiones (K).
Paso 3: Haga pasar los cables del portalámparas a
ESPAÑOL
9
J
Su portalámparas se ajusta a
estas cajas de empalmes:
Redonda Rectangular (horizontal) Octagonal
(montaje de pared)
K
MS185,MS185W I.S. 325-1417 1/7/04 3:59 PM Page 9

través de la junta obturadora de la placa de la
cubierta.
Paso 4: Conecte los cables de conexión a tierra del
portalámparas al cable de conexión a tierra
de la casa. Si no hay ningún cable de
conexión a tierra, conecte el cable del por-
talámparas a la caja de conexiones.
Paso 5: Sujete el portalámparas a la caja de
empalmes con los dos tornillos adjuntos.
Paso 6: Fije el farol a la escuadra de montaje usando
el perno central suministrado. Inserte el tapón de plástico
del mismo color en el agujero del perno central para darle un buen acaba-
do.
Paso 7: Aplique sellador de silicona alrededor de los bordes de la placa de cierre y
en todos los agujeros, para formar un sello impermeable a la lluvia y
humedad.
Paso 8: Inserte juntas en el conjunto del portalámparas, firmemente contra el por-
talámparas, y enrosque las lámparas en cada portalámparas. No apriete
demasiado los focos.
Paso 9: Active la fuente de alimentación en la caja de
fusibles/interruptor automático.
Operación de su portalámparas
Paso 1: Mueva el interruptor corredizo que se
encuentra en la parte inferior del sensor
a “TEST”. Ajuste el botón de sensibili-
dad a la posición media (hasta la mitad)
(L).
Paso 2: Active la energía del portalámparas.
Deje que el portalámparas se caliente
aproximadamente 40 segundos antes de hacer las pruebas. (Las luces se
encenderán y permanecerán encendidas durante el período de calen-
tamiento.)
Paso 3: Dirija la cabeza del sensor hacia el área de detección deseada, mante-
niendo un ángulo de 15° hacia abajo, para permitir el drenaje de la
humedad. NOTA: Deje un espacio de aire de por lo menos 1” (25.4 mm)
entre las lámparas y el sensor. Asegúrese de que la cabeza del sensor
esté colocada con los interruptores de control en dirección al piso.
Paso 4: Camine a través de la zone de detección tan lejos como desee que su
detector registre movimiento.
Paso 5: Ajuste la sensibilidad hasta obtener los resultados deseados. Las luces
se apagarán 4 segundos después de que se detenga el movimiento.
Paso 6: Mueva el interruptor corredizo a 4 MIN o 12 MIN (AUTO modo). Al
anochecer, las luces funcionarán en el modo AUTOMATICO.
10
ESPAÑOL
(montaje de alero)
TEST 4 MIN 12 MIN SENSITIVITY
ESTA LA CARA
INFERIOR DEL
DETECTOR DE
MOVIMIENTO
L
MS185,MS185W I.S. 325-1417 1/7/04 3:59 PM Page 10
