USER’S MANUAL
Kids Ride On Car
TY327674
Please read all instructions carefully and keep it for future reference.
Warnings:
Attention! Use it with protective equipment.
Attention! Not use it in the traffic.
Attention! The product is not suitable for the children under 3 years.
General Warnings:
The product must be installed and used under the supervision of an adult.
Read through each step carefully and follow the proper order.
Remove all packaging, separate and count all parts and hardware.
Please ensure that all parts are correctly installed, incorrect installation can lead to a danger.
We recommend that, where possible, all items are assembled near to the area in which they
will be placed in use, to avoid moving the product unnecessarily once assembled.
Ensure a secure surface during construction, und place the product always on a flat, steady
and stable surface.
Please use the product carefully, as the product requires great skill, avoid accidents by the
user or others, by fall or collision.
Please wear suitable protective equipment during use, e.g. protective helmet, gloves, knee
pads, elbow pads etc.
02
www.costway.com
Name
A B C D E F G
body windshield steering wheel dashboard front wheel rear wheel rearview mirror
Number 1 1 1 1 2 2 2
Name
H I J K L M N O
bracket rear wing chair remote controller charger side support shim screw
Number 2 I 1 1 1 2 2 12

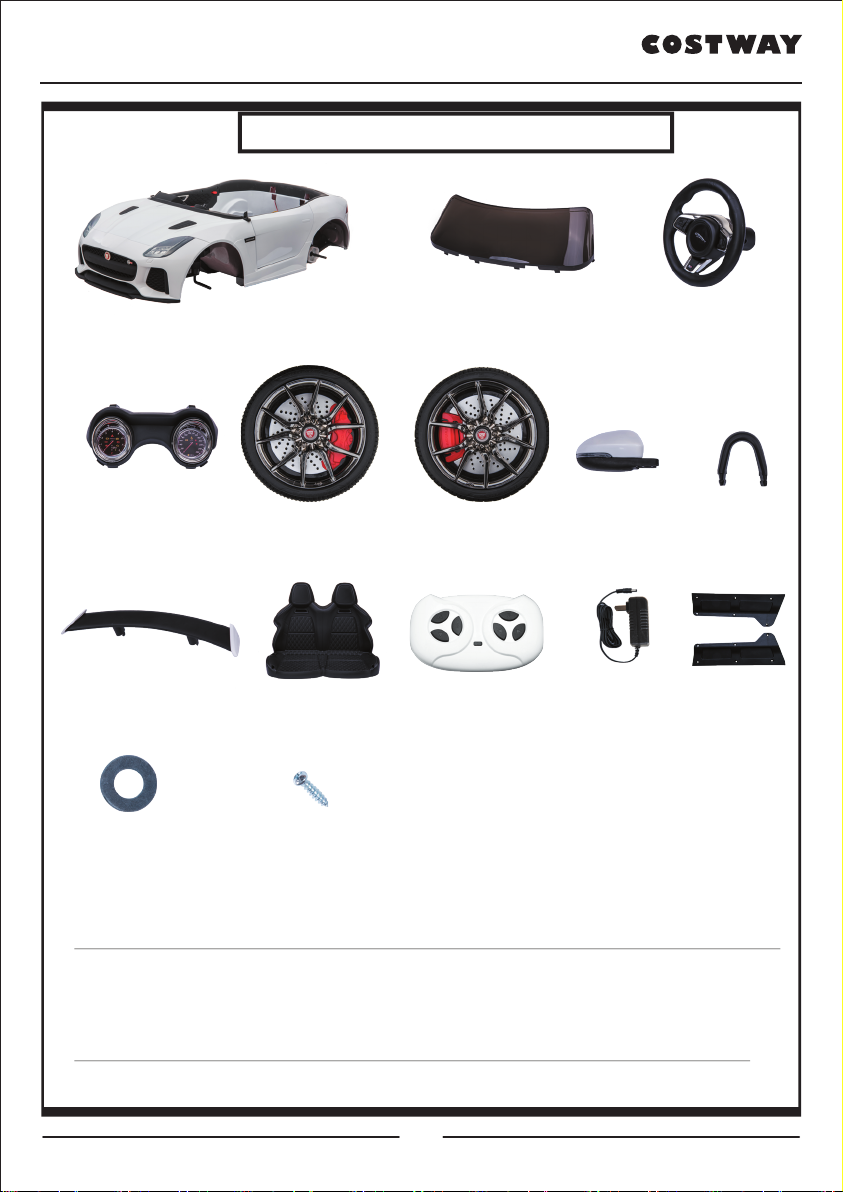

Parts List:(Name and Quantity)
A
NO
B C
D E FGH
IJ K LM
03
www.costway.com

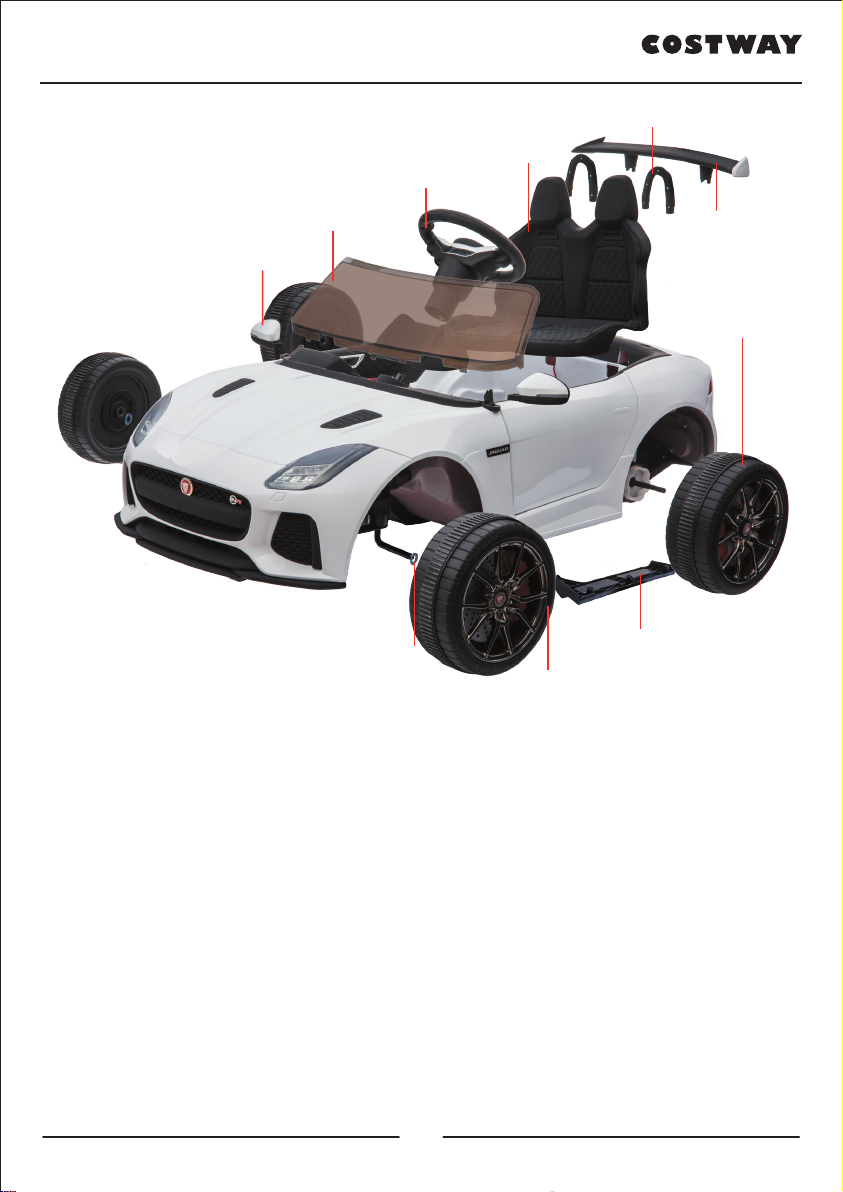

Front wheel
Side support
Shim
Rearview mirror
Windshield
Steering wheel
Chair
Bracket
Rear wing
Rear wheel
Product Specifications:
Parameters
Name
Battery
Motor
42.5” x 26” x 20”
3-5 KM/H
Using 1-2 hours after Charging 8-10hours
Input: 100V-120VAC Output: 12V1000mA
Applicable Age Range
Maximun load
Physical Dimension
Speed
Hours of Use
Charger
Remote Control Battery
12V4.5AH
Drive Motor
AAA1.5Vx2 (not provide)
37-95 months
55lbs
12V3 9 0 x 2 ( 1 2 0 0 0 R P M )
Steering Motor 1 2 V 3 8 0 x 1 ( 5 0 0 0 R P M )
04
www.costway.com

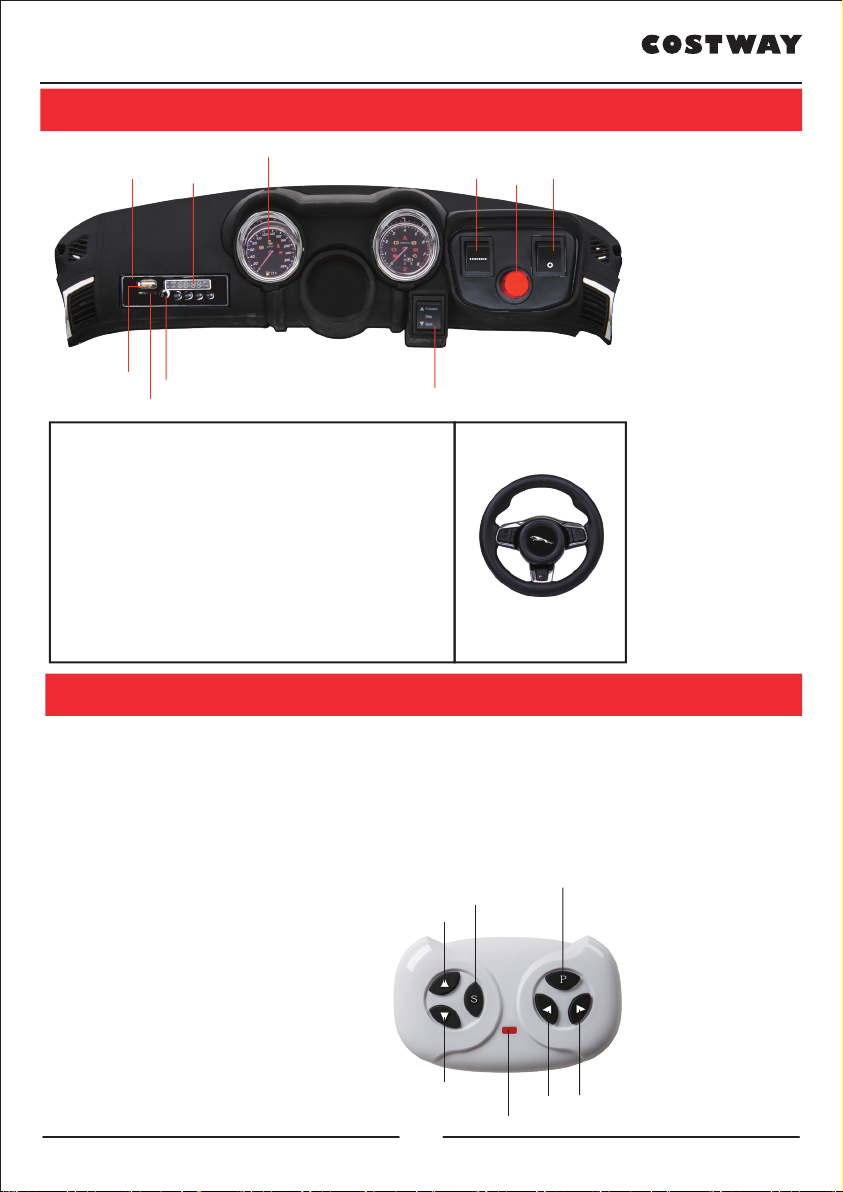

①②
③④⑤⑥
⑦
⑧
⑨⑩
-
HIGH SPEED
LOW SPEED
Indicator:
①
②
③
④
⑤
⑥
⑦
USB interface
⑧TF interface
⑨
Multi-Media
The voltage display
Dashboard
Speed selection
Power switch
Light switch
MP3 interface
⑩Forward
Stop
Back
Function
Forward
Backward
Speed
Indicator Light
Stop
Left Right
Remote Control Function and Instructions
•Never switch forward and backward operations in the moving,
or the gear box and motor will be damaged
•Use the remote control with battery
•Only the baby’s legal guardian can use the remote control.
•The product is operated mainly by remote control
Code Method:
Press UP&DOWN Buttons to see that the
indicator light is constant on, and turn on
the power.
05
www.costway.com
Battery Operating Specifications:
Installation Order Diagram

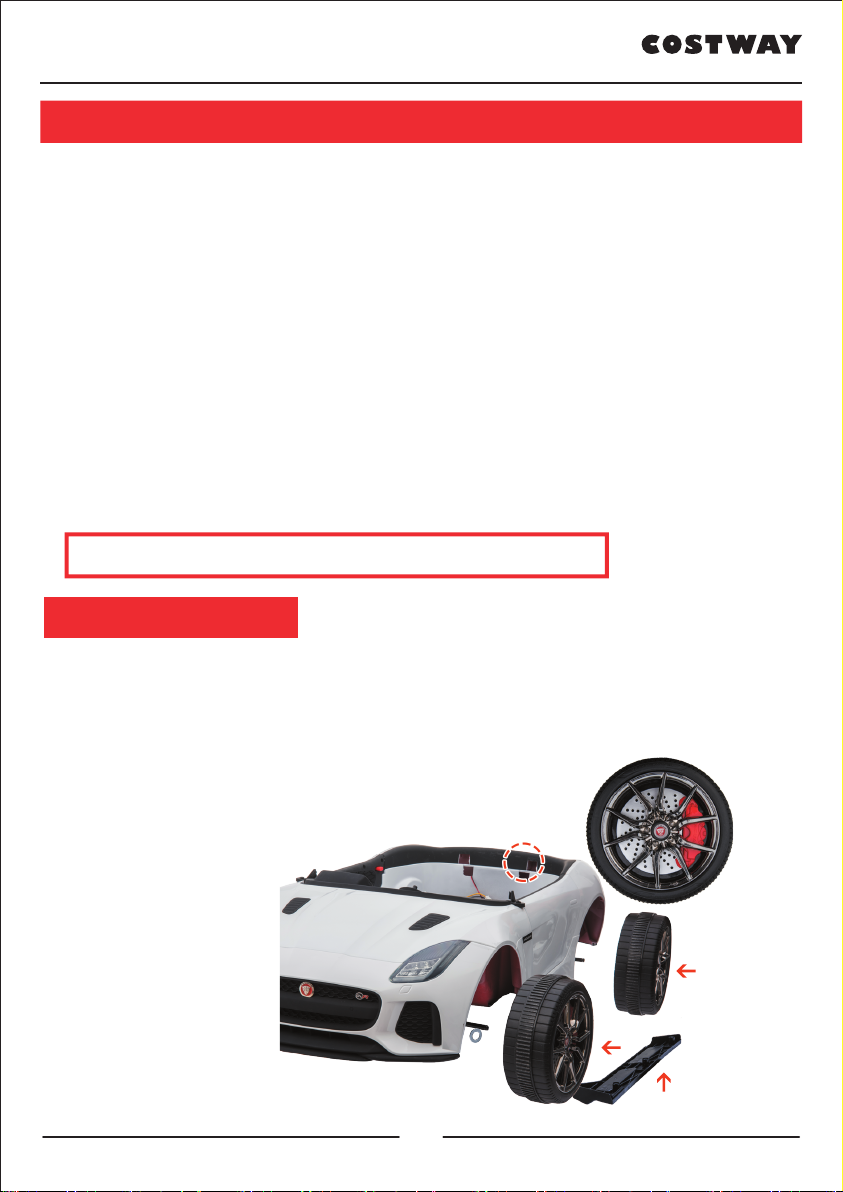

1. Installation of tires
To distinguish the front and rear wheels, first insert the
gasket into the front axle, press the center key on the
front wheel into the front axle, then insert the rear
wheel into the rear axle and press the center.
The key is inserted into the rear axle jaw.
fixed the side support with screw
on both sides of the body
Never mix new and old batteries, or different kinds of batteries. Never mistake
positive and negative electrode of battery,
or short circuit will happen.
Non-rechargeable batteries are not to be recharged
Install batteries in a right polarity.
Only adults can recharge or change batteries.
Never make power port’ s short circuit happen.
Recharge the battery only when it is taken out of the toy car. Take exhausted
battery out of the toy car and keep it out of Children’ s reach.
Remove battery screws with a screwdriver, open battery cap as the arrow
signals, and in the 2.4G remote control model install two AAA 1.5V batteries in
a right polarity.
06
www.costway.com
2. Installation of dashboard
First, connect the dashboard to the interface of the big body,
and put the dashboard into the instrument panel.
Connect the steering wheel wiring handle,
and turn the steering wheel into the direction control rod,
and screw the steering wheel.
The hole position is fixed by the nut.
3. Installation of windshield
The windshield is aligned with the card port on the body.
07
www.costway.com
4. Connection power
Connect the wiring of the battery,
connect the red connection,
Turn on the power and
check if the circuit is normal.
5. Install the tail wing
Aim the bracket and tail to the location of the bayonet
on the body, and force it into it.
6. Install the seat
Take the screws off the seat,Then the seat is aimed
at the body,Screw it with a screw.
08
www.costway.com
7. Installation of reflector
Turn the reflector into the screw hole on the body,
pay attention to distinguish between left and right.
The screw is fixed.
Warnings
Only adults can install parts and adjust the car, and keep moving parts out of
children’ s reach.
Children under 36 months cannot use the toy car as it has many small parts.
Children must take the seat belt when using the car, and keep the car out of
the fire.
Children can use the product only in the company of adults, and the adult
cannot leave during the process.
Never let Children stand or play onto the pedal or in the car.
Only adults can complete storage battery charging, and must charge the
product before its first use.
Keep such package materials as plastic bags out of children, or they will
suffocate or kill children.
Never use parts provided by non-manufacturers.
Never let children play with the charger.
Never use the product with over 25-kilogram load.
The product’s applicable age range is 37- 95 months.
The number of connected power by the product can never be over the
recommended number.
09
www.costway.com

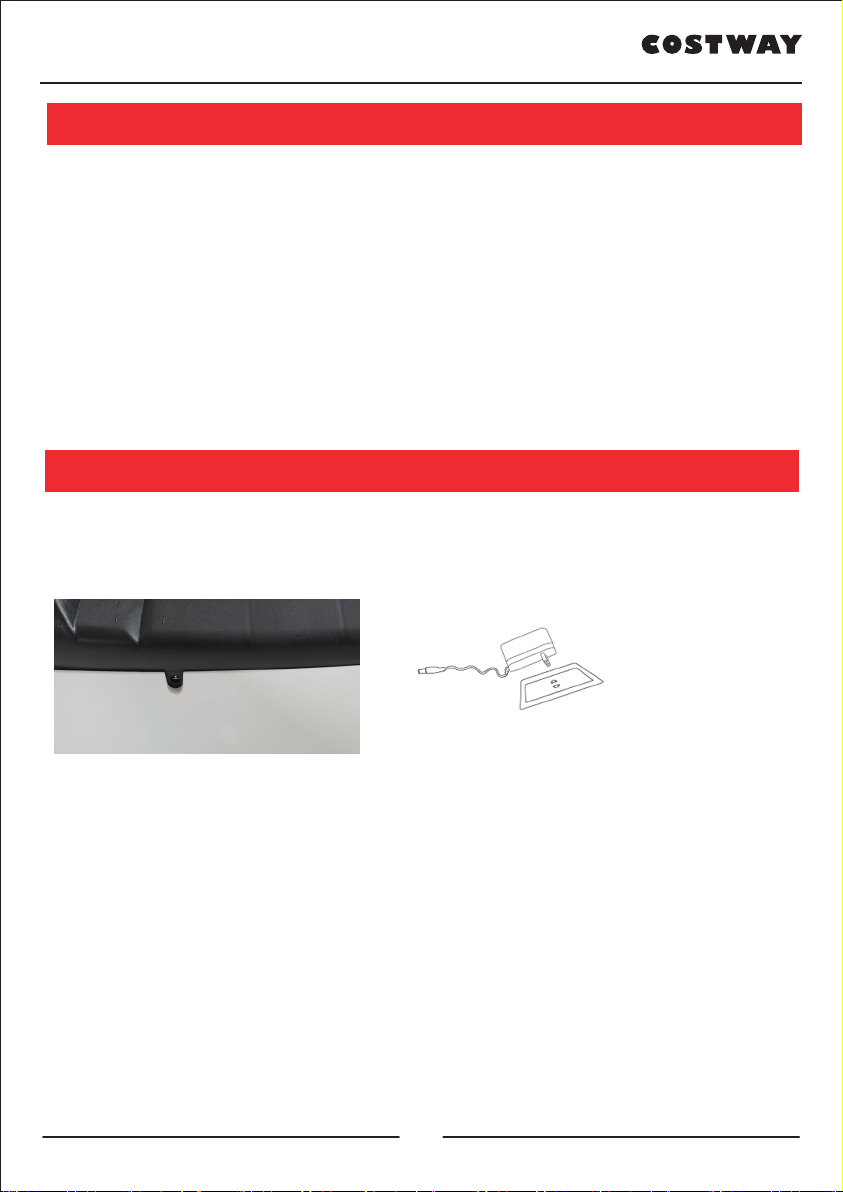

Charging notice:
Charging steps are as follows:
Step 1 : Find the charge hole beneath the car seat’
Step2: Put the charger plug into the plug hole.
Step 3: Connect the charger to the power socket.
Relevant materials: PP plastics, k-carrageenan, generator,
storage battery and iron castings.
Charge storage battery less than 10 hours, or the storage battery will be
damaged forever.
In charging, put DC Plug into the power socket , put charger into power
plug;never use the product during charging it.
The product can be used for one hour, and the charging time is 8-10 hours,
exceeding no more than 18 hours.
It is common for charger and storage battery to have not become heated
(temperature under 60 degrees)in charging.
Never use the connector with the water, or short circuit will happen.
Use the product’ s own charger, or cause charger and storage battery
to be damaged or short circuit.
Charge the product when not using it for a long time.
10
www.costway.com
Trouble Clearing
Type Analysis Solutions
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
Low battery voltage；Charge battery fully;
Protection of electric devices; Use the car a few minutes later;
Failure to press the switch button correctly;Use the car according to instructions;
Falling of power connector; Install the connector again;
Battery breakdown; Change battery;
Damage of electric devices; Change electric devices;
Generator breakdown；Change generator.
Falling of battery connector; Install the connector again;
No charging for the charger; Plug the charger again;
Charger breakdown；Change the charger.
Not full charging of battery；Charge fully the battery again;
Much-used battery；Change the battery.
Much-used battery；Change the battery
No electricity for battery；Charge fully the battery again
Overload；Reduce the load below 55lbs
Uneven driving surface；Drive on uneven surface
Chemical reactions；Normal reactions
There appear slight noise and
heat of the car in charging.
The car has a
slow speed.
The battery cannot
be charged.
The car has a
short range.
The car cannot
get started.
11
www.costway.com
Maintenance and Service
Before use children’s ride-on car, parents should check whether charge’s
wiring, plug, shell and other parts aredamaged, and fix thosedamaged parts.
After using the product for a time, parents should lubricate iron castings
with lube, or those castings will get rusted; they should keep the product
out of fire and lay it flat in dark places; they should put the product inside
the house or cover it with one water-proof cloth in wet whether.
Parents should keep the product out of such hot objects as stove and
heater, or its plastic parts may be thawed; they should keep the product
out of combustible objects in charging, or the fire may happen.
Parents should clean car surface with one dry cloth, or clean plastic parts
with non-waxy furniture polish; they shouldn’t clean plastic parts with
chemical solutions or clean the car with water; children cannot drive the
car in wet or rainy weather, or the car ’s generator, circuit system and
battery will be damaged.
when not using or laying the product, parents should cut off car power,
.ledom”FFO”ro”POTS“otnisehctiwsehtllagnipeek
Parents mustn’t use the fuse which doesn’t conform with the agreed
specifications.
Parents should’t change product structure and circuit system, and
should have the product checked and fixed by professionals or under
the guidance of professionals.
Jaguar and the leaper device are trademarks owned and
licensed by Jaguar Land Rover Limited
Manufacturer: Pinghu Qileshi Baby Carrier Co.,Ltd
12
www.costway.com
Children electric car
