Creda Shower SPA User manual

16
IMPORTANT WARNINGS!
DONOT SWITCH THE APPLIANCE ON IF YOU SUSPECT IT OF BEING FROZEN.
WAIT UNTIL YOU ARE SURE IT HAS THAWED OUT.
DONOT OPERATE THE APPLIANCE IF WATER DISCHARGES FROM THE PRESSURE RELIEF
VALVE.MAINTENANCE IS REQUIREDBEFORE THE APPLIANCECAN BE SAFELY USED.
THIS APPLIANCE IS NOT INTENDEDFOR USE BY PERSONS (INCLUDINGCHILDREN AND
THE INFIRM) WITH REDUCEDPHYSICAL, SENSORYOR MENTAL CAPABILITIES,
OR LACKOFEXPERIENCE AND KNOWLEDGE,UNLESS THEY HAVE BEENGIVEN
SUPERVISION ORINSTRUCTION CONCERNINGUSE OF THE APPLIANCE
BY APERSONRESPONSIBLE FOR THEIR SAFETY.
CHILDRENSHOULD BE SUPERVISED TOENSURE THAT THEY
DO NOT PLAY WITH THE APPLIANCE.
1. Ensure the electricity and water are turned on to the unit.
2. Press the start / stop button “B”.
This willturn the shower on, the water will flow and the
neon indicator lightwill illuminate. Itisrecommended that
you do notwholly enter the waterflow during this period.
3. Knob “A” controls the power selection.
Select“High”,“Med” (Medium) or “Cold”
The “smallbar” indicates knob setting.
4. If the water is not at your desired showering
temperature, turn knob “C” asmallamount untilyou
reach the desired showering temperature.
Turn clockwise for cooler.
Turn anti-clockwise for warmer.
5. When you have finished showering, press the start / stop button “B” again.
The neon indicator will go out
6. Switch offthe electricitysupply at the ceiling switch or local isolator.
Notes
•Wait 20 seconds forthe temperature to stabilise after each adjustment.
•The neon indicator light illuminates when the heaters are on and,if the shower has
been recently used, it may take up to 20 seconds to come on.
During this time the water may go from very hotto cold before stabilising.
•The position of knob “C” will be approximately the same each time the shower is
used,varying onlywith incoming water temperature or pressure changes
(e.g. you will only need to change from summer towinter).
•During normal operation, if an overheated water temperature is sensed then the
heater will switch off and the neonindicator light will go out.
Water willcontinue to flow and cool down before the heater switches back on again.
We offeratechnical advisory service on thetelephone to installers and
othercustomerswith problemsin the field. RING 08443727766 (UKONLY)
(A3) Leaflet No. 567-2151-03b
HOWTOUSE YOUR SHOWERSPA (SUMMARY)
IMPORTANT:
This bookletshould be left withthe user
afterinstallation and demonstration
SHOWERSPA RANGE
ELECTRICSHOWER
InstallationandUser Guide

2
Section
Introduction
.. .. . . . . . . .. . . . .. . . . .. .. ... .. ... .. .. ... .. ... .
Important Safety Information . .. .. .. .. .. . . . .. . . . .. . . . .. ... .. ..
Howto install your Shower Spa . . . . .. . . . . . .. .
. . .. . . . .. .. ... .. ..
Cold Water Inlet Pipe Configuration. .. .. .. . . . .. . . . .. . . . . . .. . . . ..
Assemblyof Accessories . . .. .. ... .. . .. .. ... .. ... .. .. ... .. ... .
Howto use your Shower Spa (Detailed) ... ... .. .. . .... .. ... .. ... .
Howto maintainyour Shower Spa
. . .. . . . . . .. . . . .. . . . .. .. ... .. ..
Additional Accessories and CommonParts . . ... .. ... ... . .. .. ... .. .
What to do if things gowrong (1)SelfHelp . . . . . . . . . . .. . . . .. .. . .. .
What to do if things gowrong (2) Professional Service . .. . .. .. . . . .. . .
Creda After Sales Service . . .. .. ... . . . . . . .. . . . .. . . . .. .. ... .. . .
Howyour Shower Spa Works .. ... .. ... . . .. ... .. ... .. .. . . . .. . .
Guarantee and Contact Details ... .. . . .. . . . .. . .. .. ... .. .. ... .. .
Howto use your Shower Spa (Summary) . ... .. .. ... ... .. ... .. ... .
Page
3
3
4
6
9
10
11
11
12
13
13
14
15
16
CONTENTS
15
Full details of termsand conditionsare available on request from:-
APPLIEDENERGYPRODUCTS LIMITED
MORLEY WAY, PETERBOROUGH PE2 9JJ
TEL: [phone]
FAX: [phone]
Website: www.creda-showers.co.uk
GUARANTEE ANDCONTACT DETAILS

14

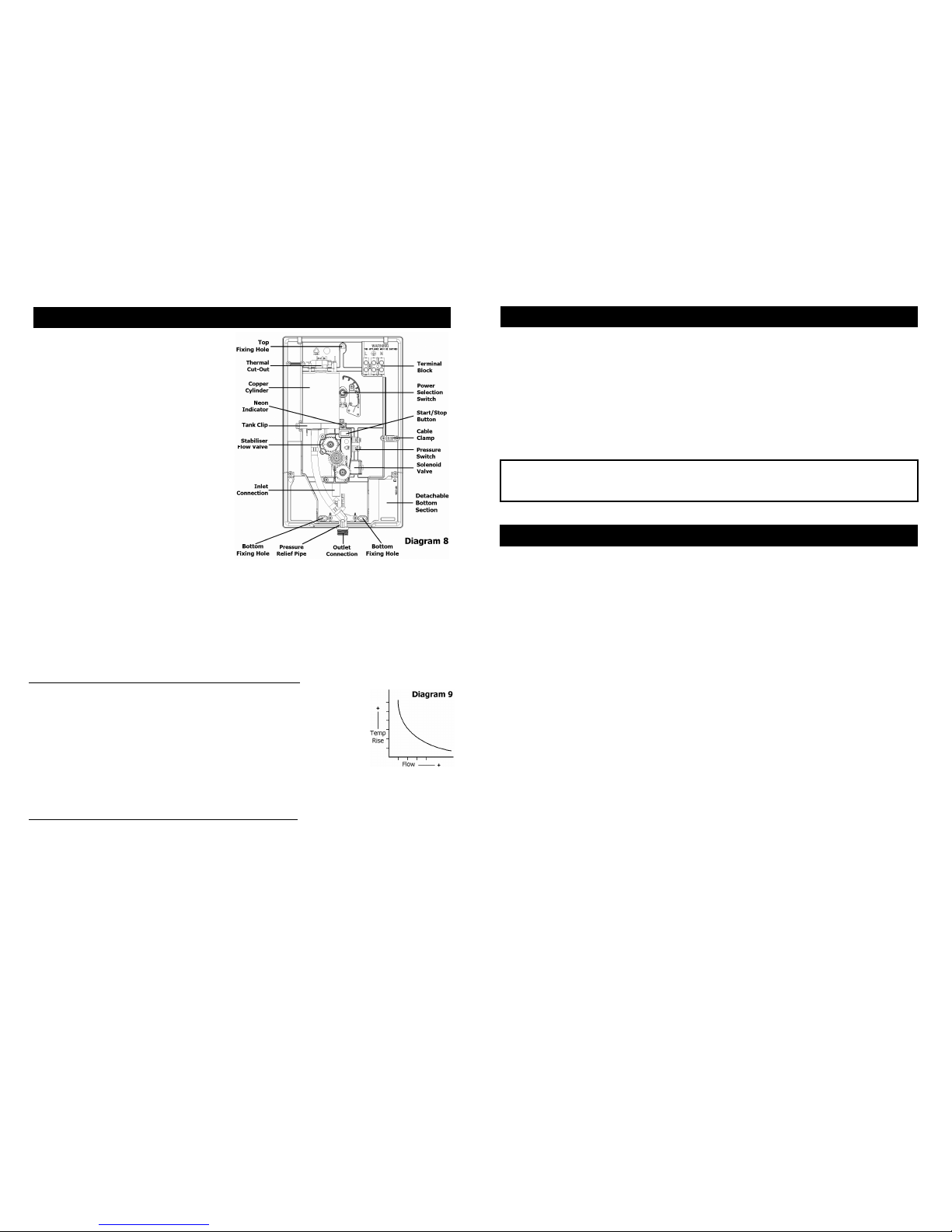

1. Water isheatedinstantaneously as it flows
over the heating elements in the copper
cylinder (Diagram 8).
2. The heaters are onlyswitched on when
sufficientwaterisflowing.
Thisis done automaticallywith a switch
which works on water pressure and is
indicated by the neon indicator illuminating.
3. The wateris turnedon and offby the
solenoid valve built into the shower.
Thisis switched on when button “B”is
pressed.
4. The flow of water is automatically held at
the levelset by the user even though the
supply pressure may vary (see “Effect of
Other Water Devices on IncomingWater
Supply”).
5. Ifthe water supplyfalls below a set limit,
the pressure switch willoperate and switch
offthe power tothe elements. Thisis indicated by neon indicator going out (see “Effect ofOther
Water Devices on Incoming Water Supply”).
6. As a furthersafeguard,a thermal cut-out switches the power off if the water temperature
climbs above the set limit.
Thiscut-out, which gives an audible click,may also operate due to residualheat when the shower
isswitched off. It willreset itself ifwaterisrun through the showerfor 10 to 20 seconds.
7. The pressure reliefdeviceis to safeguard against abnormal pressure conditions,and provides a
levelof appliance protection should an excessive build ofpressure occur withinthe shower.
Effect of Seasonal Incoming Water Temperature Changes
The required watertemperature isachieved by adjusting the rate ofwaterflow.
Diagram 9 shows the principle involved inrelating temperature riseto flow rate.
The higher the water rate the lower the temperature and viceversa.
The temperature of the watersupplied from the mains can vary considerably
throughout the yearfrom5 to 20°C.
This meansthat in the winter,flow rate will be less than in the summer to
achieve thesame outlet temperature.
In summer the “Med” (Medium) power setting may give adequate hot water.
In some winter conditions,it may be necessary to select the innerorouter spray pattern onlyof
your showerhandset. Thiswill ensurecorrect operation of the shower with a slightly lower flow rate.
Effect of Other Water Devices on Incoming Water Supply
Your shower is designed to stabilise temperature changes caused by water pressure
fluctuations. These can result fromtoiletsbeing flushedor taps being turned on and off.
When thishappens your showering temperature will be held within a controlled band,provided that
the minimumpressure required bythe shower is maintained.
Your shower requires aminimum running
pressure of 69kPa (0.7 bar,10 psi).
At pressures above 69kPa (0.7 bar, 10 psi)it willminimise temperaturefluctuationsas detailed
above. Ifthewater pressure fallsbelow 69kPa (0.7 bar, 10 psi) itislikely that the pressure switch
will turn offthe power to the heating elements,resulting inacold shower.
HOWYOUR SHOWERSPA WORKS
3
INTRODUCTION
If you experience any difficulty with the installation or operation of your new
shower, then please refer to the “What to do if things go wrong” section in this
manualbefore contacting us.
Thank you for purchasing a quality Creda Shower Spa manufactured in England.
To enjoy yournew shower atits best,please take time to read this manual thoroughly to
familiarise yourself with all instructions, BEFORE beginning installation.
Having done so, keep this manual handy for future reference.
Your shower is designed to stabilise temperature changescaused by waterpr
essure fluctuations.
These canresultfrom toiletsbeing flushed or taps being turned on and off.
When thishappens your showering temperature will be held within a controlled band,provided that
the minimumpressure required bythe shower is maintained (see “Effect ofOtherWater Devices”).
1. Your shower has been designed for convenience, economy and safety of use, provided that it is
installed,used and maintained in good working order and in accordance with our instructionsand
recommendations.
2. All wiring and installation must be supervised by a suitably qualified person.
3. THISAPPLIANCE MUSTBE EARTHED.
4. The installation mustbein accordance with the current edition of BS.7671 (the “IEE Wiring
Regulations”) and “Part P”ofthe “Building Regulations” inforce at the time ofinstallation.
Installations outside of England and Wales must also conform to any local regulations ineffect.
This appliance is intended tobe permanently connected to the fixedelectrical wiring of the mains
supplywith itsown dedicated supply.
5. This appliance must NOT be fittedwhere it may be subjected to freezing conditions.
6. DO NOT switchthe appliance on if you suspect it ofbeing frozen.
Wait untilyou are sure it has thawed out.
7. DO NOT fitany sort oftap orcontrol on the appliance outlet. The appliance isdesigned to have
an open outlet and should onlybe used with “Creda” recommended fittings.
8. Take care toavoid restricting the outlet of the pressure relief device.
Ifwater is discharged fromthepressure reliefdevice, maintenance will be required before the
appliance can be safely used.
9. Isolate the mainselectrical and water supply before removing the frontcoverofthe appliance.
IMPORTANTSAFETYINFORMATION

4
WARNING: ALLWIRING AND INSTALLATION MUST BE
SUPERVISEDBYASUITABLY QUALIFIED PERSON.
WARNING: DO NOT INSTALL THIS SHOWER WHEREIT MAY BE
SUBJECTED TO FREEZING CONDITIONS
We recommend that the installation is done in the following sequence.
a. Fixing the shower tothe wall b. Plumbing c. Electricalconnections
a. FIXING THE SHOWER TOTHE WALL
1. Position the riser rail at a convenient height for majority ofusers as
detailed in Diagram 1 and mark itsposition.
2. Position the heatersothat the top of the unit is horizontaland level
with, or a maximum of 0.6 metres (2ft) below the topofthe
riser rail. Choose a flat piece ofwall to avoid the possibility of
distorting the backplate,as this may make the frontcover apoor fit.
3. Adjust theposition toget themost convenient arrangement taking
the following into account.
•The heatermust notbe mounted in the direct spray from the handset.
•The handset must not be ableto come into contactwith used water in the cubicle,bath or
basin. Ifit can, then a vacuum breaker mustbe fitted (availablefrom us ifrequired).
4. Fix the riserrail with screws provided.
The fixing holes at the base ofthe brackets willbe disclosed by removing the plastic fronts.
See Diagram 5 and instructions supplied with accessories forfurther details.
5. If you have not yet done so, remove the front cover assembly by undoing the retaining screws at
the topand bottom ofthe unit and lifting the cover off.
6. Your shower unit notonly accepts services from the top, bottom
or rear.
It also accepts services from the leftorright hand side ofthe unit.
Decide the position of
the electricalcable into the unit.
If top entryis chosen, cut away the wallsin the backplate as shown in Diagram 2a.
If bottomentry is chosen, cut away
the wallsin the de
tachablebottom
section as shown in Diagram 2b.
The detachable bottom section is
securedtothe backplate by 2 screws.
7. Decidethe position of entry ofthe
cold water pipe into the unit.
Iftop entry
ischosen,
cut away the backplateas shown in
Diagram 2a.
If bottomentry is chosen, cut away the
wallsin the detachablebottomsection
as shown inDiagram 2b.
If rear, please read the section on plumbing.
To aid installation,you may find it convenient to move the flexiblepressurerelief valve outlet
assemblyby removing the two securing screws.
If you do,please ensure that they are fullytightened on re-assembly(see Diagram 2b).
HOWTO INSTALL YOUR SHOWERSPA
13
WHAT TO DO IF THINGS GO WRONG (2)
CREDA AFTER SALES SERVICE
PROFESSIONAL SERVICE
If the previous “Self Help” checks fail to restore the performance,you shouldseek professionalhelp.
The person who installed the shower is probablythe bestone to investigate andcorrect itand is
certainly the person tocontact if you have had a problem in the guarantee period.
The following additional checklistis provided for the benefit ofthe qualified service person.
WARNING: SWITCHOFF THE ELECTRICITYATTHE LOCAL ISOLATOR
BEFORE REMOVING THE COVER TO MAKECHECKS
Water tooHOT Water flow restricted by blockage in filter ofsolenoid valve.
Replace the solenoidvalve.
Water tooCOLD Check circuit through thermal cut-out.
Check circuit through microswitches on the pressure switch & power selector.
Check each element circuit.
Check tightness of electrical connections.
No control over
water flow Check control knob is correctly engaged ontothe stabiliser valve drive gear. Undo headworks of stabiliser valve.
Check stabiliser isin place and remove any debris in valve then re-assemble.
Water discharges
from pressure
relief valve
Check for cause of high pressure and remove it.
Blockage on outlete.g. blocked shower handset.
Replace the pressure reliefdisc (not coveredby guarantee).
Water does not
flow when button
“B” is pressed.
Check circuit through solenoidcoil.Ifdefective then replace.
Check circuit through push button switch. If defective then replace.
Power supply not reaching shower.
We offer a technicaladvisory service on the telephone to installers and othercustomers with
problems inthe field.
RING 0844372 7766 (UKONLY)
Some spare parts (see Page 11) can be supplied againstCreditor Debit cards.
RING 0844372 7750 (UKONLY)
Remember to quote the exact type ofshower, as
written on the frontof the showerand on this leaflet.
The modeland serial number arelocated on the
bottom face of the shower.
Make a note of those numbershere, and be sure
to quote them if you call for advice.
Model Number: 53-67___ __ __
Serial Number: _ _ __ __ ___ __
Note: You may be charged for aservice call
if you do nothave the serialnumber.

12
SELFHELP
If the showeris not working satisfactorily,make the following checks before calling outthe installer
.
Any one oftheseadjustmentscould restore the performance.
The shower cycles
from HOT to COLD
The temperature is set too hot causing the thermal cut-out (safety device)
to operate
Turn knob “C”clockwise to increase water flow.
Slowly increase the water temperature by turning knob “C” anti-clockwise
untila comfortable showering temperature has been reached.
You MUST WAIT approximately 20 secondsforeach adjustment toaffect the
water temperature.
“Med” (Medium)setting may need to be selected.
Water tooHOT Increase water flow by adjusting knob “C” clockwise.
“Med” (Medium)” setting may need to be selected.
Increase pressure to water supplye.g.fullyopen service valveor stop cock.
Check hose isnot kinked restricting thewater flow and clean handset.
Water tooCOLD Check powerison by neon indicator being illuminated.
Decrease waterflow by adjusting knob“C” anti-clockwise.
“High” setting may need to be selected.
Select inner or outeronly handset spray pattern.
Spray pattern poor
Clean the shower handset.
Water takes longer
to heatup Thermal cut-out has operated after previous use and the neon indicator has gone out (automatically resets when unit cools down)
“High” setting may need to be selected.
Water goes cold
whileusing
shower
Check neon indicator isilluminated.
Check water pressure hasnot fallen so faras tolet pressure switch cut out,
e.g.Anothertap drawing wateroff.
Raise position of shower handset.
Broken parts Please contact oursparesdepartmenton 0844 372 7750 (UK only).
Fitting instructions are provided with most spares.
WHAT TO DO IF THINGS GO WRONG (1)
5
8. Yourshowerisprovidedwith3 fixing
positionsin the backplate (seeDiagram 8).
The top-fixinghole is a “key-hole” slot,
andshouldbe markedand drilledfirst.
Tighten topscrew with headprotruding
about 10mm from thewall andhookthe
backplate overthe screw head.
Thisallowsforcorrectand accurate
alignment of yourshower before marking
andfixingthe bottompositions.
You maynot wish totighten upboth screws at this
stage asthe holesareelongatedtoallowforadjustment after otherconnectionshave taken place.
b. PLUMBING (For yourconveniencea coldwater inletconfiguration diagramisshown on page 6)
WARNING: ENSURE THAT THE MAINS WATER SUPPLY MEETS THE REQUIREMENTS BELOW
BEFORE CONTINUING WITH INSTALLATION.
The heater must be connectedtothe mains cold water supply.
Thismust have a minimumrunningpressure of69kPa (0.7bar, 10 psi)
anda maximum pressure of690kPa(7.0 bar, 100 psi).
WARNING: BEFORE CONNECTINGTHE PIPE WORK TO THESHOWER,
ENSURE THAT THE PIPE WORK IS FULLY FLUSHED OUT.
1. Unscrew the “RedCap”from the showeroutletpipe anddiscard it in a suitable manner.
It has been usedtoseal the showerduringtransit, and is nolongerrequired.
2. It is recommendedthat a WRAS (Water RegulationsAdvisory Scheme) listedisolatingvalveisfitted
tothe incomingmainscoldwaterbefore the shower unit. Thiswill allow the unit tobe serviced or
exchangedwithouthavingtoturn off the mains water at the waterstop valve.
3. The heater can be fedfrom a header tankprovided thishasa minimum headof7 metres (23ft).
4.
The coldwaterinlet connectionsuppliedis a plain Ø15mm straightshank/shaft.
Thisconnectorwill accept eithera Ø15mmcompressionelbowor a Ø15mm“push-onelbow”.
Ø15mm copper, stainless steelor suitable plasticpipeshould beused.
Foryour convenience,acold waterinletconfiguration diagramisshownonpage 6
.
Ifrearentryisrequired, treatastopentrywithan additional “Yorkshire”elbow (solderedtype) for
fitting intotherearchannel.
Toaid installation, youmayfind itconvenienttomovetheflexiblepressurereliefvalveoutlet
assemblybyremoving thetwosecuring screws (SeeDiagram2b).
Inmultipleinstallations,correctpipeworksizes shouldbecalculatedtomaintain adequateflowto
eachshower.
5. It is permissible to use a WRAS (WaterRegulationsAdvisory Scheme)approved sealant sparingly
whilstavoidingexcess findingits way intothe showeroperatingparts.
6. With isolating valve connected, flush the pipework through to remove any particles etc,
before makingthe final connectiontothe shower.
Blockage in the waterways(particularly the handset andsolenoidvalve)will prevent the heater
workingproperly. Note: You maybe chargedfor a service call ifitisdue toincorrect installation.
7. The showerisdesignedtohavean open outletandshouldonly be used with “Creda” recommended
fittings.
Do not connect thehandset until afterthe front coveranddetachable bottom section are fitted.
WARNING: DO NOT FIT A TAP ON THE SHOWER OUTLET.
WARNING: TAKE CARE TO AVOID RESTRICTING THE OUTLET OF THE
PRESSURE RELIEF VALVE.

6
Please note that standard compression fittings are shown.
Push-Fit connections or a combination of the two are also suitable.
To aid installation,you may find it convenient tomove the flexiblepressurerelief valve outlet
assembly by removing the two securing screws.
If you do,please ensure that they are fullytightened on re-
assembly(see Diagram 2b).
COLD WATER INLET PIPE CONFIGURATION
11
HOWTOMAINTAIN YOUR SHOWER SPA
Itis recommended that the shower unit and hoseetc. be cleaned usinga softclothand thatthe use of
abrasive or solvent based cleaning fluid be avoided,especially on any platedfinishes.
We recommend that before anycleaning, the isolating switchbe turned off, thusavoiding accidentally
switching on the shower.
WARNING: YOU MUST REGULARLY INSPECTTHE SHOWER HOSE FOR WEAR AND DAMAGE.
REPLACE IF NECESSARY, OR EVERY TWO YEARS, WITH AN APPROVEDPART.
WARNING: IN ORDER TO MAINTAINTHE PERFORMANCE OF YOUR SHOWER,
YOUMUSTREGULARLY CLEAN THESHOWER HANDSET.
All water contains particles of lime-scale, which buildup in the showerhandsetand unitreducingthe
performance.
Itis therefore importanttoclean the shower handset by simply rubbing the rubber nozzles,or soaking in
proprietarylime-scale remover and rinsing thoroughly before use (actual shower handsetnot necessarily
shown).
NOTE: After use itisnormal for some water todripfrom the shower handset for a
few moments.This inhibitsscale build-up over prolongeduse.
Please Note:- Thefitting of Spare Parts must be supervisedby asuitablyqualifiedperson.
White 2.0m ShowerHose CatNo. 83792578 Front Cover Assy CatNo. 93590364
Chrome 1.25m Shower Hose CatNo. 93797641 Thermal Cut-Out50/88°C CatNo. 93597871
WRAS Listed Water PRV Washer CatNo. 93795817
Isolating Valve CatNo. 93792452 Cylinder “O”-Ring CatNo. 93795809
Chrome Standard Accs CatNo. 83595317 Solenoid Valve CatNo. 93590355
Chrome Multi-Mode Accs CatNo. 83595318 Backplate Lower Section CatNo. 93590356
Chrome CurvedAccessories CatNo. 83595320 PRV OutletBody Assy CatNo. 93590357
Curtain and Rail Pack CatNo. 83792812 Flexible Outlet Pipe c/w Clip CatNo. 93590358
Curtain and Rail Packwith Tank Clip CatNo. 93590715
Non-Slip Mat CatNo. 83792811 Handset CatNo. 93597862
HeightAdjuster CatNo. 93597861
ADDITIONAL ACCESSORIESCOMMON SPARE PARTS
Additional accessoriesand spareparts can besuppliedagainstany
Credit or Debit cards from Creda Sales Hotline [phone]

10
IF WATER ISTOO COLD
Turn knob “C” anti-clockwise to11o’clock
and continue turning anti-clockwiseuntil youget
the water temperature ofyour liking.
Wait 20 seconds aftereach adjustmentfor the
water temperature tostabilise.
The finaladjustmentmaybe anywhereon the
dial.
If after turning fullyanti-clockwisewater is still
toocold,setshower pattern onshower handsetto
outer or innerpattern only.
IF WATER ISTOO HOT
Turn knob “C” clockwise to1 o’clock and
continue turningclockwise until you getthe water
temperature of your liking.
Wait 20 seconds after eachadjustmentfor the
water temperature tostabilise.
The finaladjustmentmay be anywhere on the
dial.
If after turning fully clockwise,wateris stilltoo
hot, adjust knob“A” to “Med” (Medium) setting
and re-adjustasabove.
Water flow willbe reduced on thissetting.
1. Ensure the electricity and water are turnedon tothe unit.
2. Your shower has 2control knobs(see Diagram 6).
Knob“A” controls the 3 power settings.
The mostpopular is“High”.
There arealso options fora “Med” (Medium)
or “Cold” shower (see notes 7 and 8).
Knob “C”controls the temperature of the water.
Forthis example turn knob “A” to “High”
and set knob “C” to “12 o’clock”,as shown in
Diagram 6. The“small bar”indicates knobsetting.
3. Press button “B”.
The water willflow and the neon indicator will illuminate.
4. Allowabout20 seconds for the temperature of thewater to stabilise.
Itis recommended that you do not whollyenterthe watersprayduring
thisperiod,especially if the shower hasjustbeen used.
5. Once a temperature setting toyour liking hasbeen achieved, knob “C”will rarely needadjusting.
You musthowever take into account required adjustmentsfor variations of incoming mains water
temperature between summer andwinter (see “Effectof Seasonal IncomingWater Temperature
Changes” see page 14).
6. When you have finished showering, press button “B” only. You haveno needto adjust knobs“Aor C”.
The neonindicator will goout.
Switch off the electricity at the ceiling switch or local isolator.
7. The “Med” (Medium) setting of knob “A”reduces the power used by the shower givinga cooler shower or
the option of reduced water flow.
This option is mainly usedfor summer usageand if thisisused then knob “C”mustbe re-adjusted.
8. The “Cold”setting of knob “A”will supply water without any heating.
9. Your shower is designed to stabilise temperature changescausedbywater pressure fluctuations
(see “Effect of Other Water Devices on Incoming Water Supply” see page 14).
WARNING: DO NOTSWITCH THE SHOWER ON IF YOU SUSPECTIT OF BEINGFROZEN.
WAIT UNTIL YOU ARE SURE IT HASTHAWEDOUT.
WARNING: DO NOTOPERATE THE SHOWER IF WATER IS DISCHARGED FROM THE PRESSURE
RELIEF VALVE. MAINTENANCE IS REQUIRED BEFORE THE SHOWER CAN BE USED.
WARNING: CONSIDERATION SHOULD BE GIVENTO SUPERVISINGTHE YOUNG,ELDERLY AND
THE INFIRM WHILSTTHEY USE THIS SHOWER.
HOWTOUSE YOUR SHOWER SPA (DETAILED)
7
c) ELECTRICAL
WARNING: THIS SHOWER MUST BE EARTHED.
The electrical installation mustbe in accordance withthe current BS.7671 (IEEWiringRegulations)
and“Part P” ofthe BuildingRegulationsand/orlocal regulations.
1. The shower unit isdesignedfora single phase AC electrical supply.
Please checkthe ratingplateon theunit toseewhatdetailsapplytoyour shower.
AS A GUIDEONLY (*Only appliesif external earth impedance isless than 0.35 Ohms)
Rating Cable Sizes
Fuse / MCB
Cable Length
6.0mm²
10.0mm² 40A Type B MCB 27m Max.
45m Max.
8.5 / 7.8kW240 / 230V 6.0mm²
10.0mm² 45A BS.1361 fuse 12mMax.* 21mMax.*
6.0mm²
10.0mm² 40A Type B MCB 27m Max.
45m Max.
9.5 / 8.7kW240 / 230V 6.0mm²
10.0mm² 45A BS.1361 fuse 12mMax.* 21mMax.*
10.5 / 9.6kW 240 / 230V 10.0mm² 45A BS.1361 fuse 12mMax.*
Remember toupgrade the cable ifit runsin thermal insulation in a loft, orfora longer distance.
2. A meansfor disconnection in all polesmust be incorporatedin the fixedwiringin accordance with
the wiringrules.Werecommenda ceilingswitch mountedin a convenientposition.
3. Ifyou have decidedtoconnect the cable on the left handside thenpleaseremoveandusethe
cable clampthat wasprovidedalongthe rightside (see Diagram 3).
WARNING: IFLEFT HAND SIDE CABLE ENTRY IS USED, THE MAINS CABLE OUTER SHEATH
MUST BE STRIPPED BACK TO THE LEVEL MARKEDONTHE BACKPLATE,ANDALL
THREE CONDUCTORS MUST BE FULLY SLEEVED WITH THE SLEEVING PROVIDED
BETWEEN THEREAND THE TERMINAL BLOCK (SEE DIAGRAM3a).
4. Connect cable toterminal blockmakingsurethat all theretainingscrewsare VERY TIGHT and that
no cable insulation istrappedunderthe screws.
WARNING: FAILURETO COMPLY WITH THESE INSTRUCTIONS COULDRESULT IN FAILURE
OF THE TERMINAL BLOCK.

8
5. Re-fit the detachable bottomsection with the two screws if it wasremoved.
6. Re-Fitthe front cover (see Diagram 4), andsecure byreplacingthetop andbottomfasteningscrews.
a. Ensure the top control knob isalignedtothe“High” positionasshown (Diagram 4a).
b. Ensure the “small bar” of the bottom control knob isalignedto 6 o’clock asshown (Diagram4b).
c. Inthe main bodyof theshower ensurethe “raisedpip”of the “camshaft”, positionedto accept the
top control knob, issetto 12 o’clock(Diagram4a).
d. Inthe main bodyof the showerensurethe “bottomgearwheel”, positionedtoaccept the bottom
control knobisturnedfullyanti-clockwiseasshown (Diagram4b).
e. Checkthat the top control knob hasbeen correctly alignedby ensuring thatall three power
settingscan be selected.
f. Checkthat the bottom control knob hasbeen correctlyalignedbyturningclockwiseandensuring
that the knob turnsapproximately one full turn andwhenturnedbackfully anti-clockwise, returns
to 6 o’clock.
7. Fitthe shower hose, and operate the showerfirst withoutthe handset to flush out particles,
fit the handset andthen operatethe showerason page 10 or16and check:
a. Watergetstoa satisfactorytemperature andwaterflow can be adjustedby control knob“C”.
b. Powerselection operates in all 3 positions, giving a changein watertemperature.
c. Check again for leaks and thatthe holesin the showerhandset are notblocked.
8. Demonstrate the showers operation to all users.
9
ASSEMBLYOF ACCESSORIES
Diagram 5 - Riser Railand Soap Dish Fitting Instructions
(Refer totheseparatefitting instructionsheet packedwith the accessoriesformore details)
1. Establish height ofriserrail tosuituserrequirements.
Thisshouldbe amaximumof 0.6metres(2ft)above the level of the heater, see (a)below.
2. Remove covers fromthe wall brackets(b).
3. Positionthe lowerbracket andmarkthe wall for the screwfixing(c).
Thendrill andplugthe wall andfixthe lowerbracket without the rail locationnotch.
4. Fit therail intothe lowerbracket.
Place theremaining bracket with the rail location notch on topof theriser rail, makingsurethat the
rail slot islocatedintothe notch.
Ensure thehole position isvertically alignedandmark the wall (d).
Remove the rail andbracket, then drill andplugthewall.
5. Assemble the heightadjuster(e).
6. Compressthe heightadjuster assemblyandslideonto the rail.
Fit thehoseretainingring andthen the soapdish on the bottomofthe rail (f).
Lock the soapdish intoposition bytighteningthe locknut.
7. Replacethe rail assemblyintothe lowerbracket.
Refitthe topbracket, ensuringthe slotin the rail islocatedintothebracketnotch andfix tothe wall.
Slidecoversontoboth brackets.
NOTE: The adjustableslidergripstheconical nut on the shower hose (g).
