Crestron Battery Pack TPS-6X-BTP User manual

Crestron TPS-6X-BTP
Battery Pack for TPS-6X
Installation Guide

This document was prepared and written by the Technical Documentation department at:
Crestron Electronics, Inc.
15 Volvo Drive
Rockleigh, NJ 07647
1-888-CRESTRON
Industry Compliance
As of the date of manufacture, the TPS-6X-BTP has been tested and found to comply with specifications for CE
marking and standards per EMC and Radiocommunications Compliance Labelling.
All brand names, product names and trademarks are the property of their respective owners.
©2010 Crestron Electronics, Inc.

Crestron TPS-6X-BTP Battery Pack for TPS-6X
Contents
Battery Pack for TPS-6X: TPS-6X-BTP 1
Introduction ...............................................................................................................................1
Features and Functions................................................................................................1
Specifications ..............................................................................................................2
Physical Description....................................................................................................3
Setup ..........................................................................................................................................4
Removal ......................................................................................................................4
Installation................................................................................................................... 8
Charging .................................................................................................................... 11
Storage.......................................................................................................................11
Disposal.....................................................................................................................12
Resources.................................................................................................................................13
Further Inquiries ........................................................................................................ 13
Future Updates .......................................................................................................... 13
Return and Warranty Policies ..................................................................................................14
Merchandise Returns / Repair Service ...................................................................... 14
CRESTRON Limited Warranty.................................................................................14
Installation Guide – DOC. 6740C Contents •i

Crestron TPS-6X-BTP Battery Pack for TPS-6X
Battery Pack for TPS-6X:
TPS-6X-BTP
Introduction
The Crestron®TPS-6X-BTP is a replacement NiMH rechargeable battery
pack for the TPS-6X Wireless Touchpanel. One TPS-6X-BTP is included
with each TPS-6X. Installation of the TPS-6X-BTP battery pack requires
tools and should be performed by a qualified technician.
IMPORTANT: BEFORE INSTALLATION OF A NEW
BATTERY Firmware version 3.001.0039 or later must be
loaded to provide optimum performance. Failure to upgrade
the firmware will result in a poor battery life for the panel.
Features and Functions
• Replacement NiMH rechargeable battery pack for the TPS-6X
Wireless Touchpanel
• Fast charging Nickel Metal Hydride batteries
• Can be charged when the TPS-6X is mounted in the
TPS-6X-DS or TPS-6X-DS-C Docking Station
(TPS-6X-DS-C sold separately)
Installation Guide – DOC. 6740C Battery Pack for TPS-6X: TPS-6X-BTP •1

Battery Pack for TPS-6X Crestron TPS-6X-BTP
Specifications
Specifications for the TPS-6X-BTP are listed in the following table.
TPS-6X-BTP Specifications
SPECIFICATION DETAILS
Output Voltage 4.8 Volts DC
Capacity 2000 mAh
Composition Nickel Metal Hydride (NiMH)
Usage Per Charge ~2 hours continuous, ~24 hours
under normal use (10% active duty
cycle with standby/powerdown
activated
Charging Time ~2.5 hours
(~2.5 to 3 hours when in use)
Optimal Operating
Temperature
32º to 112º F (0º to 45º C)
50º to 104º F (10º to 40º C) when
charging
Weight 4.3 oz (120.2 g)
NOTE: The batteries will not charge when they are warmer than the
maximum charging temperature. This may occur due to extended use of
the panel while on the TPS-6X-DS (or TPS-6X-DS-C) Docking Station.
To cool the batteries, turn off power to the touchpanel using the left
trigger key. The touchpanel will cool faster if it is removed from the
TPS-6X-DS (or TPS-6X-DS-C) before it is turned off. The panel will be
cool in approximately 20 minutes.
2 •Battery Pack for TPS-6X: TPS-6X-BTP Installation Guide – DOC. 6740C

Crestron TPS-6X-BTP Battery Pack for TPS-6X

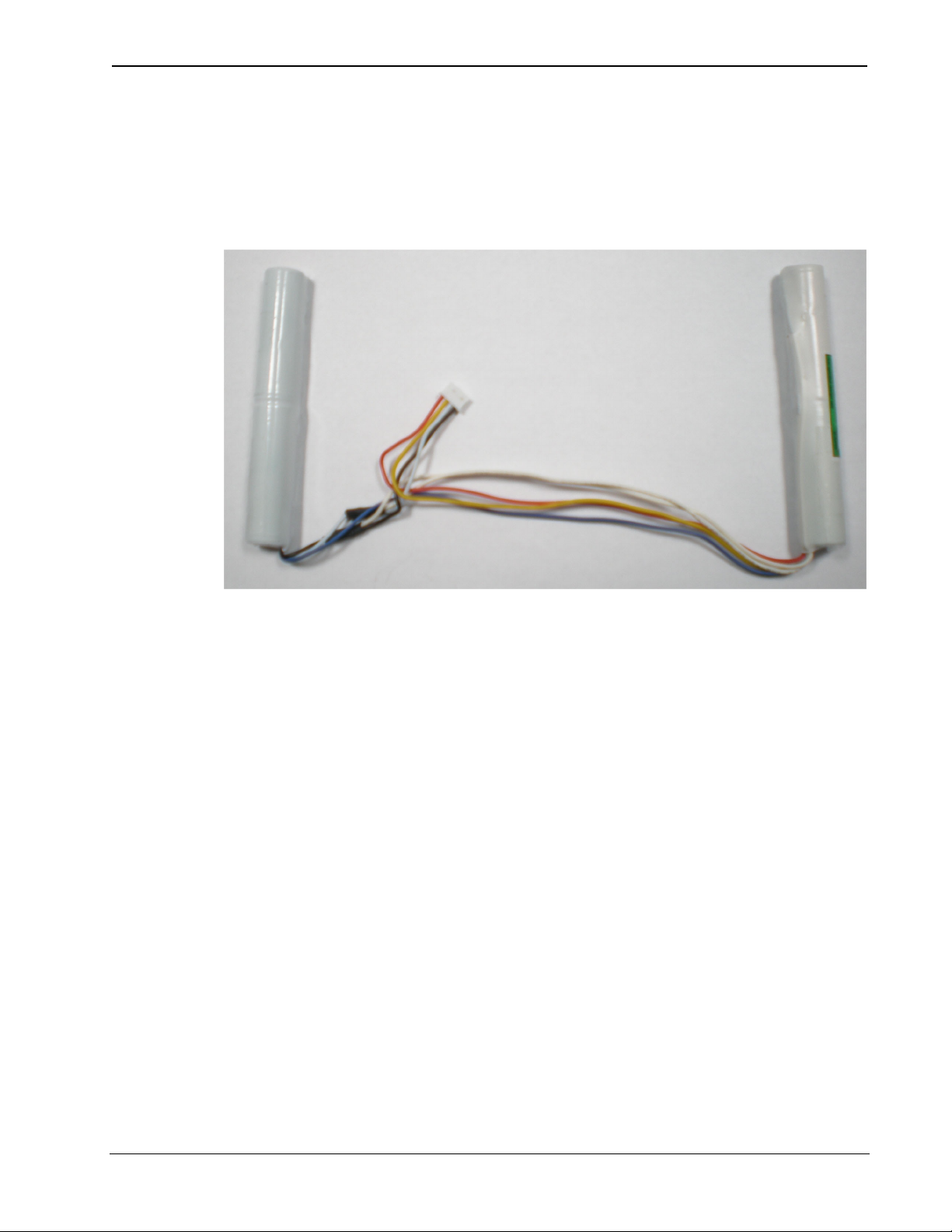

Physical Description
The TPS-6X-BTP consists of two battery cells, along with the integrated
wiring. It has a multi-pin connector for attachment inside the TPS-6X.
TPS-6X-BTP Physical View
Installation Guide – DOC. 6740C Battery Pack for TPS-6X: TPS-6X-BTP •3

Battery Pack for TPS-6X Crestron TPS-6X-BTP
Setup
Removal
NOTE: The TPS-6X Wireless Touchpanel contains ESD (electrostatic
discharge) sensitive devices. To avoid damaging the unit, perform the
following procedure while wearing a grounding strap that is properly
grounded or on a grounded workstation.
NOTE: To prevent damage to the multi-pin connector and wiring, use
care when handling the TPS-6X-BTP.
Perform the following procedure to remove the existing TPS-6X-BTP
from a TPS-6X touchpanel. A #1 Phillips screwdriver and a small slot
head screwdriver are required.
1. Remove power from the touchpanel, use the included T-pin to
slide the battery switch on the rear to the OFF (down) position and
place the touchpanel face down on a clean, padded work surface.
(Refer to illustration below.)
Bottom View Showing Battery Switch and Screw Locations
Screws Screws
UP
4 •Battery Pack for TPS-6X: TPS-6X-BTP Installation Guide – DOC. 6740C

Crestron TPS-6X-BTP Battery Pack for TPS-6X
2. Remove the four screws that secure the front bezel to the
touchpanel and return the unit to its normal, face-up position. (Use
care and hold the bezel to the rest of the touchpanel. If the bezel
separates from the rest of the touchpanel while rotating the unit to
its normal position, the internal parts of the panel may spill out.)
3. Lift the front bezel from the touchpanel, then place the touchpanel
assembly face down on the work surface.

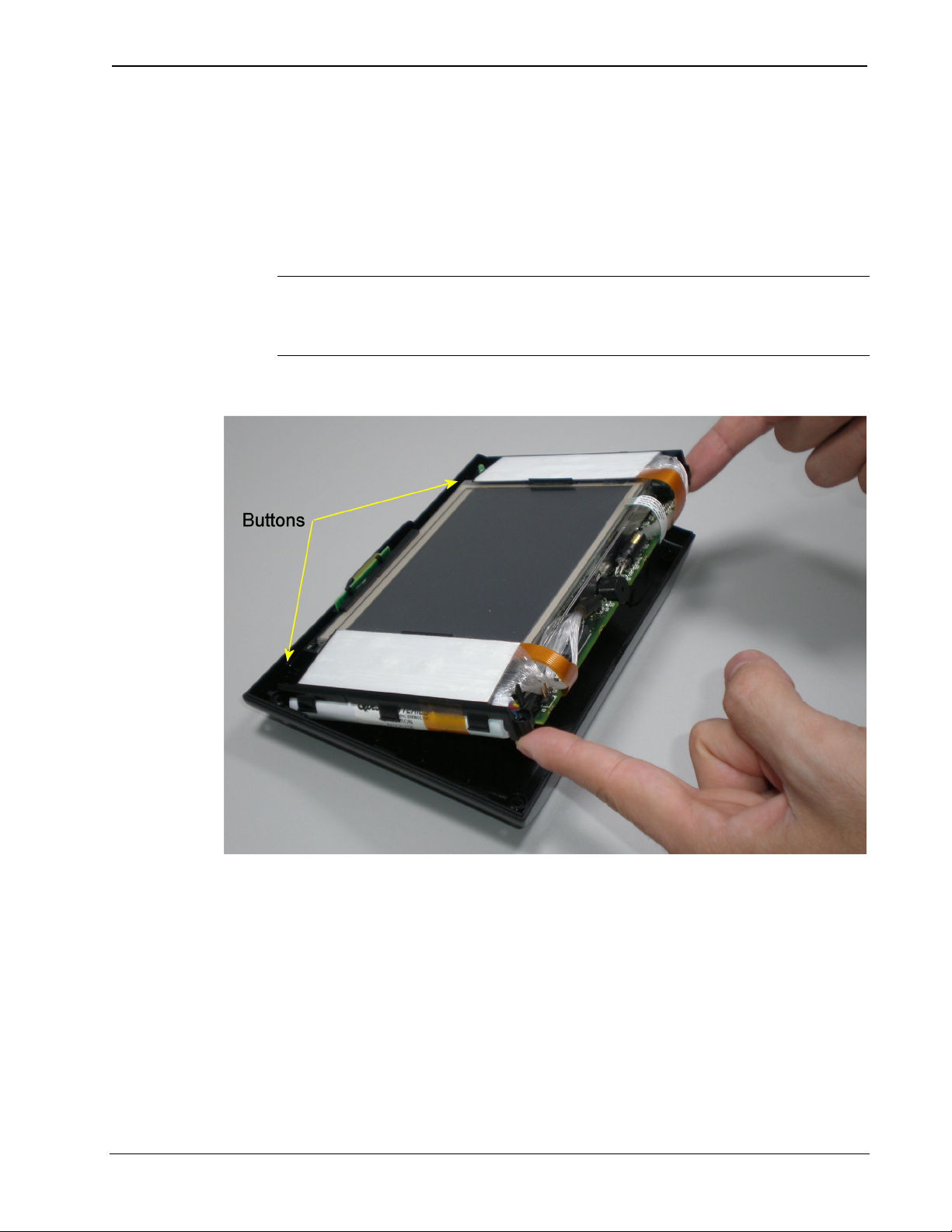

4. Carefully remove the rear of the enclosure from the touchpanel by
grasping the support frame at the left and right edges, gently
spreading them (as shown in the illustration below) and lifting the
assembly. It will snap out of the enclosure.
Removing Rear Enclosure from TPS-6X
Installation Guide – DOC. 6740C Battery Pack for TPS-6X: TPS-6X-BTP •5

Battery Pack for TPS-6X Crestron TPS-6X-BTP
5. Remove the orange tape securing the battery pack wires to the
circuit board and the two pieces of clear tape on each battery cell.
(Refer to illustration below.)
TPS-6X Assembly (Removed from Enclosure)
