Crestron AirMedia ZUMMESH-KP10AMBATT User manual

ZUMMESH-KP10AMBATT
AirMedia®Wireless Keypad for AM-200 & AM-300, Battery-Powered
Installation Guide
Description
The Crestron®ZUMMESH-KP10AMBATT provides power and volume control to a display
that is connected to an AM-200 or AM-300 AirMedia®Presentation System. Simply
connect the ZUMMESH-KP10AMBATT to a ZUMMESH-AVBRIDGE* that is part of an
AM-200* or AM-300* AirMedia Presentation System to begin controlling the display.
* Not included.
Installation
NOTE: Observe the following points.
• Install in accordance with all local and national electrical codes.
• For use where temperatures are between 32° to 104 °F (0° to 40 °C).
• Several devices can be installed in one electrical box (multigang). For a smooth
appearance, install a one-piece multigang faceplate (not included).
Mount in a Single-Gang Box
1. Secure the ZUMMESH-KP10AMBATT to a single-gang box using the two supplied
screws.
Two screws are supplied
for mounting the keypad to
a back box.
2. Remove the battery tab to turn on the keypad.
Remove the battery tab prior
to operation.
3. Attach a decorator-style faceplate (not included).
Mount on a Flat Surface
Secure the ZUMMESH-KP10AMBATT to a clean, at surface using the supplied double-
sided tape.
1. Clean the mounting surface with a light cleaning agent that does not leave a residue.
2. Remove the backing of one piece of double-sided tape, and apply it to the back of
the keypad. Repeat for the other piece of double-sided tape.
Two pieces of tape are supplied
to mount the keypad without a
backbox.
3. Ensure that the keypad is vertical and press it rmly against the wall to ensure it is
properly secured.
CAUTION: Removing the keypad after installation may damage the mounting
surface.
Press rmly to ensure
proper adhesion.
4. Remove the battery tab to turn on the keypad.
Remove the battery tab prior
to operation.
5. Attach a decorator-style faceplate (not included).
Set up the ZUMMESH-KP10AMBATT
To set up the ZUMMESH-KP10AMBATT, refer to the AM-200/AM-300 Product Manual
(Doc. 8254) at www.crestron.com/manuals.

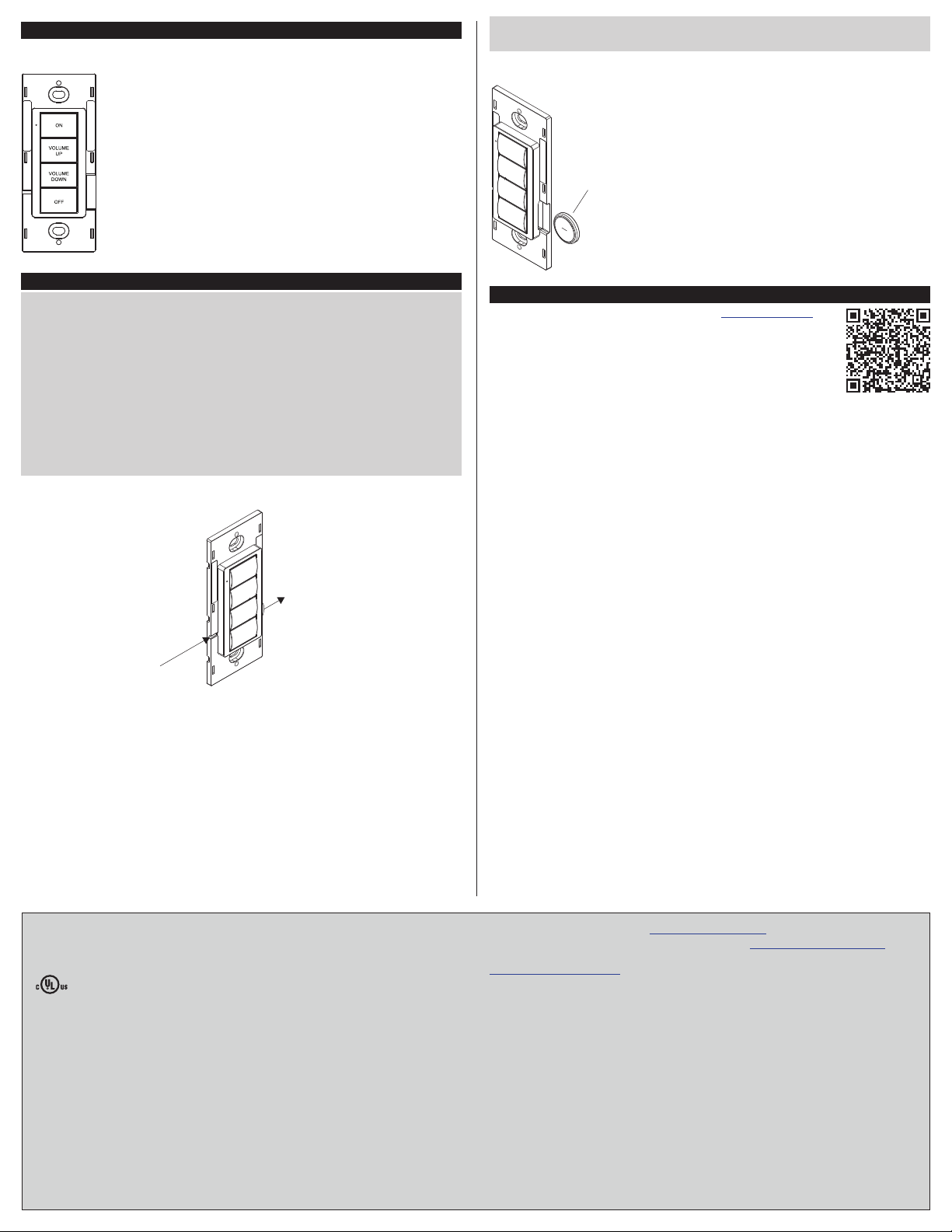

Control the Display
The ZUMMESH-KP10AMBATT has ON, VOLUME UP, VOLUME DOWN, and OFF buttons
that control the display.
ON: Turns the display on.
VOLUME UP: Raises the volume.
VOLUME DOWN: Lowers the volume.
OFF: Turns the display off.
Replace the Battery
WARNING: Refer to the following warnings before changing the batteries.
• Do not ingest batteries. Ingesting a battery poses a chemical burn hazard.
• This product contains a coin cell battery. If a coin cell battery is swallowed, it
can cause severe internal burns in just 2 hours and can lead to death.
• Keep new and used batteries away from children. If the battery compartment
does not close securely, stop using the product and keep it away from children.
• If you think batteries have been swallowed or placed inside any part of the body,
seek immediate medical attention.
CAUTION: The battery used in this device may present a risk of re or chemical burn
if mistreated. Do not recharge, disassemble, heat above 212 °F (100 °C), or incinerate.
Replace batteries with an identical CR2032 only. Use of another battery may present a
risk of re or explosion.
To remove the battery, insert a pin or paper clip into the slot on the left side of the keypad.
The battery slides out of the opposite side of the keypad.
To remove the battery,
insert a pin or paper clip
into the hole on the side.
NOTE: The battery must be inserted properly.
NOTE: The keypad will not operate if the battery is inserted incorrectly.
To install a new battery, insert the battery into the battery slot. The — terminal faces away
from the wall.
Battery CR2032
(—) toward the front of the
keypad
Additional Resources
Visit the product page on the Crestron website (www.crestron.com)
for additional information and the latest rmware updates. Use a QR
reader application on your mobile device to scan the QR image.
