Crestron Cameo C2NI-CB Series How to use

Crestron C2N/C2NI-CB Series
Cameo®Keypads
Operations & Installation Guide

This document was prepared and written by the Technical Documentation department at:
Crestron Electronics, Inc.
15 Volvo Drive
Rockleigh, NJ 07647
1-888-CRESTRON
The specific patents that cover Crestron products are listed at patents.crestron.com.
Crestron, the Crestron logo, Cameo, Cresnet, Crestron Toolbox, D3 Pro, SIMPL+, SystemBuilder, and
VT Pro-e are either trademarks or registered trademarks of Crestron Electronics, Inc. in the United States
and/or other countries. Windows is a trademark or registered trademark of Microsoft Corporation in the
United States and/or other countries. Other trademarks, registered trademarks, and trade names may be used
in this document to refer to either the entities claiming the marks and names or their products. Crestron
disclaims any proprietary interest in the marks and names of others. Crestron is not responsible for errors in
typography or photography.
This document was written by the Technical Publications department at Crestron.
©2014 Crestron Electronics, Inc.

Crestron C2N/C2NI-CB Series Cameo Keypads
Operations & Installation Guide - DOC. 6346C Contents •i
Contents
Cameo Keypads: C2N/C2NI-CB Series 1
Introduction......................................................................................1
Features and Functions ..........................................................1
Specifications.........................................................................3
Physical Description ..............................................................4
Industry Compliance..............................................................7
Setup.................................................................................................9
Network Wiring.....................................................................9
Identity Code .......................................................................10
Assembly and Installation ...................................................12
Programming Software ..................................................................23
Earliest Version Software Requirements for the PC ..................23
Programming with Crestron SystemBuilder or D3 Pro..........24
Programming with SIMPL Windows..................................25
Uploading and Upgrading..............................................................29
Communication Settings......................................................29
Uploading a SIMPL Windows Program..............................32
Firmware Upgrade ...............................................................35
Problem Solving.............................................................................38
Troubleshooting...................................................................38
Further Inquiries ..................................................................38
Future Updates.....................................................................39
Appendix: Template for Flush Mounting Hole .............................40
Return and Warranty Policies ........................................................41
Merchandise Returns / Repair Service ................................41
CRESTRON Limited Warranty ..........................................41

Crestron C2N/C2NI-CB Series Cameo Keypads
Operations & Installation Guide - DOC. 6346C Cameo Keypads: C2N/C2NI-CB Series •1
Cameo Keypads: C2N/C2NI-CB
Series
Introduction
Features and Functions
The Crestron®C2N/C2NI-CB Series Cameo®keypads are a new
generation of wall-mounted user interfaces that can be part of any
Crestron total solution control system network (Cresnet®). The keypads
are available in three versions: C2N-CBF, Flush Mount (no back box
required) for domestic and international installation; C2N-CBD, Standard
Mount (decorator style), back box installation, for domestic installation;
and C2NI-CBUK, Standard Mount, optional UK-style back box, for UK
installation.
For maximum flexibility in all configurations, a complete set of button
caps and spacers in three sizes is included with every keypad. The
installer can customize and configure the backlit caps, for “rocker”
left/right action, single press operation, or press and hold mode—up to 18
functions in total.
Functional Summary
•Six switches, each programmable for left/right “rocker” action,
single press operation, or press/hold mode, enabling up to 18
functions
•Button caps and spacers supplied in single-, two-, and three-
button configurations—any combination may be used
•LED feedback and switch backlighting intensity are
individually programmable
•Exclusive flush-mount, decorator style, or traditional mounting
installation

Cameo Keypads Crestron C2N/C2NI-CB Series
2•Cameo Keypads: C2N/C2NI-CB Series Operations & Installation Guide - DOC. 6346C
The basic Cameo keypad colors are black, white, and almond. The
keypad’s colors and finishes can be used to accent a home’s colors, wall
coverings, or décor. Additional designer colors are available. (Contact a
Crestron customer service representative for details.)

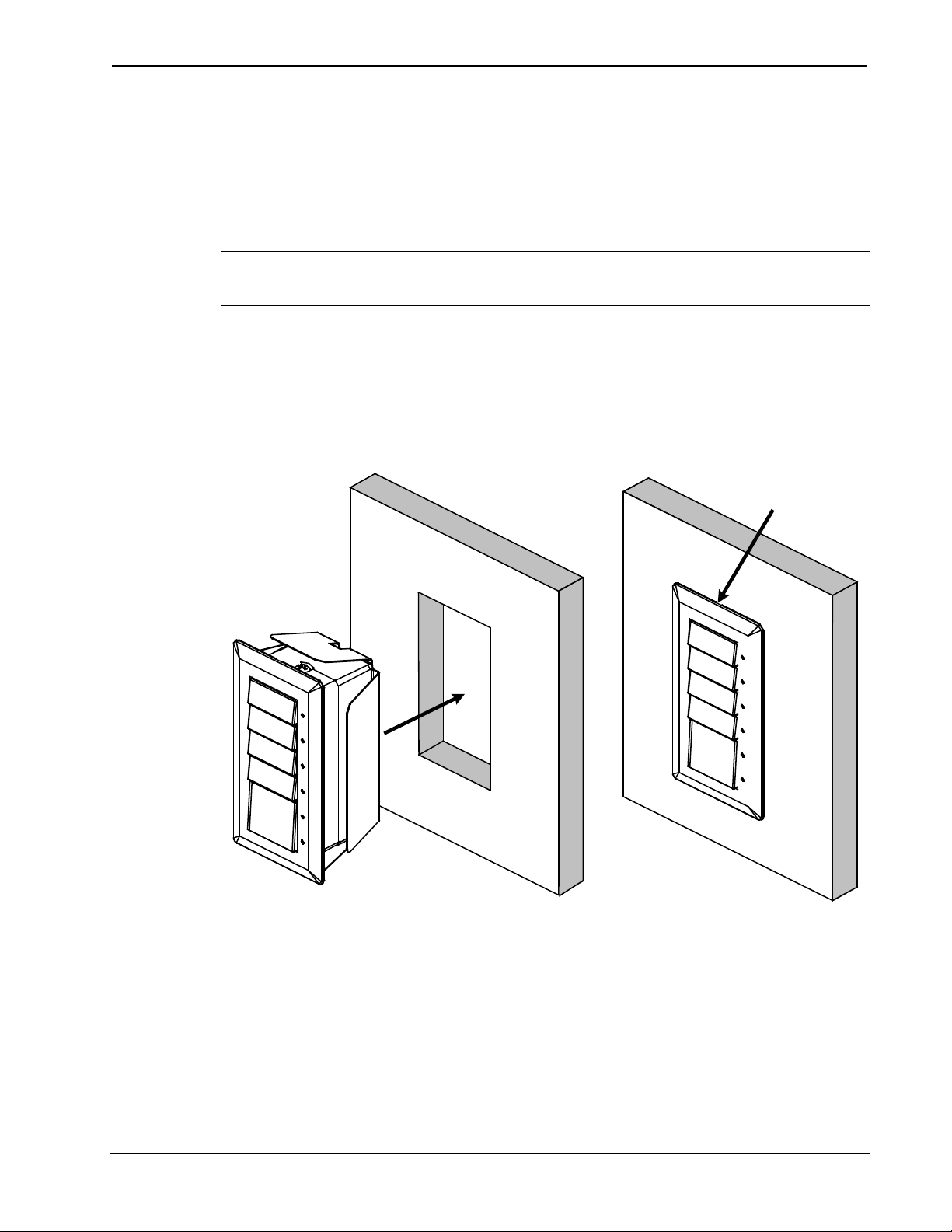

Mounting options include a choice of installation as a standalone device
using Crestron’s exclusive flush-mounting system; or, for the domestic
keypads, decorator installation in a conventional gang-box using standard
decorator style faceplates; or for the UK-style models, traditional
mounting (electrical box optional). The flush-mounting system is the
ultimate low-profile appearance that results in a footprint that is up to
75% smaller than a standard decorator style faceplate, and blends into
any room effortlessly. Refer to Assembly and Installation procedures, on
page 12, for details.
Each Cameo keypad is supplied with single-row button caps, double-row
button caps, and triple-row button caps as well as two single-row spacers,
one double-row spacer, and one triple-row spacer.
All switches on the keypad are functionally identical. White feedback
LEDs to the left of each row are independently addressable and indicate
which switches are active. The intensity of the feedback LEDs is
programmable from 0 to 100%. Button caps have white LED
backlighting that is programmable from 0 to 100% intensity as well. In
certain circumstances, such as when using black button caps, true
backlighting is not practical. Instead, the program can use the feedback
LEDs to perform a backlighting function, turning them all on but at a
fixed percentage of their active state intensity.
For programming details, refer to “Cameo Symbol in Programming
Manager,” on page 27.

Crestron C2N/C2NI-CB Series Cameo Keypads
Operations & Installation Guide - DOC. 6346C Cameo Keypads: C2N/C2NI-CB Series •3
Specifications
The following table summarizes the specifications of the keypads.
Specifications for the Keypads
SPECIFICATION
DETAILS
Cresnet Power Usage 3 Watts (0.125 Amps @ 24 VDC)
Default Net ID 25
Control System Update Files
1, 2, 3
2-Series Control System
CNMSX-AV/PRO
CNRACKX/-DP
CEN/CN-TVAV
ST-CP
Version 2.004.CUZ or later
Version 5.14.02X.UPZ or later
Version 5.14.02W.UPZ or later
Version 5.12.63V.UPZ or later
Version 4.02.4S.UPZ or later
C2N-CB-Series Firmware
C2N-CB.v2.10.upg or later
Environmental Temperature 32° to 113°F (0° to 45°C)
Humidity 10% to 90% RH (non-condensing)
Overall Dimensions:
Flush Mount Model
Decorator Style Model
UK Style Model
Height: 3.20 in (8.13 cm)
Width: 1.73 in (4.38 cm)
Depth: 1.52 in (3.86 cm)4
Height: 4.12 in (10.47 cm)
Width: 1.80 in (4.56 cm)
Depth: 1.52 in (3.86 cm)4
Height: 3.38 in (8.58 cm)
Width: 3.38 in (8.58 cm)
Depth: 1.52 in (3.86 cm)4
Weight 2.6 oz (73 g) – Flush mount
3.1 oz (87 g) – Decorator style
2.5 oz (70 g) – UK Style
1. The latest versions can be obtained from the Crestron website. Refer to NOTE after last footnote.
2. Crestron 2-Series control systems include the AV2 and PRO2. Consult the latest Crestron Product
Catalog for a complete list of 2-Series control systems.
3. Filenames for CNX and ST-CP update files have a UPZ extension. Files on the website may be .zip
or self-extracting .exe files containing the .cuz or .upz file. All can be obtained from the Downloads
section of the Crestron website. To avoid program problems, make sure you are using the update file
with the correct suffix letter (e.g., S, V, W, X).
4. The depth of the Keypad is listed without the Cresnet connector (approximately 0.45 in) or
clearance for the wiring.
NOTE: Crestron software and any files on the website are for Authorized
Crestron dealers and Crestron Authorized Independent Programmers

Cameo Keypads Crestron C2N/C2NI-CB Series
4•Cameo Keypads: C2N/C2NI-CB Series Operations & Installation Guide - DOC. 6346C
(CAIP) only. New users may be required to register to obtain access to
certain areas of the site (including the FTP site).
Physical Description
Active switches and spacers can be mixed and arranged as needed to suit
a particular application. LEDs along the side of the keypad identify the
active switches.
Each keypad has a mini Cresnet network port labeled 24 Y Z G. The port
provides for operating power and for communication to/from the keypad.
The button caps are tapered and are arranged in a shingle style with the
narrow part of the button cap at the top. Each button cap can, however,
be arranged in either orientation, and the overall keypads can be installed
with the LEDs on the right. Spacers are flat and flush with the front of the
bezel surface. Button caps are laser-engravable using the Crestron
Engraver software; spacers are not. The engraving software provides up
to three fields for each button cap to allow for the left/right and center
press functions, permits multiple lines of text, and also allows you to
specify the orientation of each button cap. The Crestron Engraver
software, Version 2.4 or later, is available from the Crestron website.
NOTE: A single button cannot be installed in the lowest position of the
keypad.
The following illustrations provide overall dimensions of the three
keypad styles.

Crestron C2N/C2NI-CB Series Cameo Keypads
Operations & Installation Guide - DOC. 6346C Cameo Keypads: C2N/C2NI-CB Series •5
Keypad Overall Dimensions – Flush Mount Configuration
1.73 in
(4.38 cm)
3.20 in
(8.13 cm)
1.52 in
(3.86 cm)

Cameo Keypads Crestron C2N/C2NI-CB Series
6•Cameo Keypads: C2N/C2NI-CB Series Operations & Installation Guide - DOC. 6346C

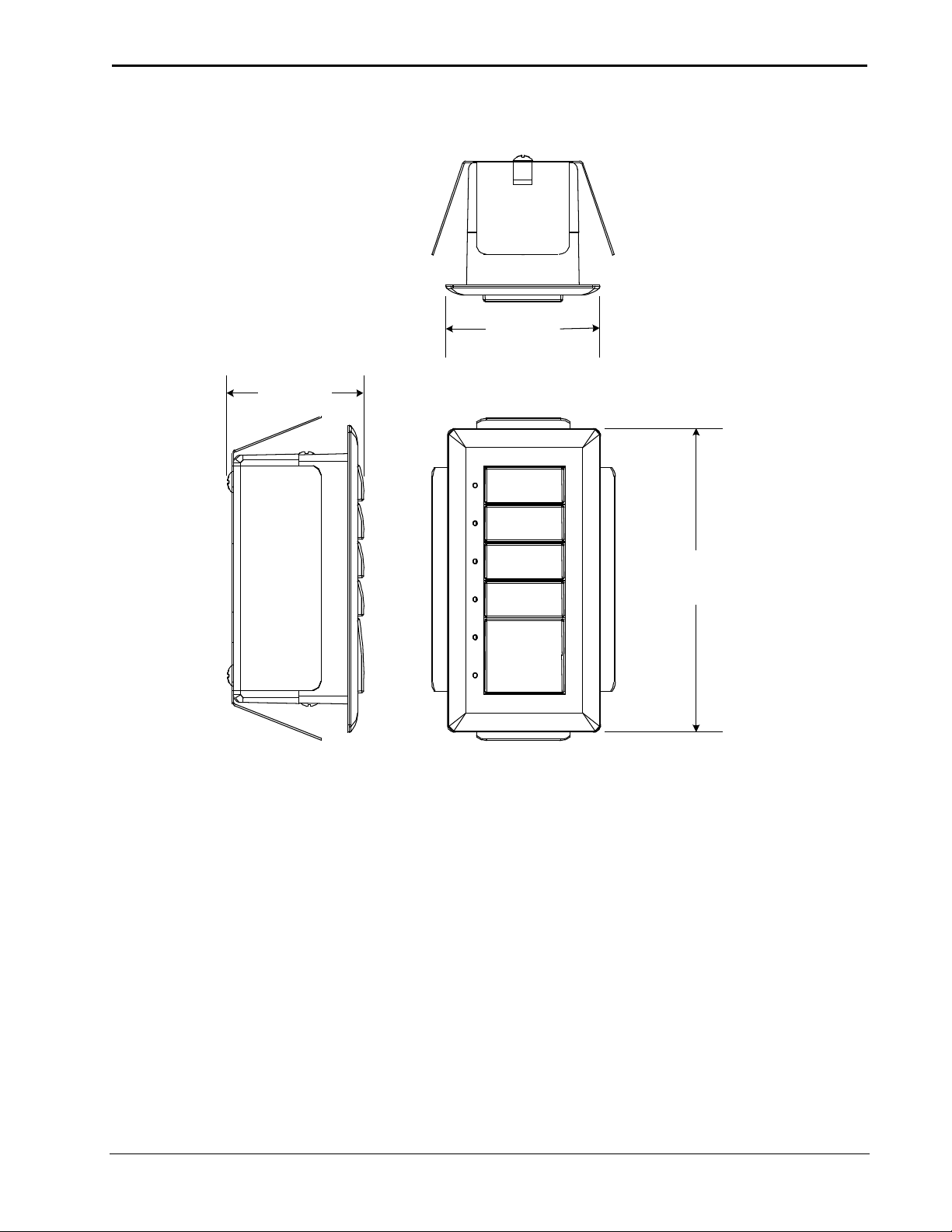

Keypad Overall Dimensions – Decorator Mount Configuration
1.52 in
(3.86 cm)
1.80 in
(4.56 cm)
4.12 in
(10.47 cm)

Crestron C2N/C2NI-CB Series Cameo Keypads
Operations & Installation Guide - DOC. 6346C Cameo Keypads: C2N/C2NI-CB Series •7

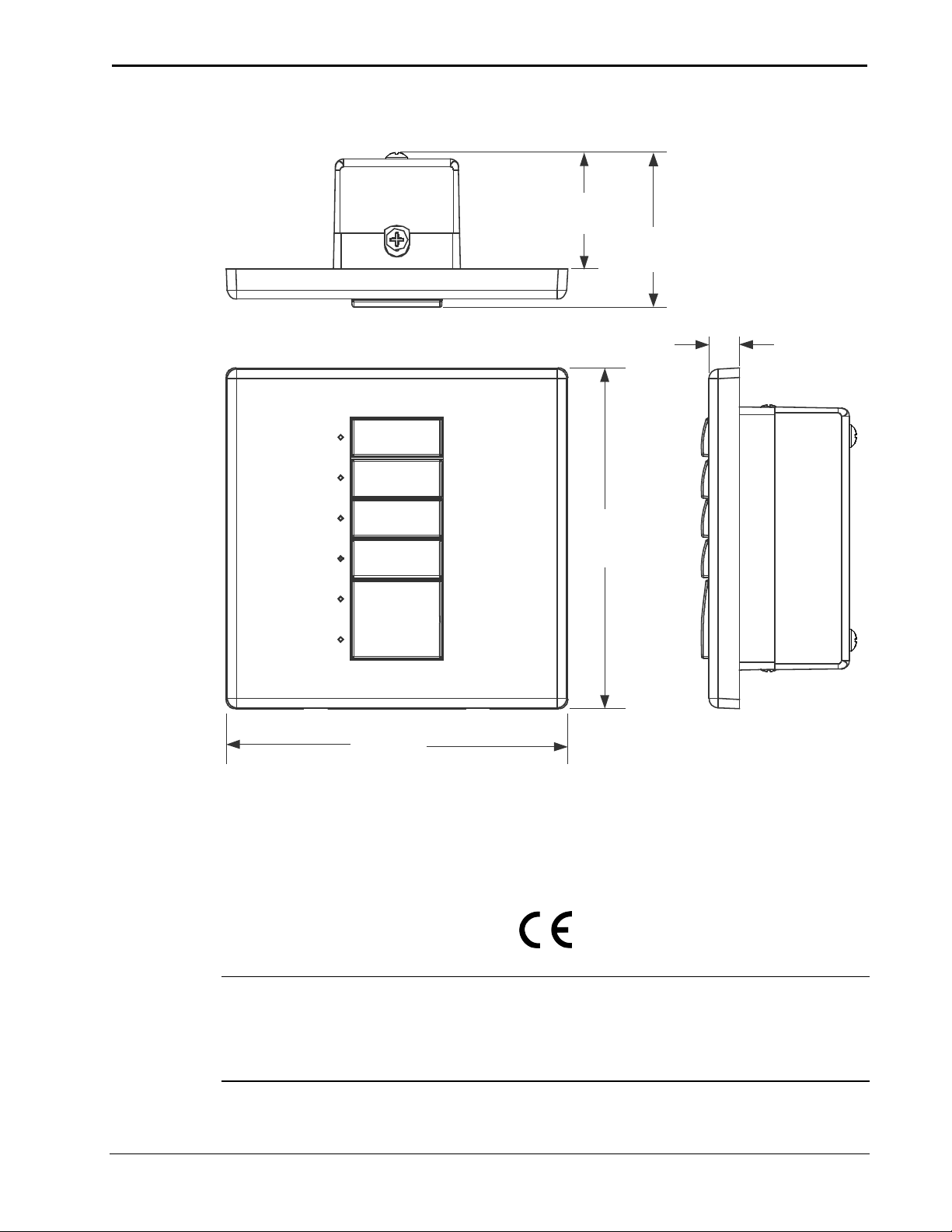

Keypad Overall Dimensions – UK-Style Configuration
3.38 in
(8.58 cm)
1.52 in
(3.86 cm)
3.38 in
(8.58 cm)
1.14 in
(2.89 cm)
0.30 in
(0.76 cm)
Industry Compliance
As of the date of manufacture, the keypads have been tested and found to
comply with specifications for CE marking.
NOTE: This device complies with part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.

Cameo Keypads Crestron C2N/C2NI-CB Series
8•Cameo Keypads: C2N/C2NI-CB Series Operations & Installation Guide - DOC. 6346C
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

Crestron C2N/C2NI-CB Series Cameo Keypads
Operations & Installation Guide - DOC. 6346C Cameo Keypads: C2N/C2NI-CB Series •9
Setup
Network Wiring
CAUTION: In order to ensure optimum performance over the full range
of your installation topology, Crestron Certified Wire, and only Crestron
Certified Wire, should be used. Failure to do so may incur additional
charges if support is required to identify performance deficiencies as a
result of using improper wire.
CAUTION: Use only Crestron power supplies for Crestron equipment.
Failure to do so could cause equipment damage or void the Crestron
warranty.
CAUTION: Provide sufficient power to the system. Insufficient power
can lead to unpredictable results or damage to the equipment. Please use
the Crestron Power Calculator to help calculate how much power is
needed for the system (http://www.crestron.com/calculators).
When calculating the length of wire for a particular Cresnet run, the wire
gauge and the Cresnet power usage of each network unit to be connected
must be taken into consideration. Use Crestron Certified Wire only. If
Cresnet units are to be daisy-chained on the run, the Cresnet power usage
of each network unit to be daisy-chained must be added together to
determine the Cresnet power usage of the entire chain. If the unit is a
home-run from a Crestron system power supply network port, the
Cresnet power usage of that unit is the Cresnet power usage of the entire
run. The wire gauge and the Cresnet power usage of the run should be
used in the following equation to calculate the cable length value on the
equation’s left side.
Cable Length Equation
40,000
Where:
R x P
L <
L = Length of run (or chain) in feet.
R = 6 Ohms (Crestron Certified Wire: 18 AWG (0.75 MM2))
P = Cresnet power usage of entire run (or chain).
Make sure the cable length value is less than the value calculated on the
right side of the equation. For example, a Cresnet run drawing 20 watts
should not have a length of run more than 333 feet.

Cameo Keypads Crestron C2N/C2NI-CB Series
10 •Cameo Keypads: C2N/C2NI-CB Series Operations & Installation Guide - DOC. 6346C
NOTE: All Crestron certified Cresnet wiring must consist of two
twisted pairs. One twisted pair is the +24V conductor and the GND
conductor, and the other twisted pair is the Y conductor and the Z
conductor.
NOTE: When daisy-chaining Cresnet units, strip the ends of the wires
carefully to avoid nicking the conductors. Twist together the ends of the
wires that share a pin on the network connector, and tin the twisted
connection. Apply solder only to the ends of the twisted wires. Avoid
tinning too far up the wires or the end becomes brittle. Insert the tinned
connection into the Cresnet connector and tighten the retaining screw.
Repeat the procedure for the other three conductors.
NOTE: For larger networks (i.e., greater than 28 network devices), it
may become necessary to add a Cresnet Hub/Repeater (CNXHUB) to
maintain signal quality throughout the network. Also, for networks with
lengthy cable runs, it may be necessary to add a Hub/Repeater after only
20 devices.
Identity Code
Every equipment and user interface within the network requires a unique
identity code (Net ID). These codes are two-digit hexadecimal numbers
from 03 to FE. (Net ID 02 is reserved for master control units). The Net
IDs reside within all Cresnet devices (hardware) and must match the Net
ID as specified in the software (SIMPL Windows) that runs the system.
Refer to “Setting the Net ID in Device Settings” on page 27 for details of
the SIMPL Windows procedure.
The Net ID of the keypad has been factory set to 25. The Net IDs of
multiple keypads in the same system must be unique. Net IDs are
changed from a personal computer (PC) via the Crestron Toolbox™.
NOTE: For detailed information on establishing communication
between the PC and control system, refer to “Communication Settings”
on page 29. If communication cannot be established, refer to the
“Troubleshooting Communications” section in the latest version of the
2-Series Control System Reference Guide (Doc. 6256), or the respective
Operations Guide for the control system. Both are available at
http://www.Crestron.com/manuals.

Crestron C2N/C2NI-CB Series Cameo Keypads
Operations & Installation Guide - DOC. 6346C Cameo Keypads: C2N/C2NI-CB Series •11
The Crestron Toolbox provides several methods to easily set or change
device Net IDs for any device on the network. The following method
permits you to change the Net ID of any device in the network through
the “Network Device Tree” window.
NOTE: This method prevents you from setting duplicate IDs.
This method lets you manually set the Net ID for any device in the
network, can be used to set any known Net IDs that require changing,
and may also be used for non-TSID equipment. This method will not
permit you to choose an ID already in use by another device. A warning
message will appear if you attempt to use an ID that is already in use.

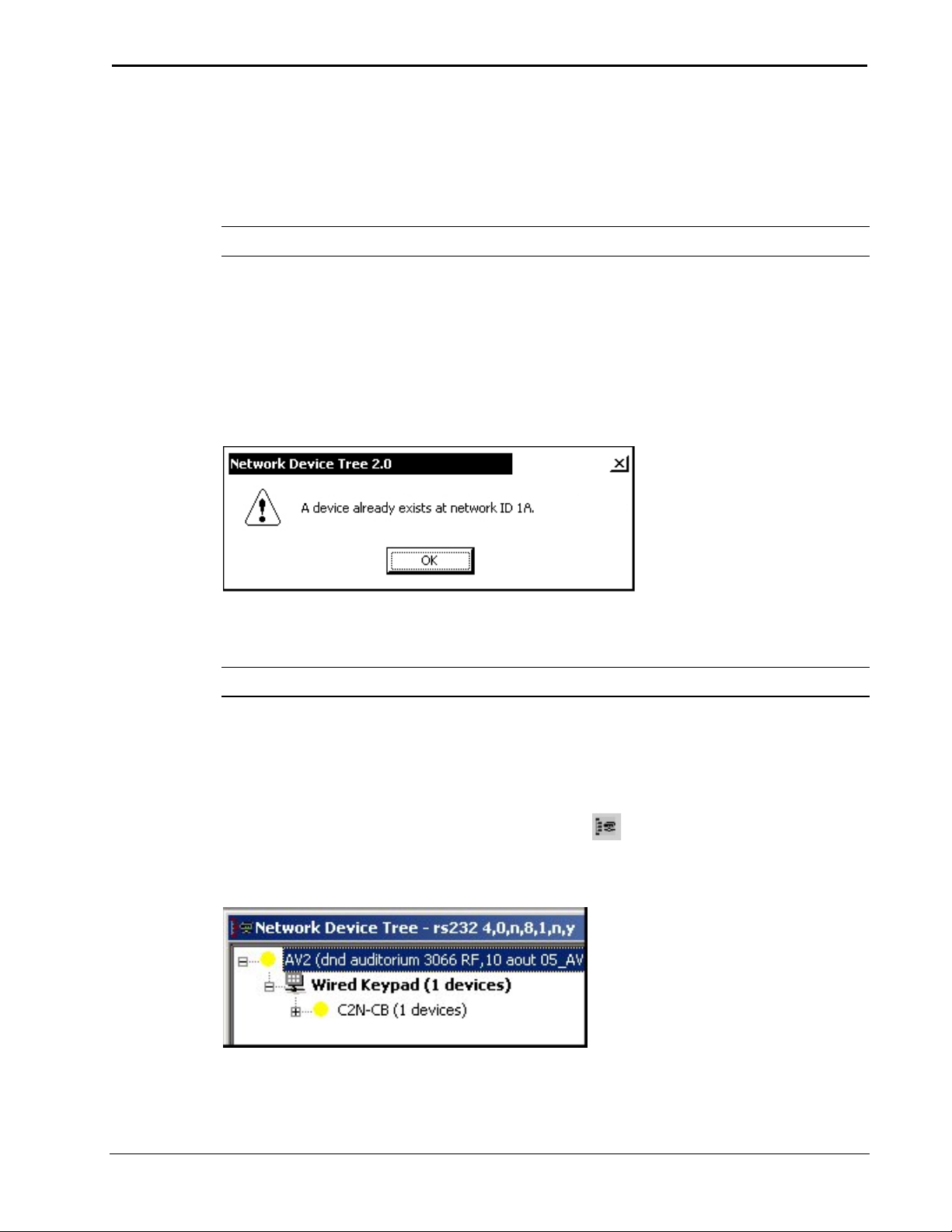

Duplicate Net ID Warning Message
This method does not change the Net ID as assigned in SIMPL windows.
Refer to page 27 for the SIMPL Windows ID change procedure.
NOTE: You may also use SystemBuilder to perform Network ID setup.
1. Connect all network devices to the control system.
2. Open Crestron Toolbox and establish communications (refer to
page 29).
3. Select the Network Device Tree icon, or select Tools |
Network Device Tree View.
Network Device Tree
4. Right-click on the device Net ID, and when the sub-menu
appears, select Change Network ID from the sub-menu.

Cameo Keypads Crestron C2N/C2NI-CB Series
12 •Cameo Keypads: C2N/C2NI-CB Series Operations & Installation Guide - DOC. 6346C

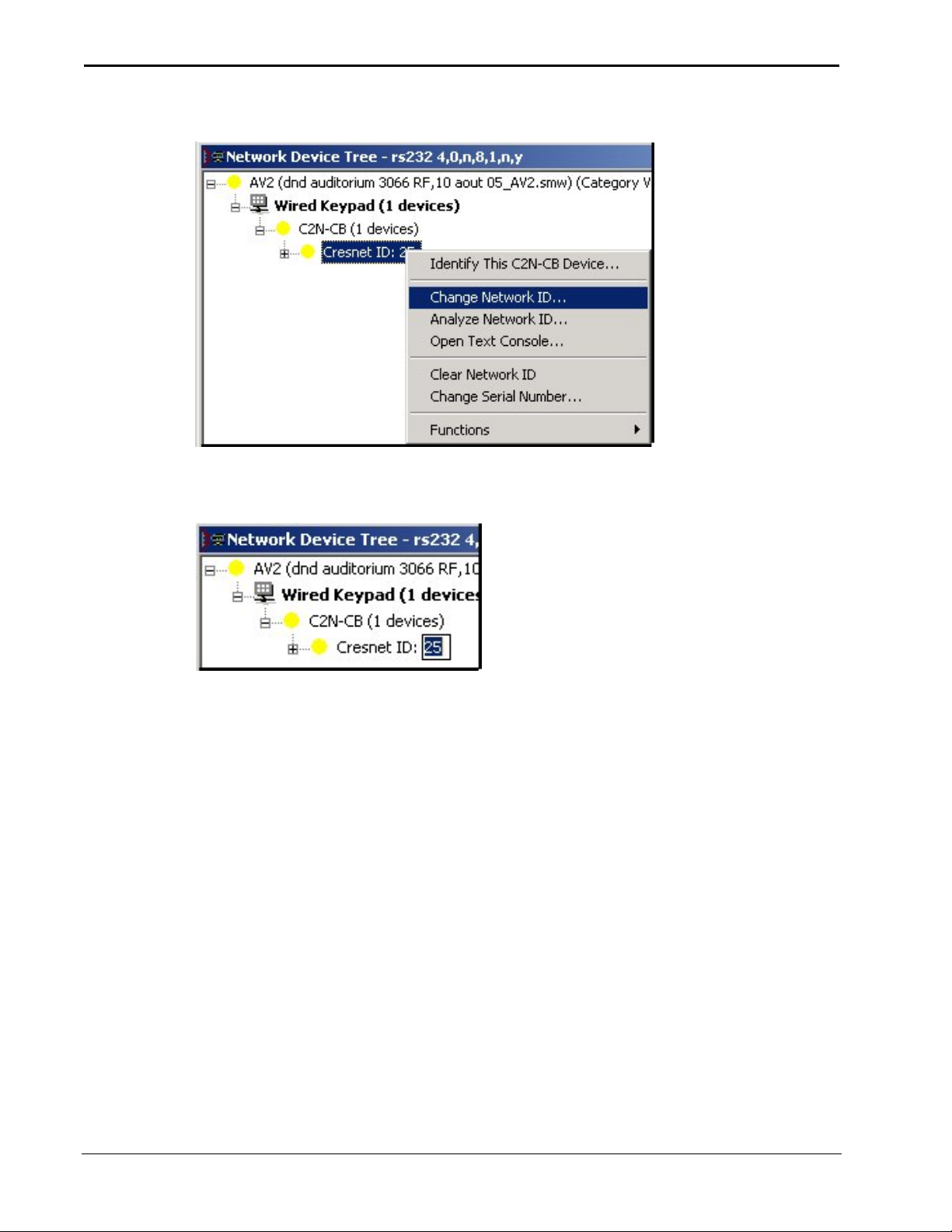

Network Device Tree – Sub-Menu
5. Enter a new Net ID and press Enter.
Enter New Net ID
6. Repeat this procedure for each additional network device
requiring a Net ID change.
Assembly and Installation
Assembly of the keypad consists of placing the button caps/spacers in
position based on how the unit is programmed, securing them together
with a plastic button support, putting the button cap/spacer assembly in
place on the rear housing and switch assembly, and attaching the bezel.
The button caps are tapered, and are often installed in a shingle-style
pattern (refer to the “Keypad Overall Dimensions – Flush Mount
Configuration ” illustration on page on page 5). Usual orientation of the
keypad is with the LEDs on the left. It can, however, be inverted with the
LEDs on the right, but the original relationship of the button numbers to
the LEDs remains, i.e., with the unit inverted, row one is on the bottom –

Crestron C2N/C2NI-CB Series Cameo Keypads
Operations & Installation Guide - DOC. 6346C Cameo Keypads: C2N/C2NI-CB Series •13
row six is on the top, and programming of the switches would have to be
done accordingly.
Installation consists of connecting the unit to the Cresnet system, and
then mounting it directly to the mounting surface or to a back box,
depending on the keypad configuration.
The following items are required for all installations:
•Cresnet network cable (not supplied)
•No. 2 Phillips screwdriver (not supplied)
Flush Mounting Installation
The Cameo keypad for flush mounting installation is supplied partially
assembled along with several items as listed in the following table.
Supplied Parts/Assemblies – Flush Mounting
QTY ITEM DESCRIPTION
1 Rear housing and switch assembly Rear housing with switch circuitry attached
1 Bezel Bezel assembly
1 4-pin female mini network
connector
Used to connect Cresnet network cable to the keypad
2 Screws, Black, Phillips pan head,
4-40 x 3/16”
Used to attach the bezel assembly to the keypad rear
housing and switch assembly
1 Double row spacer Switch cover for two non-operational switches
1 Triple row spacer Switch cover for three non-operational switches
1 Plastic button support Used to hold the button caps/spacers together in
position
1 Spring clamp Used to secure the assembled keypad in the wall
1 Template Used to mark correct hole size in the wall
Assemble the keypad as described in the following steps. Refer to the
accompanying illustrations.
1. Place the button caps and/or spacers in position according to the
program plan. Attach the plastic button support to the button
caps/spacers, and put the assembled parts in place on the rear
housing and switch assembly. (Refer to the illustration for the
standard mounting installation procedures, step 1, on page 16.)
2. Carefully position the bezel assembly, LED edge first, down
and over the button caps/blanks and rotate slightly into position
on the rear housing and switch assembly.

Cameo Keypads Crestron C2N/C2NI-CB Series
14 •Cameo Keypads: C2N/C2NI-CB Series Operations & Installation Guide - DOC. 6346C
3. Hold the bezel and rear housing together and install and tighten
the two supplied Phillips pan head, 4-40 x 3/16” cover screws
(black) into the rear housing and switch assembly, as shown in
the following illustration.
4. Press each button to be certain that you feel the press and
release to ensure that the button caps move freely.
LEDs
Cover
Screw
Rear Housing
and Switch
Assembly
Button Caps
and Spacers
Plastic Button
Support
Bezel
LED
Holes
5. Attach the spring clamp to the rear of the keypad, as shown in
the following figure, by loosening the screws sufficiently to
place the clamp over the screws and slide it down into position,
and then retighten the screws.
Loosen
Screws
Spring
Clamp

Crestron C2N/C2NI-CB Series Cameo Keypads
Operations & Installation Guide - DOC. 6346C Cameo Keypads: C2N/C2NI-CB Series •15
6. Use the supplied template to prepare the hole in the wall. (Refer
to the Appendix on page 40 for an illustration of the template.)
After the Cresnet network wiring has been installed and
verified, use the following procedure to install the keypad in the
prepared hole.
NOTE: Be very careful when cutting the hole. There are no adjustments
for alignment with the spring clamp.
7. Connect the Cresnet cable, using the supplied mating
connector, to the keypad’s Cresnet port.
8. Make sure the keypad is oriented properly and insert the keypad
in the hole. The natural action of the spring clamp holds the
keypad in position.
Slot
9. Turn Cresnet system power ON.
10.If the keypad needs to be removed from the wall, there is a slot
on one edge of the bezel (refer to the figure). Use a small flat
blade screwdriver to pry the keypad away from the wall, being
careful to avoid damage to the wall surface, and use your
fingers to remove the keypad.

Cameo Keypads Crestron C2N/C2NI-CB Series
16 •Cameo Keypads: C2N/C2NI-CB Series Operations & Installation Guide - DOC. 6346C
Decorator Mounting Installation
The keypad for Decorator mounting installation is supplied partially
assembled along with several items as listed in the following table.
Supplied Parts/Assemblies – Decorator Mounting
QTY ITEM DESCRIPTION
1 Rear housing and switch assembly Rear housing with switch circuitry attached
1 Bezel assembly Bezel and metal plate assembly, with ground wire
1 4-pin female mini network
connector
Used to connect Cresnet network cable to the keypad
2 Screws, Black, Phillips pan head,
4-40 x 3/16”
Used to attach the bezel assembly to the keypad rear
housing and switch assembly
2 Single row spacer Switch cover for single non-operational switch
1 Double row spacer Switch cover for two non-operational switches
1 Triple row spacer Switch cover for three non-operational switches
1 Plastic button support Used to hold the button caps/spacers together in
position
2 Screws, Steel, Phillips, pan head,
6-32 x 7/8”
Used to attach the assembled keypad to a back box
Assemble the keypad as described in the following steps. Refer to the
accompanying illustrations.
1. Arrange the button caps
and/or spacers in
position according to the
program plan. Attach
the plastic button
support to the button
caps/spacers, and put the
assembled parts in place
on the rear housing and
switch assembly.
2. Carefully position the
bezel assembly, LED
edge first, down and
over the button
caps/spacers and rotate
slightly into position on the rear housing and switch assembly.
