Crestron Horizon infiNET EX HZ-KPEX User manual

The Crestron® HZ-KPEX Horizon™ in-wall keypad features the following:
linfiNET EX® Wireless Communication to Crestron Gateway
(CEN-GWEXER)
lField replaceable, engravable button caps available in various sizes (not
supplied)
lProvides multiway functionality
The HZ-KPEX controls Crestron devices such as lighting, shading, and A/V
equipment from a single location. The device offers the following rating:
lLine Power: 120 VAC, 50/60 HZ, 30 mA (requires neutral wire )
lDC Power: 60 VDC, 30 mA (requires SolaHD® SDP™ 1-48-100T power
supply, not included)
WARNING: Do not use the REM terminal when the HZ-KPEX is
powered by 60 VDC.
NOTE: When wiring the device for 60 VDC operation, ensure that the
polarity is correct. Connect + (positive) to the NEU terminal and -
(common) to the HOT terminal.
In the Box
1 HZ-KPEX, Horizon™ In-Wall Keypad with infiNETEX®
Wireless Communication, 120 VAC
Additional Items
2 Screw, 6-32 x 1 in., Truss Head, Combo (2054883)
1 Spacer, Multi-Gang Alignment (2049924)
1 Nut, Wire, Red (2053634)
NOTE: Faceplates are not included. Refer to the HZ-FP-G series
faceplates for more information.
Important Notes
WARNING: To avoid fire, shock, or death, turn off the power at the
circuit breaker or fuse and test that the power is off before wiring!
NOTE: When using the HZ-KPEX as a multiway controller, all 3- or 4-
way switches in a multi-way circuit must be replaced by HZ-AUX units
or HZ-KPEX units with a single HZ-DIMEX, HZ-DIMUEX, or HZ-SWEX
unit installed at the load side of the multi-way chain.
NOTES: Observe the following points.
lCodes: This product should be installed and used in accordance with
appropriate electrical codes and regulations.
lInstallation: This product should be installed by a qualified electrician.
lWiring: Use copper wire only. For supply connections, use wires rated
for at least 75° C (167° F).
lTemperature: For use where temperatures are between 32° to 86° F
(0° to 30° C).
lElectrical Boxes: Devices mount in standard electrical boxes. For easy
installation, use 3-1/2 in. (89 mm) deep electrical boxes. Several
devices can be installed in one electrical box (multigang). For a
smooth appearance, one-piece multigang faceplates (not supplied)
must be installed. When installing into a multigang box, do not fully
tighten the devices to the box until the faceplate has been aligned.
lSwitches: Mechanical 3- or 4-way switches do not work with
HZ-KPEX keypads.
1
HZ-KPEX QuickStart
Horizon™ In-Wall Keypad with infiNET EX® Wireless Communication, 120 VAC

Installation
CAUTION: Do not mix high- and low-voltage devices in the same
electrical box without an approved barrier.
The Horizon keypad is designed for installation into a standard, single-
gang electrical box. For larger applications, combine up to four keypads in
a multi-gang electrical box.
Install the HZ-KPEX:
1. Turn power off at the circuit breaker.
WARNING: If the HZ-KPEX is used in a multiway configuration,
power may need to be turned off at multiple breakers.
2. Wire the device as shown in the following diagrams. In multigang
installations, daisy-chain Hot and Neutral wires with other Horizon
devices to eliminate excess wiring.
Avoid overcrowding the electrical box and remove unnecessary wiring
when possible.
NOTE: To wire one or more HZ-AUX or HZ-KPEX, refer to Wiring
Diagrams.
3. Fold the wires into the electrical box. Avoid pinched wires.
4. Secure the HZ-KPEX to the electrical box using the included mounting
screws on the device. To allow for adjustments, do not fully tighten the
screws at this time. Ensure that any text on the device is in the proper
orientation and facing up.
CAUTION: Do not overtighten the screws when attaching the
keypad to the electrical box. Damage to the unit and undesired
functionality may occur.
NOTE: For multigang installations, insert an alignment spacer
between adjacent devices to maintain proper alignment and
spacing.
2
HZ-KPEX QuickStart
Horizon™ In-Wall Keypad with infiNET EX® Wireless Communication, 120 VAC

5. Place the metal mounting bracket (supplied with HZ-FP-G) over the
back of the HZ-KPEX. The two parts of the metal mounting bracket
clip together which allows the wiring to remain in place.
NOTES:
lWhen installing the HZ-FP-G (sold separately) over an old
work electrical box, do not use the metal mounting bracket.
lIf the HZ-FP-G and mounting bracket are not available at the
time of installation, install the HZ-KPEX without the HZ-FP-G
and mounting bracket. When the HZ-FP-G is available refer to
the Quick Start guide for installation.
6. Attach the HZ-FP-G series faceplate using the faceplate mounting
screws. Ensure that the "Top" label is properly oriented.
7. Ensure that the HZ-KPEX is properly aligned within the HZ-FP-G and
then fully tighten the integrated mounting screws to secure the device
to the electrical box.
8. Attached the magnetic top and bottom trim pieces to the HZ-FP-G.
9. Ensure that all buttons actuate without sticking.
10. Restore power at the circuit breaker.
HZ-KPEX Single Gang Installation
3
HZ-KPEX QuickStart
Horizon™ In-Wall Keypad with infiNET EX® Wireless Communication, 120 VAC

HZ-KPEX Multigang Installation
4
HZ-KPEX QuickStart
Horizon™ In-Wall Keypad with infiNET EX® Wireless Communication, 120 VAC

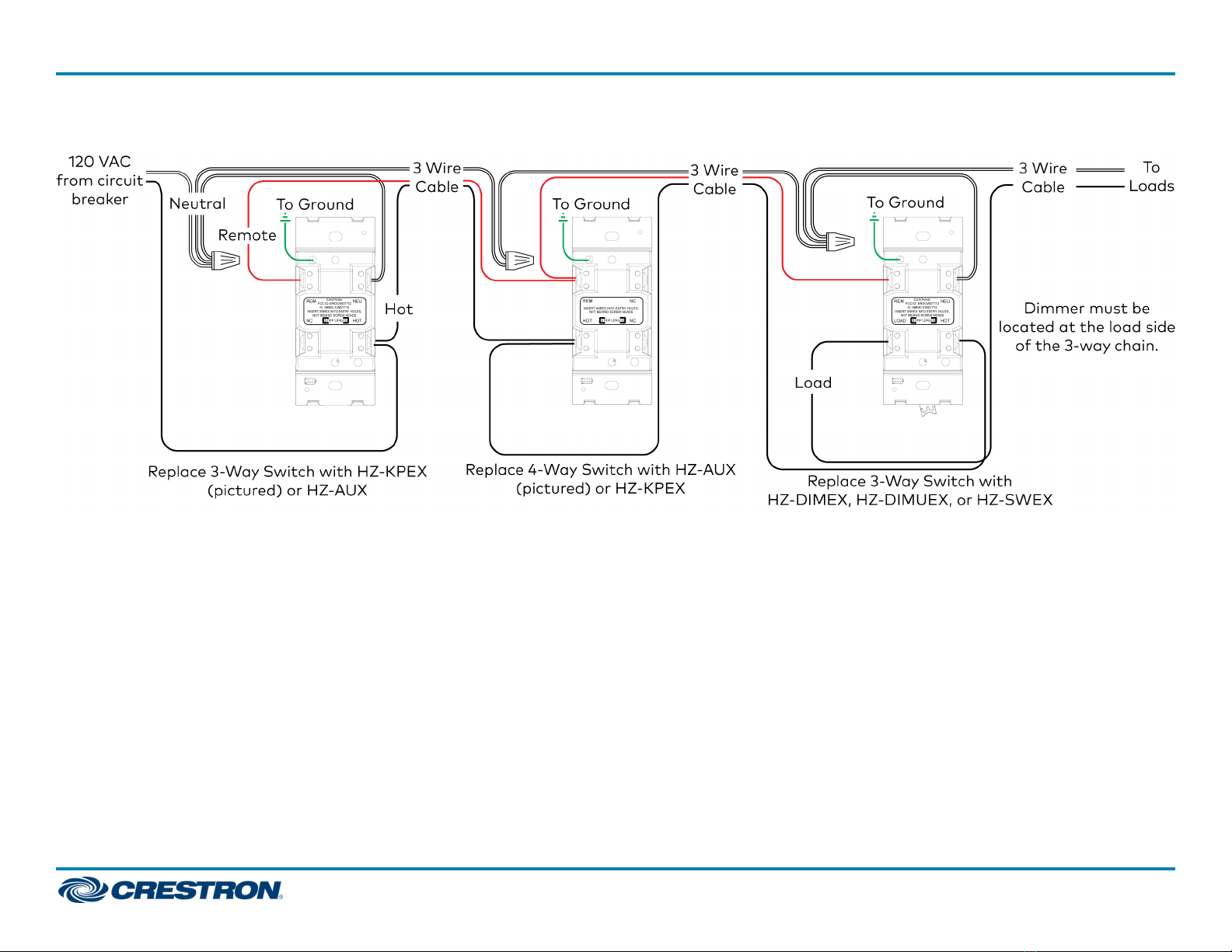

Wiring Diagrams
Two Points of Dimming or Switching Control (3-Way)
5
HZ-KPEX QuickStart
Horizon™ In-Wall Keypad with infiNET EX® Wireless Communication, 120 VAC

Three or More Points of Dimming or Switching Control (4-Way)
6
HZ-KPEX QuickStart
Horizon™ In-Wall Keypad with infiNET EX® Wireless Communication, 120 VAC

Operation
NOTE: Before using the HZ-KPEX, ensure the device is using the latest
firmware. Check for the latest firmware for the HZ-KPEX at
www.crestron.com/firmware. Firmware is loaded onto the device using
either Crestron Toolbox™ software or Crestron Home™ software.
Disconnect the Power
Power to the keypad buttons, LEDs, and the connected load(s) can be
disconnected by using the air-gap switch, which is located at the bottom
of the device. Slide the air-gap switch to the right to disconnect the power
to the device buttons, LEDs, and to the connected load(s), and slide the
switch to the left to restore power.
NOTE:
lWhen the air-gap switch is in the right position, power is still supplied
to the HOT terminal of the device.
lThe switch must be in the left position for the device to operate.

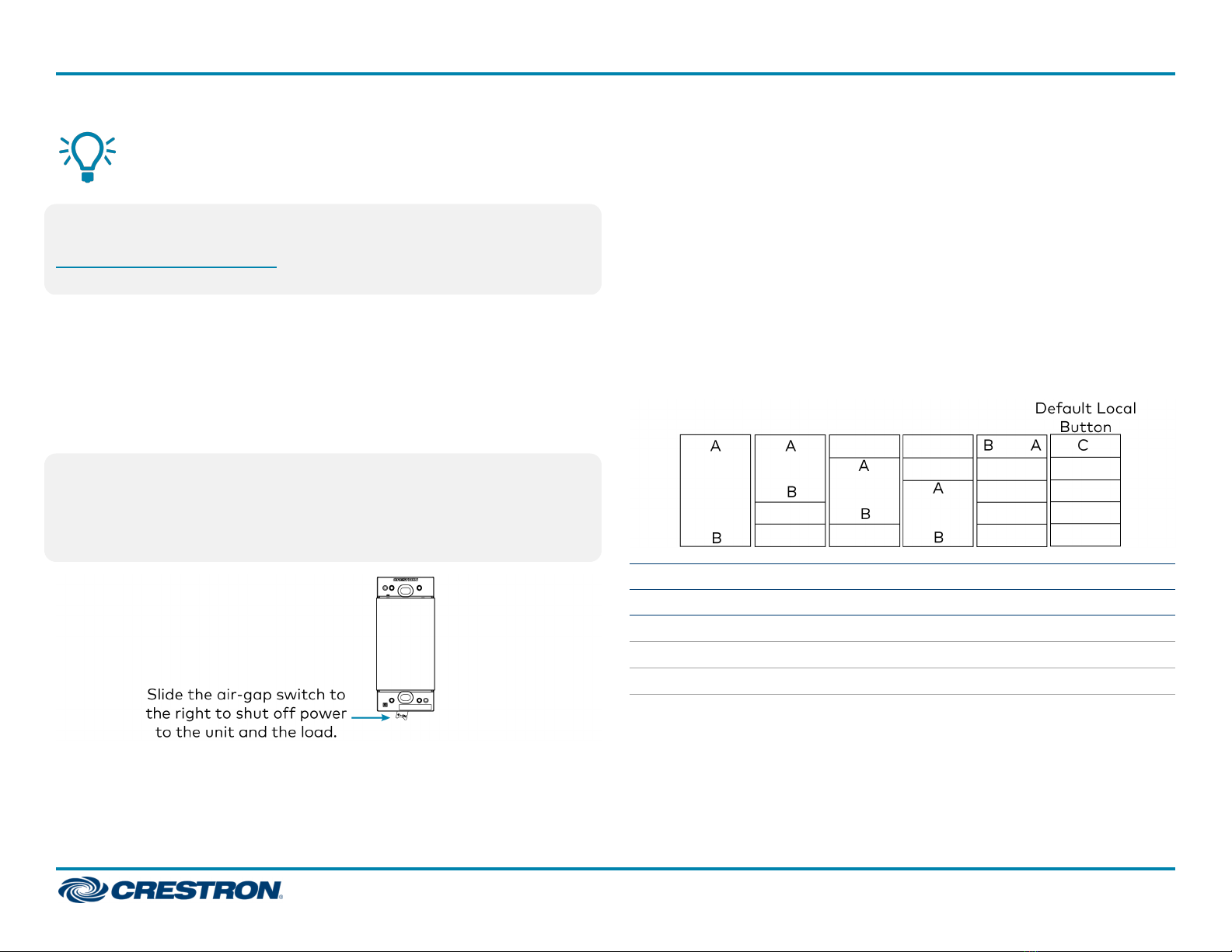

Default Button Functionality
The figure below illustrates the press and hold actuation sequences for
each local button option as selected in programming. There is only one
local button available per device. The HZ-KPEX can be used as a multiway
controller. When using the device as a multiway controller, the local
button that controls the master load controller must be selected.
Button behavior can be altered by the control system program. If the local
button is disabled in the control system program and communication to
the control system is lost, the device will default to the shown behavior.
When enabled, the local button can still act as a remote trigger. However,
LED feedback for the local button will be dictated only by the On/Off
state of the master load controller. When the HZ-KPEX is not used as a
multiway controller, the local button should be disabled in programming.
HZ-DIMEX or HZ-DIMUEX HZ-SWEX
Single Press Double Press Hold Single Press
A On Fast On Raise On
B Off Fast Off Lower Off
C Toggle N/A Raise/Lower Toggle
7
HZ-KPEX QuickStart
Horizon™ In-Wall Keypad with infiNET EX® Wireless Communication, 120 VAC

LED Behavior
The LED on the local button of the HZ-KPEX (if enabled) displays the
state of the remotely controlled device’s load. The LED behavior described
here only pertains to the local button. All other LEDs are controlled in
programming. The LED used for local feedback cannot be controlled
remotely.
Each LED can be in one of the following states:
lOn: The load is powered.
lOff: The load is not powered.
NOTE: LED functionality for both local and remote behavior can be
modified when programming the device.
Wireless Communications
The device connects to the Crestron network via the infiNET EX
communications protocol. Use the following procedures to join or leave an
infiNET EX network and to verify communications between the device and
the control system.
NOTE: The HZ-KPEX is not compatible with the MC3 internal gateway
when using channels 25 or 26.
Joining an infiNET EX Network
Before a device can be used in a lighting system, it must first join an
infiNETEX network by being acquired by an infiNETEX gateway.
NOTE: A device can be acquired by only one gateway.
1. Put the infiNET EX gateway into Acquire mode from the unit itself or
from Crestron Toolbox software, as described in the gateway’s
manual at www.crestron.com/manuals.
NOTE: In an environment where multiple gateways are installed,
only one gateway should be in Acquire mode at any time.
2. Place the device into Acquire mode.
a. Tap the top button three times, and then press and hold it down
(tap-tap-tap-press+hold) until all of the LEDs flash red once
(this can take up to 10 seconds if the device has been previously
acquired to a gateway).
NOTE: If a side-to-side rocker is in the top position, either
side of the rocker can be pressed and held.
8
HZ-KPEX QuickStart
Horizon™ In-Wall Keypad with infiNET EX® Wireless Communication, 120 VAC

b. Release the button to start the acquire process. The top
button’s LED flashes red slowly to show that the device is
actively scanning the infiNET EX network.
lThe top button’s LED lights red for 5 seconds to show
that the device has been successfully acquired to the
infiNET EX network.
lThe top button’s LED flashes red quickly to indicate that
the device was not successfully acquired by the infiNET
EX network. Tap the setup button to acknowledge failure
to acquire the infiNET EX network. Before attempting the
acquire process again, ensure one of the following:
oThe gateway is in Acquire mode and within range.
oA non-battery powered infiNET EX device is in Acquire
mode on the same gateway.
3. Once all devices have been acquired, take the gateway out of Acquire
mode. Refer to the gateway’s manual for details.
Leaving an infiNET EX Network
To leave an infiNET EX network, put the device into Acquire mode. Ensure
that no gateway is in Acquire mode when removing a device from an
infiNETEX network.
To place a device into Acquire mode, refer to step 2 in Joining an infiNET
EX Network.
Verifying Communications Status
To check the communications status of the device, tap the top button
three times and then press and hold it down (tap-tap-tap-press+hold) for
up to 2 seconds. The button must be released before the LEDs flash to
indicate the communications status. Refer to the following table for
details.
NOTES:
lIf a side-to-side rocker is in the top position, either side of the rocker
can be pressed and held.
lIf there is a communication error and a remote button is pressed, all
of the LEDs will flash red in one of the patterns described in the table
below.
LED Communications Status
Turns on
for 5
seconds
The device is communicating with the control system.
Flashes
three times
The device is communicating with the gateway, but the
gateway is not communicating with the control system.
Flashes
twice
The device was previously joined to the network but is not
communicating with the gateway.
Flashes
once
The device is not joined to the network.
9
HZ-KPEX QuickStart
Horizon™ In-Wall Keypad with infiNET EX® Wireless Communication, 120 VAC

Ambient Light Sensor Calibration
An LED backlight behind each button illuminates engravings. The ambient
light sensor adjusts the backlight brightness according to the light level in
the room. The ambient light sensor can be affected by room conditions
and should be calibrated manually (locally or through programming), or
the appropriate setting can be changed in control system programming.
To locally calibrate the light sensor:
1. Ensure that all room lights are fully on.
2. Ensure the faceplate and bottom trim piece are installed correctly.
Remove the top trim piece.
3. Press and hold the setup button with a small pointed object for about
2 seconds until all keypad backlights flash magenta. This can also be
triggered in programming.
4. Avoid blocking the light sensor on the bottom of the HZ-KPEX. The
light sensor should remain unobstructed and free of direct light. After
about 5 seconds, the calibration process is complete. The keypad
returns to normal operation.
Backlight Customization
Backlight color customization can be accomplished locally or through
programming.
NOTE: Custom and preset color themes may be defined in the control
system program. Custom programming will override local settings.
To locally change the color of the LED backlights:
1. Press the setup button with a small pointed object once. The LED
backlights will light brightly for 15 seconds.
2. Press the setup button repeatedly to cycle through the backlight color
options.
10
HZ-KPEX QuickStart
Horizon™ In-Wall Keypad with infiNET EX® Wireless Communication, 120 VAC

Troubleshooting
The module displays error codes using the dimmer output LEDs. The LED
flashes a pattern to indicate the error on that output. For example, a 2-1
error flashes the LED two times, pauses for 1 second, flashes once,
pauses for 2 seconds, and then repeats for 90 seconds (except where
otherwise noted). Refer to the following table for possible corrections.
Error
Code Fault Name Fault Description
2-3 Over
Temperature
The dimmer has overheated and shut down due to an
excessive load. Verify that the total load matches the
proper ganged rating. The dimmer resumes normal
operation after cooling.
3-3 Device Error The device is experiencing a hardware issue. Please
contact Crestron Technical Support.
For general troubleshooting, please refer to the following table:
Trouble Probable
Cause(s) Corrective Action
The keypad does not
function. No LEDs turn
on when a button is
pressed.
The keypad
is not
receiving
power.
Check the circuit breaker. Check
the wiring to verify that the
keypad is not connected to a
switch leg.
The air-gap
is open.
Ensure that the air-gap is
switched to the left.
The
program is
incorrect.
Check that the program is driving
the LED indicators.
The keypad does not
function. All LEDs flash
when a button is
pressed.
The keypad
is not
acquired by
a gateway.
Perform the acquire process.
Trouble Probable
Cause(s) Corrective Action
The keypad does not function.
All LEDs flash three times
when a button is pressed.
The keypad is
not
communicating
with the
gateway.
Ensure that the gateway
is powered.
Ensure that the keypad is
within range of the
gateway or other infiNET
EX devices
Master device does not
function when buttons are
pressed on master or local
button is pressed on
HZ-KPEX.
Problem with
device
installation.
Refer to the
Troubleshooting section
in the device’s installation
guide.
Existing 3- or
4-way switch
still connected.
Replace 3- or 4-way
switches with an
HZ-KPEX or an HZ-AUX.
Replace the 3-way switch
connected to the load
with an HZ-DIMEX,
HZ-DIMUEX, or
HZ-SWEX.
Master device works but local
button on the HZ-KPEX does
not work.
Wiring issue. Check connections on all
multiway units and on
master dimmer.
Existing 3- or
4-way switch
still connected.
Replace 3- or 4-way
switches with an
HZ-KPEX or an HZ-AUX.
Replace the 3-way switch
connected to the load
with an HZ-DIMEX,
HZ-DIMUEX, or
HZ-SWEX.
11
HZ-KPEX QuickStart
Horizon™ In-Wall Keypad with infiNET EX® Wireless Communication, 120 VAC

Visit the Product Page
Scan the QR code to visit the product page.
www.crestron.com/model/6509586
Additional Information
Original Instructions
The U.S. English version of this document is the original instructions.
All other languages are a translation of the original instructions.
Crestron product development software is licensed to Crestron dealers and Crestron
Service Providers (CSPs) under a limited nonexclusive, nontransferable Software
Development Tools License Agreement. Crestron product operating system software is
licensed to Crestron dealers, CSPs, and end-users under a separate End-User License
Agreement. Both of these Agreements can be found on the Crestron website at
www.crestron.com/legal/software_license_agreement.
The product warranty can be found at www.crestron.com/warranty.
The specific patents that cover Crestron products are listed at
www.crestron.com/legal/patents.
Certain Crestron products contain open source software. For specific information, visit
www.crestron.com/opensource.
Crestron, the Crestron logo, Crestron Home, Crestron Toolbox, Horizon, and infiNET EX
are either trademarks or registered trademarks of Crestron Electronics, Inc. in the
United States and/or other countries. SolaHD and SDP are either a trademark or
registered trademark of APPLETON GRP LLC in the United States and/or other
countries. Other trademarks, registered trademarks, and trade names may be used in
this document to refer to either the entities claiming the marks and names or their
products. Crestron disclaims any proprietary interest in the marks and names of others.
Crestron is not responsible for errors in typography or photography.
Doc ID 8284C
07/21/20
12
HZ-KPEX QuickStart
Horizon™ In-Wall Keypad with infiNET EX® Wireless Communication, 120 VAC
