TS-1542/TS-1542-C
15.6" HD Touch Screen
Supplemental Guide
Crestron Electronics, Inc.

Crestron product development software is licensed to Crestron dealers and Crestron Service Providers (CSPs) under a limited non-exclusive,
non-transferable Software Development Tools License Agreement. Crestron product operating system software is licensed to Crestron
dealers, CSPs, and end-users under a separate End-User License Agreement. Both of these Agreements can be found on the Crestron
website at www.crestron.com/legal/software_license_agreement.
The product warranty can be found at www.crestron.com/warranty.
The specific patents that cover Crestron products are listed at patents.crestron.com.
Certain Crestron products contain open source software. For specific information, please visit www.crestron.com/opensource.
Crestron, the Crestron logo, DM and Rava are either trademarks or registered trademarks of Crestron Electronics, Inc. in the United States
and/or other countries. Other trademarks, registered trademarks, and trade names may be used in this document to refer to either the
entities claiming the marks and names or their products. Crestron disclaims any proprietary interest in the marks and names of others.
Crestron is not responsible for errors in typography or photography.
This document was written by the Technical Publications department at Crestron.
©2015 Crestron Electronics, Inc.

Supplemental Guide – DOC. 7824B Contents
•
i
Contents
Access the Setup Screens 1
Configure the TS-1542 2
Ethernet Setup ........................................................................................................ 2
IP Table Setup ........................................................................................................ 4
Audio Setup ............................................................................................................ 6
Display Setup.......................................................................................................... 7
Standby Timeout..................................................................................................... 8
Diagnostics ............................................................................................................. 9
Test Patterns............................................................................................ 10
Touch Test............................................................................................... 10
Mic Test ................................................................................................... 11
LAN Test.................................................................................................. 11
Rava Test................................................................................................. 12
RTSP Test................................................................................................ 13
DM Preview (TS-1542-C Models Only) ..................................................... 14
About .................................................................................................................... 14
Save & Edit ........................................................................................................... 15

Supplemental Guide – DOC. 7824B TS-1542/TS-1542-C: 15.6˝HD Touch Screen
•
1
TS-1542/TS-1542-C:
15.6" HD Touch Screen
Access the Setup Screens
The setup screens enable basic configuration prior to regular operation of the Crestron®
TS-1542 and TS-1542-C. To display the main setup screen, touch the screen while
applying power to the unit.
The TS-1542 and TS-1542-C are functionally similar. For simplicity within this guide, the
term “TS-1542” is used except where noted.
NOTE:
If no project has been loaded or if an invalid project has been loaded, the touch
screen defaults to the main setup screen.
During regular operation of the TS-1542, there are two ways to access the setup screens:
1. Place a button on the project main page and assign the reserved join number
(17242) that accesses the setup screens.
2. Touch the screen with five fingers simultaneously, for more than 15 seconds.
The
TS-1542 Setup
screen is displayed.
TS-1542 Setup Screen
The
TS-1542 Setup
screen is composed of buttons for Ethernet setup, IP table setup,
audio setup, display setup, standby timeout, and diagnostics. In addition, there is a button
to toggle system messages on or off. An
About
button provides information about the
touch screen, and a
Save & Exit
button saves settings and exits the setup screens. The
functions of each are detailed in the following pages of this guide.

2
•
TS-1542/TS-1542-C: 15.6˝HD Touch Screen Supplemental Guide – DOC. 7824B
Configure the TS-1542
Ethernet Setup
On the
TS-1542 Setup
screen, tap
Ethernet Setup
to display the
Ethernet Setup
screen.
Ethernet Setup Screen
The
Ethernet Setup
screen displays the TS-1542’s MAC and IP addresses, subnet mask,
default router, primary and secondary DNS, hostname, and domain. There are controls for
turning DHCP on and off. When DHCP is off, a
Set Static IP Address Settings
button
provides access to controls that allow editing of these settings. This screen also contains a
link indicator to show the status of the Ethernet connection.
DHCP is enabled by default. To change to a static IP address, tap
Off
under
DHCP
Enabled
, and then tap
Set Static IP Address Settings
to display the
Ethernet Setup -
Static IPs
screen.
Ethernet Setup - Static IPs Screen

Supplemental Guide – DOC. 7824B TS-1542/TS-1542-C: 15.6˝HD Touch Screen
•
3
To edit the static IP address, static subnet mask, static default router, preferred DNS, or
alternate preferred DNS, tap the button directly under the label for the entry. The on-screen
numeric keypad opens.
On-Screen Numeric Keypad
Use the keypad to make the new entry. Tap the “x” in the text field to clear any previous
entry. Tap to delete the last digit. Tap
Save
to save a new entry or to return
to the
Ethernet Setup - Static IPs
screen.
After new settings have been saved, tap
Reboot
on the
Ethernet Setup - Static IPs
screen
to reboot the TS-1542 so that the new settings can take effect.
If not making any changes, tap to return to the
Ethernet Setup
screen.
Tap again to return to the
TS-1542 Setup
screen.

4
•
TS-1542/TS-1542-C: 15.6˝HD Touch Screen Supplemental Guide – DOC. 7824B
IP Table Setup
On the
TS-1542 Setup
screen, tap
IP Table Setup
to display the
Ethernet Setup -
IP Table
screen.

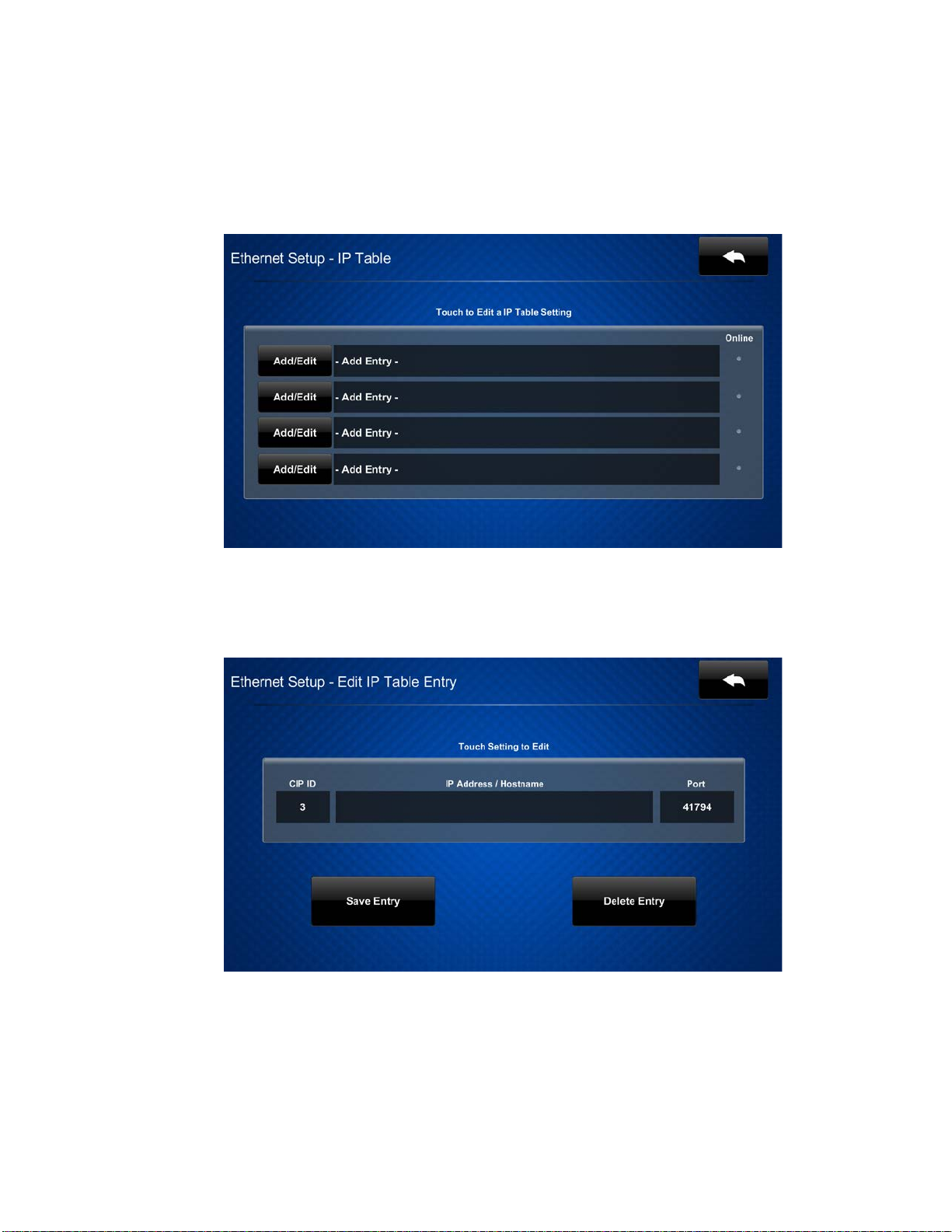

Ethernet Setup - IP Table Screen
The
Ethernet Setup - IP Table
screen displays up to four IP table settings, each of which
has an
Online
indicator. To add or edit an entry, tap the
Add/Edit
button to its left. The
Ethernet Setup - Edit IP Table Entry
screen is displayed.
Ethernet Setup - Edit IP Table Entry Screen
Tap the field below
CIP ID
to display the on-screen hex keypad.

Supplemental Guide – DOC. 7824B TS-1542/TS-1542-C: 15.6˝HD Touch Screen
•
5

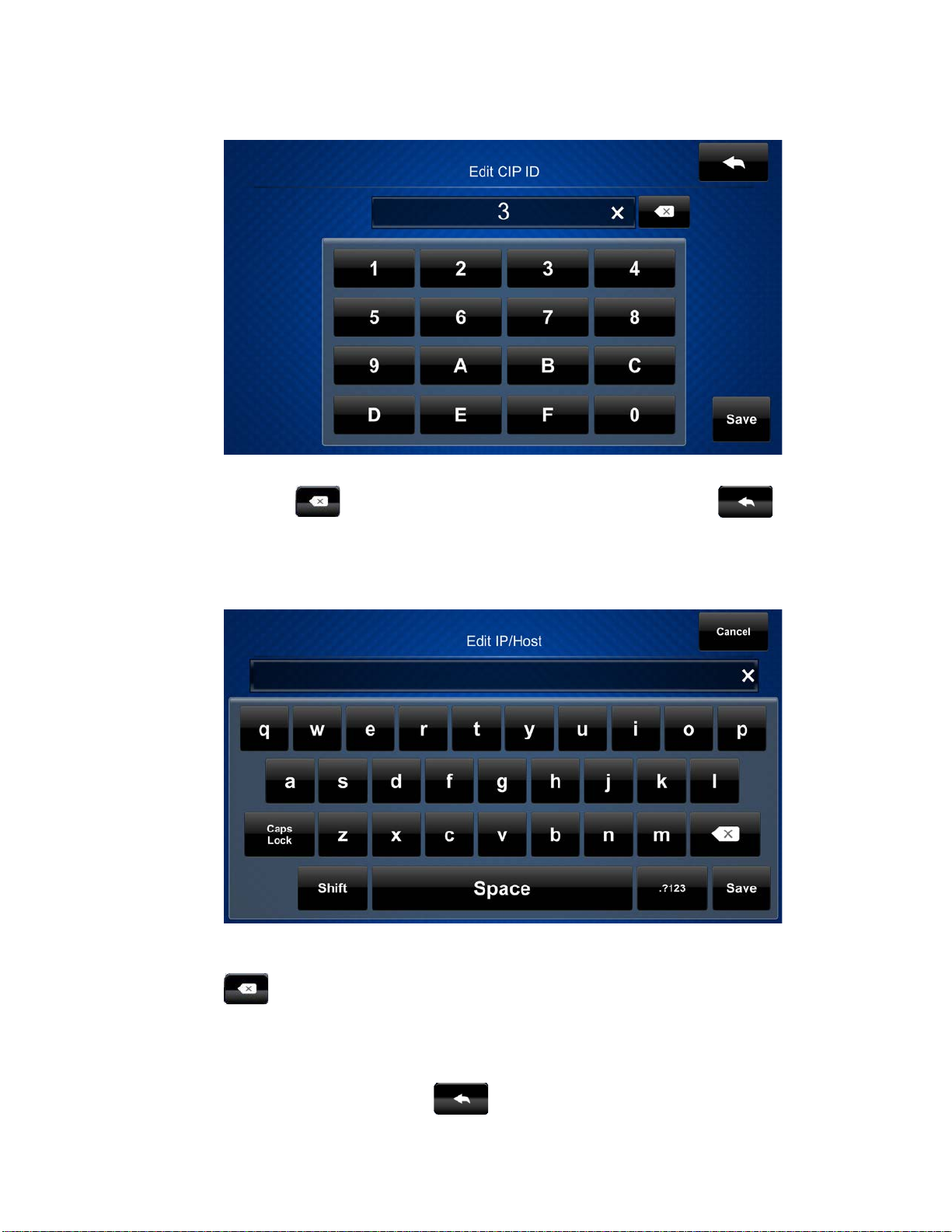

On-Screen Hex Keypad
Use the keypad to make the new entry. Tap the “x” in the text field to clear any previous
entry. Tap to delete the last digit. Tap
Save
to save a new entry or to return
to the
Ethernet Setup - Edit IP Table Entry
screen.
Tap the field below
IP Address/Hostname
to display the on-screen keyboard.
On-Screen Keyboard
Use the keyboard to make the new entry. Tap
Cancel
to return to the
Ethernet Setup -
Edit IP Table Entry
screen. Tap the “x” in the text field to clear any previous entry. Tap
to delete the last digit. Tap
Save
to save a new entry and return to the
Ethernet
Setup - Edit IP Table Entry
screen.
On the
Ethernet Setup - Edit IP Table Entry
screen, tap
Save Entry
to save the current
entry or
Delete Entry
to clear it.
If not making any changes, tap to return to the
Ethernet Setup - IP Table
screen.

6
•
TS-1542/TS-1542-C: 15.6˝HD Touch Screen Supplemental Guide – DOC. 7824B
Tap again to return to the
TS-1542 Setup
screen.
Audio Setup
On the
TS-1542 Setup
screen, tap
Audio Setup
to display the
Audio Setup
screen.

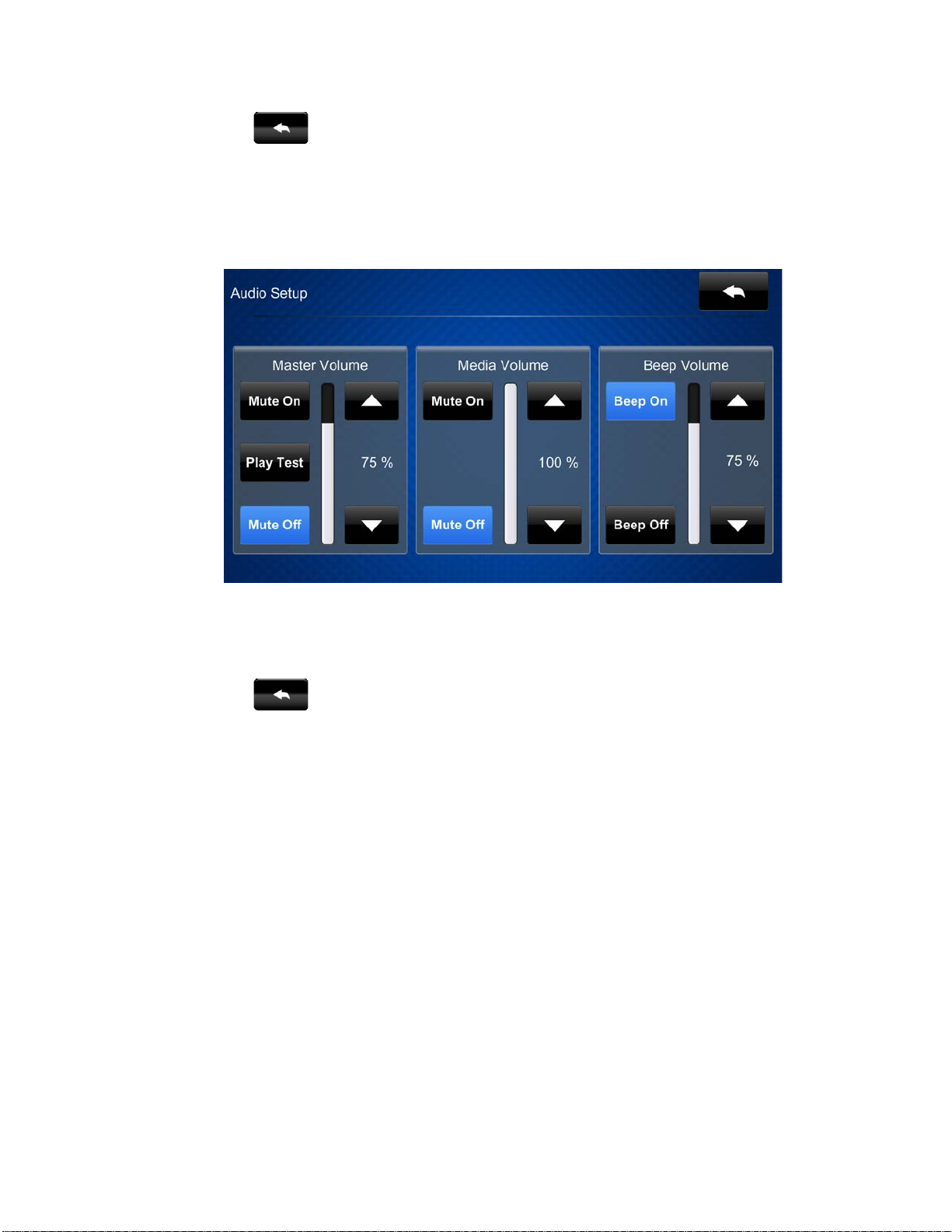

Audio Setup Screen
The
Audio Setup
screen provides controls for muting or unmuting the audio and for
adjusting levels for the master volume, media volume, and beep volume. The
Media
Volume
controls adjust the H.264 streaming media level in relation to the
Master Volume
controls.
Tap to return to the
TS-1542 Setup
screen.

Supplemental Guide – DOC. 7824B TS-1542/TS-1542-C: 15.6˝HD Touch Screen
•
7
Display Setup
On the
TS-1542 Setup
screen, tap
Display Setup
to display the
Display Setup
screen.

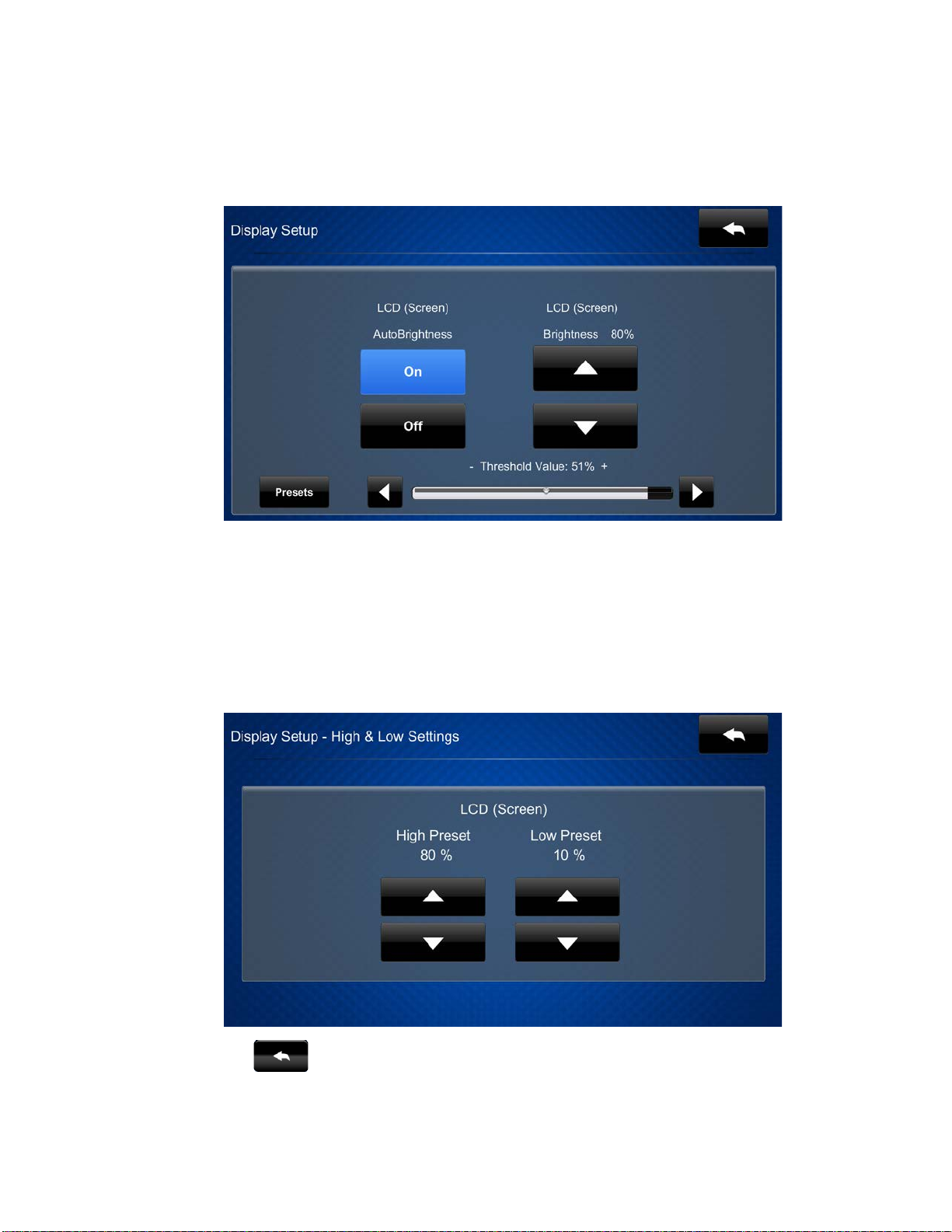

Display Setup Screen
The
Display Setup
screen provides controls to adjust the screen’s LCD brightness, green
key brightness, and red key brightness. Controls are also provided to enable using a hard
key or proximity sensor to wake the LCD. In addition, there are controls for the keys on the
left and right sides of the display. The controls turn the hard key lights on and off and toggle
the key colors between red and green.
Tap Presets to access the
Display Setup – High & Low Settings
screen, which allows
adjustment for the auto-brightness value thresholds.
Display Setup – High & Low Settings Screen
Tap to return to the
TS-1542 Setup
screen.

8
•
TS-1542/TS-1542-C: 15.6˝HD Touch Screen Supplemental Guide – DOC. 7824B
Standby Timeout
On the
TS-1542 Setup
screen, tap
Standby Timeout
to display the
Standby Timeout
screen.
Standby Timeout Screen
The
Standby Timeout
screen provides controls to adjust standby timeout from 0 to 120
minutes.
Tap
Screen Saver Options
to display the
Standby - Screen Saver
screen.
Standby - Screen Saver Screen
The
Standby - Screen Saver
screen provides controls to turn the digital clock screen saver
on and off, display the time in a 24-hour format, and adjust the screen saver brightness.
Tap to return to the
Standby Timeout
screen.
Tap again to return to the
TS-1542 Setup
screen.

Supplemental Guide – DOC. 7824B TS-1542/TS-1542-C: 15.6˝HD Touch Screen
•
9
Diagnostics
On the
TS-1542 Setup
screen, tap
Diagnostics
to display the
Diagnostics
screen.

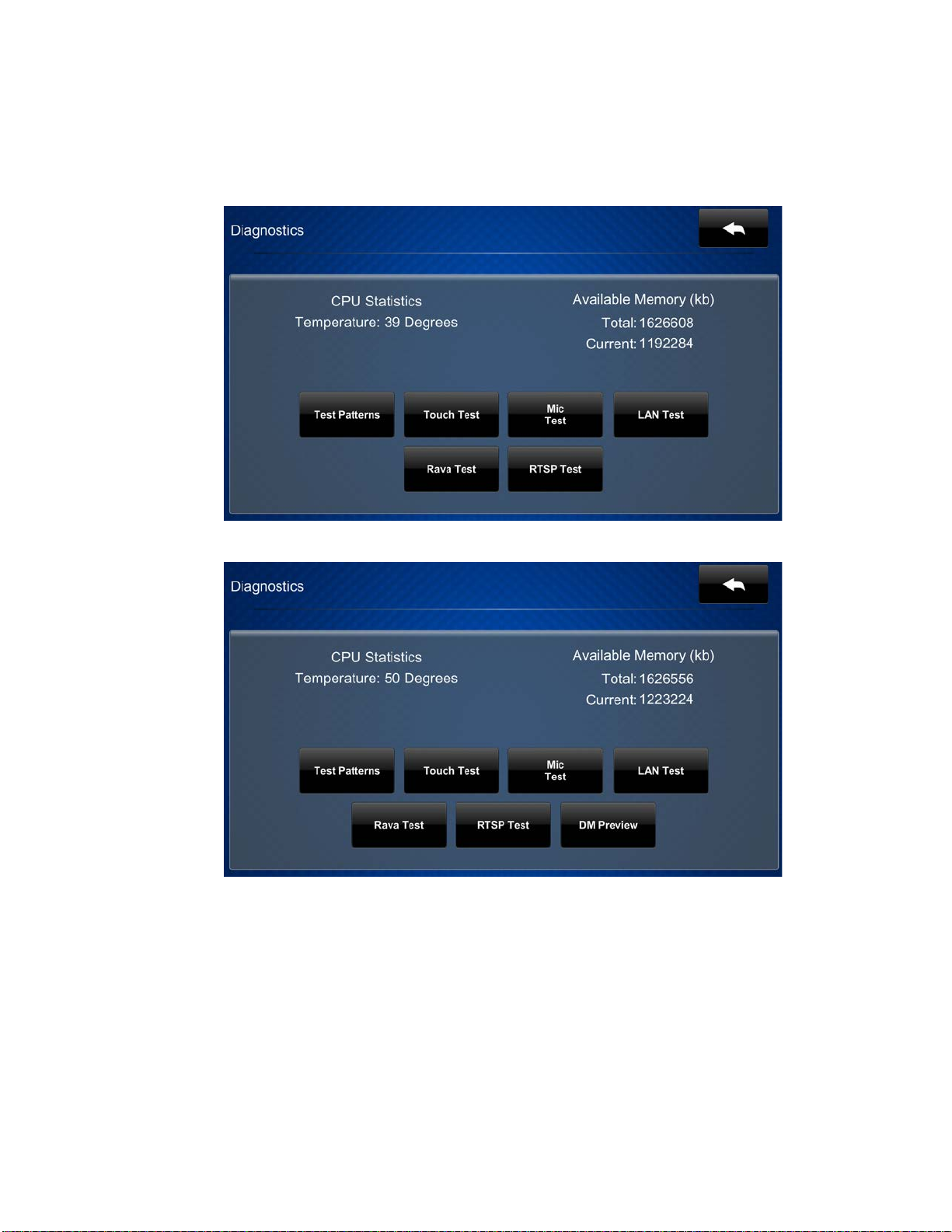

Diagnostics Screen (TS-1542 Models Only)
Diagnostics Screen (TS-1542-C Models Only)
The
Diagnostics
screen displays the CPU temperature and the available memory, and it
provides controls to open various test screens. The test screens are explained in the
sections that follow.

10
•
TS-1542/TS-1542-C: 15.6˝HD Touch Screen Supplemental Guide – DOC. 7824B
Test Patterns
On the
Diagnostics
screen, tap
Test Patterns
to display the
Diagnostics - Test Patterns
screen.
Diagnostics - Test Patterns Screen
The
Diagnostics - Test Patterns
screen provides buttons for selecting the different
available test patterns.
Tap to return to the
Diagnostics
screen.
Touch Test
On the
Diagnostics
screen, tap
Touch Test
to display the touch test screen.
Touch Test Screen
The touch test screen can be used to test the function of the screen. When a location
button is tapped, its indicator on the screen lights.

Supplemental Guide – DOC. 7824B TS-1542/TS-1542-C: 15.6˝HD Touch Screen
•
11
Tap to return to the
Diagnostics
screen.
Mic Test
On the
Diagnostics
menu, tap
Mic Test
to begin a microphone test.
Mic Test Screen
The built-in microphone records sound for five seconds and plays it back to confirm the
microphone is functioning. This test is performed twice: first recording and playback for the
left microphone, then recording and playback for the right microphone. When the second
playback is finished, the display returns to the
Diagnostics
screen.
LAN Test
On the
Diagnostics
screen, tap
LAN Test
to display the
Diagnostics - LAN
screen.
Diagnostics - LAN Screen

12
•
TS-1542/TS-1542-C: 15.6˝HD Touch Screen Supplemental Guide – DOC. 7824B
The
Diagnostics - LAN
screen displays the touch screen’s MAC and IP addresses, subnet
mask, default router, primary and secondary DNS, hostname, and domain. This screen also
contains a Link indicator to show the status of the Ethernet connection and controls to test
the connection to the default router.
Tap to return to the
Diagnostics
screen.
Rava Test
On the
Diagnostics
screen, tap
Rava Test
to display the
Diagnostics - Rava
screen.
Diagnostics - Rava Screen
The
Diagnostics - Rava
screen provides controls for testing the use of the Rava®SIP
Intercom with the TS-1542. It can be used to call another touch screen that has Rava, and
to test projects and settings. To place a call, dial the extension of the desired touch screen
and tap
Call
. If the intercom works but the project does not, there is an issue with the
project; if the intercom does not work, there is an issue with the settings.
Tap to return to the
Diagnostics
screen.

Supplemental Guide – DOC. 7824B TS-1542/TS-1542-C: 15.6˝HD Touch Screen
•
13
RTSP Test
On the
Diagnostics
screen, tap
RTSP Test
to display the
Diagnostics - RTSP
screen.
Diagnostics - RTSP Screen
The
Diagnostics - RTSP
screen is used to test whether Real Time Streaming Protocol is
functioning on the touch screen. Tap the area below
Source URL: (Touch to edit)
to open
the on-screen keyboard. Enter the URL for an H.264 video and then tap
Save
. The video is
displayed on the right side of the
Diagnostics - RTSP
screen. The bottom part of the
screen provides controls to select among video buffer lengths or to select a custom length
adjustable via a virtual knob.
Tap to return to the
Diagnostics
screen.
Tap again to return to the
TS-1542 Setup
screen.

14
•
TS-1542/TS-1542-C: 15.6˝HD Touch Screen Supplemental Guide – DOC. 7824B
DM Preview (TS-1542-C Models Only)
On the
Diagnostics
screen, tap
DM Preview
to display the
DM Preview
screen.
Diagnostics – Local Video Preview Screen
The
Diagnostics – Local Video Preview
screen provides a preview of video from the DM®
input. The bottom part of the screen provides volume and mute controls for the preview.
Tap to return to the
Diagnostics
screen.
Tap again to return to the
TS-1542 Setup
screen.
About
On the
TS-1542 Setup
screen, tap
About
to display the
About
screen.
About Screen

Supplemental Guide – DOC. 7824B TS-1542/TS-1542-C: 15.6˝HD Touch Screen
•
15
The
About
screen displays information about the TS-1542, including the currently loaded
firmware and operating system versions.
Tap to return to the
TS-1542 Setup
screen.
Save & Edit
On the
TS-1542 Setup
screen, tap
Save & Exit
to save all settings, exit the setup screens,
and return to the main project.

Crestron Electronics, Inc. Supplemental Guide – DOC. 7824B
15 Volvo Drive Rockleigh, NJ 07647 (2044930)
Tel: 888.CRESTRON 05.16
Fax: [phone] Specifications subject to
www.crestron.com change without notice.
