Cross Technologies 4116-31-2831 User manual

Instruction Manual Model 4116-31-2831
Ka-Band Block Downconverter
Weatherized Unit
August 2021, Rev. A
Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc., but may be
reproduced or duplicated without the prior permission of Cross Technologies, Inc. for purposes of operating
the equipment. Printed in USA.
When ordering parts from Cross Technologies, Inc., be sure to include the equipment model number,
equipment serial number, and a description of the part.
CROSS TECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
[phone] • FAX [phone] • Toll Free 888-900-5588
WEB www.crosstechnologies.com
E-MAIL [email protected]

INSTRUCTION MANUAL
MODEL 4116-31-2831 Tri-Band Block Downconverter, Weather Resistant*
TABLE OF CONTENTS PAGE
Warranty 2
1.0 General 3
1.1 Equipment Description 3
1.2 Technical Characteristics 4
2.0 Installation 5
2.1 Message Protocol 5
2.2 M&C Commands 6
2.3 M&C Queries 7
2.4 Ethernet Interface Installation 10
2.4.1 Methods of Connection 10
2.4.2 Ethernet Configuration 10
2.4.3 Webpage M&C 12
2.4.4 SNMP Configuration 13
2.6 Physical Interface 16
2.7 Installation/Operation 17
WARRANTY - The following warranty applies to all Cross Technologies, Inc. products.
All Cross Technologies, Inc. products are warranted against defective materials and
workmanship for a period of one year after shipment to customer. Cross Technologies,
Inc.’s obligation under this warranty is limited to repairing or, at Cross Technologies, Inc.’s
option, replacing parts, sub-assemblies, or entire assemblies. Cross Technologies, Inc. shall
not be liable for any special, indirect, or consequential damages. This warranty does not
cover parts or equipment which have been subject to misuse, negligence, or accident by the
customer during use. All shipping costs for warranty repairs will be prepaid by the
customer. There are not other warranties, express or implied, except as stated herein.
CROSS TECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
[phone] • FAX [phone] • Toll Free 888-900-5588
WEB www.crosstechnologies.com • E-MAIL [email protected]
4116-31-2831 Manual, Rev. 0 Page 2 08/18/21

MODEL 4116-31-2831 Tri-Band Block Downconverter, Weather Resistant*
1.0 General
1.1 Equipment Description
The 4116-31-2831 Ka-band Block Downconverter converts 28.3 - 31.0 GHz to 0.95 - 1.95 GHz in three selectable fixed bands. Front
panel LEDs indicate DC Power and PLL Alarms. The RF to L-band gain is +30 dB maximum and is adjustable in 0.5 ± 0.5 dB steps.
Connectors are 2.92 mm for RF In, SMA for external reference input and output, and Type N (all female) for L-band out. Gain, band
select, and internal 10 MHz frequency are controlled by the Ethernet M&C. In AUTO, the 10 MHz reference stays in external if the
external level is in the +2 to +8 dBm range. It is powered by a 100-240 ±10% VAC power supply, and is mounted in a 8”W X 6”H X
16”D Weather Resistant* enclosure.
NOTE: *Weather Resistant enclosures are designed to be water resistant for installation in an outdoor enclosure/antenna hut OR
mounted outdoors on an antenna assembly at their specified temperature ranges. They are designed to be located “out in the
elements” (water, sleet, snow, etc.) but they are not designed to be “submerged under water”. If an extended temperature range is
required, there is an Extended Temperature option (Option W21; -30˚C to +60˚C) available at an additional cost. Contact Cross for
quote.
••
••
••
••
L-BAND OUT
J9
10M IN
STATUS /
CONTROL ETHERNET
POWER
ALARM
J3 J4
10M OUT
FUSE
J8
AC IN
J7
F1
RF INPUT
J1
.
..
..
••
•• J6
CROSS TECHNOLOGIES INC.
..
....
.....
....
...
MODEL 4116 Downconverter

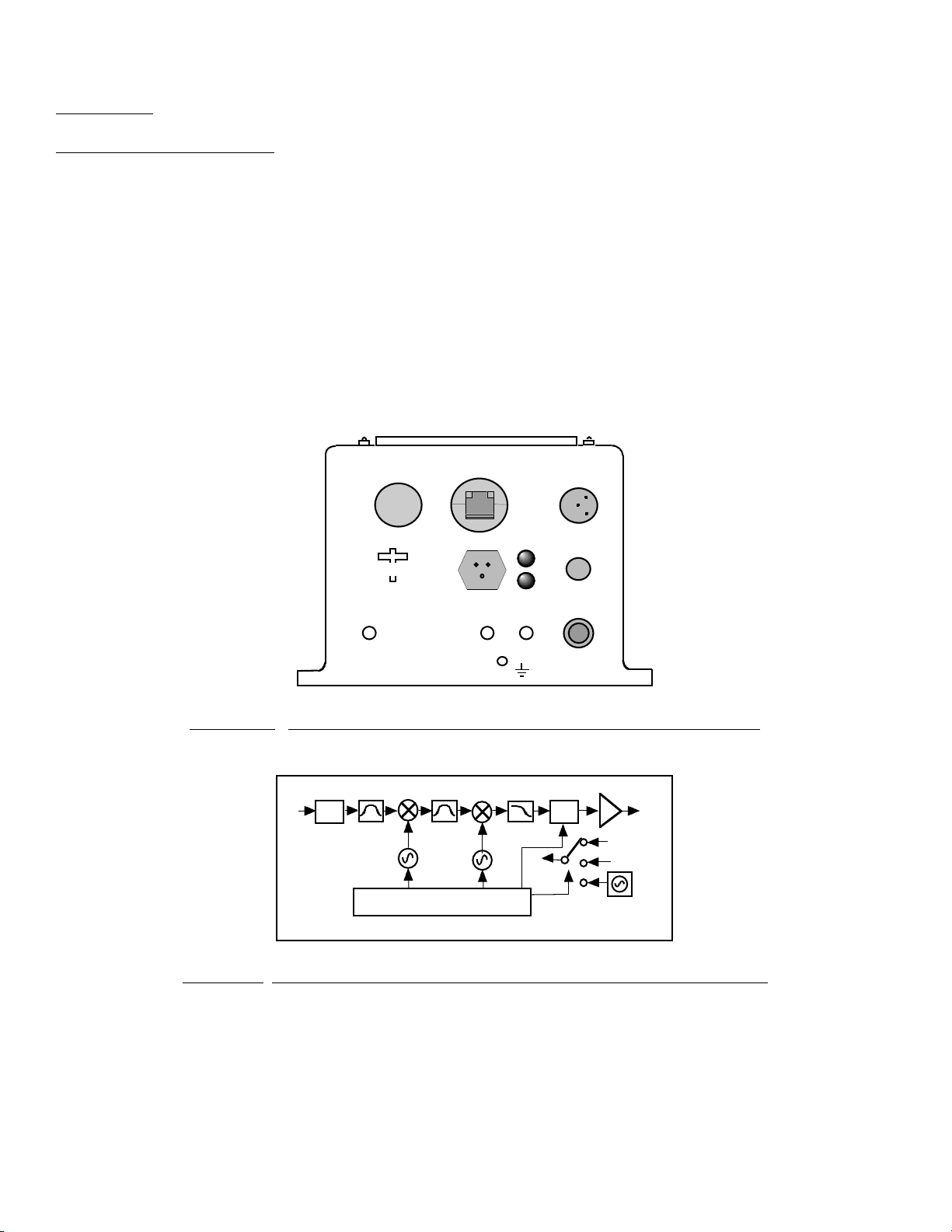

FIGURE 1.1 Model 4116-31-2831 Tri-Band Block Downconverter Front Panel
0.95-
1.95
GHz
OUT
28.3
to
31.0
GHz
IN
2.0 GHz LP
CONTROLLER
27.5-31.0 GHz BP
20.0 to
22.0
GHz
EXT
10MHz
var
atten
INT
10MHz
4116-31-2831 Block Diagram
AUTO
6.95
GHz 10 MHZ
TO PLLS
8.0-9.0 GHz BP
atten
FIGURE 1. Model 4116-31-2831 Tri-Band Block Downconverter Block Diagram
4116-31-2831 Manual, Rev. 0 Page 3 08/18/21

1.2 Technical Characteristics
Continued on page 5...
4116-31-2831 Manual, Rev. 0 Page 4 08/18/21
<-40 dBc at 0 dBm out, 0.95 to 1.95 GHz out (Band 3); at Gmax
Harmonics
,
In Band
+30 ±3 dB, ( 0 to +30 dB variable in 0.5± 0.5 dB dB steps)
Gain @ Fc
±2 dB, over RF band; ± 0.5 dB, 40 MHz BWFre
q
uenc
y
Res
p
onse
Channel Characteristics
LO Characteristics
± 0.05
pp
m maximum over tem
p
internal reference; external reference in
p
utFre
q
uenc
y
Accurac
y
Non-invertin
g
Fre
q
uenc
y
Sense
<-50 dBc for two carriers at 4 MHz spacing, each at -5 dBm out; at Gmax Intermodulation
<-50 dBm, 0.5-0.94 GHz and 1.96 - 2.45 GHz; at Gmax S
p
urious
,
Out of Band
SIGNAL RELATED <-50 dBc, -20 to 0 dBm out;
SIGNAL INDEPENDENT,<-60 dBm; all at Gmax
S
p
urious, Inband
In
p
ut = +2 dBm to +8 dBm in
,
Monitor Out
p
ut = in
p
ut level ± 1.0 dB
,
50 ohms10 MHz Level In/Mon
Band S
p
ecificLO Fre
q
uenc
y
> 60 dB
,
minimumIma
g
e Re
j
ection
Controls
,
Indicators
Green LEDPower
Gain, band select and internal 10 MHz frequency via
Ethernet M&C or Status/Control Connector
Gain, Band, 10M Fre
q
uenc
y
Red LED, External Contact ClosurePLL, Alarm
TABLE 1.0 4116-31-2831 Downconverter Specifications*
Band 3 - 30.0 to 31.0
Band 2 - 29.2 to 29.9
+10 dBm, at maximum GmaxOut
p
ut 1 dB Com
p
ression
Band 3 - 0.95 to 1.95
Band 2 - 0.95 to 1.65
-30 to -10 dBmIn
p
ut Level Ran
g
e
BAND 1 - 28.3 to 28.7 Fre
q
uenc
y
(
GHz
)
-20 to 0 dBmOut
p
ut Level Ran
g
e
Out
p
ut Characteristics
In
p
ut Characteristics
Band 1 - 0.95 to 1.35Fre
q
uenc
y
(
GHz
)
50Ω/ 12 dBIm
p
edance / Return Loss
50Ω/ 12 dBIm
p
edance / Return Loss

1.2 Technical Characteristics (continued)
Size 8” Wide X 6” High X 16” Deep Weather Resistant* Enclosure
Power 100-240 ±10% VAC, 47 - 63 Hz, 25 watts max./ FCI Clipper Series CL1M1102 Connector
*Weather Resistant enclosures are designed to be water
resistant for installation in an outdoor enclosure/antenna hut
OR mounted outdoors on an antenna assembly at their
specified temperature ranges. They are designed to be located
“out in the elements” (water, sleet, snow, etc.) but they are not
designed to be “submerged under” water.
If an extended temperature range is required, there is an
Extended Temperature option (Option W21; -30˚C to +60˚C)
available at an additional cost. Contact Cross for quote.
4116-31-2831 Manual, Rev. 0 Page 5 08/18/21
RJF6GRJF21B
Ethernet Connector / RJ45
CL1F1101CL1M1102
AC In
p
ut Connector**
MS3116F14-18PMS3112E14-18S
Status/Control Connector
Matin
g
Connector P/NConnector P/NConnectors*
* All cable connectors are Weather resistant. ** AC mating connector PROVIDED preassembled onto standard NEMA 5-15 U.S. power cord.
M&C Interface Additional Connector S
p
ecifications*
RS232/422/485;
Ethernet: Web
Browser, SNMP &
TCP/IP STD.
10 MHz In/Out
SMA (Female)
50 Ω
L-Band Out
Type N (Female)
50 Ω
RF In/
2.92 mm (F)
50 Ω

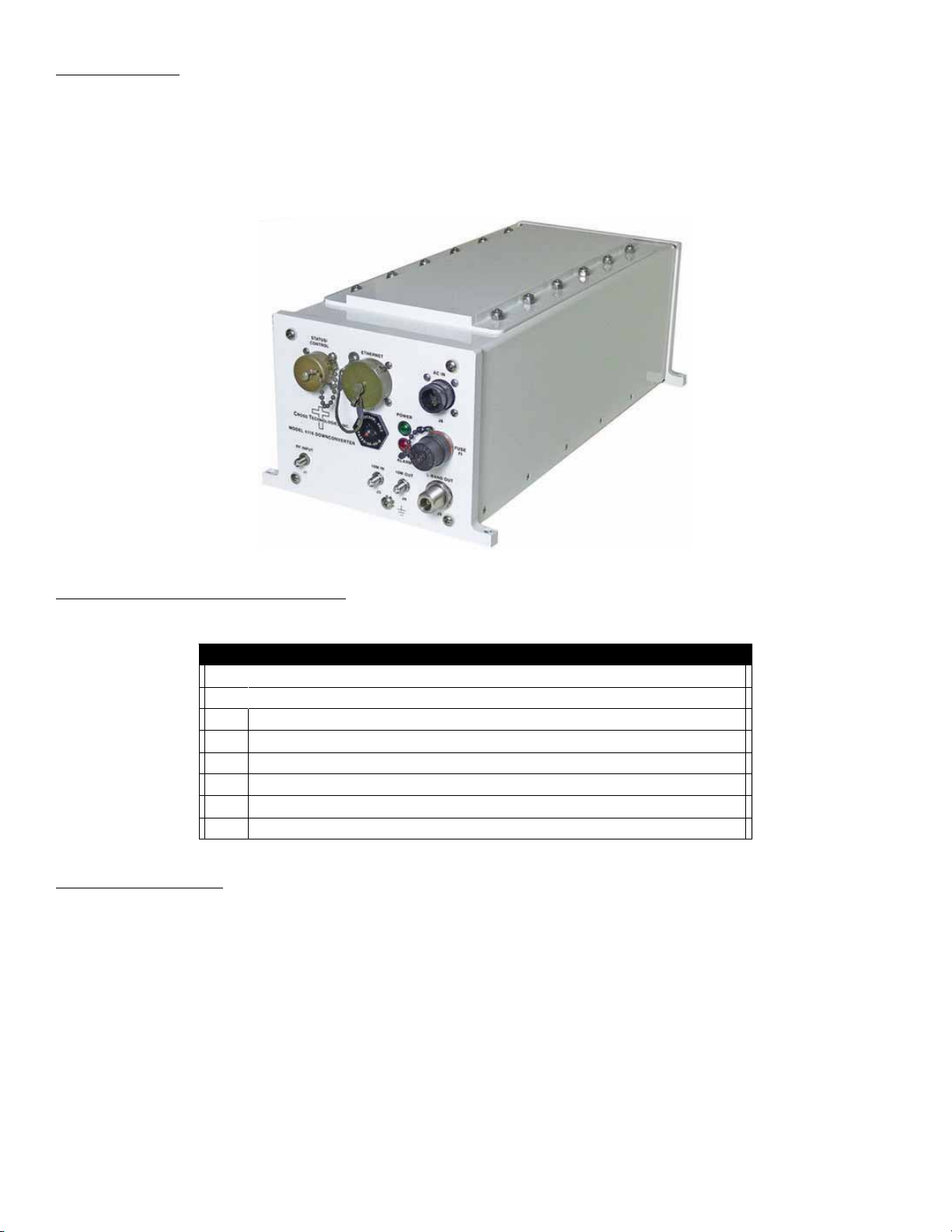

2.0 Installation
The 4116-31-2831 Tri-Band Block Downconverter consists of a 8”W X 6 “H X 16”D Weather resistant*
enclosure. A switching, ± 12, +24, +5 VDC power supply provides power for the internal assemblies.
The 4116-31-2831 can be secured to a mounting plate using the 4 holes on the bottom of the front and rear
panels. See Figure 2.5 for mounting dimensions.
2.0.1 Connection to AC Input Power
The 4116-31-2831 utilizes a pre-assembled AC power input cable as described below.
4116-
3
3
1-2831 Power Input Connector, FCI Clipper Series, CL1M1102 & Crimp Pi
n
ns
Matin
g
Mating Connector FCI Clipper Series, CL1F1101, Crimp Pins
and CCL101021
and CL101021 Backshell
Pin Input Connector Pin Description
1 100-240 ±10% VAC, 47-63 Hz, 20 watts max.
2 Neutral
3 Ground
2.1 Message Protocol
The serial format for the RS232/RS422/RS485 port is 9600 baud, 8 data bits, no parity, and 1 stop bit.
All messages consist of ASCII printable characters so standard terminals and terminal emulator programs may
be used to control and monitor the unit. All messages begin with the open bracket character “{”(ASCII 0x7B)
and end with the close bracket character “}” (ASCII 0x7D). Messages consisting of commands to set or change
operating parameters and modes of the unit begin with “C” (ascii 0x43) followed by a command specific
character. Messages consisting of queries to report operating parameters and modes begin with “S”
(ASCII 0x53) followed by a parameter specific character.
4116-31-2831 Manual, Rev. 0 Page 6 08/18/21

2.2 M&C Commands
The following tables summarize the commands and status queries applicable to the
4116-31-2831 Tri-Band Block Downconverter.
*PLEASE NOTE: The two character {aa} prefix, shown in the table below, is present ONLY when RS485 is selected.
Table 2.0 Model 4116-31-2831 M&C Commands
x = 3 to select auto reference
x = 2 to select external reference
x = 1 to select internal reference
where:{aaCEx}Set 10 MHz reference mode
Range: +2000 to -2000
x = 0 to select RS232
xxxxx = 5 characters
where:{aaCOxxxxx}Set Int. 10 MHz reference offset
Range: 00 to 31
xx = 2 characters
where:{aaCRxx}Set RS485 address
x = 2 to select RS485
x = 1 to select RS422
where:
{aaCIx}
Set Serial Interface
Range: 000 to 300 (00.0 to 30.0 in 0.5 dB steps)
xxx = 3 characters
where:
{
aaCGxxx
}
Set Gain
x = 3 to select band 3: in = (30.0 to 31.0 GHz)
out =
(
0.95 to 1.95 GHz
)
x = 2 to select band 2: in = (29.2 to 29.9 GHz)
out
=
(
0.95 to 1.65 GHz
)
x = 1 to select band 1: in = (28.3 to 28.7 GHz)
out
=
(
0.95 to 1.35 GHz
)
where:
{
aaCBx
}
Set Fre
q
uenc
y
Band
DescriptionSyntaxCommand
Table 2.0: Model 4116-31-2831 M&C Commands
4116-31-2831 Manual, Rev. 0 Page 7 08/18/21

2.3 M&C Queries
Table 2.1 Model 4116-31-2831 M&C Commands
x = 0 if RS232 is selected
Example: {aaSG245} indicates the current gain
setting is 24.5 dB
Range: 00 to 31
x
= 2 if RS485 is selected
x = 3 if Auto 10 MHz reference is selected
xx = 2 characters
Returns {aaSAxx} where:
{
aaSR
}
RS485 address
x = 1 if RS422 is selected
Returns {aaSIx} where:{aaSI}
Serial Interface
x = 2 if External 10 MHz reference is selected
x = 1 if Internal 10 MHz reference is selected
Returns {aaSEx} where:{aaSE}
10 MHz reference
Range: 0 to 300 ( in 0.5 dB steps)
xxx = 3 characters
Returns {aaSGxxx} where:
{
aaSG
}
Gain
x = 3 if band 3 is selected: in = (30.0 to 31.0 GHz)
out =
(
0.95 to 1.95 GHz
)
x = 2 if band 2 is selected: in = (29.2 to 29.9 GHz)
out
=
(
0.95 to 1.65 GHz
)
x = 1 if band 1 is selected: in = (28.3 to 28.7 GHz)
out
=
(
0.95 to 1.35 GHz
)
Returns {aaSBx} where:
{
aaSB
}
Fre
q
uenc
y
Band
DescriptionSyntaxCommand
Table 2.1: Model 4116-31-2831 M&C Queries
Continued on page 9...
4116-31-2831 Manual, Rev. 0 Page 8 08/18/21

Table 2.1 Model 4116-31-2831 M&C Commands (continued from page 8)
Unit Status
y = oven status: 0 = normal, 1 = oven warmup
x = ref. source: 1 = internal, 2 = extenal
w = summar
y
alarm: 0 = off, 1 = on
returns
{
aaSSwx
y}
where:
{aaSS}
x = 0 if no summary alarm, x = 1 if summary alarm
returns
{
aaSVxxxxxxxx
yyyy}
where:
{aaSV}
Model and firmware revision
Ran
g
e: +2000 to -2000
xxxxx = 5 characters
yyyy = unit firmware rev.
xxxxxxxx = unit model number
Range (-99 to +99) degrees Celsius
xxx = 3 characters
Returns {aaSTxxx} where:{aaST}
Internal Temperature
Returns {aaSAx} where:
{
aaSA
}
Summar
y
Alarm
Returns {aaSOxxxxx} where:
{
aaSO
}
Int. 10 MHz reference offset
DescriptionSyntaxCommand
Table 2.1: Model 4116-31-2831 M&C Queries - Continued...
4116-31-2831 Manual, Rev. 0 Page 9 08/18/21

2.4 ETHERNET Interface Installation and Operation
The 4116-31-2831 Tri-Band Block Downconverter is equipped with a 10/100 Base-T compatible Ethernet
interface for control and monitoring of its operating parameters. An HTML script interface allows the user to
monitor and control the converter using a standard web browser. SNMP (Simple Network Management
Protocol) is also supported. Contact Cross Technologies for the SNMP MIB file.
2.4.1 Methods of Connection
Directly Connected to a PC:
For control from a local PC, attach the 4116-31-2831’s Ethernet port to the Ethernet network connector on the
PC using a crossover RJ-45 cable.
LAN Connection
For LAN connections, attach the 4116-31-2831 Ethernet port to the LAN using a normal RJ-45 cable.
Use any PC on the LAN to connect to the 4116-31-2831.
2.4.2 Ethernet Configuration
Each 4116-31-2831 must be configured with an appropriate IP address, Netmask, and Gateway assigned by
your network manager. The 4116-31-2831 is set at the factory with a static address that is written on a tag
attached to the unit. The device server in the 4116-31-2831 has a built in HTTP based configuration manager
that is used to configure network settings. To access the configuration manager open a web browser and enter
the IP address of the 4116-31-2831 in the browser's address field. The window shown in Figure 2-A will
appear. As delivered, there is no password set. Choose your user name and password here or leave those fields
blank and click OK to proceed to the configuration manager web page.
4116-31-2831 Manual, Rev. 0 Page 10 08/18/21

Figure 2-A: Password Screen
Figure 2-B: Configuration Manager Screen
In the left frame of the configuration manager click on Network to display the Network Settings screen.
Enter the IP address, Subnet mask, and Gateway address with delimiter dots (example: 192.168.192.47).
Click to apply settings in the left frame to apply the new settings in the network device.
4116-31-2831 Manual, Rev. 0 Page 11 08/18/21

2.4.3 Web page M & C
Enter the following address in a web browser to access the M & C Web page:
http://<ip address of 41xx>/serial/0/setup.htm where <ip address> is the IP address
of the unit. Figure 2-C shows the web page from a model 4116-31-2831 frequency converter.
Figure 2-C: Model 4116-31-2831 Web page
2.4.4 SNMP Configuration
Setting of SNMP parameters such as Community Write and Community Read strings requires a Telnet®
connection to port 9999. The following instructions explain how to establish such a Telnet®connection using
Windows XP's Hyper Terminal utility .
Start the Hyper Terminal application and select “New Connection” from the “File” drop down menu. The next
screen is a “Connect To” dialog box. Select TCP/IP (Winsock) from the “Connect” using drop down menu.
Enter the IP address of the 4116-31-2831 in the “Host Address:” field and 9999 in the “Port Number” field.
Figure 2-E shows an example of the Hyper Terminal settings required to access the SNMP configuration menu.
4116-31-2831 Manual, Rev. 0 Page 12 08/18/21

Figure 2-E: Telenet®Settings in Hyper Terminal
Once the Telnet®connection is established you will be prompted to “Press Enter for Setup Mode.” Press enter
and a menu of device server configuration options will appear (see Figure 2-F). Select menu item 3, “SNMP
configuration.” You will be prompted to enter SNMP community read and write strings. After setting your
desired community strings you will be prompted to “Enter IP addresses for SNMP traps:” You must enter at
least one and up to four IP addresses of SNMP managers that will access the unit. This is required even though
SNMP traps are not implemented. The unit will not process SNMP SET and GET requests from an SNMP
manager unless the IP address associated with that manager is entered in the device server.
4116-31-2831 Manual, Rev. 0 Page 13 08/18/21

Figure 2-F: Device Server Configuration Menu
4116-31-2831 Manual, Rev. 0 Page 14 08/18/21

Figure 2.5 Shows front panel input and output connections.
10MHz INPUT
SMA (female) 50Ω
Insert External 10MHz)
Reference here (+2 to +8 dBm).
L-BAND OUT
J5
10M IN
RF INPUT
J1 J3 J4
10 M OUT
DOWNCONVERTER
••
•
•
••
•
•
ETHERNET
POWER
ALARM
FUSE
J8
AC IN
J7
F1
MODEL 4116 TRI-BAND
••
•
•J6
CROSS TECHNOLOGIES INC.
..
....
.....
....
...
.
6.62
4.2
7.88
ALARM LED
Red LED indicates
u
p
converter alarm.
POWER LED
Lights GREEN when DC
voltage is present from
AC power supply.
ETHERNET CONNECTOR
Weatherized Standard
RJ45 Ethernet Connector. Fuse
1A/250V - 1.25” X .25”
slow blow.
STATUS /
CONTROL
5.500
5.775
10MHz OUTPUT
SMA (female) 50Ω
The level out is the same as the level of the external reference input +/- 0.5 dB.
Terminate with a 50Ωtermination if this output is not used.
L-BAND OUTPUT
Type N (female) 50Ω
-20 to 0 dBm
Band 1 - 0.95 to 1.35 GHz
Band 2 - 0.95 to 1.65 GHz
Band 3 - 0.95 to 1.95 Ghz
POWER IN
AC input for switching power supply.
100-240 ±10% VAC 47-63 Hz.
Weatherized CL1F1101 Connector.
STATUS/CONTROL
CONNECTOR
Weatherized
MS3112E14-18S
connector.
RF INPUT
2.92 mm (female) 50Ω
-50 to -30 dBm
Band 1 - 28.3 to 28.7
Band 2 - 29.2 to 29.9
Band 3 - 30.0 to 31.0
4116-31-2831 Manual, Rev. 0 Page 15 08/18/21

2.6 Physical Interface
All 4115 and 4116 units provide a RS232/RS422/RS485 interface port and a 10/100 Base-T Ethernet port.
Both ports are available when the unit is installed and powered up. Commands may be sent to either port at any
time and they will be processed in the order that they are received. The RS232/RS422/RS485 signals connect
via a multipurpose MS3116, 18 pin connector as shown in Figure 2.5. The Ethernet signals connect via a
standard RJ45 connector.
Table 2.5.1: Monitor and Control Connector
Monit
o
Monitor and Control Connector Pinout
Conn
e
Connector part number MS3112E14-18S
Matin
g
Mating Cable Connector part number MS3116F14-18P
Pin Signal Description
A Chassis Ground
N Summary Alarm Normally Closed
P Summary Alarm Common
R Summary Alarm Normally Open
E RS422/RS485 Data Out-
F Signal Ground
C RS422/RS485 Data In-
D RS422/RS485 Data Out+, RS232 Data Out
B RS422/RS485 Data In+, RS232 Data In
NOTE: Planning Ethernet Access
It is recommended that IP knowledgeable customer personnel be consulted as a resource in the
installation and use of the Ethernet access features of the Cross Technologies’ product.
4116-31-2831 Manual, Rev. 0 Page 16 08/18/21

2.7 Installation/Operation
Installing and Operating the 4116-31-2831 Tri-Band Downconverter
1. Connect a -30 dBm to -10 dBm signal to the RF INPUT, (Figure 2.5)Using the pre-assembled AC
power input cable (furnished), connect 100-240 ±10% VAC, 47 - 63 Hz to AC IN connector
on the front panel.
2. If a custom length power cable must be made, refer to description below for connections*.
3. Be sure DS1 (green, DC Power) is on and DS2 (red, Alarm) is off (Figure 2.5).
4. Set the gain for +30 to 0 dB insuring that the output level is always in the range of -20 to 0 dB.
5. Select either INT (for internal 10 MHz ref), AUTO (for internal 10 MHz ref UNLESS an external
10 MHz, +2 to +8 dBm signal is connected to J2), or EXT (for external 10 MHz, +2 to +8 dBm ref
that is inserted at J2) on front panel switch S1 (Figure 2.5).
6. Check that a 10 MHz signal is present at the 10 MHz REF OUTPUT at the same level as the input,
±0.5 dB (J4 - Figure 2.5).
7. AC Fuse - The fuse is a 1.25” x .25” - 1.0 amp ( slow blow) and is inserted in the fuse F1 position.
NOTE: If a fuse continues to open, the power supply is most likely defective.
CAUTION: When checking or replacing the fuse, do not over tighten the fuse holder cap.
This can displace the cap’s O-ring and the weatherproof seal will be lost.
4116-
3
4116-31-2831 AC Power Input Connections
Conn
e
Connector, Clipper Series, CL1M1102 and crimp pins
Matin
g
Mating Connector, Clipper Series, CL1F1101 and crimp pins
Pin Input Connector Pin Description
1 100-240 ±10% VAC, 47-63 Hz, 20 watts max.
2 Neutral
3 Ground
4116-31-2831 Manual, Rev. 0 Page 17 08/18/21

CROSS TECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
[phone]
FAX [phone]
Toll Free 888-900-5588
WEB www.crosstechnologies.com
E-MAIL [email protected]
Printed in USA
4116-31-2831 Manual, Rev. 0 Page 18 08/18/21
