Cross Technologies 3116-145-1600 User manual

Instruction Manual Model 3116-145-1600
Block Downconverter
May 2017, Rev. 0
MENU
EXECUTE
MODEL 3116
CROSS TECHNOLOGIES INC.
IN LO FREQ REF.
3 9790.4 EXT
POWER
REMOTE ALARM
DOWNCONVERTER
14.58 - 15.42 GHZ
G=+10.0 REF=AUTO-E
Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc.,
but may be reproduced or duplicated without the prior permission of Cross Technologies, Inc.
for purposes of operating the equipment. Printed in USA.
When ordering parts from Cross Technologies, Inc., be sure to include the equipment
model number, equipment serial number, and a description of the part.
CROSS TECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
[phone]
FAX [phone]
Toll Free 888-900-5588
WEB www.crosstechnologies.com
E-MAIL [email protected]

INSTRUCTION MANUAL
MODEL 3116-145-1600 Block Downconverter
TABLE OF CONTENTS PAGE
Warranty 2
1.0 General 3
1.1 Equipment Description 3
1.2 Technical Characteristics 4
1.3 Monitor & Control Interface 6
2.0 Installation 9
2.1 Mechanical 9
2.2 Rear I/O’s 10
2.3 Front Panel Controls, Indicators 10
2.4 Operation 11
2.5 Menu Settings 12
3.0 Environmental Use Information 18
WARRANTY - The following warranty applies to all Cross Technologies, Inc. products.
All Cross Technologies, Inc. products are warranted against defective materials and
workmanship for a period of one year after shipment to customer. Cross Technologies,
Inc.’s obligation under this warranty is limited to repairing or, at Cross Technologies, Inc.’s
option, replacing parts, subassemblies, or entire assemblies. Cross Technologies, Inc. shall
not be liable for any special, indirect, or consequential damages. This warranty does not
cover parts or equipment which have been subject to misuse, negligence, or accident by the
customer during use. All shipping costs for warranty repairs will be prepaid by the
customer. There are not other warranties, express or implied, except as stated herein.
CROSS TECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
[phone]
FAX [phone]
Toll Free 888-900-5588
WEB www.crosstechnologies.com
E-MAIL [email protected]
3116-145-1600 Manual, Rev. 0 Page 2 05/15/17

MODEL 3116-145-1600 Downconverter
1.0 General
1.1 Equipment Description
The 3116-145-1600 Block Downconverter converts 14.58 - 15.42 GHz (Fc =15.0 GHz) to 1.18 - 2.02 GHz
(1600 ± 420 MHz) with low phase noise and flat frequency response. Frequency translation is via a 13.40 GHz
local oscillator. The gain is +35 ± 2 dB maximum and is adjustable in 0.5 ± 0.5 dB steps. Front panel LEDs
provide indication of Remote operation, PLL Alarm and DC Power. Gain and internal/external/Auto reference
frequency selection are controlled by front panel switches or remote selection (via RS 232C, standard; Ethernet
Optional) and are viewable on the LCD Display. Connectors are SMA female for the RF and BNC female for
the L-Band and external reference input and reference output. In AUTO, the 10 MHz reference stays in external
if the external level is +3 dBm, ±3 dB. The 3116 is powered by a 100-240 ± 10% VAC power supply, and
housed in a 1 3/4” X 19” X 14” rack mount chassis.
MENU
EXECUTE
MODEL 3116
CROSS TECHNOLOGIES INC.
IN LO FREQ REF.
3 9790.4 EXT
POWERREMOTE ALARM
DOWNCONVERTER
14.58 - 15.42 GHZ
G=+10.0 REF=AUTO-E
FRONT PANEL - 3116-145-1600
AC RF INPUT
GND
J101
J8
10 MHZ REF
OUTPUT
J11
ALARM
15 23 46
78
9
J2
EXT 10 MHZ
INPUT
RF OUTPUT
J1
J14
REAR PANEL - 3116-145-1600 (Shown with Optional RJ45 Ethernet Connector)

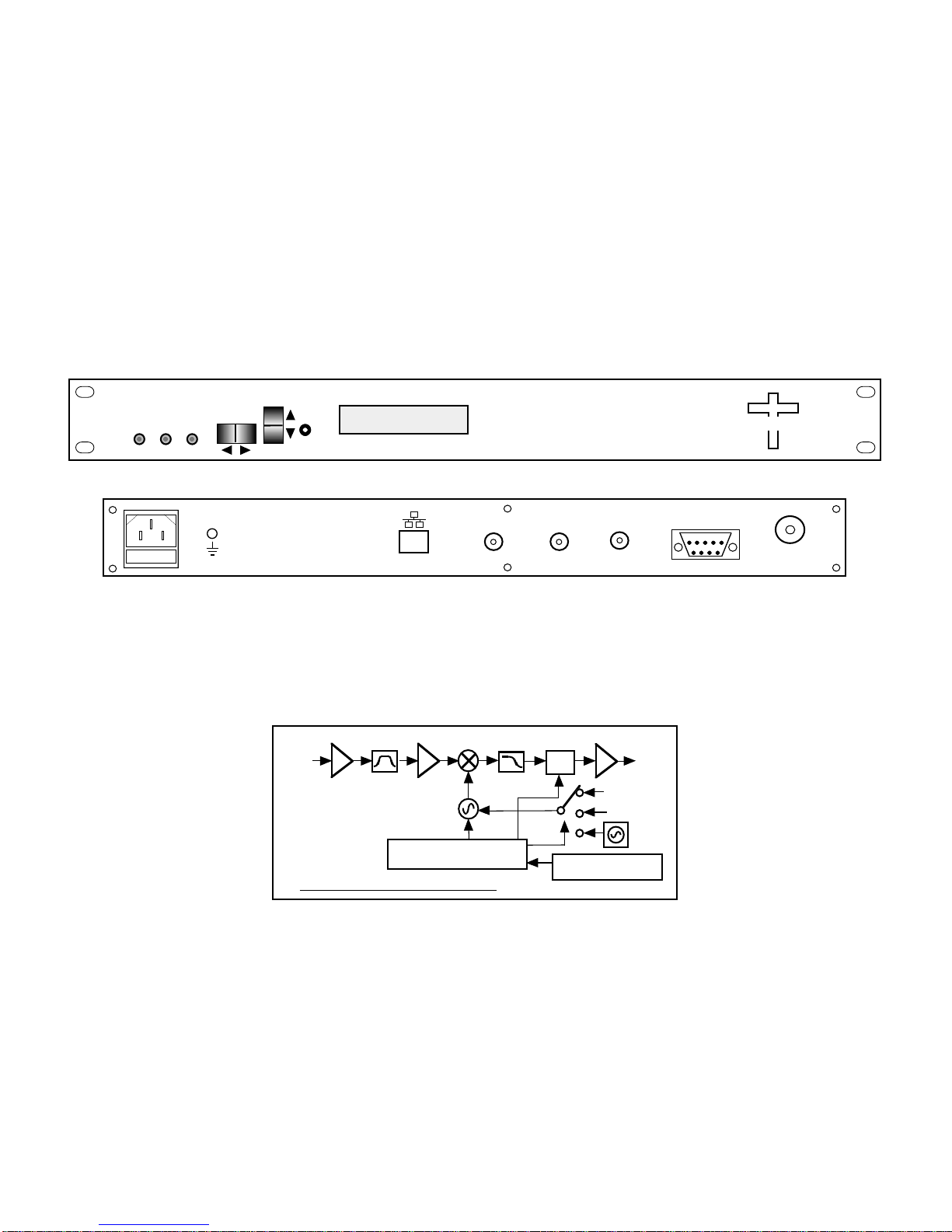

FIGURE 1.1 3116-145-1600 Front and Rear Panels
1.18 -
2.02
GHz
OUT
14.58
to
15.42
GHz
IN
2.1 GHz LP
CONTROLLER G=+10.0 Ref AUTO
14.58-15.42 GHz BP
13.40
GHz
EXT
10MHz
var
atten
INT
10MHz
3116-145-1600 Block Diagram
AUTO
FIGURE 1.2 3116-145-1600 Block Diagram
3116-145-1600 Manual, Rev. 0 Page 3 05/15/17

1.2 Technical Characteristics
*10˚C to 40˚C; Specifications subject to change without notice
Technical Characteristics continued on page 5...
3116-145-1600 Manual, Rev. 0 Page 4 05/15/17
<-50 dBm, 0.5 - 1.17 GHz and 2.03 - 3.0 GHz
S
p
urious
,
Out of Band
±1.5 dB
,
1.18 - 2.02 GHz out
,
±0.75 dB
,
80 MHz BW Fre
q
uenc
y
Res
p
onse
Channel Characteristics
LO Characteristics
±0.01
pp
m maximum over tem
p
internal reference
;
external reference in
p
ut Fre
q
uenc
y
Accurac
y
Non-invertin
g
Fre
q
uenc
y
Sense
<-55 dBC for two carriers each at -10 dBm out
Intermodulation
SIGNAL RELATED <-55 dBC in band, 0 dBm out;
SIGNAL INDEPENDENT,<-60 dBm
S
p
urious
,
Inband
3 dBm, ± 3 dB, with Auto-detect
10 MHz Level In/Out
13.40 GHz, fixed LO
LO Fre
q
uenc
y
> 60 dB
,
minimum Ima
g
e Re
j
ection
+35 dB ±2 dB
,
maximum
g
ain
;
30 dB ad
j
ustment in 0.5 ±0.5 dB ste
p
s Gain
,
Maximum
(
ad
j
ustment
)
Controls
,
Indicators
RS232C/RS485/422
,
9600 baud
(
Ethernet O
p
tional
)
Remote
Direct Readout LCD
; p
ushbutton switches or remote Fre
q;
Gain
;
Ext. Ref. Selection
Green LED
,
Red LED
,
Yellow LED
,
Yellow LED Power
;
Alarm
;
Remote
TABLE 1.0 3116-145-1600 Block Downconverter Specifications*
-55 to -35 dBm
(
-55 to 0
,
O
p
tion W67
)
In
p
ut Level Ran
g
e
12 dB maximum
g
ain
(
hi
g
her with O
p
tion W67
)
Noise Fi
g
ure
,
Maximum
-25 dBm
(
+10 minimum
g
ain
,
O
p
tion W57
)
In
p
ut 1 dB Com
p
ression
14.58 to 15.42 GHz Fre
q
uenc
y
+10 dBm at maximum
g
ain Out
p
ut 1 dB Com
p
ression
-20 to 0 dBm Out
p
ut Level Ran
g
e
Out
p
ut Characteristics
(
L-Band
)
In
p
ut Characteristics
(
RF
)
1.18 to 2.02 GHz Fre
q
uenc
y
50Ω / 14 dB Im
p
edance / Return Loss
50Ω / 14 dB Im
p
edance / Return Loss
-110 -100 -85 -80 -70
1M 100K 10K 1K 100
Standard dBC/
(
Hz
)
Phase
Noise @ F
(
Hz
)
>

Technical Characteristics continued from page 4..
19 inch
,
Standard Chassis
,
1.75” hi
g
h X 14.0” dee
p
Size
DB9 - NO or NC Contact Closure on AlarmAlarm / Remote Connector
BNC
(
female
),
75Ωworks with 50 or 75 ohm10 MHz Connectors
Other
100-24 ±10% VAC
,
47-63 Hz
,
30 watts maximum
Power
SMA
(
female
),
50Ω/ BNC
(
Female
),
50ΩRF/ L-Band Connector
50ΩSMA (RF), 50ΩSMA (L-BAND)
50ΩSMA
(
RF
),
50ΩN-t
yp
e
(
L-BAND
)
50ΩSMA
(
RF
),
75ΩBNC
(
L-BAND
)
50ΩN-type (RF), 50ΩN-type (L-BAND)
50ΩN-type (RF), 75ΩBNC (L-BAND)
- SS
- SN
- S7
- NN
- N
Contact Cross Technolo
g
ies for other o
p
tions.
Connector O
p
tions Remote M&C Ethernet O
p
tions
Ethernet with SNMP
(
and MIB
)
Interface- W18
Ethernet with Direct TCP/IP Interface
Ethernet with Web Browser Interface
- W28
- W8
- W67 - Extends input level to -55 to 0dBm
Contact Cross for gain and noise figure implicaions with this option.
Other O
p
tions
Extended Tem
p
erature O
p
tion
0˚C to 50˚C- W31
3116-145-1600 Manual, Rev. 0 Page 5 05/15/17

1.3 Monitor and Control Interface
A) Remote Serial Interface
Protocol: RS-232C, 9600 baud rate, no parity, 8 data bits, 1 start bit, and 1 stop bit.
(RS-232C, RS-422, or RS-485)
Connector: Rear panel, DB-9 male
J10 Pinouts
(RS-232C/422/485)
Pinouts (RS-232C/422/485)
Pin Function
1 Rx-
2 Rx+ (RS-232C)
3 Tx+ (RS-232C)
4Tx-
5GND
6 Alarm Relay: Common
7 Alarm Relay: Normally Open
8 Not Used
9 Alarm Relay: Normally Closed
3116-145-1600 Manual, Rev. 0 Page 6 05/15/17
Female DB-9
PC Com Port Male DB-9
2
1
3
4
5
6
7
8
9
2
1
3
4
5
6
7
8
9
M&C Cable Diagram - Cross Technologies Frequency Converters and
Frequency Sources

B) Status Requests - Table 1.1 lists the status requests for the 3116-145-1600 and briefly describes them.
* PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below,
should be used ONLY when RS-485 is selected.
TABLE 1.1 3116-145-1600 Doownconverter
3116-145-1600 Downconverter SStatus
TABLE 1.1 3116-145-1600 Downconverter Status Requests
Command Syntax * Description
Get Gain {aaSG} returns {aaSGxxx} where:
• xxx = Converter gain in 0.5 ±0.5 dB steps
Get Internal 10 MHz Reference Offset {aaSO} Returns {aaSOxxxxx} where:
• xxxxxx = Internal 10 MHz reference frequency offset.
Get 10 MHz Reference Mode {aaSE} Returns {aaSEx} where:
• x = 0 if the converter's 10 MHz reference mode is set to Internal
• x = 1 if the converter's 10 MHz reference mode is set to External
• x = 2 if the converter's 10 MHz reference mode is set to Auto
Get Mute {aaSM} Returns {aaSMx} where:
• x = 0 if the converter's RF output is NOT muted (RF output is ON)
• x = 1 if the converter's RF output is muted (RF output is OFF)
Get 10 MHz Reference Status {aaSB} Returns {aaSBx} where:
• x = 0 if the currently selected 10 MHz reference is Internal
• x = 1 if the currently selected 10 MHz reference is External
Get Summary Alarm Status {aaSA} Returns {aaSAx}where:
• x = 0 when there is no summary alarm condition
• x = 1 if there is a summary alarm condition
Get IP Address {aaSi} Returns {aaSixxx.xxx.xxx.xxx} where:
Ethernet Option Only • xxx.xxx.xxx.xxx = IP address
Get Subnet Mask {aaSs} Returns {aaSsxxx.xxx.xxx.xxx} where:
Ethernet Option Only • xxx.xxx.xxx.xxx = subnet mask
Get Product/Model info {aaSv} Returns {aaSv3116-145-1600y..yverZZZZ} where:
• 3116-xx is the product model number
• y..y = list of options, if any
• '"ver" = separates model & options from firmware version
• ZZZZ = firmware version (e.g., 4.00)
Get Inpt Level range {aaSI} Returns {aaSIx} where:
(option W67) • x = A for input level range = -55 to-35 dBm
• x = B for input level range = -40 to-20 dBm
• x = C for input level range = -20 to 0 dBm
3116-145-1600 Manual, Rev. 0 Page 7 05/15/17

C) Commands
Table 1.2 lists the commands for the 3116 and briefly describes them.
After a command is sent the 3116 sends a return “>” indicating the command has been received and executed.
General Command Format - The general command format is {CND...}, where:
{ = start byte
C = 1 character, either C (command) or S (status)
N = 1 character command or status request
D = 1 character or more of data (depends on command)
} = stop byte
*PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below,
should be used ONLY when RS-485 is selected.
TABLE 1.2 3116-145-1600 Doownconverter
3116-145-1600 Downconverter CCommands
TABLE 1.2 3116-145-1600 Downconverter Commands
Command Syntax * Description
Set Gain {aaCGxxx} where:
• xxx = Converter gain in 0.5 ±0.5 dB steps.
Range: 050 to 350 where 050 = 5.0 dB and 350 = 35.0 db
Example: {CG155} sets the converter's gain to +15.5dB
Set Internal 10 MHz Reference Offset {aaCOxxxxx} where:
• xxxxxx = Internal 10 MHz reference frequency offset.
Range: -2000 to +2000
Set 10 MHz Reference Mode {aaCEx} where:
• x = 0 if the converter's 10 MHz reference mode is set to Internal
• x = 1 if the converter's 10 MHz reference mode is set to External
• x = 2 if the converter's 10 MHz reference mode is set to Auto
Set Mute {aaCMx} where:
• x = 0 if the converter's RF output is NOT muted (RF output is ON)
• x = 1 if the converter's RF output is muted (RF output is OFF)
Set Input Level Range {aaCIx} where:
(option W67) • x = A for input level range = -55 to-35 dBm
• x = B for input level range = -40 to-20 dBm
• x = C for input level range = -20 to 0 dBm
3116-145-1600 Manual, Rev. 0 Page 8 05/15/17

2.0 Installation
2.1 Mechanical
The 3116 is powered by a 100-240 ± 10% VAC power supply, and housed in a 1 3/4” X 19” X 14” rack mount
chassis. The 3116 can be secured to a rack using the 4 holes on the front panel. Figure 2.0 shows how the
3116 is assembled.
POWER
SUPPLY
FIGURE 2.0 3116-145-1600 Mechanical Assembly
3116-145-1600 Manual, Rev. 0 Page 9 05/15/17

2.2 Rear Panel Input/Output Signals
Figure 2.1 shows the input and output connectors on the rear panel.
J101 - INPUT
14.58 - 15.42 GHz
-55 to -35 dBm
SMA Female Connector.
See Table 2.2
AC - POWER IN
AC input for switching power supply.
100-240 ±10% VAC, 47-63 Hz.
J1 - OUTPUT
1.18 - 2.02 GHz,
-20 to 0 dBm
BNC Female Connector
See Table 2.2
J11 - ALARM
DB9 female connector.
See Table 2.1.
J8 - 10 MHz EXT REF OUTPUT
+3 ±3 dBm with Auto-detect
BNC Female Connector.
AC
GND
J2 - 10 MHz EXT REF INPUT
+3 ±3 dBm with Auto-detect
BNC Female Connector..
RF INPUT
J101
J8
10 MHZ REF
OUTPUT
J11
ALARM
15
23
46
78
9
J2
EXT 10 MHZ
INPUT
RF OUTPUT
J1
J14
J14 - Ethernet Connector
RJ45 Ethernet connector.
FIGURE 2.1 3116-145-1600 Rear Panel I/Oʼs
TABLE 2.1 J110
TABLE 2.1 J10 Pinouts*
Pin Function
1 Rx-
2 Rx+ (RS-232C)
3 Tx+ (RS-232C)
4Tx-
5GND
6 Alarm Relay: Common
7 Alarm Relay: Normally Open
8 Not Used
9 Alarm Relay: Normally Closed
TABLE 2.2 Connector
2.2 Connector Optionns
Options
Option RF L-Band
-N 50ΩType N 75ΩBNC
-NN 50ΩType N 50ΩType N
-S7 50ΩSMA 75ΩBNC
-SF 50ΩSMA 75ΩType N
-SN 50ΩSMA 50ΩType N
-SS 50ΩSMA 50ΩSMA
*Remote Serial Interface
Interface: DB-9 Male Protocol: RS-232C (RS-232C/422/485),
9600 baud rate, no parity, 8 data bits, 1 start bit, 1 stop bit.
2.3 Front Panel Controls and Indicators
Figure 2.2 shows the front panel controls and indicators.
MENU
EXECUTE
14.58 - 15.42 GHZ
G = +10.0 REF=AUTO-E
POWERALARM
DS6 - ALARM LED
Red LED indicates an
alarm condition.
S2 - VERT. TOGGLE
Vertical toggle switch that controls
values in the Menu items when in
program mode. Does not function in
the normal display mode.
S1 - HORIZ. TOGGLE
Horizontal toggle switch that
controls which values are being
adjusted. Does not function in the
normal display mode.
REMOTE
LCD DISPLAY
Display shows current
mode and output level
in dBm or gain in dB.
DS3 - REMOTE LED
Yellow LED indicates
remote operation.
DS2 - POWER LED
Green LED indicates
presence of DC power
from power suppl
y
.
S3 - MENU/EXECUTE BUTTON
Press this to get into Program mode
and to execute any chan
g
es.
FIGURE 2.2 3116-145-1600 Front Panel Controls and Indicators
3116-145-1600 Manual, Rev. 0 Page 10 05/15/17

2.4 Installation / Operation
2.4.1 Installing and Operating the 3116-145-1600
1. Connect a -55 dBm to -35 dBm signal to RF IN, J101 (Figure 2.1).
2. Connect the RF OUT, J1, to the external equipment.
3. Connect 100-240 ±10% VAC, 47 - 63 Hz to AC connector on the back panel.
4. Set the gain +35 dB maximum, adjustable in 0.5 ±0.5 dB steps
5. Make sure the output stays within -20 to 0 dBm with the gain.
selected and the input level provided. (See Section 2.5 Menu Settings).
6. Be sure DS2 (green, DC Power) is on and DS6 (red, Alarm) is off (Figure 2.2).

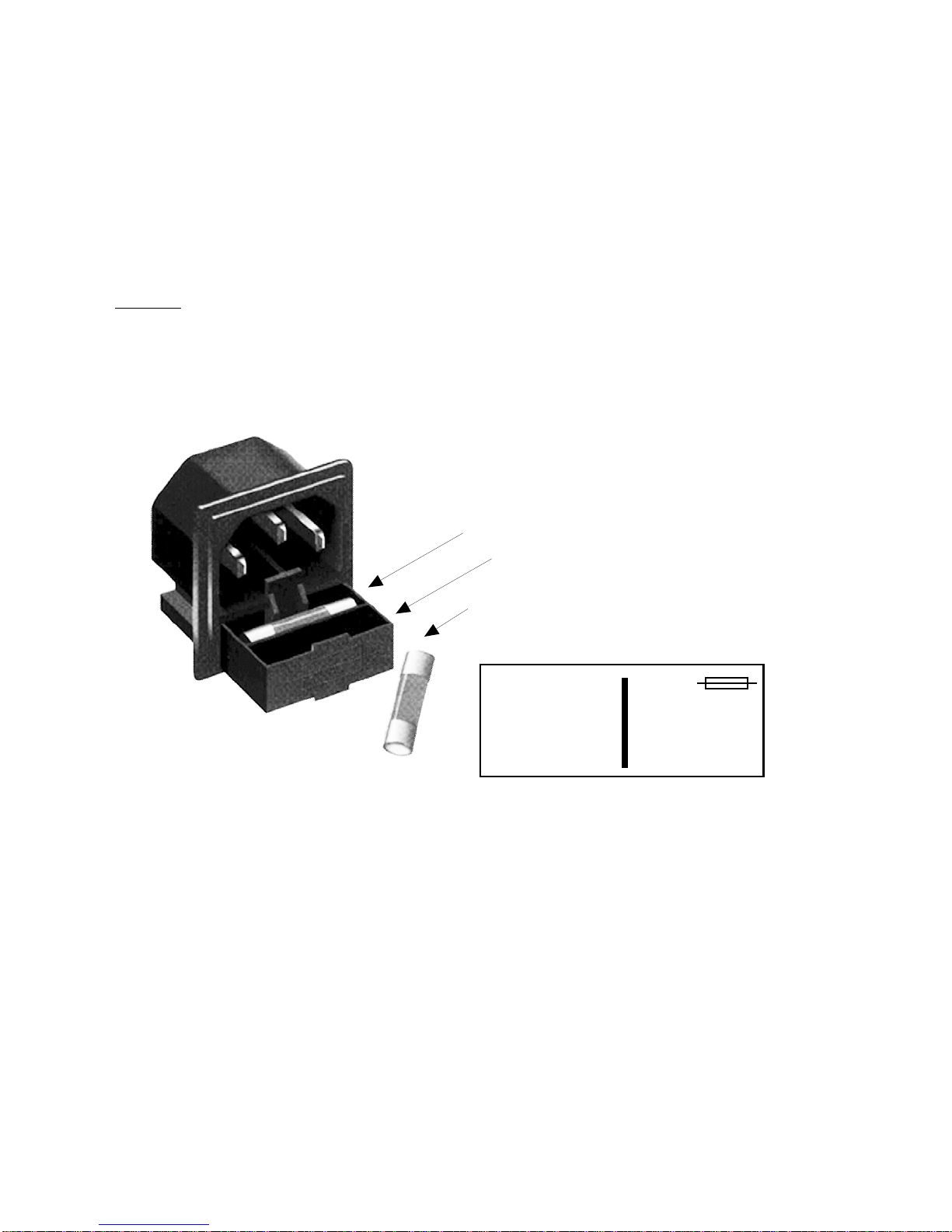

7. AC Fuse - The fuse is a 5 mm X 20 mm, 2 amp slow blow (Type T) and is inserted in the far slot
in the drawer below the AC input as shown in Figure 2.3. There is a spare fuse in the near slot.
If a fuse continues to open, the power supply is most likely defective.
AC Fuse - 2 amp slow blow (Type T),
5 mm X 20 mm
FUSE DRAWER
SPARE FUSE
~
INPUT
100-240± 10%VAC
47-63 Hz
2A MAX
FUSE
TYPE T 2A GDC
250 VOLT
FOR 100 - 240 V~
~
FIGURE 2.3 Fuse Location and Spare Fuse
3116-145-1600 Manual, Rev. 0 Page 11 05/15/17

2.5 Menu Settings
2.5.1 Functions
This section describes operation of the front panel controls. There are three operator switches, the LCD display
and alarm indicator LEDs. All functions for the equipment are controlled by these components. The functions
are (See Figure 2.4):
Power Up
Normal Display
Menu 1 Set Input Level Range (option W67 only).
Menu 2 Set Gain
Menu 3 Set Mute
Menu 4 Set Reference Mode
Menu 5 Set Reference Offset
Menu 6 Set Remote
Menu 7 Set Remote Interface
Menu 8 Set RS-485 Address
Save Menu When “R” is selected from any above menu or at the end.
Alarm indications appear on the LEDs (see Figure 2.2).
All program changes must start with the operation of the Menu/Execute switch and must also end with the
operation of the Menu/Execute switch verified by the “Save Settings?” Menu. If this sequence is not followed,
none of the changes will take effect. If programming is initiated and no operator action takes place for
approximately 30 seconds (before the final press of the Menu/Execute switch) the display will revert to its
previous status and you will need to start over.
3116-145-1600 Manual, Rev. 0 Page 12 05/15/17

2.5.2. Power On Settings
NOTE: THE LAST OPERATING PARAMETERS OF A UNIT ARE RETAINED EVEN WHEN
POWER IS REMOVED. WHEN POWER IS RESTORED, THE UNIT WILL RETURN TO IT'S
PREVIOUS SETTINGS.
When power is first applied, the LCD display goes through three steps.
1. The LCD goes black to show all segments are functioning.
2. The Model and Software version will be displayed.
3116-145-1600W18
Rev. 1.00
3. The present frequency and gain of the downconverter is shown.
14.58 - 15.42 GHz
G = +10.0 REF=AUTO
The unit is now operational and ready for any changes the operator may desire.
2.5.3 Control Switches
1. Menu/Execute - Any change to the programming of the unit must be initiated by pressing the
Menu/Execute switch and completed by pressing the Menu/Execute switch.
2. Horizontal Switch - This switch is mounted so its movement is horizontal and moves the
display cursor left or right.
3. Vertical Switch - This switch is mounted so its movement is vertical and has two functions:
a. During gain changes, the vertical movement will raise or lower the number
in the direction of the arrows.
b. For other functions such Remote on/off, the vertical switch will alternately turn the function
on or off regardless of the direction operated.
3116-145-1600 Manual, Rev. 0 Page 13 05/15/17

2.5.4 Gain Changes
When you get to this menu note that gain changes will be made as you make them but if you do not wish to
save the changes you have made, scroll to “R” and push the menu/Execute switch and select “NO” in the
“SAVE SETTINGS?” window or do not press the Menu/Execute switch; simply do nothing for
approximately 30 seconds, and the system will return to the normal operating mode.
NOTE: THE GAIN WILL CHANGE AS YOU ADJUST THE NUMBERS. HOWEVER, THE
VALUE WILL NOT BE STORED UNTIL YOU INDICATE YES IN THE SAVE SETTINGS
WINDOW. DO NOT SET A GAIN THAT WOULD EXCEED 0 dBm OR HAVE LESS
THAN -20 dBm OUTPUT LEVEL.
Press the Up/Down switch to change the gain in 0.5, 1, or 10 dB steps and then push the
Menu/Execute switch to get to the Save Settings Menu:
GAIN = +17.5
When the display indicates the value desired you can push the Menu/Execute switch to the next item
OR you can scroll to “R”, push the Menu/Execute switch to get to:
SAVE SETTINGS?
Selecting Ywill save the new settings. Selecting Nwill revert to the previous settings.
Figure 2.4 (page 15) gives the menu items and how to make changes.
3116-145-1600 Manual, Rev. 0 Page 14 05/15/17

2.5.5 Alarm Indications
An alarm condition will occur if any local oscillator phase lock loop (PLL) comes out of lock.
The Remote LED will light when you select the Remote mode.
2.5.6 10 MHz Reference Mode Operation
Internal Mode: The unit uses its own built-in 10 MHz OCXO. The Internal Reference is present on the
Reference Output Connector, J8. REF = INT appears on the front panel display.
External Mode: The unit uses a 10 MHz Reference that is connected to the External Reference Input, J2.
REF = EXT appears on the front panel display. The External 10 MHz Reference level
must be +3dBm, ±3dB. If the External 10 MHz signal does not meet the unit’s
specified parameters then the unit will not function properly. The External Reference
is present on the Reference Output connector, J8.
Auto Mode: The unit defaults to the External 10 MHz Reference as long as the level meets the +3dBm,
±3dB specification. REF = AUTO - E appears on the front panel display where the -E
indicates that the unit is using the External 10 MHz Reference. The External Reference is
present on the Reference Output connector, J8.
If the external 10 MHz Reference signal level is less than -1dBm, the unit switches to
Internal 10 MHz Reference. REF = AUTO -I appears on the front panel display
where -I indicates that the unit is using the Internal 10 MHz Reference. The Internal
10 MHz Reference is present on the reference output connector, J8.
3116-145-1600 Manual, Rev. 0 Page 15 05/15/17

2.5.7 Option W67 Extended Input Level Range
Option W67 extends the RF input level range from: -55 to -35 dBm to: -55 to 0 dBm.
The user must select on of the 3 input ranges which are:
A. -55 to -35 dBm
B. -40 to -20 dBm
C. -20 to -0 dBm
The option has a gain adjustable attenuator before the standard input amplifier. This attenuator/amp before the
mixer provides a gain of +25, +10, or -10 dB respectivily into the RF mixer. The noise figures for the three
ranges are +10, +20 and >35 respectivily for the three settings. Each range has a 0.5 +/- 0.5 dB step gain
adjustment over the range. The specified operational output range remains -20 to 0 dBm (P1db of +10 dBm at
maximum gain). The following table describes the input/output ranges, gain, P1db and noise figure implications
with this option.
> 35+100 to 20-20 to 0 20-105 to 35-40 to -20 10-2515 to 35-55 to -35 C
B
A
Noise Figure
(dB)
P1dB (dBm)
Gain Range
(dB)
Level Range
(dBm)
Range Letter
The currently selected input range (A, B, or C as described above) is shown in the upper left hand corner
of the main display as shown below.
Currently
Selected Range
B 14.58-15.42GHz
G=+10.0 REF=AUTO-E
Main Display
3116-145-1600 Manual, Rev. 0 Page 16 05/15/17

NORMAL DISPLAY
PUSHING MENU/EXECUTE SEQUENCE
3116-145-1600W18
1.0
14.58 -15.42 GHZ
G = +10.0 REF=AUTO
SCROLL <>
SCROLL
PUSH BUTTON
PUSH BUTTON
Power Up 1:
Power Up 2:
Normal Display
Menu 1 Set Input Level Range
(option W67 only)
Menu 2 Set Gain
Menu 3 Set Mute
Menu 4 Set Reference Mode
Menu 5 Set Reference Offset
Menu 6 Set Remote
Menu 7 Set Remote Interface
Menu 8 Set RS485 Address
Save? When go to end
SCROLL <>
SCROLL
PUSH BUTTON
SCROLL <>
SCROLL
PUSH BUTTON
SCROLL <>
SCROLL
PUSH BUTTON
SCROLL <>
SCROLL
PUSH BUTTON
SCROLL <>
SCROLL
PUSH BUTTON
SCROLL <>
SCROLL
PUSH BUTTON
SCROLL <>
SCROLL
PUSH BUTTON
= = = IP Addr = = =
192.168.123.002
ON POWER UP (1)
ON POWER UP (2)
R
R
R
R
GAIN = 15.0
MUTE = ON
REF MODE = AUTO
INTERNAL FREQ ADUST
OFFSET = -1225
INTERFACE = RS232
RS485 ADDRESS = 0
R
R
SAVE SETTINGS? Y N
REMOTE = ON
R
INPUT LEVEL RANGE =
A -55 to -35 dBm
R
SCROLL <>
SCROLL
PUSH BUTTON
FIGURE 2.4 Menu Display and Sequences
3.0 Environmental Use Information
3116-145-1600 Manual, Rev. 0 Page 17 05/15/17

A.Rack-Mounting - To mount this equipment in a rack, please refer to the installation instructions
located in the user manual furnished by the manufacturer of your equipment rack.
B. Mechanical Loading - Mounting of equipment in a rack should be such that a hazardous condition
does not exist due to uneven weight distribution.
C.Elevated Operating Ambient Temperature - If installed in a closed or multi-unit rack assembly,
the operating ambient temperature of the rack may be greater than room ambient temperature.
Therefore, consideration should be given to Tmra (Maximum Recommended Ambient Temperature).
D. Reduced Air Flow - Installation of the equipment in a rack should be such that the amount of air flow
required for safe operation of the equipment is not compromised. Additional space between units
may be required.
E. Circuit Overloading - Consideration should be given to the connection of the equipment to the supply
circuit and the effect that overloading of circuits could have on over current protection and supply wiring.
Appropriate consideration of equipment name plate rating should be used when addressing this concern.
F. Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained.
Particular attention should be given to supply connections other than direct connection to the
Branch (use of power strips).
G. Top Cover - There are no serviceable parts inside the product so, the Top Cover should not be removed.
If the Top Cover is removed the ground strap and associated screw MUST BE REINSTALLED
prior to Top Cover screw replacement. FAILURE TO DO this may cause INGRESS and/or EGRESS
emission problems.
3116-145-1600 Manual, Rev. 0 Page 18 05/15/17

CROSS TECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
[phone]
FAX [phone]
Toll Free 888-900-5588
WEB www.crosstechnologies.com
E-MAIL [email protected]
Printed in USA
3116-145-1600 Manual, Rev. 0 Page 19 05/15/17
