Cross Technologies 2017-1727-140 User manual

Instruction Manual Model 2017-1727-140
Up/Downconverter
February 2018, Rev. 0
MENU
EXECUTE
MODEL 2017
CROSS TECHNOLOGIES INC.
U F=1725 G=+10.0
D F=2675 G=+25.0
MUTE
UPCONVERTERDOWNCONVERTER
REMOTEALARM POWER ALARM
UP/DOWNCONVERTER
Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc., but may be
reproduced or duplicated without the prior permission of Cross Technologies, Inc. for purposes of operating
the equipment.
When ordering parts from Cross Technologies, Inc., be sure to include the equipment model number,
equipment serial number, and a description of the part.
CROSS TECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
[phone]
FAX [phone]
Toll Free 888-900-5588
WEB www.crosstechnologies.com
E-MAIL [email protected]

INSTRUCTION MANUAL
MODEL 2017-1727-140 Up/Downconverter
TABLE OF CONTENTS PAGE
Warranty 2
1.0 General 3
1.1 Equipment Description 3
1.2 Technical Characteristics 4
1.3 Monitor & Control Interface 6
2.0 Installation 8
2.1 Mechanical 8
2.2 Rear I/O’s 9
2.3 Front Panel Controls, Indicators 10
2.4 Operation 11
2.5 Menu Settings 12
WARRANTY - The following warranty applies to all Cross Technologies, Inc. products.
All Cross Technologies, Inc. products are warranted against defective materials and
workmanship for a period of one year after shipment to customer. Cross Technologies, Inc.’s
obligation under this warranty is limited to repairing or, at Cross Technologies, Inc.’s option,
replacing parts, subassemblies, or entire assemblies. Cross Technologies, Inc. shall not be
liable for any special, indirect, or consequential damages. This warranty does not cover parts
or equipment which have been subject to misuse, negligence, or accident by the customer
during use. All shipping costs for warranty repairs will be prepaid by the customer. There
are not other warranties, express or implied, except as stated herein.
CROSS TECHNOLOGIES, INC.
6170 Shiloh Rd.
Alpharetta, GA 30005
[phone]
FAX [phone]
Toll Free 888-900-5588
WEB www.crosstechnologies.com
E-MAIL [email protected]
2017-1727-140 Manual, Rev. 0 Page 2 02/14/18

MODEL 2017-1727-140 Up/Downconverter
1.0 General
1.1 Equipment Description
The 2017-1727-140 L, S-band Up/Downconverter converts 140 ± 20 MHz to 0.95-1.75 GHz GHz (Up) and 2.0-
2.7 to 140 ± 20 MHz (Down) in 1 MHz steps (100 or 125 kHz steps optional). Multi-function switches select
the frequency, gain ( upconverter -10 to +30 dB; downconverter 0 to +50 dB), and other parameters. Front panel
LEDs provide indication of DC power (green), PLL alarm (red), remote operation (yellow), and Upconverter
mute (yellow). Remote operation allows selection of frequency, gain and external 10 MHz reference (option E).
Gain settings appear on the LCD display. Connectors are BNC female for the IF, RF (SMA and N optional) and
optional external reference input and output (option E). A high stability (±0.01 ppm) option (H) is also
available. It is powered by a 100-240 ±10% VAC power supply and housed in a 1.75” X 19” X 16” 1RU
chassis.
MENU
EXECUTE
MODEL 2017
CROSS TECHNOLOGIES INC.
U F=1725 G=+10.0
D F=2675 G=+25.0
MUTE
UPCONVERTERDOWNCONVERTER
REMOTEALARM POWER ALARM
UP/DOWNCONVERTER
FRONT PANEL
AC UPCONVERTER
RF OUT
GND
DOWNCONVERTER
J4 J5J3J18J2
RF IN 10 MHZ REF 10 MHZ IF IN
EXT REF
J1
IF OUT OUTPUT INPUT
J10
AND
MONITOR
CONTROL
J20
15
23
46
78
9
REAR PANEL

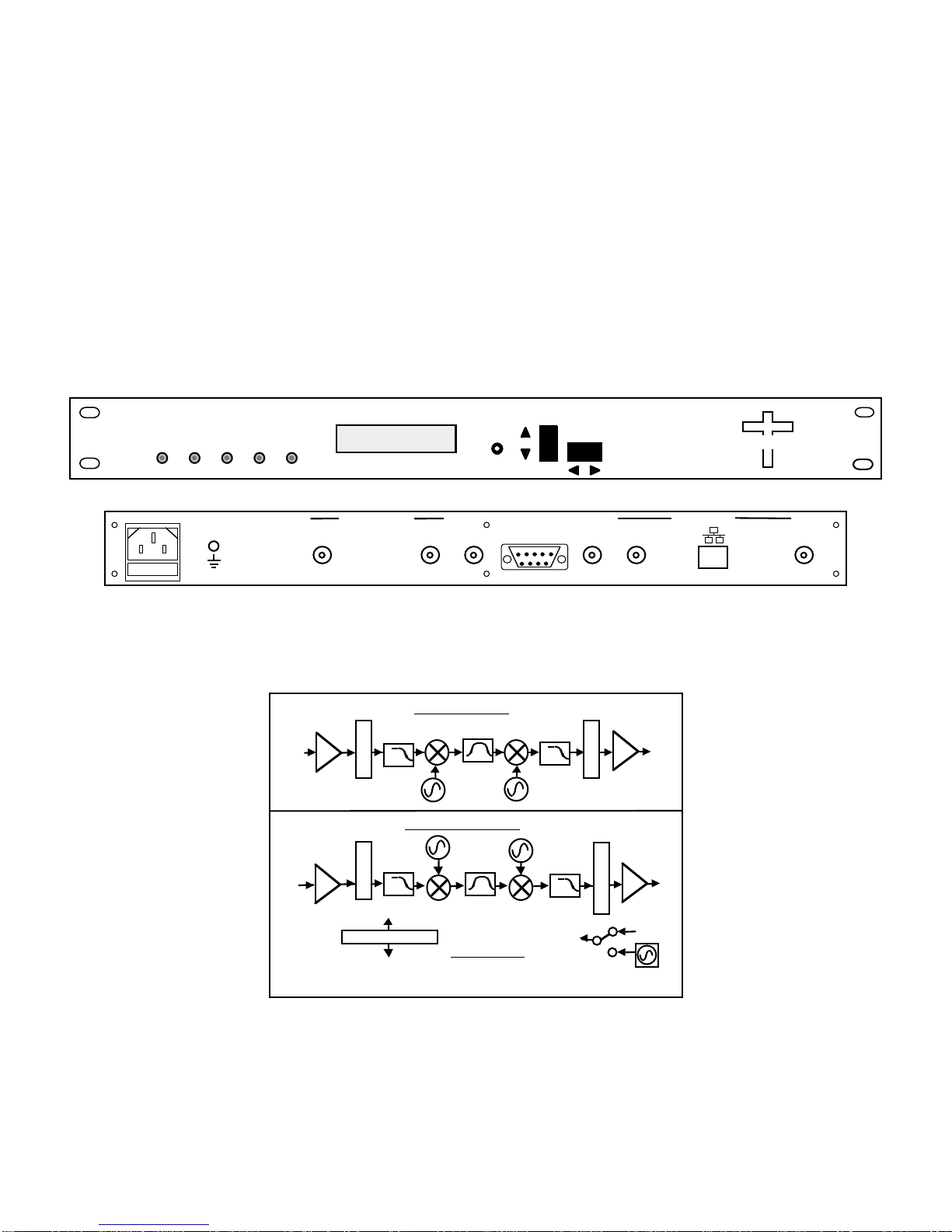

Figure 1.1 Model 2017-1727-140 Front and Rear Panels
PLL,ATT, CONTROL
M&C
CONTROLLER
140 ± 20
MHz
OUT
2.0
to
2.7
GHz
IN
V
A
R
A
T
T
0.2 GHz LP
2017-1727-140 Up/Downconverter Block Diagram
EXT**
10 M
10 M
TO
PLLS
140 ± 20
MHz
IN 2.4 GHz BP
V
A
R
A
T
T
0.95
to
1.75
GHz
OUT
1.75 GHz BP
0.2GHz LP
S Downconverter
L Upconverter
2.7 GHz LP
2.54
GHz
3.75 - 4.45
GHz 1.89
GHz
3.35-
4.15
GHz
1.75 GHz LP
**OPTIONAL**
V
A
R
A
T
T
V
A
R
A
T
T
V
A
R
A
T
T
Figure 1.2 Model 2017-1727-140 Up/Downconverter Block Diagram
2017-1727-140 Manual, Rev. 0 Page 3 02/14/18

1.2 Technical Characteristics
TABLE 1.0 2017-1727-140 Up/Downconverter Specifications*
--------UPCONVERTER--------
Input Characteristics
Impedance/Return Loss 50 Ω/14 dB
Frequency 140 ± 20 MHZ
Noise Figure, Maximum 20 dB @ max. gain
Input Level Range -40 to -10 dBm
Output Characteristics
Impedance/Return Loss 50 Ω/14 dB
Frequency (GHz) 0.95 to 1.75 GHz
Output Level Range -20 to 0 dBm
1 dB comp. maximum gain +5 dBm
Mute @ 0 dBm out >60 dB
Channel Characteristics
Gain, max. at Fc +30 ±3 dB
Gain range, 1 ±1 dB steps +30 dB to -10 dB
Image Rejection N/A
Spurious, Inband, sig. rel. <-50 dBC 0 dBm
Spurious, Inband, sig. ind. <-50 dBC Gmax.
Spurious, Out of Band <-50 dBC Gmax
Intermod - 2 Carriers <-50 dBC Gmax
Frequency Resp. Band ±2 dB
Frequency Resp. 36,40 MHz ± 0.5 dB, ±1.0 dB
Frequency Sense Non-inverting
--------UP AND DOWNCONVERTER--------
Synthesizer Characteristics
Frequency Accuracy ± 1.0 ppm internal reference (±0.01 ppm, option -H)
Frequency Step 1 MHz, others optional
10 MHz In/Out Level 3 dBm ± 3 dB, 75 ohms (Option E)
-110-95-80-70-70
1MHz100kHz10kHz1kHz100 Hz
dBC/Hz
Phase Noise
@
Fre
q
Controls, Indicators
Gain Selection Direct readout LCD; pushbutton switches or remote selection
Power Green LED
Alarm; Remote Red LED, Yellow LED
Remote RS232C, 9600 baud; (RS485, option Q, Ethernet, optional)
Other
RF/IF Connector BNC (female) 50ΩRF, 75ΩIF
10 MHz Connectors BNC (female), 75Ωconnector works with 50 or 75 ohms
Alarm/Remote Connector DB9 (female) - NO or NC contact closure on Alarm
Size 19 inch, 1RU standard chassis 1.75”high X 16.0”deep
Power 100-240 ±10% VAC, 47-63 Hz, 45 watts maximum
Continued on next page...
2017-1727-140 Manual, Rev. 0 Page 4 02/14/18
--------DOWNCONVERTER--------
Input Characteristics (L)
Impedance/Return Loss 50 Ω/14 dB
Frequency 2.0 to 2.7 GHz
Noise Figure (max) 15 dB @ max gain
Input Level -70 to -20 dBm
Output Characteristics (L)
Impedance/Return Loss 50 Ω/14 dB
Frequency 140 ± 20 MHz
Output level/max linear -30 to -10 dBm
Output 1 dB compression -5 dBm
Mute @ 0 dBm Out N/A
Channel Characteristics
Gain, max. at Fc +50 ±3 dB
Gain range, 1 ±1 dB steps +50 to 0 dB
Image Rejection > 50 dB, min.
Spurious, Inband, sig. rel. <-50 dBC 0 dBm
Spurious, Inband, sig. ind. <-50 dBC Gmax.
Spurious, Out of Band <-50 dBC Gmax
Intermod - 2 Carriers <-50 dBC Gmax
Frequency Resp. Band ±2 dB
Frequency Resp. 40 MHz ±0.5 dB, ± 1.0 dB
Frequency Sense Inverting/Non-inverting

TABLE 1.0 2017-1727-140 Up/Downconverter Specifications... Continued from page 4
Available Options:
E External 10 MHz Reference input & output
H High Stability (±0.01ppm) Internal Reference
W78 RF/RF Monitor Ports (Front)
W31 External Temp 0C to +50C
X or X1 125 kHz or 100 kHz step size
Remote & M&C Interfaces:
Q RS485 Remote Interface
W8 Ethernet with Web Browser
W18 Ethernet with Web Browser & SNMP
W28 Ethernet with TCP/IP, Telnet®
Connectors/Impeedance Interfaces:
-D 50Ω, BNC (RF), 50ΩBNC (IF)
-N 50Ω, N-Type (RF), 75ΩBNC (IF)
-M 50Ω, N-Type (RF), 50ΩBNC (IF)
-S 50Ω, SMA (RF), 50ΩBNC (IF)
-SS 50Ω, SMA (RF), 50ΩSMA (IF)
Contact Cross for other available options
*+10˚C to +40˚C; Specifications subject to change without notice
2017-1727-140 Manual, Rev. 0 Page 5 02/14/18

1.3 Monitor and Control Interface
A) Remote serial interface
Protocol: RS-232C, 9600 baud rate, no parity, 8 data bits, 1 start bit, and 1 stop bit.
(RS-232C, RS-422, or RS-485 - option -Q)
Connector: Rear panel, DB-9 male
J10 Pinouts
(RS-232C/422/485)
Pinouts (RS-232C/422/485)
Pin Function
1 Rx-
2 Rx+ (RS-232C)
3 Tx+ (RS-232C)
4Tx-
5GND
6 Alarm Relay: Common
7 Alarm Relay: Normally Open
8 Not Used
9 Alarm Relay: Normally Closed
B) Status Requests
Table 1.1 lists the status requests for the 2017-1727-140 and briefly describes them.
Table 1.1 2017-1727-140 Sttatus
2017-1727-140 Status Reqquests
Table 1.1 2017-1727-140 Status Requests
Command Syntax* Description
Command Status {aaS1} Returns {aaS1bbbbccccdddeeffLMNOP} where:
• bbbb = Tx frequency (bbbbbbb - 7 characters,opt X, X1)
• cccc = Rx frequency (ccccccc - 7 characters,opt X, X1)
• ddd = Tx gain (-10 to 30)
• ee = Rx gain (00 to 50)
• ff = Tx input level (10 to 40 => -10 to -40 dBm)
• L = 0 - non-inverted Receiver; L = 1 - inverted
• M = 0 - Receiver synth alarm
• N = 0 - Transmitter synth alarm
• O = 0 - Summary alarm
• P = 0 - Transmit signal disabled (muted)
External 10MHz (option -E) {aaS2} Returns {aaS2b} where:
• b = 1 - External 10MHz selected
* PLEASE NOTE: The Address (aa) should only be used when RS-485 is selected (option -Q ONLY)
2017-1727-140 Manual, Rev. 0 Page 6 02/14/18

C) Commands
Table 1.2 lists the commands for the 2017-1727-140 and briefly describes them. After a command is sent the
2017-1727-140 sends a return “>” indicating the command has been received and executed.
General Command Format - The general command format is {aaCND...}, where:
{ = start byte
aa = address (RS-485 only option -Q)
C = 1 character, either C (command) or S (status)
N = 1-digit command or status number, 1 through 9
D = 1 character or more of data (depends on command)
} = stop byte
Table 1.2 2017-1727-140 Commmands
Commands
Table 1.2 2017-1727-140 Commands
Command Syntax* Description
Set Transmitter Frequency {aaC1xxxx} where:
• xxxx = 4 characters (7 characters, option X, X1)
• Range: 9500 to 1750 MHz,
(9500000 to 1750000, option X, X1)
Set Transmitter Input Level {aaCIxx} where:
• xx = 2 characters
• Range: 10 to 40 (-10 to -40 dBm)
Set Receiver Frequency {aaC2xxxx} where:
• xxxx = 4 characters (7 characters, option X, X1)
• Range: 2000 to 2700 MHz
(2000000 to 2700000, option X, X1)
Set Transmit Gain {aaC3xxxx} where:
• xxxx = 2 or 3 characters
• Range: +30 to-10 (+30 to-10 dB, in 1 dB steps)
Set Receiver Gain {aaC4xxx} where:
• xx = 2 characters
• Range: 50 to 00 (50 dB to 0 dB, in 1 dB steps)
Enable Tx {aaCAx} where x =:
• 0 to disable Tx signal
• 1 to enable Tx signal
External 10MHz (option -E) {aaCEx} where x =:
• 0 to disable External 10MHz ref signal
• 1 to enable External 10MHz ref signal
Downconverter Spectrum {aaC7x} where x =:
• 0 for non-inverted
• 1 for inverted
Enable Remote # Just # sign
Disable Remote {aaCR0}* {CR and zero}
* PLEASE NOTE: The Address (aa) should only be used when RS-485 is selected (option -Q ONLY)
2017-1727-140 Manual, Rev. 0 Page 7 02/14/18

2.0 Installation
2.1 Mechanical
The 2017-1727-140 consists of one RF/Controller PCB housed in a 1 RU (1 3/4 inch high) by 16 inch deep
chassis. A switching, ± 12, +5, +24 VDC power supply provides power for the assemblies. The 2017-1727-140
can be secured to a rack using the 4 holes on the front panel. Figure 2.0 shows how the 2017-1727-140 is
assembled.
POWER
SUPPLY
Figure 2.0 Model 2017-1727-140 Mechanical Assembly
2017-1727-140 Manual, Rev. 0 Page 8 02/14/18

2.2 Rear Panel Input/Output Signals and Control - Figure 2.1 shows the input and output connectors
on the rear panel.
J10 - MONITOR AND CONTROL
DB9 female connector.
See Table 2.1.
RF OUT
J4 J5J3
10 MHZ IF IN
EXT REF
J3 - 10 MHz EXT REF INPUT (Option E)
10 MHz, +3 ± 3 dBm external reference input,
75ΩBNC female connector.
J5 - RF OUT
0.95 - 1.75 GHz
-20 to 0 dBm out, see Table 2.2.
J4 - IF IN
140 ±10 MHz input, -40 to -10 dBm in,
see Table 2.2.
J20 - ETHERNET
CONNECTION
RJ45 Ethernet Connector
UPCONVERTER
INPUT
AC
GND
J18J2
RF IN 10 MHZ REF
OUTPUT
AC1 - POWER IN
AC input for switching
power supply. 100-240
±10% VAC, 47-63 Hz.
J2 - RF IN
2.0 to 2.7 GHz input,
-70 to -20 dBm,
See Table 2.2.
J1 - IF OUT
140 ±10 MHz
-30 to -10 dBm,
See Table 2.2.
J10
AND
MONITOR
CONTROL
DOWNCONVERTER
J1
IF OUT
J18 - 10 MHz REF OUTPUT (option E)
10 MHz, +3 ± 3 dBm reference output.
75ΩBNC female connector.
15
23
4
6
78
9
J20
Figure 2.1 Model 2017-1727-140 Rear Panel I/O’s
TABLE 2.1 J110
2.1 J10 Pinouts (RS-232C/422/485*)
Pin Function
1 Rx-
2 Rx+ (RS-232C)
3 Tx+ (RS-232C)
4Tx-
5GND
6 Alarm Relay: Common
7 Alarm Relay: Normally Open
8 Not Used
9 Alarm Relay: Normally Closed
*Remote Serial Interface
Interface: DB-9 Male
Protocol: RS-232C (RS-232C/422/485 option -Q), 9600 baud rate, no parity,
8 data bits, 1 start bit, 1 stop bit.
TABLE 2.2 IFF/RF
2.2 IF/RF Connector Options
Options
Option IF RF
STD BNC, 75ΩType F, 75Ω
-D BNC, 50ΩBNC, 50Ω
-N BNC, 75ΩType N, 50Ω
-M BNC, 50ΩType N, 50Ω
-S BNC, 50ΩSMA, 50Ω
-SS SMA, 50ΩSMA, 50Ω
2017-1727-140 Manual, Rev. 0 Page 9 02/14/18

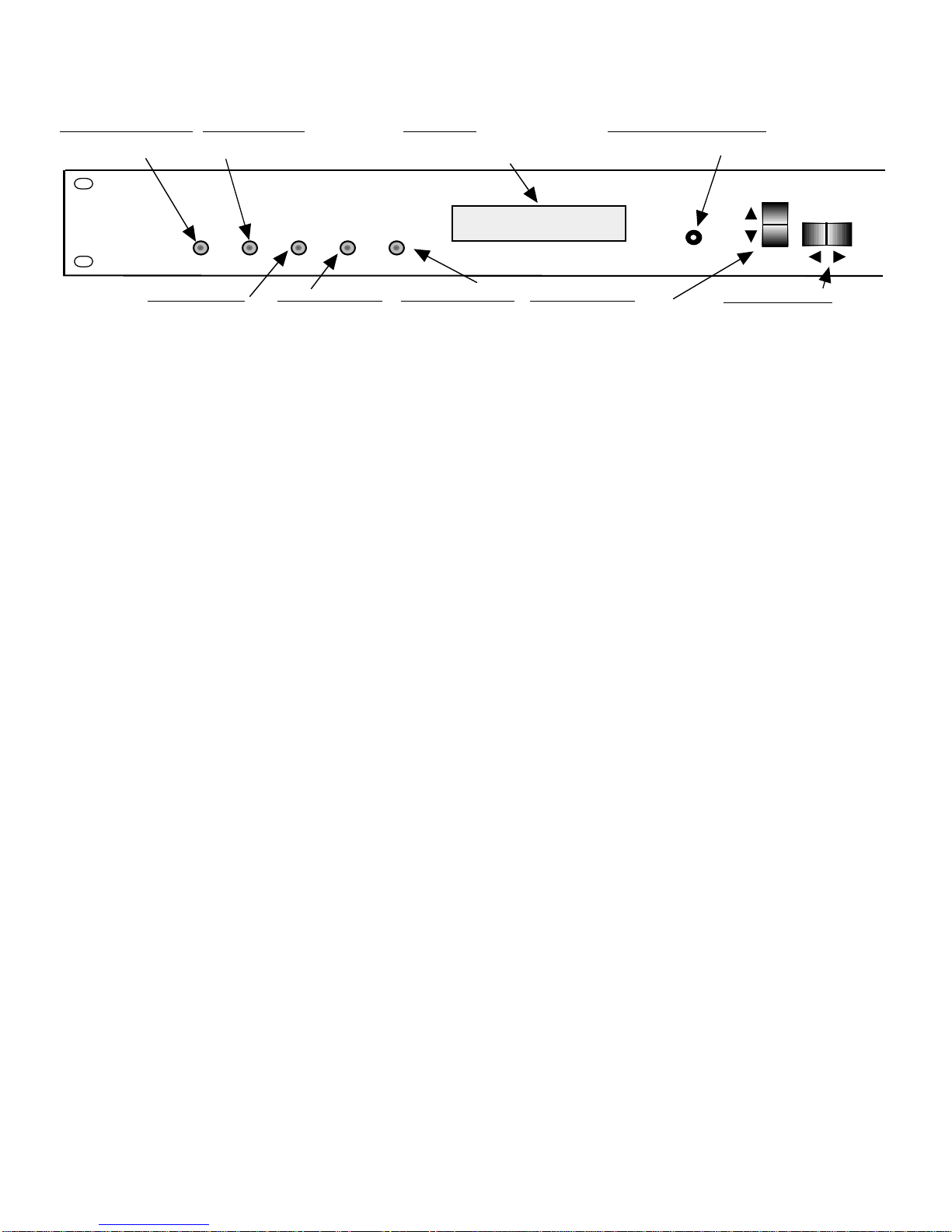

2.3 Front Panel Controls and Indicators - The following are the front panel controls and indicators.
S3 - HORIZ. TOGGLE
Horizontal toggle switch that
controls which values are being
adjusted. Does not function in the
normal display mode
MENU
EXECUTE
U F=1725 G=+10.0
MUTE
REMOTEALARM POWER
LCD DISPLAY
Display shows Up and
Downconverter frequency in MHz
and Gain in dB
S1 - MENU/EXECUTE BUTTON
Press this to get into Program mode
and to execute any changes.
DS3 - DOWN ALARM LED
Red LED indicates
downconverter alarm.
DS6 - POWER LED
Green LED indicates
presence of DC power.
DS1 - REMOTE LED
Yellow LED indicates
remote operation.
S2 - VERT. TOGGLE
Vertical toggle switch that controls
values in the Menu items when in
program mode. Does not function
in the normal display mode
UPCONVERTER
ALARM
DOWNCONVERTER
D F=2675 G=+25.0
DS5 - UP MUTE LED
Yellow LED indicates
upconverter mute.
DS2 - UP ALARM LED
Red LED indicates
upconverter alarm.
Figure 2.2 Model 2017-1727-140 Front Panel Controls and Indicators
2017-1727-140 Manual, Rev. 0 Page 10 02/14/18

2.4 Installation / Operation
2.4.1 Installing and Operating the 2017-1727-140, Upconverter Section
1.) Connect a -40 dBm to -10 dBm signal to IF In, J4 (Figure 2.1).
2.) Connect the RF OUT, J5, to the external equipment.
3.) Connect 100-240 ±10 VAC, 47 - 63 Hz to AC on the back panel.
4.) Set the desired output frequency (See Section 2.5 Menu Settings).
5.) Set the input level in the -40 to -10 dBm range (See Section 2.5 Menu Settings).
6.) Set the gain to get an output level in the -20 to -0 dBm range (See Section 2.5 Menu Settings).
7.) Be sure DS6 (green, DC Power) is on and DS2 (red, Alarm) is off (Figure 2.2).
2.4.2 Installing and Operating the 2017-1727-140, Downconverter Section
1.) Connect a -70 dBm to -20 dBm signal to RF In, J2 (Figure 2.1).
2.) Connect the IF OUT, J1, to the external equipment.
3.) Connect 100- 240 ±10 VAC, 47 - 63 Hz to AC on the back panel.
4.) Set the desired input frequency (See Section 2.5 Menu Settings).
5.) Set the gain to get an output level in the -30 to -10 dBm range (See Section 2.5 Menu Settings)
6.) Be sure DS6 (green, DC Power) is on and DS2 (red, Alarm) is off (Figure 2.2).
7.) AC Fuse - The fuse is a 5 mm X 20 mm, 2 amp slow blow (Type T) and is inserted in the far slot in
the drawer below the AC input as shown in Figure 2.3. There is a spare fuse in the near slot. If a fuse
continues to open, the power supply is most likely defective.
AC Fuse - 5 amp slow blow (Type T),
5 mm X 20 mm
FUSE DRAWER
SPARE FUSE
~
INPUT
100-240± 10%VAC
47-63 Hz
2A MAX
FUSE
TYPE T 5A GDC
250 VOLT
FOR 100 - 240 V~
~
Figure 2.3 Fuse Location and Spare Fuse
2017-1727-140 Manual, Rev. 0 Page 11 02/14/18

2.5 Menu Settings
2.5.1 Functions - This section describes operation of the front panel controls. There are three operator
switches, the LCD display and alarm indicator LEDs. All functions for the equipment are controlled by these
components. The functions are (see Figure 2.4):
Power Up
Normal Display
Menu 1 Up Frequency in MHz
Menu 2 Up Input Lvl (Set from -40 to -10)
Menu 3 Up Gain (+30 to -10)
Menu 4 Down Frequency in MHz
Menu 5 Down Gain (set +50 to 0 for -20 to -10 dBm out range)
Menu 6 Up Mute
Menu 7 Set Unit to Remote Operation
Menu 8 Set Downconverter Spectrum Sense
Menu 9 Select External 10 MHz Ref (option -E)
Menu 10 Set RS-485 mode (option -Q)
Menu 11 Set RS-485 address (option -Q)
Menu 12 View PCB Temperature (option -T)
Save Menu At the end or when “R” is selected from any of the above menus
Alarm indications appear on the LEDs (see figure 2.2).
All program changes must start with the operation of the Menu/Execute switch and must also end with the
operation of the Menu/Execute switch verified by the “Save Settings?” Menu. If this sequence is not followed,
none of the changes will take effect. If programming is initiated and no operator action takes place for
approximately 12 seconds (before the final press of the Menu/Execute switch) the display will revert to its
previous status and you will need to start over.
2017-1727-140 Manual, Rev. 0 Page 12 02/14/18

2.5.2 Power-On Settings
NOTE: THE LAST STATUS OF A UNIT IS RETAINED EVEN WHEN POWER IS REMOVED.
WHEN POWER IS RESTORED, THE UNIT WILL RETURN TO IT'S PREVIOUS SETTINGS.
When power is first applied, the LCD display goes through three steps.
1. The LCD goes black to show all segments are functioning.
2. The software version will be displayed.
REV 1.00
3. The present frequency and gain of the up and downconverter is shown.
U F=1725 G=+10.0
D F=2675 G=+25.0
The unit is now operational and ready for any changes the operator may desire.
2.5.3 Control Switches
1. Menu/Execute - Any change to the programming of the unit must be initiated
by pressing the Menu/Execute switch and completed by pressing the Menu/Execute switch.
2. Horizontal Switch - This switch is mounted so its movement is horizontal and moves
the cursor left or right.
3. Vertical Switch - This switch is mounted so its movement is vertical and has two functions:
a. During frequency , gain, input level changes, the vertical movement
will raise or lower the number in the direction of the arrows.
b. For other functions such Mute on/off, the vertical switch will alternately turn
the function on or off regardless of the direction operated.
2017-1727-140 Manual, Rev. 0 Page 13 02/14/18

2.5.4 Frequency Changes
At any time during the modification process, if you have made a mistake and do not wish to save the changes
you have made, do not press the Menu/Execute switch; simply do nothing for approximately 12 seconds, and
the system will return to the normal operating mode or scroll to “R” and push the menu/Execute switch and
select “NO” in the “SAVE SETTINGS?” window.
To change the FREQUENCY:
Operate the Menu/Execute switch until you get to the menu item you want to change (see Figure 2.4 for
the sequence of menu options). The following display is for changing the upconverter frequency:
UP F = 1725.000 R
Pressing the Up/Down switch down will toggle the display to:
UP F = 1725.000 R
By using the horizontal rocker switch the cursor can be moved left or right.
UP F = 1725.000 R
NOTE: CHANGES DO NOT TAKE PLACE ON FREQUENCY UNTIL YOU GO TO THE SAVE
MENU AND INDICATE YOU WANT TO SAVE THE CHANGES.
When the display indicates the value desired you can push the Menu/Execute switch to the next item:
UP INLVL = -20R
NOTE: CHANGES TAKE PLACE ON LEVEL AND GAIN IMMEDIATELY BUT DO NOT GET
SAVED UNTIL YOU GO TO THE SAVE MENU AND INDICATE YOU WANT TO SAVE THE
CHANGES.
OR you can scroll to “R”, push the Menu/Execute switch to get to:
SAVE SETTINGS? Y N
Selecting Ywill save the new settings. Selecting Nwill revert to the previous settings.
Pushing the Menu/Execute switch then takes you to the :
U F=1725 G=+10.0
D F=2675 G=+25.0
Figure 2.4 shows all the menu items and how to make changes.
2017-1727-140 Manual, Rev. 0 Page 14 02/14/18

2.5.5 Gain Changes
When you get to this menu note that the gain changes will be made as you make them but if you do not wish to
save the changes you have made, scroll to “R” and push the menu/Execute switch and select “NO” in the
“SAVE SETTINGS?” window or do not press the Menu/Execute switch; simply do nothing for
approximately 12 seconds, and the system will return to the normal operating mode.
2.5.5.1 Upconverter Gain
To set the upconverter gain, first push the Menu/Execute switch to get to the gain setting:
Operate the Menu/Execute switch until you get to the menu item you want to change see Figure 2.4 for
the sequence of menu options.
The following display is for changing the upconverter input level. This is an important setting to
optimize spurious and should be made as accurately as possible:
UP INLVL = -20R
Pressing the Up/Down switch to change the level in 1 dB steps and then push the Menu/Execute switch
to get to the Gain setting:
UP G = +10.0 R
By using the horizontal rocker switch the cursor can be moved left or right .
Pressing the Up/Down switch down will toggle the display digit selected until you have the desired gain.
NOTE: THE GAIN WILL BE CHANGED AS YOU ADJUST THE NUMBERS. HOWEVER, THE
VALUE WILL NOT BE STORED UNTIL YOU INDICATE YES IN THE SAVE SETTINGS
WINDOW. DO NOT SET A GAIN THAT WOULD EXCEED A 0 dBm OUTPUT LEVEL.
When the display indicates the value desired you can push the Menu/Execute switch to the next item
OR you can scroll to “R”, push the Menu/Execute switch to get to:
SAVE SETTINGS? Y N
Selecting Ywill save the new settings. Selecting Nwill revert to the previous settings.
Pushing the Menu/Execute switch then takes you to the :
U F=1725 G=+10.0
D F=2675 G=+25.0
Figure 2.4 shows all the menu items and how to make changes.
2017-1727-140 Manual, Rev. 0 Page 15 02/14/18

2.5.5.2 Downconverter Gain
To set the downconverter gain, first push the Menu/Execute switch to get to the gain setting:
Operate the Menu/Execute switch until you get to the menu item you want to change see Figure 2.4 for
the sequence of menu options.
The following display is for changing the downconverter gain. This is an important setting to optimize
spurious and should be made as accurately as possible to provide an output in the -20 to 0 dBm level
range:
DN G = +15.0 R
Pressing the Up/Down switch to change the level in 1 or 10 dB steps. By using the horizontal rocker
switch the cursor can be moved left or right. Pressing the Up/Down switch down will toggle the display
digit selected until you have the desired gain.
NOTE: THE GAIN WILL BE CHANGED AS YOU ADJUST THE NUMBERS. HOWEVER, THE
VALUE WILL NOT BE STORED UNTIL YOU INDICATE YES IN THE SAVE SETTINGS
WINDOW.
When the display indicates the value desired you can push the Menu/Execute switch to the next item
OR you can scroll to “R”, push the Menu/Execute switch to get to:
SAVE SETTINGS? Y N
Selecting Ywill save the new settings. Selecting Nwill revert to the previous settings.
Pushing the Menu/Execute switch then takes you to the :
U F=1725 G=+10.0
D F=2675 G=+25.0
Figure 2.4 shows all the menu items and how to make changes.
2.5.5 Alarm Indications
An alarm condition for will occur if any local oscillator phase lock loop (PLL) comes out of lock.
2017-1727-140 Manual, Rev. 0 Page 16 02/14/18

ON POWER UP
NORMAL DISPLAY
PUSHING MENU/EXECUTE SEQUENCE
REV 1.00
U F=2475 G=+10.0
D F=1650 G=+25.0
UP F=1450
SCROLL <>
SCROLL
PUSH BUTTON
REMOTE OFF
EXT REF OFF
UP MUTE OFF
SCROLL <>
SCROLL
PUSH BUTTON
SCROLL <>
SCROLL
PUSH BUTTON
SCROLL <>
SCROLL
PUSH BUTTON
PUSH BUTTON
Power Up
Normal Display
Menu 1 Up Frequency
Menu 2 Up Input Level
(Set from -40 to -10)
Menu 3 Up Gain (+30 to -10)
Menu 4 Down Frequency
Menu 5 Down Gain (set +50 to 0 for
-20 to -10 dBm out level)
Menu 6 Up Mute
Menu7 Set Unit to Remote
Operation
Menu 8 Set Downconverter
Spectrum Sense
Menu 9 Select 10 MHz Reference
INT, EXT, or AUTO (option E)
Menu 10 Set Remote Mode
(option Q)
Menu 11 Set RS-485 Address
(option Q)
Menu 12 View PCB Temperature
(option T)
Save? When “R” is selected in any
above menu or after last menu item
DN F=2675
DN G=+25.0
SCROLL <>
SCROLL
PUSH BUTTON
SCROLL <>
SCROLL
PUSH BUTTON
UP INLVL=-20
UP G=+10.0
SCROLL <>
SCROLL
PUSH BUTTON
DNSPECTRUM NON
SCROLL <>
SCROLL
PUSH BUTTON
PUSH BUTTON
SAVE SETTINGS? Y N
R
R
R
R
R
R
R
R
R
SCROLL <>
SCROLL
PUSH BUTTON
SCROLL <>
SCROLL
PUSH BUTTON
RS 485 OFF
SCROLL <>
SCROLL
PUSH BUTTON
R
ADDRESS=00
SCROLL <>
SCROLL
PUSH BUTTON
R
TEMP=35 DEG R
SCROLL <>
SCROLL
PUSH BUTTON
Figure 2.4 Menu Display and Sequence
2017-1727-140 Manual, Rev. 0 Page 17 02/14/18

CROSS TECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
[phone]
FAX [phone]
Toll Free 888-900-5588
WEB www.crosstechnologies.com
E-MAIL [email protected]
Printed in USA
2017-1727-140 Manual, Rev. 0 Page 18 02/14/18
