Cross Technologies 2016-95 User manual

Instruction Manual Model 2016-95
Downconverter
March 2017, Rev. A
MENU
EXECUTE
MODEL 2016
CROSS TECHNOLOGIES INC.
F=750 G=+25.0
REMOTEALARM POWER
DOWNCONVERTER
Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc.,
but may be reproduced or duplicated without the prior permission of Cross Technologies, Inc.
for purposes of operating the equipment.
When ordering parts from Cross Technologies, Inc., be sure to include the equipment
model number, equipment serial number, and a description of the part.
CROSS TECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
[phone]
FAX [phone]
Toll Free 888-900-5588
WEB www.crosstechnologies.com
E-MAIL [email protected]

INSTRUCTION MANUAL
MODEL 2016-95 Downconverter
TABLE OF CONTENTS PAGE
Warranty 2
1.0 General 3
1.1 Equipment Description 3
1.2 Technical Characteristics 4
1.3 Monitor & Control Interface 5
2.0 Installation 8
2.1 Mechanical 8
2.2 Rear I/O’s 9
2.3 Front Panel Controls, Indicators 10
2.4 Operation 11
2.5 Menu Settings 12
3.0 Environmental Use Information 17
WARRANTY - The following warranty applies to all Cross Technologies, Inc. products.
All Cross Technologies, Inc. products are warranted against defective materials and
workmanship for a period of one year after shipment to customer. Cross Technologies,
Inc.’s obligation under this warranty is limited to repairing or, at Cross Technologies, Inc.’s
option, replacing parts, subassemblies, or entire assemblies. Cross Technologies, Inc. shall
not be liable for any special, indirect, or consequential damages. This warranty does not
cover parts or equipment which have been subject to misuse, negligence, or accident by the
customer during use. All shipping costs for warranty repairs will be prepaid by the
customer. There are not other warranties, express or implied, except as stated herein.
CROSS TECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
[phone]
FAX [phone]
Toll Free 888-900-5588
WEB www.crosstechnologies.com
E-MAIL [email protected]
2016-95 Manual, Rev. A Page 2 03/07/17

MODEL 2016-95 Downconverter
1.0 General
1.1 Equipment Description
The 2016-95 Downconverter converts 250 to 950 MHz to 70 ± 18 MHz in 1 MHz steps with low group delay
and flat frequency response. Synthesized local oscillators (LO) provide frequency selection. Multi-function
push button switches select the input frequency, gain, and other parameters. Front panel LEDs provide
indication of DC power, PLL alarm or Remote operation. Gain is adjustable manually (MGC) over a 0 to 50 dB
range. The frequency and gain are remotely selectable. Parameter selection and frequency and gain settings
appear on the LCD display. Connectors are Type F female for the RF, and BNC female for the IF and optional
external 10 MHz reference input and output (option E). Other connector options are available. The 2016-95 is
powered by a 100-240 ±10%VAC power supply, and is contained in a 1 3/4” X 19” X 16” rack mount chassis.
MENU
EXECUTE
MODEL 2016
CROSS TECHNOLOGIES INC.
F=750 G=+25.0
REMOTEALARM POWER
DOWNCONVERTER
FRONT
AC
GND
J3
J10
J2
RF IN 10 MHZ AND
MONITOR EXT REF
CONTROL
J1
IF OUT INPUT
15 23 46
78
9
J18
10 MHZ
EXT REF
OUTPUT
REAR

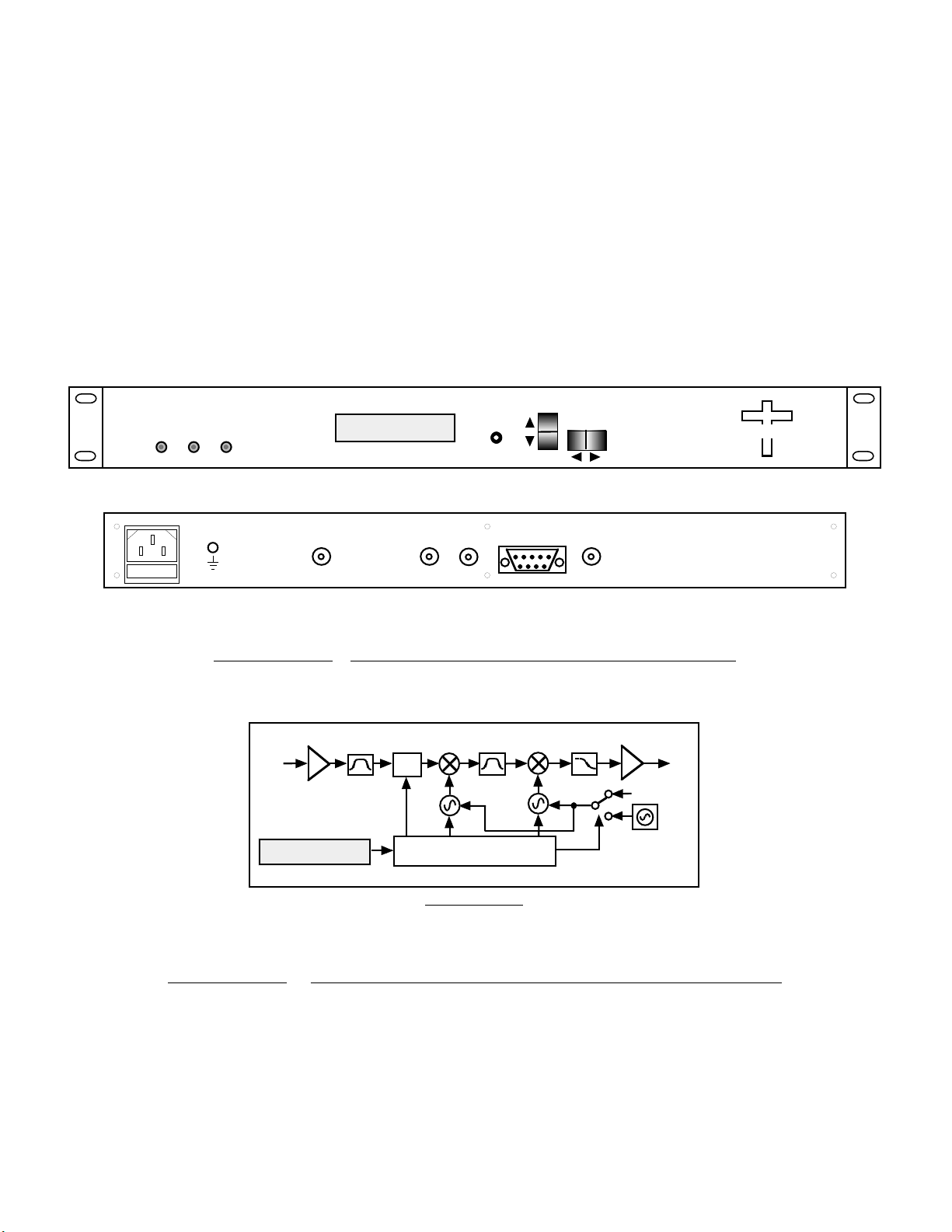

FIGURE 1.1 Model 2016-95 Front and Rear Panels
70
MHz
OUT
0.25
to
0.95
GHz
IN
CONTROLLER
F=775 G=+25.0
var
atten
EXT
10MHz*
*OPTIONAL
INT
10MHz
Block Diagram
FIGURE 1.2 Model 2016-95 Downconverter Block Diagram
2016-95 Manual, Rev. A Page 3 03/07/17

1.2 Technical Characteristics
-70 to -20 dBmInput Level Ran
g
e
Input Characteristics
Out
p
ut Characteristics
Channel Characteristics
Synthesizer Characteristics
> 50 dB
,
min.Ima
g
e Re
j
ection
-20 to -10 dBmOut
p
ut Level Ran
g
e
TABLE 1.0 2016-95 Downconverter S
p
ecifications**
1.0 MHz minimumFre
q
uenc
y
Ste
p
±1.0
pp
m internal reference
(
±.01
pp
m
,
O
p
tion -H
)
Fre
q
uenc
y
Accurac
y
Invertin
g
or Non-invertin
g
(
user selectable
)
Fre
q
uenc
y
Sense 0.02 ns/MHz2
p
arabolic
;
0.06 ns/MHz linear
;
1 ns ri
pp
leGrou
p
Dela
y,
max.
< -50 dBc in bandS
p
urious Res
p
onse
±1.5 dB
,
250 - 950 MHz
;
±0.5 dB
,
36 MHz BW
;
±1.0 dB
,
40 MHz BWFre
q
uenc
y
Res
p
onse
0.0 to +50.0 dBm
,
1 dB ste
p
sGain Ran
g
e
(
ad
j
ustable
)
-5 dBmOut
p
ut 1 dB Com
p
ression
70 ±18 MHzFre
q
uenc
y
75Ω/ 18 dBIm
p
edance/Return Loss
-15 dBmInput 1dB compression
15 dB max.
g
ainNoise Fi
g
ure
,
Max. 250 to 950 MHzFre
q
uenc
y
75Ω/12 dBIn
p
ut Im
p
edance/Return Loss
125 kHz ste
p
sizeX -
Tem
p
erature SensorT -
External 10 MHz reference in
p
ut & out
p
utE -
19 inch
,
1RU standard chassis
,
1.75” hi
g
h x 16.0” dee
p
Size
Controls
,
Indicators
Available O
p
tions
Other
BNC
(
female
),
50Ω/ 75Ω
(
O
p
tion -E
)
IF
,
10 MHz Connectors
3 dBm
,
± 3 dB
,
(
O
p
tion -E
)
10 MHz Level
(
In or Out
)
Ethernet M&C Remote InterfaceW8 -
RS-422/485 Remote InterfaceQ -
See TABLE 2.2Connector O
p
tions
Hi
g
h Stabilit
y
(
± 0.01
pp
m
)
internal referenceH -
100-240 ±10% VAC
,
47- 63 Hz
,
45 watts maximumPower
RS232C
,
9600 Baud
;
(
RS485
,
O
p
tion -Q
)
Remote
Direct readout LCD
;
manual or remote selectionFre
q
uenc
y
/Gain Selection
**+10˚C to +40˚C; S
p
ecifications sub
j
ect to chan
g
e without notice Cross Technolo
g
ies
,
Inc.
,
2017
DB9 -
(
female
)
NO or NC contact closure on AlarmAlarm/Remote Connector
T
yp
e F
,
75Ω
(
female
),
BNC
,
75Ω
(
female
)
RF
,
IF Connectors
Green LED
;
Red LED
,
Yellow LEDPower
,
Alarm
,
Remote
2016-95 Manual, Rev. A Page 4 03/07/17

1.3 Monitor and Control Interface
A) Remote serial interface
Protocol: RS-232C, 9600 baud rate, no parity, 8 data bits, 1 start bit, and 1 stop bit.
(RS-232C, RS-422, or RS-485 - option -Q)
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
Female DB-9
PC Com Port Male DB-9
2015/16/17 M&CPort

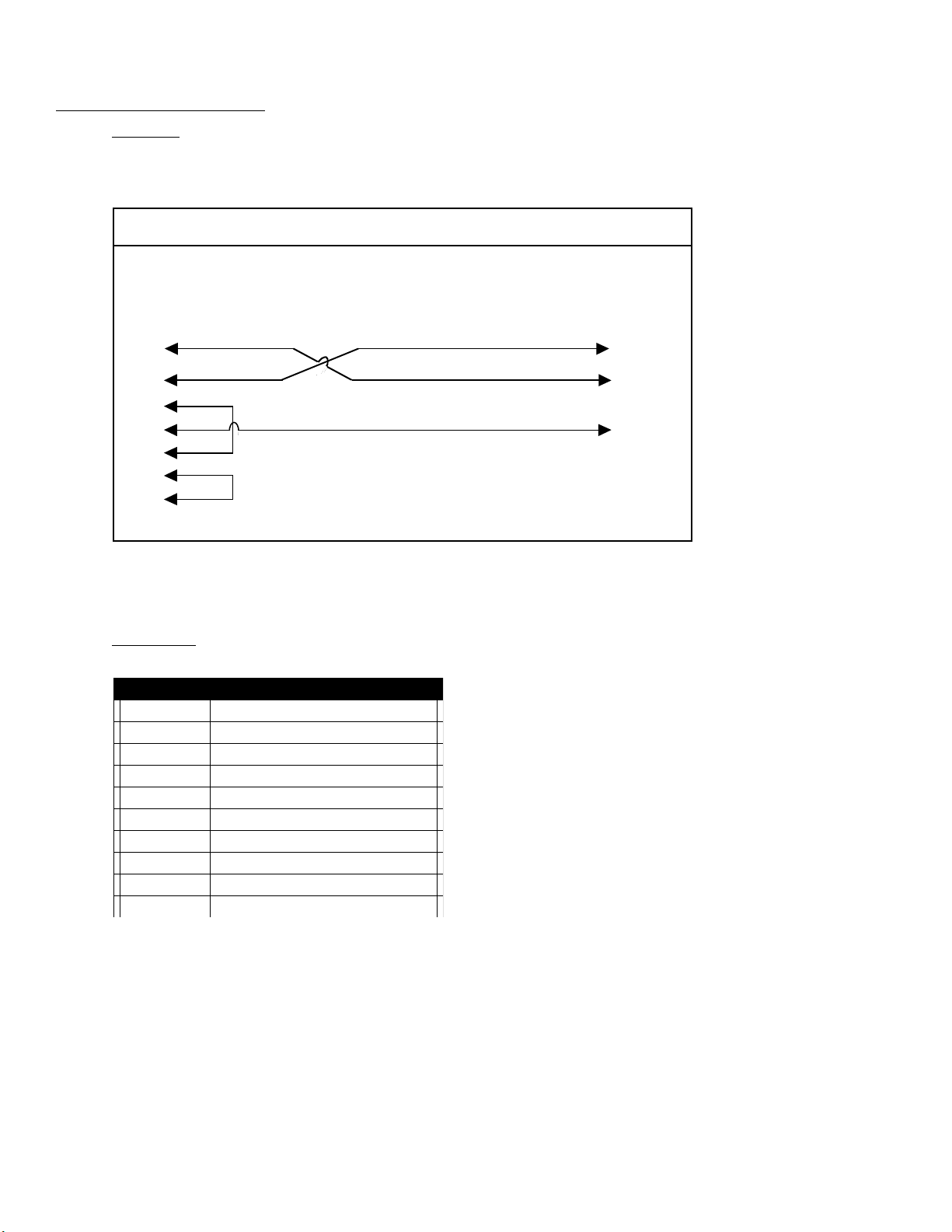

M&C Cable Diagram - Cross Technologies Frequency Converters
RX RX
TX TX
DTR
SG
DSR
RTS
CTS
SG
Connector: Rear panel, DB-9 male
J10 Pinouts
(RS-232C/422/485)
Pinouts (RS-232C/422/485)
Pin Function
1 Rx-
2 Rx+ (RS-232C)
3 Tx+ (RS-232C)
4Tx-
5GND
6 Alarm Relay: Common
7 Alarm Relay: Normally Open
8 Not Used
9 Alarm Relay: Normally Closed
2016-95 Manual, Rev. A Page 5 03/07/17

B) Status Requests -
Table 1.2 lists the status requests for the 2016-95 and briefly describes them.
*PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below,
should be used ONLY when RS-485, (OPTION-Q), is selected.
TABLE 1.2 2016-95 Status Reqquests
Requests
Command Syntax* Description
Command Status {aaS1} Returns {S1bbbbcccIA} where:
• bbbb = Rx frequency
• cc = Rx gain
• I = 1 - spectrum invert enabled
• A = summary alarm; 1=alarmed, 0=normal
10MHz Ref Status {aaS2} Returns {S2E} where:
(option -E only)
• E = 1 - external 10 MHz switched in
2016-95 Manual, Rev. A Page 6 03/07/17

C) Commands - Table 1.1 lists the commands for the 2016-95 and briefly describes them. After a
command is sent the 2016-95 sends a return “>” indicating the command has been received and executed.
General Command Format - The general command format is {aaCND...}, where:
{ = start byte
aa = address (RS-485 only - option -Q)
C = 1 character, either C (command) or S (status)
N = 1 character command or status request
D = 1 character or more of data (depends on command)
} = stop byte
*PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below,
should be used ONLY when RS-485, (OPTION-Q), is selected.
Table 1.1 2016-95 Commands
Commands
Command Syntax* Description
Set Receiver Frequency {aaC2xxxx} where:
• xxxx = 4 characters
• Range: 0250 to 0950 MHz, in 1 MHz steps
Set Receiver Gain {aaC4xx} where:
• xx = 2 characters
• Range: 00 to 50 (0 dB to +50 dB, in 1 dB steps)
Enable Spectrum Invert {aaC7x} where x =:
• 0 to disable spectrum invert
• 1 to enable spectrum invert
Enable External 10MHz IN {aaCEx} where x =:
(option -E only)
• 0 to disable External 10MHz ref signal
• 1 to enable External 10MHz ref signal
Enable Remote # Just # sign
Disable Remote {aaCR0} {CR and zero}
2016-95 Manual, Rev. A Page 7 03/07/17

2.0 Installation
2.1 Mechanical - The 2016-95 consists of one RF/Controller PCB housed in a 1 RU (1 3/4 inch high) by 16
inch deep chassis. A switching, ±12, +24, +5 VDC power supply provides power for the assemblies. The 2016-
95 can be secured to a rack using the 4 holes on the front panel. Figure 2.1 shows how the 2016-95 is
assembled.
POWER
SUPPLY
FIGURE 2.1 2016-95 Mechanical Assembly
2016-95 Manual, Rev. A Page 8 03/07/17

2.2 Rear Panel Input/Output Signals - Figure 2.2 shows the input and output connectors on the rear panel.
AC1 - POWER IN
AC input for switching
power supply.
100-240 ±10% VAC,
47-63 Hz.
J2 - RF IN
250 to 950 MHz input,
-70 to -20 dBm.
see TABLE 2.2.
J1 - IF OUT
70 ±18 MHz output,
-20 to -10 dBm.
see TABLE 2.2.
J10 - MONITOR AND CONTROL
DB9 female connector.
AC
GND
J18J2
RF IN IF OUT
J10
AND
MONITOR
CONTROL
5 4 3 2
1
9 8 7 6
J3
J3 - 10MHz REF INPUT (option -E)
10 MHz external reference input,
BNC female connector.
10 MHz
EXT REF
INPUT
10 MHz
EXT REF
OUTPUT
J18- 10MHz REF OUTPUT (option -E)
10 MHz external reference Output,
BNC female connector.
J1

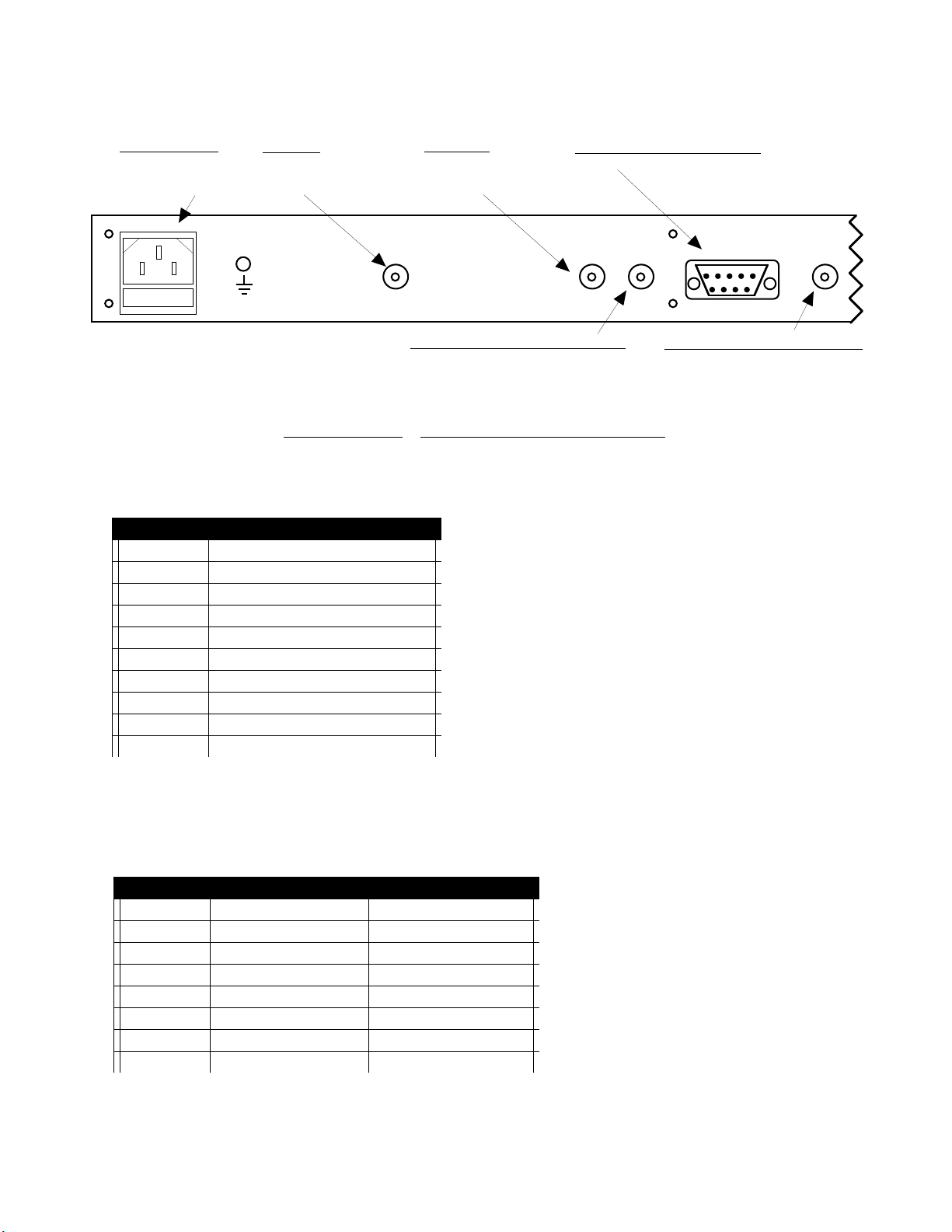

FIGURE 2.2 2016-95 Rear Panel I/Os
TABLE 2.1 J110
2.1 J10 Pinouts (RS-232C*)
Pin Function
1 Not Used
2 Rx+ (RS-232C)
3 Tx+ (RS-232C)
4 Not Used
5GND
6 Alarm Relay: Common
7 Alarm Relay: Normally Closed
8 Not Used
9 Alarm Relay: Normally Open
*Remote Serial Interface
Interface: DB-9 Male
Protocol: RS-232C, 9600 baud rate, no parity, 8 data bits, 1 start bit, 1 stop bit
TABLE 2.2 IFF/RF
2.2 IF/RF Connector Options
Options
Option IF RF
STD BNC, 75ΩF-Type, 75Ω
-B BNC, 75ΩBNC, 75Ω
-C BNC, 75ΩBNC, 50Ω
-D BNC, 50ΩBNC, 50Ω
-K BNC, 50ΩBNC, 75Ω
-M BNC, 50ΩType N, 50Ω
-N BNC, 75ΩType N, 50Ω
2016-95 Manual, Rev. A Page 9 03/07/17

2.3 Front Panel Controls and Indicators - The following are the front panel controls and indicators.
MENU
EXECUTE
REMOTEALARM POWER
LCD DISPLAY
Display shows Downconverter
frequency in MHz and Gain in dB
S1 - MENU/EXECUTE BUTTON
Press this to get into Program mode
and to execute any changes.
DS3 - DOWN ALARM LED
Red LED indicates
downconverter alarm.
DS6 - POWER LED
Green LED indicates
presence of DC power.
DS1 - REMOTE LED
Yellow LED indicates
remote operation.
S2 - VERT. TOGGLE
Vertical toggle switch that controls
values in the Menu items when in
program mode. Does not function in the
normal display mode
S3 - HORIZ. TOGGLE
Horizontal toggle switch that
controls which values are being
adjusted. Does not function in the
normal display mode
F=775 G=+25.0

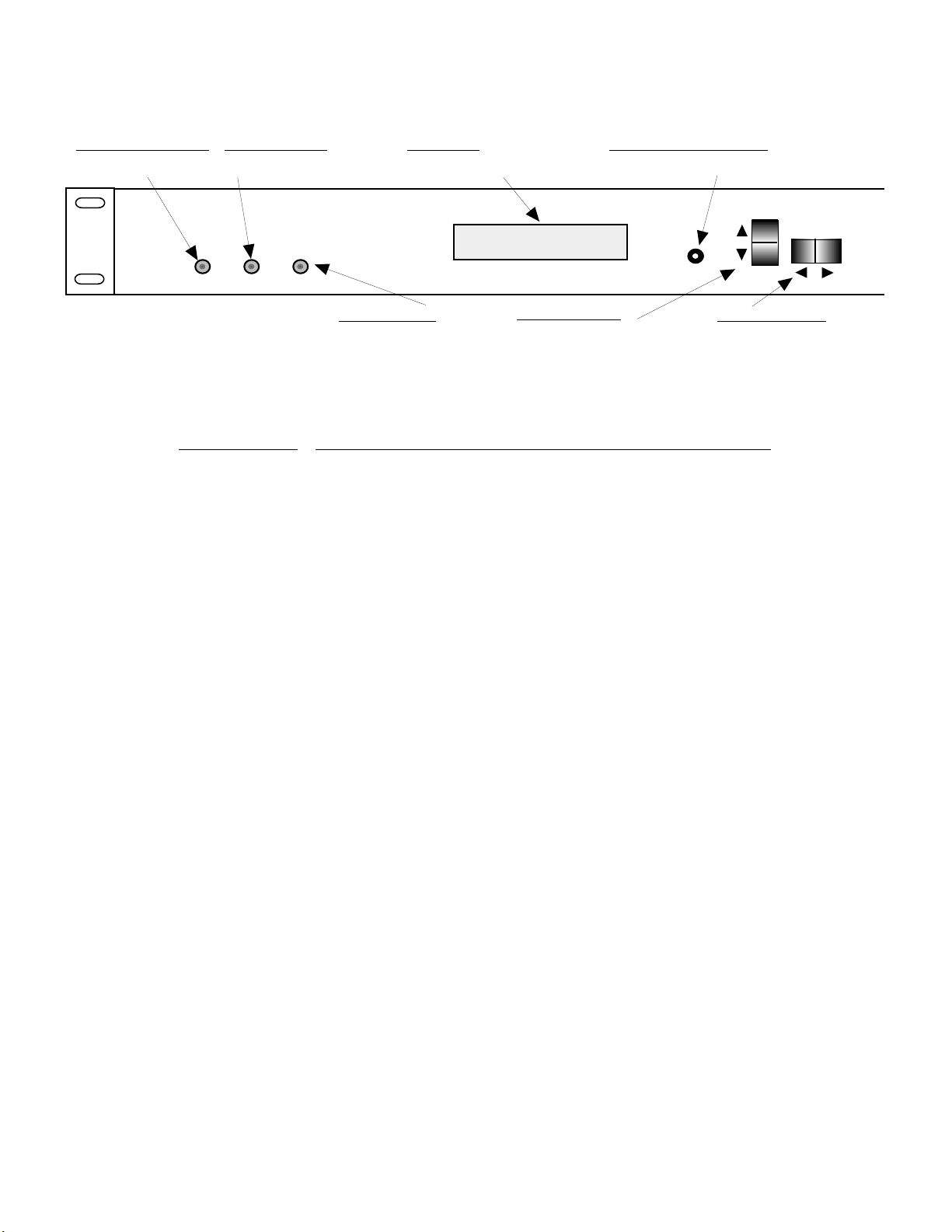

FIGURE 2.3 2016-95 Front Panel Controls and Indicators
2016-95 Manual, Rev. A Page 10 03/07/17

2.4 Operation
2.4.1 Installing and Operating the 2016-95 Downconverter
1. Connect a -70 dBm to -20 dBm signal to RF IN, J2 (Figure 2.2)
2. Connect the IF OUT, J1, to the external equipment
3. Connect 100-240 ±10% VAC, 47 - 63 Hz to AC on the back panel.
4. Set the input frequency (See Section 2.5 Menu Settings).
5. Set the gain for 0.0 to +50.0 dB (See Section 2.5 Menu Settings).
6. Be sure DS6 (green, DC Power) is on and DS3 (red, Alarm) is off (Figure 2.3).

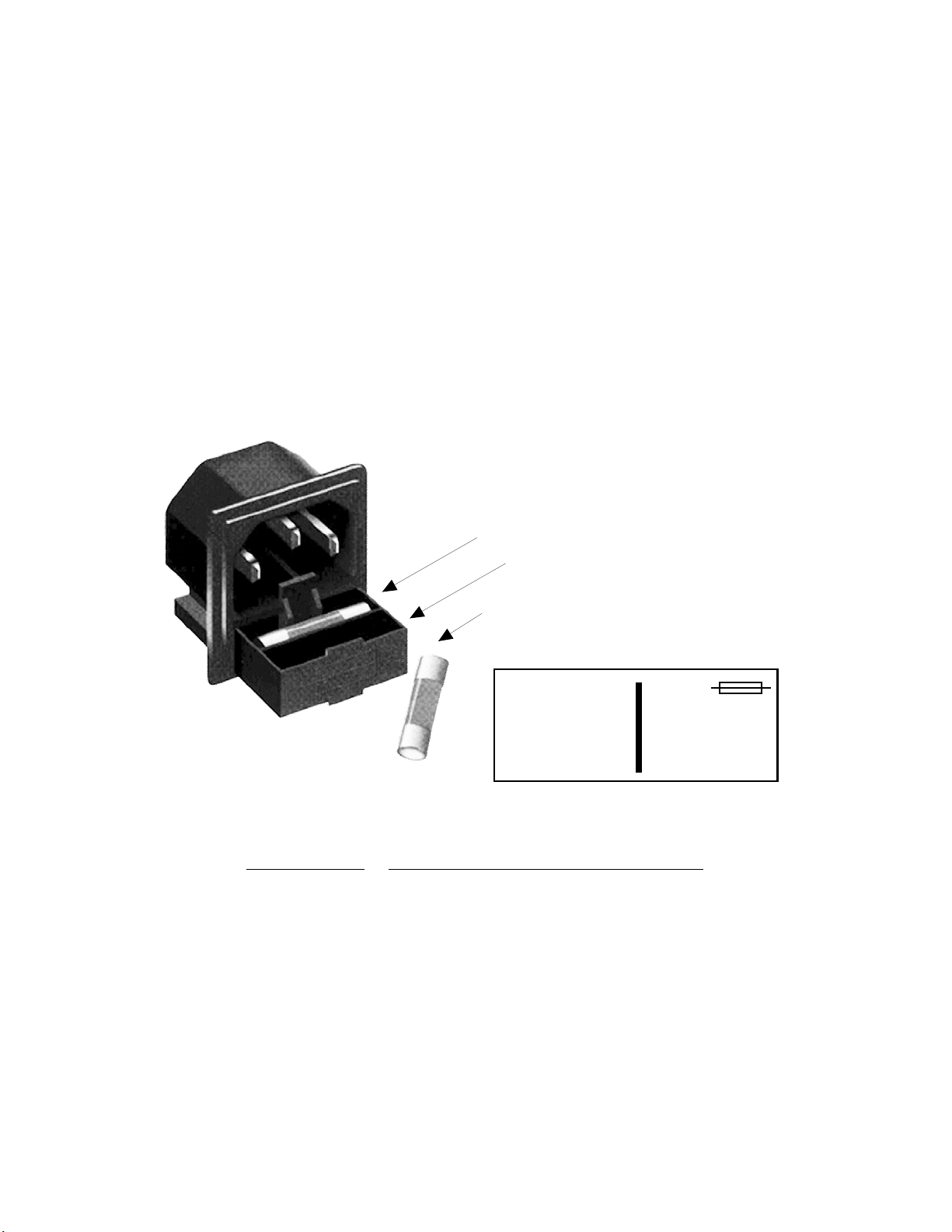

7. AC Fuse - The fuse is a 5 mm X 20 mm, 2 amp slow blow (Type T) and is inserted in the far slot in
the drawer below the AC input as shown in Figure 2.4. There is a spare fuse in the near slot.
If a fuse continues to open, the power supply is most likely defective.
AC Fuse - 2 amp slow blow (Type T),
5 mm X 20 mm
FUSE DRAWER
SPARE FUSE
~
INPUT
100-240± 10%VAC
47-63 Hz
2A MAX
FUSE
TYPE T 2A GDC
250 VOLT
FOR 100 - 240 V~
~
FIGURE 2.4 Fuse Location and Spare Fuse
2016-95 Manual, Rev. A Page 11 03/07/17

2.5 Menu Settings
2.5.1 Functions - This section describes operation of the front panel controls. There are three operator
switches, the LCD display and alarm indicator LEDs. All functions for the equipment are controlled by these
components. The functions are (see Figure 2.5):
Power Up
Normal Display
Menu 1 Frequency in MHz
Menu 2 Gain (0 to +50, 1dB steps)
Menu 3 Set Unit to Remote Operation
Menu 4 Select Non-inverting or Inverting Spectrum
Menu 5 Select External 10 MHz Ref (option -E)
Menu 6 Set Remote mode (option -Q)
Menu 7 Set RS-485 address (option -Q)
Save Menu When go to end
Alarm indications appear on the LEDs (See figure 2.3).
All program changes must start with the operation of the Menu/Execute switch and must also end with the
operation of the Menu/Execute switch verified by the “Save Settings?” Menu. If this sequence is not
followed, none of the changes will take effect. If programming is initiated and no operator action takes place for
approximately 12 seconds (before the final press of the Menu/Execute switch) the display will revert to its
previous status and you will need to start over.
2016-95 Manual, Rev. A Page 12 03/07/17

2.5.2 Power On Settings
NOTE: THE LAST STATUS OF A UNIT IS RETAINED EVEN WHEN POWER IS REMOVED.
WHEN POWER IS RESTORED, THE UNIT WILL RETURN TO IT'S PREVIOUS SETTINGS.
When power is first applied, the LCD display goes through three steps.
1.The LCD goes black to show all segments are functioning.
2.The software version will be displayed.
R E V 1 . 0 0
3.The present frequency and gain of the downconverter is shown.
F=750 G=+25.0
The unit is now operational and ready for any changes the operator may desire.
2.5.3 Control Switches
1. Menu/Execute - Any change to the programming of the unit must be initiated by pressing the
Menu/Execute switch and completed by pressing the Menu/Execute switch.
2. Horizontal Switch - This switch is mounted so its movement is horizontal and moves the cursor
left or right.
3. Vertical Switch - This switch is mounted so its movement is vertical and has two functions:
a. During frequency , gain changes, the vertical movement will raise or lower the number
in the direction of the arrows.
b. For other functions such Mute on/off, the vertical switch will alternately turn the function
on or off regardless of the direction operated.
2016-95 Manual, Rev. A Page 13 03/07/17

2.5.4 Frequency Changes
At any time during the modification process, if you have made a mistake and do not wish to save the changes
you have made, do not press the Menu/Execute switch; simply do nothing for approximately 12 seconds,
and the system will return to the normal operating mode or scroll to “R” and push the menu/Execute switch and
select “NO” in the “SAVE SETTINGS?” window.
To change the FREQUENCY:
Operate the Menu/Execute switch until you get to the menu item you want to change, see Figure 2.5 for
the sequence of menu options. The following display is for changing the downconverter frequency:
F= 775
R
Pressing the Up/Down switch down will toggle the display to:
F=875
R
By using the horizontal rocker switch the cursor can be moved left or right .
F=875
R
NOTE: CHANGES DO NOT TAKE PLACE ON FREQUENCY UNTIL YOU GO TO THE SAVE
MENU AND INDICATE YOU WANT TO SAVE THE CHANGES.THE CARRIER IS MUTED WHEN
FREQUENCY IS CHANGED.
When the display indicates the value desired you can push the Menu/Execute switch to get to the next
item:
G=+25.0
R
OR you can scroll to “R”, push the Menu/Execute switch to get to:
SAVESETTINGS? YN
Selecting Ywill save the new settings. Selecting Nwill revert to the previous settings.
Pushing the Menu/Execute switch then takes you to this:
F=750 G=+25.0
Figure 2.5 gives the menu items and how to make changes.
2016-95 Manual, Rev. A Page 14 03/07/17

2.5.5 Gain Changes
When you get to this menu note that the gain changes will be made as you make them but if you do not wish to
save the changes you have made, scroll to “R” and push the Menu/Execute switch and select “NO” in the
“SAVE SETTINGS?” window or do not press the Menu/Execute switch; simply do nothing for
approximately 12 seconds, and the system will return to the normal operating mode.
To change the DOWNCONVERTER GAIN:
Push the Menu/Execute switch to get to the gain setting (See Figure 2.5 for the sequence
of menu options):
G=+25.0
R
Pressing the Up/Down switch will change the gain in 1 or 10 dB steps depending on the cursor location:
G=+35.0
R
By using the horizontal rocker switch the cursor can be moved left or right. Pressing the Up/Down
switch will toggle the display digit selected until you have the desired gain.
G=+35.0
R
NOTE: THE GAIN WILL BE CHANGED AS YOU ADJUST THE NUMBERS. HOWEVER, THE
VALUE WILL NOT BE STORED UNTIL YOU INDICATE YES IN THE SAVE SETTINGS
WINDOW.
SAVESETTINGS? YN
Selecting Ywill save the new settings. Selecting Nwill revert to the previous settings.
Pushing the Menu/Execute switch then takes you to this:
F=750 G=+25.0
Figure 2.5 gives the menu items and how to make changes.
2016-95 Manual, Rev. A Page 15 03/07/17

2.5.5 Alarm Indications
An alarm condition for will occur if any local oscillator phase lock loop (PLL) comes out of lock. The Mute
LED will light if you select Mute and the Remote LED will light when you select the Remote mode.
ON POWER UP
NORMAL DISPLAY
PUSHING MENU/EXECUTE SEQUENCE
REV 1.00
F = 775 G = +25.0
F = 775
SCROLL <>
SCROLL
PUSH BUTTON
REMOTE OFF
DNSPECTRUM NON
SCROLL <>
SCROLL
PUSH BUTTON
PUSH BUTTON
Power Up
Normal Display
Menu 1 Frequency
Menu 2 Gain (00.0 to +50.0)
Menu 3 Set Unit to Remote
Operation
Menu 4 Select Non-inverting or
Inverting Spectrum
Menu 5 Select External 10 MHz
Reference (Option -E)
Menu 6 Set Remote Mode
(Option -Q)
Menu 7 Set RS-485 Address
(Option -Q)
Save? When “R” is selected or
when you get to the end
G = +25.0
SCROLL <>
SCROLL
PUSH BUTTON
SCROLL <>
SCROLL
PUSH BUTTON
SAVE SETTINGS? Y N
SCROLL <>
PUSH BUTTON
R
R
R
R
RS 485 OFF
SCROLL <>
SCROLL
PUSH BUTTON
R
ADDRESS = 00
SCROLL <>
SCROLL
PUSH BUTTON
R
EXT REF OFF
SCROLL <>
SCROLL
PUSH BUTTON
FIGURE 2.5 Menu Display and Sequence
2016-95 Manual, Rev. A Page 16 03/07/17

3.0 Environmental Use Information
A.Rack-Mounting - To mount this equipment in a rack, please refer to the installation instructions
located in the user manual furnished by the manufacturer of your equipment rack.
B. Mechanical loading - Mounting of equipment in a rack should be such that a hazardous condition
does not exist due to uneven weight distribution.
C.Elevated operating ambient temperature - If installed in a closed or multi-unit rack assembly,
the operating ambient temperature of the rack may be greater than room ambient temperature.
Therefore, consideration should be given to Tmra.
D. Reduced air flow - Installation of the equipment in a rack should be such that the amount of air flow
required for safe operation of the equipment is not compromised. Additional space between units
may be required.
E. Circuit Overloading - Consideration should be given to the connection of the equipment to the supply
circuit and the effect that overloading of circuits could have on over current protection and supply wiring.
Appropriate consideration of equipment name plate rating should be used, when addressing this concern.
F. Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained. Particular
attention should be given to supply connections other than direct connection to the Branch
(use of power strips).
G. Top Cover - There are no serviceable parts inside the product so, the Top Cover should not be removed.
If the Top Cover is removed the ground strap and associated screw MUST BE REINSTALLED
prior to Top Cover screw replacement. FAILURE TO DO this may cause INGRESS and/or EGRESS
emission problems.
2016-95 Manual, Rev. A Page 17 03/07/17

CROSS TECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
[phone]
FAX [phone]
Toll Free 888-900-5588
WEB www.crosstechnologies.com
E-MAIL [email protected]
Printed in USA
2016-95 Manual, Rev. A Page 18 03/07/17
